Connector Location Index

PLEASE NOTE: If a link on the Connector Location Index to a view is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

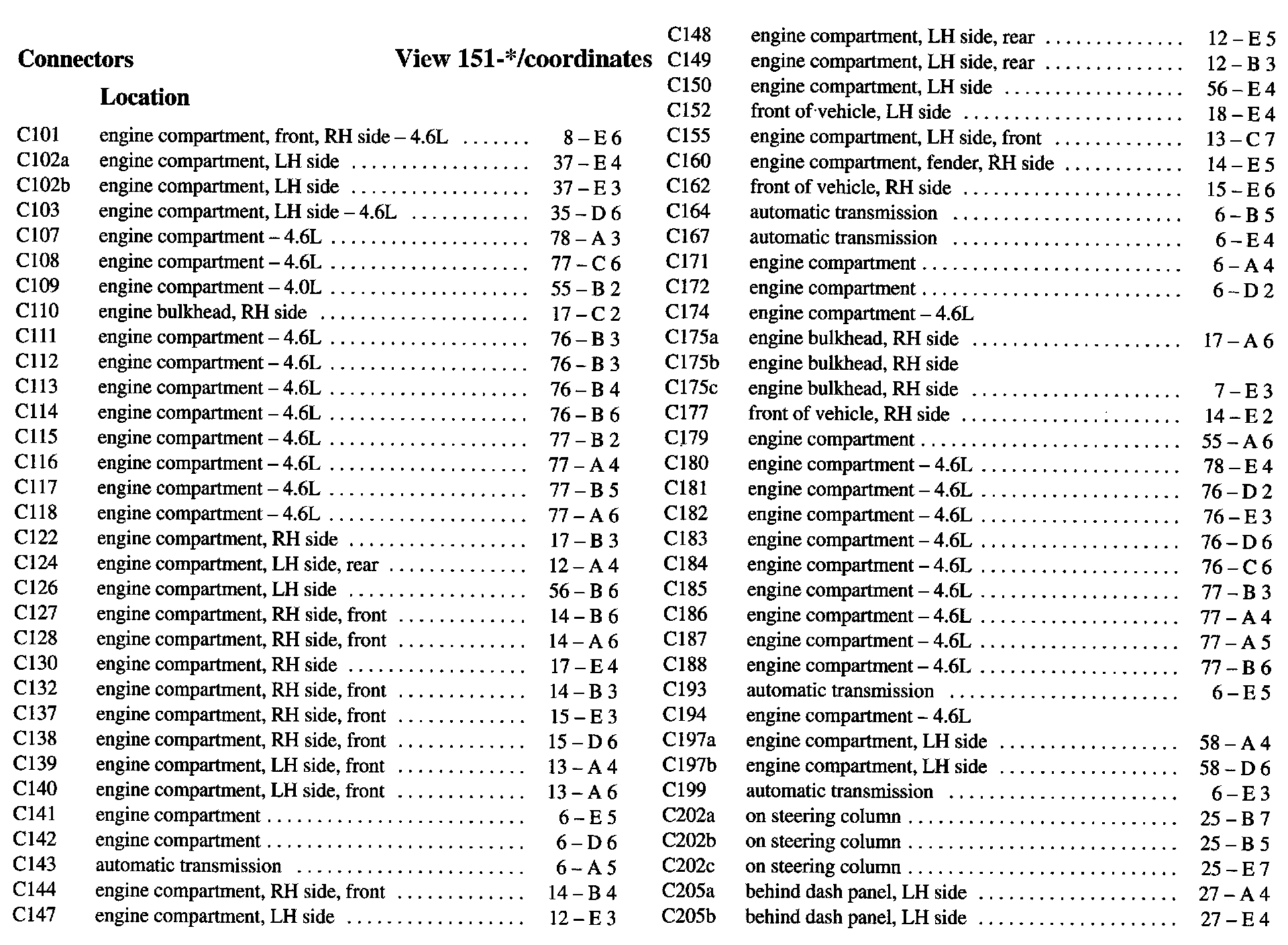

C101 - C205b:

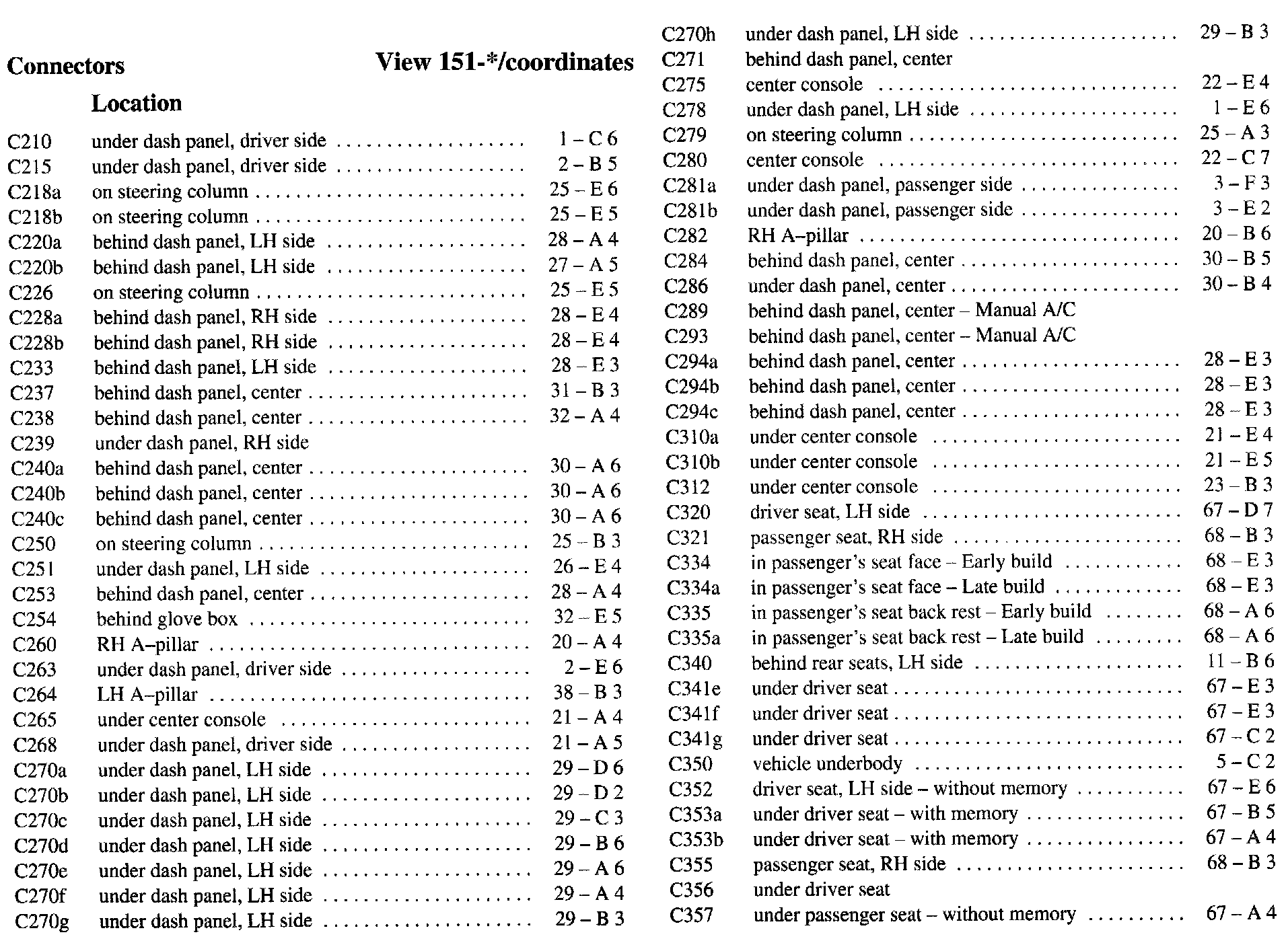

C210 - C357:

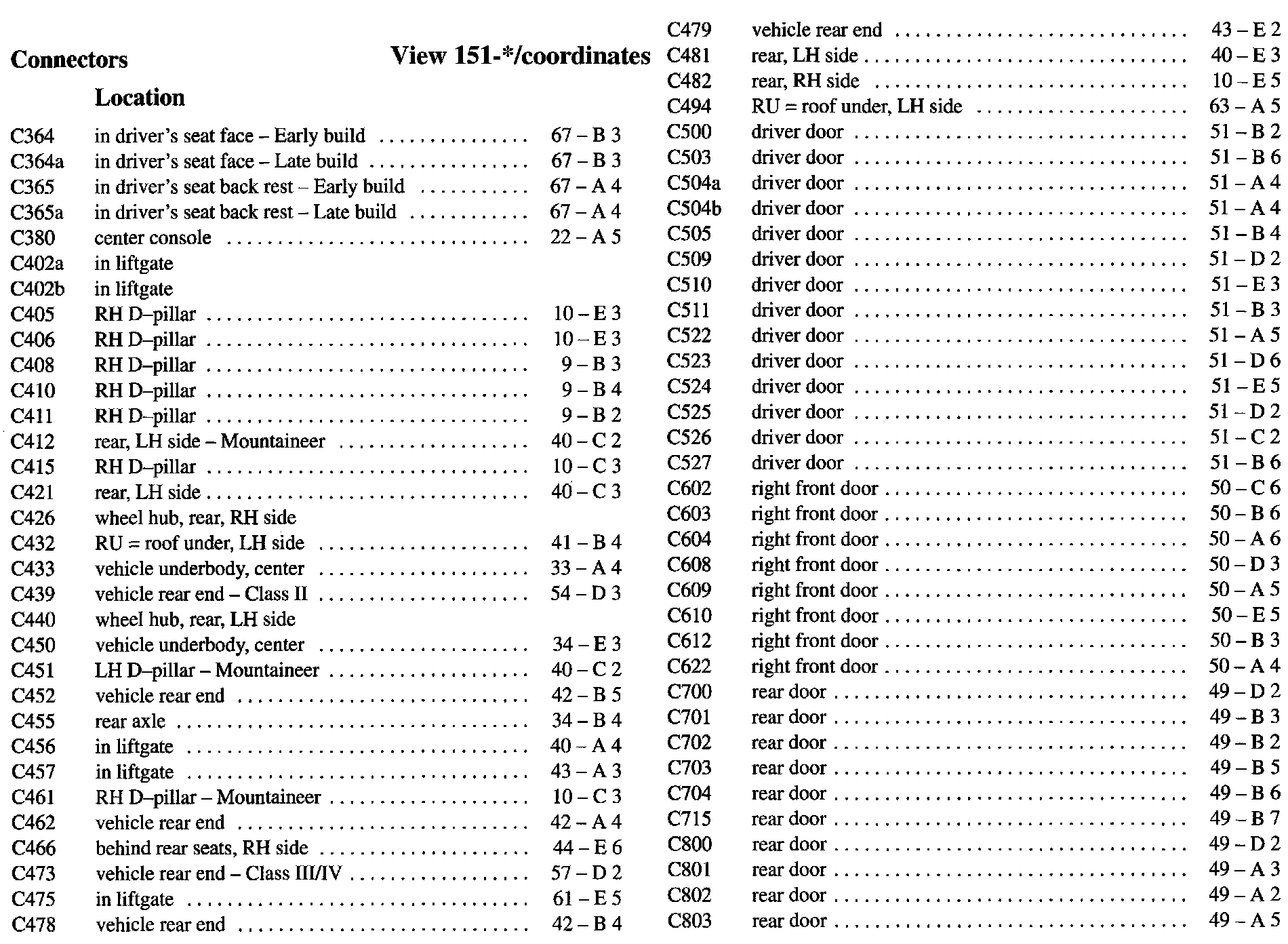

C364 - C803:

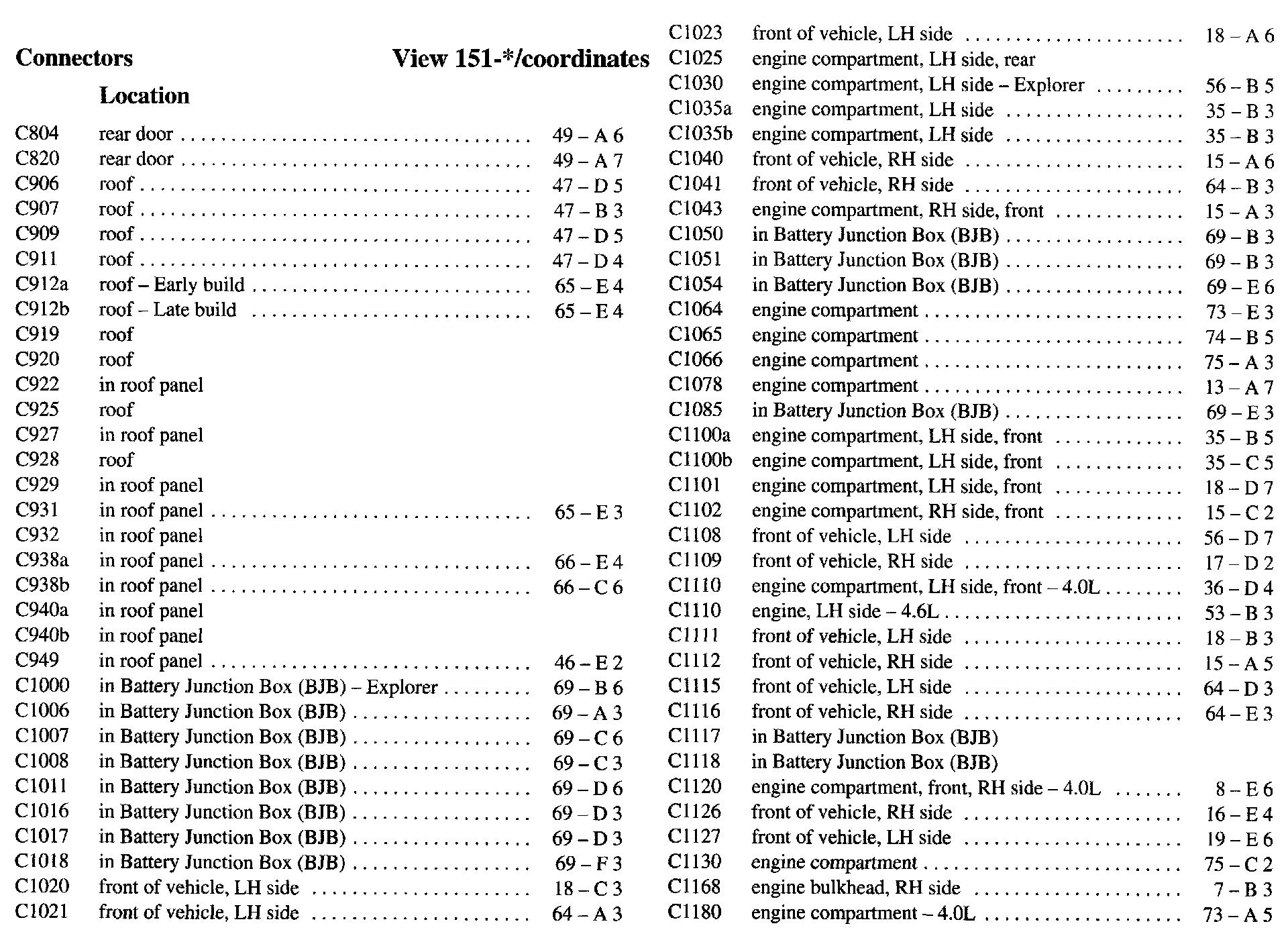

C804 - C1180:

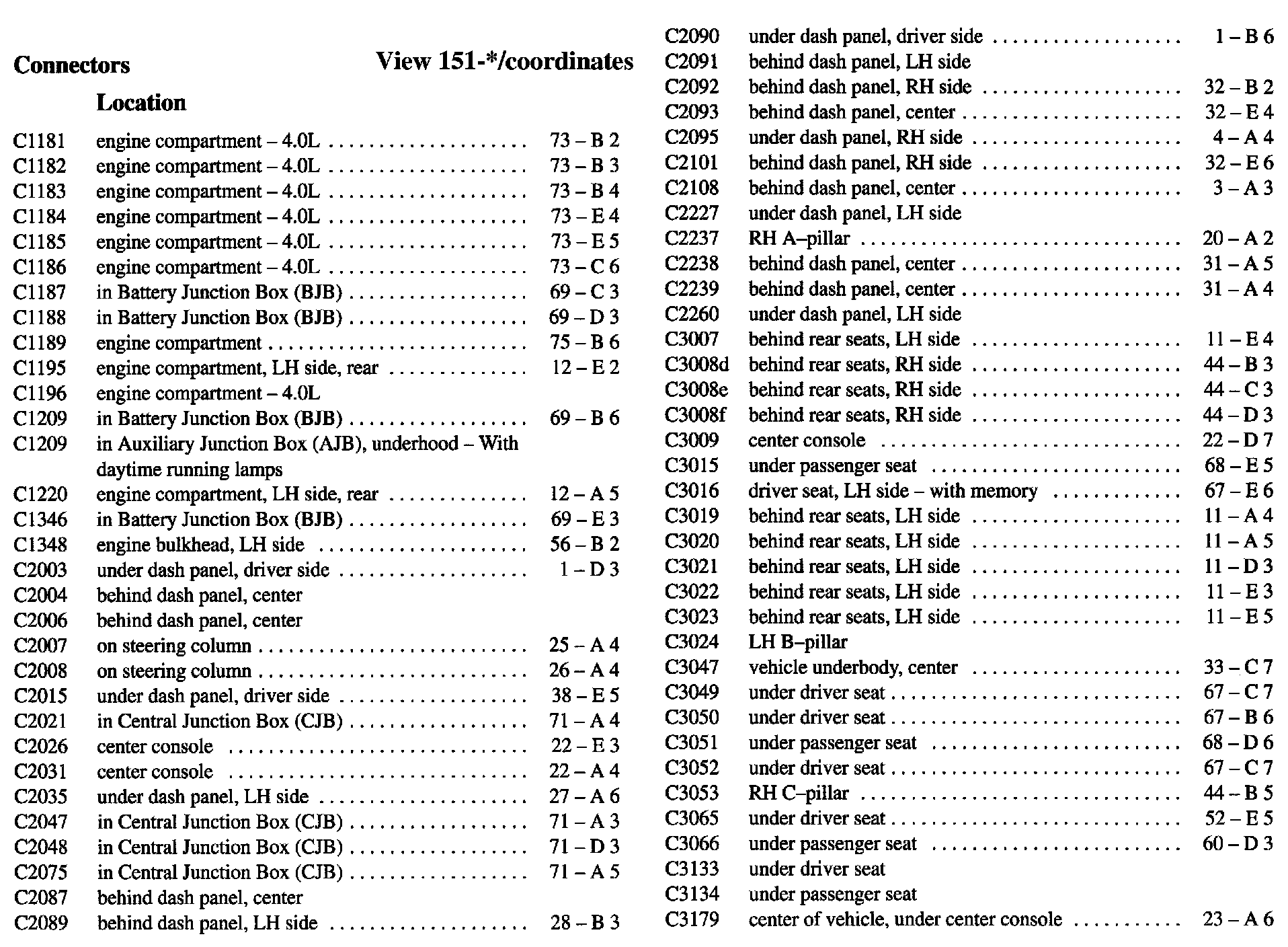

C1181 - C3179:

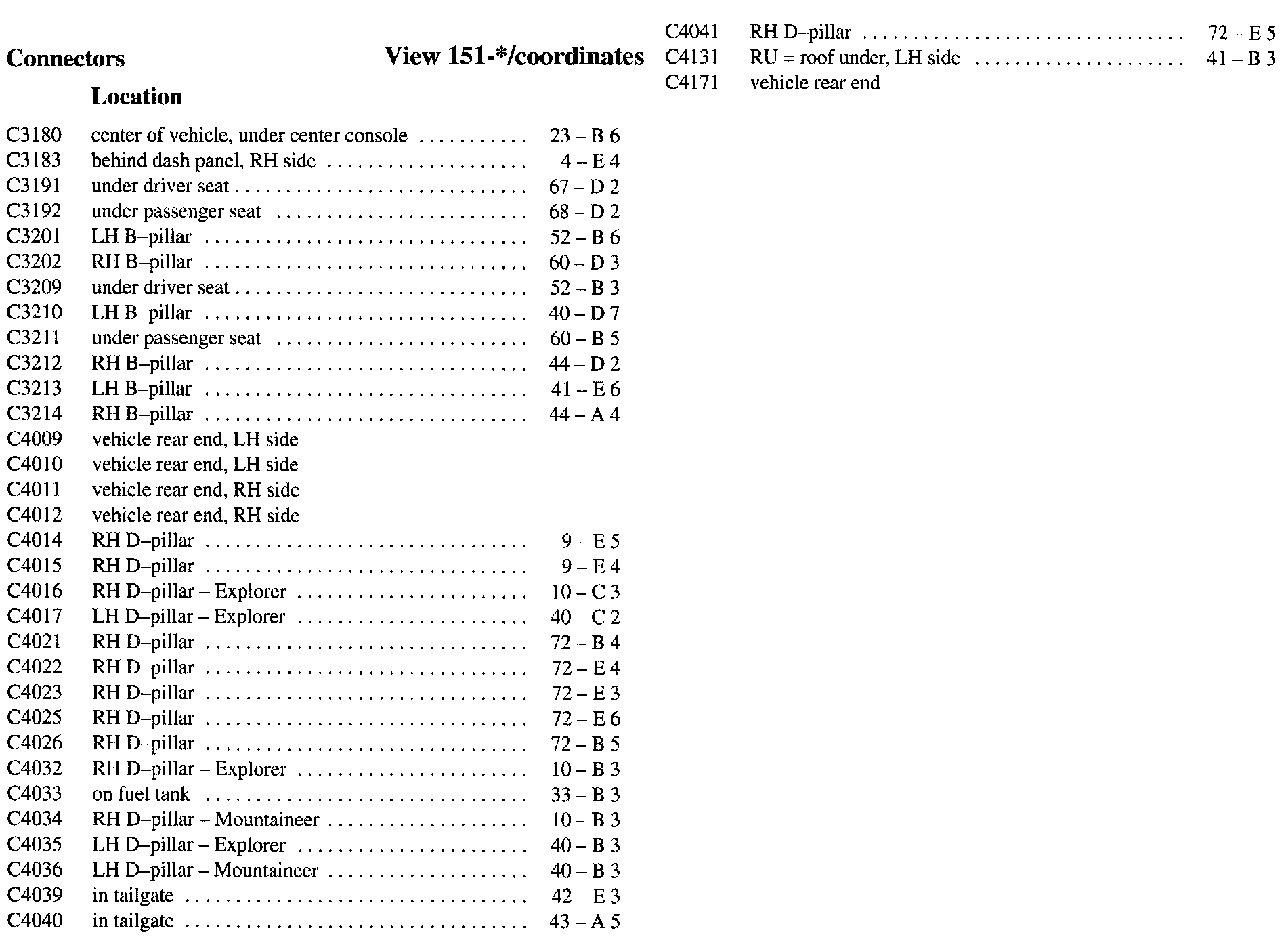

C3180 - C4171:
