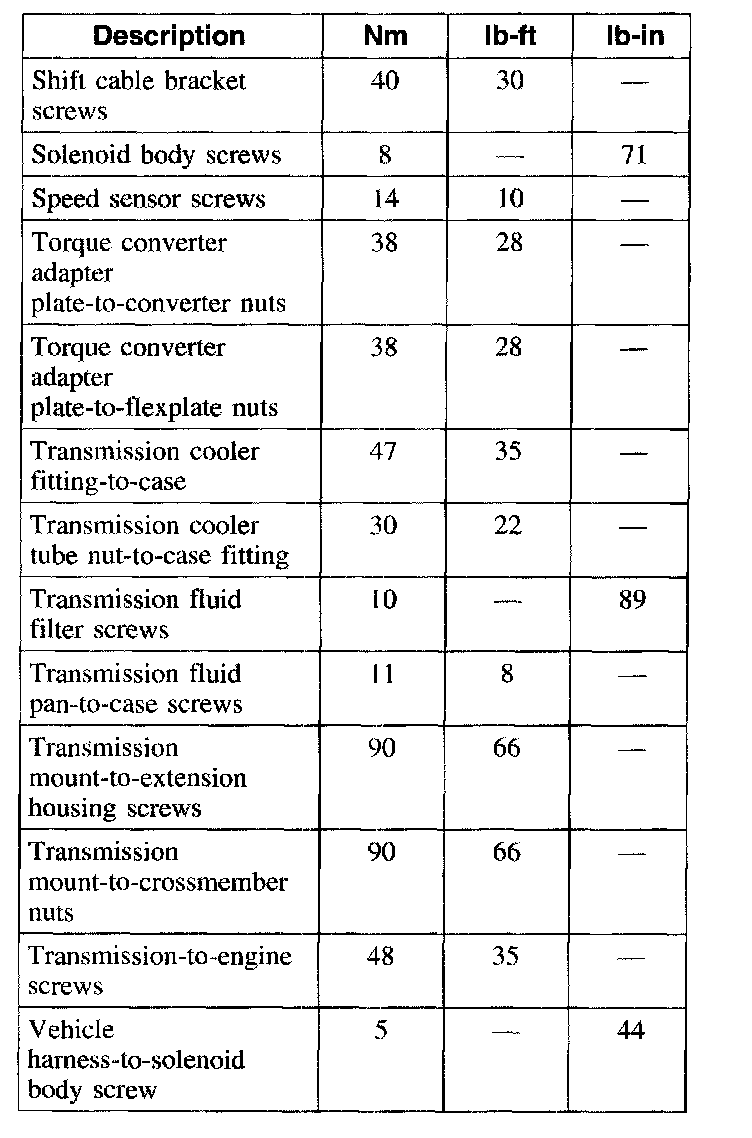

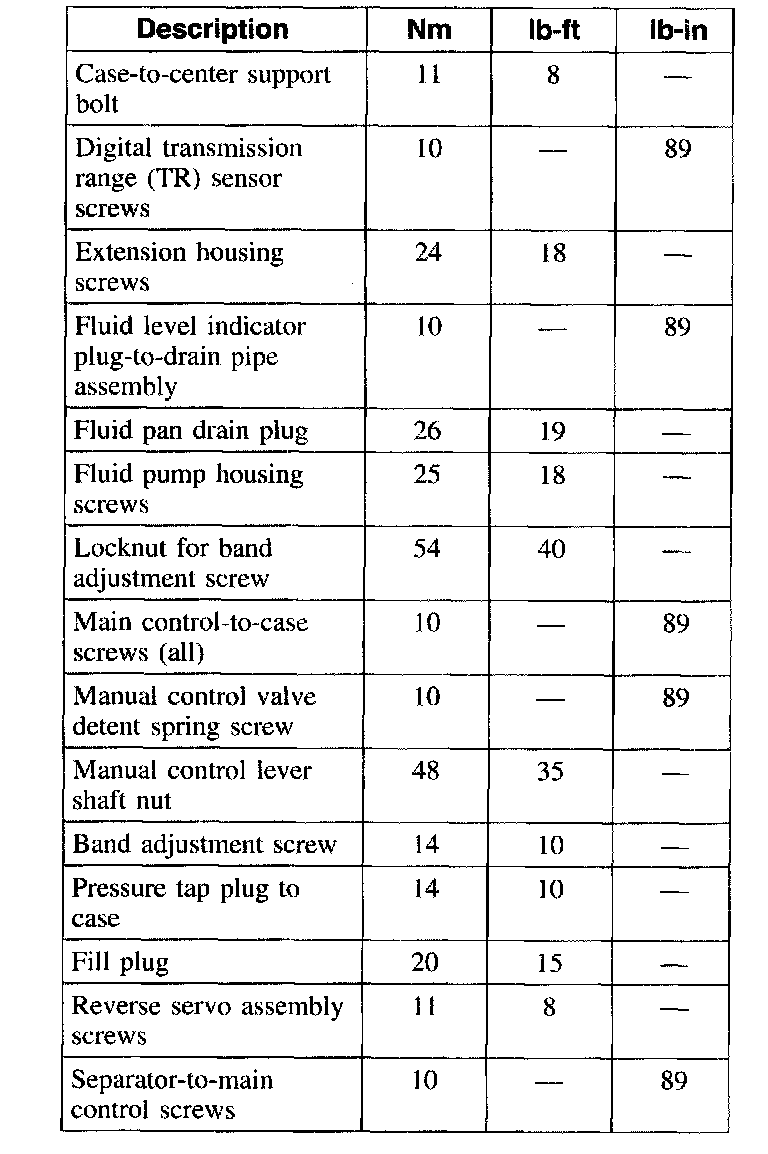

Torque Specifications
Torque Specifications
NOTE:
Tighten the
transmission fluid
pan screws in a crisscross sequence.
