Air Flow Meter/Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. With the vehicle in NEUTRAL, position it on a hoist.

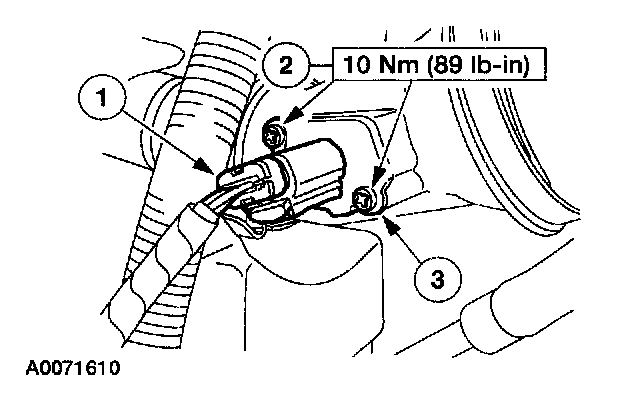

3. Remove the Mass Air Flow (MAF) sensor.
1 Disconnect the MAF sensor electrical connector.
2 Remove the two MAF sensor retaining screws.
3 Remove the MAF sensor.

INSTALLATION
1. To install, reverse the removal procedure.
