Camshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

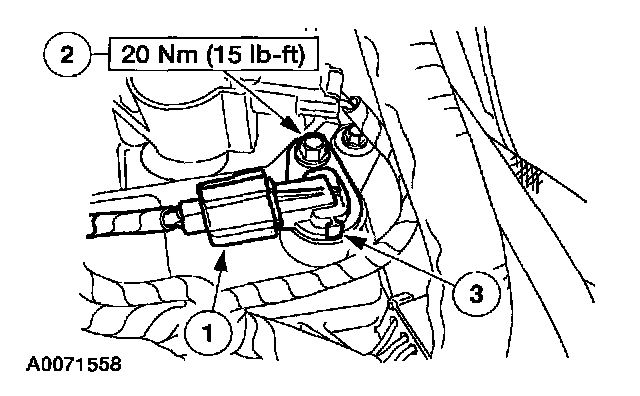

2. Remove the Camshaft Position (CMP) sensor.
1 Disconnect the CMP sensor electrical connector.
2 Remove the bolt retaining the CMP sensor.
3 Remove the CMP sensor.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Lubricate the O-ring with clean engine oil.
