Tests DB: Engine Fuel Temperature (EFT) Sensor

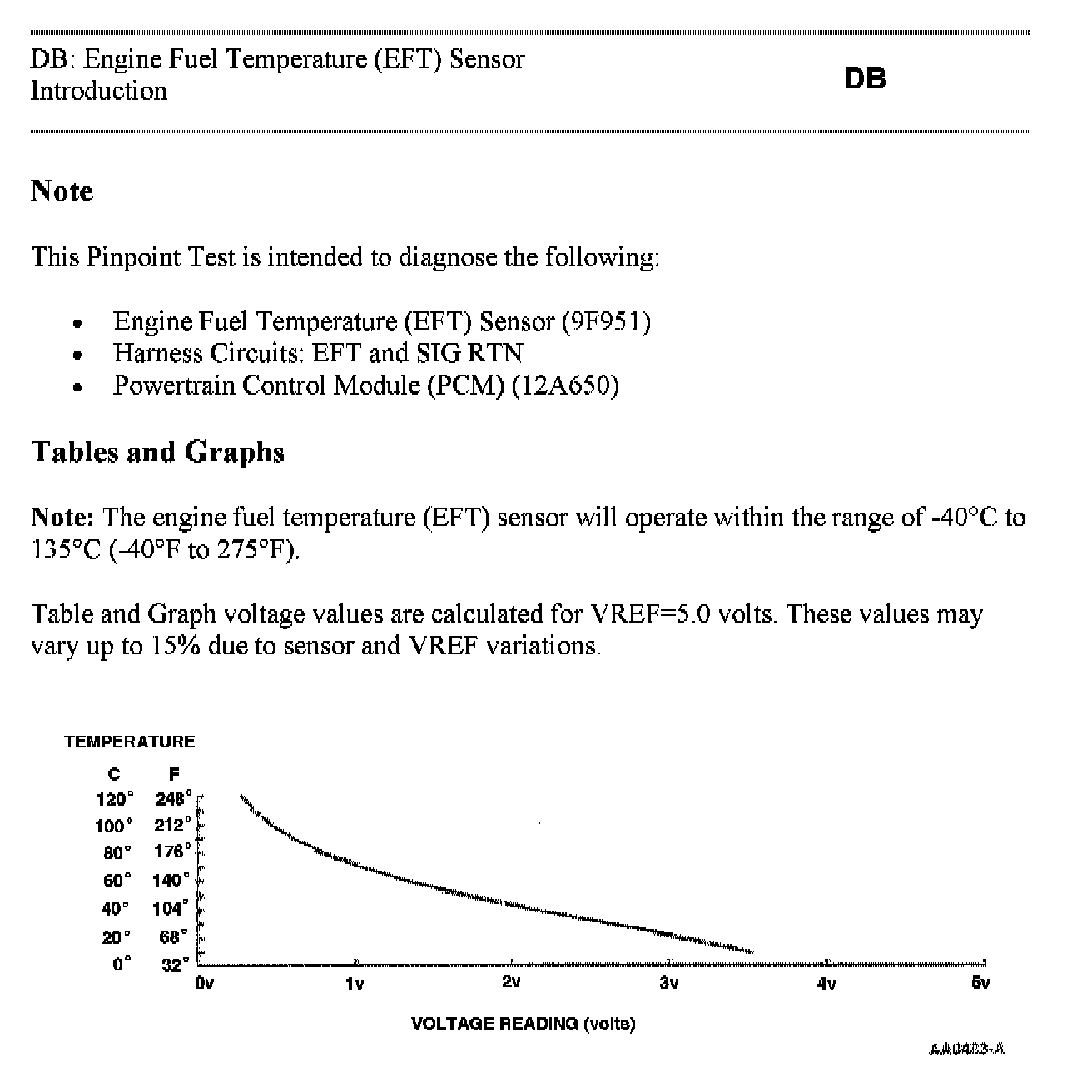

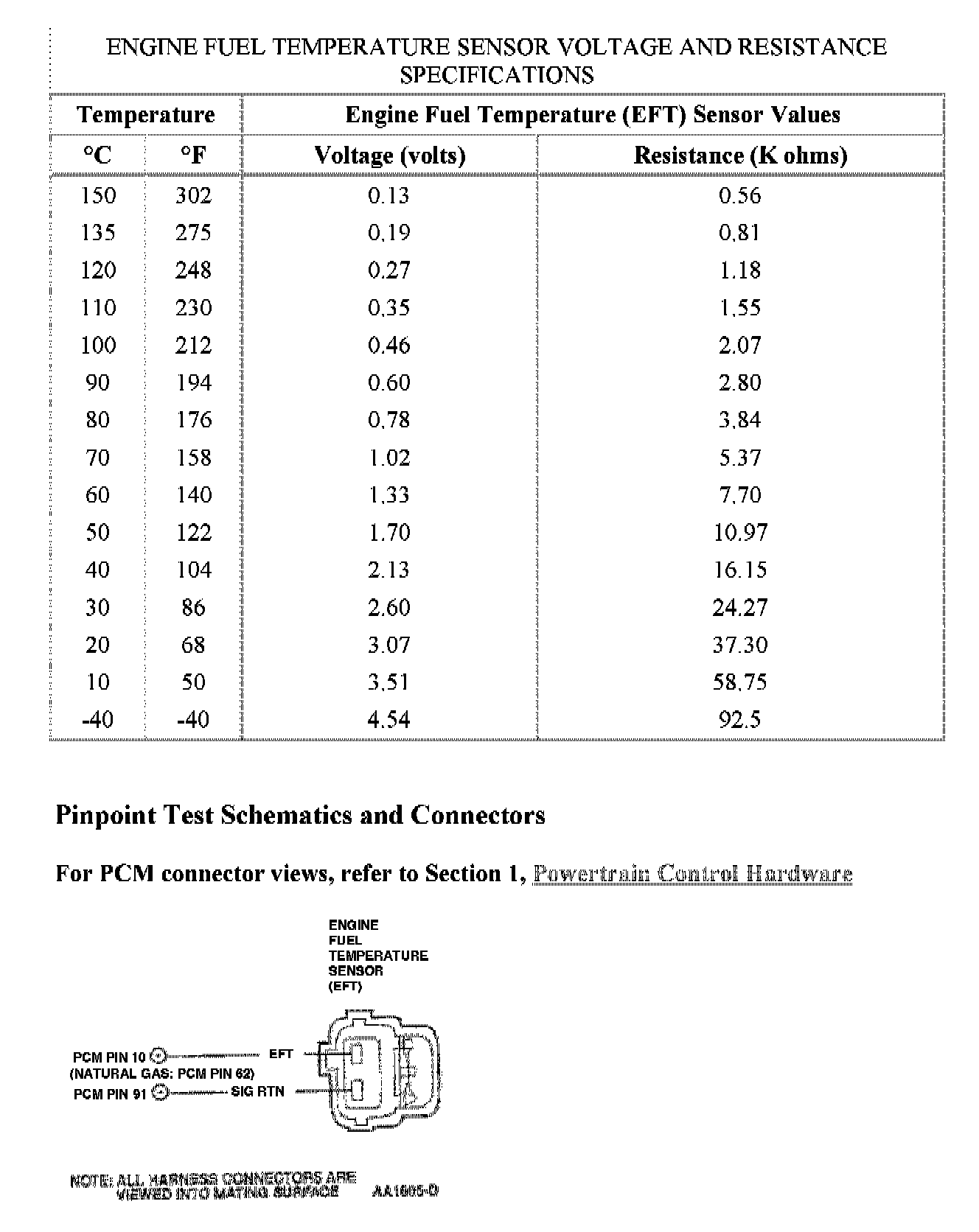

DB Introduction Part 1 Of 3:





DB Introduction Part 2 Of 3:





DB Introduction Part 3 Of 3:

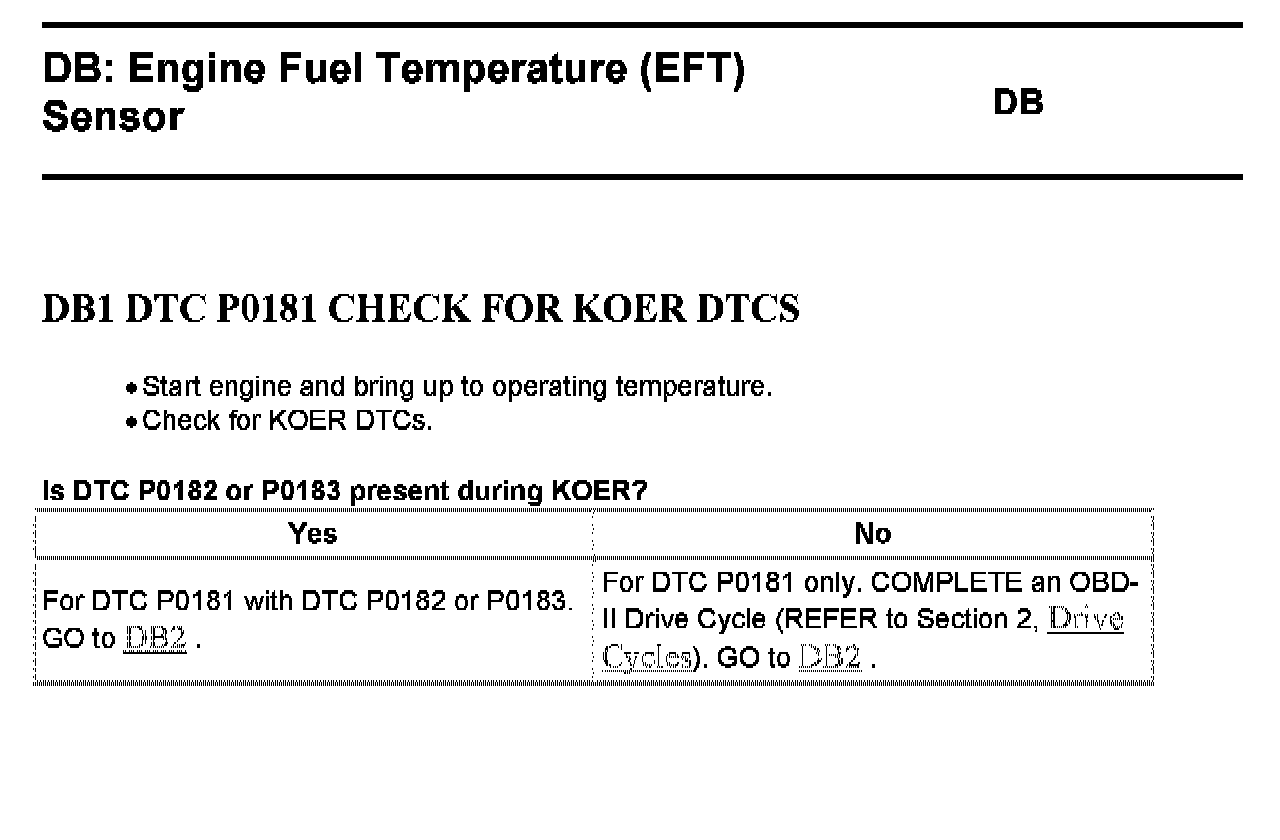

DB1:

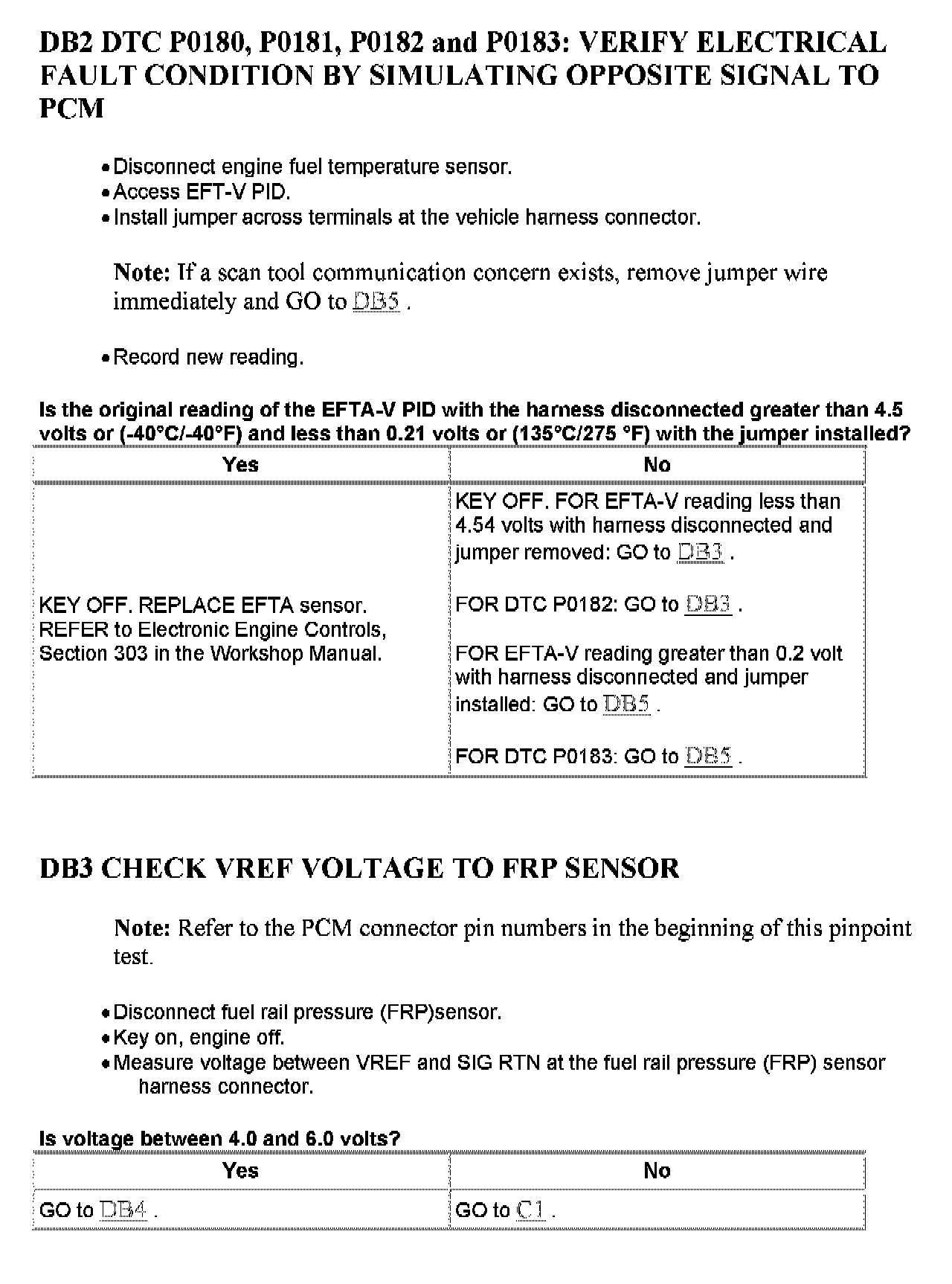

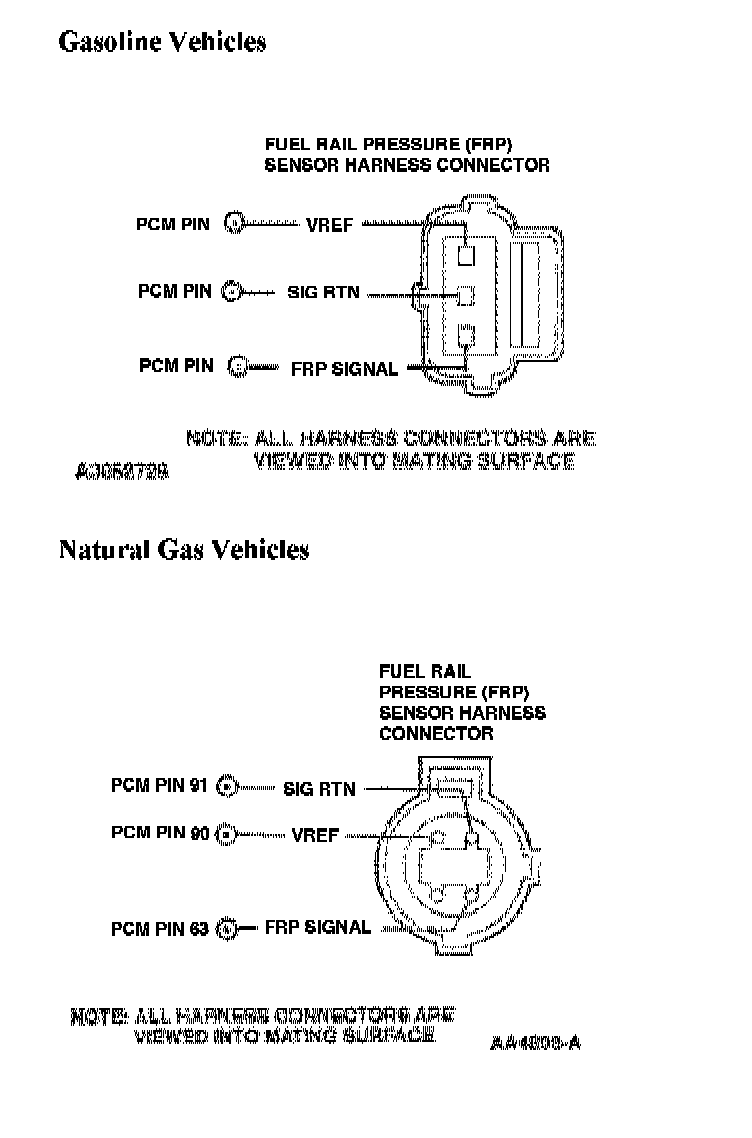

DB2 - DB3:

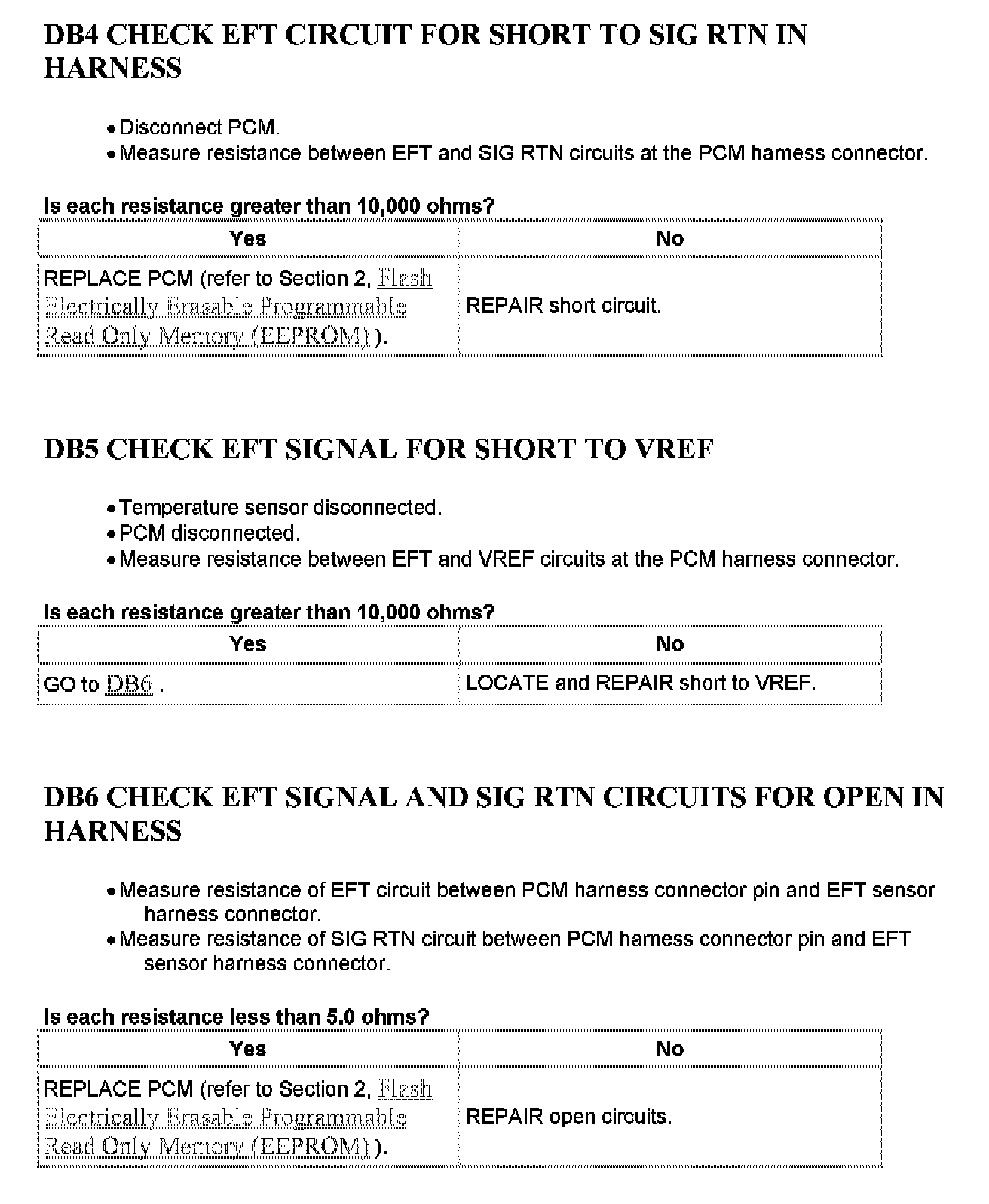

DB4 - DB6:

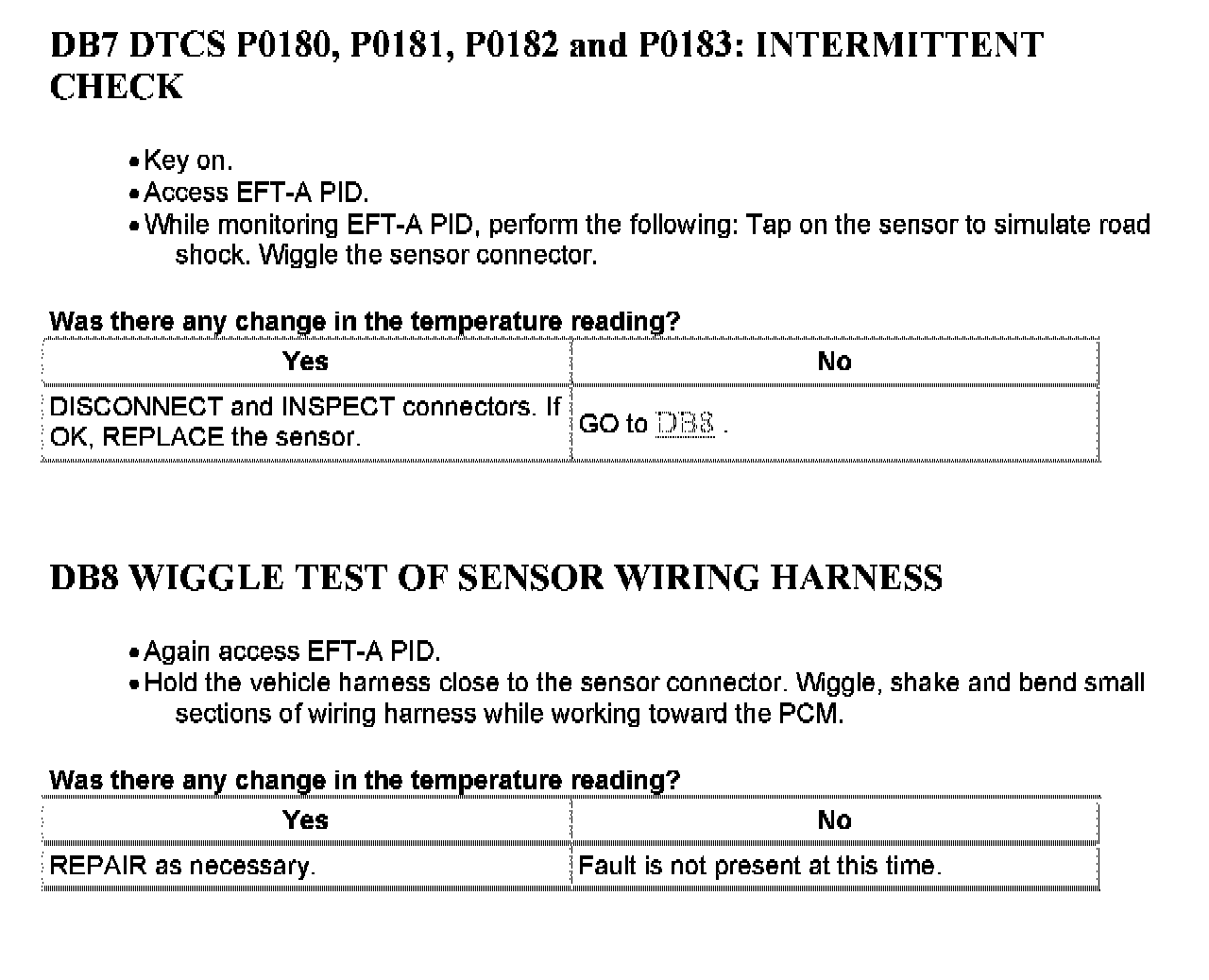

DB7 - DB8:
