ABS Module Parameter Identification (PID) Index

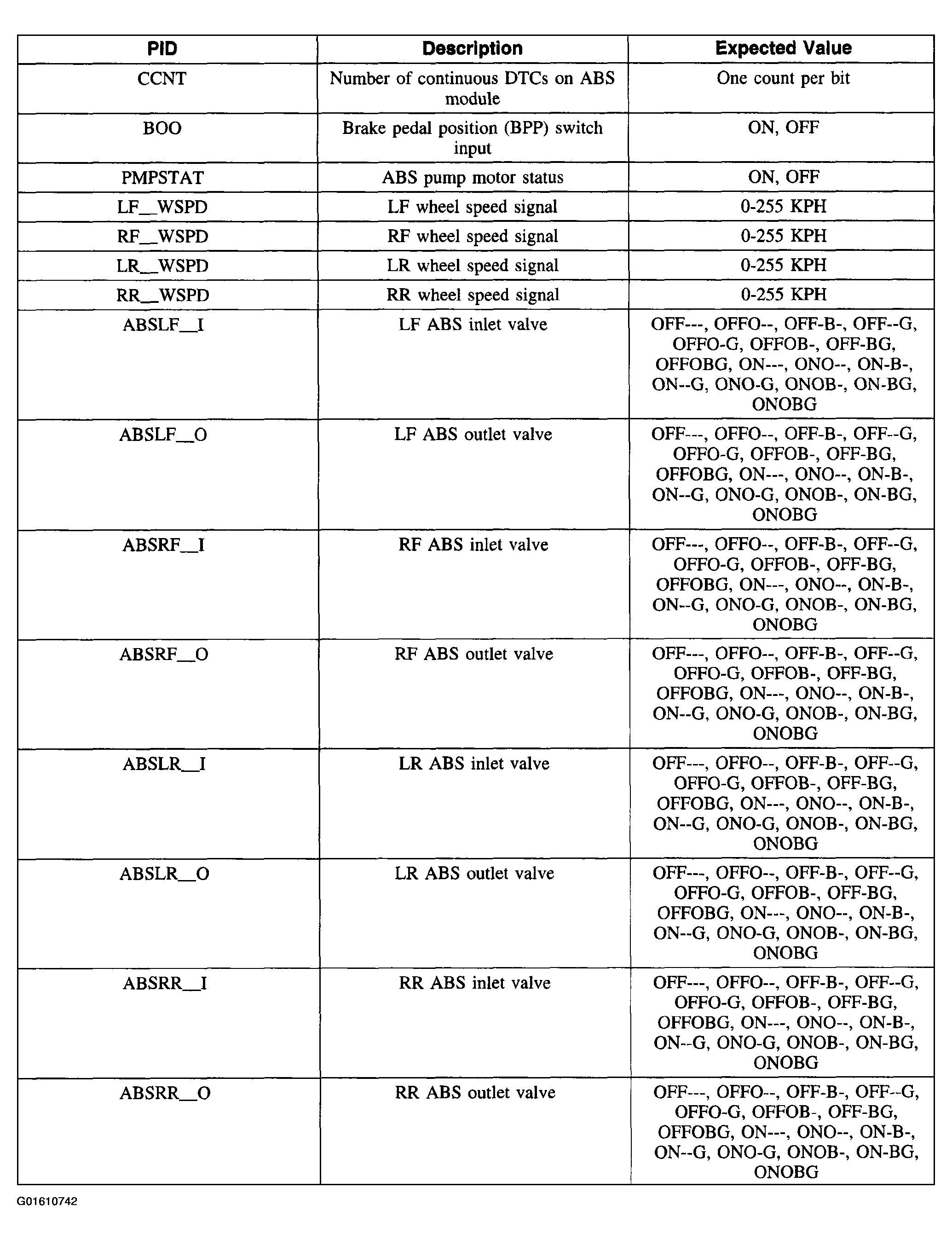

Fig 1: ABS Module Parameter Identification Index (CCNT, BOO, PMPSTAT, LF_WSPD, RF-WSPD, LR_WSPD, RR_WSPD, ABSLF_I, ABSLF_O, ABSRF_I, ABSRF_O, ABSLR_I, ABSLR_O, ABSRR_I, ABSRR_O

Courtesy of FORD MOTOR CO.
