Hydraulic Control Unit (HCU): Installation

    NOTE: After installation, bleed the brake system. For additional information, refer to BLEEDING BRAKE SYSTEM .
    Fig 1: Identifying Hydraulic Control Unit
    G01610774Courtesy of FORD MOTOR CO.

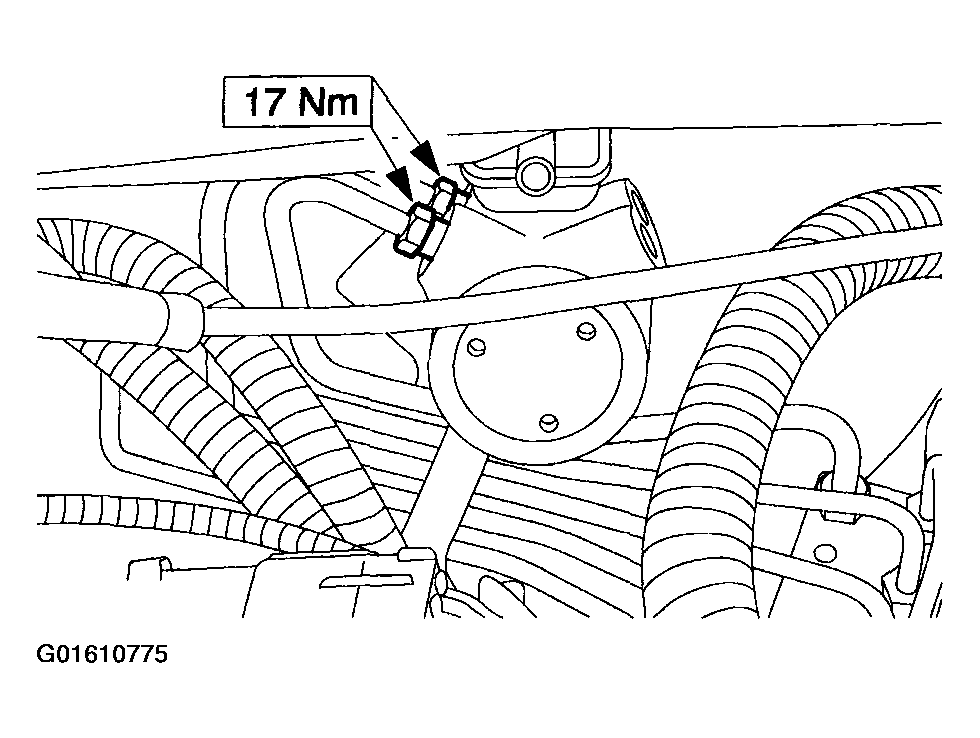

    Fig 2: Installing Master Cylinder Brake Tubes
    G01610775Courtesy of FORD MOTOR CO.

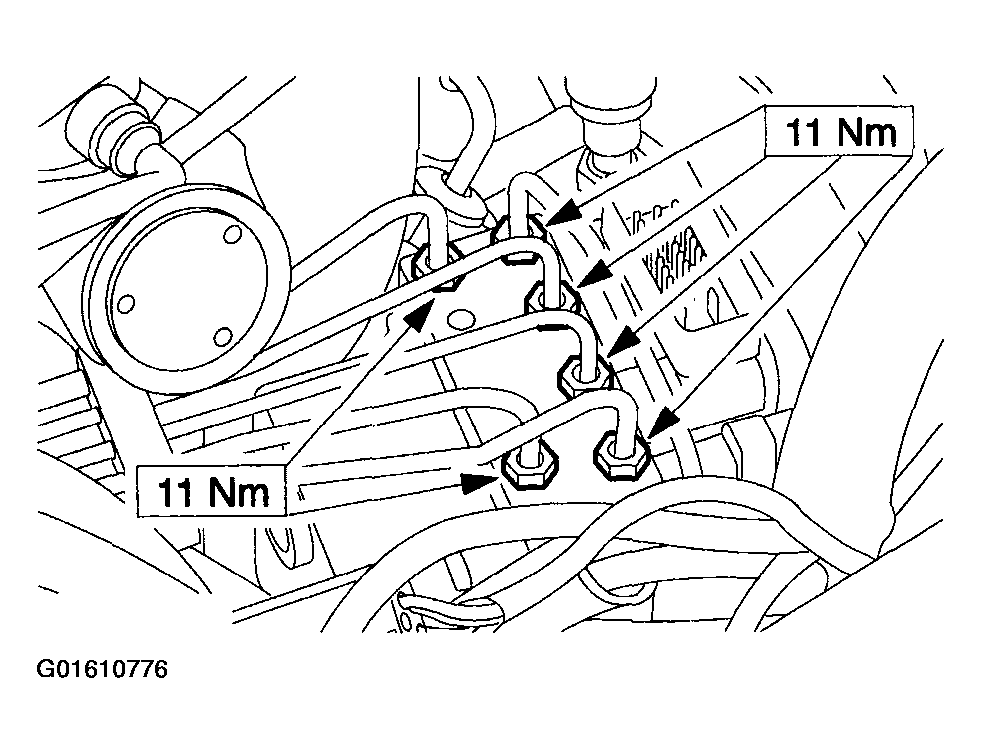

    Fig 3: Installing Hydraulic Control Unit Brake Tubes
    G01610776Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.

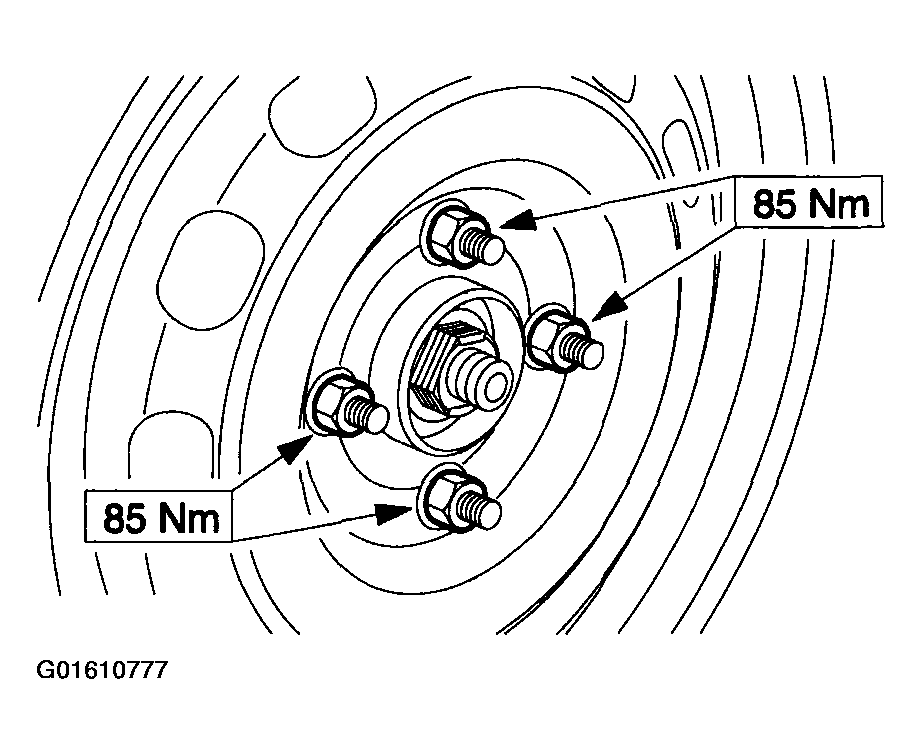

Fig 4: Identifying Bolt
G01610777Courtesy of FORD MOTOR CO.
