Pinpoint Test L: Traction Control Is Inoperative

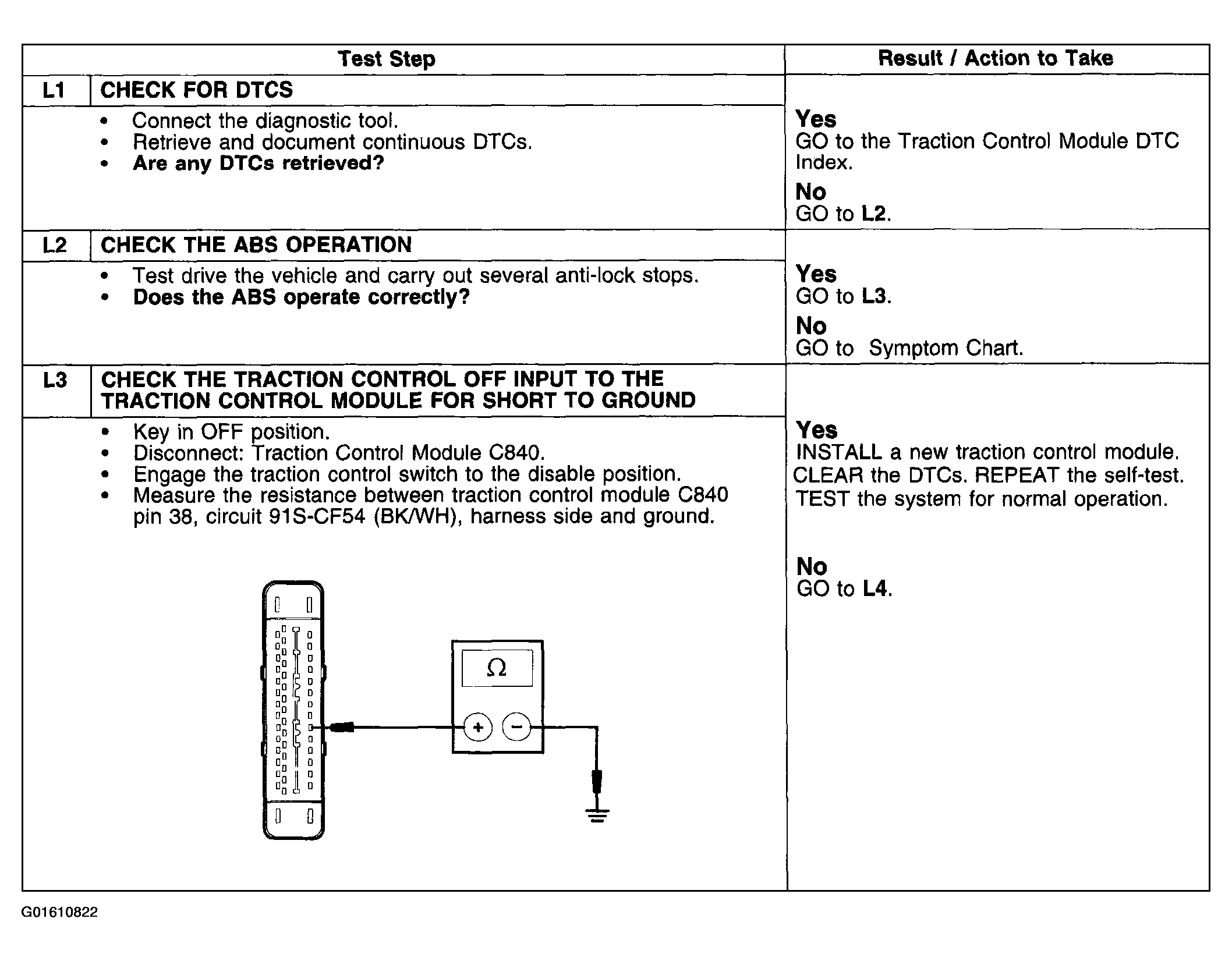

Fig 1: Pinpoint Test L: Traction Control Is Inoperative (L1-L3)
G01610822Courtesy of FORD MOTOR CO.

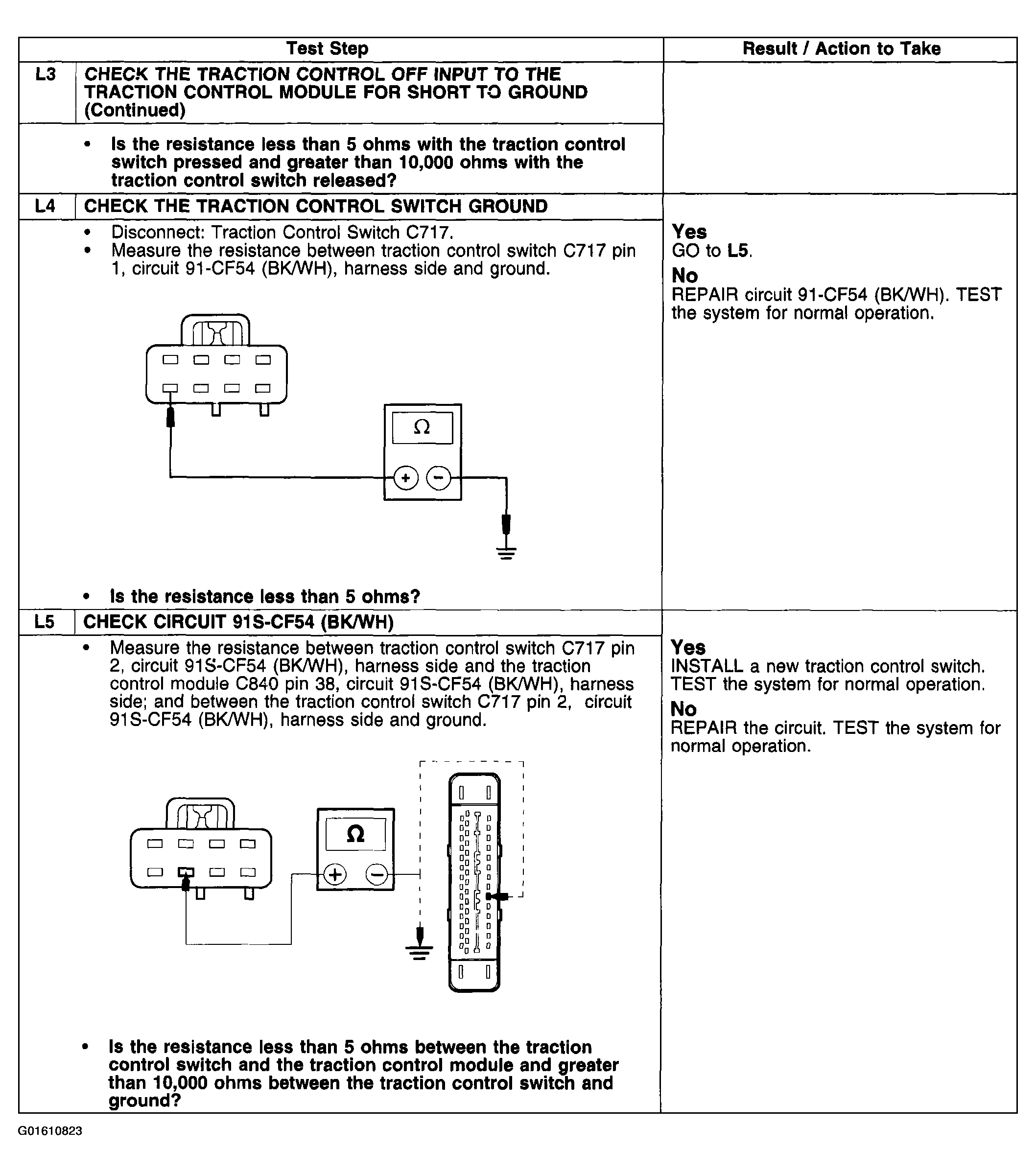

Fig 2: Pinpoint Test L: Traction Control Is Inoperative (L3 Cont.-L5)
G01610823Courtesy of FORD MOTOR CO.
