Connector Views

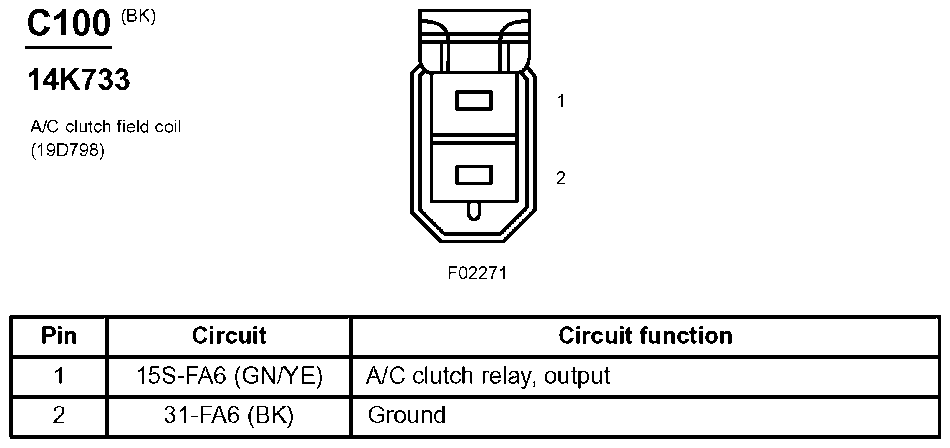

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07834146

Courtesy of FORD MOTOR CO.

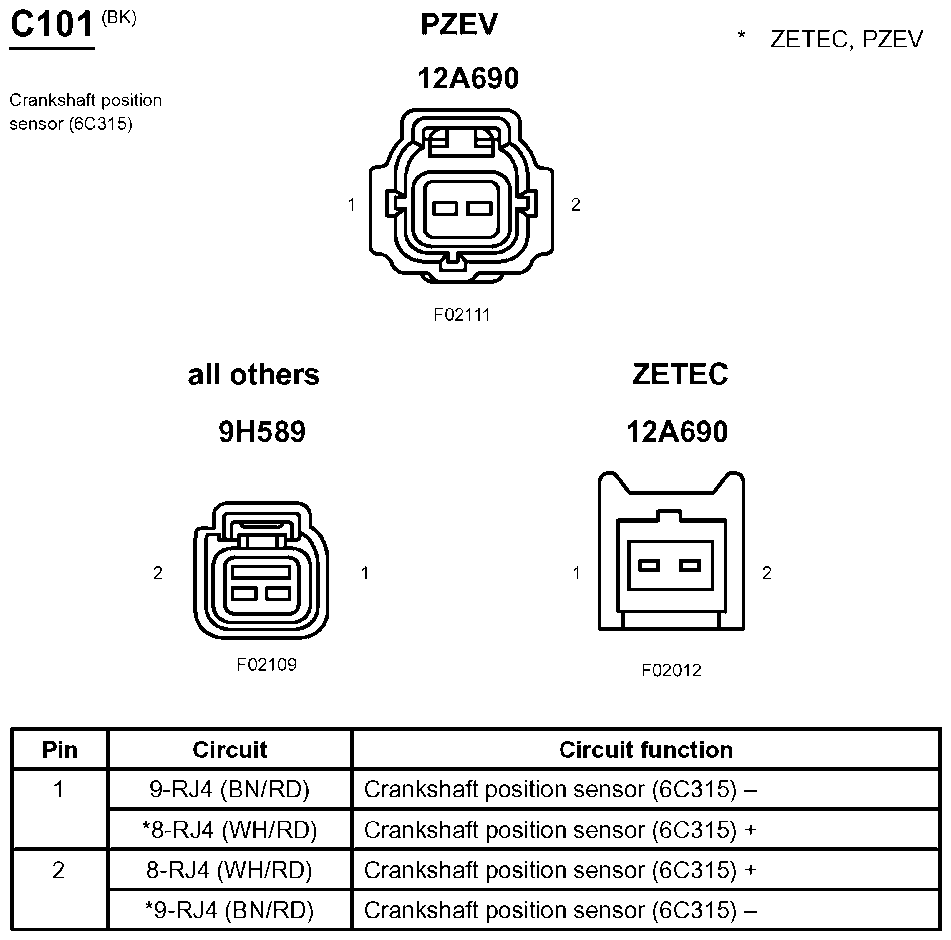

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07834147

Courtesy of FORD MOTOR CO.

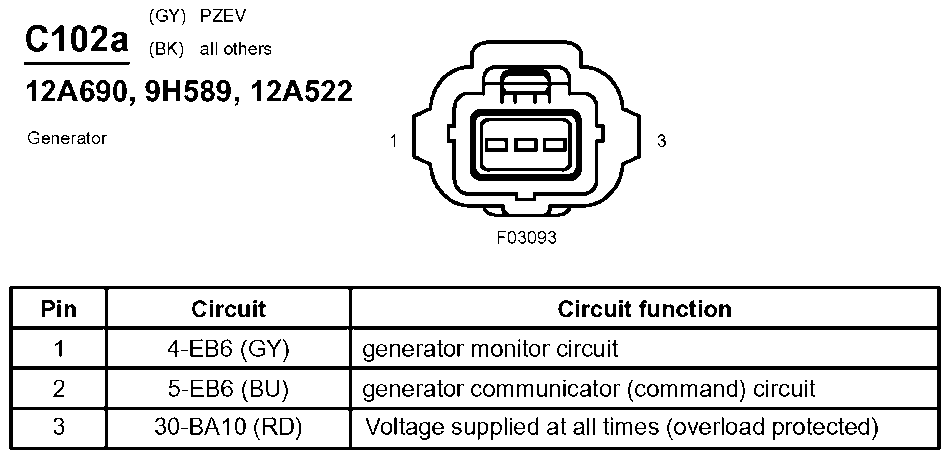

Fig 3: Generator Connector End View (C102a)

G07834148

Courtesy of FORD MOTOR CO.

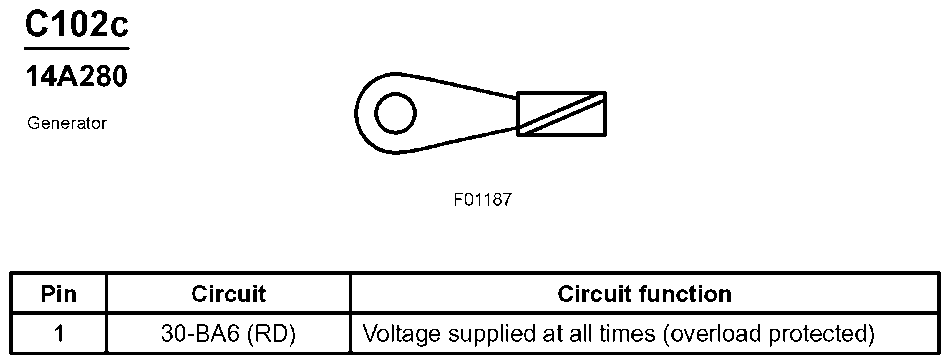

Fig 4: Generator Connector End View (C102c)

G07834149

Courtesy of FORD MOTOR CO.

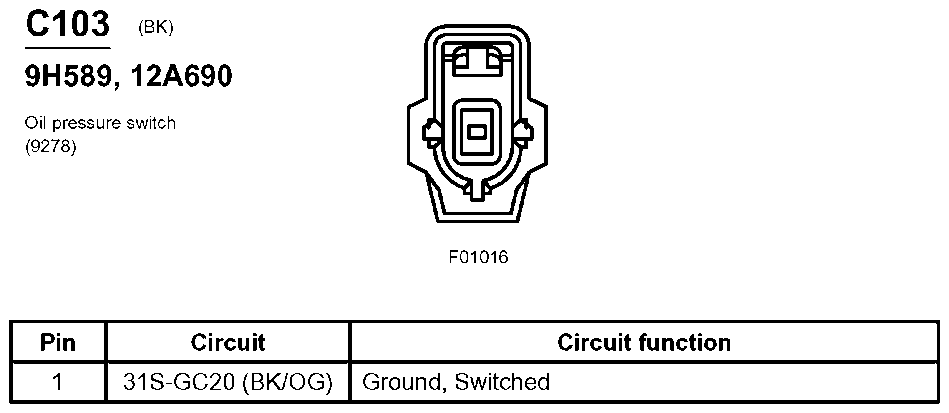

Fig 5: Oil Pressure Switch Connector End View (C103)

G07834150

Courtesy of FORD MOTOR CO.

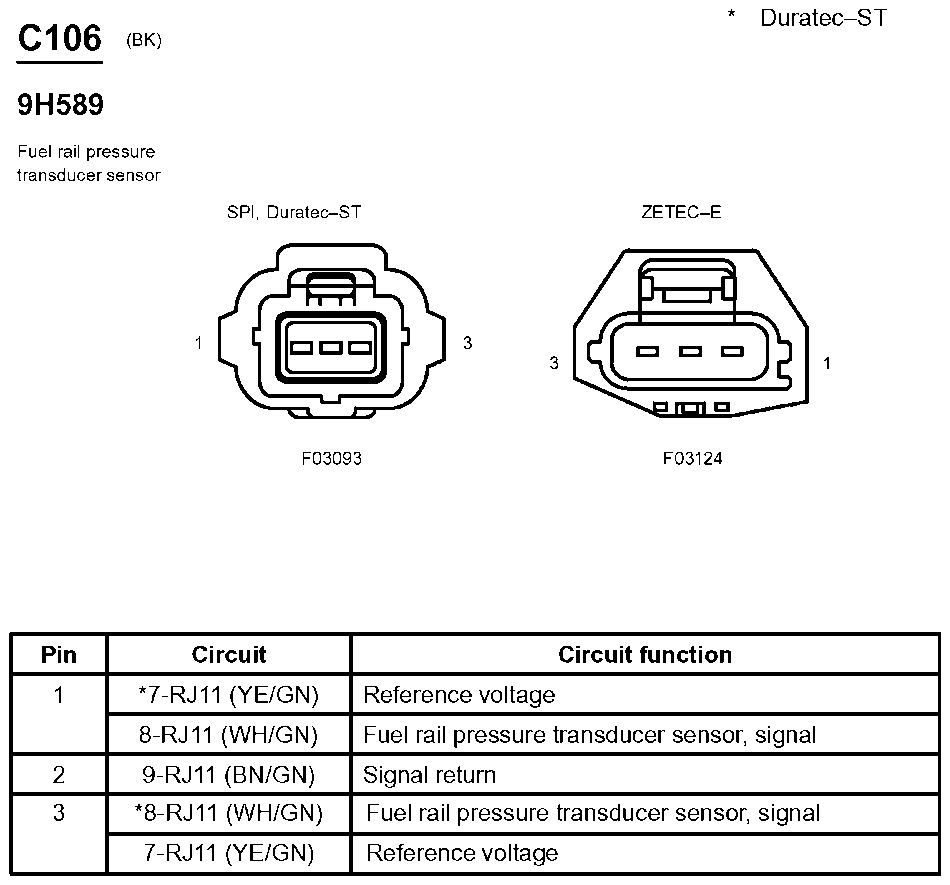

Fig 6: Fuel Rail Pressure Transducer Sensor Connector End View (C106)

G07834151

Courtesy of FORD MOTOR CO.

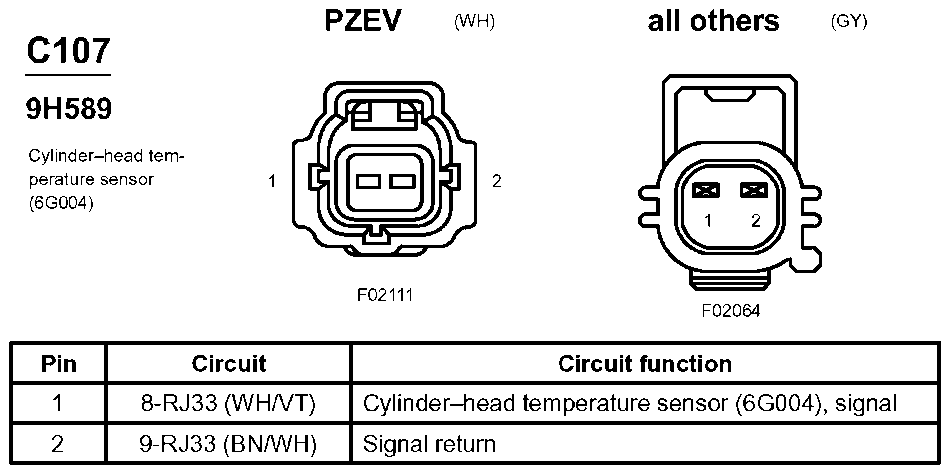

Fig 7: Cylinder-Head Temperature Sensor Connector End View (C107)

G07834152

Courtesy of FORD MOTOR CO.

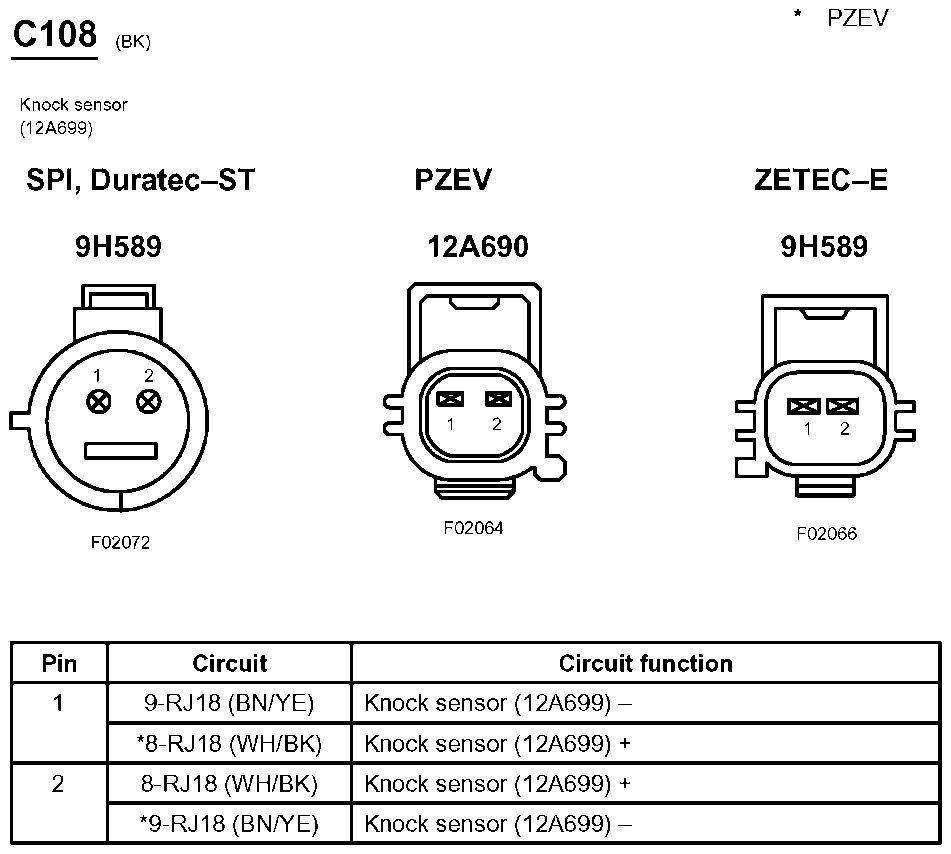

Fig 8: Knock Sensor Connector End View (C108)

G07834153

Courtesy of FORD MOTOR CO.

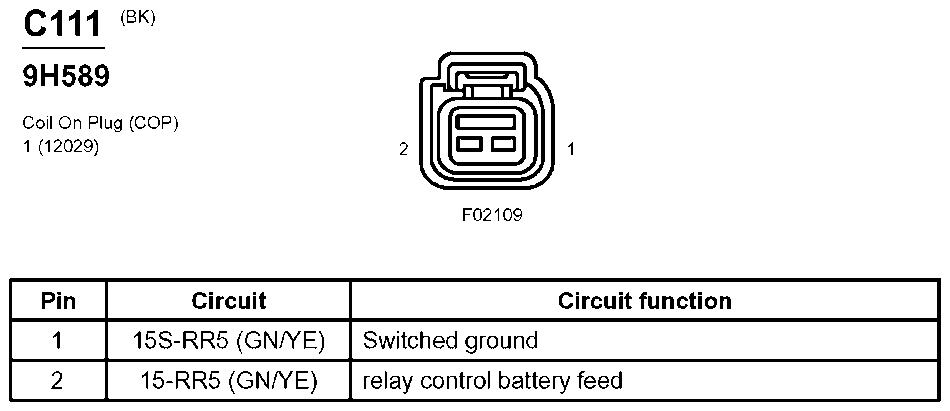

Fig 9: Coil On Plug (COP) 1 Connector End View (C111)

G07834154

Courtesy of FORD MOTOR CO.

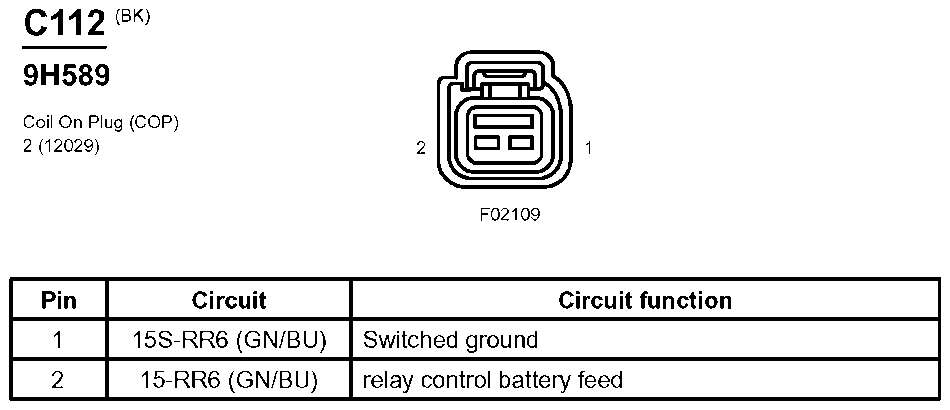

Fig 10: Coil On Plug (COP) 2 Connector End View (C112)

G07834155

Courtesy of FORD MOTOR CO.

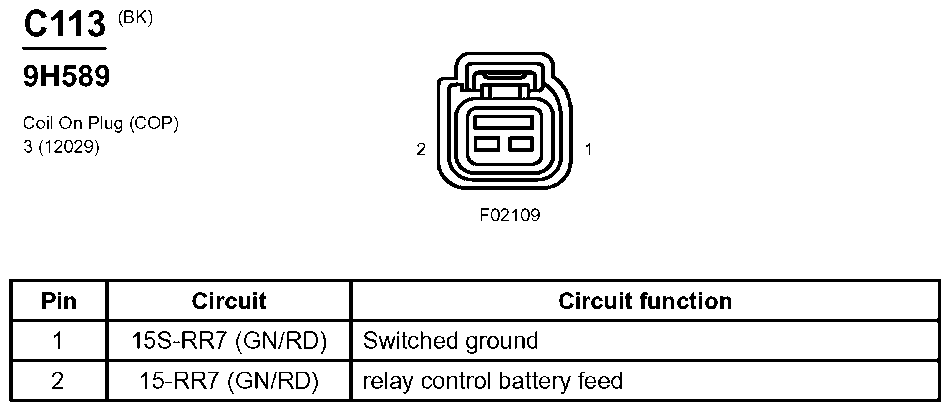

Fig 11: Coil On Plug (COP) 3 Connector End View (C113)

G07834156

Courtesy of FORD MOTOR CO.

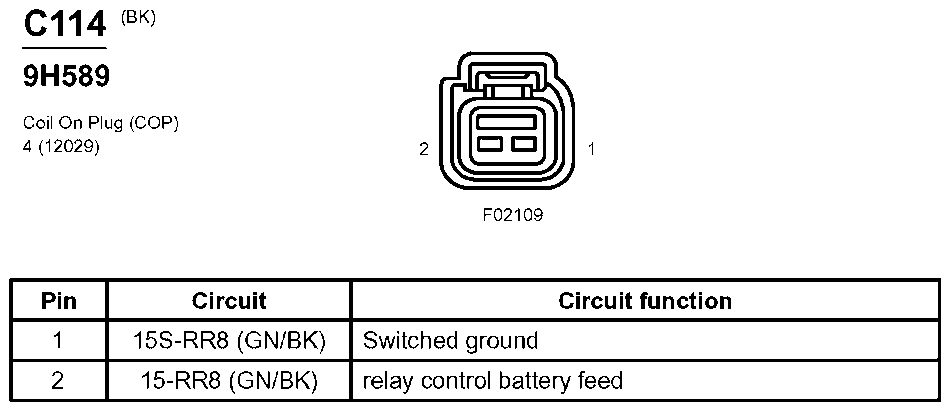

Fig 12: Coil On Plug (COP) 4 Connector End View (C114)

G07834157

Courtesy of FORD MOTOR CO.

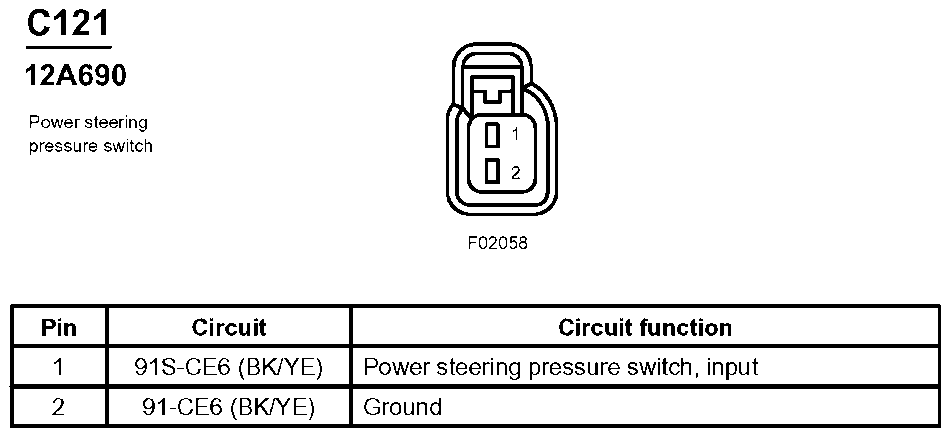

Fig 13: Power Steering Pressure Switch Connector End View (C121)

G07834158

Courtesy of FORD MOTOR CO.

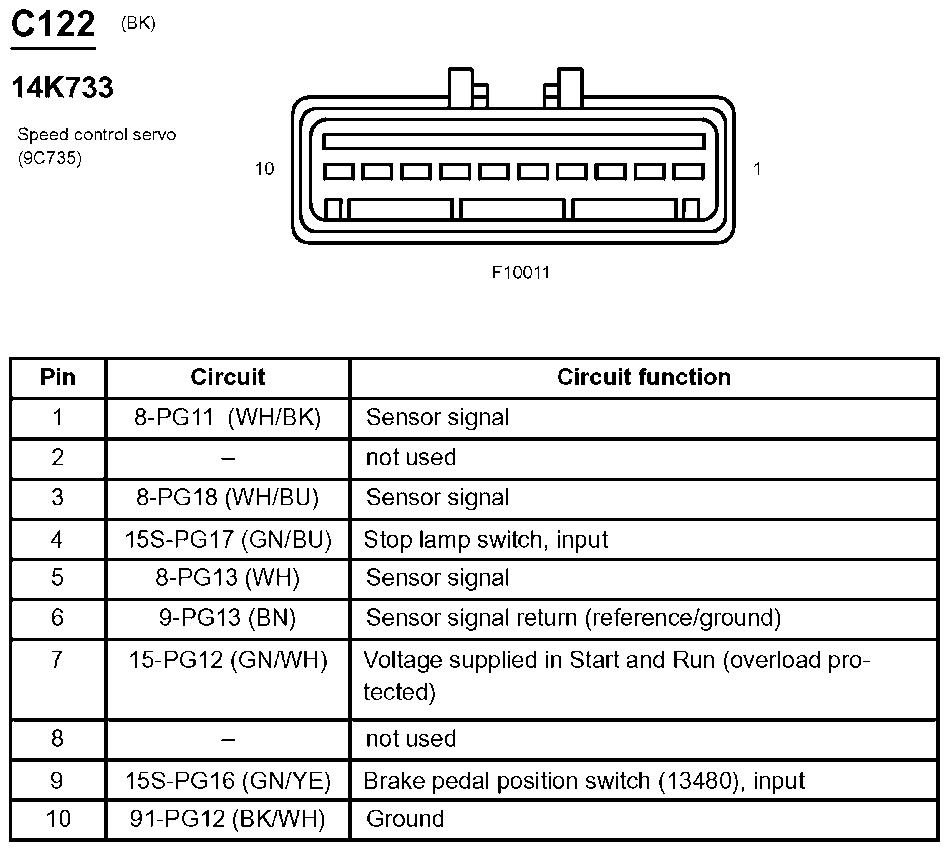

Fig 14: Speed Control Servo Connector End View (C122)

G07834159

Courtesy of FORD MOTOR CO.

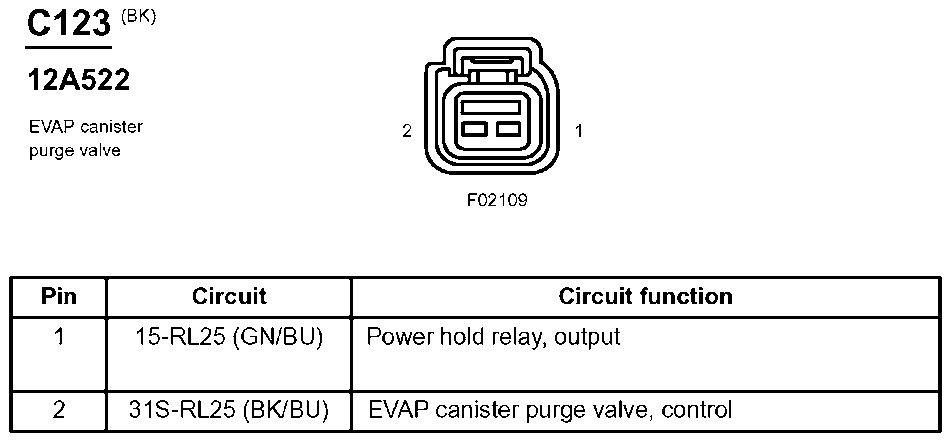

Fig 15: EVAP Canister Purge Valve Connector End View (C123)

G07834160

Courtesy of FORD MOTOR CO.

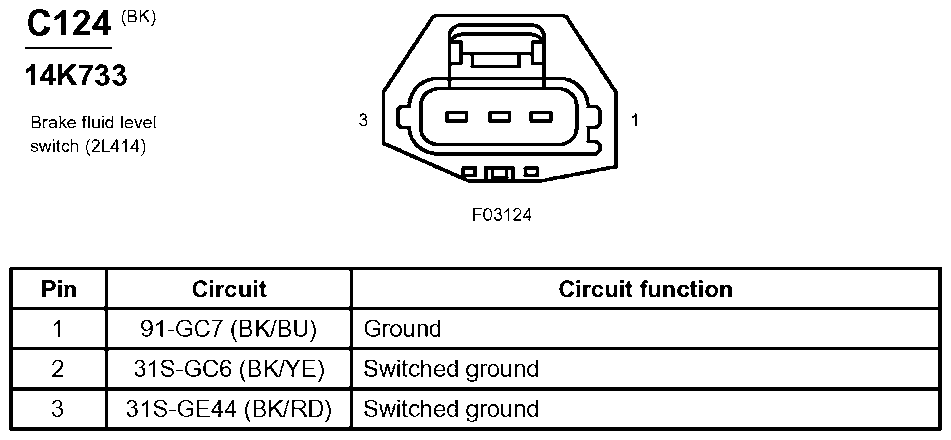

Fig 16: Brake Fluid Level Switch Connector End View (C124)

G07834161

Courtesy of FORD MOTOR CO.

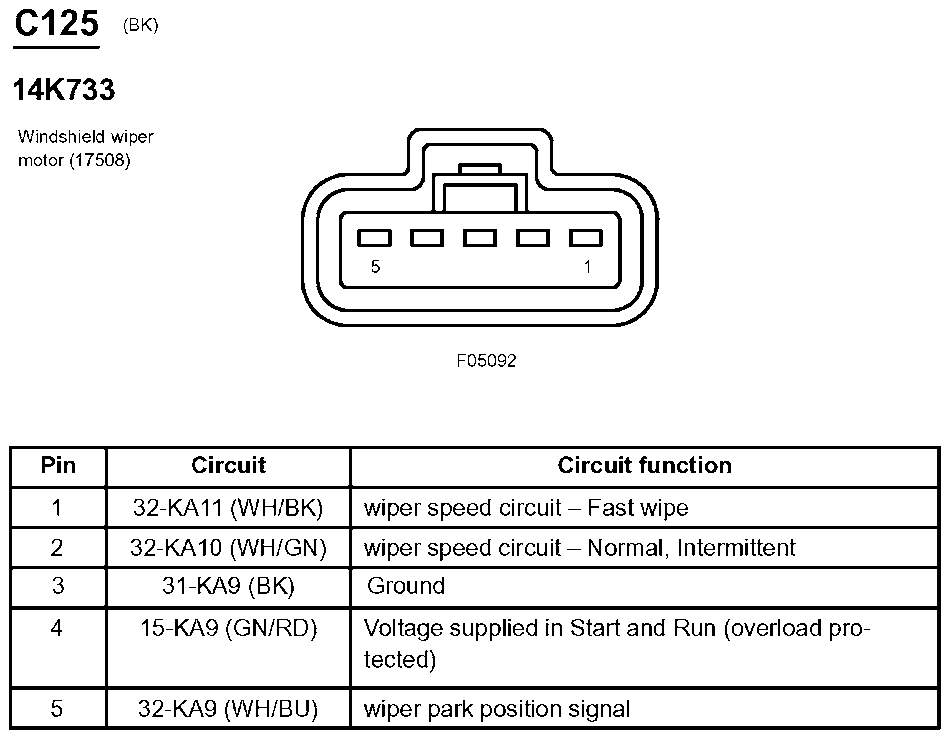

Fig 17: Windshield Wiper Motor Connector End View (C125)

G07834162

Courtesy of FORD MOTOR CO.

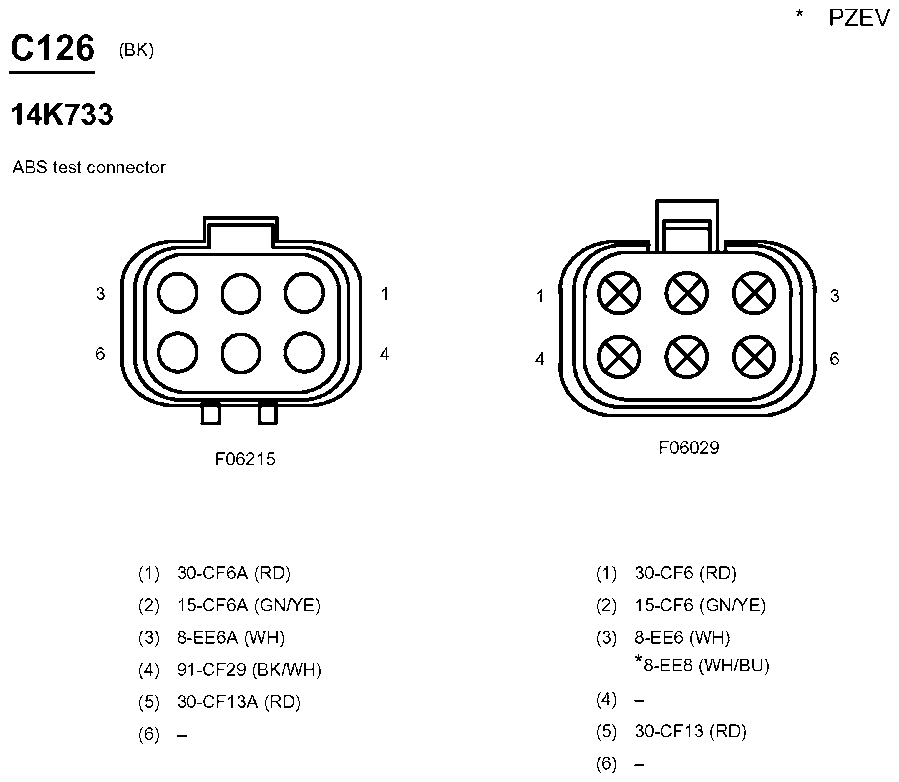

Fig 18: ABS Test Connector End View (C126)

G07834163

Courtesy of FORD MOTOR CO.

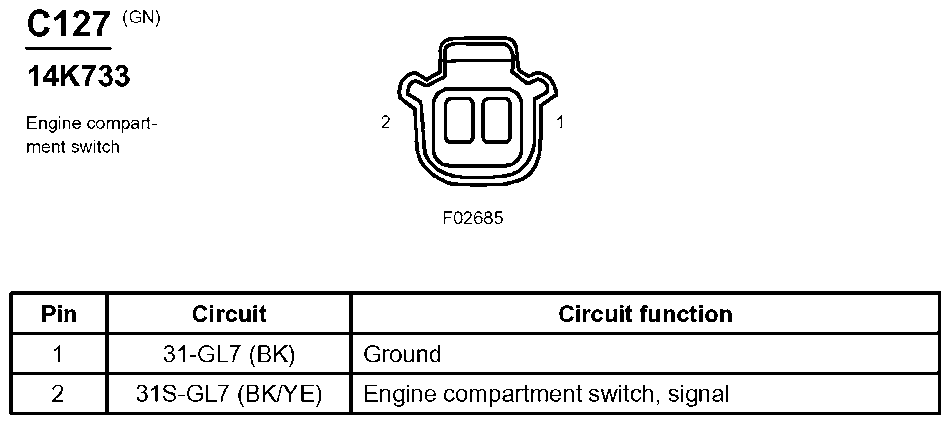

Fig 19: Engine Compartment Switch Connector End View (C127)

G07834164

Courtesy of FORD MOTOR CO.

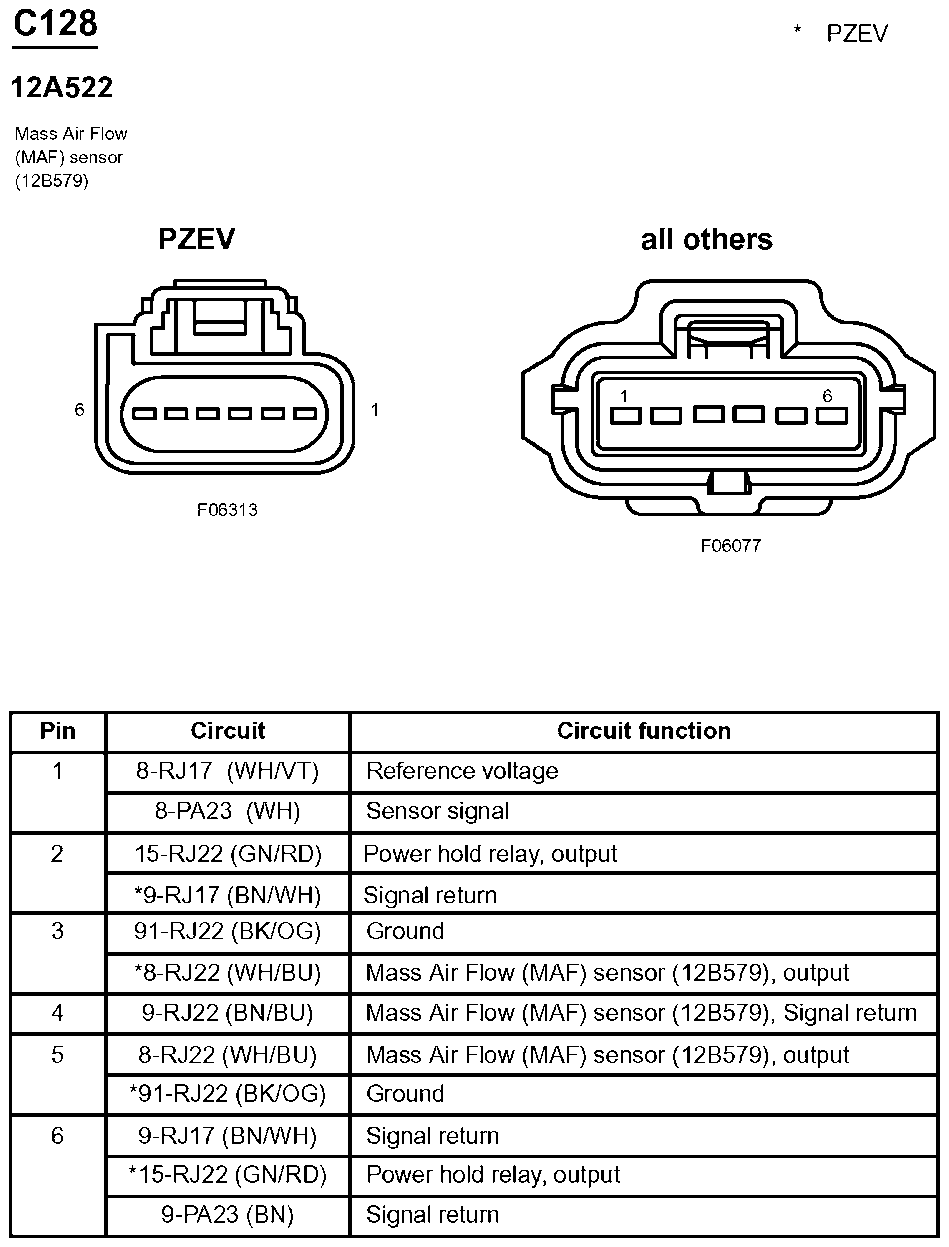

Fig 20: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07834165

Courtesy of FORD MOTOR CO.

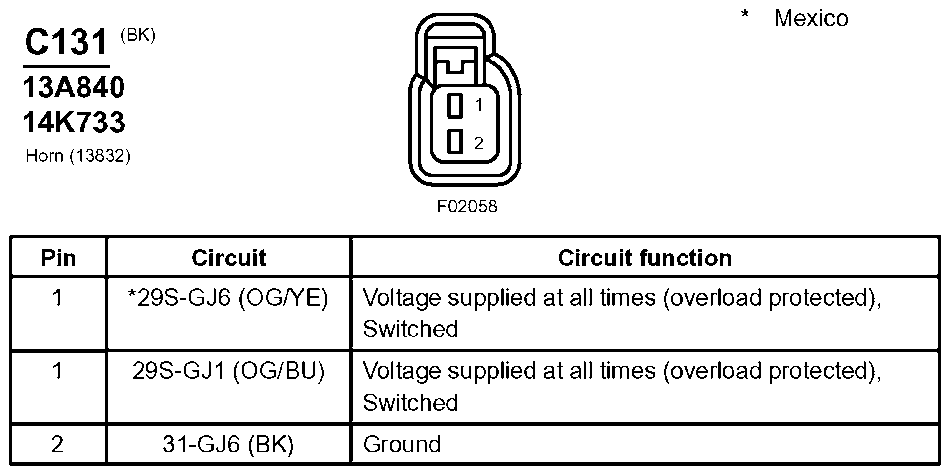

Fig 21: Horn Connector End View (C131)

G07834166

Courtesy of FORD MOTOR CO.

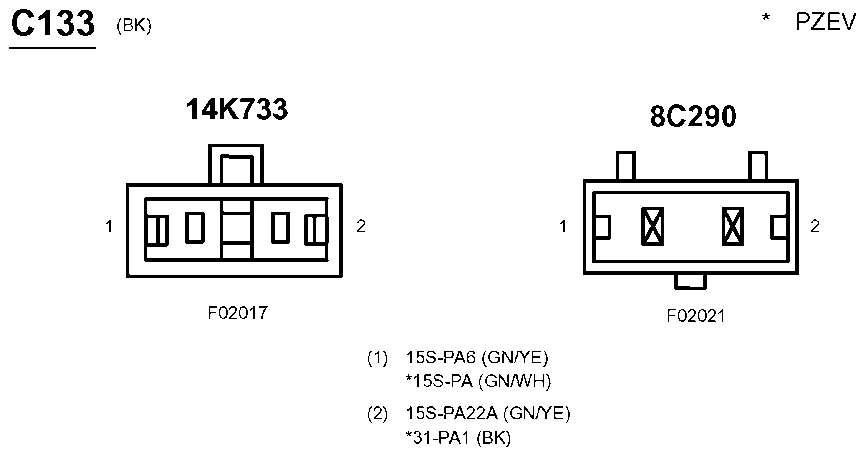

Fig 22: Inline Connector End View (C133)

G07834167

Courtesy of FORD MOTOR CO.

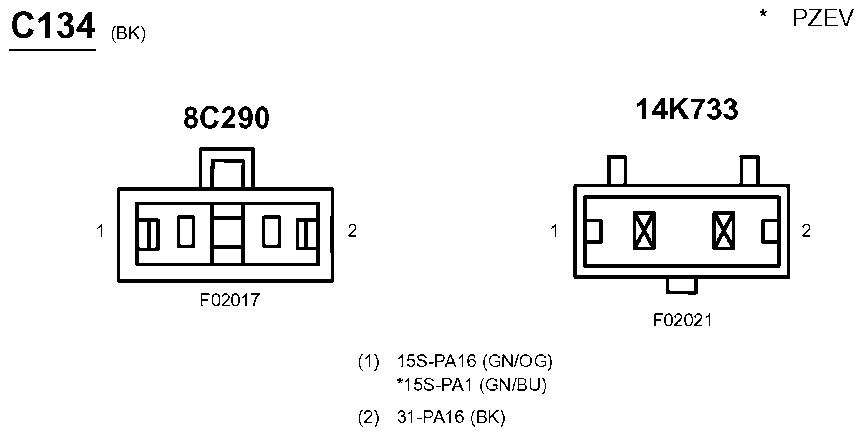

Fig 23: Inline Connector End View (C134)

G07834168

Courtesy of FORD MOTOR CO.

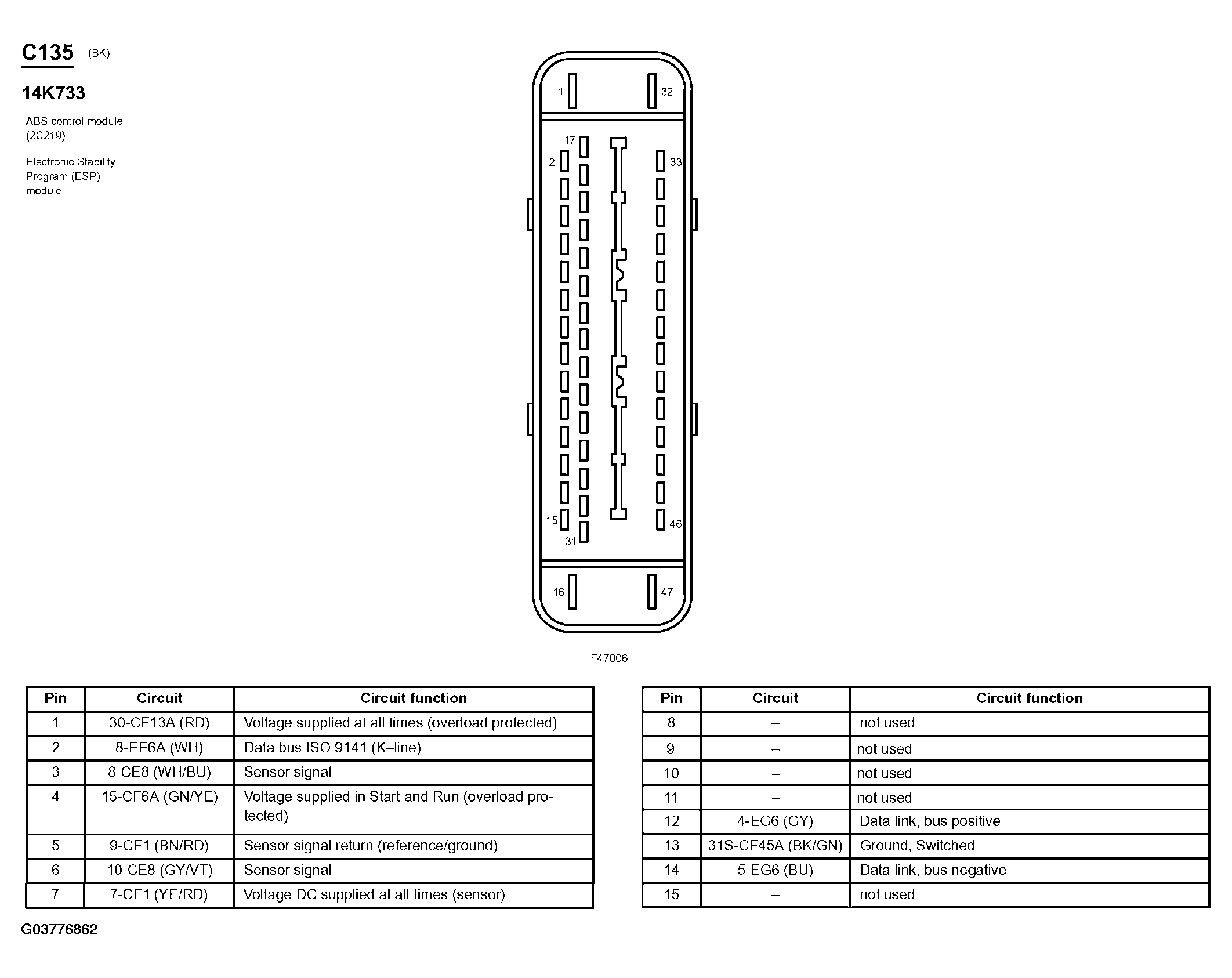

Fig 24: ABS Control Module Connector End View (C135) (1 Of 2)

G03776862

Courtesy of FORD MOTOR CO.

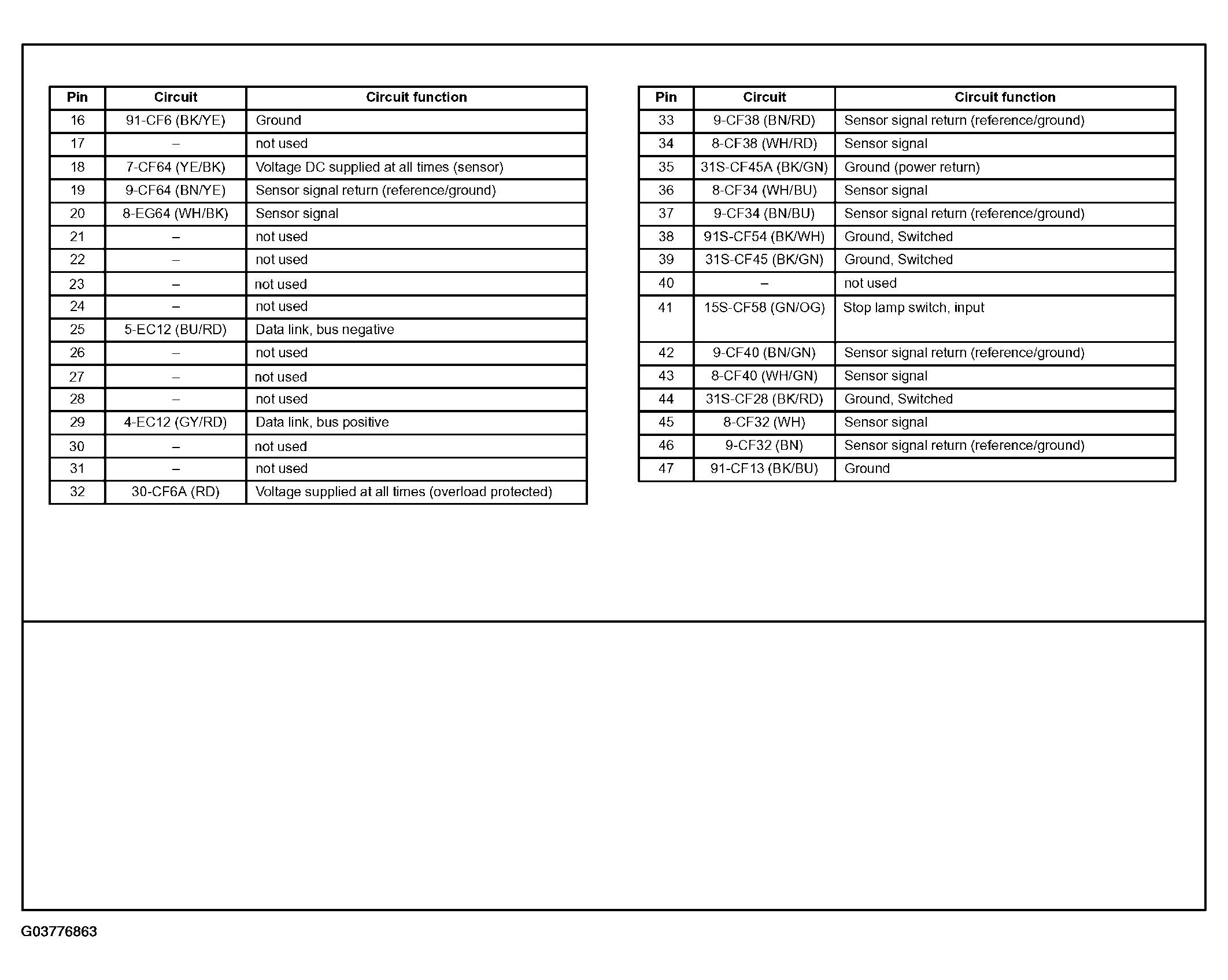

Fig 25: ABS Control Module Connector End View (C135) (2 Of 2)

G03776863

Courtesy of FORD MOTOR CO.

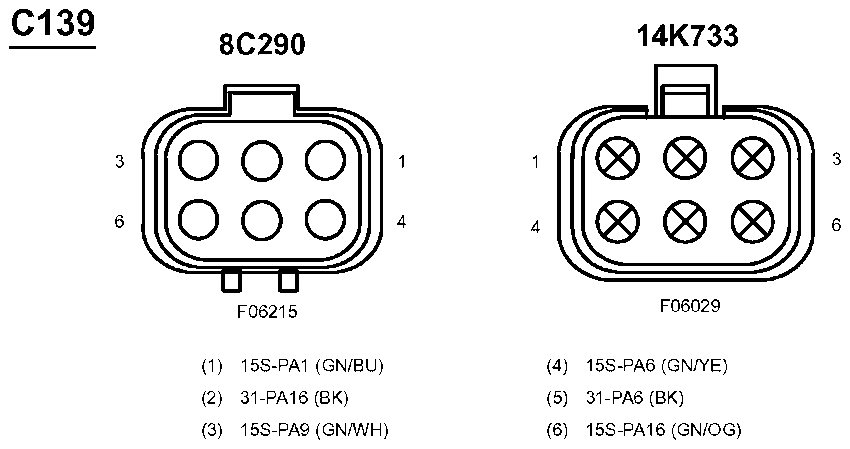

Fig 26: Inline Connector End View (C139)

G07834169

Courtesy of FORD MOTOR CO.

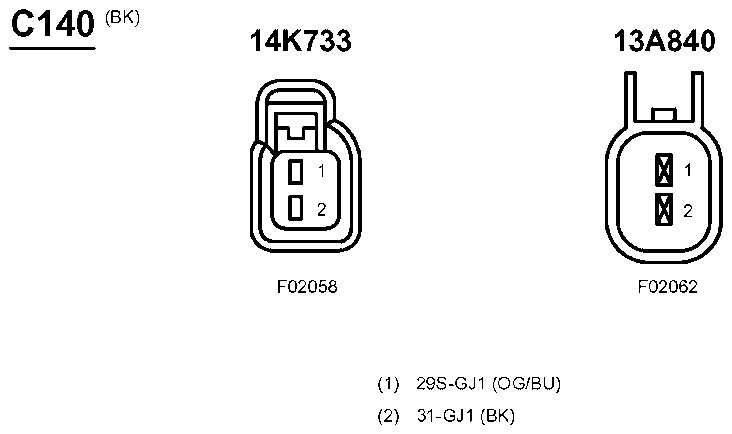

Fig 27: Inline Connector End View (C140)

G07834170

Courtesy of FORD MOTOR CO.

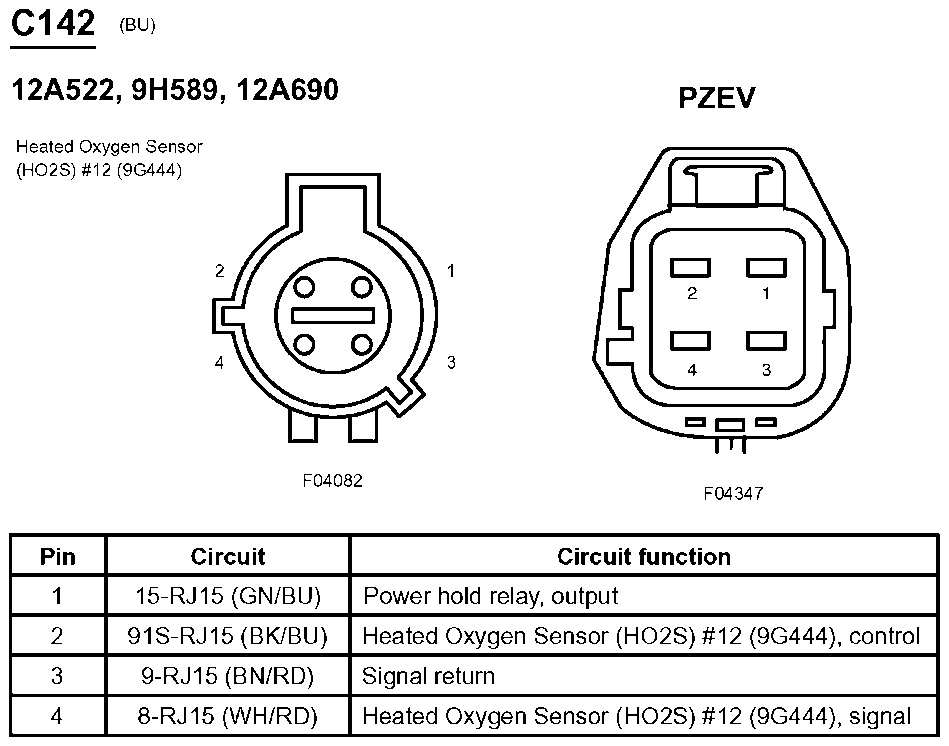

Fig 28: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07834171

Courtesy of FORD MOTOR CO.

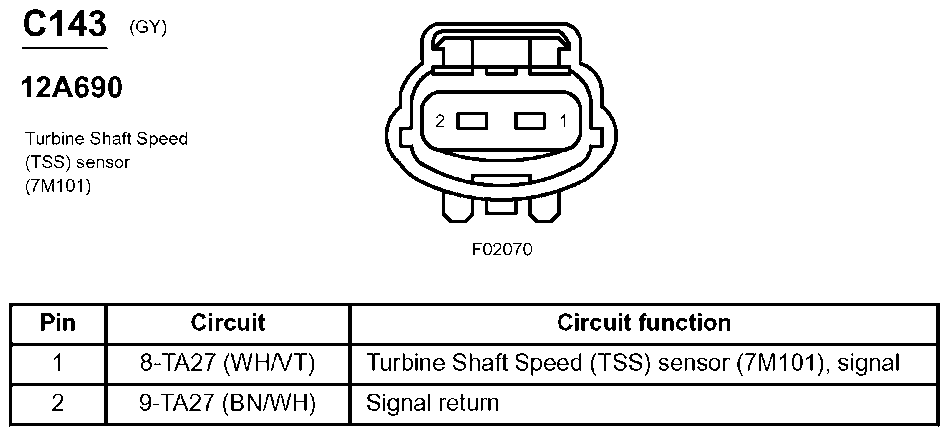

Fig 29: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G07834172

Courtesy of FORD MOTOR CO.

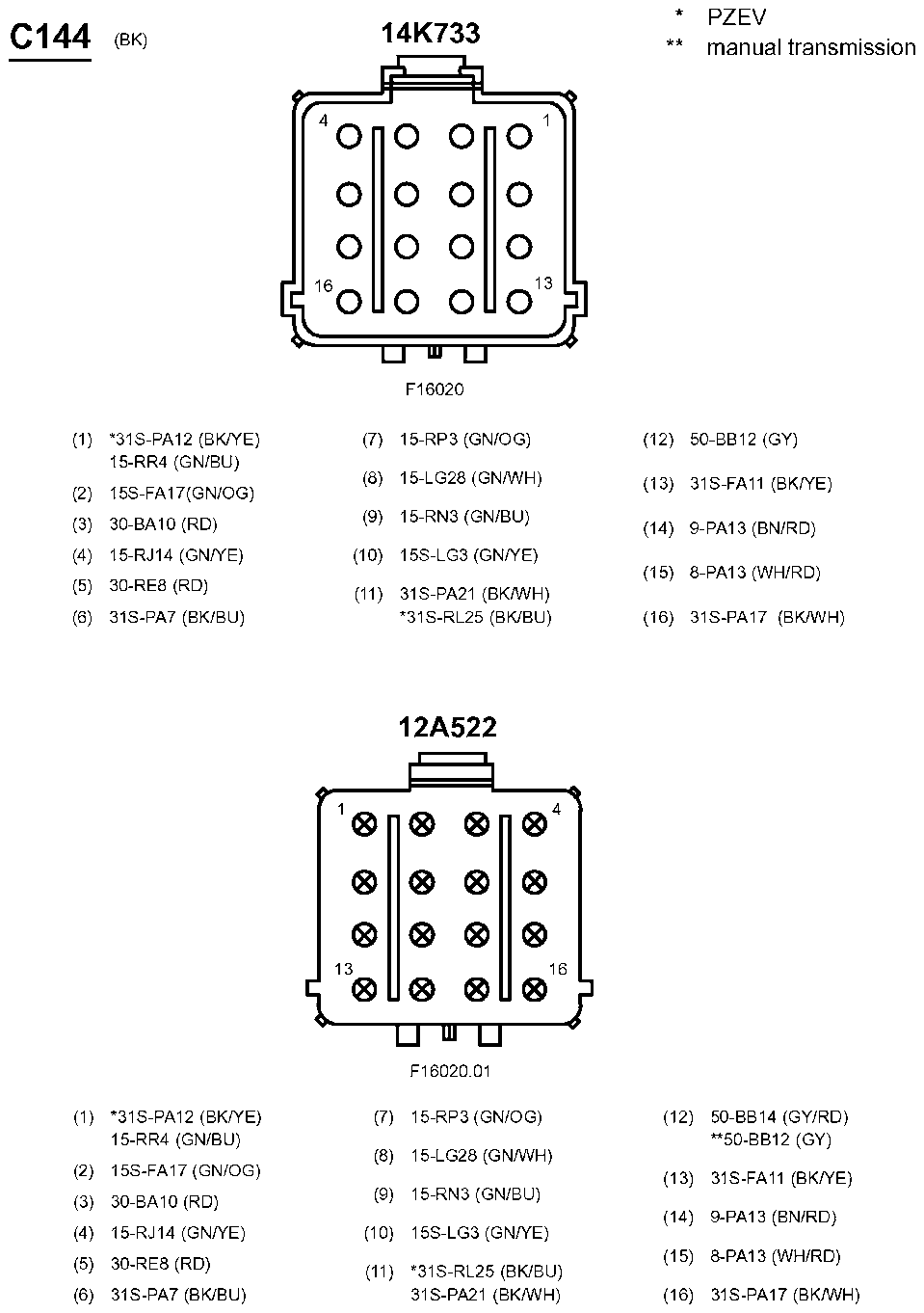

Fig 30: Inline Connector End View (C144)

G07834173

Courtesy of FORD MOTOR CO.

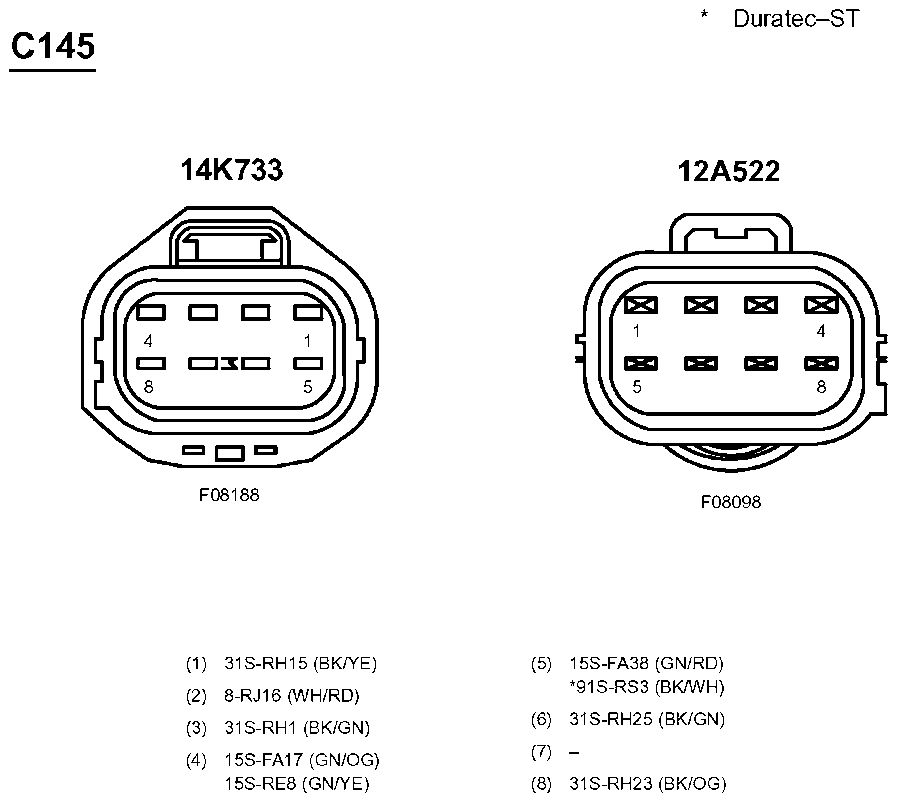

Fig 31: Inline Connector End View (C145)

G07834174

Courtesy of FORD MOTOR CO.

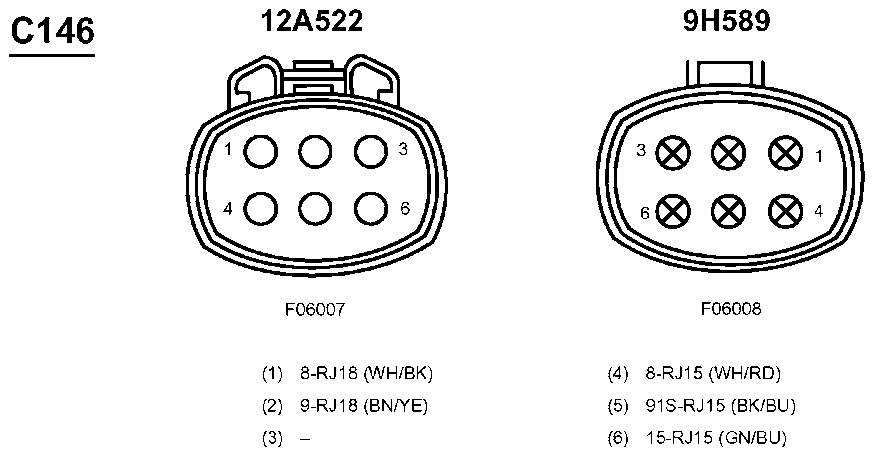

Fig 32: Inline Connector End View (C146)

G07834175

Courtesy of FORD MOTOR CO.

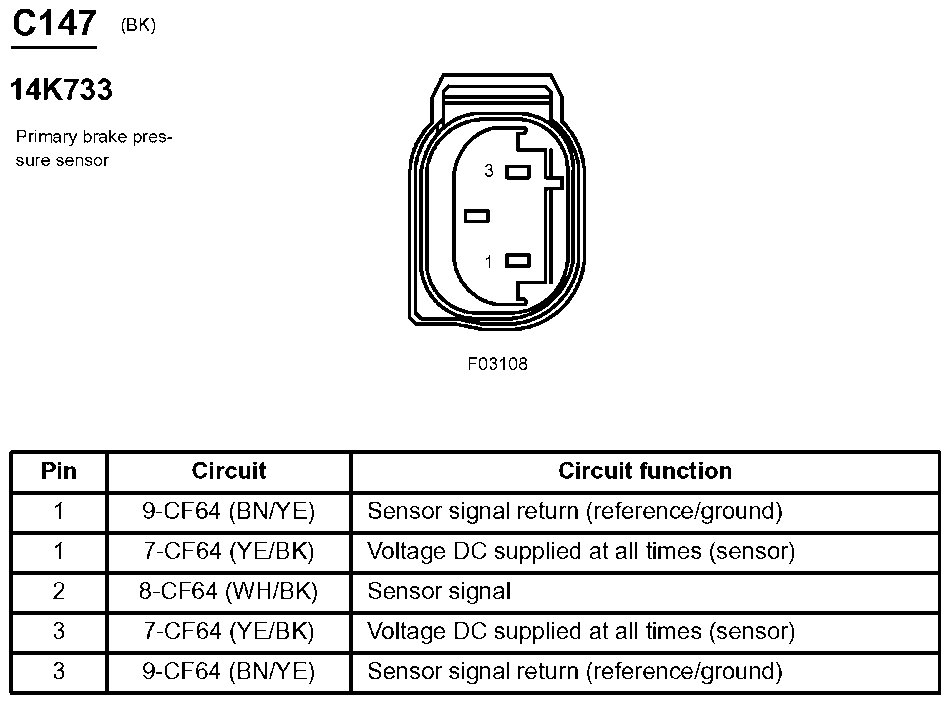

Fig 33: Primary Brake Pressure Sensor Connector End View (C147)

G07834176

Courtesy of FORD MOTOR CO.

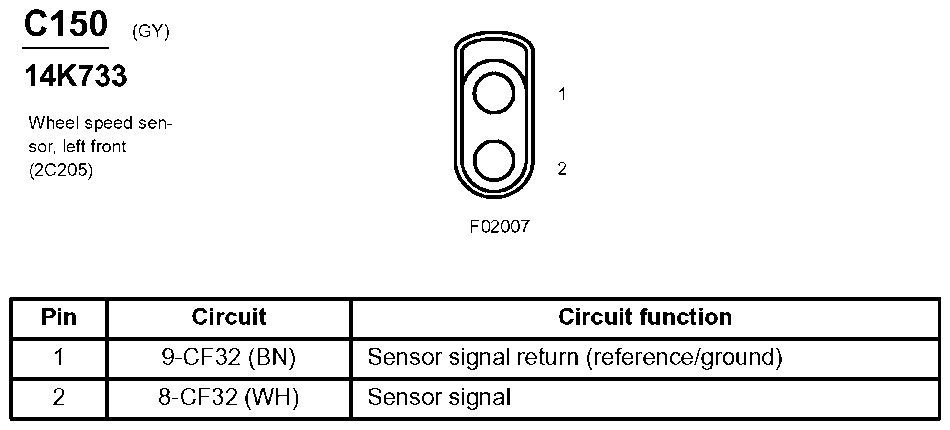

Fig 34: Wheel Speed Sensor, Left Front Connector End View (C150)

G07834177

Courtesy of FORD MOTOR CO.

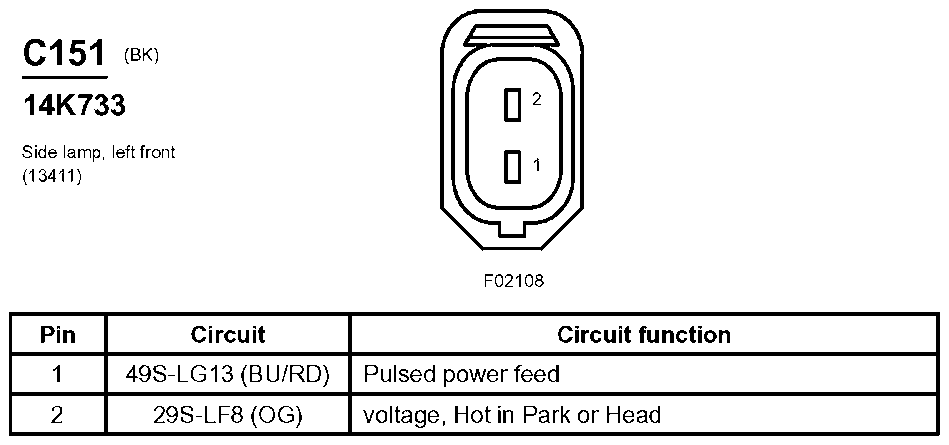

Fig 35: Side Lamp, Left Front Connector End View (C151)

G07834178

Courtesy of FORD MOTOR CO.

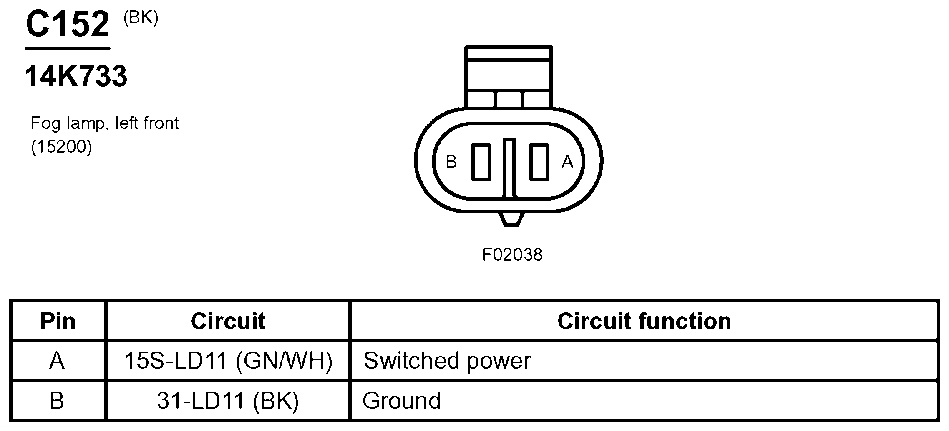

Fig 36: Fog Lamp, Left Front Connector End View (C152)

G07834179

Courtesy of FORD MOTOR CO.

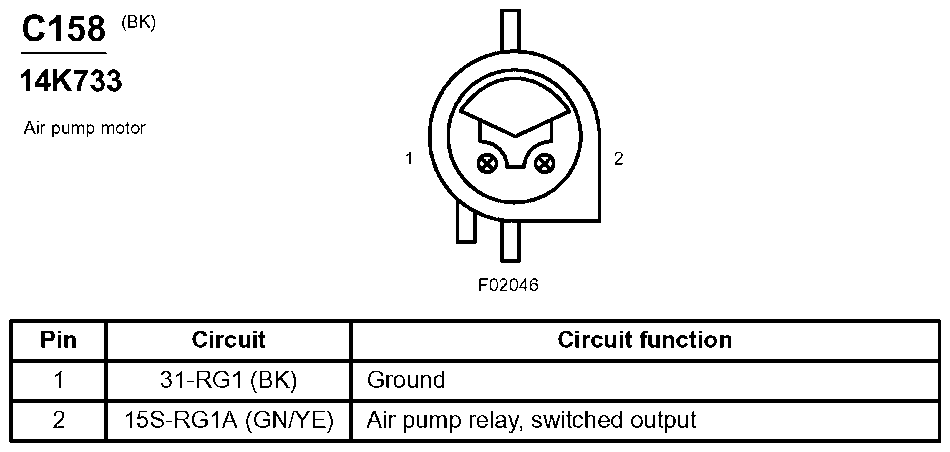

Fig 37: Air Pump Motor Connector End View (C158)

G07834180

Courtesy of FORD MOTOR CO.

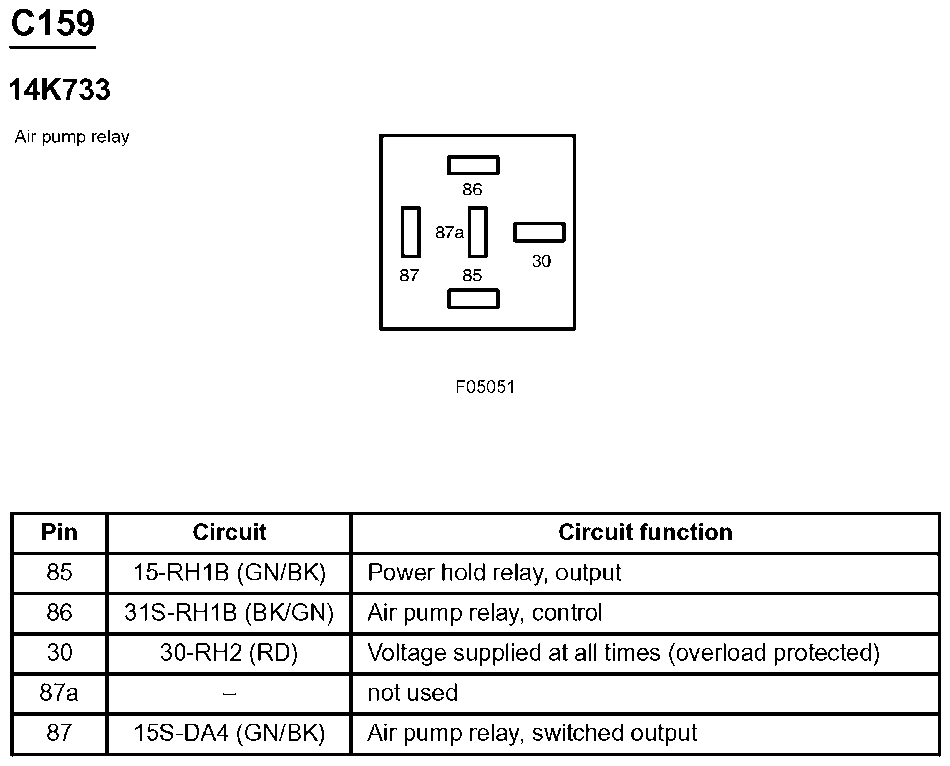

Fig 38: Air Pump Relay Connector End View (C159)

G07834181

Courtesy of FORD MOTOR CO.

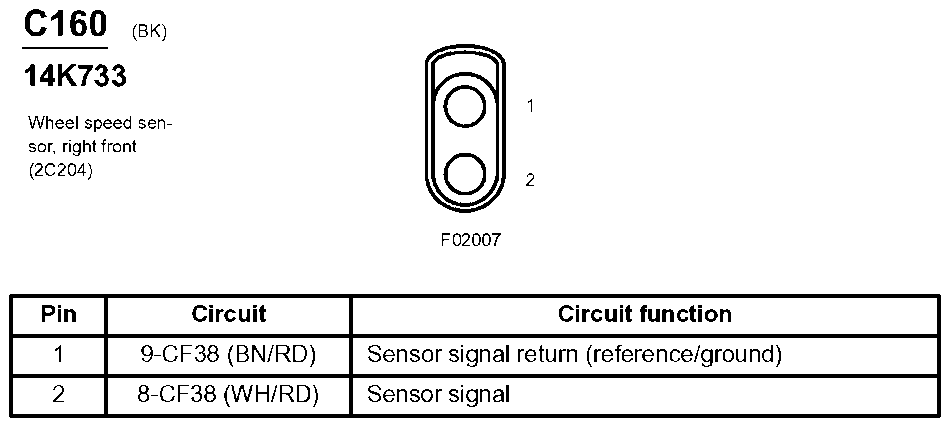

Fig 39: Wheel Speed Sensor, Right Front Connector End View (C160)

G07834182

Courtesy of FORD MOTOR CO.

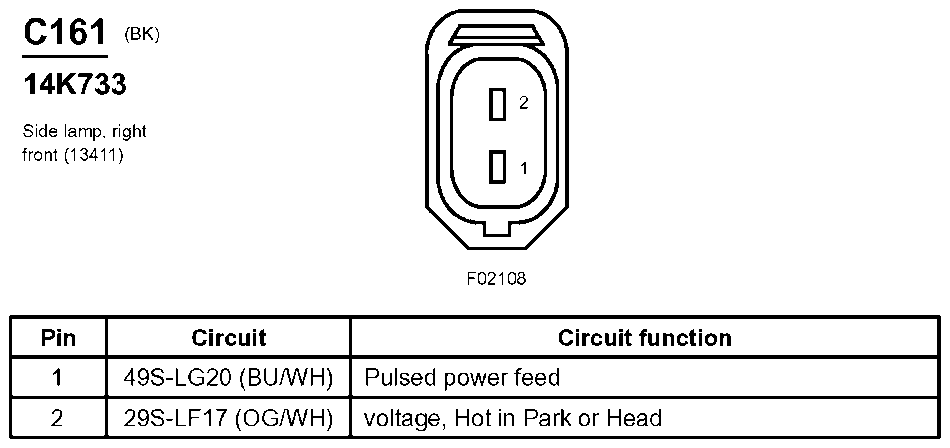

Fig 40: Side Lamp, Right Front Connector End View (C161)

G07834183

Courtesy of FORD MOTOR CO.

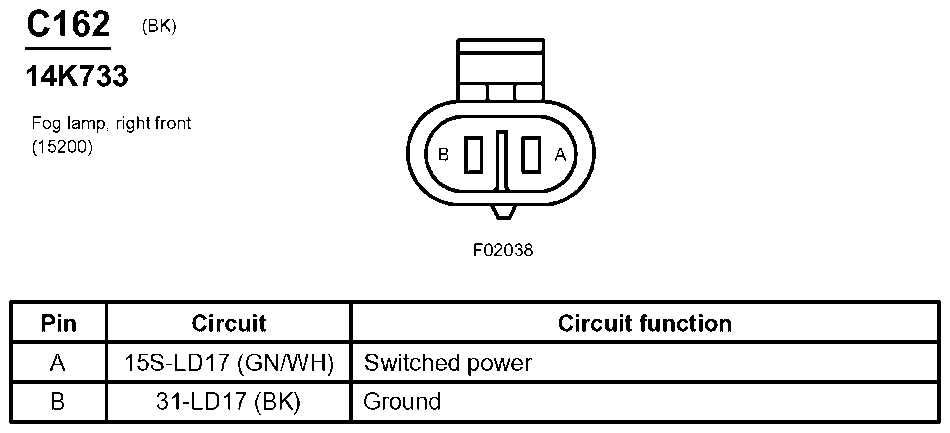

Fig 41: Fog Lamp, Right Front Connector End View (C162)

G07834184

Courtesy of FORD MOTOR CO.

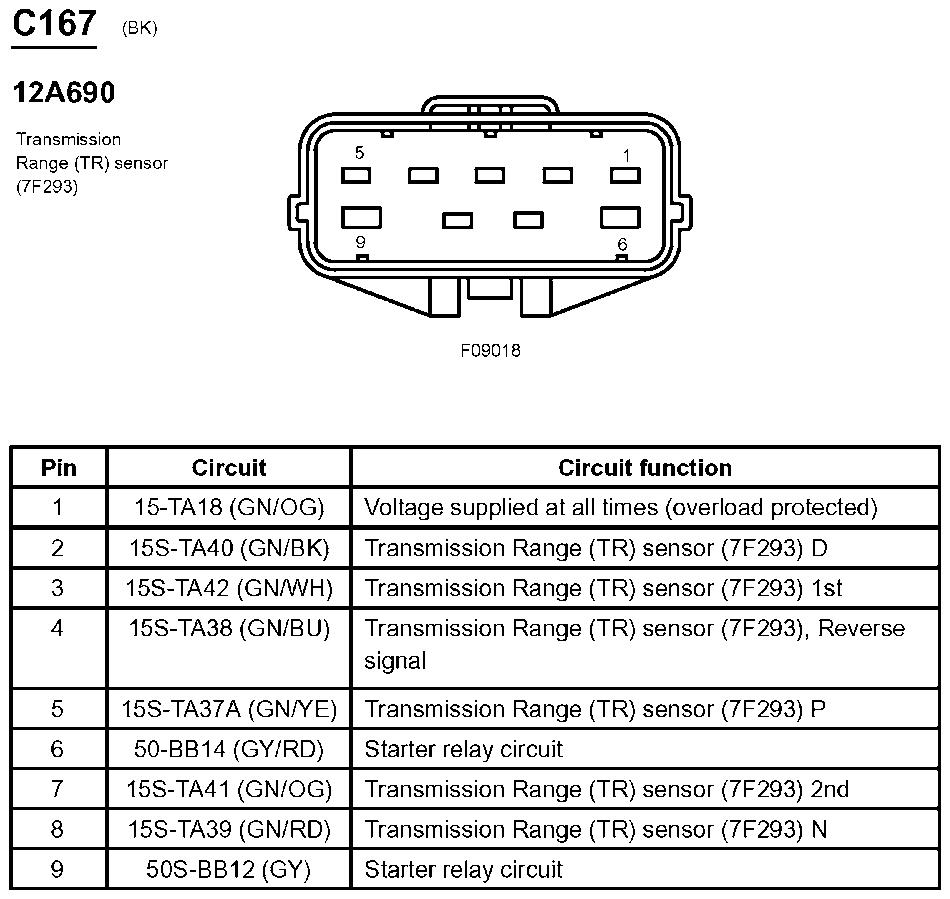

Fig 42: Transmission Range (TR) Sensor Connector End View (C167)

G07834185

Courtesy of FORD MOTOR CO.

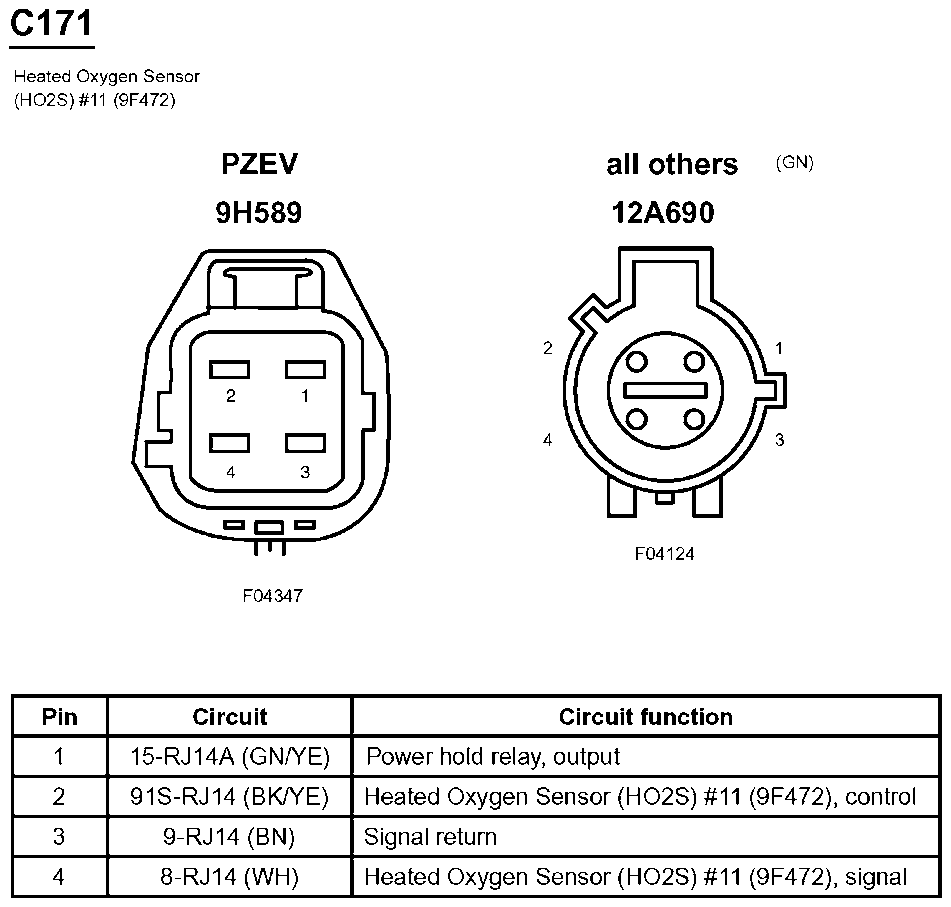

Fig 43: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07834186

Courtesy of FORD MOTOR CO.

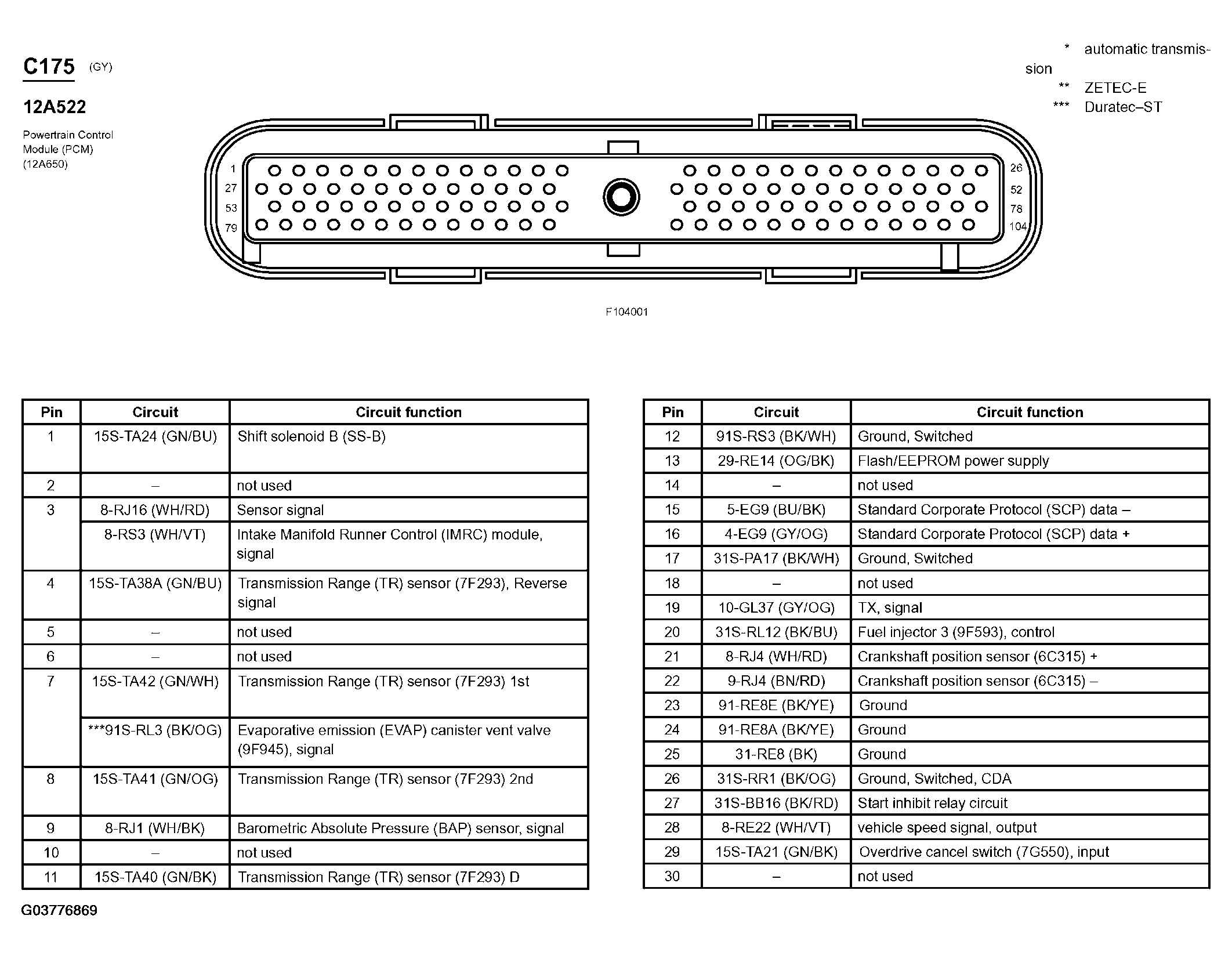

Fig 44: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 3)

G03776869

Courtesy of FORD MOTOR CO.

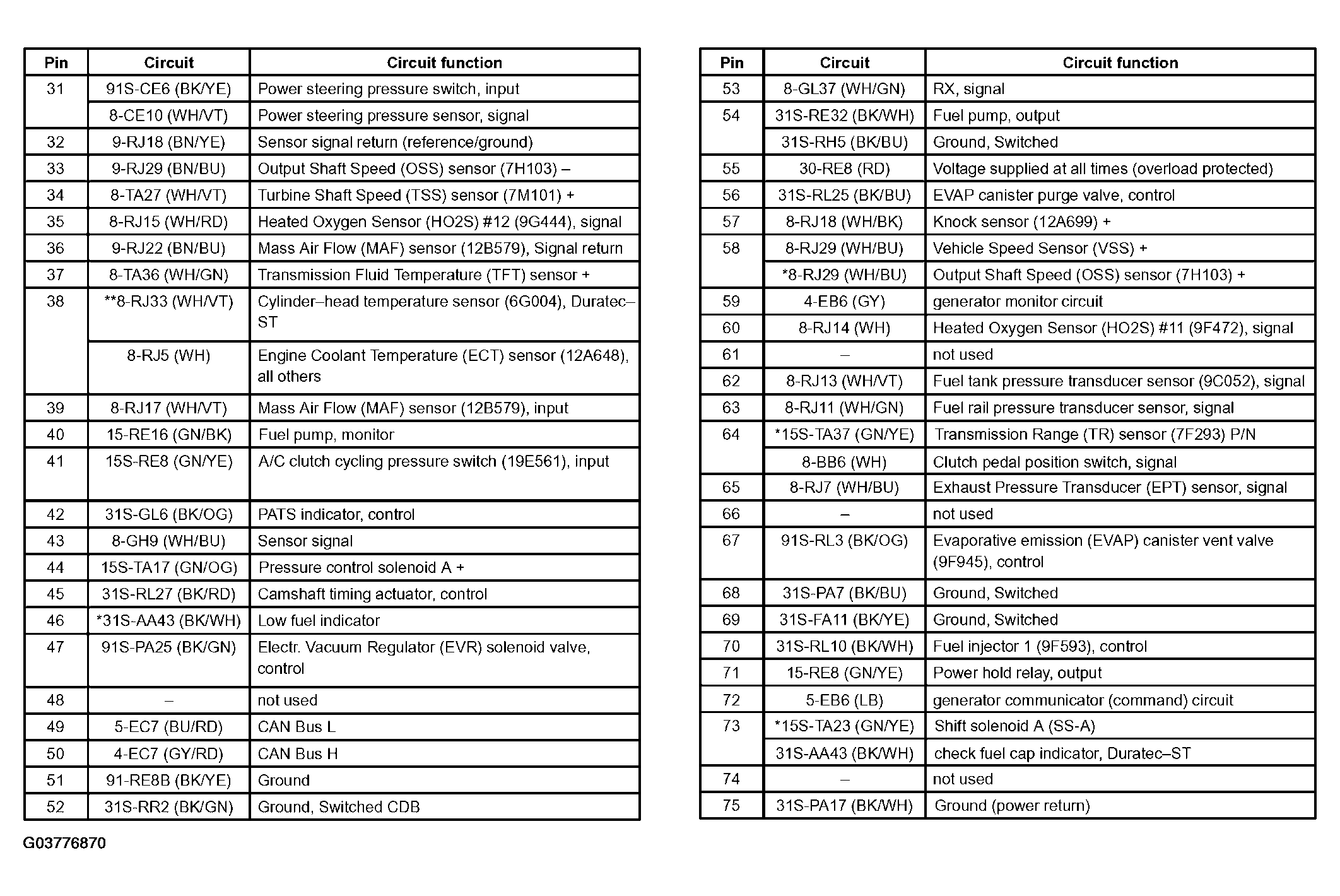

Fig 45: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 3)

G03776870

Courtesy of FORD MOTOR CO.

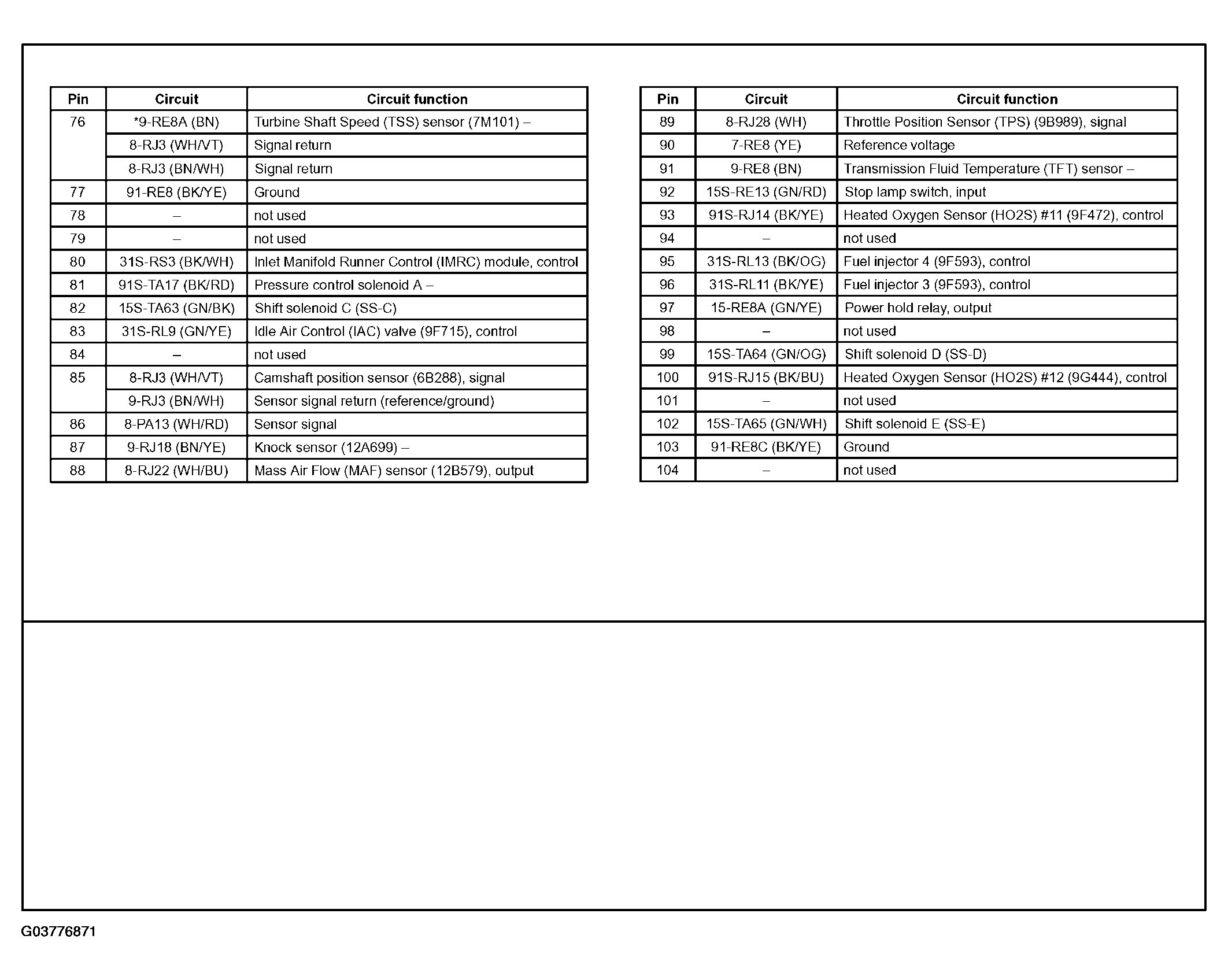

Fig 46: Powertrain Control Module (PCM) Connector End View (C175) (3 Of 3)

G03776871

Courtesy of FORD MOTOR CO.

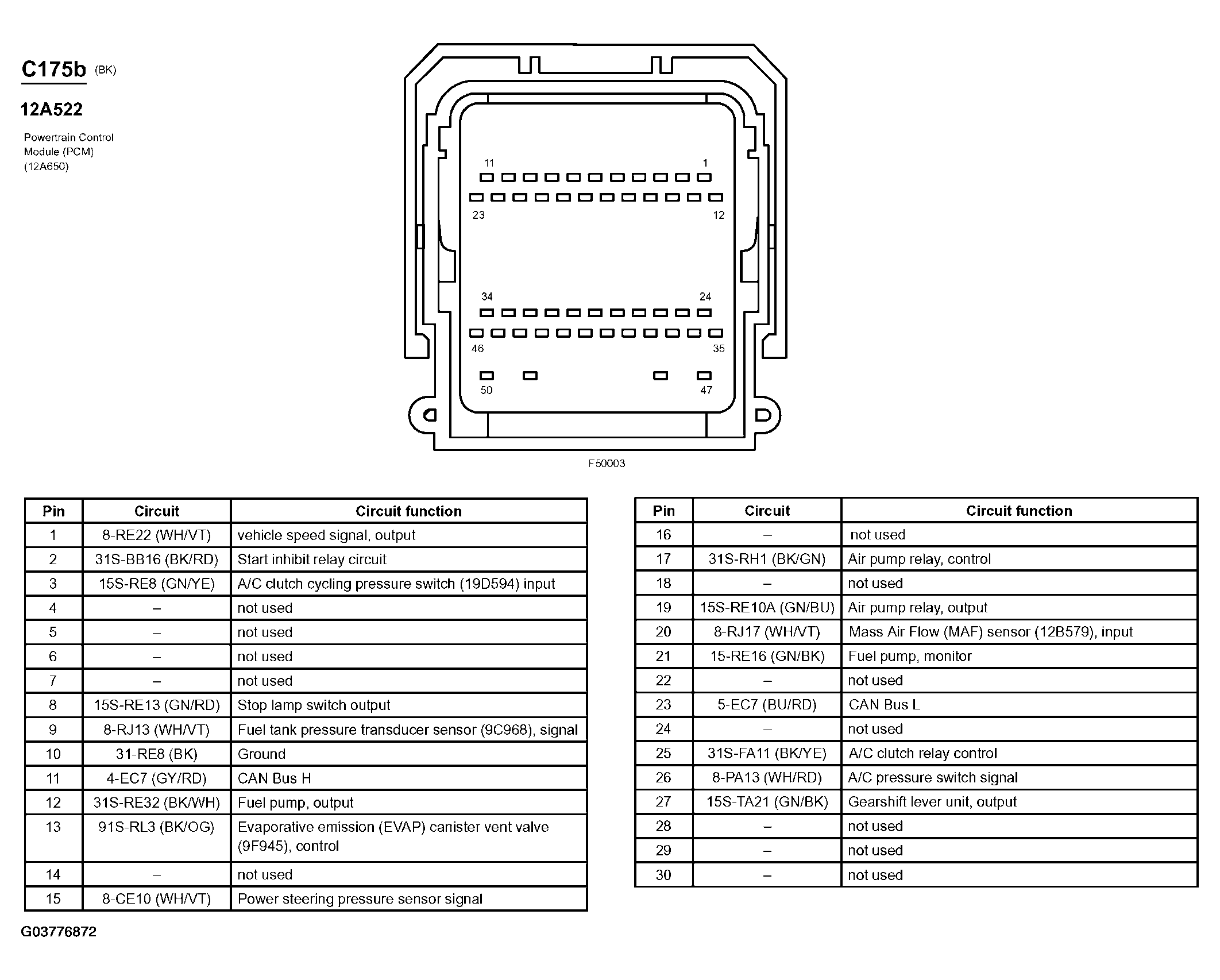

Fig 47: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)

G03776872

Courtesy of FORD MOTOR CO.

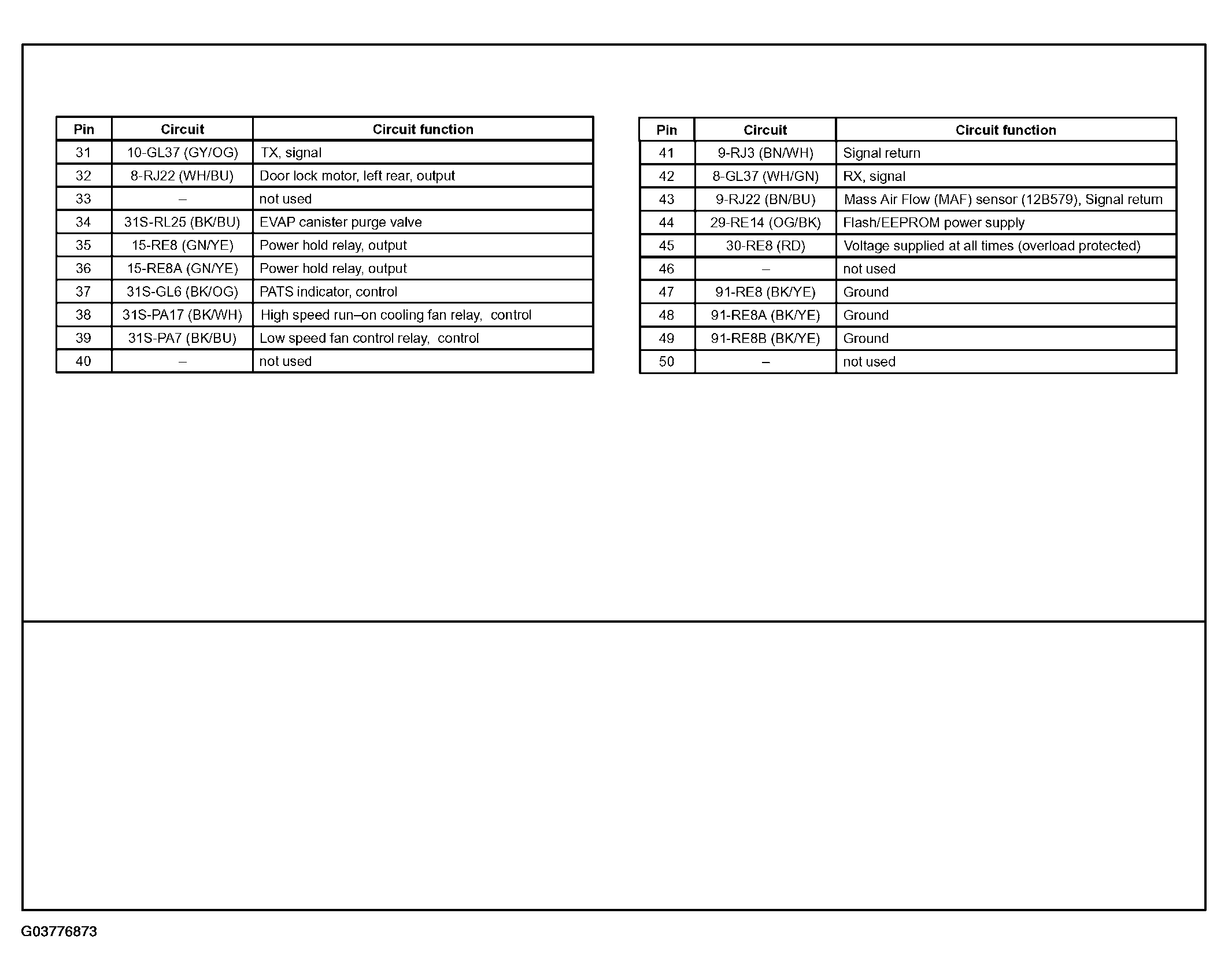

Fig 48: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)

G03776873

Courtesy of FORD MOTOR CO.

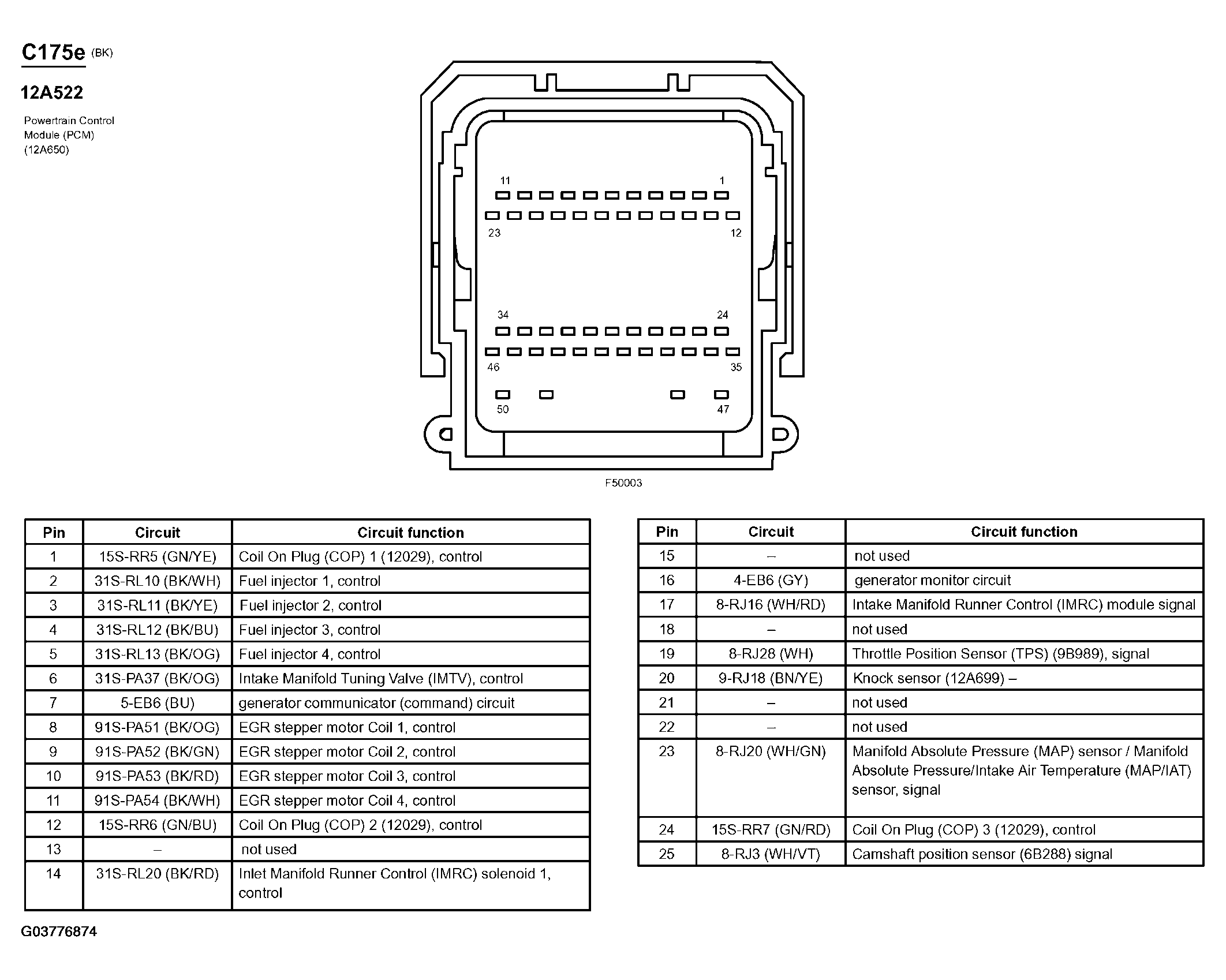

Fig 49: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)

G03776874

Courtesy of FORD MOTOR CO.

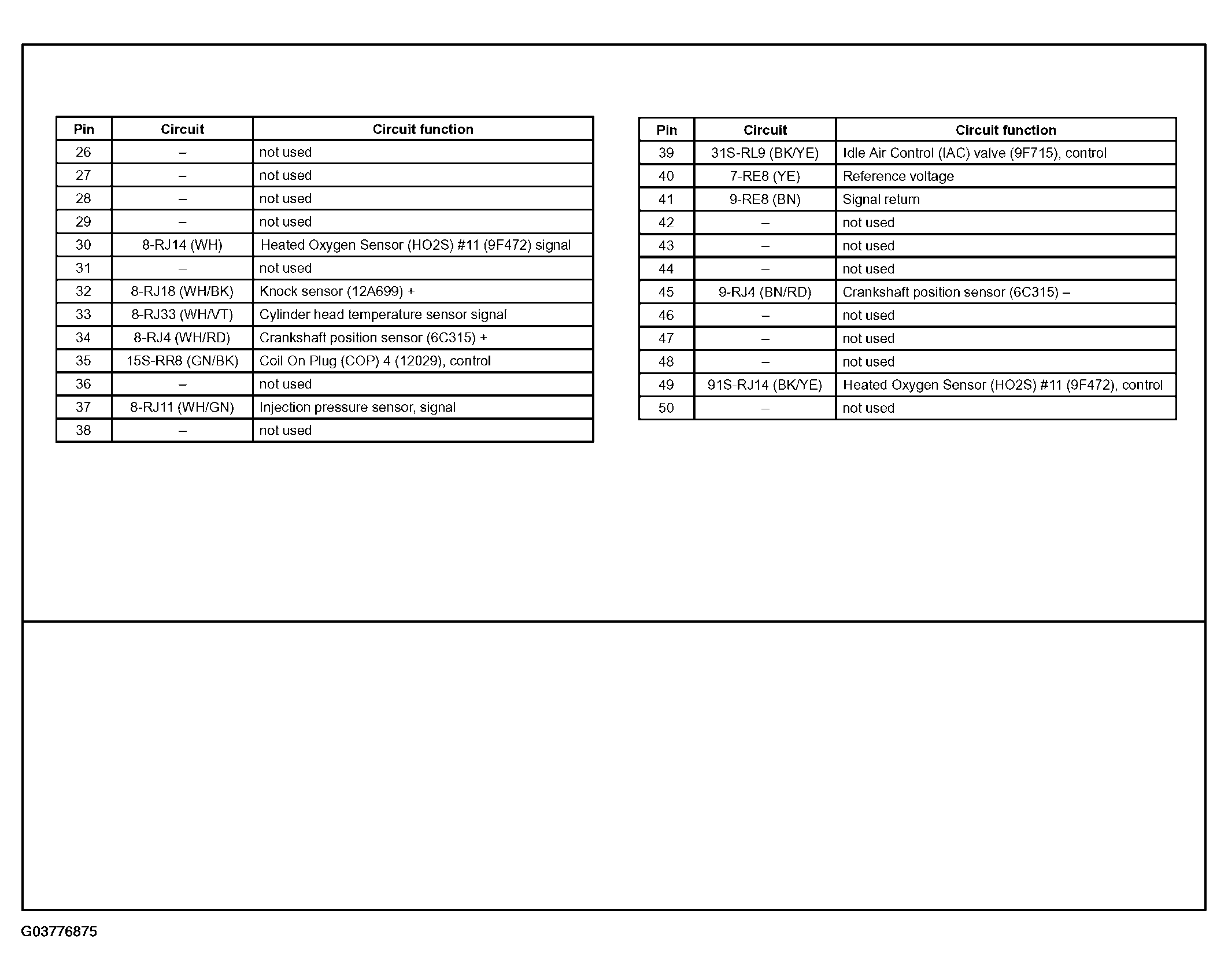

Fig 50: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)

G03776875

Courtesy of FORD MOTOR CO.

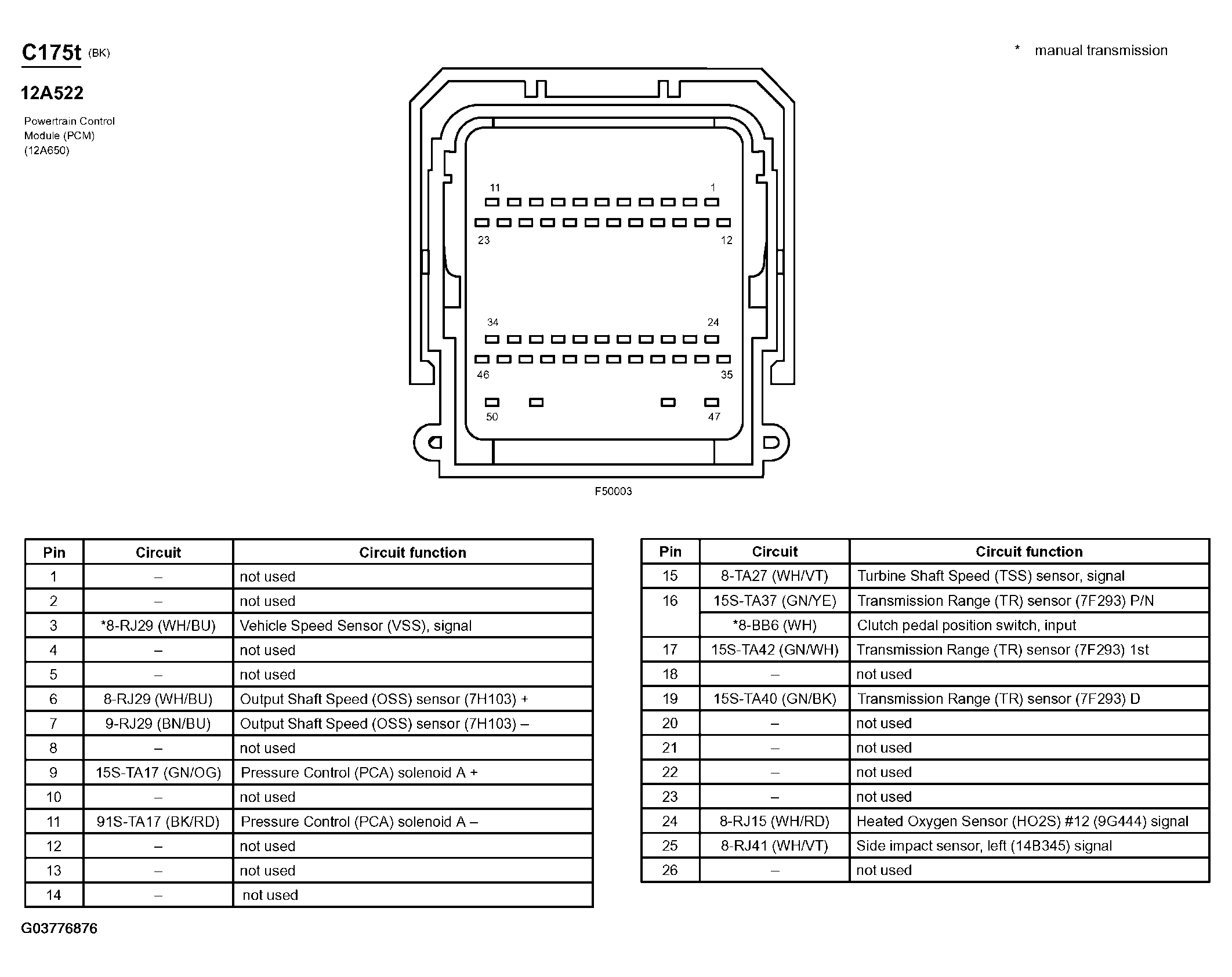

Fig 51: Powertrain Control Module (PCM) Connector End View (C175t) (1 Of 2)

G03776876

Courtesy of FORD MOTOR CO.

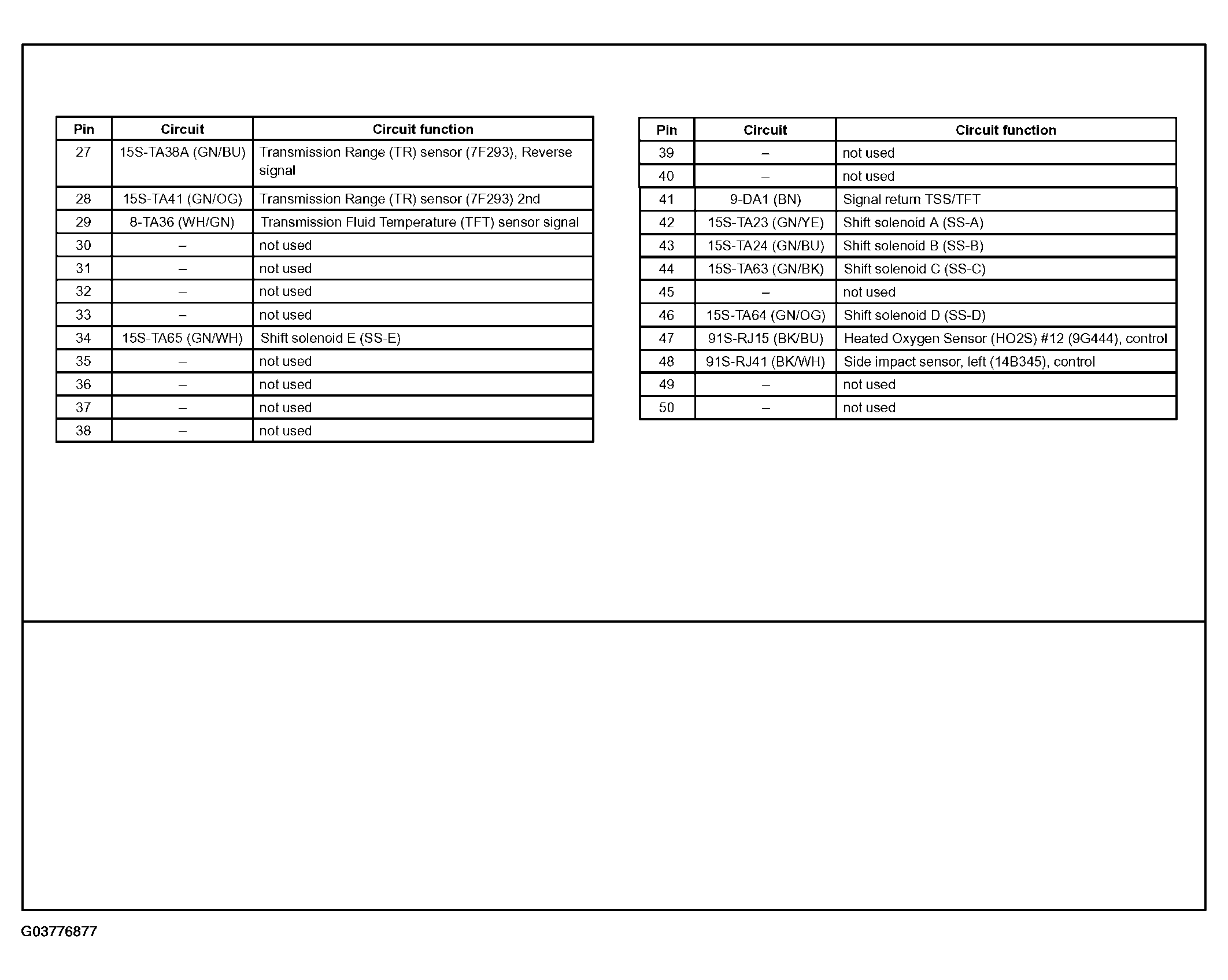

Fig 52: Powertrain Control Module (PCM) Connector End View (C175t) (2 Of 2)

G03776877

Courtesy of FORD MOTOR CO.

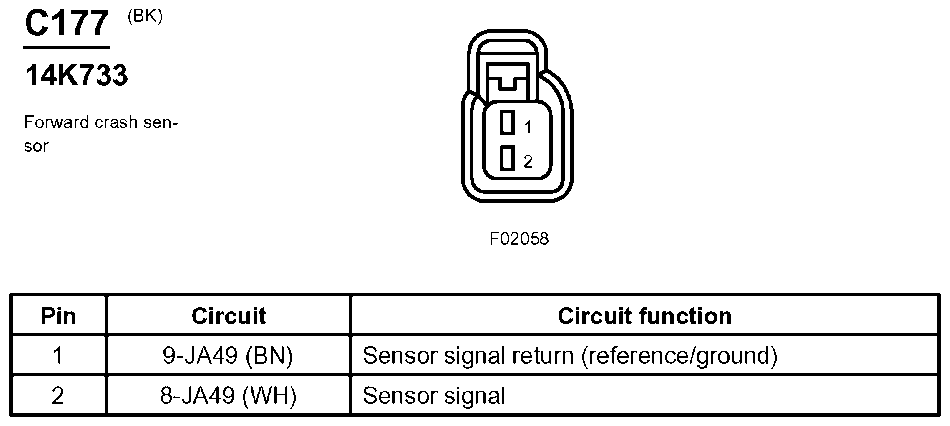

Fig 53: Forward Crash Sensor Connector End View (C177)

G07834187

Courtesy of FORD MOTOR CO.

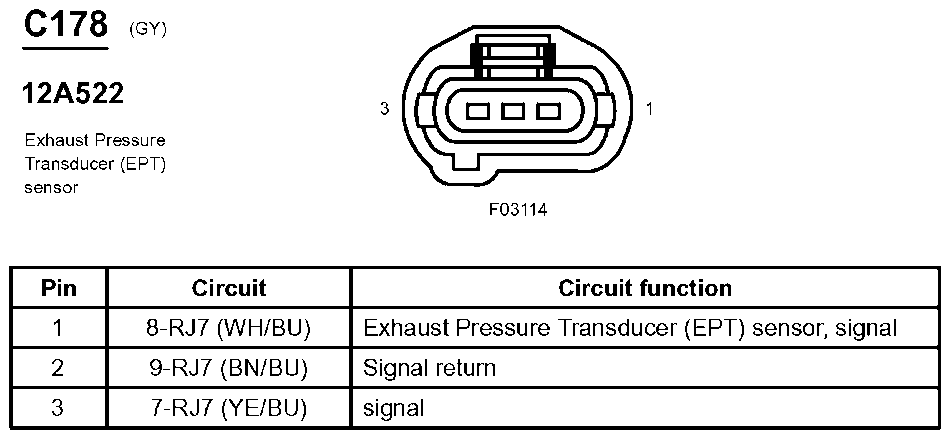

Fig 54: Exhaust Pressure Transducer (EPT) Sensor Connector End View (C178)

G07834188

Courtesy of FORD MOTOR CO.

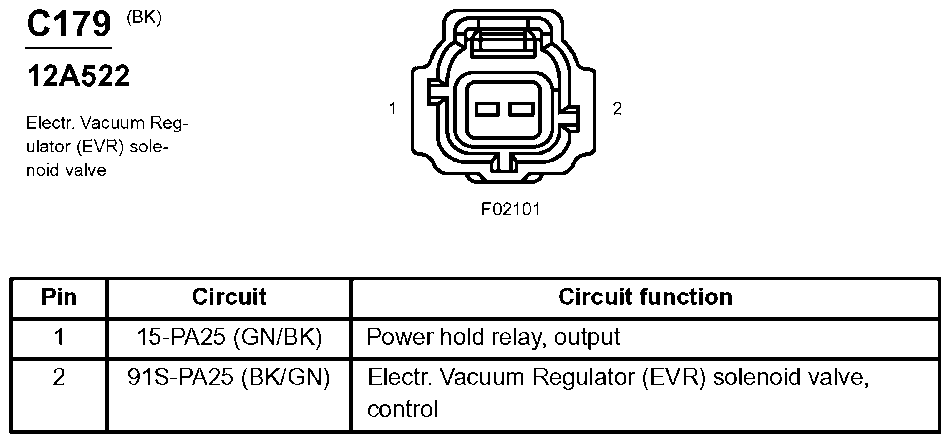

Fig 55: Electr. Vacuum Regulator (EVR) Solenoid Valve Connector End View (C179)

G07834189

Courtesy of FORD MOTOR CO.

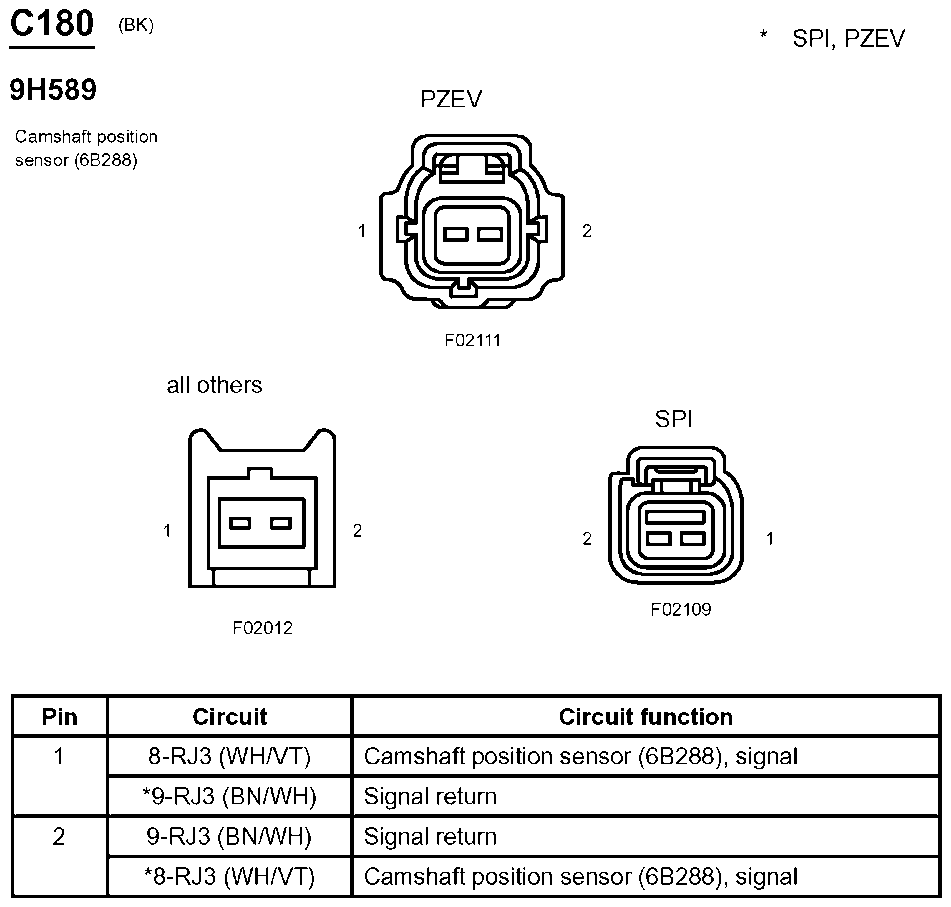

Fig 56: Camshaft Position Sensor Connector End View (C180)

G07834190

Courtesy of FORD MOTOR CO.

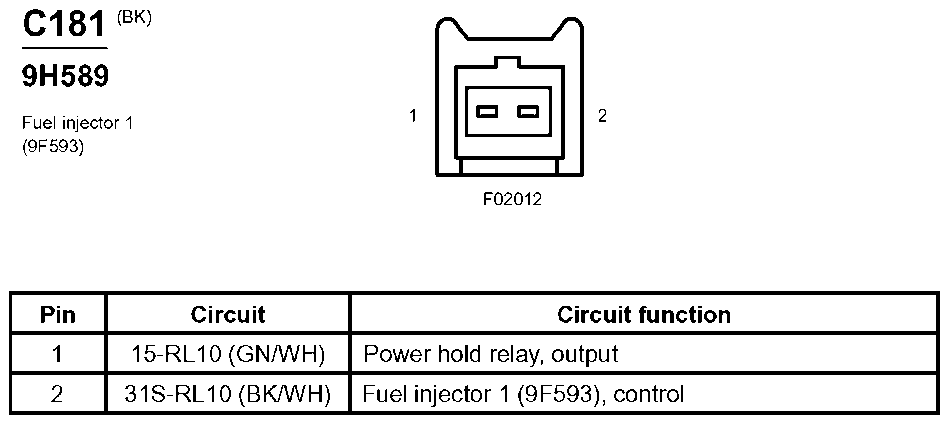

Fig 57: Fuel Injector 1 Connector End View (C181)

G07834191

Courtesy of FORD MOTOR CO.

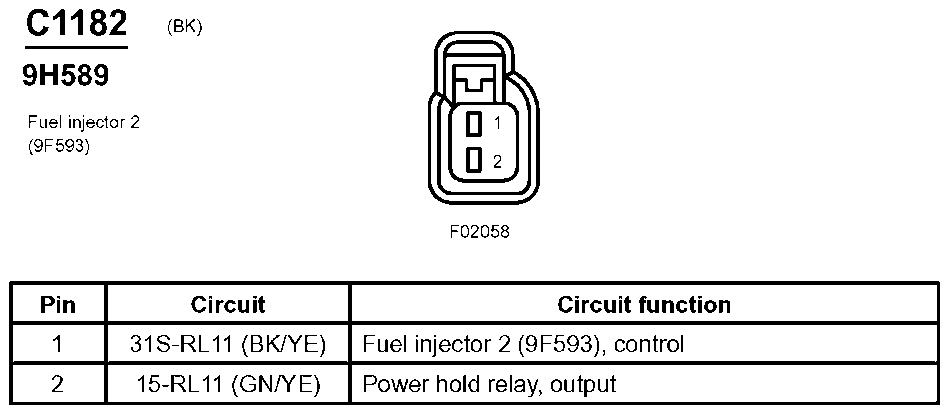

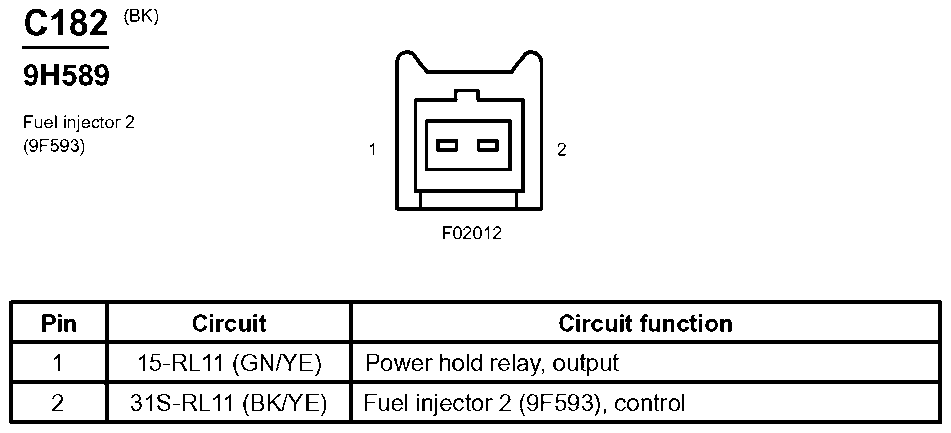

Fig 58: Fuel Injector 2 Connector End View (C182)

G07834192

Courtesy of FORD MOTOR CO.

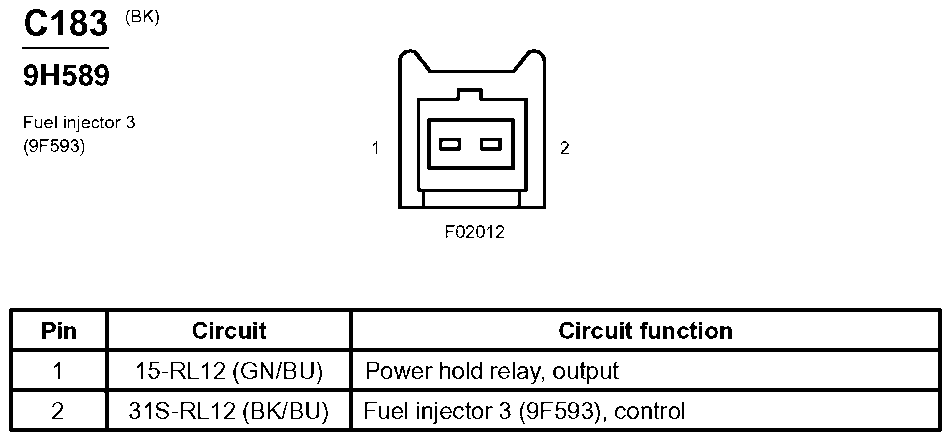

Fig 59: Fuel Injector 3 Connector End View (C183)

G07834193

Courtesy of FORD MOTOR CO.

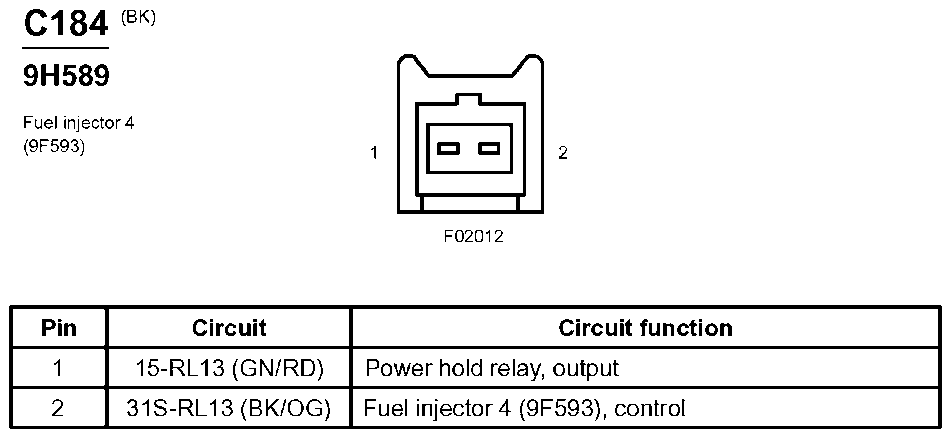

Fig 60: Fuel Injector 4 Connector End View (C184)

G07834194

Courtesy of FORD MOTOR CO.

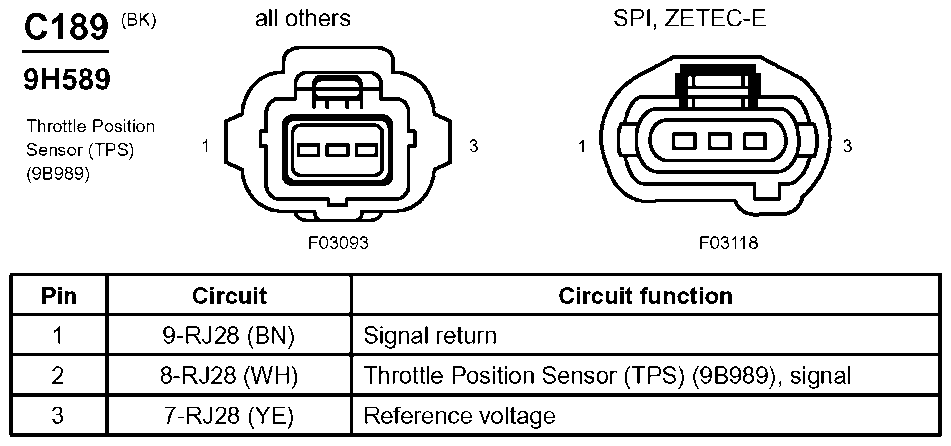

Fig 61: Throttle Position Sensor (TPS) Connector End View (C189)

G07834195

Courtesy of FORD MOTOR CO.

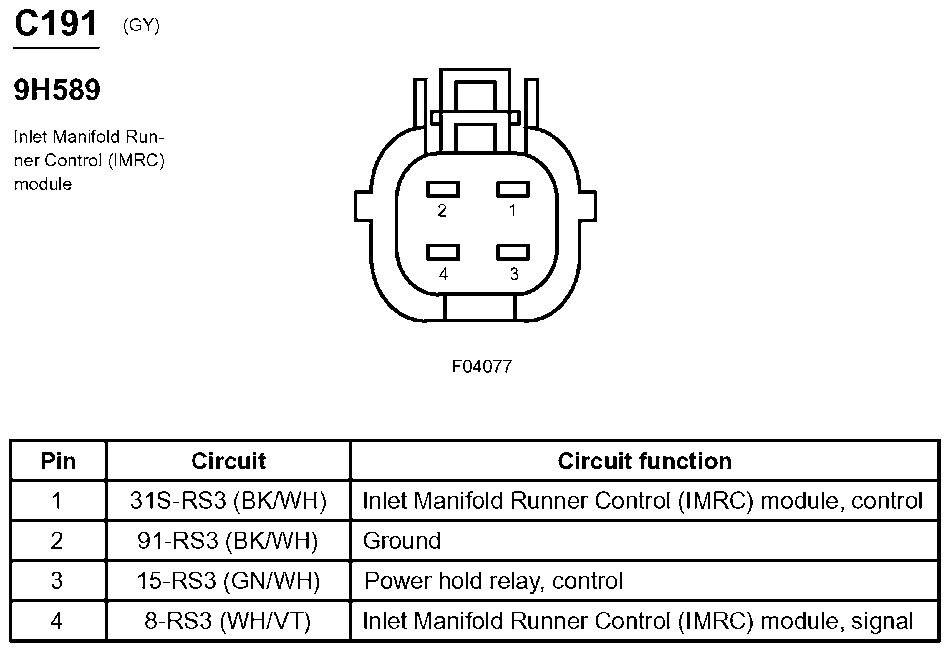

Fig 62: Inlet Manifold Runner Control (IMRC) Module Connector End View (C191)

G07834196

Courtesy of FORD MOTOR CO.

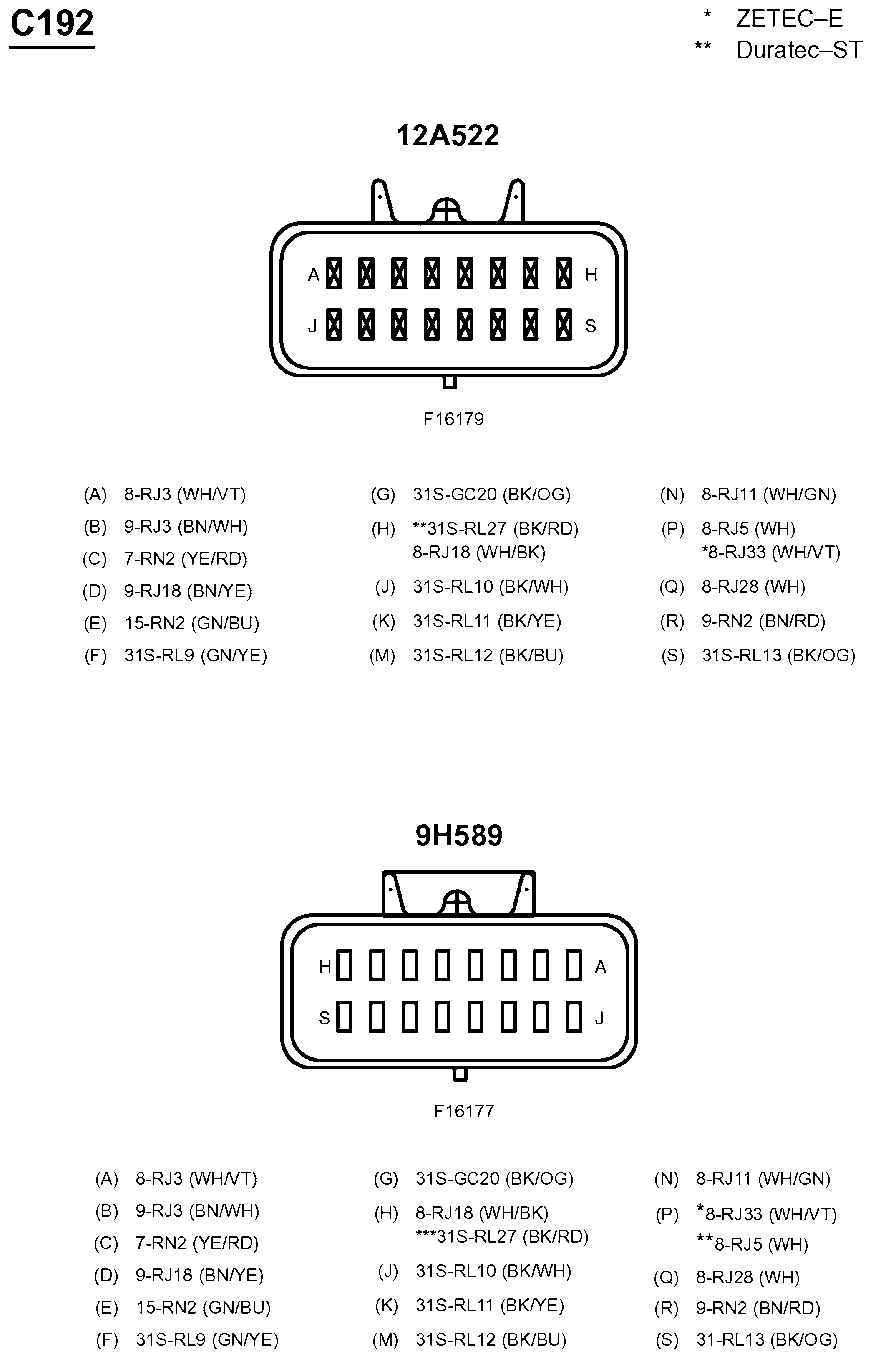

Fig 63: Inline Connector End View (C192)

G07834197

Courtesy of FORD MOTOR CO.

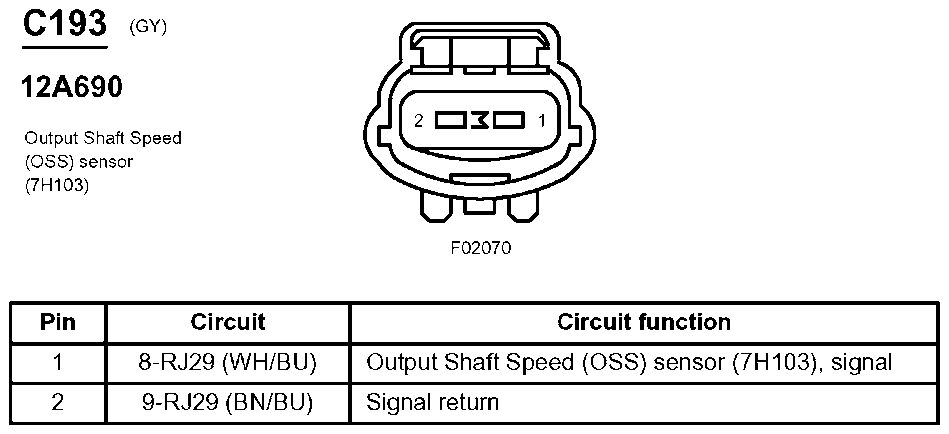

Fig 64: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07834198

Courtesy of FORD MOTOR CO.

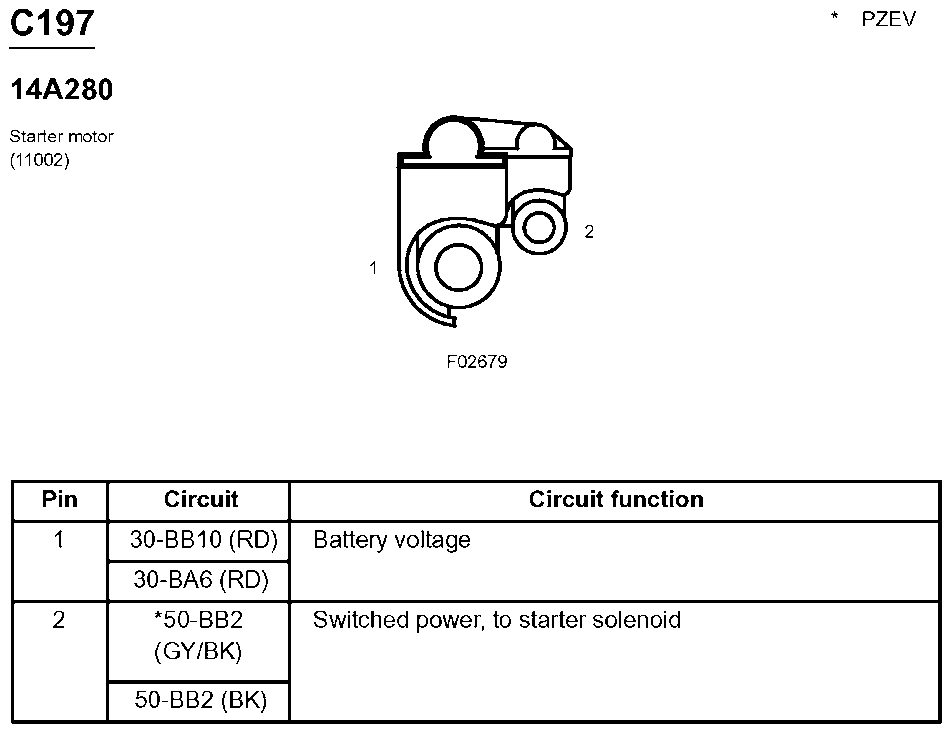

Fig 65: Starter Motor Connector End View (C197)

G07834199

Courtesy of FORD MOTOR CO.

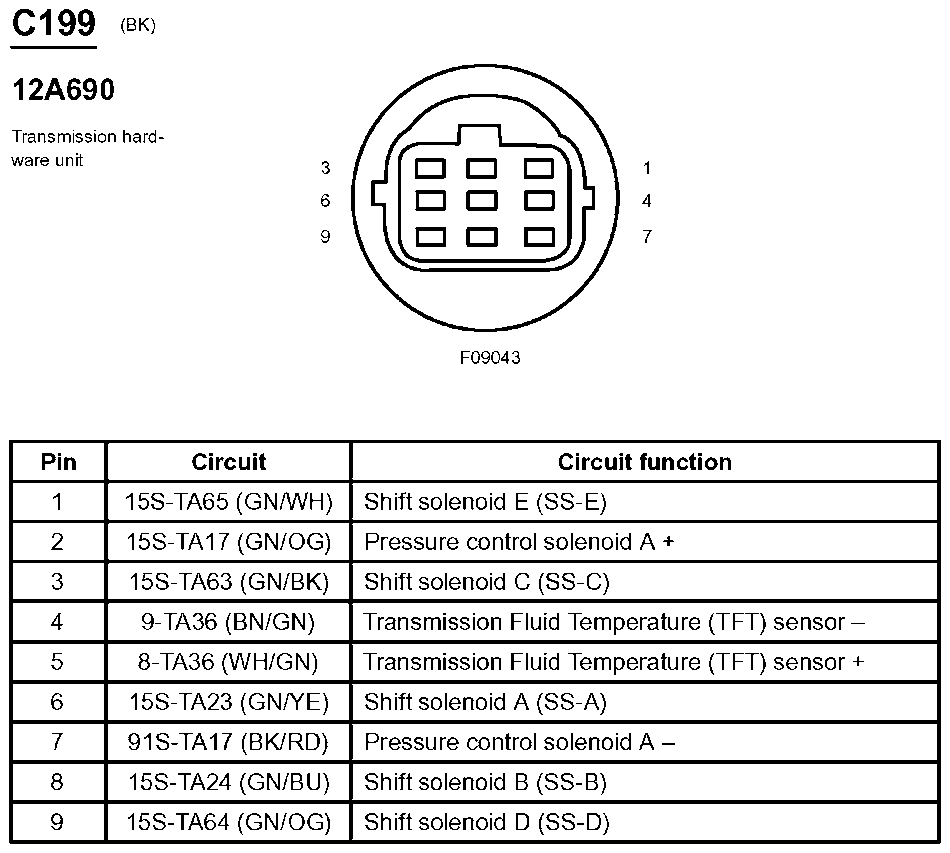

Fig 66: Transmission Hardware Unit Connector End View (C199)

G07834200

Courtesy of FORD MOTOR CO.

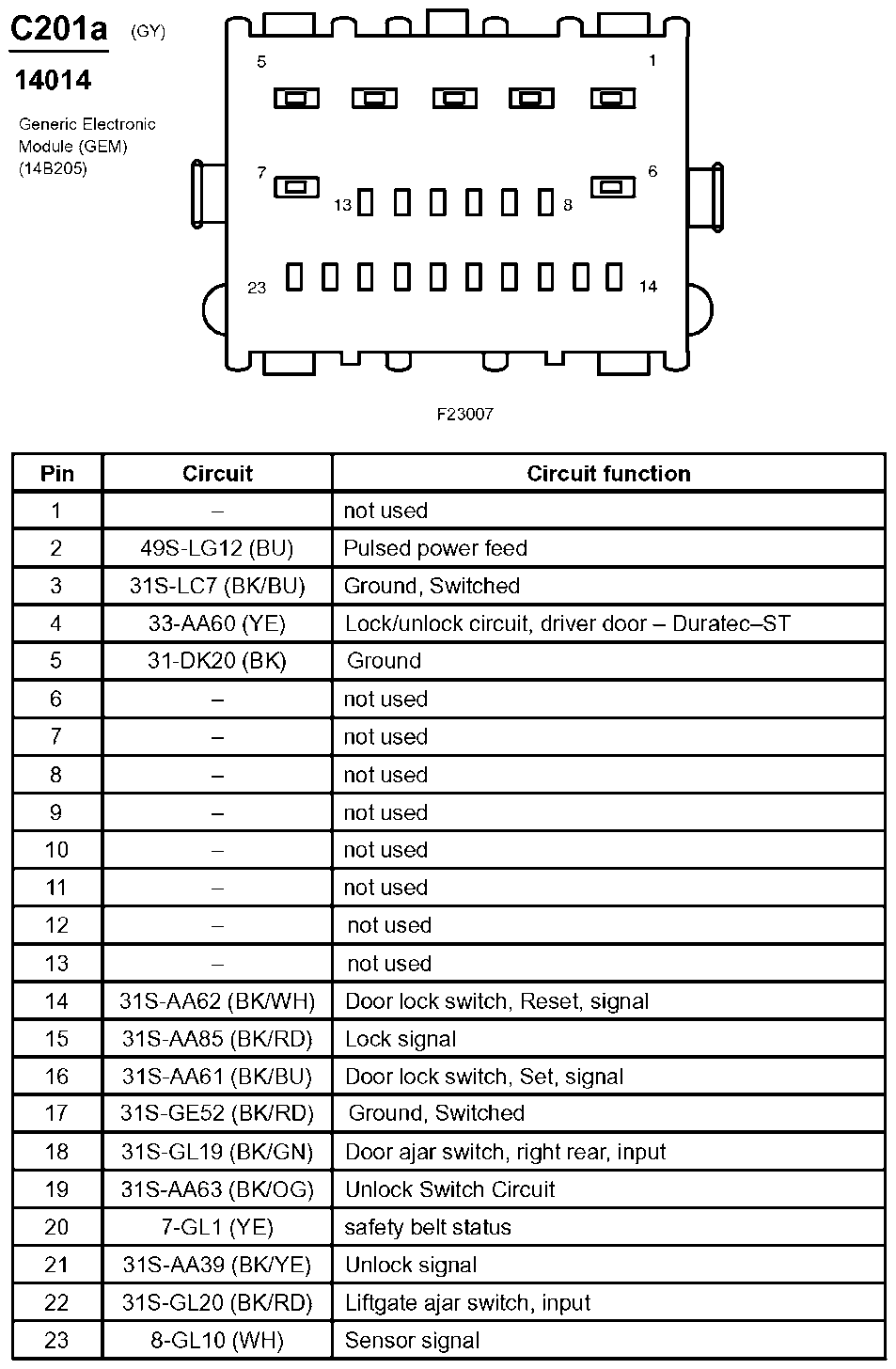

Fig 67: Generic Electronic Module (GEM) Connector End View (C201a)

G07834201

Courtesy of FORD MOTOR CO.

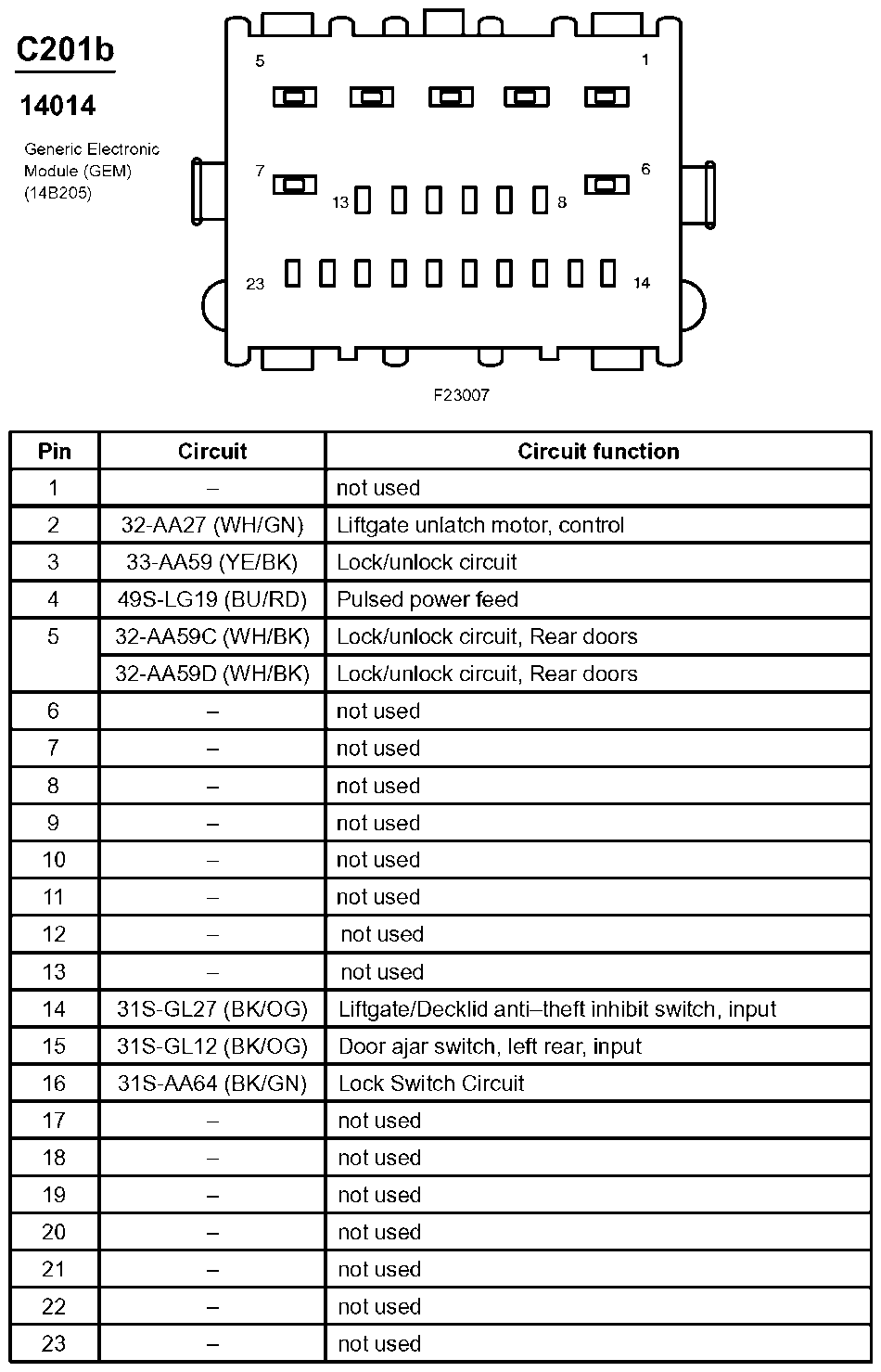

Fig 68: Generic Electronic Module (GEM) Connector End View (C201b)

G07834202

Courtesy of FORD MOTOR CO.

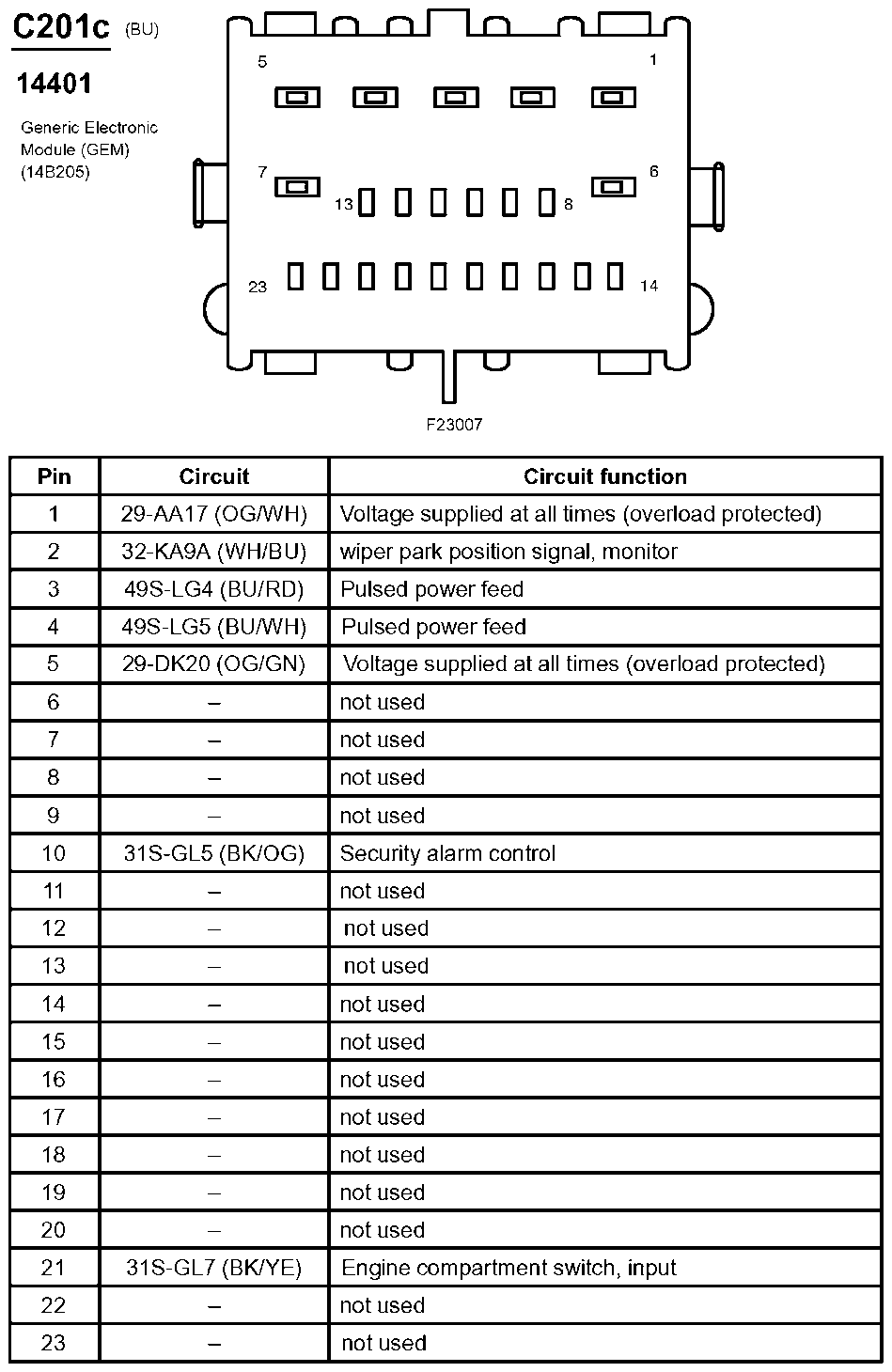

Fig 69: Generic Electronic Module (GEM) Connector End View (C201c)

G07834203

Courtesy of FORD MOTOR CO.

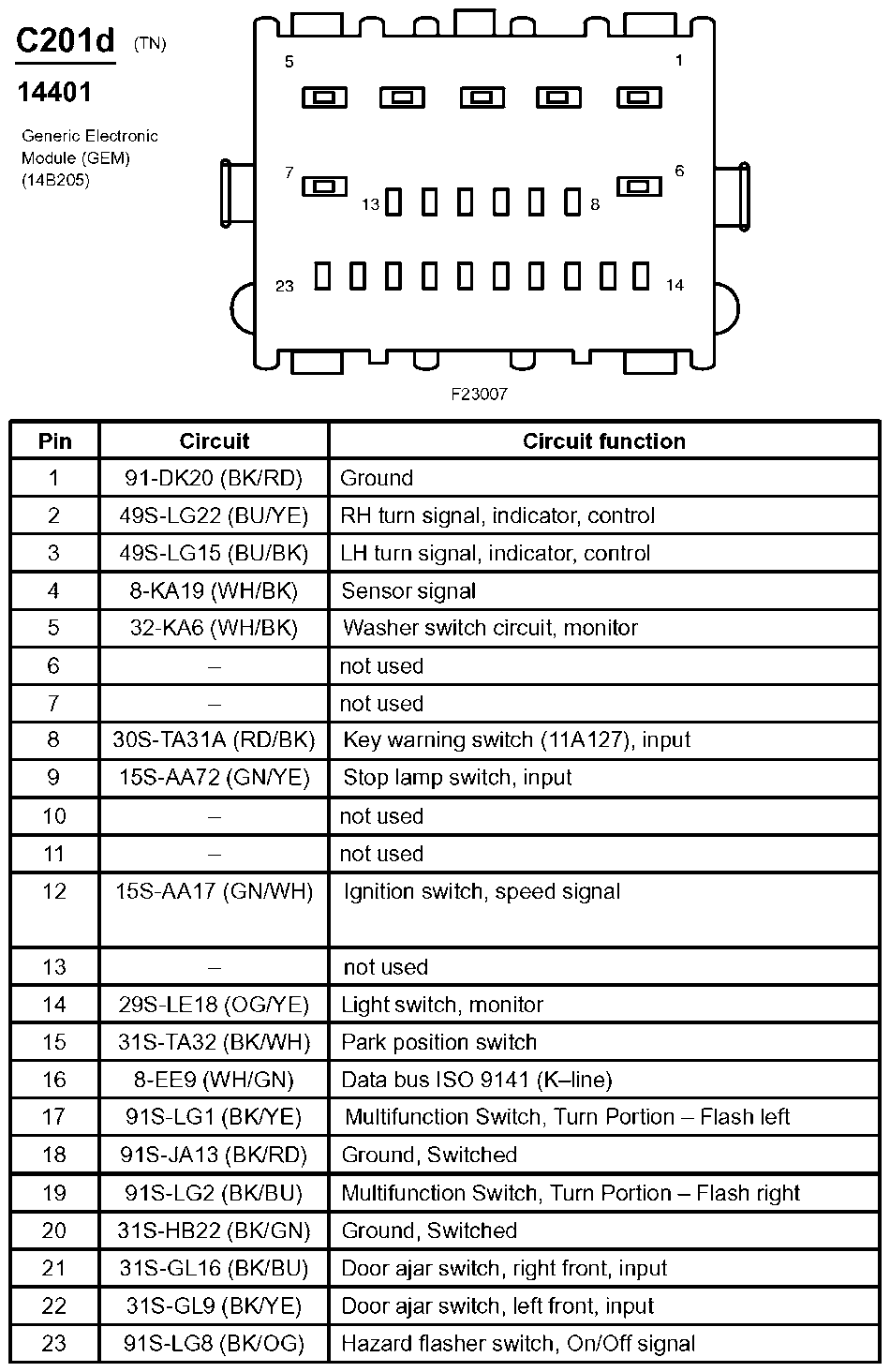

Fig 70: Generic Electronic Module (GEM) Connector End View (C201d)

G07834204

Courtesy of FORD MOTOR CO.

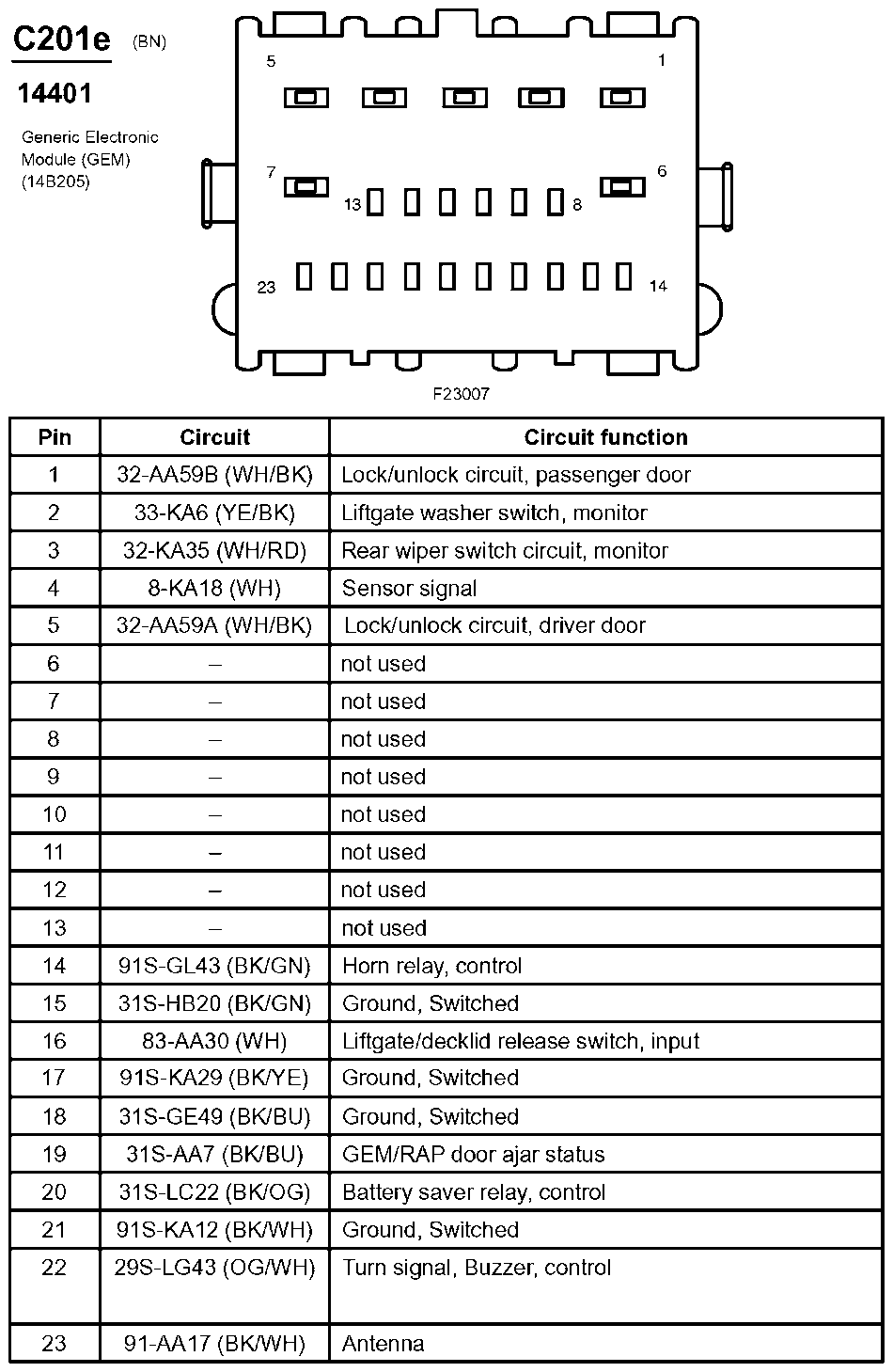

Fig 71: Generic Electronic Module (GEM) Connector End View (C201e)

G07834205

Courtesy of FORD MOTOR CO.

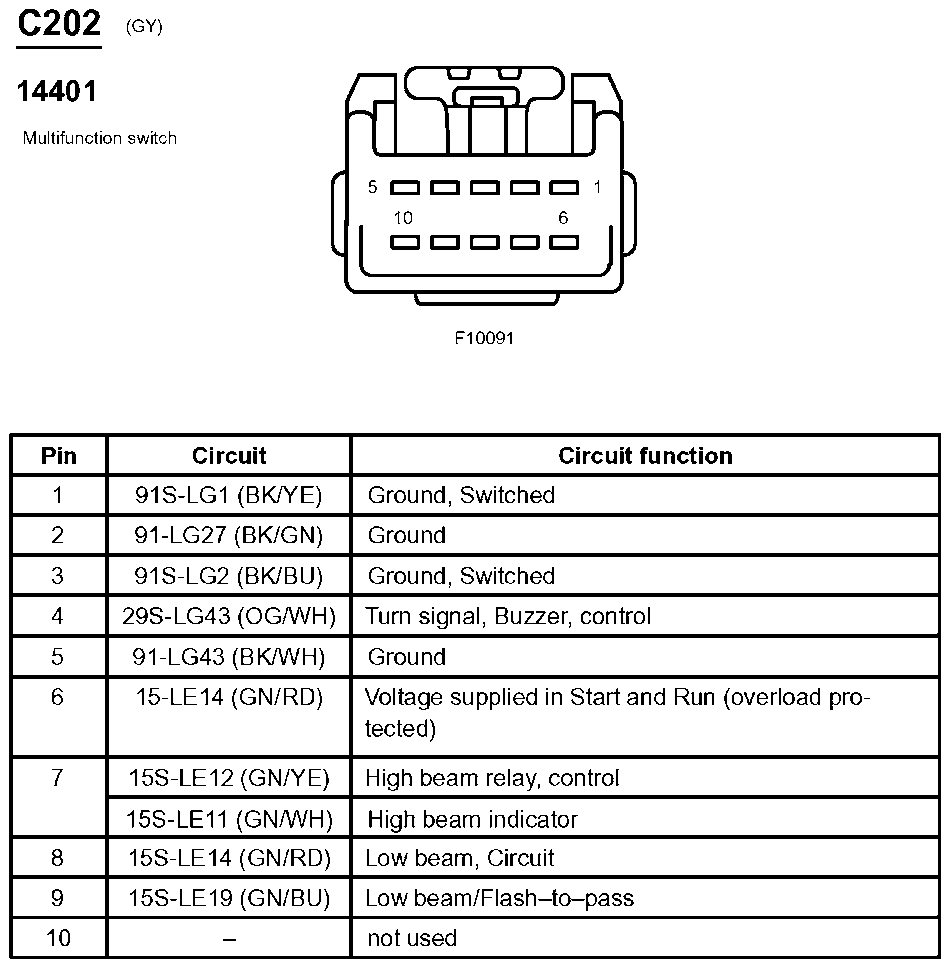

Fig 72: Multifunction Switch Connector End View (C202)

G07834206

Courtesy of FORD MOTOR CO.

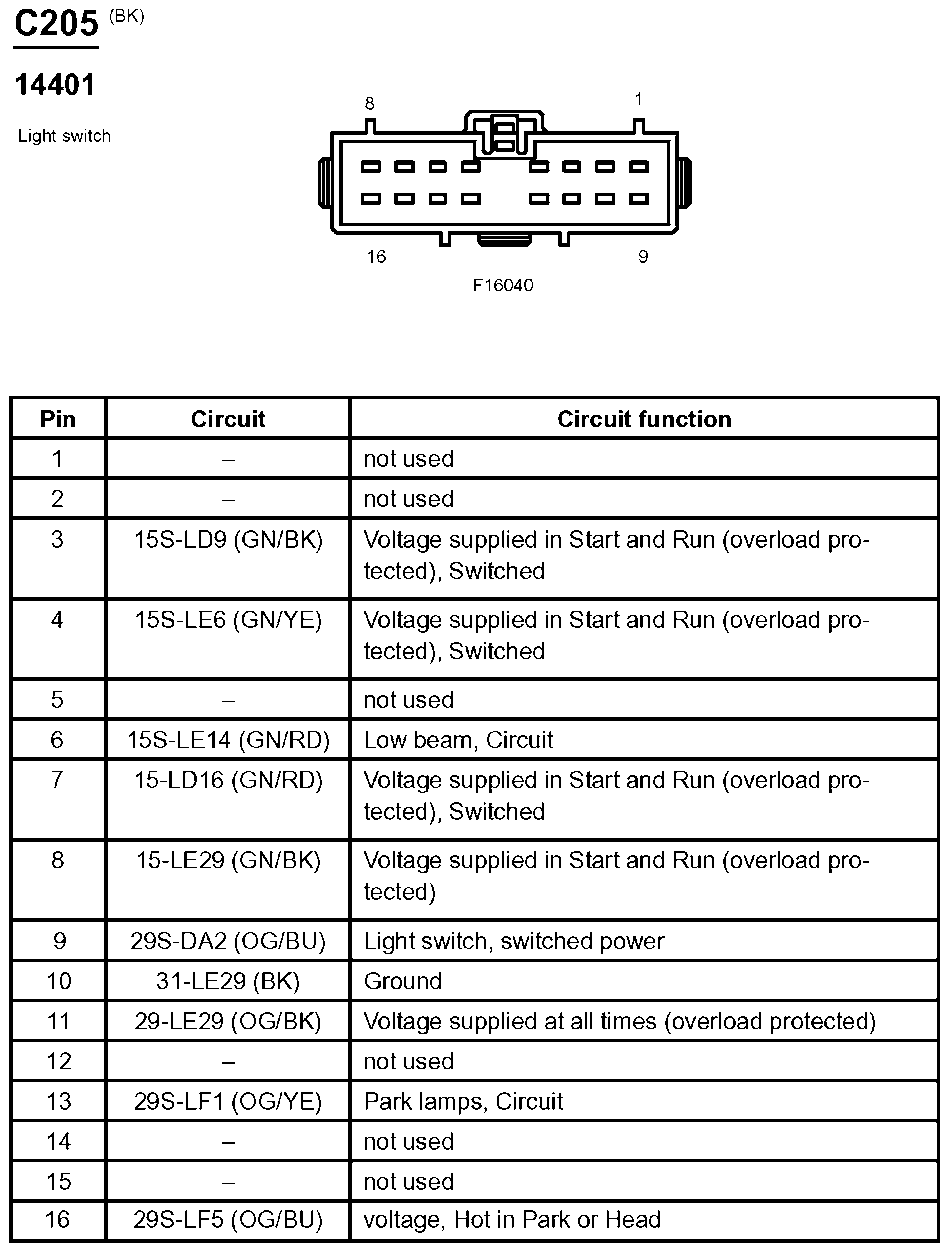

Fig 73: Main Light Switch Connector End View (C205)

G07834207

Courtesy of FORD MOTOR CO.

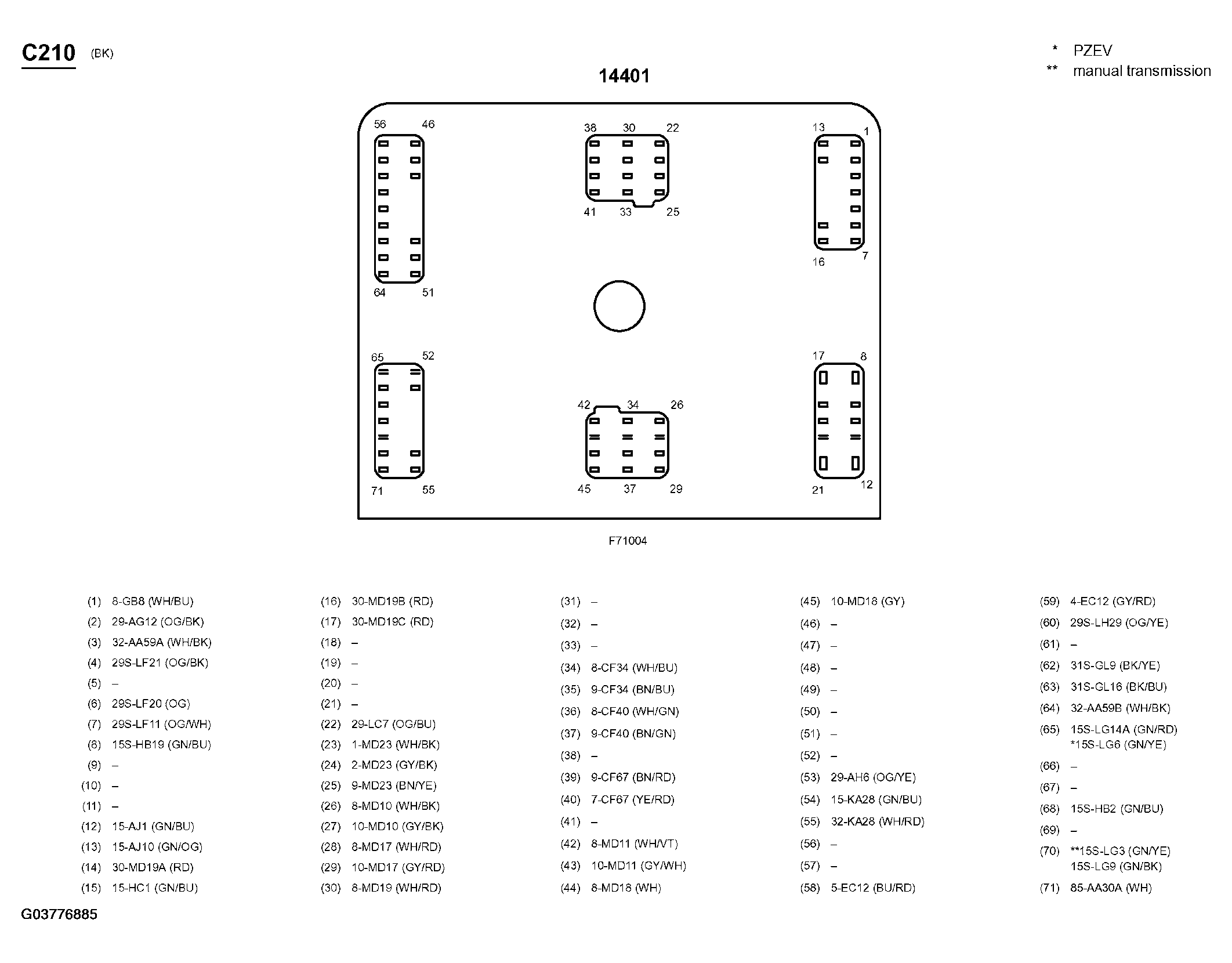

Fig 74: Inline Connector End View (C210)

G03776885

Courtesy of FORD MOTOR CO.

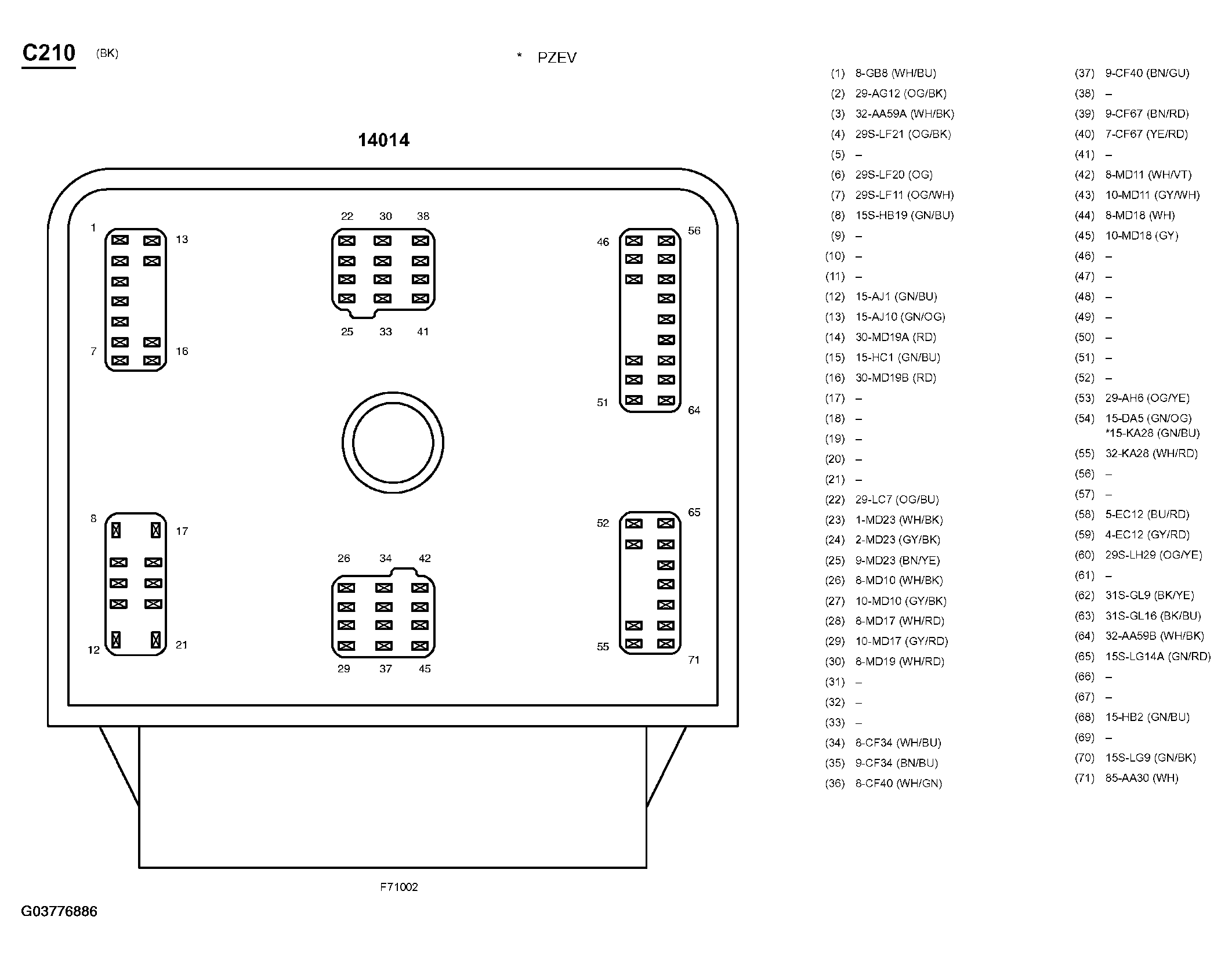

Fig 75: Inline Connector End View (C210)

G03776886

Courtesy of FORD MOTOR CO.

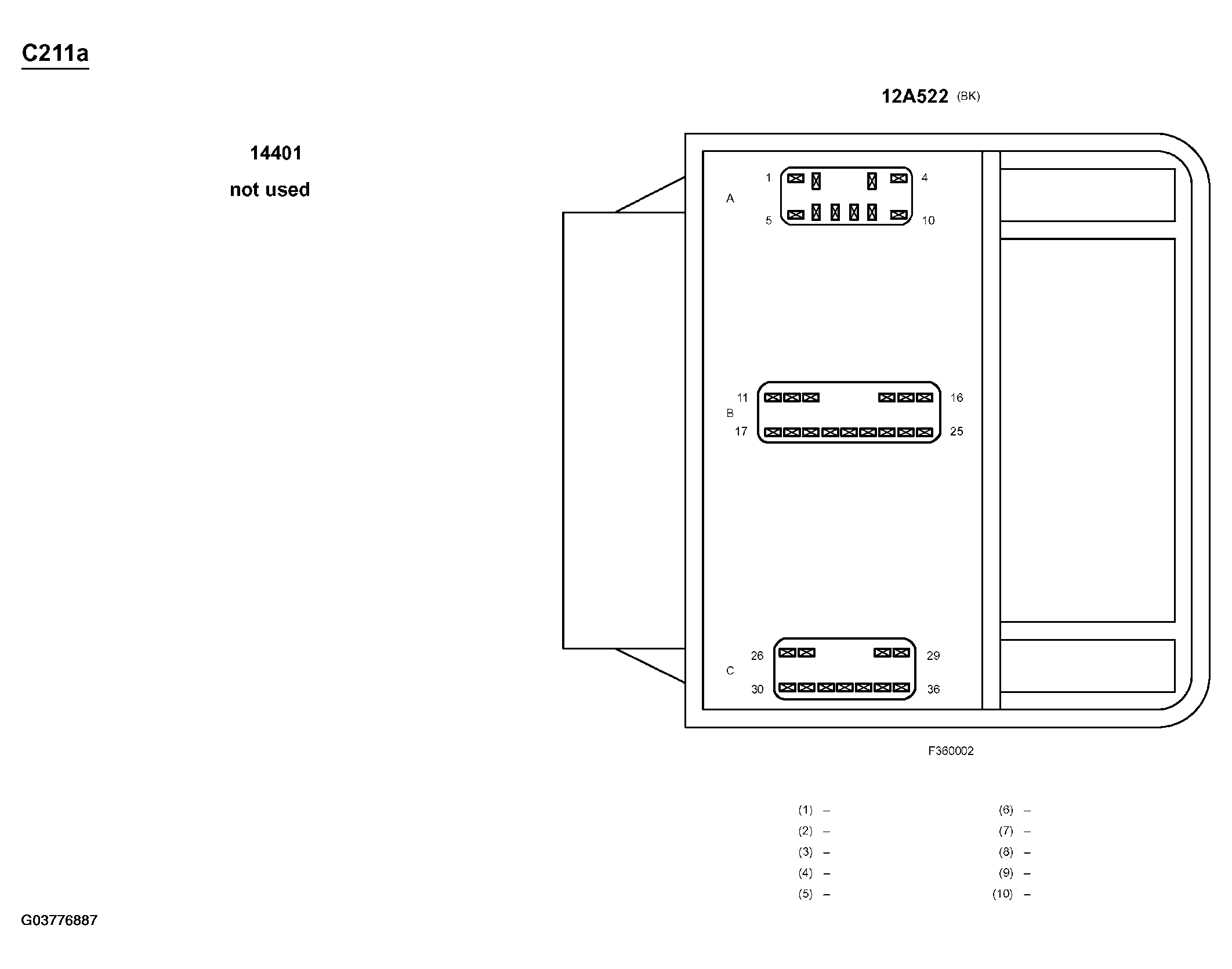

Fig 76: Inline Connector End View (C211a)

G03776887

Courtesy of FORD MOTOR CO.

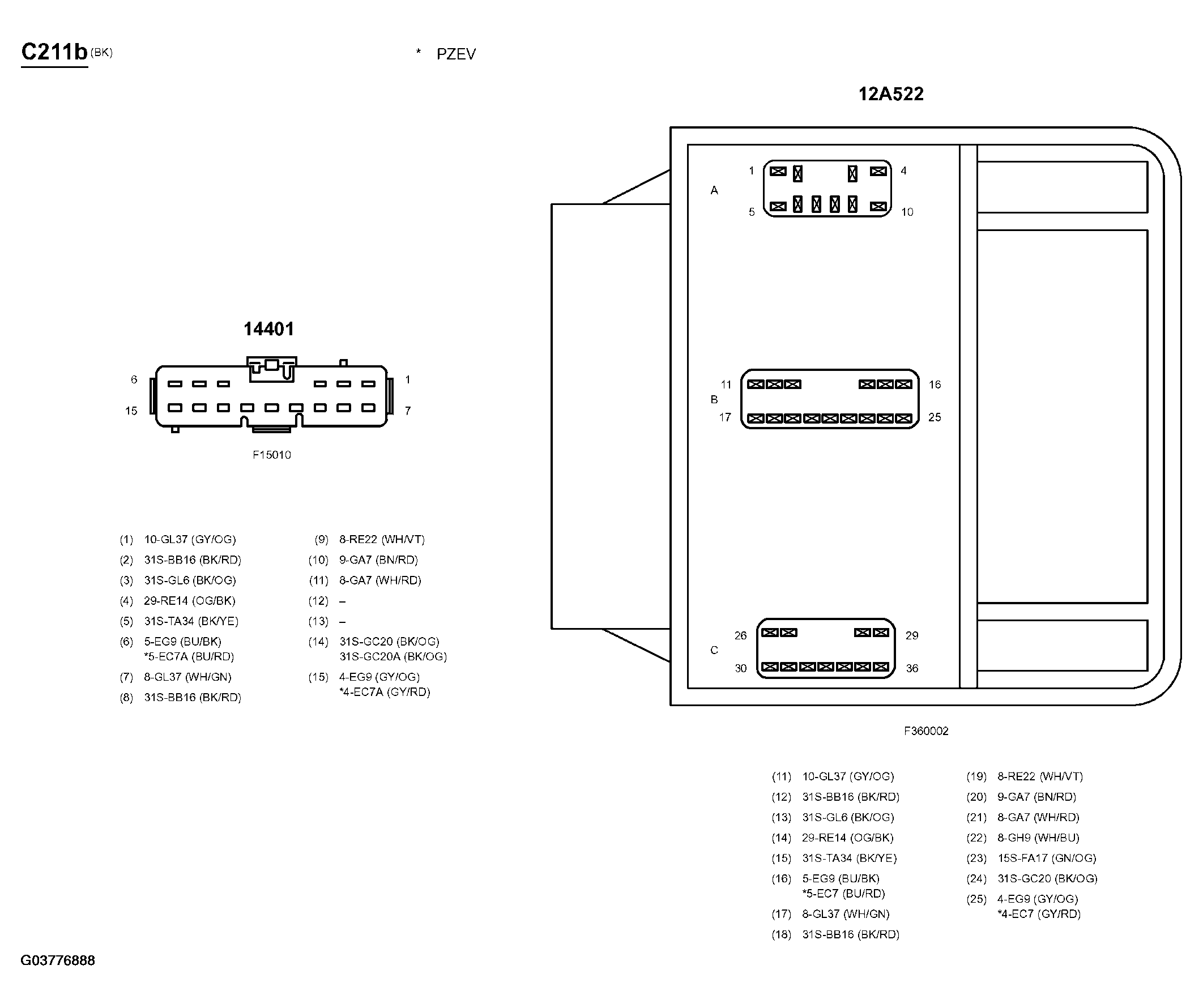

Fig 77: Inline Connector End View (C211b)

G03776888

Courtesy of FORD MOTOR CO.

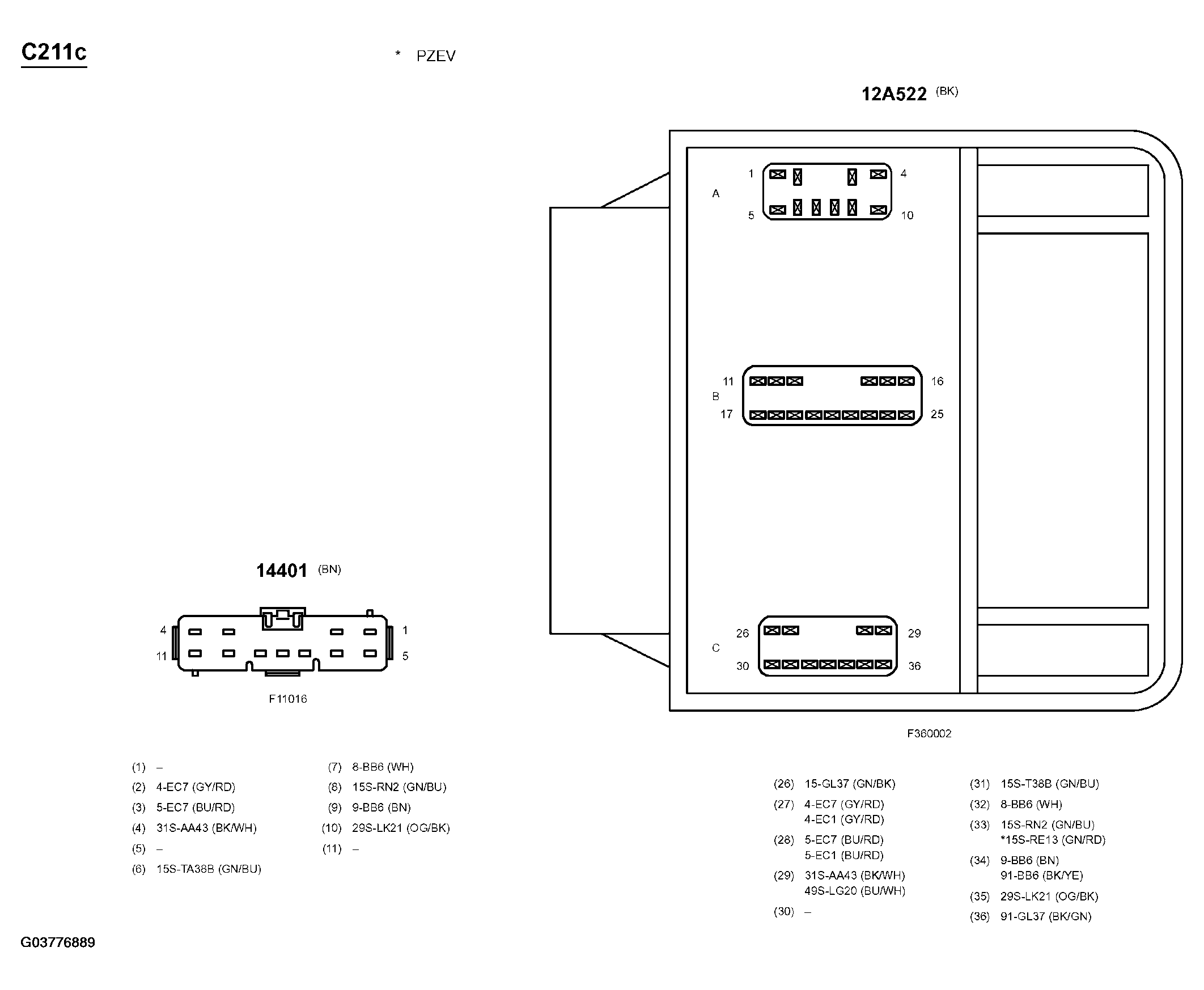

Fig 78: Inline Connector End View (C211c)

G03776889

Courtesy of FORD MOTOR CO.

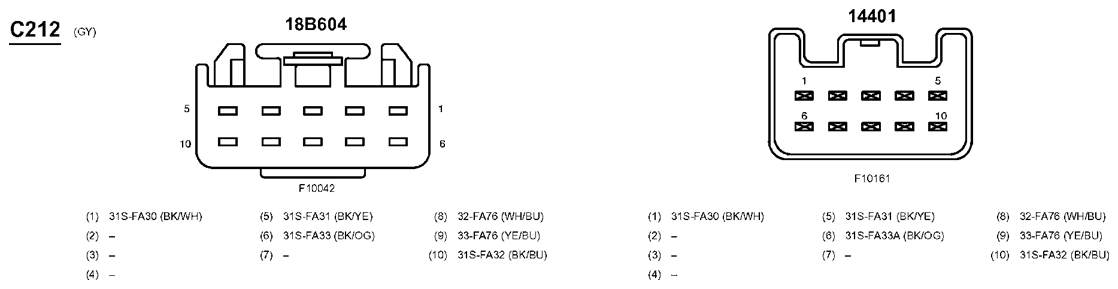

Fig 79: Inline Connector End View (C212)

G07834208

Courtesy of FORD MOTOR CO.

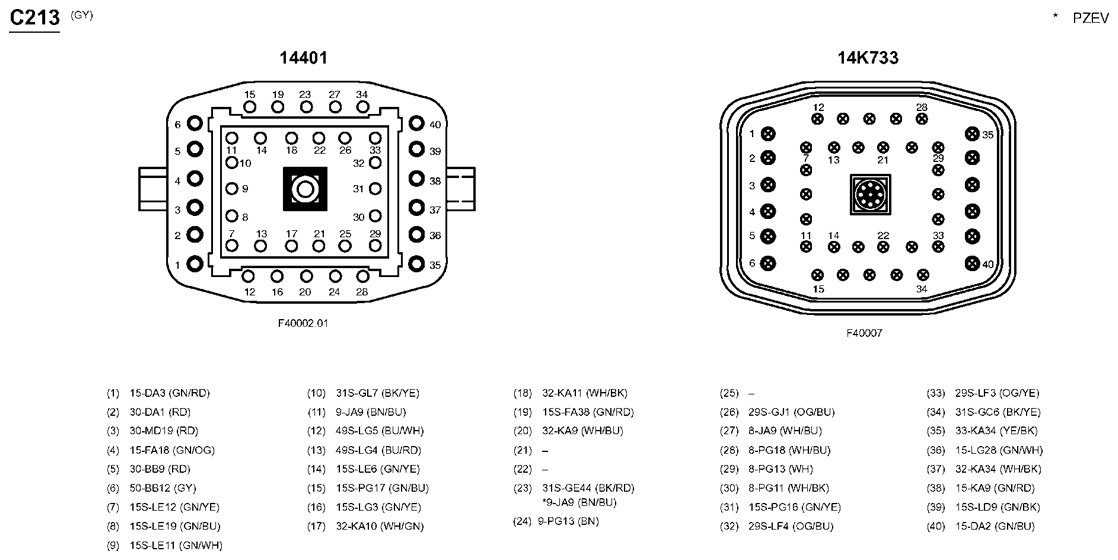

Fig 80: Inline Connector End View (C213)

G07834209

Courtesy of FORD MOTOR CO.

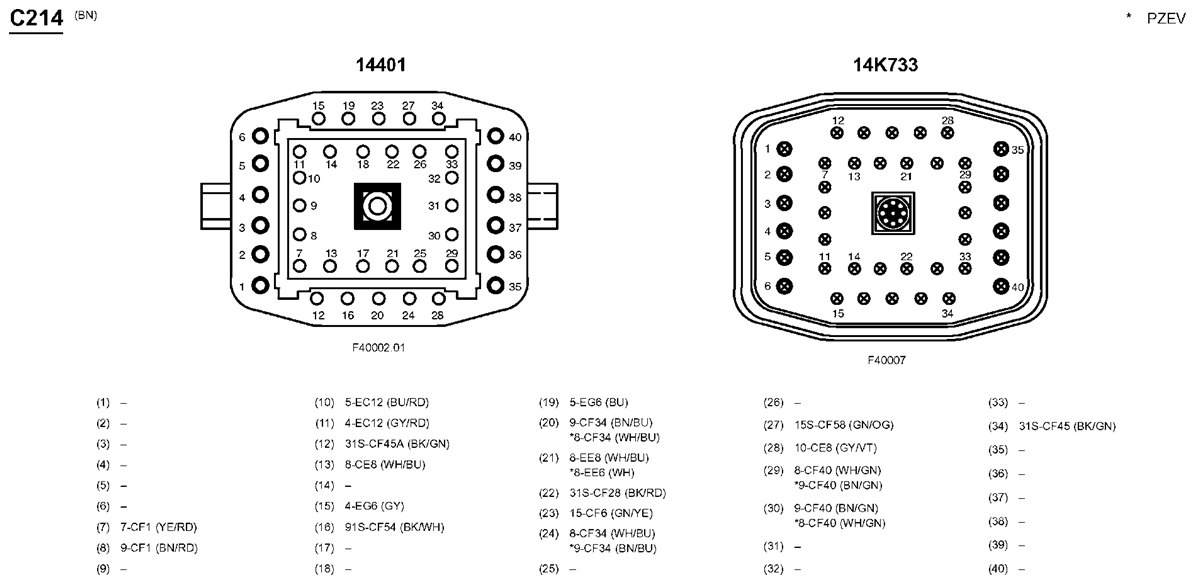

Fig 81: Inline Connector End View (C214)

G03776891

Courtesy of FORD MOTOR CO.

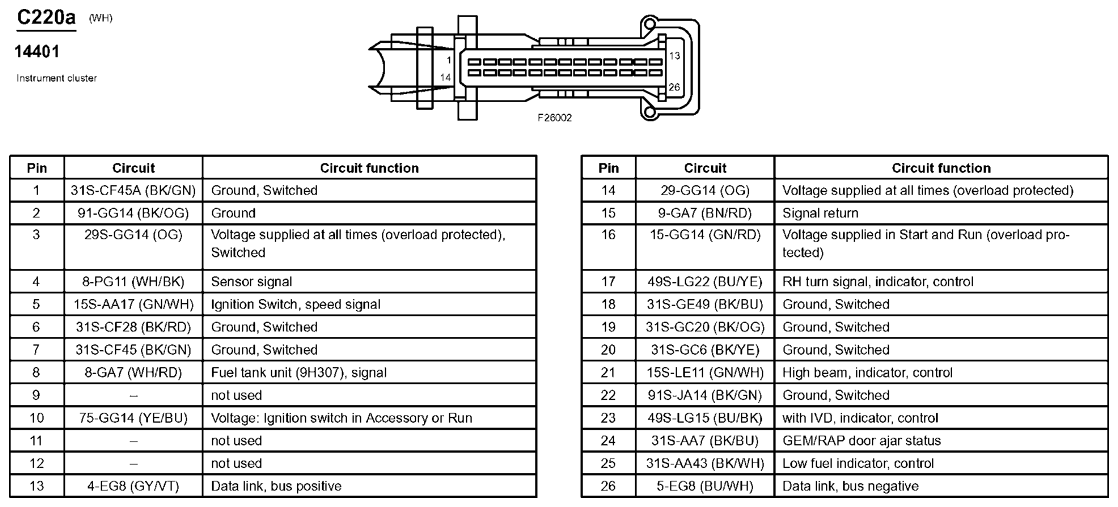

Fig 82: Instrument Cluster Connector End View (C220a)

G07834210

Courtesy of FORD MOTOR CO.

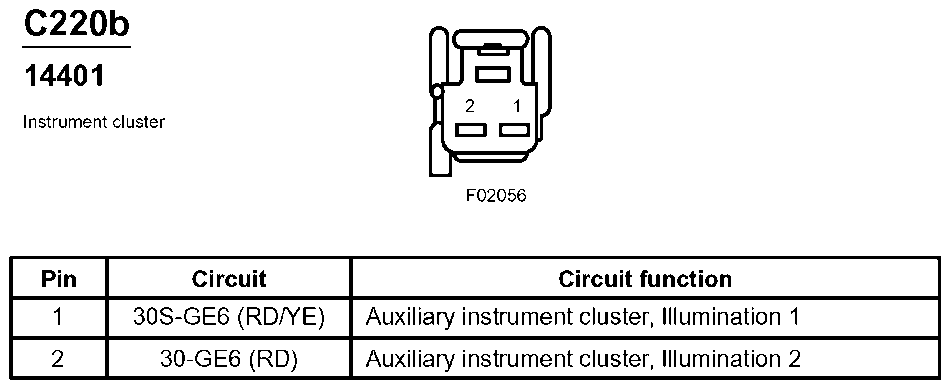

Fig 83: Instrument Cluster Connector End View (C220b)

G07834211

Courtesy of FORD MOTOR CO.

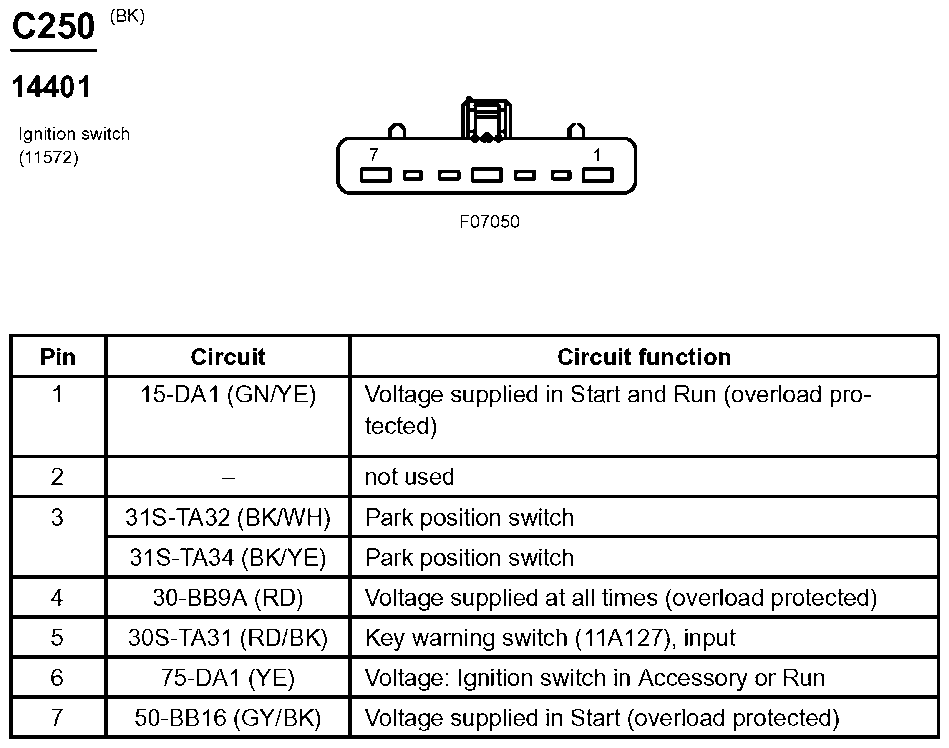

Fig 84: Ignition Switch Connector End View (C250)

G07834212

Courtesy of FORD MOTOR CO.

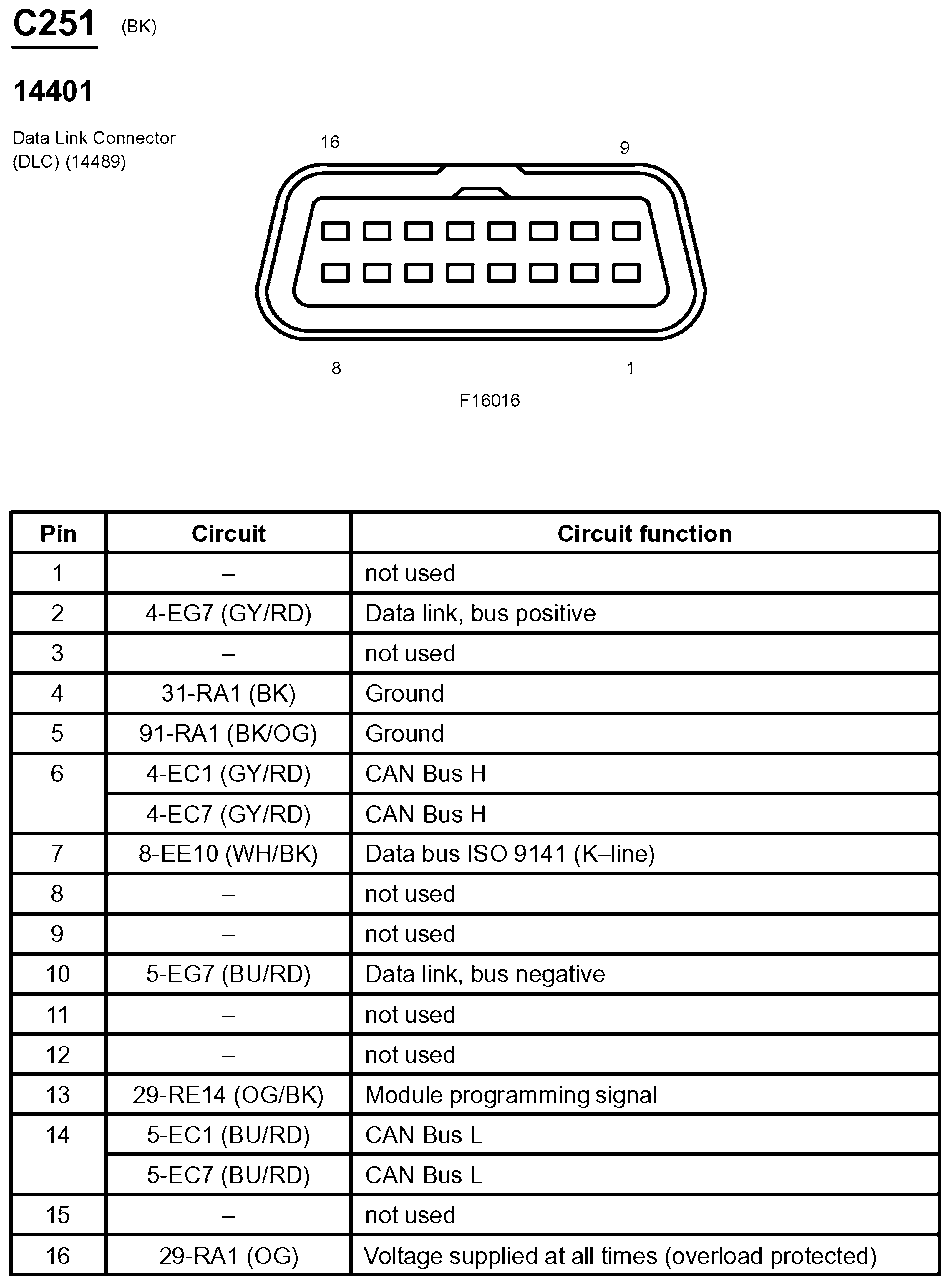

Fig 85: Data Link Connector (DLC) Connector End View (C251)

G07834213

Courtesy of FORD MOTOR CO.

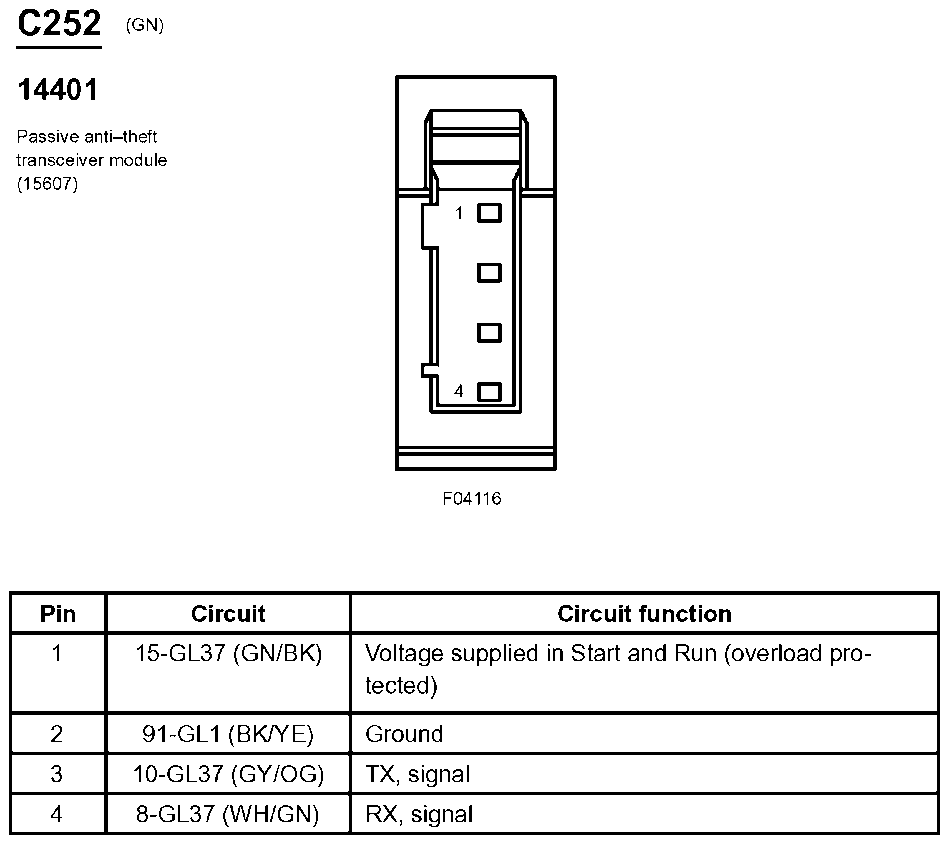

Fig 86: Passive Anti-Theft Transceiver Module Connector End View (C252)

G07834214

Courtesy of FORD MOTOR CO.

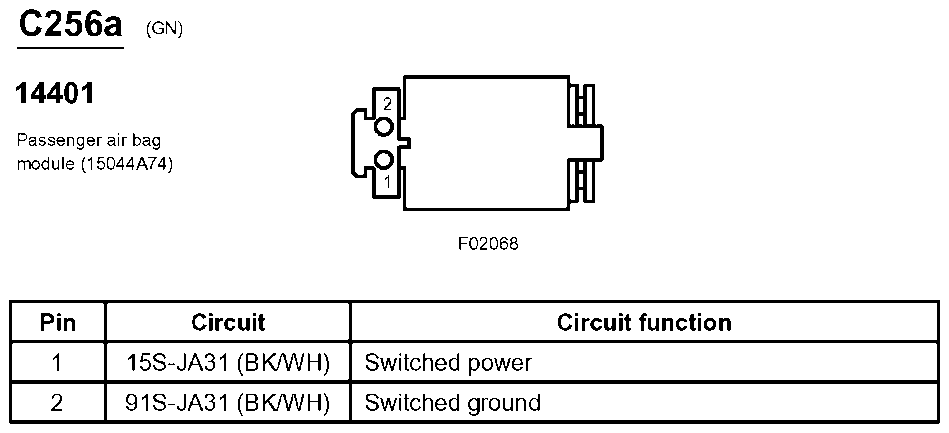

Fig 87: Passenger Air Bag Module Connector End View (C256a)

G07834215

Courtesy of FORD MOTOR CO.

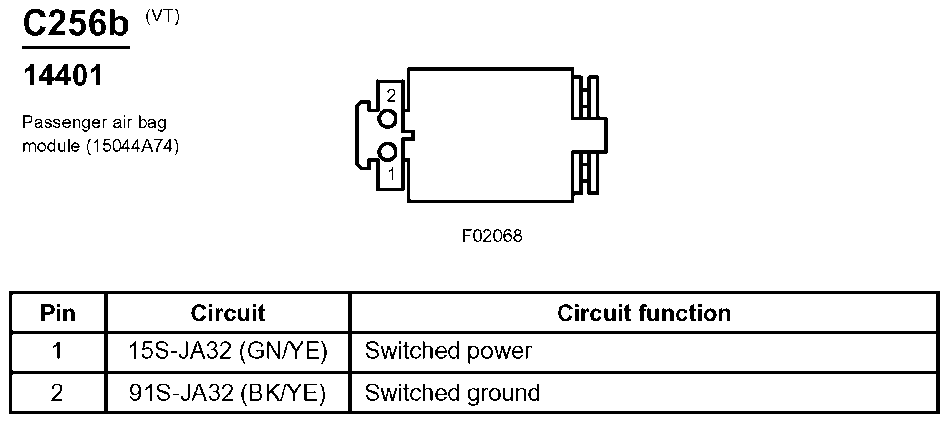

Fig 88: Passenger Air Bag Module Connector End View (C256b)

G07834216

Courtesy of FORD MOTOR CO.

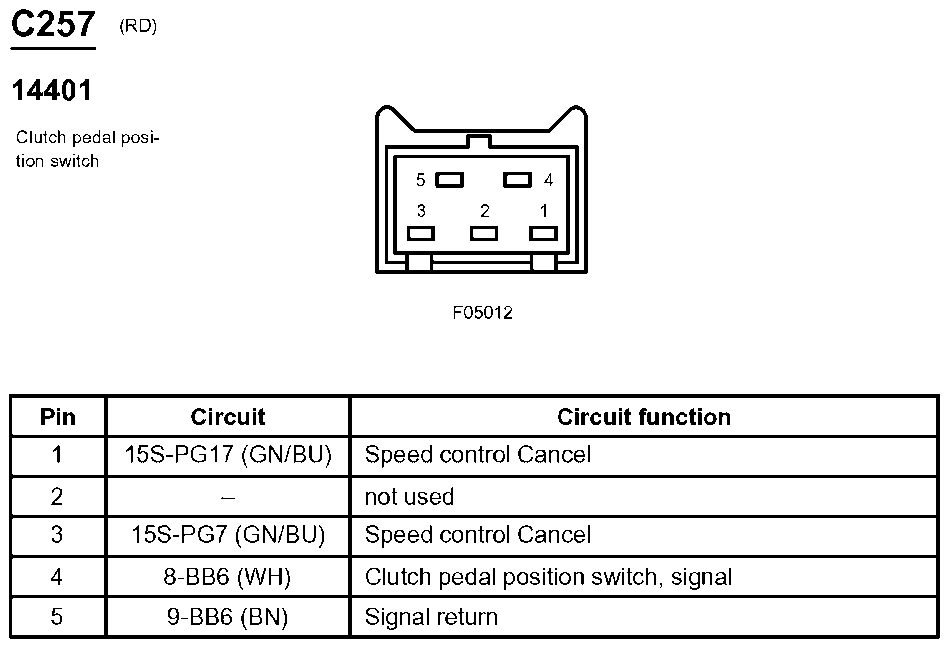

Fig 89: Inline Connector End View (C257)

G07834217

Courtesy of FORD MOTOR CO.

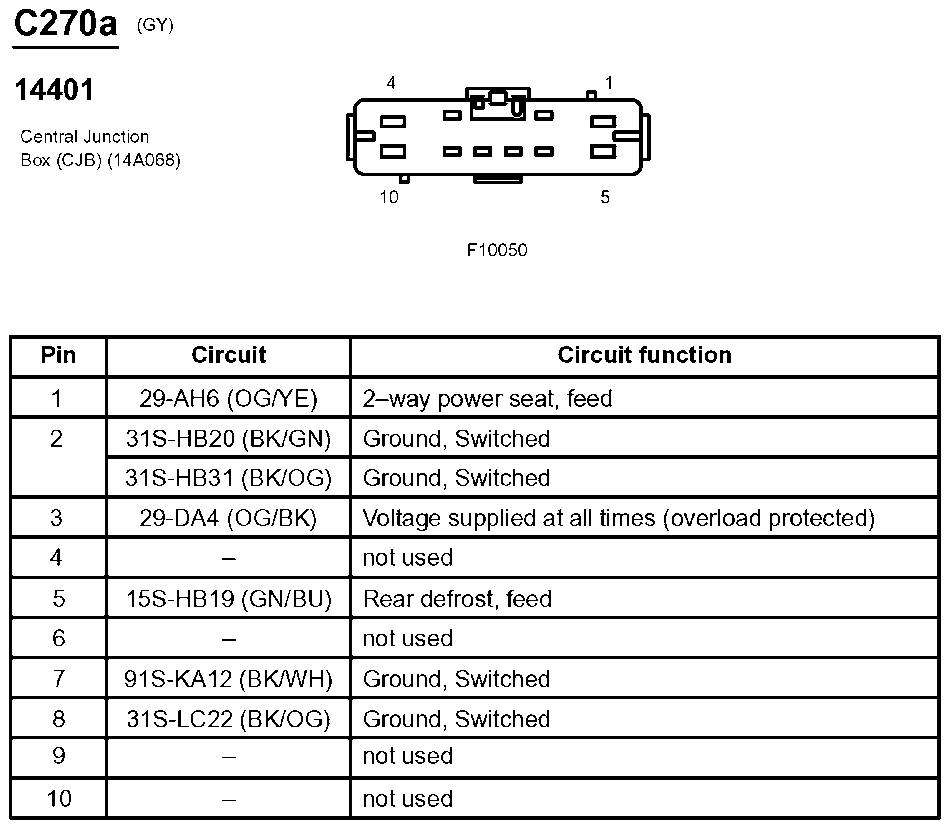

Fig 90: Central Junction Box (CJB) Connector End View (C270a)

G07834218

Courtesy of FORD MOTOR CO.

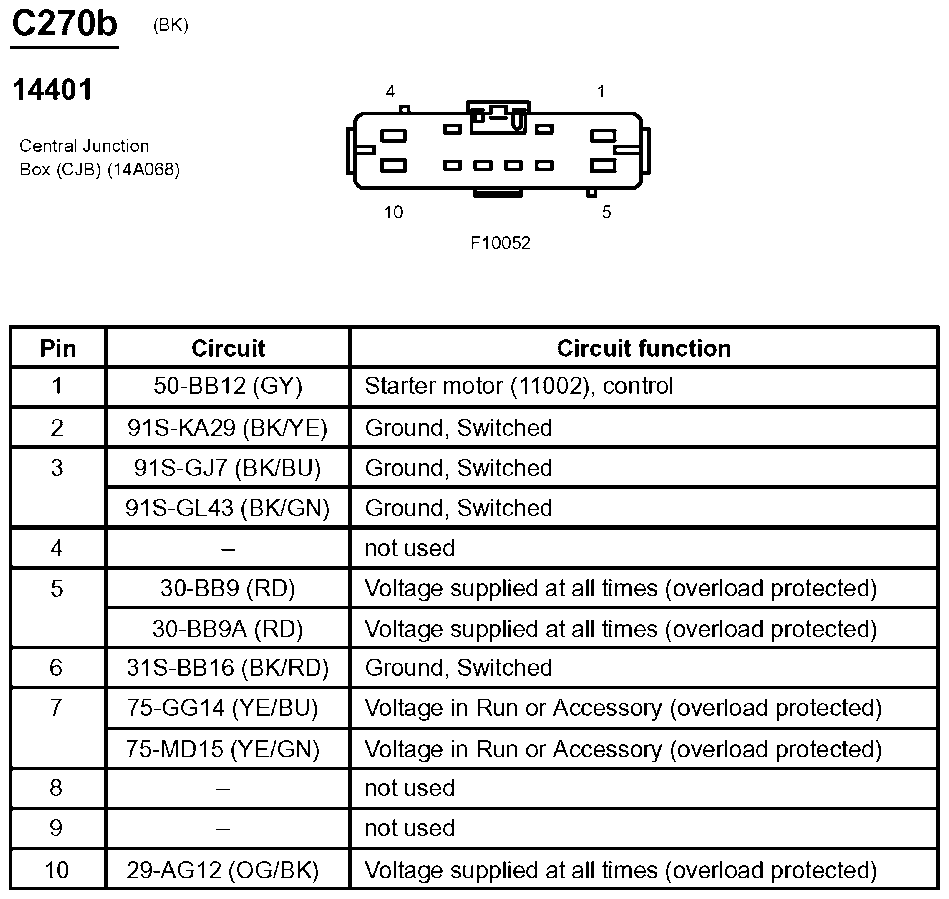

Fig 91: Central Junction Box (CJB) Connector End View (C270b)

G07834219

Courtesy of FORD MOTOR CO.

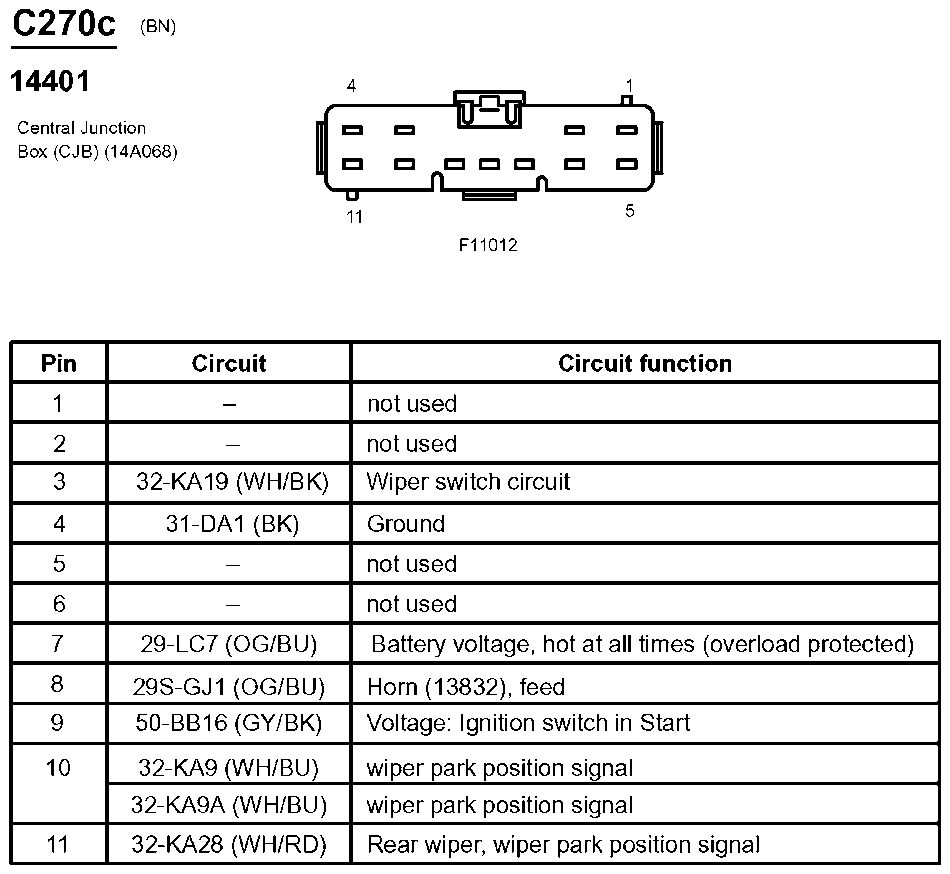

Fig 92: Central Junction Box (CJB) Connector End View (C270c)

G07834220

Courtesy of FORD MOTOR CO.

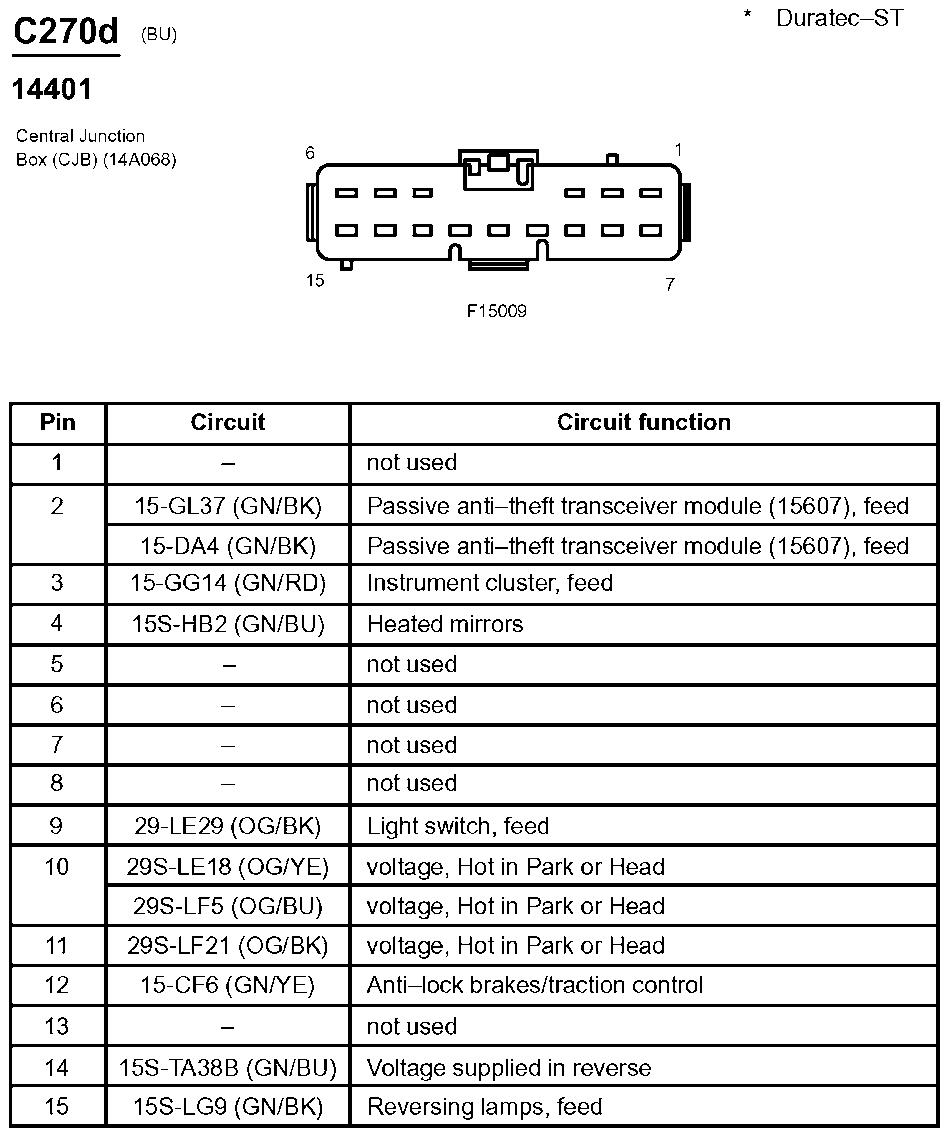

Fig 93: Central Junction Box (CJB) Connector End View (C270d)

G07834221

Courtesy of FORD MOTOR CO.

Fig 94: Central Junction Box (CJB) Connector End View (C270e)

G07834222

Courtesy of FORD MOTOR CO.

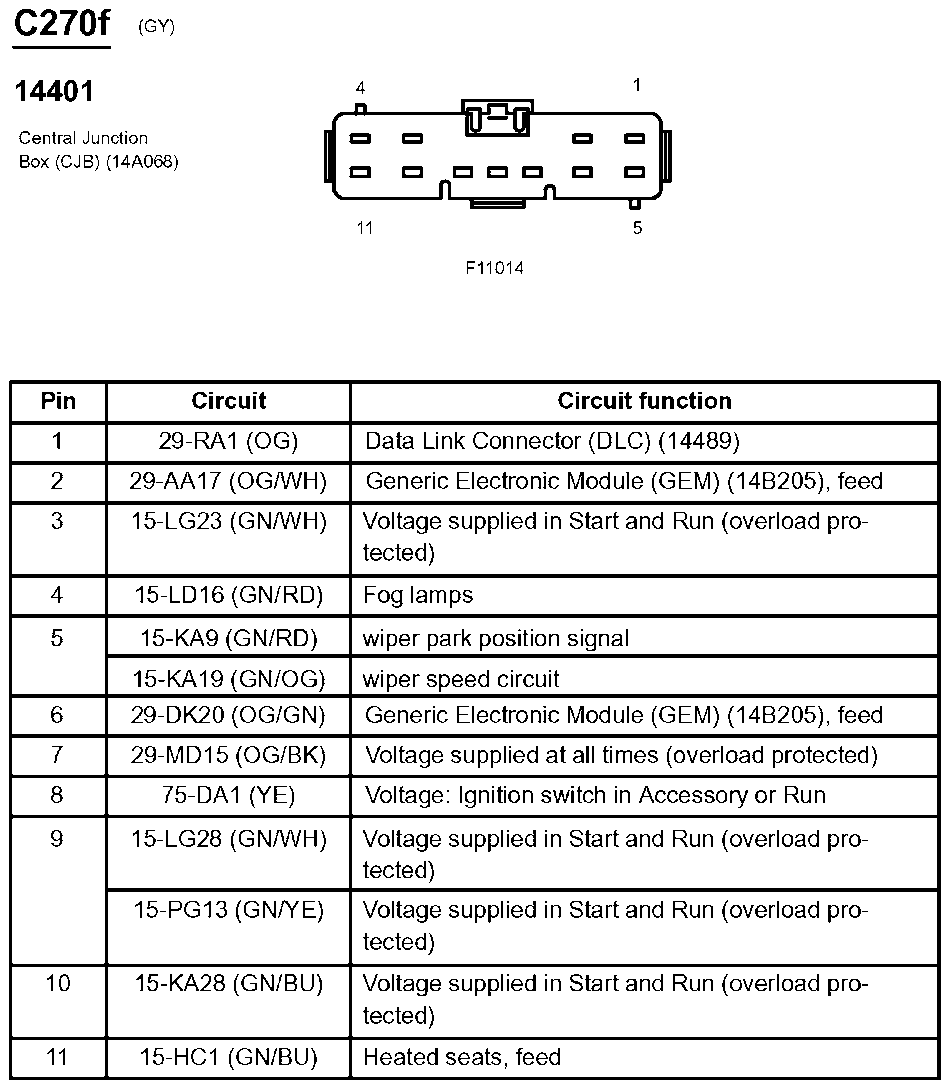

Fig 95: Central Junction Box (CJB) Connector End View (C270f)

G07834223

Courtesy of FORD MOTOR CO.

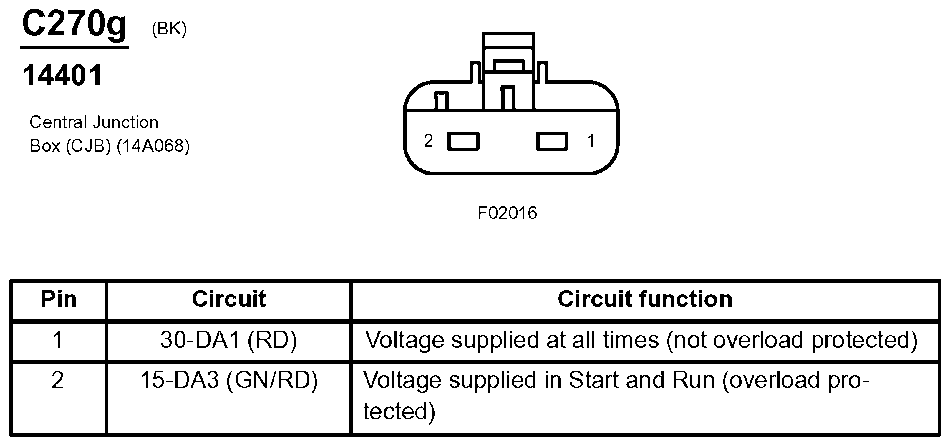

Fig 96: Central Junction Box (CJB) Connector End View (C270g)

G07834224

Courtesy of FORD MOTOR CO.

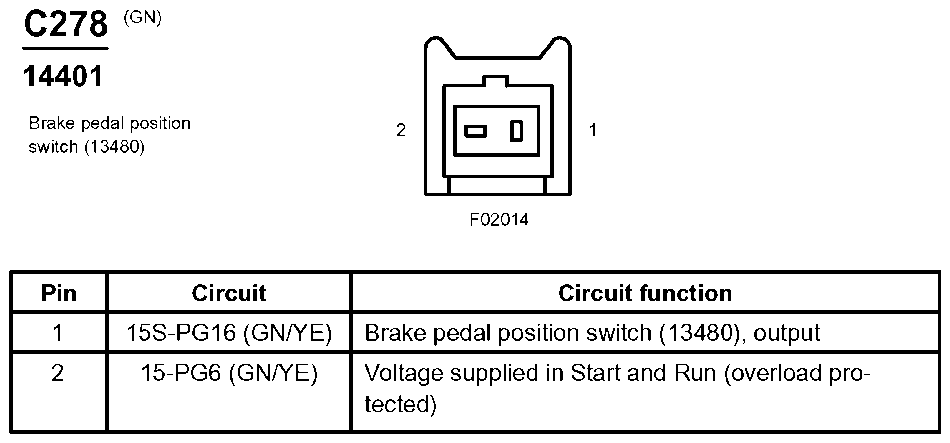

Fig 97: Brake Pedal Position Switch Connector End View (C278)

G07834225

Courtesy of FORD MOTOR CO.

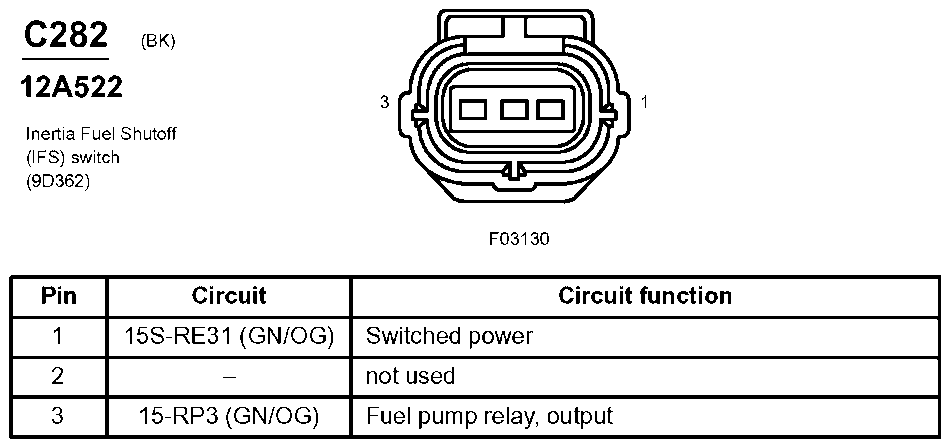

Fig 98: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)

G07834226

Courtesy of FORD MOTOR CO.

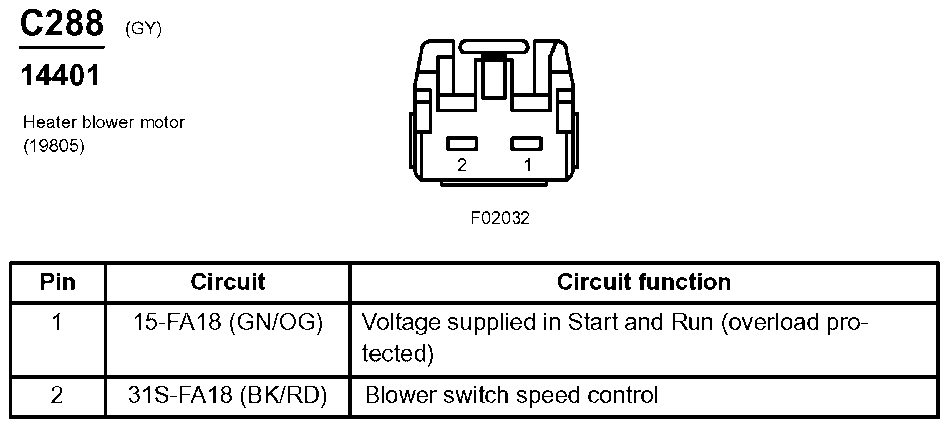

Fig 99: Heater Blower Motor Connector End View (C288)

G07834227

Courtesy of FORD MOTOR CO.

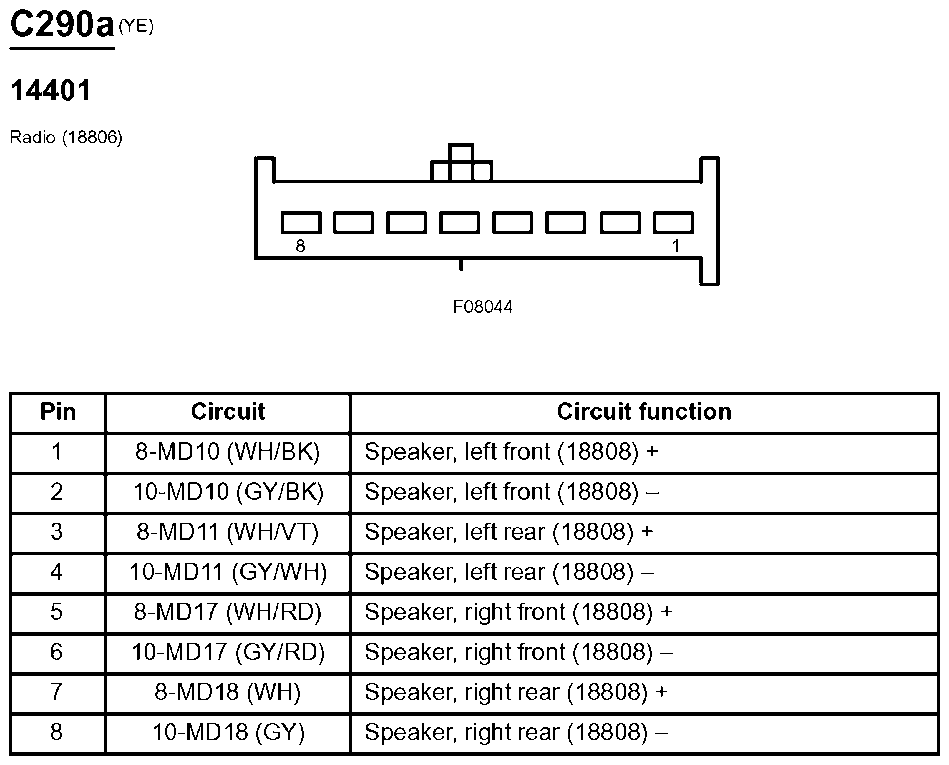

Fig 100: Radio Connector End View (C290a)

G07834228

Courtesy of FORD MOTOR CO.

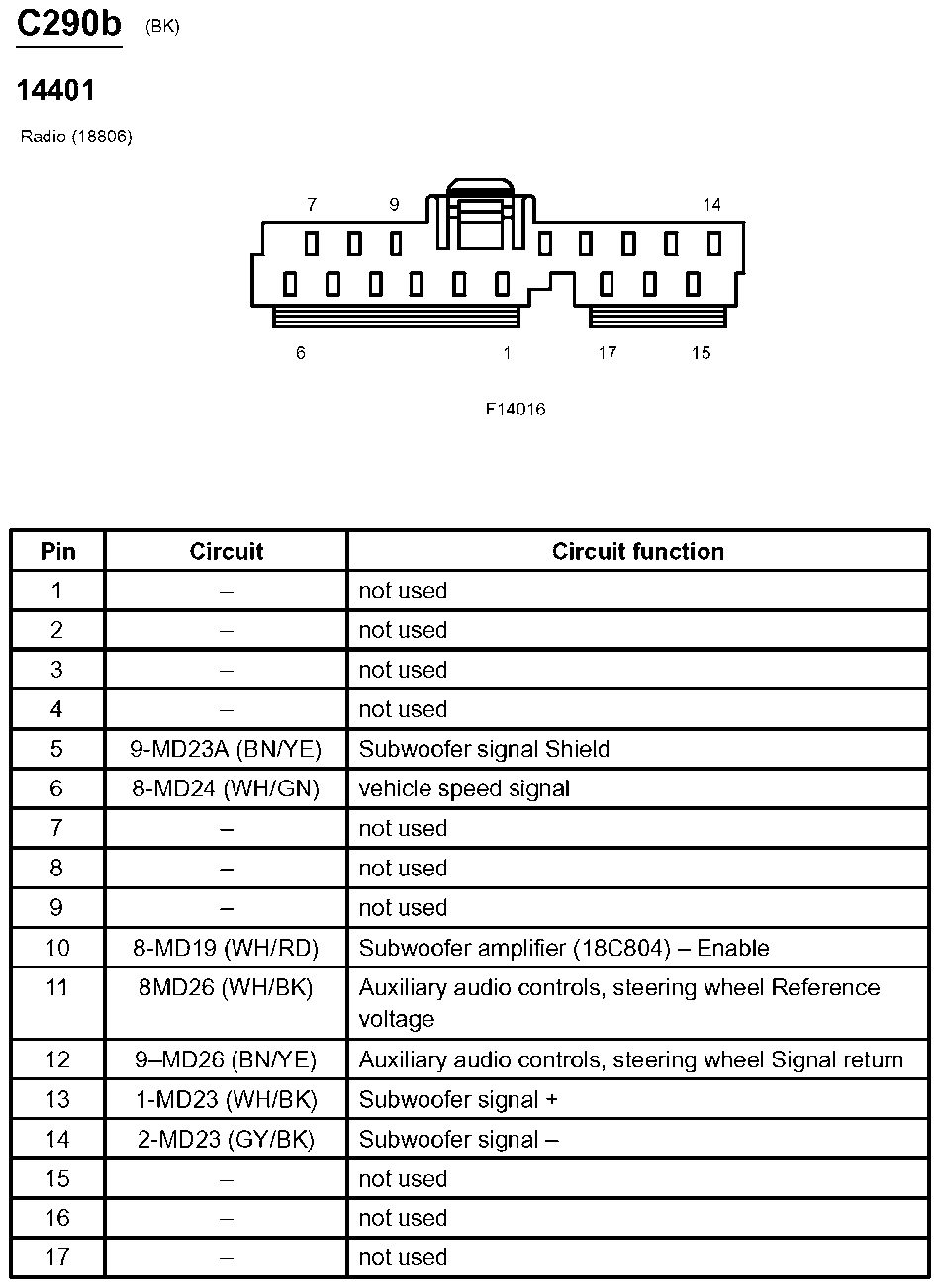

Fig 101: Radio Connector End View (C290b)

G07834229

Courtesy of FORD MOTOR CO.

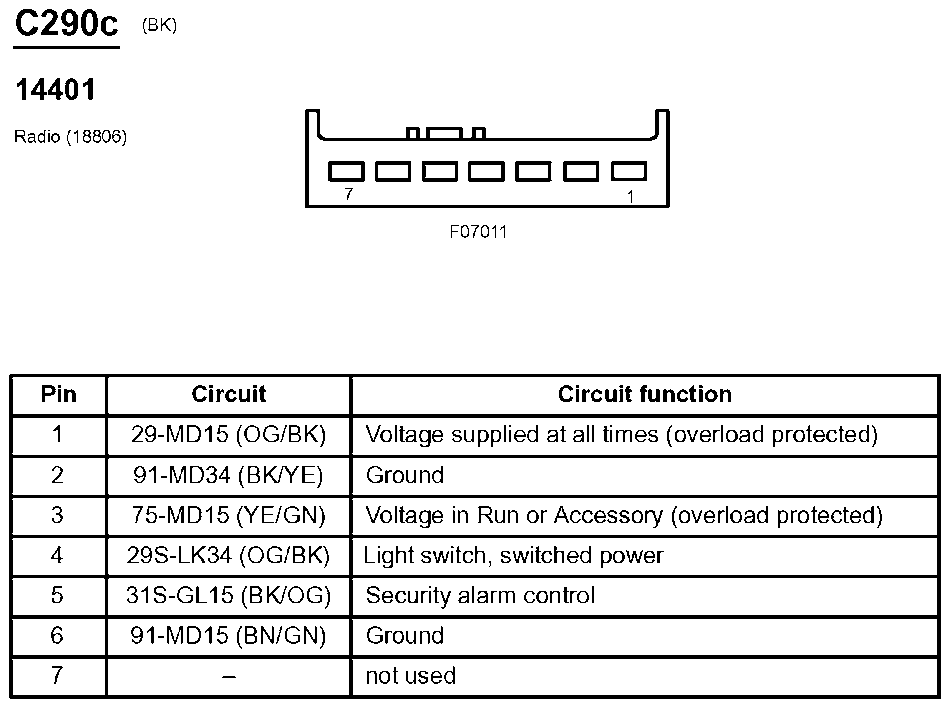

Fig 102: Radio Connector End View (C290c)

G07834230

Courtesy of FORD MOTOR CO.

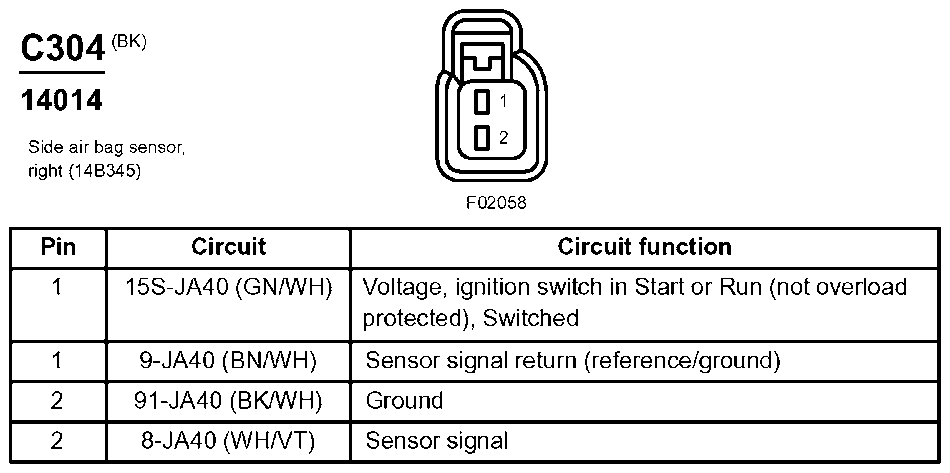

Fig 103: Side Air Bag Sensor, Right Connector End View (C304)

G07834231

Courtesy of FORD MOTOR CO.

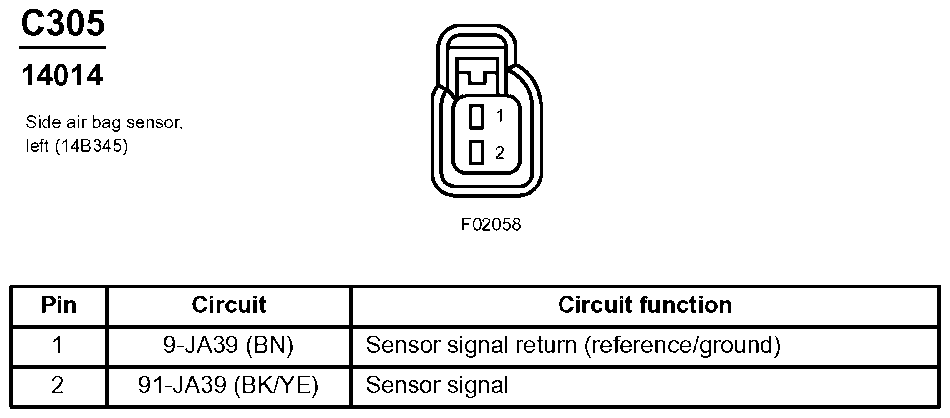

Fig 104: Side Air Bag Sensor, Left Connector End View (C305)

G07834232

Courtesy of FORD MOTOR CO.

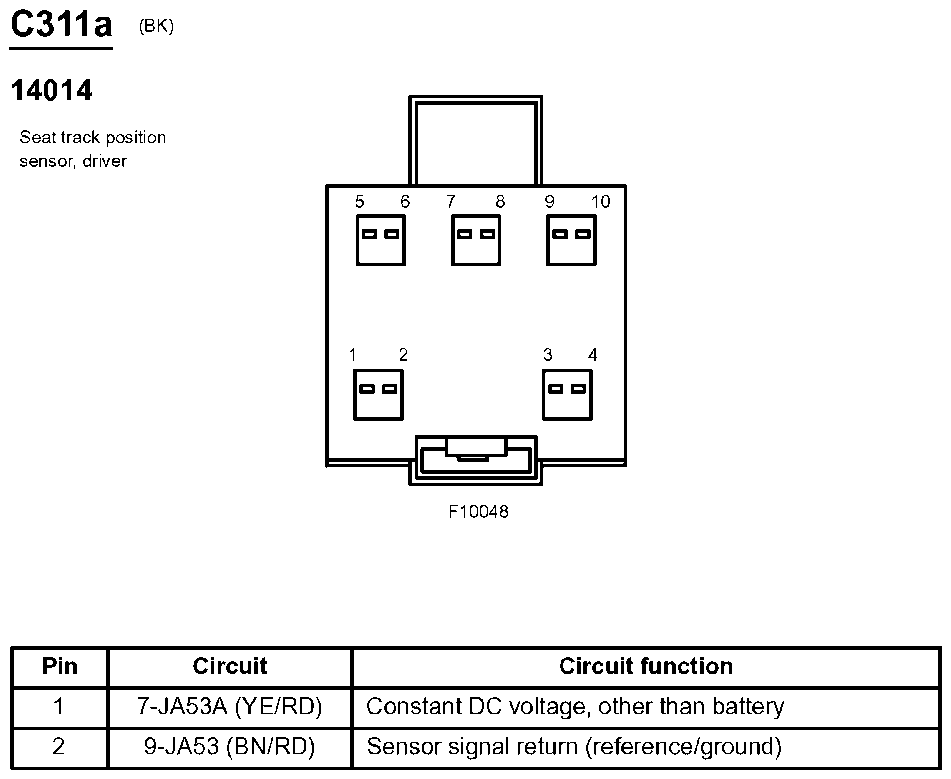

Fig 105: Seat Track Position Sensor, Driver Connector End View (C311a)

G07834233

Courtesy of FORD MOTOR CO.

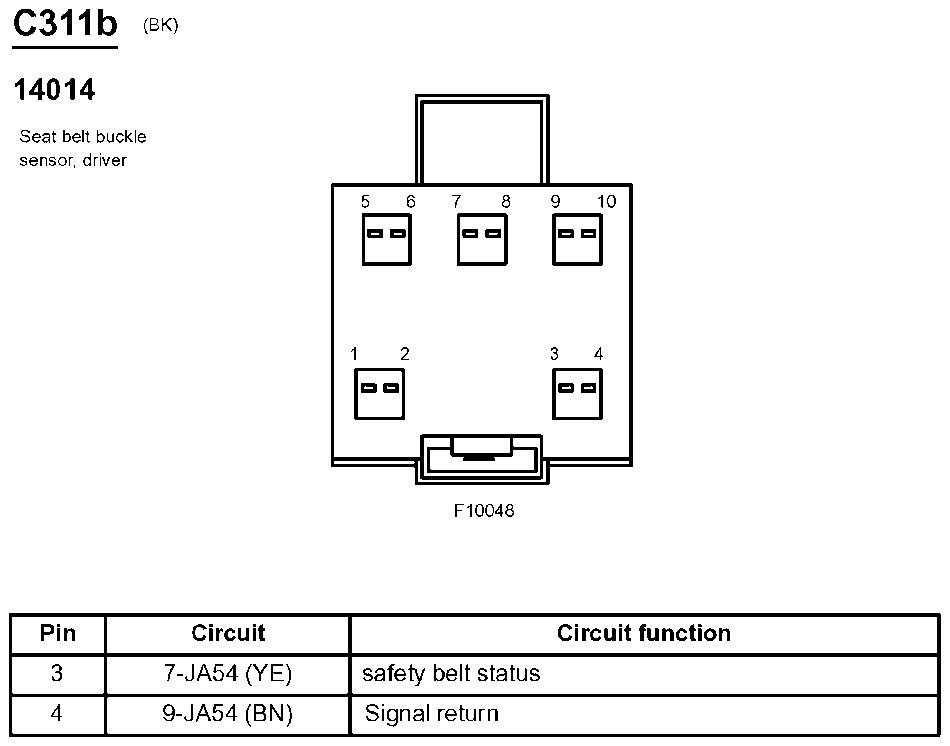

Fig 106: Seat Belt Buckle Sensor, Driver Connector End View (C311b)

G07834234

Courtesy of FORD MOTOR CO.

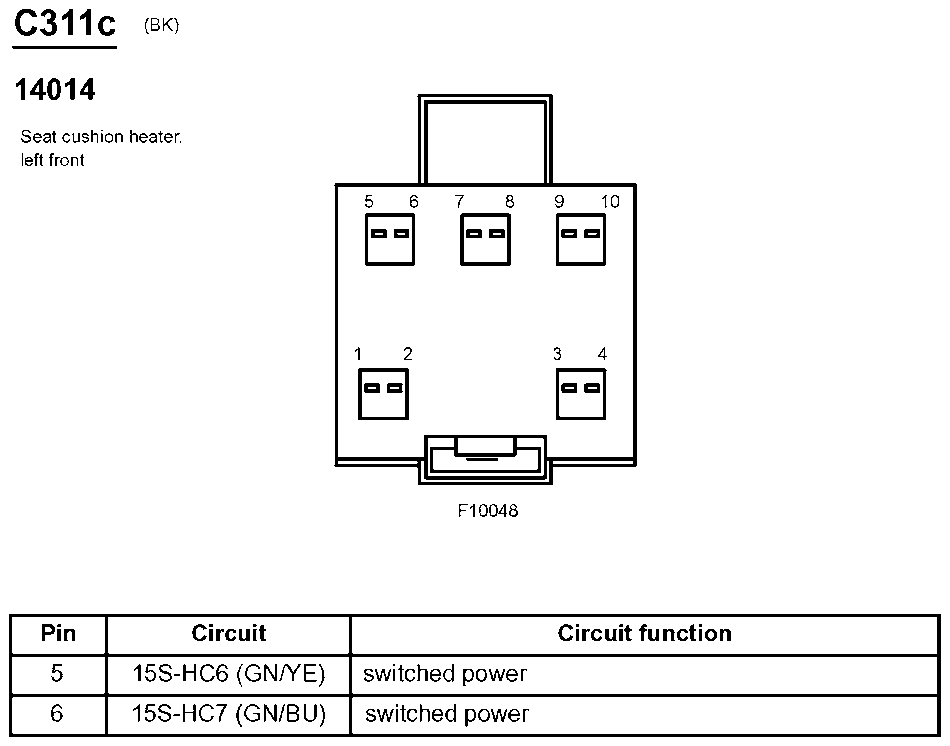

Fig 107: Seat Cushion Heater, Left Front Connector End View (C311c)

G07834235

Courtesy of FORD MOTOR CO.

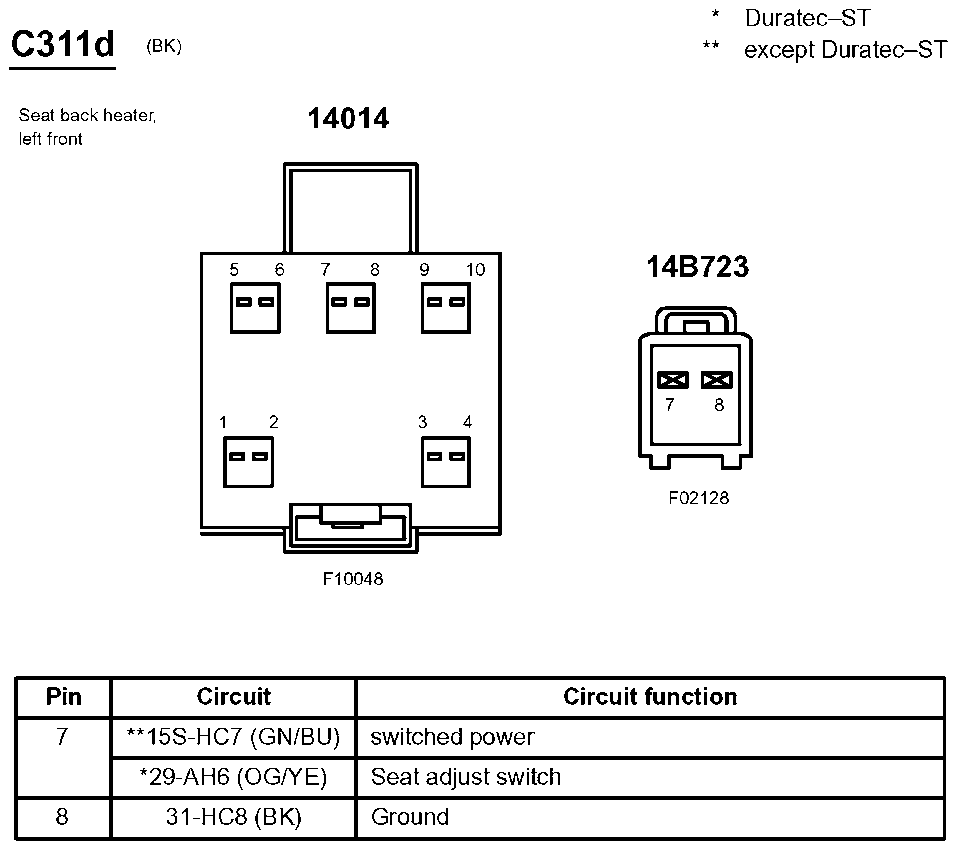

Fig 108: Seat Back Heater, Left Front Connector End View (C311d)

G07834236

Courtesy of FORD MOTOR CO.

Fig 109: Inline Connector End View (C311e)

G07834237

Courtesy of FORD MOTOR CO.

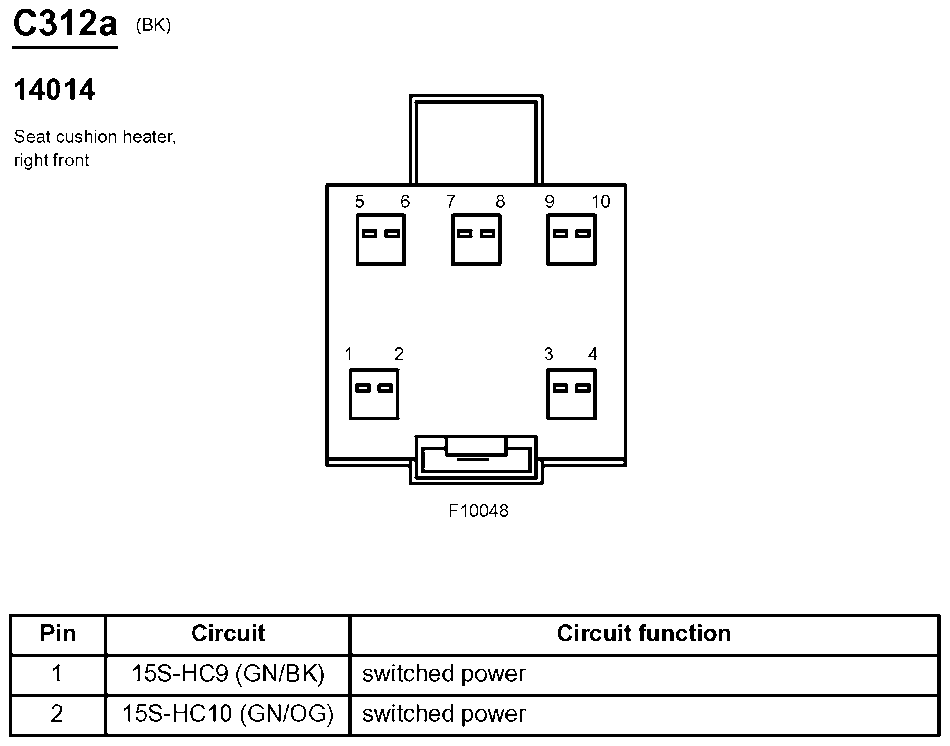

Fig 110: Seat Cushion Heater, Right Front Connector End View (C312a)

G07834238

Courtesy of FORD MOTOR CO.

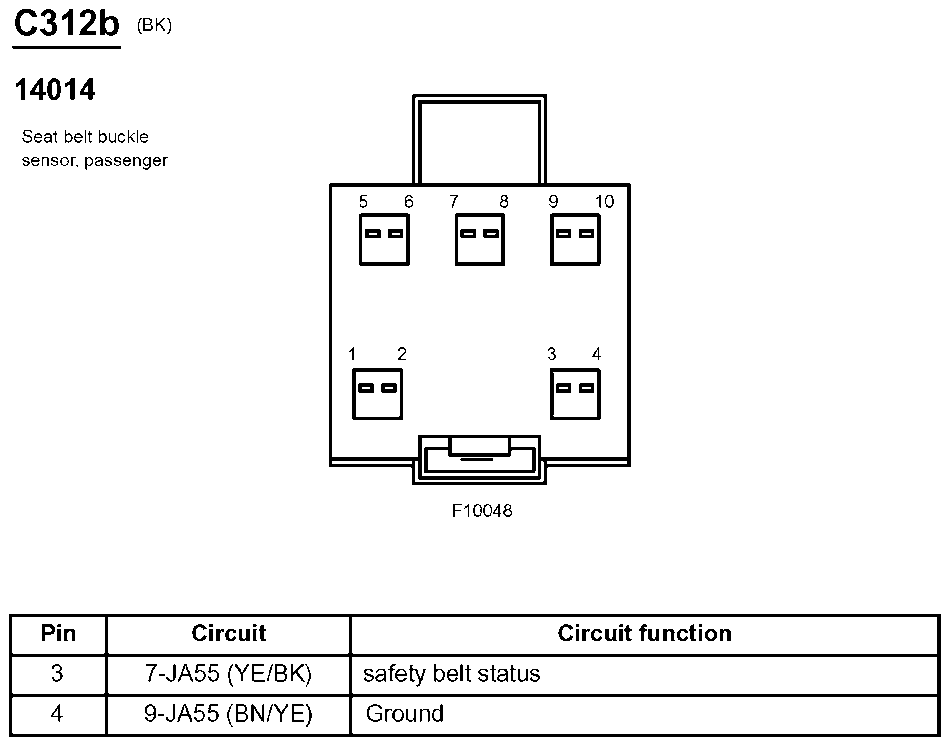

Fig 111: Seat Belt Buckle Sensor, Passenger Connector End View (C312b)

G07834239

Courtesy of FORD MOTOR CO.

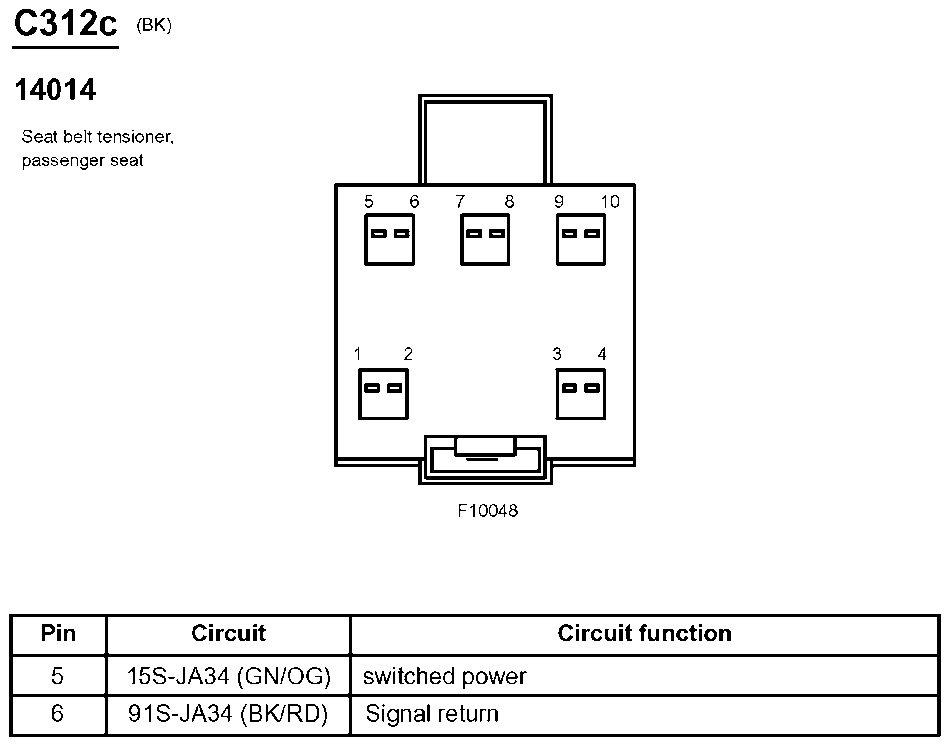

Fig 112: Seat Belt Tensioner Passenger Seat Connector End View (C312c)

G07834240

Courtesy of FORD MOTOR CO.

Fig 113: Seat Back Heater, Right Front Connector End View (C312d)

G07834241

Courtesy of FORD MOTOR CO.

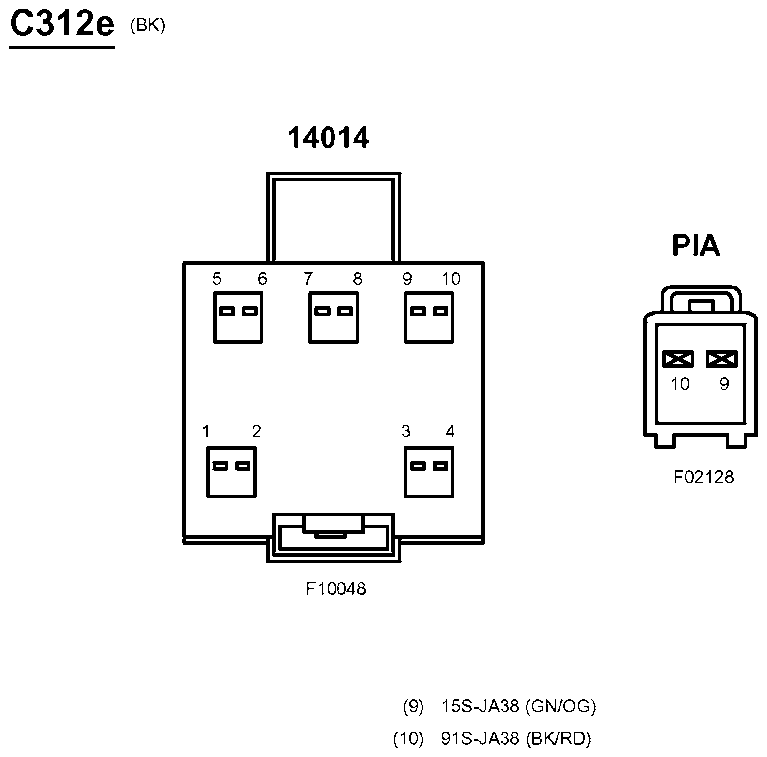

Fig 114: Inline Connector End View (C312e)

G07834242

Courtesy of FORD MOTOR CO.

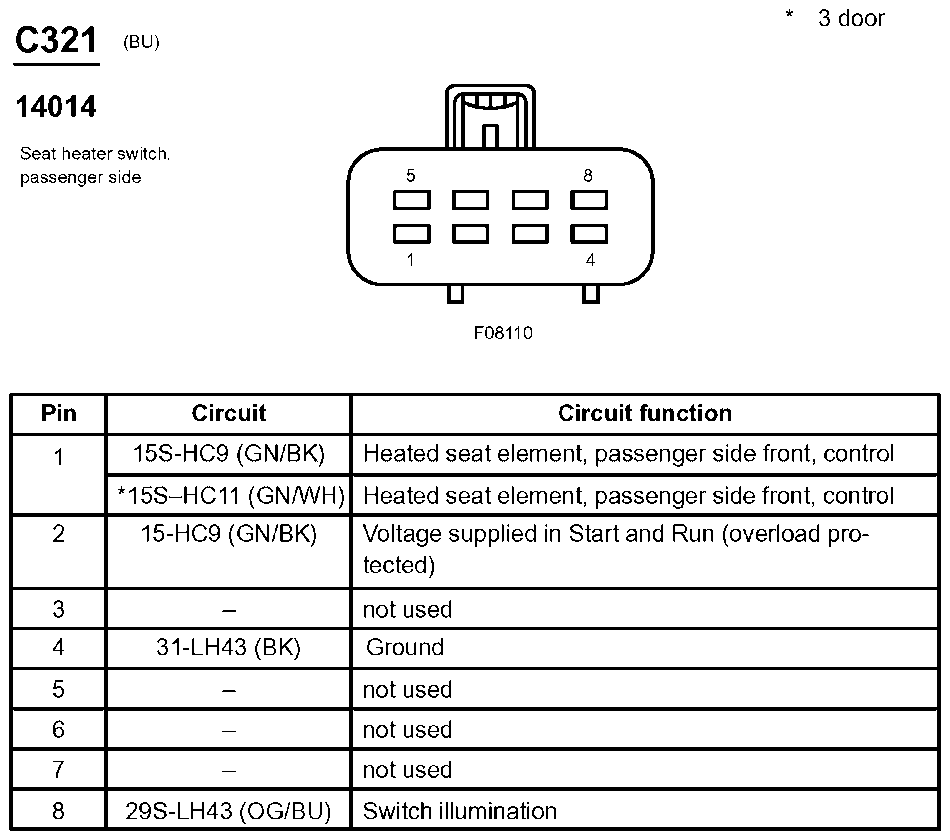

Fig 115: Seat Heater Switch, Passenger Side Connector End View (C321)

G07834243

Courtesy of FORD MOTOR CO.

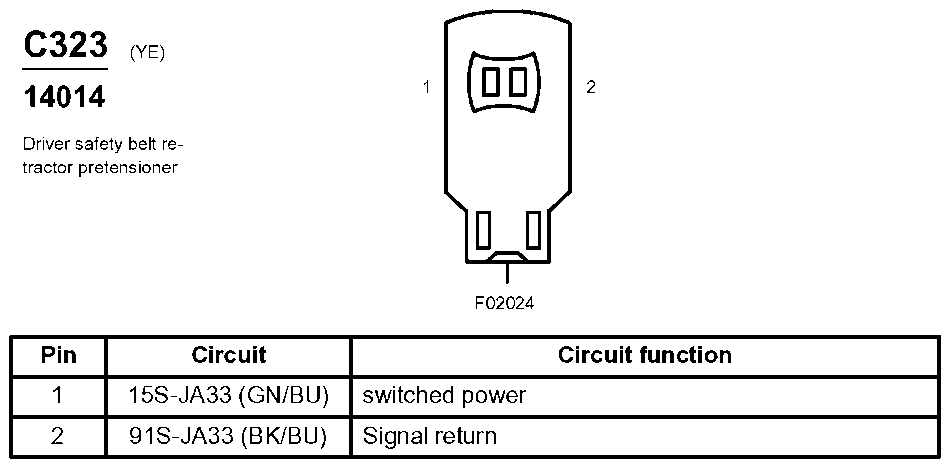

Fig 116: Driver Safety Belt Retractor Pretensioner Connector End View (C323)

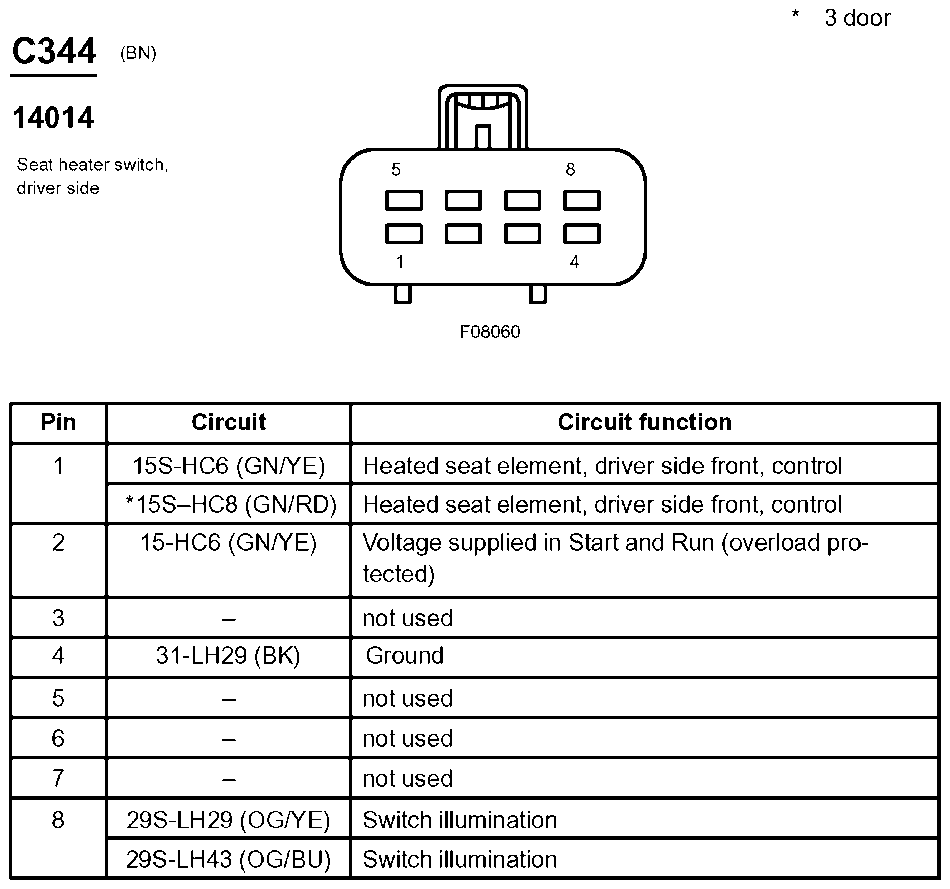

G07834244

Courtesy of FORD MOTOR CO.

Fig 117: Seat Heater Switch, Driver Side Connector End View (C344)

G07834245

Courtesy of FORD MOTOR CO.

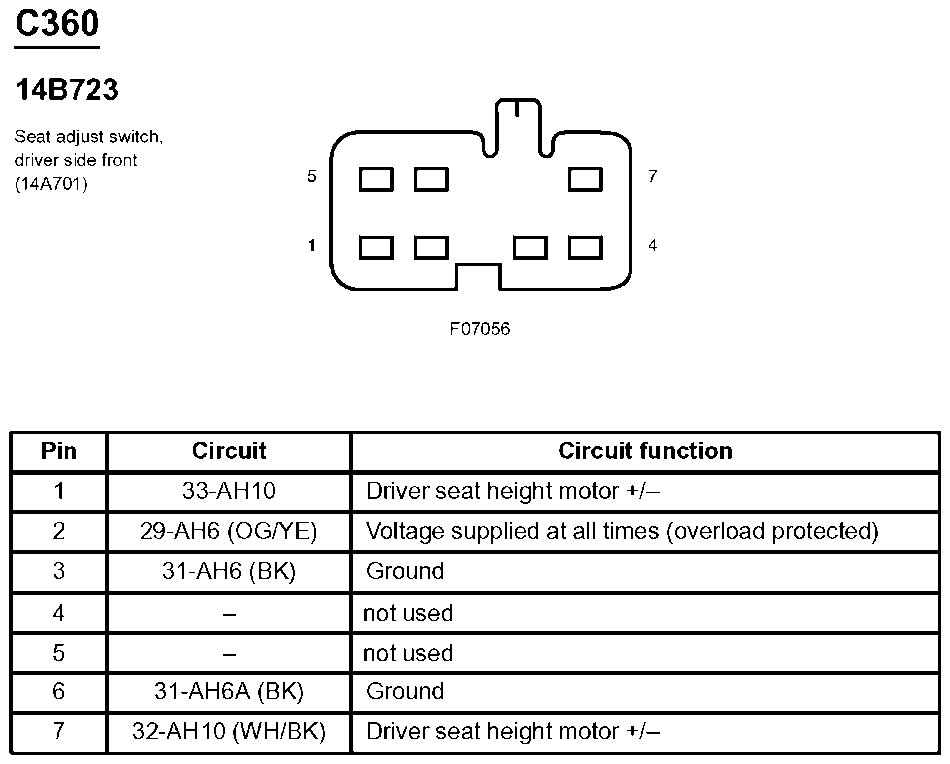

Fig 118: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07834246

Courtesy of FORD MOTOR CO.

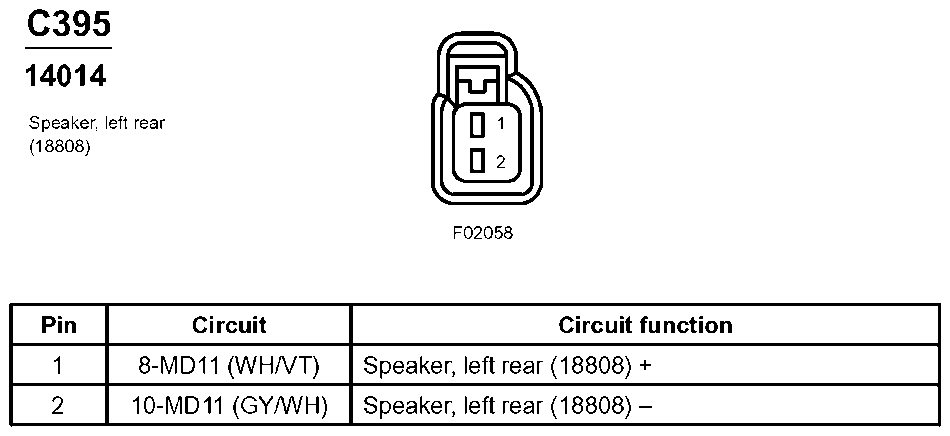

Fig 119: Speaker, Left Rear Connector End View (C395)

G07834247

Courtesy of FORD MOTOR CO.

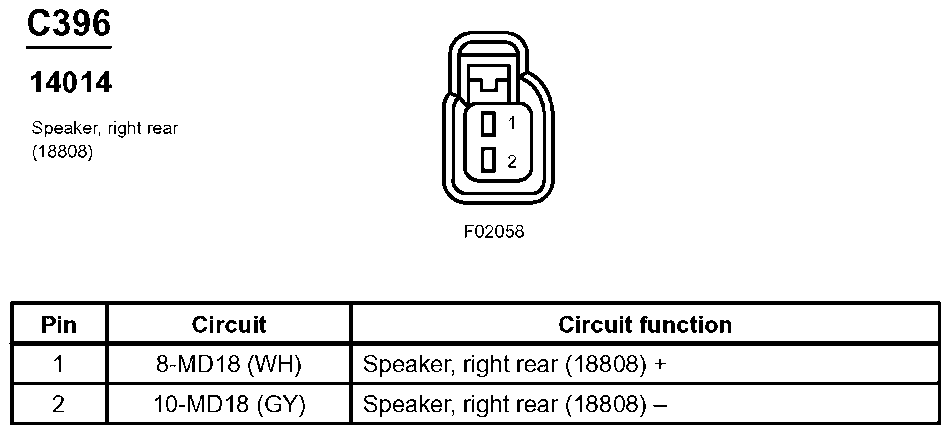

Fig 120: Speaker, Right Rear Connector End View (C396)

G07834248

Courtesy of FORD MOTOR CO.

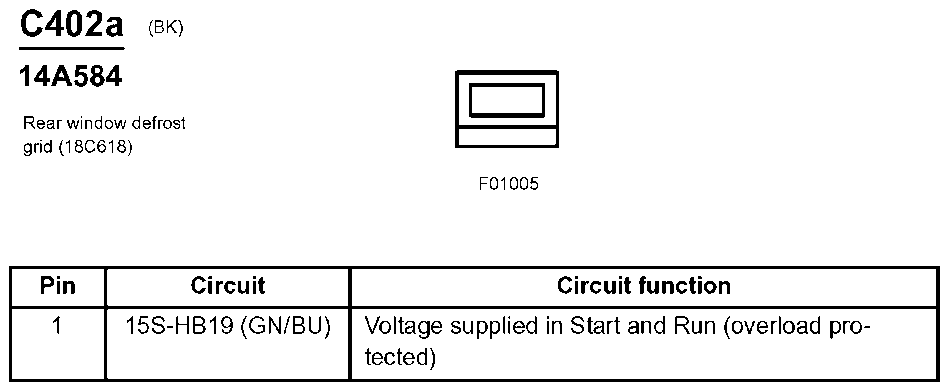

Fig 121: Rear Window Defrost Grid Connector End View (C402a)

G07834249

Courtesy of FORD MOTOR CO.

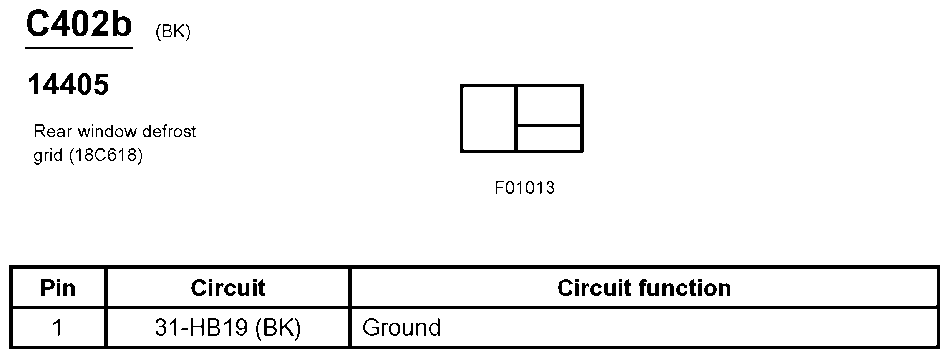

Fig 122: Rear Window Defrost Grid Connector End View (C402b)

G07834250

Courtesy of FORD MOTOR CO.

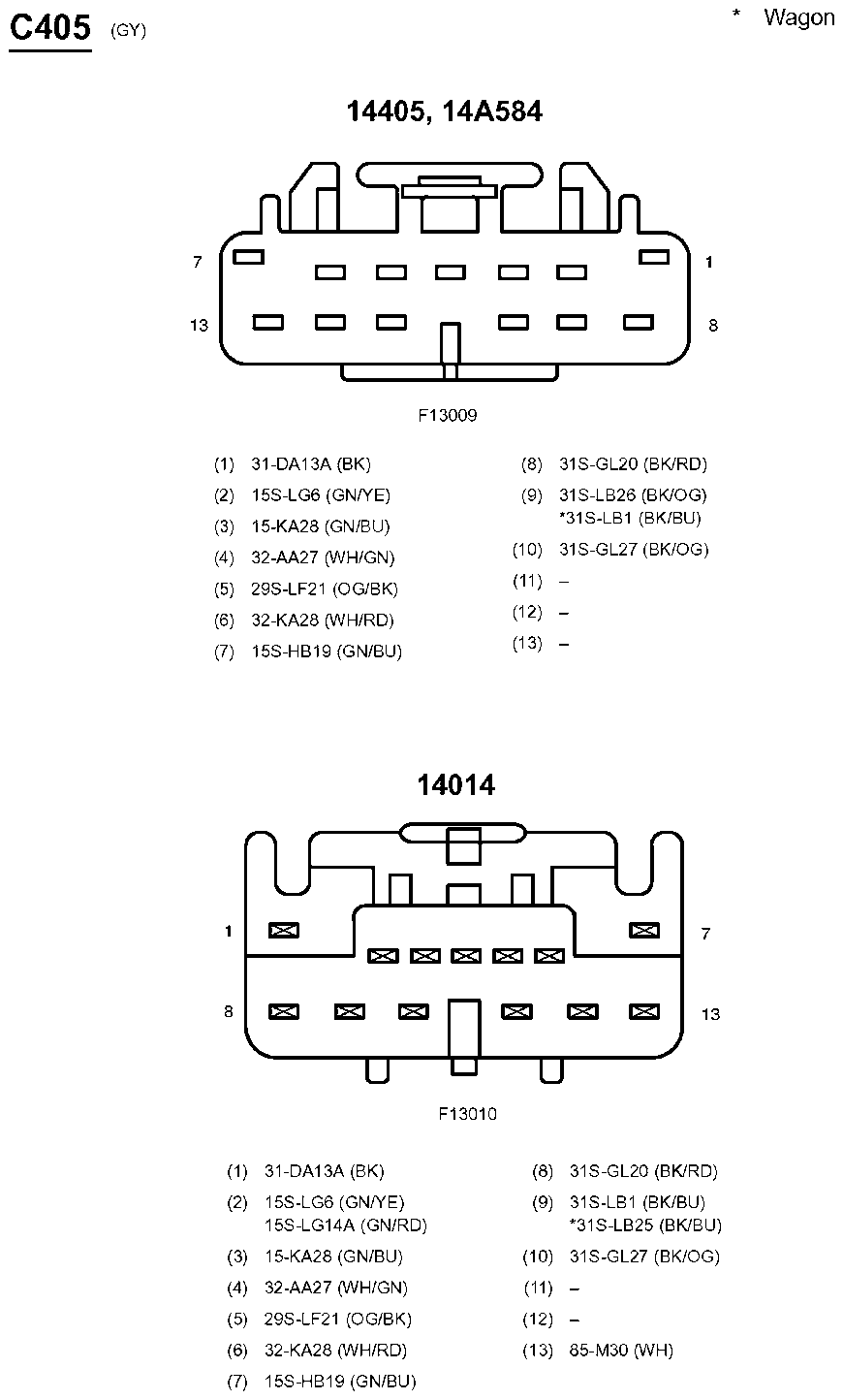

Fig 123: Inline Connector End View (C405)

G07834251

Courtesy of FORD MOTOR CO.

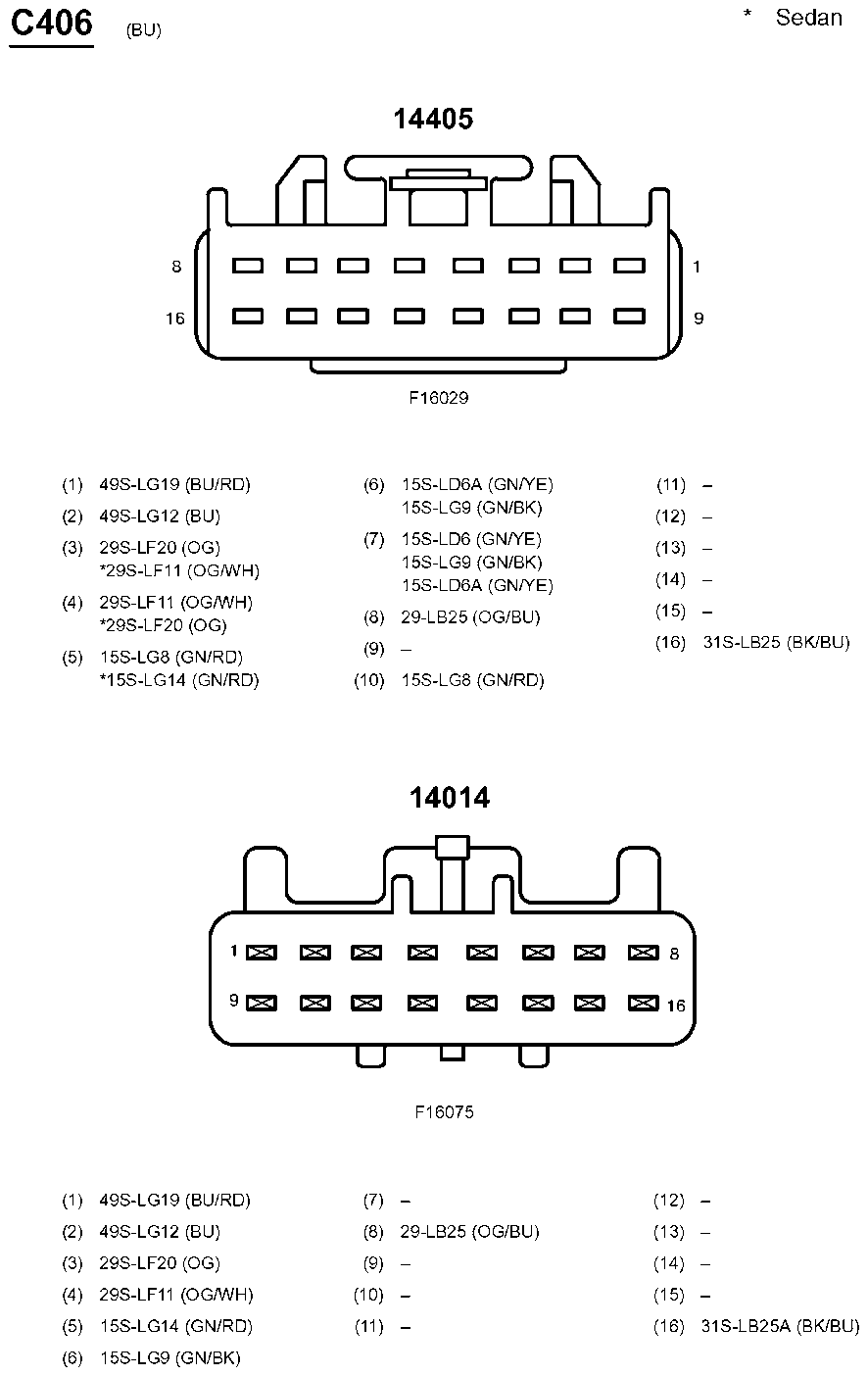

Fig 124: Inline Connector End View (C406)

G07834252

Courtesy of FORD MOTOR CO.

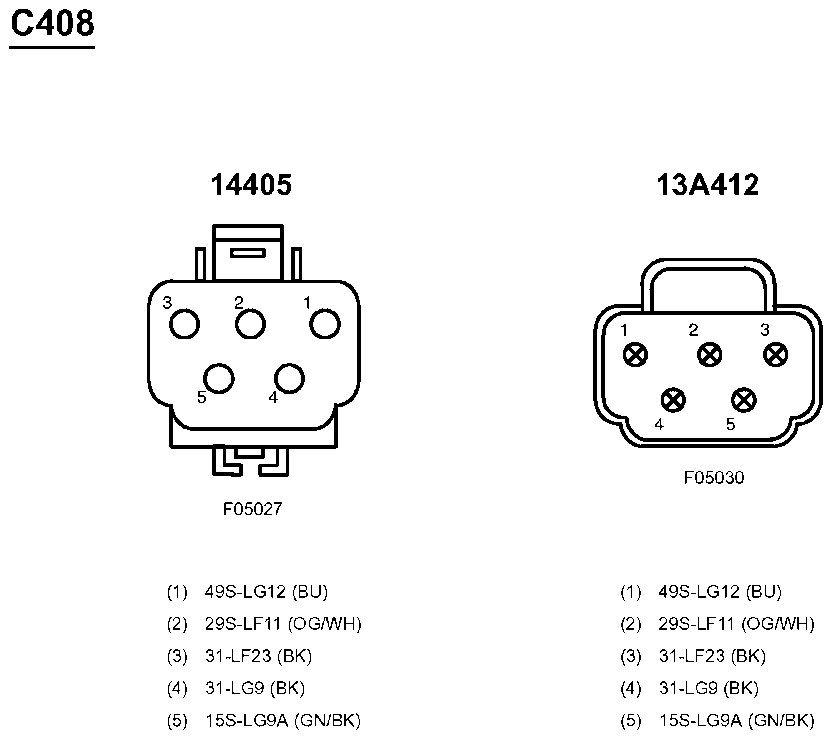

Fig 125: Inline Connector End View (C408)

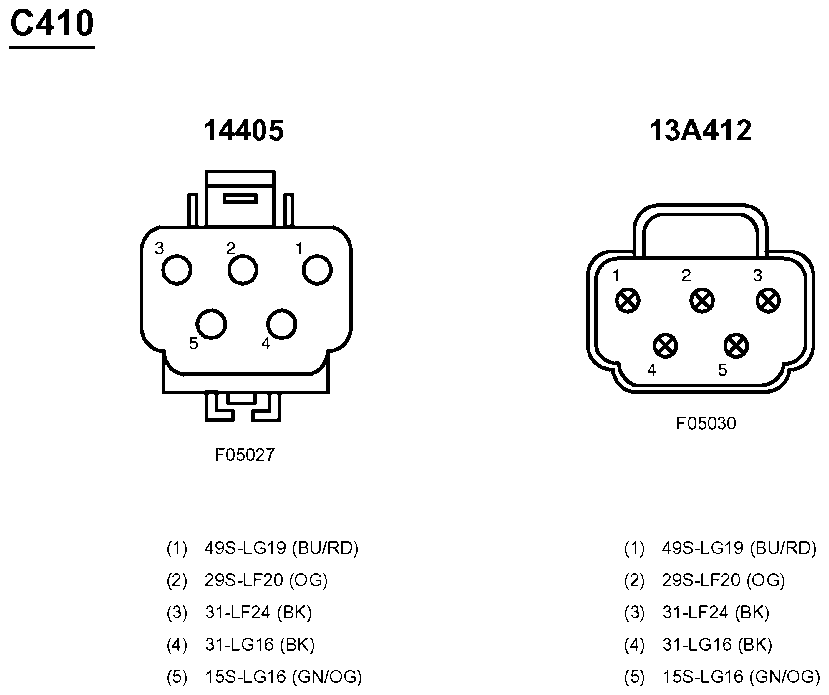

G07834253

Courtesy of FORD MOTOR CO.

Fig 126: Inline Connector End View (C410)

G07834254

Courtesy of FORD MOTOR CO.

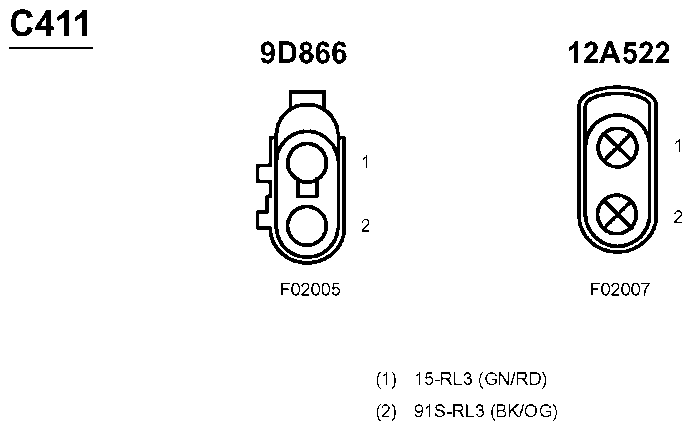

Fig 127: Inline Connector End View (C411)

G07834255

Courtesy of FORD MOTOR CO.

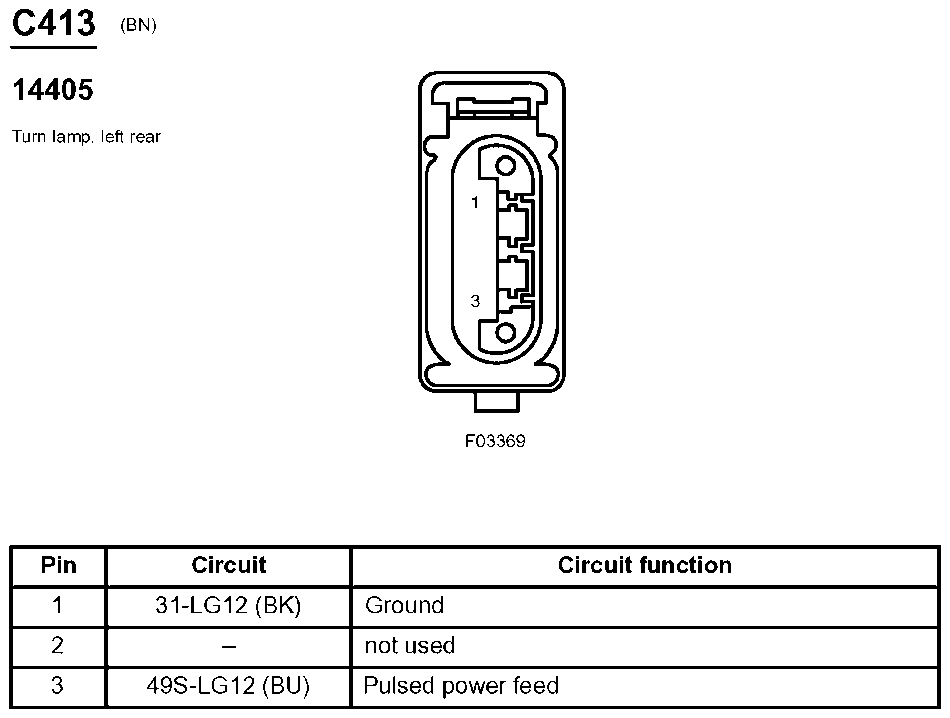

Fig 128: Turn Lamp, Left Rear Connector End View (C413)

G07834256

Courtesy of FORD MOTOR CO.

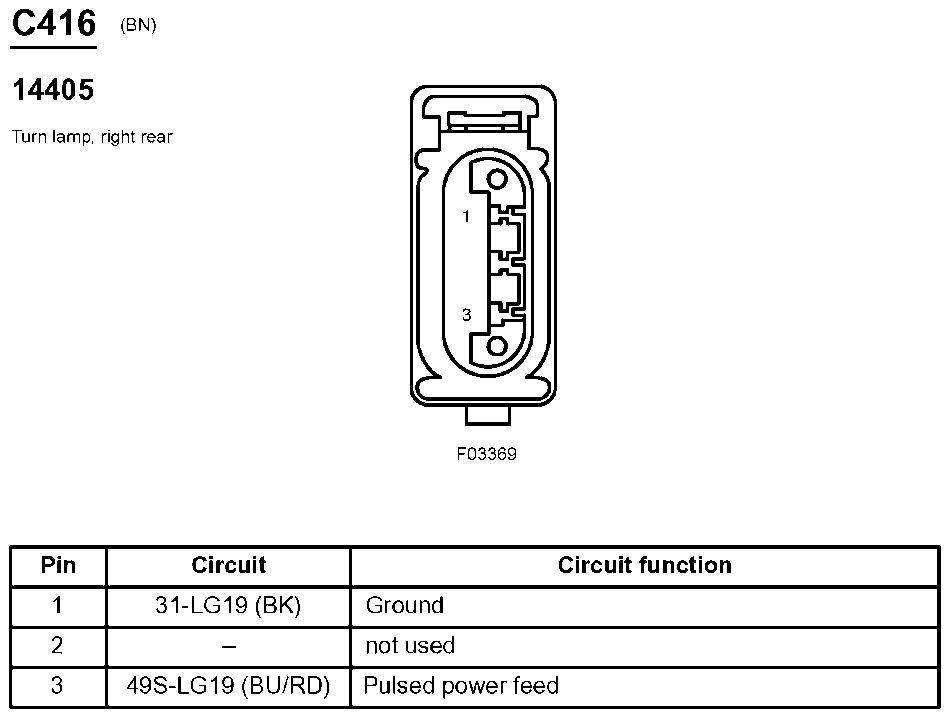

Fig 129: Turn Lamp, Right Rear Connector End View (C416)

G07834257

Courtesy of FORD MOTOR CO.

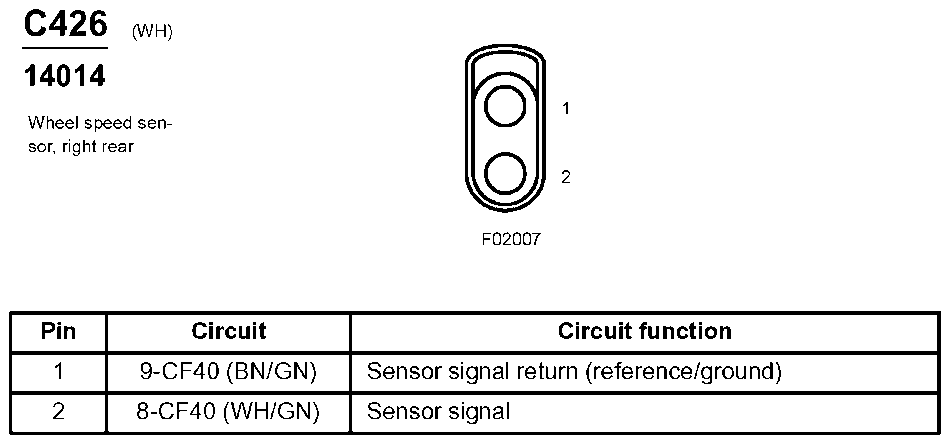

Fig 130: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07834258

Courtesy of FORD MOTOR CO.

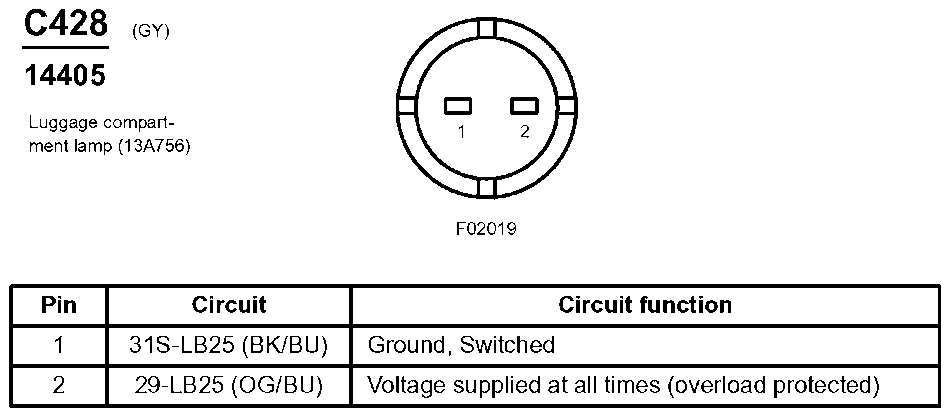

Fig 131: Luggage Compartment Lamp Connector End View (C428)

G07834259

Courtesy of FORD MOTOR CO.

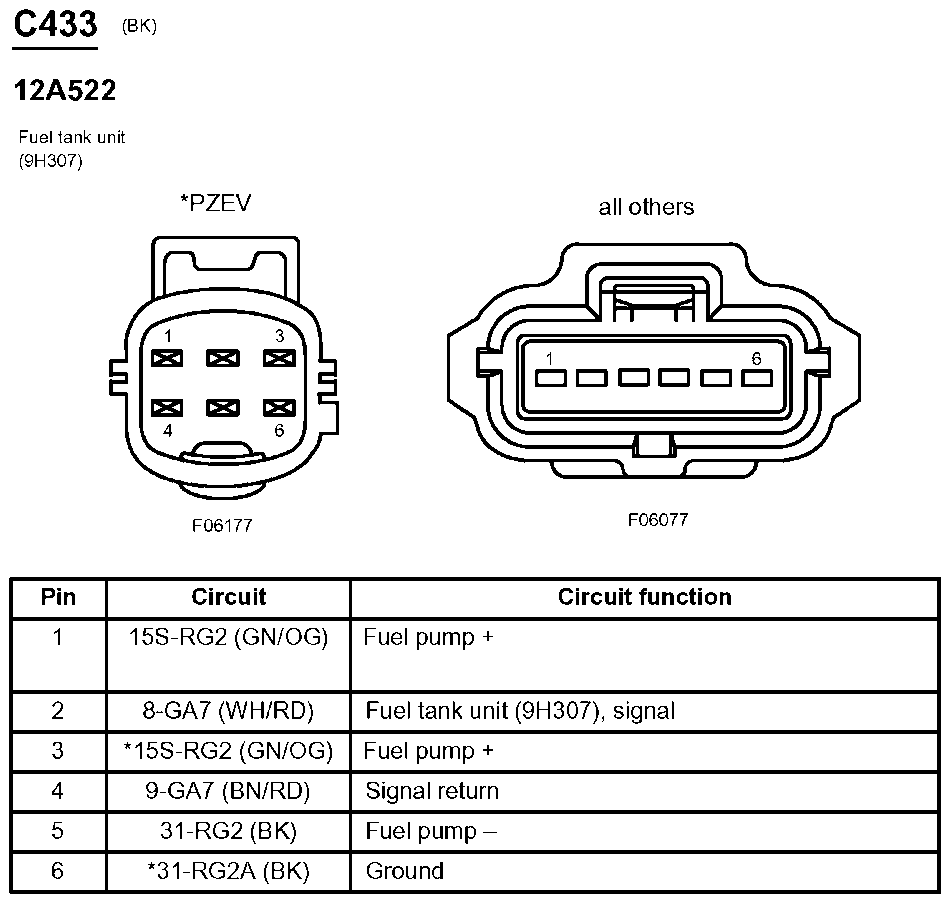

Fig 132: Fuel Tank Unit Connector End View (C433)

G07834260

Courtesy of FORD MOTOR CO.

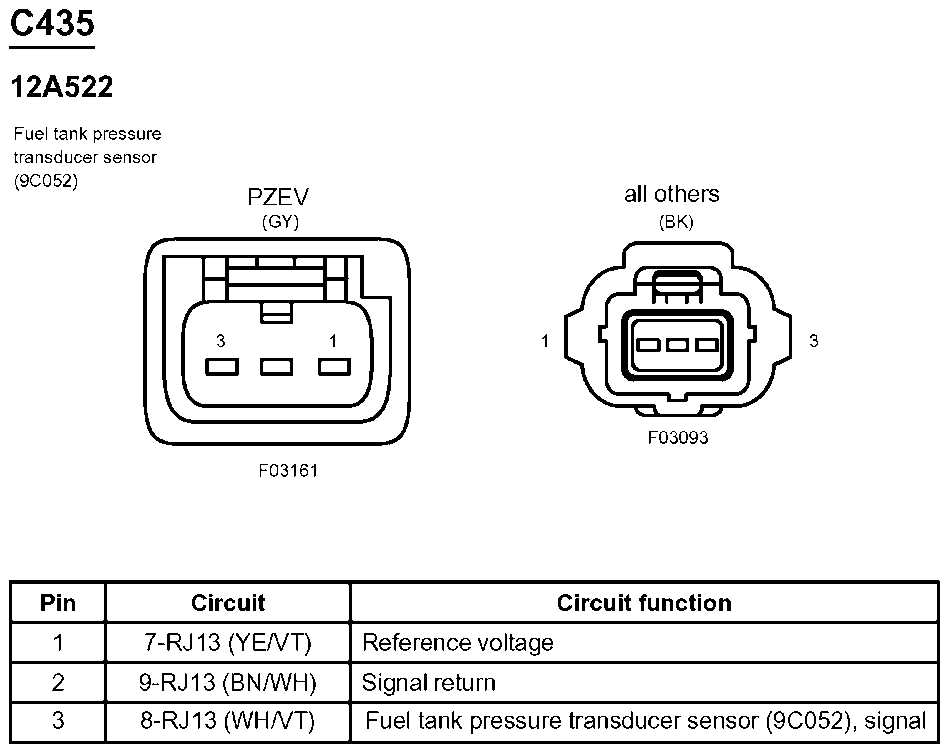

Fig 133: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07834261

Courtesy of FORD MOTOR CO.

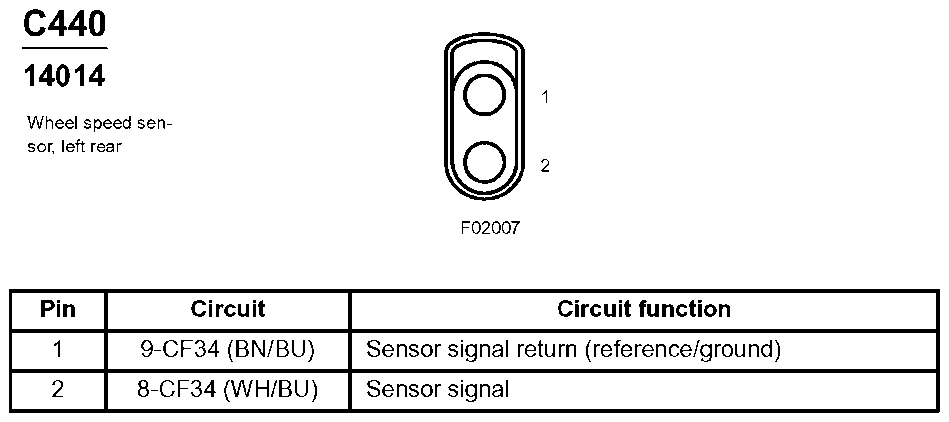

Fig 134: Wheel Speed Sensor, Left Rear Connector End View (C440)

G07834262

Courtesy of FORD MOTOR CO.

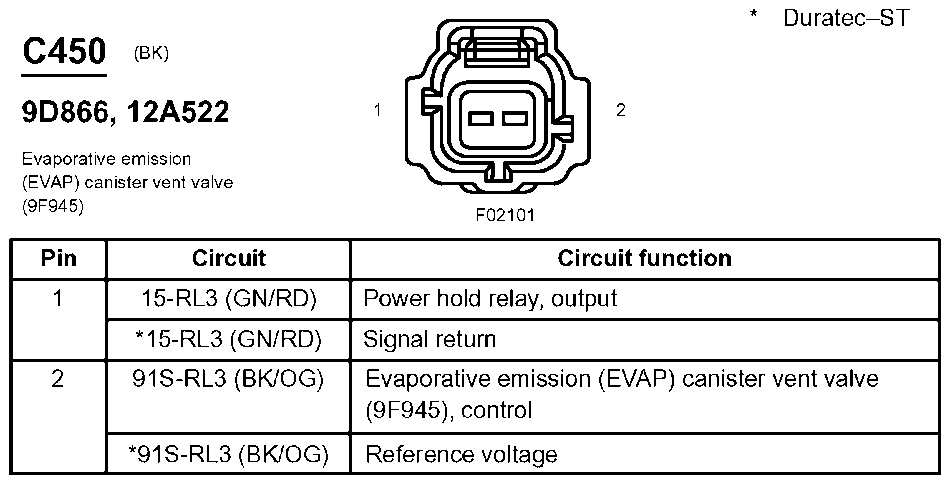

Fig 135: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07834263

Courtesy of FORD MOTOR CO.

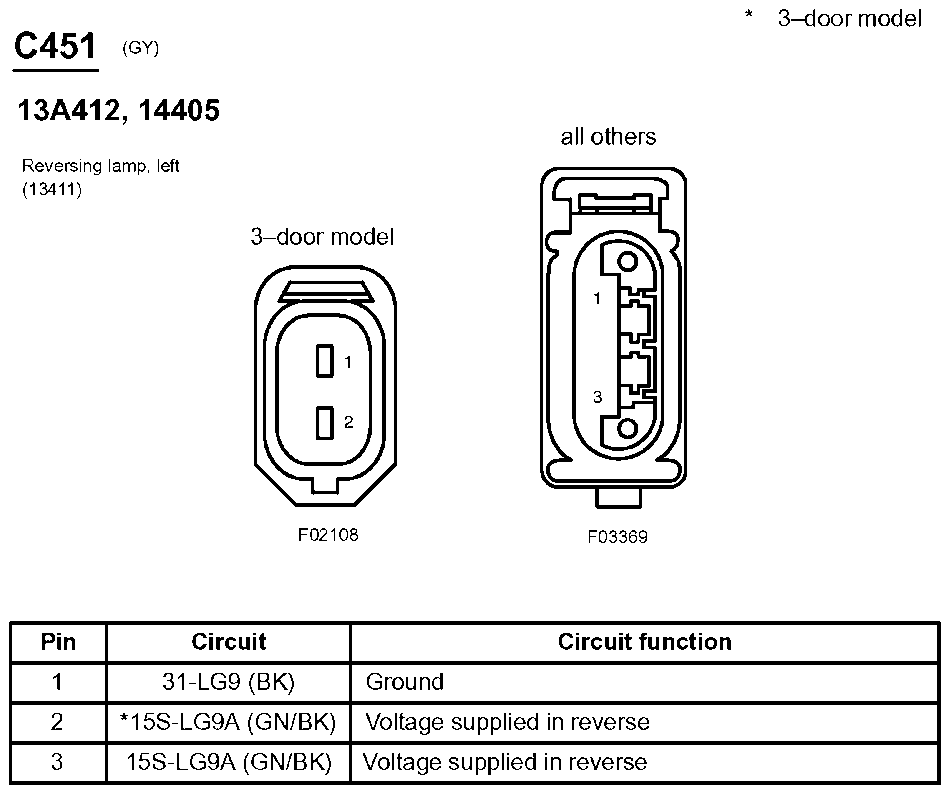

Fig 136: Reversing Lamp, Left Connector End View (C451)

G07834264

Courtesy of FORD MOTOR CO.

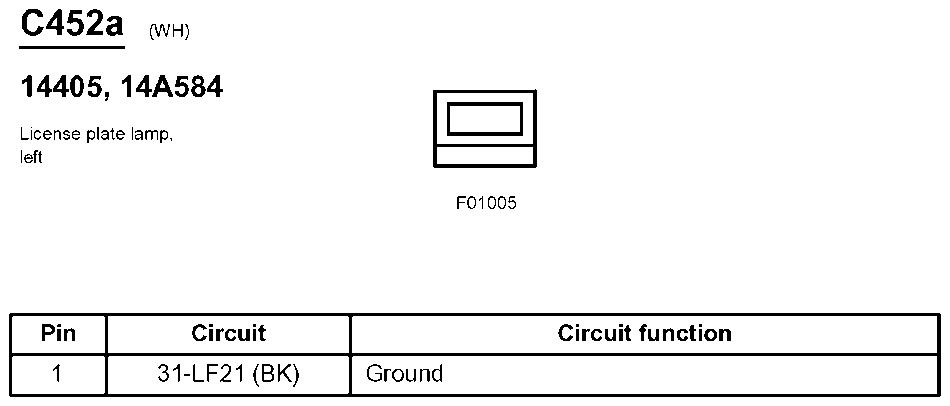

Fig 137: License Plate Lamp, Left Connector End View (C452a)

G07834265

Courtesy of FORD MOTOR CO.

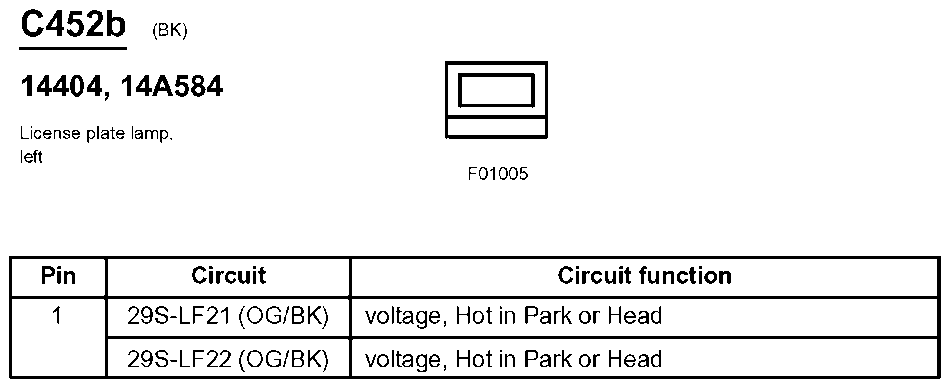

Fig 138: License Plate Lamp, Left Connector End View (C452b)

G07834266

Courtesy of FORD MOTOR CO.

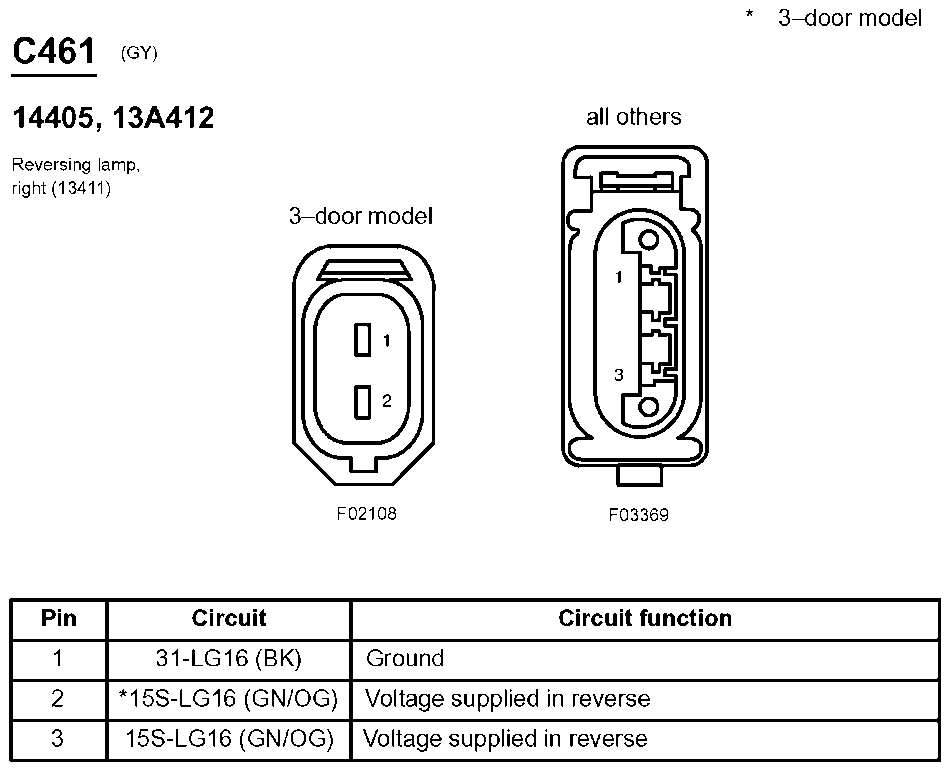

Fig 139: Reversing Lamp, Right Connector End View (C461)

G07834267

Courtesy of FORD MOTOR CO.

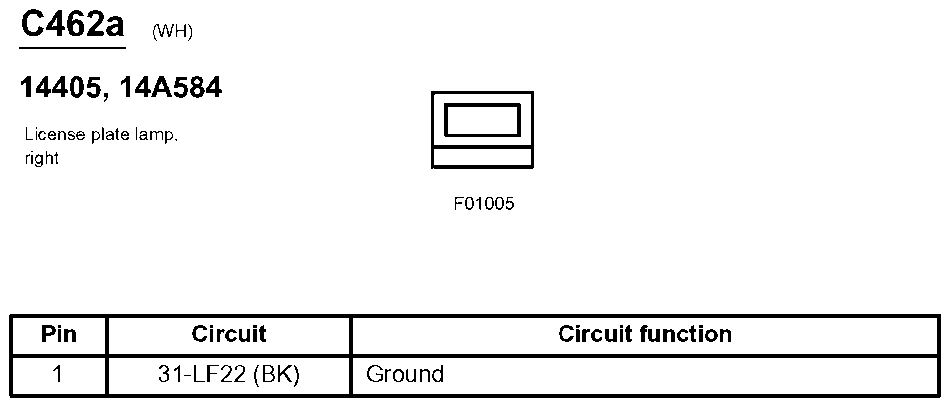

Fig 140: License Plate Lamp, Right Connector End View (C462a)

G07834268

Courtesy of FORD MOTOR CO.

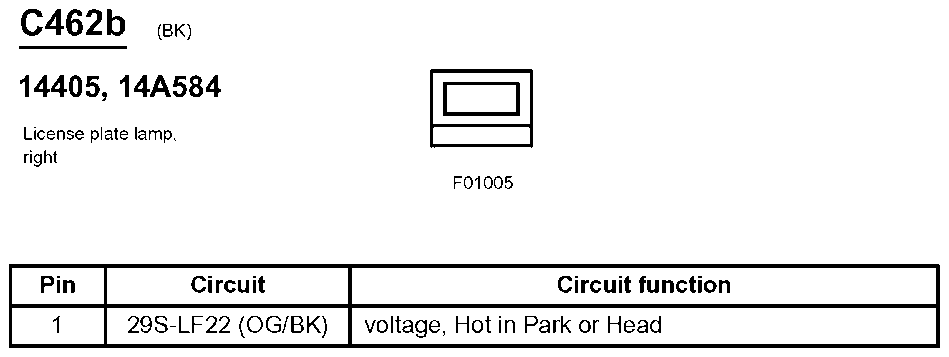

Fig 141: License Plate Lamp, Right Connector End View (C462b)

G07834269

Courtesy of FORD MOTOR CO.

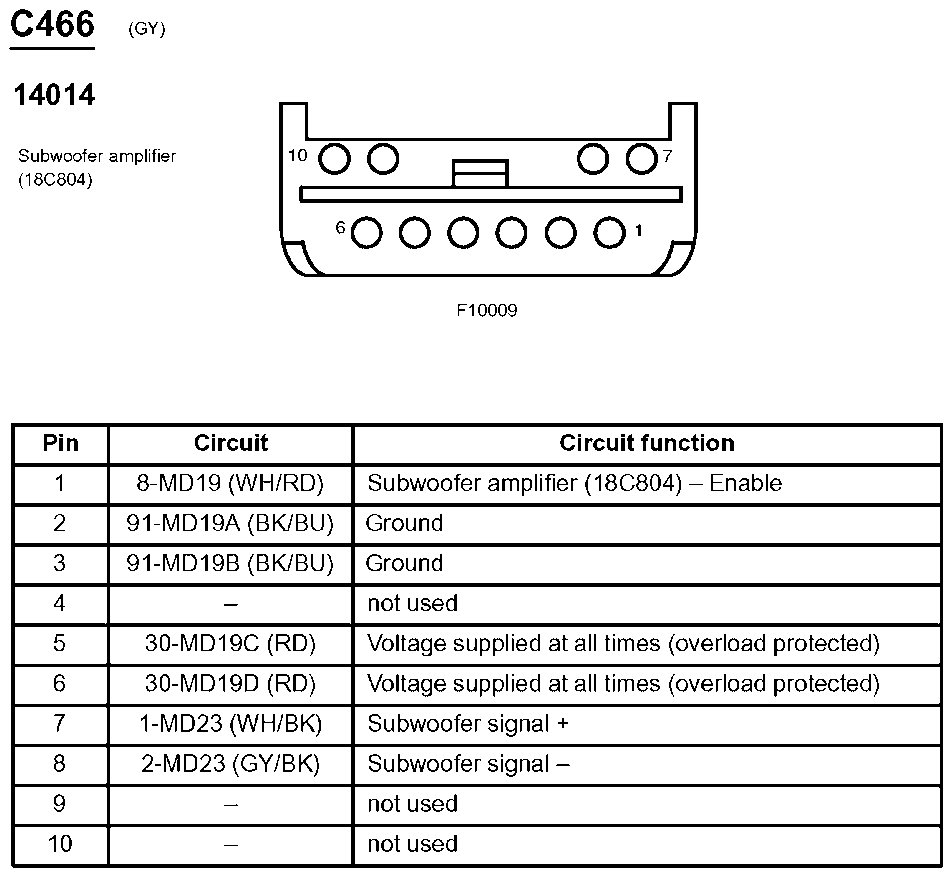

Fig 142: Subwoofer Amplifier Connector End View (C466)

G07834270

Courtesy of FORD MOTOR CO.

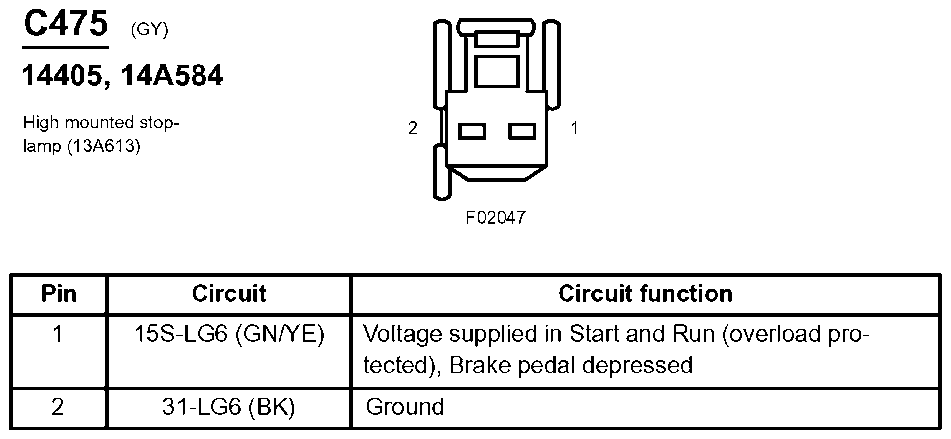

Fig 143: High Mounted Stoplamp Connector End View (C475)

G07834271

Courtesy of FORD MOTOR CO.

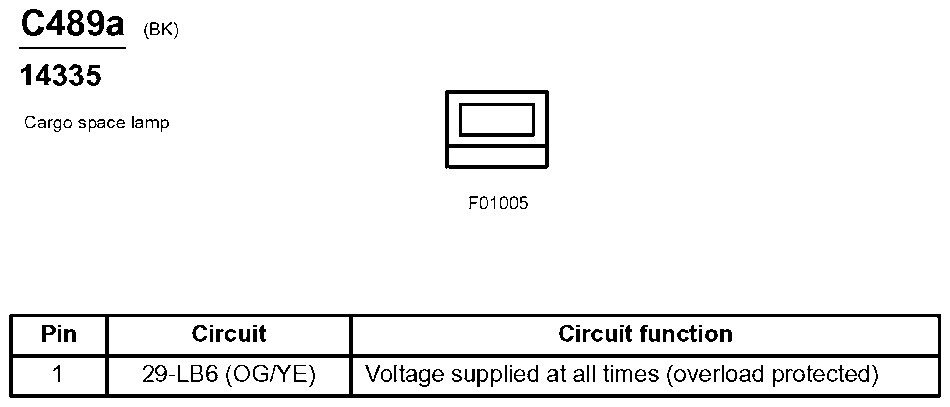

Fig 144: Cargo Space Lamp Connector End View (C489a)

G07834272

Courtesy of FORD MOTOR CO.

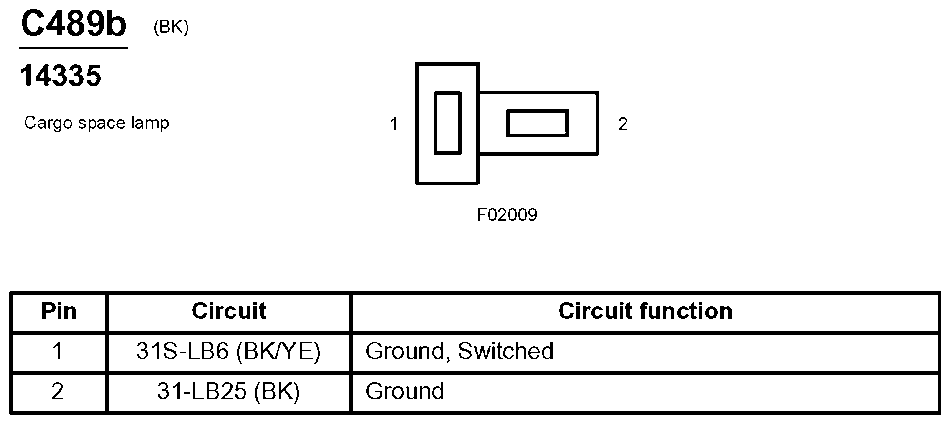

Fig 145: Cargo Space Lamp Connector End View (C489b)

G07834273

Courtesy of FORD MOTOR CO.

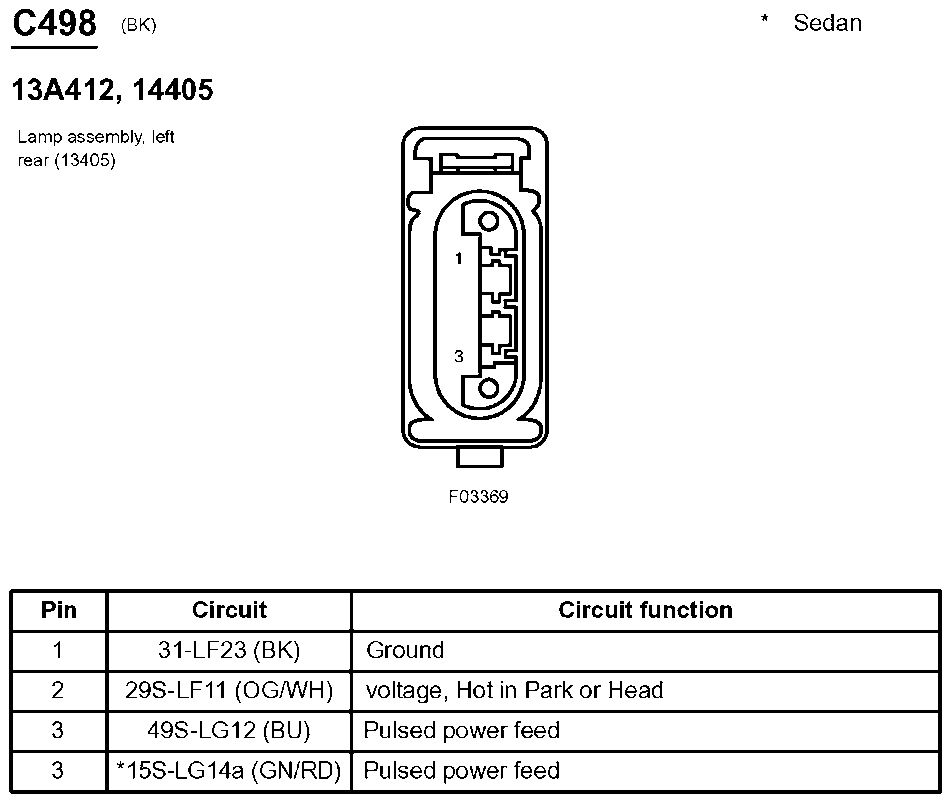

Fig 146: Lamp Assembly, Left Rear Connector End View (C498)

G07834274

Courtesy of FORD MOTOR CO.

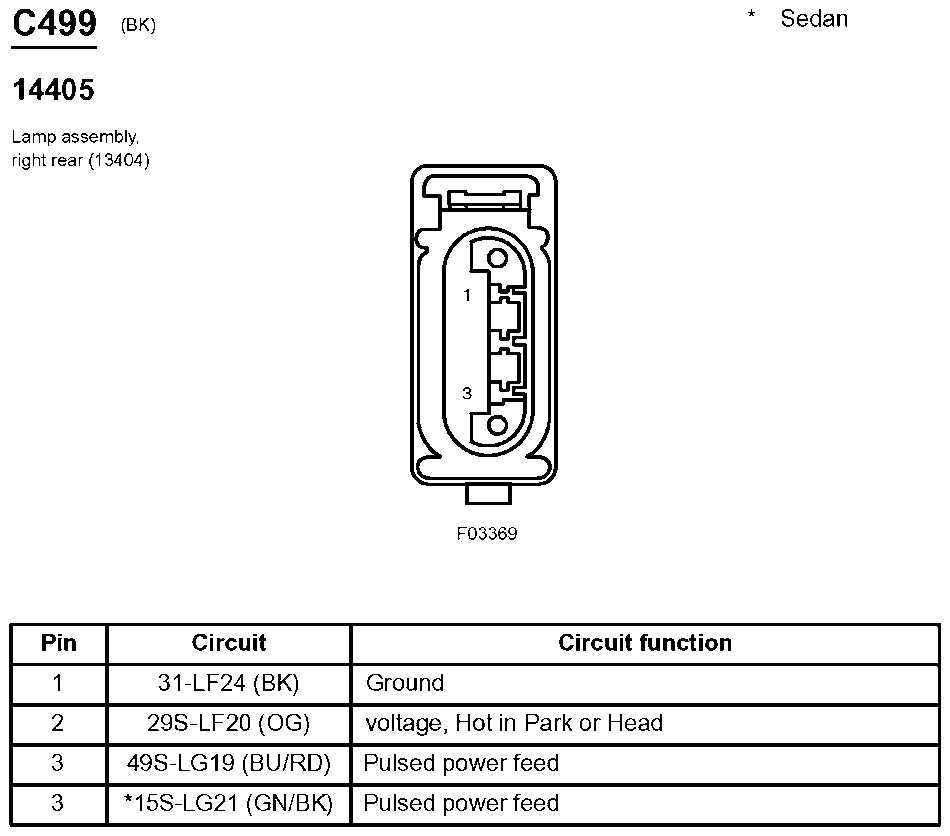

Fig 147: Lamp Assembly, Right Rear Connector End View (C499)

G07834275

Courtesy of FORD MOTOR CO.

Fig 148: Master Window Adjust Switch Connector End View (C504a)

G07834276

Courtesy of FORD MOTOR CO.

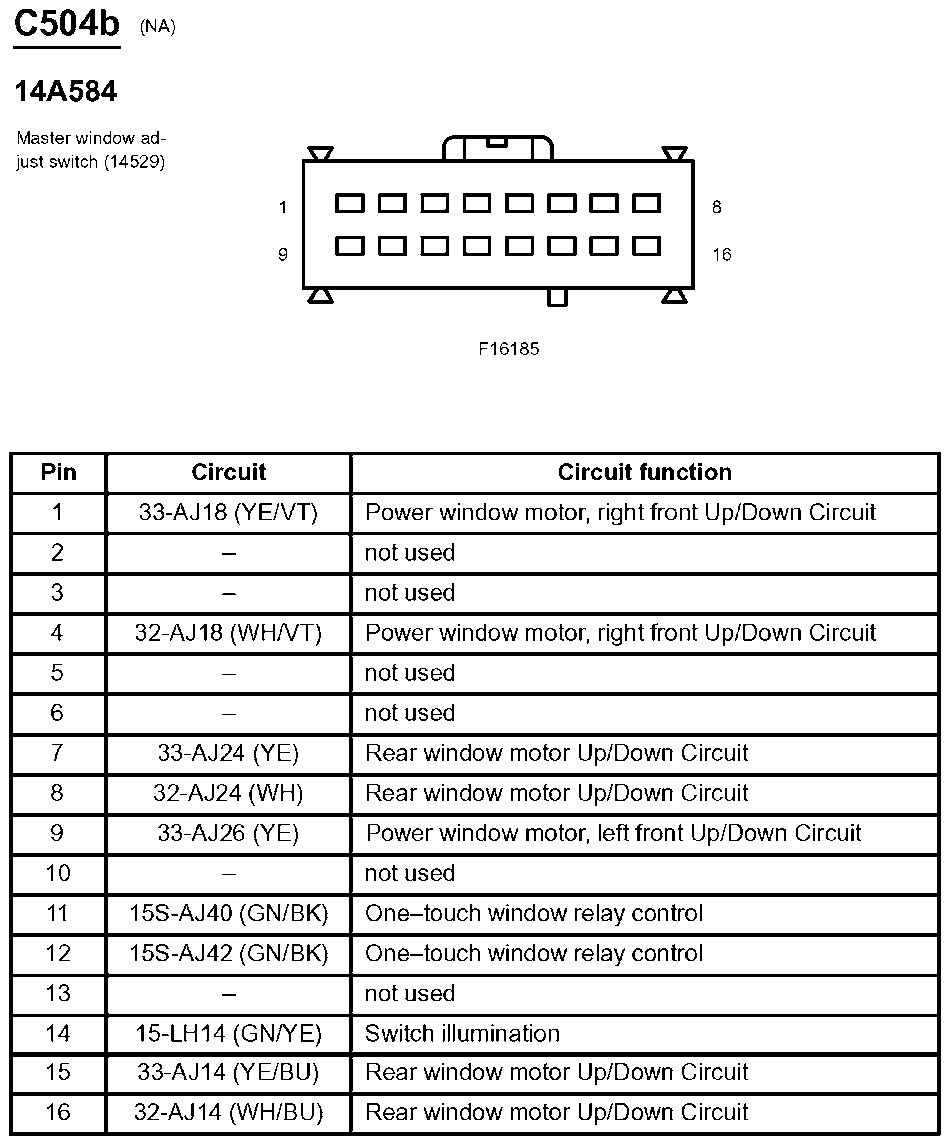

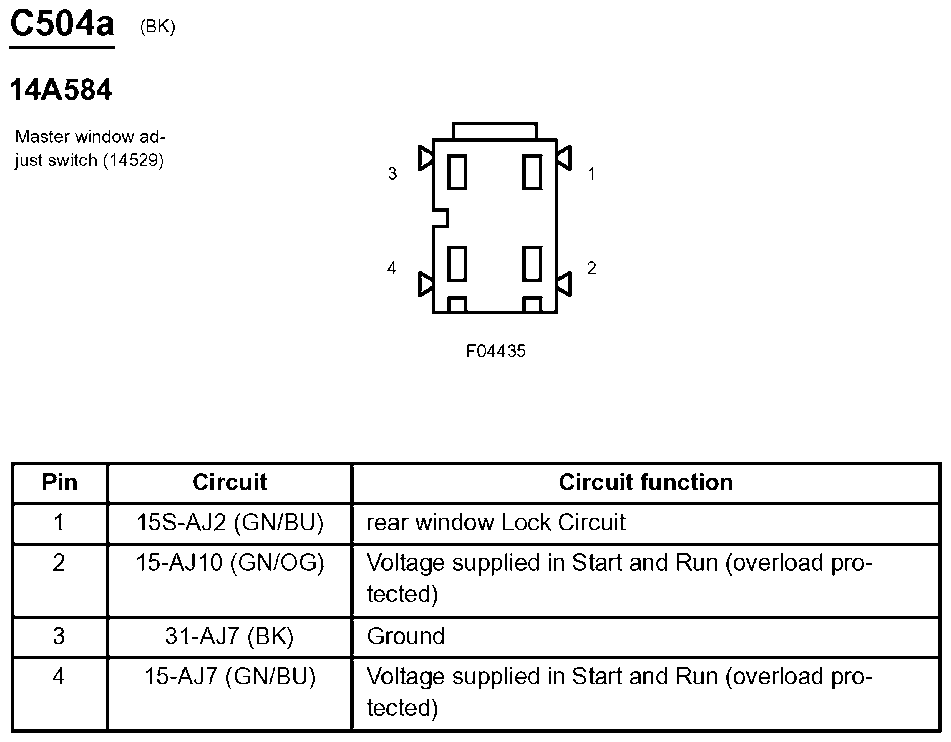

Fig 149: Master Window Adjust Switch Connector End View (C504b)

G07834277

Courtesy of FORD MOTOR CO.

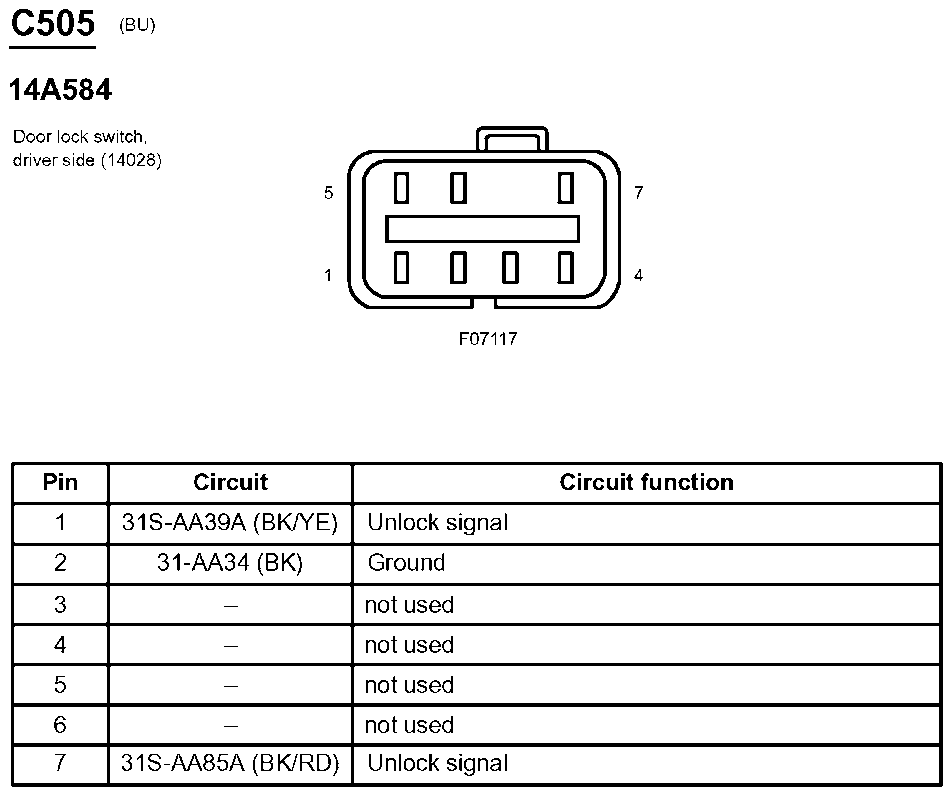

Fig 150: Door Lock Switch, Driver Side Connector End View (C505)

G07834278

Courtesy of FORD MOTOR CO.

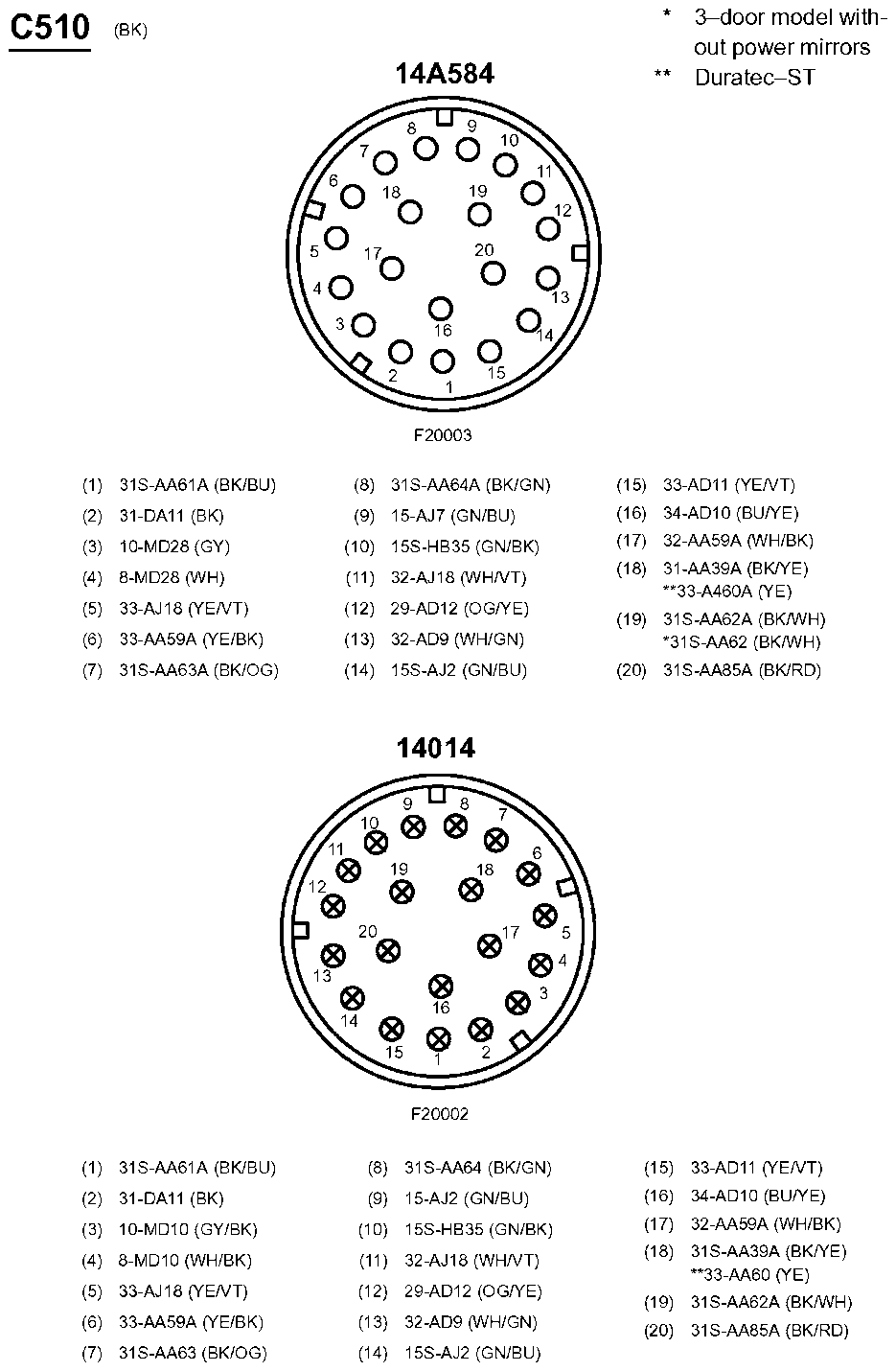

Fig 151: Inline Connector End View (C510)

G07834279

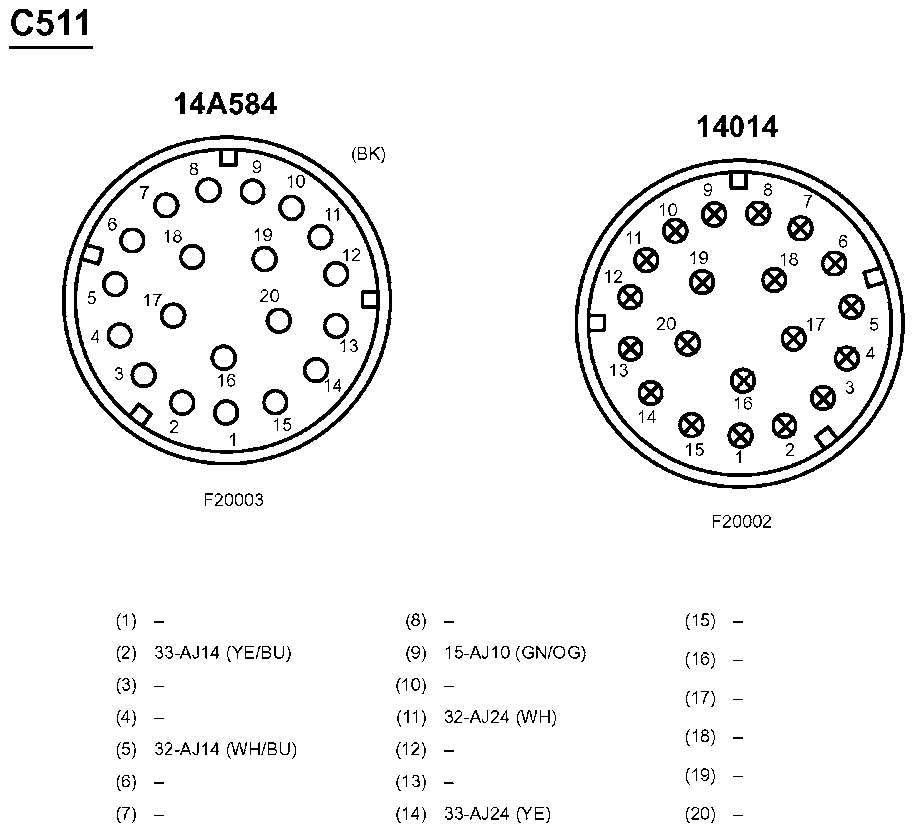

Courtesy of FORD MOTOR CO.

Fig 152: Inline Connector End View (C511)

G07834280

Courtesy of FORD MOTOR CO.

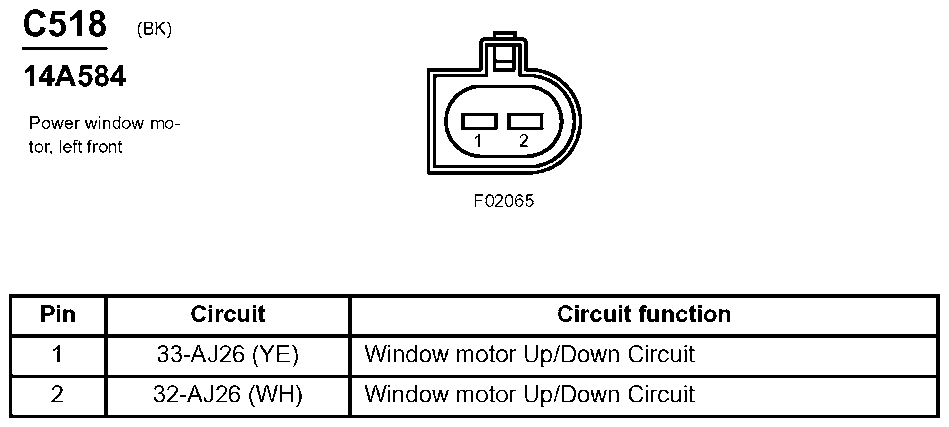

Fig 153: Power Window Motor, Left Front Connector End View (C518)

G07834281

Courtesy of FORD MOTOR CO.

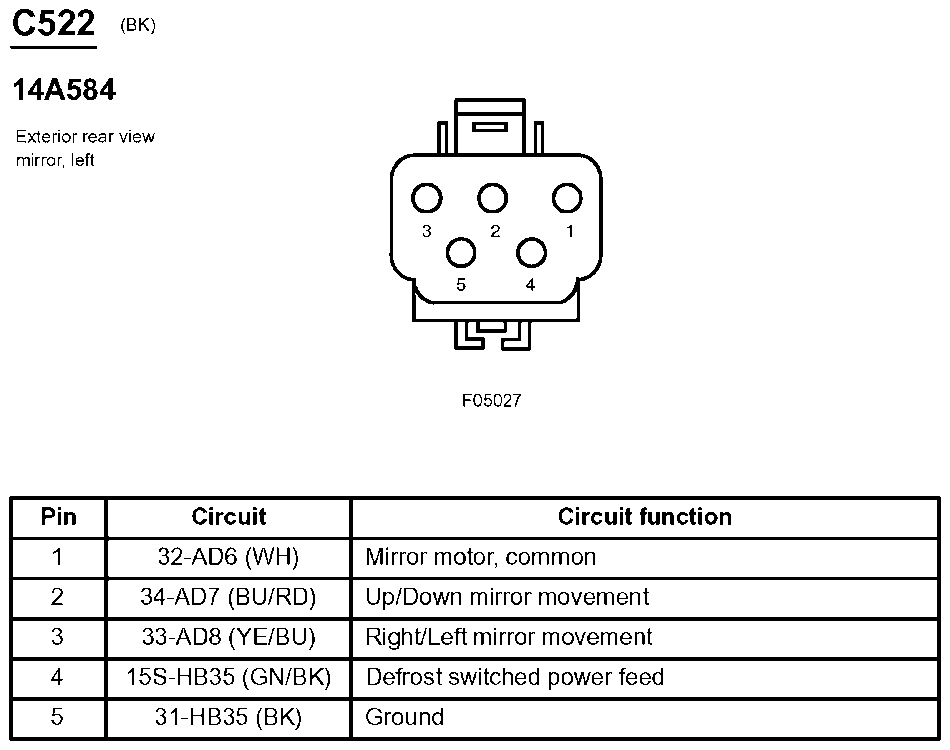

Fig 154: Exterior Rear View Mirror, Left Connector End View (C522)

G07834282

Courtesy of FORD MOTOR CO.

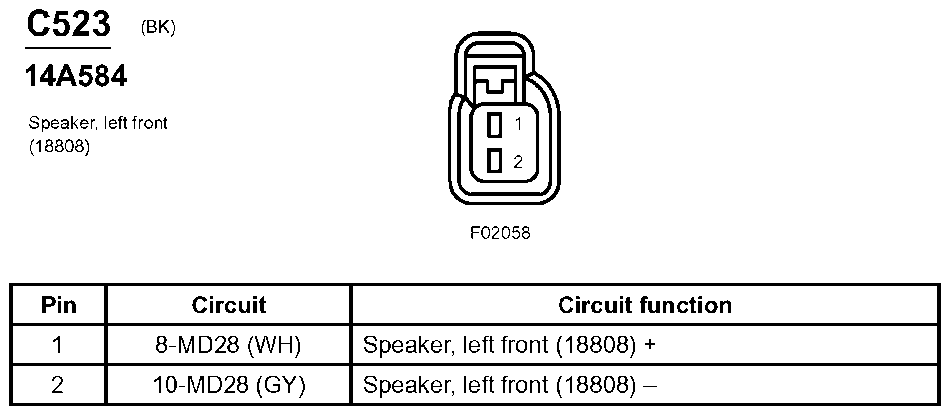

Fig 155: Speaker, Left Front Connector End View (C523)

G07834283

Courtesy of FORD MOTOR CO.

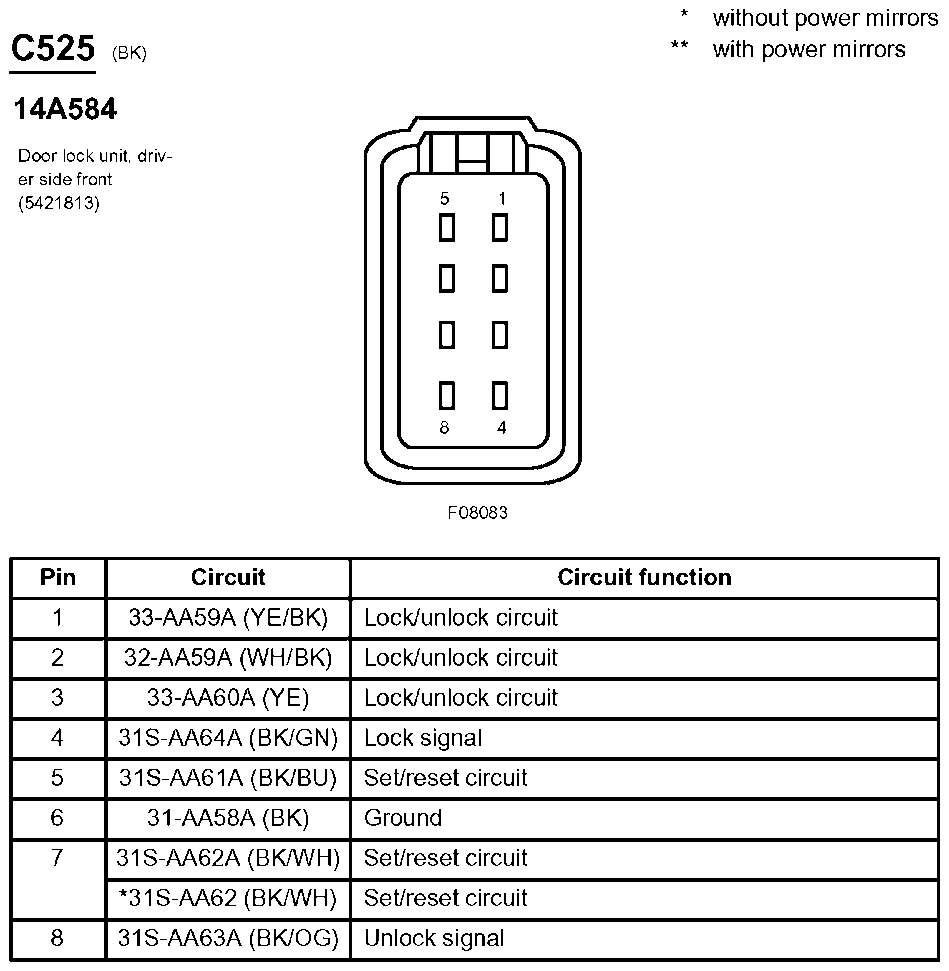

Fig 156: Door Lock Unit, Driver Side Front Connector End View (C525)

G07834284

Courtesy of FORD MOTOR CO.

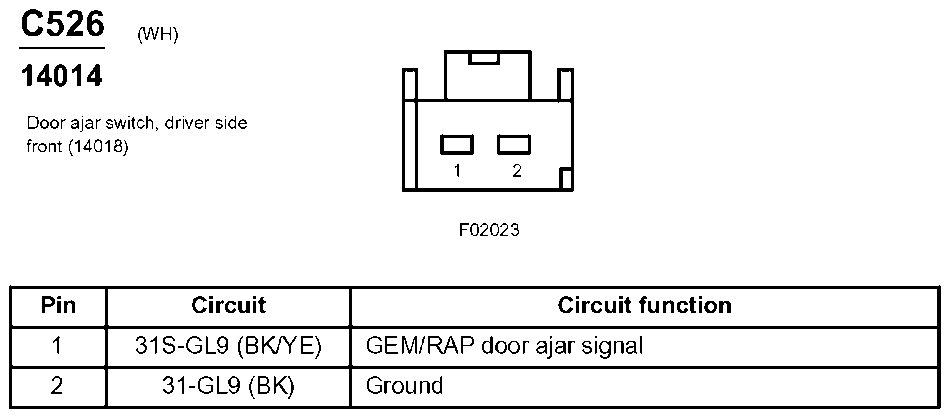

Fig 157: Door Ajar Switch, Driver Side Front Connector End View (C526)

G07834285

Courtesy of FORD MOTOR CO.

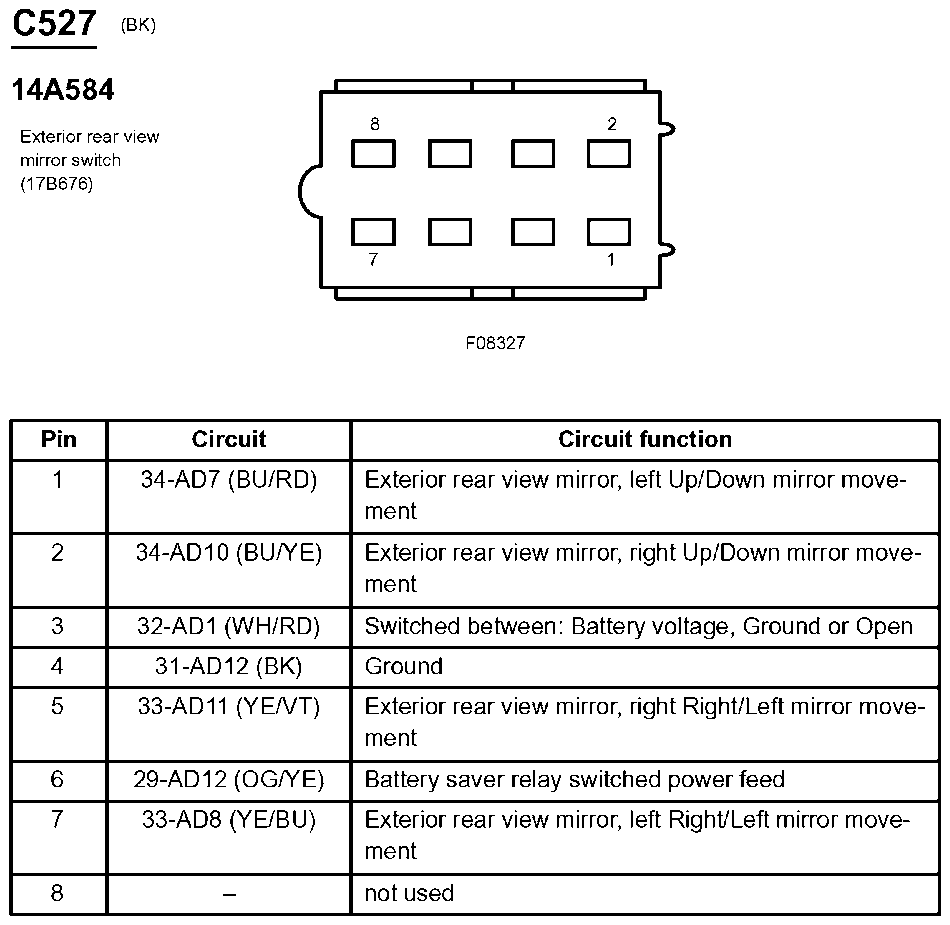

Fig 158: Exterior Rear View Mirror Switch Connector End View (C527)

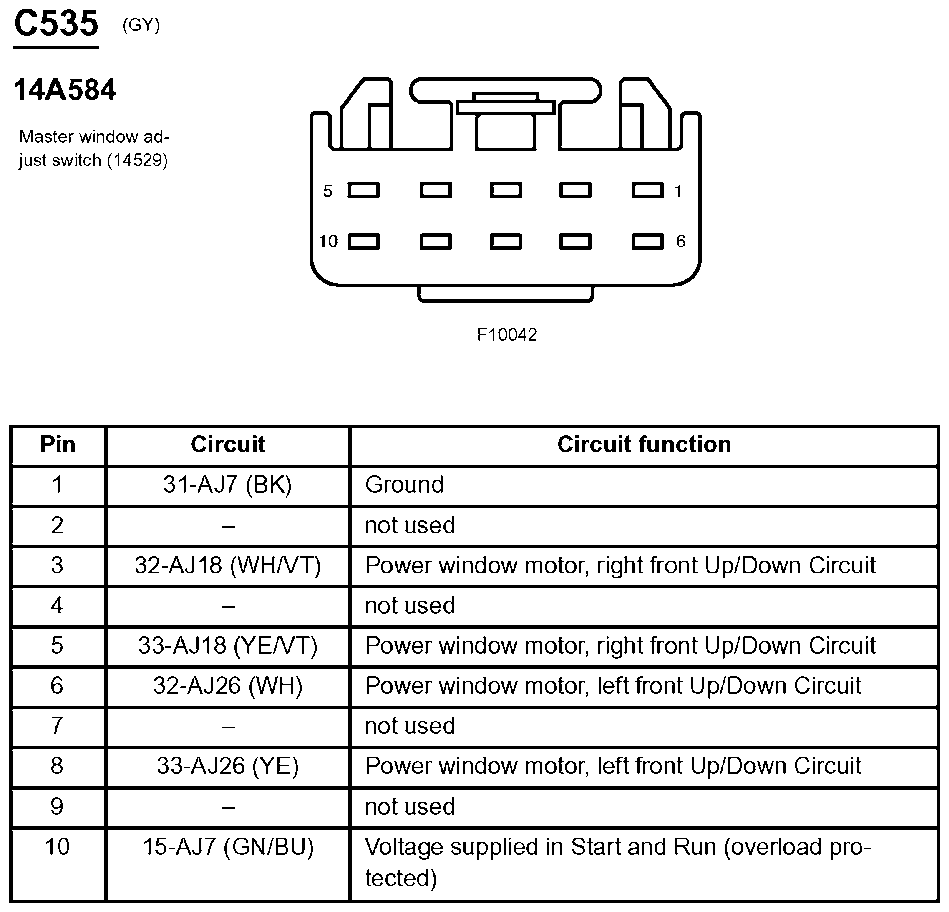

G07834286

Courtesy of FORD MOTOR CO.

Fig 159: Master Window Adjust Switch Connector End View (C535)

G07834287

Courtesy of FORD MOTOR CO.

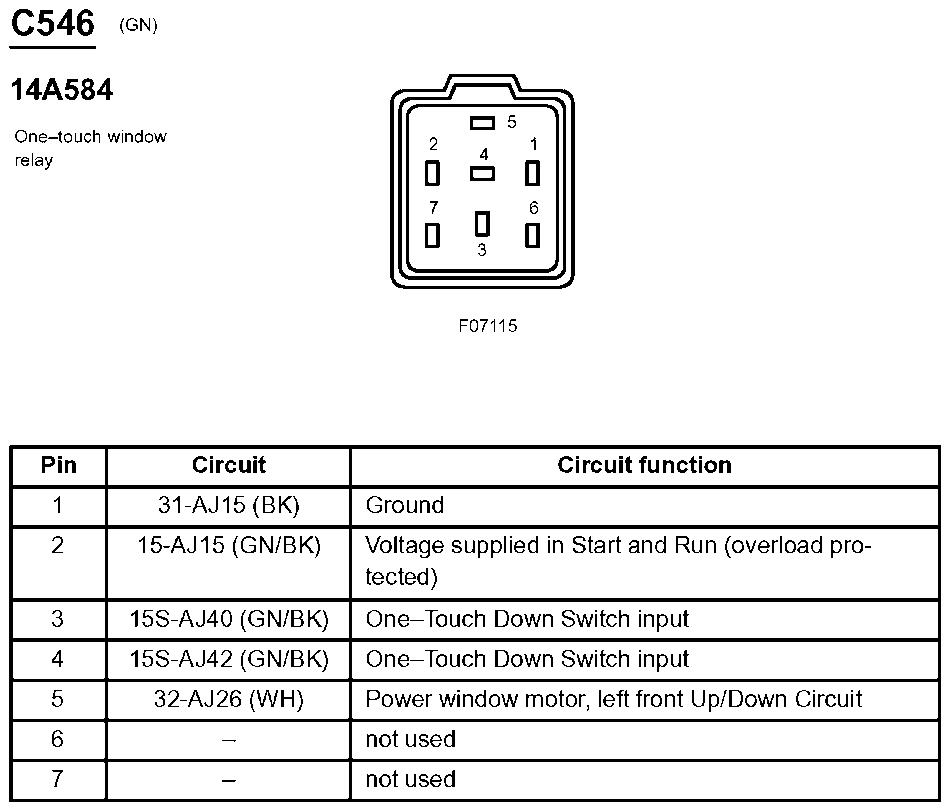

Fig 160: One-Touch Window Relay Connector End View (C546)

G07834288

Courtesy of FORD MOTOR CO.

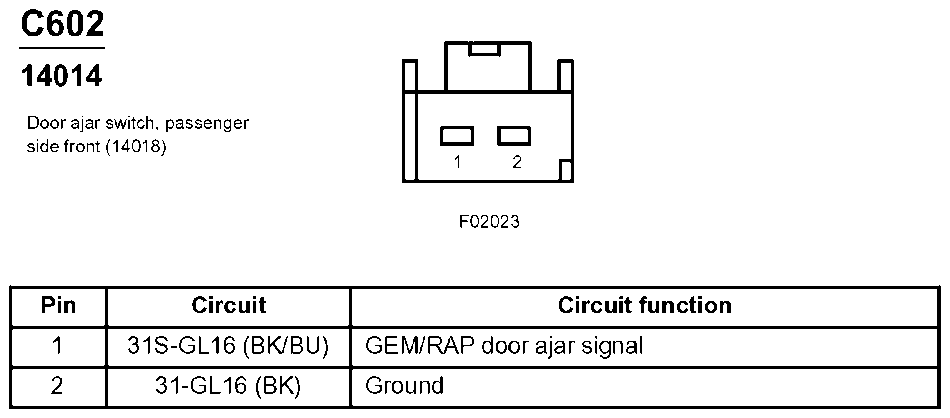

Fig 161: Door Ajar Switch, Passenger Side Front Connector End View (C602)

G07834289

Courtesy of FORD MOTOR CO.

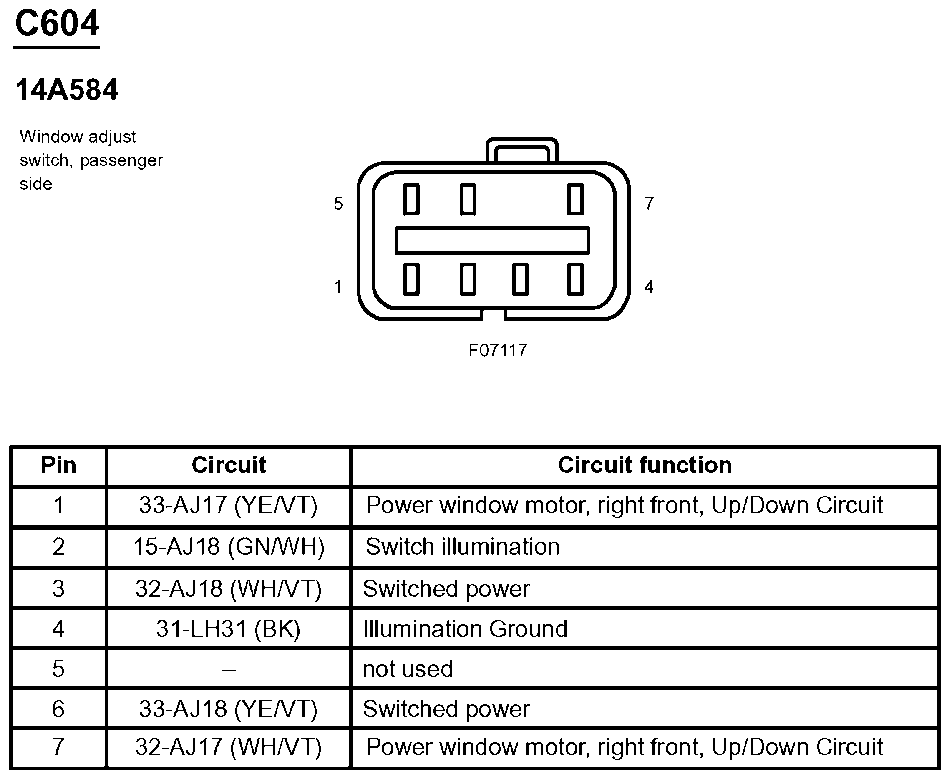

Fig 162: Window Adjust Switch, Passenger Side Connector End View (C604)

G07834290

Courtesy of FORD MOTOR CO.

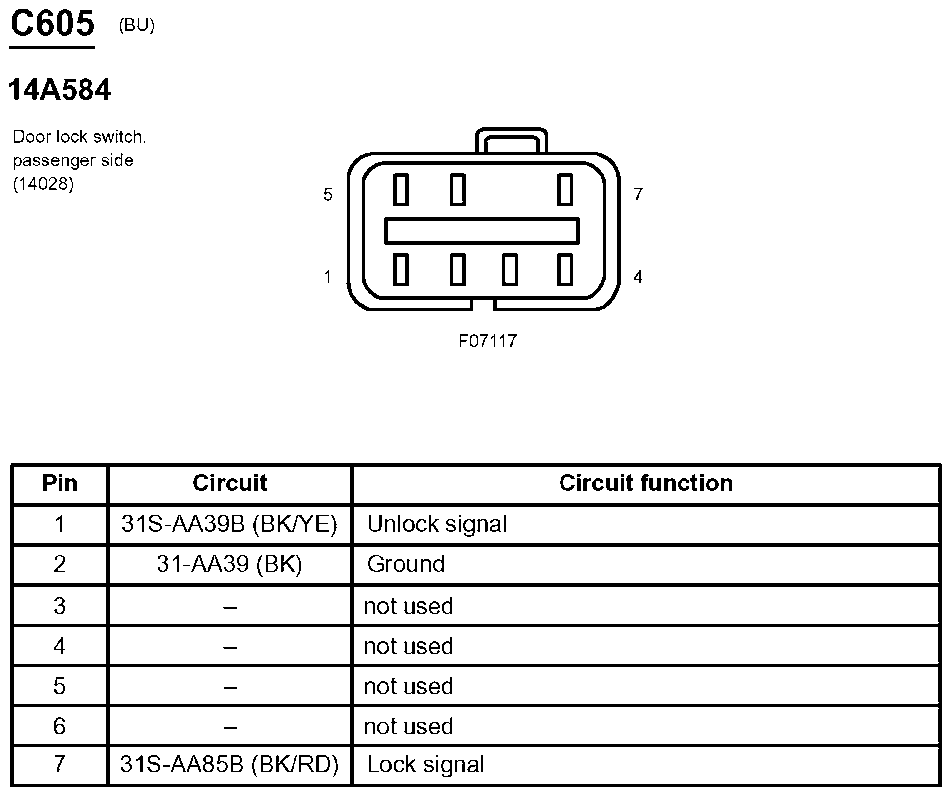

Fig 163: Door Lock Switch, Passenger Side Connector End View (C605)

G07834291

Courtesy of FORD MOTOR CO.

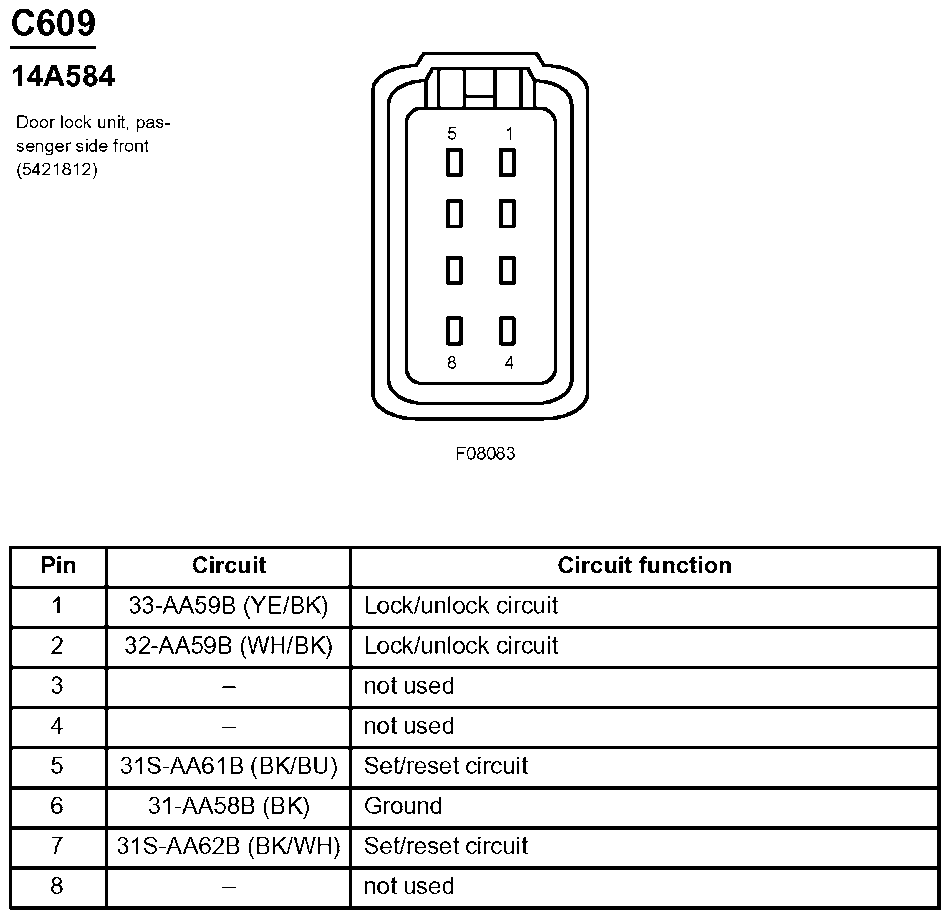

Fig 164: Door Lock Unit, Passenger Side Front Connector End View (C609)

G07834292

Courtesy of FORD MOTOR CO.

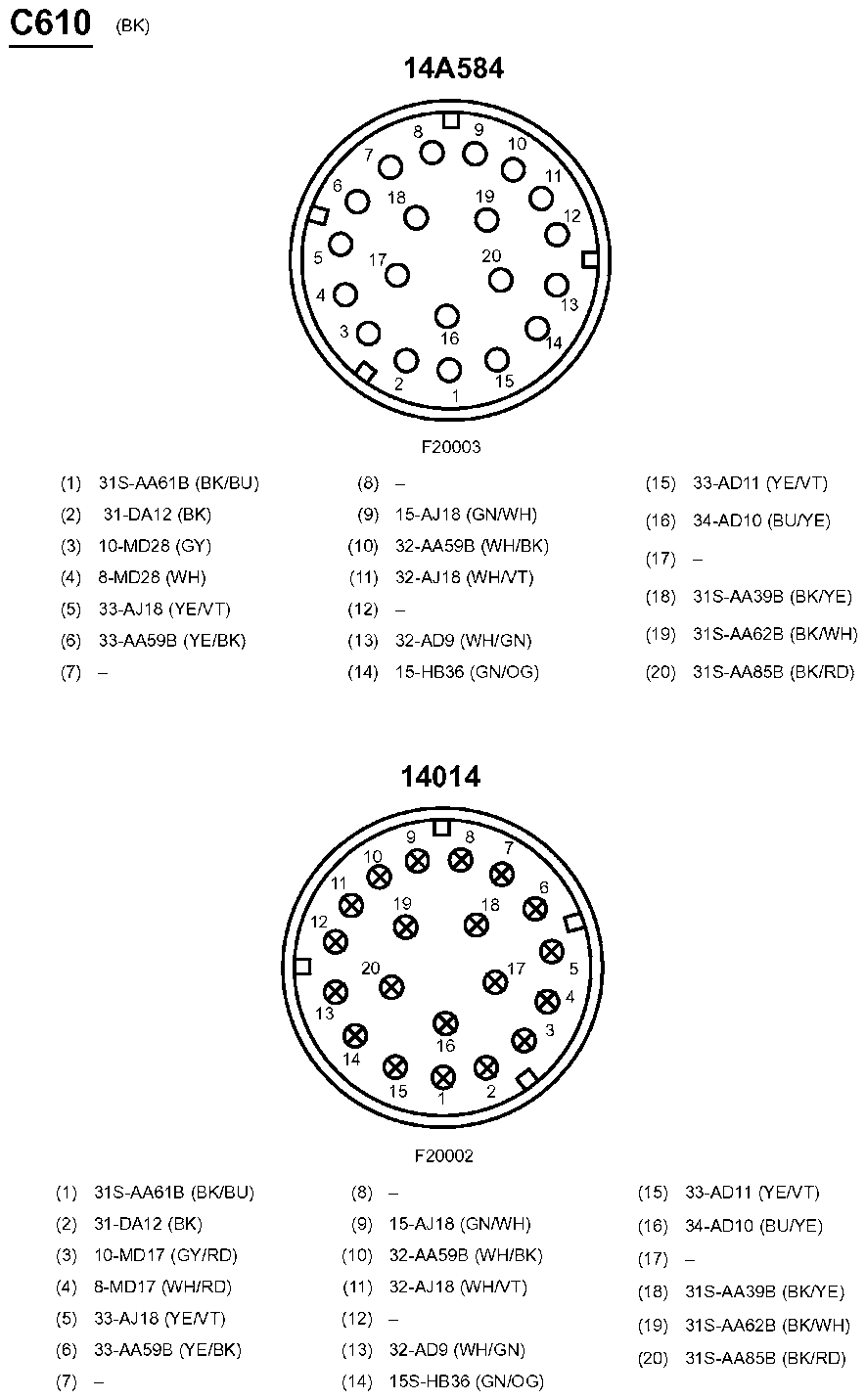

Fig 165: Inline Connector End View (C610)

G07834293

Courtesy of FORD MOTOR CO.

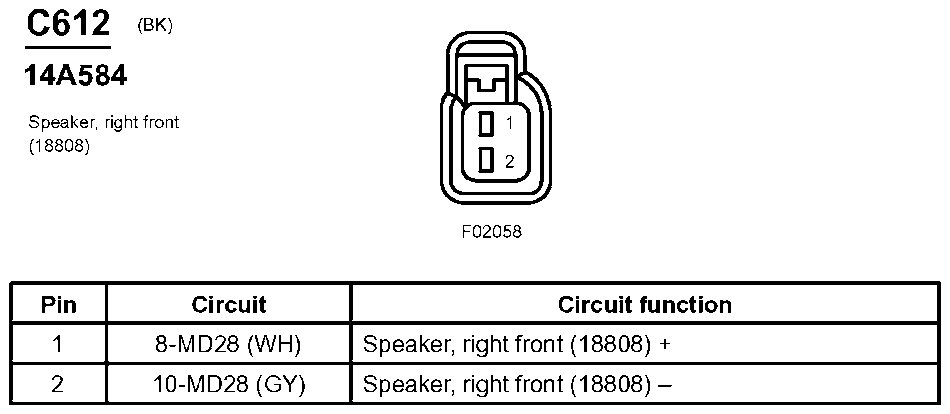

Fig 166: Speaker, Right Front Connector End View (C612)

G07834294

Courtesy of FORD MOTOR CO.

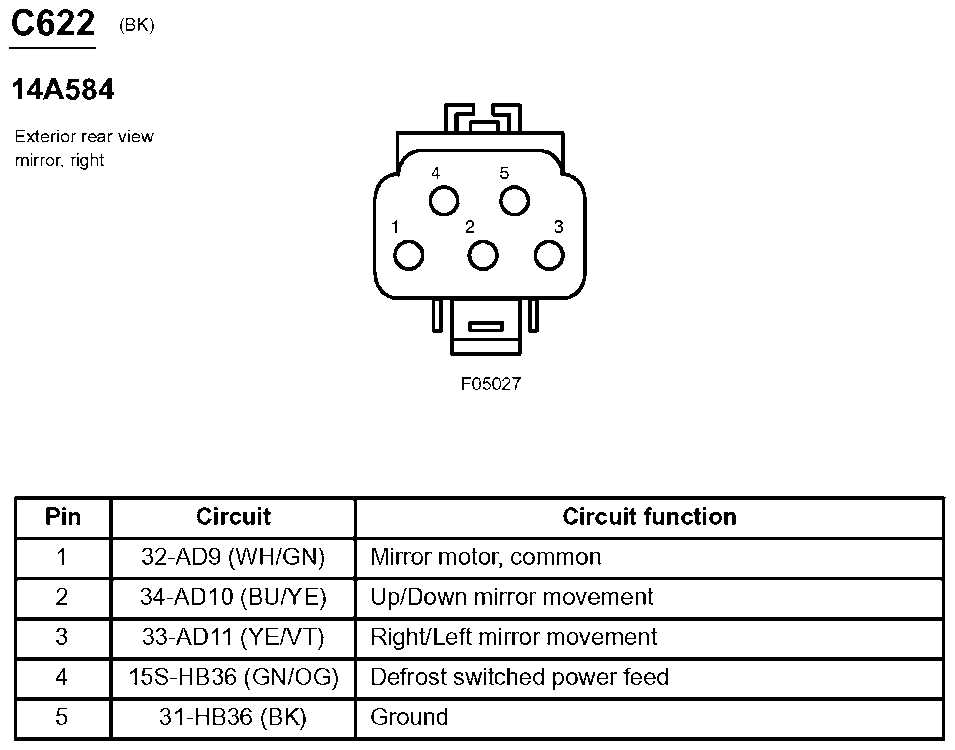

Fig 167: Exterior Rear View Mirror, Right Connector End View (C622)

G07834295

Courtesy of FORD MOTOR CO.

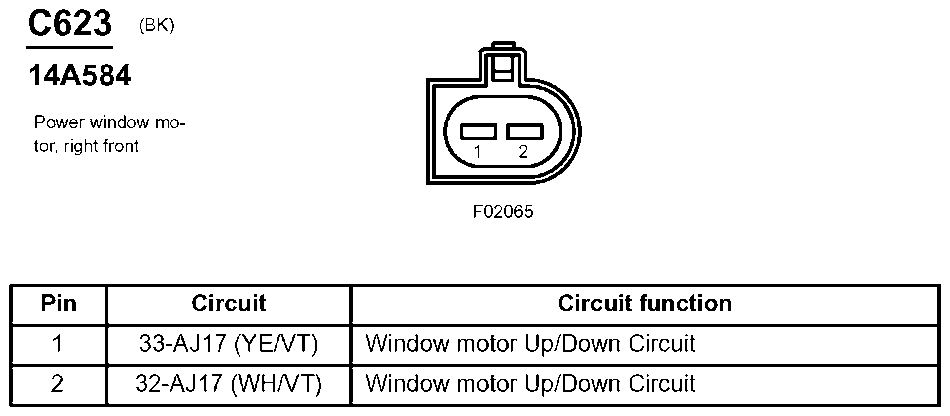

Fig 168: Power Window Motor, Right Front Connector End View (C623)

G07834296

Courtesy of FORD MOTOR CO.

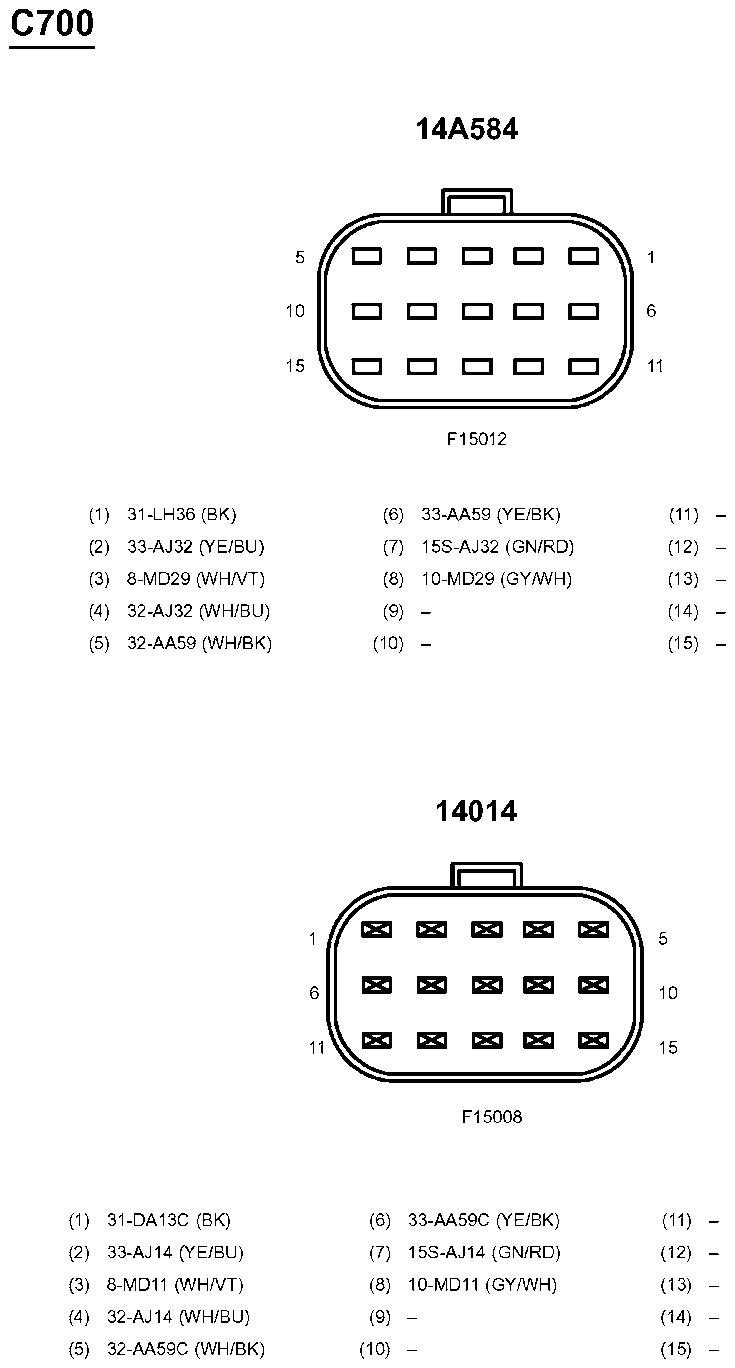

Fig 169: Inline Connector End View (C700)

G07834297

Courtesy of FORD MOTOR CO.

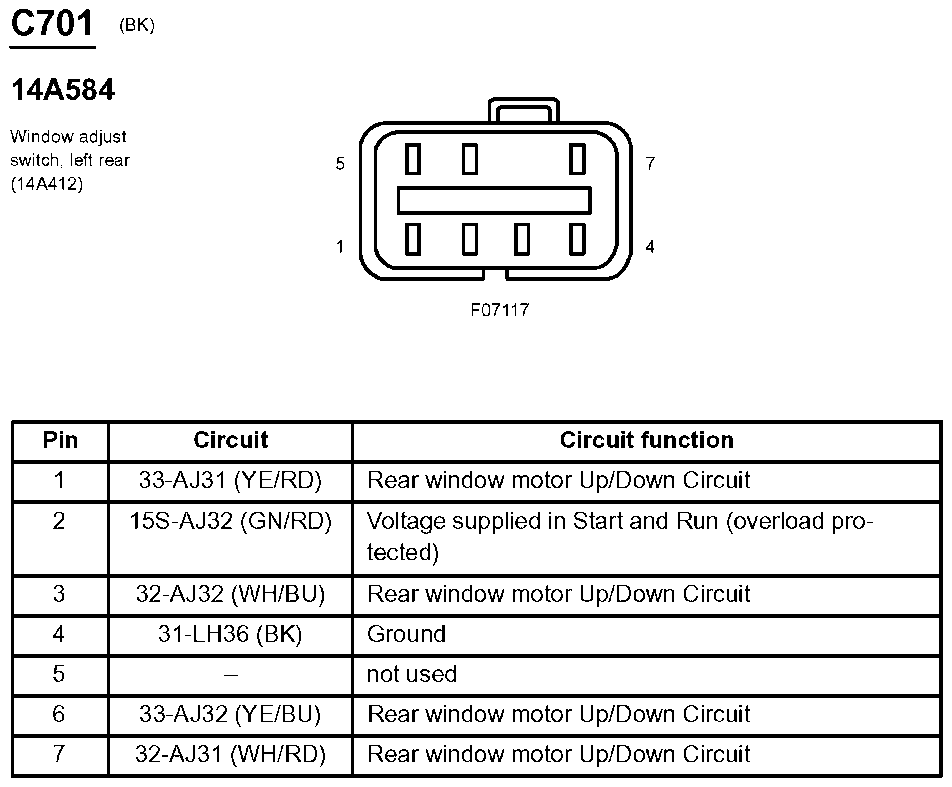

Fig 170: Window Adjust Switch, Left Rear Connector End View (C701)

G07834298

Courtesy of FORD MOTOR CO.

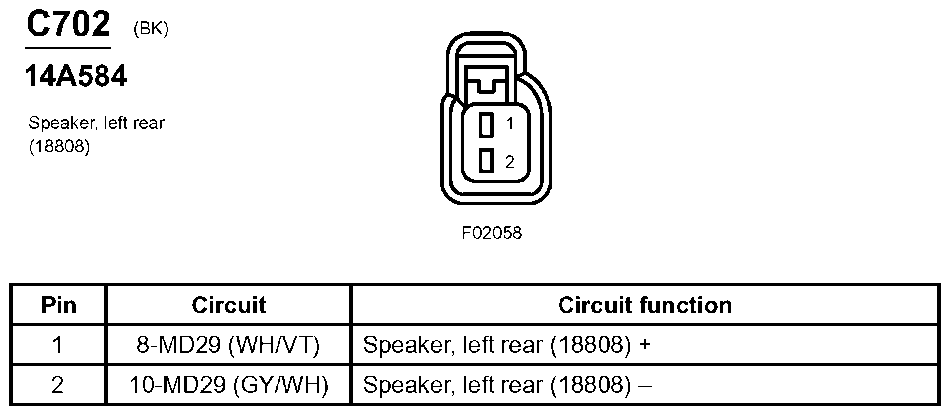

Fig 171: Speaker, Left Rear Connector End View (C702)

G07834299

Courtesy of FORD MOTOR CO.

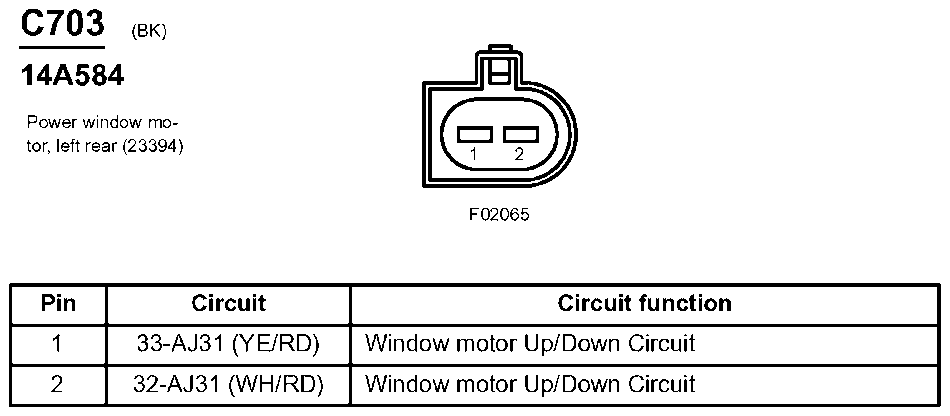

Fig 172: Power Window Motor, Left Rear Connector End View (C703)

G07834300

Courtesy of FORD MOTOR CO.

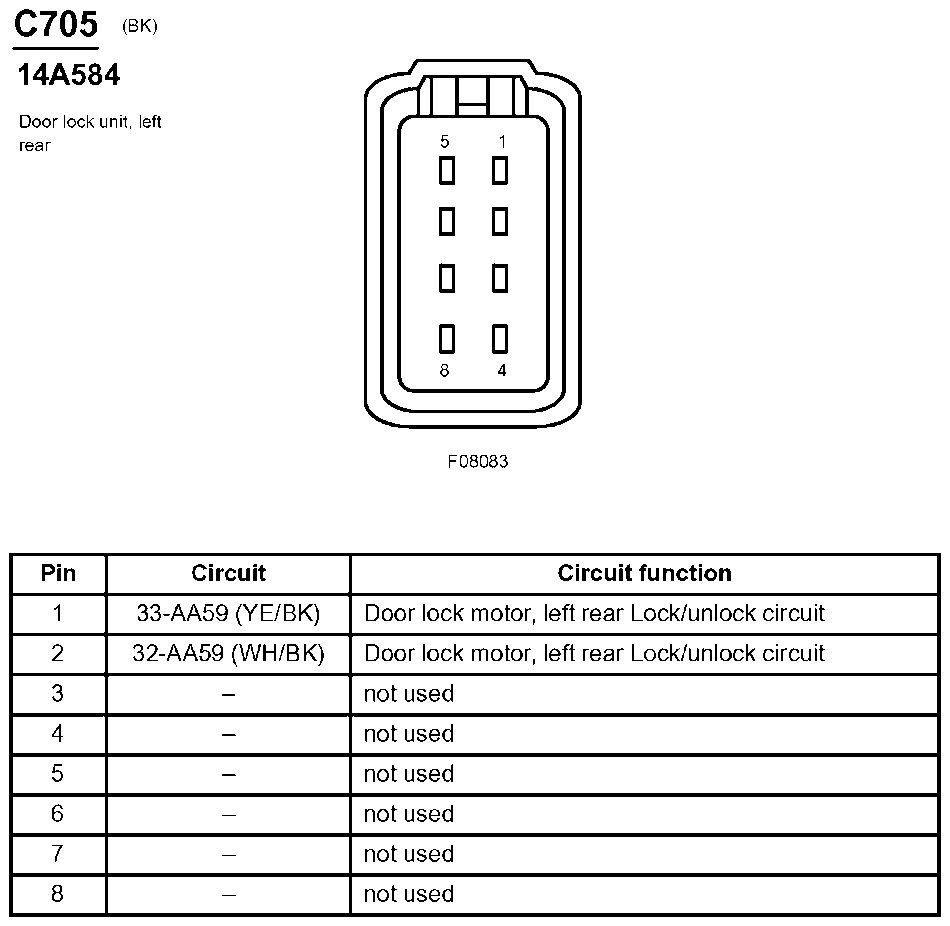

Fig 173: Door Lock Unit, Left Rear Connector End View (C705)

G07834301

Courtesy of FORD MOTOR CO.

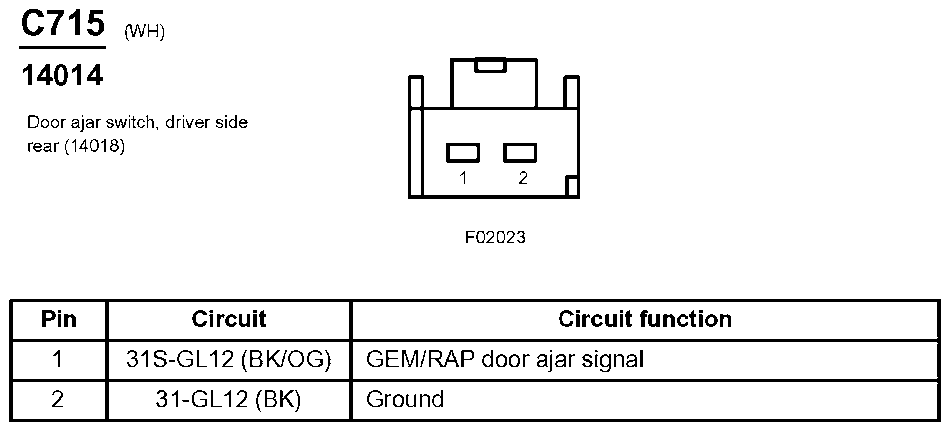

Fig 174: Door Ajar Switch, Driver Side Rear Connector End View (C715)

G07834302

Courtesy of FORD MOTOR CO.

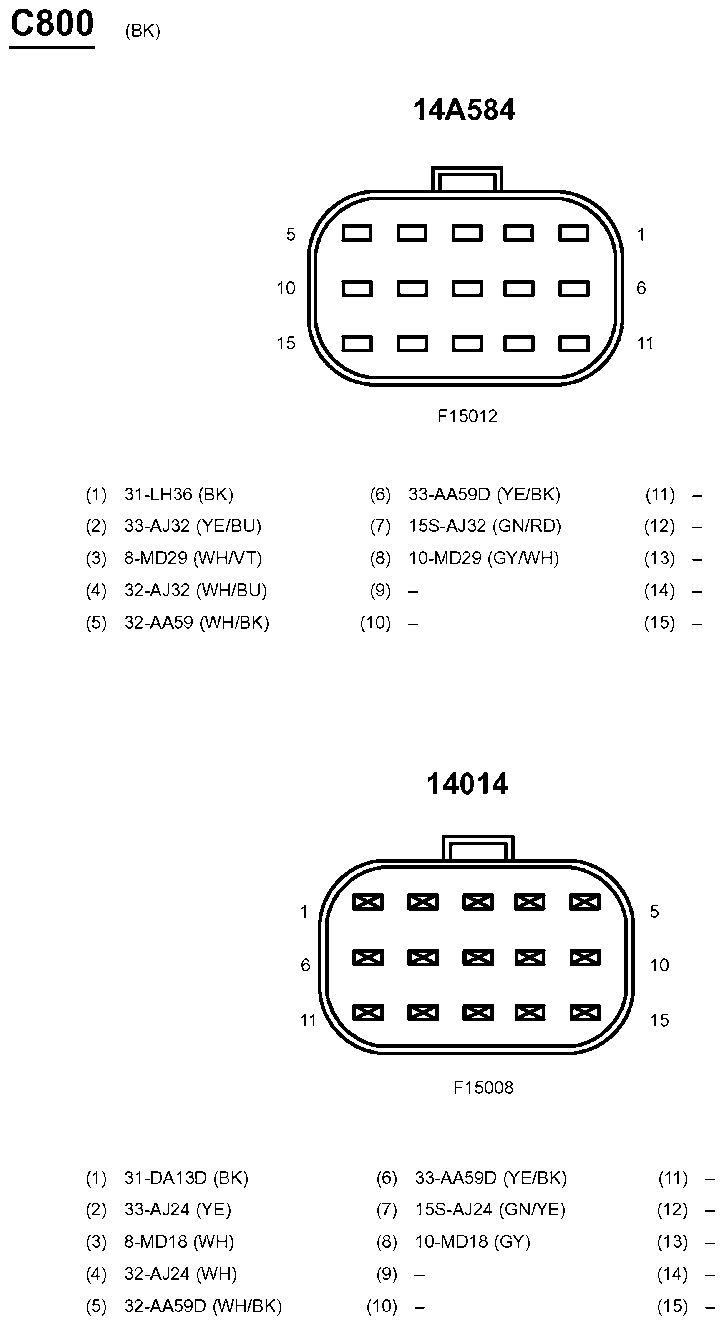

Fig 175: Inline Connector End View (C800)

G07834303

Courtesy of FORD MOTOR CO.

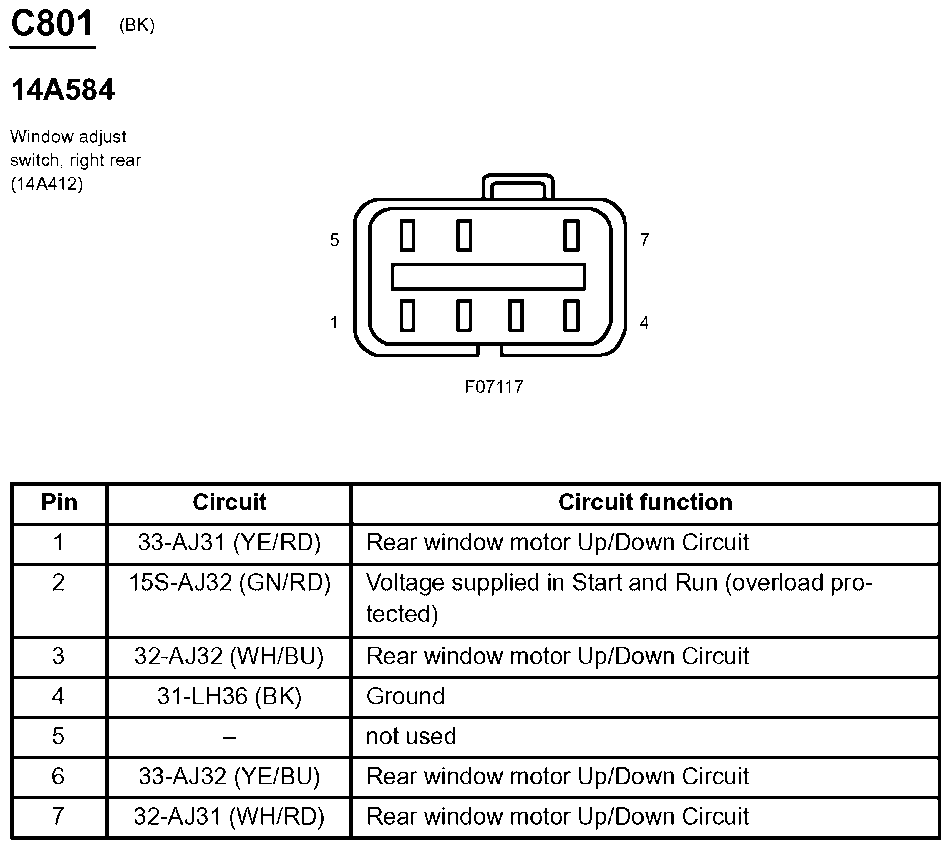

Fig 176: Window Adjust Switch, Right Rear Connector End View (C801)

G07834304

Courtesy of FORD MOTOR CO.

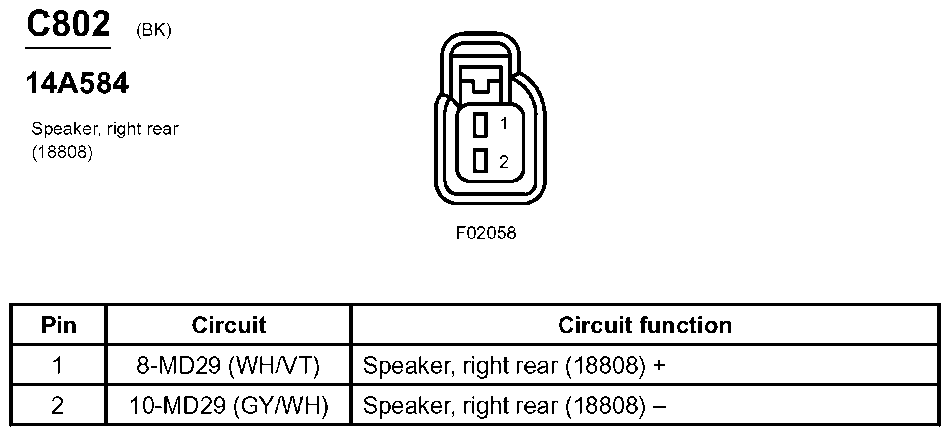

Fig 177: Speaker, Right Rear Connector End View (C802)

G07834305

Courtesy of FORD MOTOR CO.

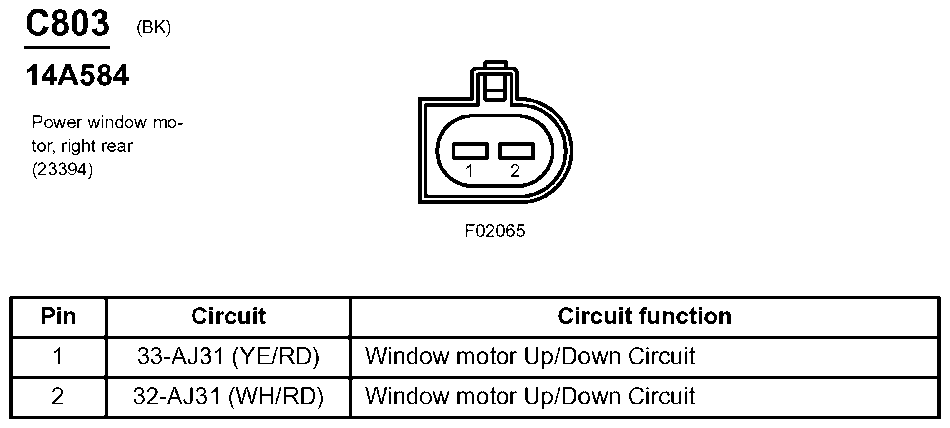

Fig 178: Power Window Motor, Right Rear Connector End View (C803)

G07834306

Courtesy of FORD MOTOR CO.

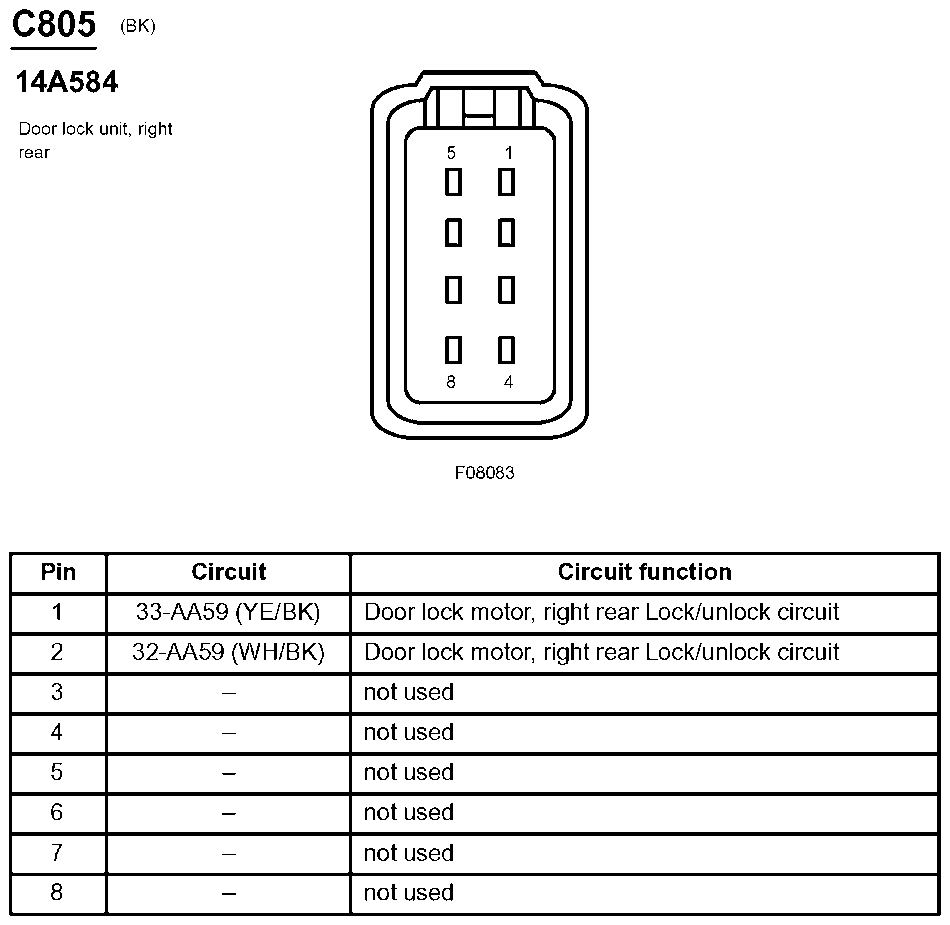

Fig 179: Door Lock Unit, Right Rear Connector End View (C805)

G07834307

Courtesy of FORD MOTOR CO.

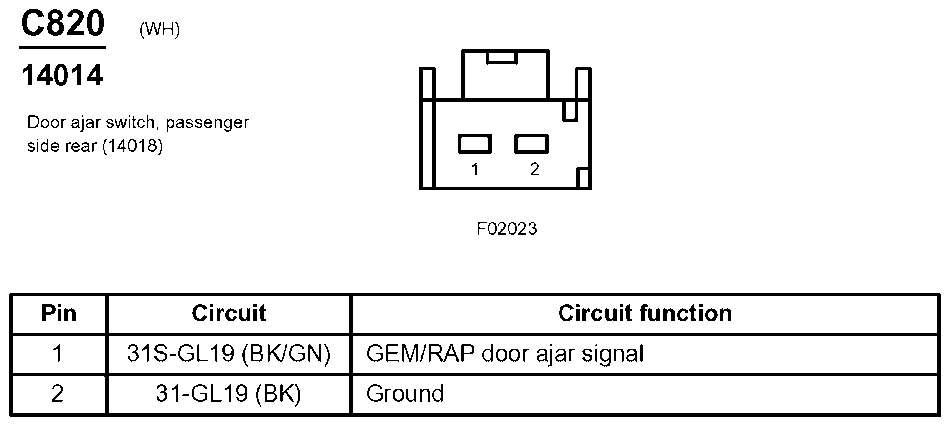

Fig 180: Door Ajar Switch, Passenger Side Rear Connector End View (C820)

G07834308

Courtesy of FORD MOTOR CO.

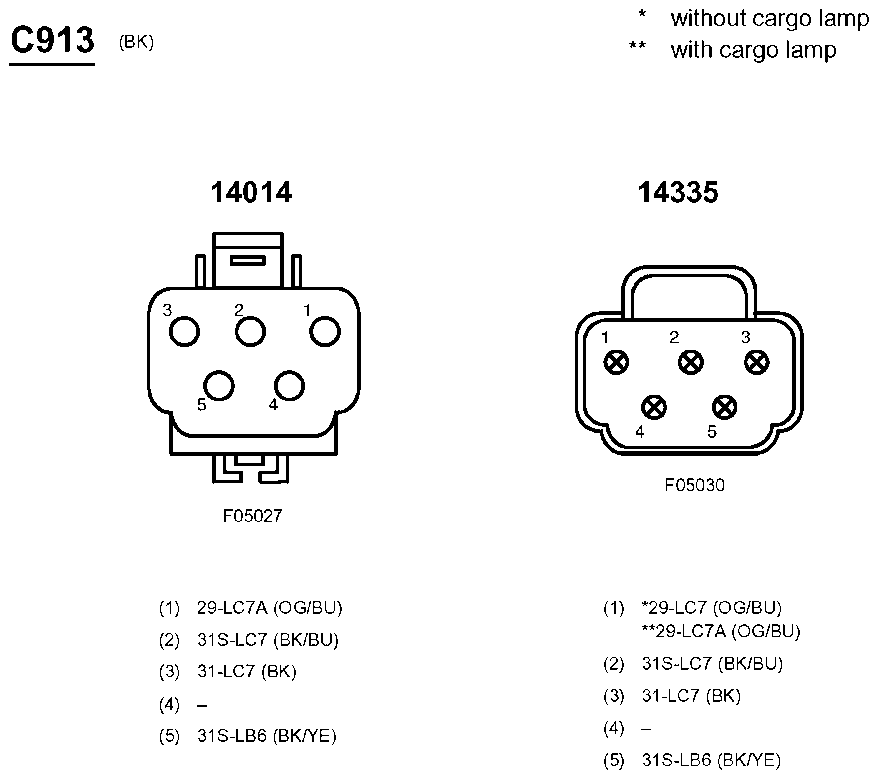

Fig 181: Inline Connector End View (C913)

G07834309

Courtesy of FORD MOTOR CO.

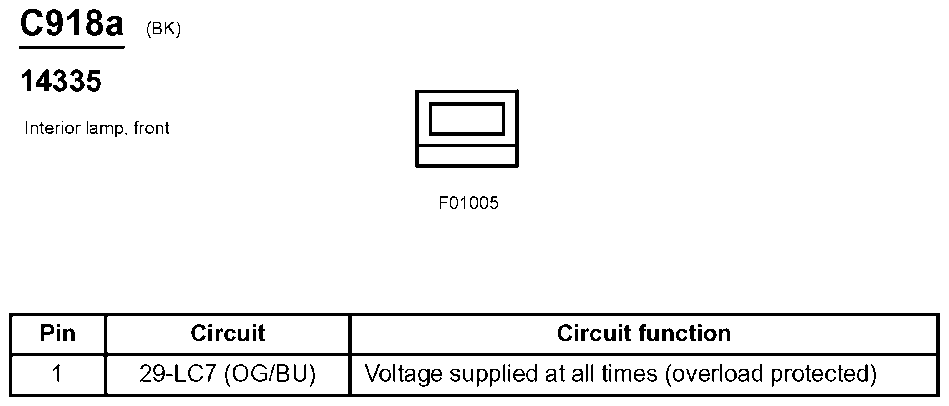

Fig 182: Interior Lamp, Front Connector End View (C918a)

G07834310

Courtesy of FORD MOTOR CO.

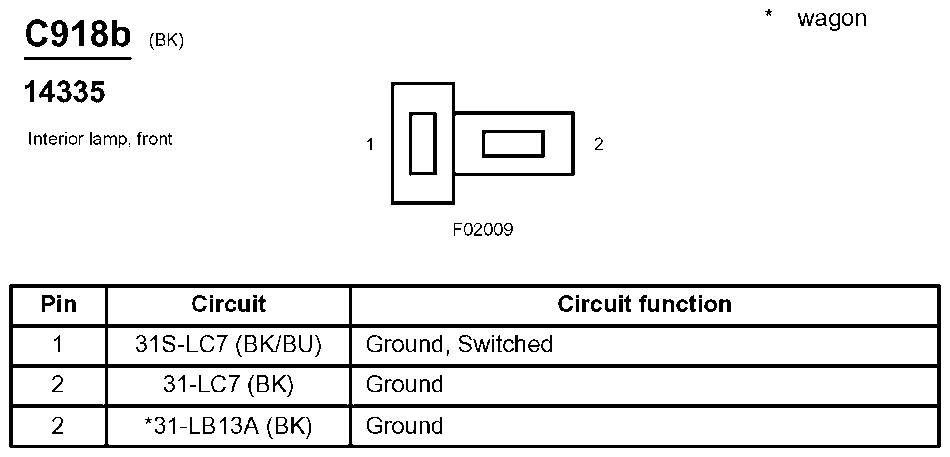

Fig 183: Interior Lamp, Front Connector End View (C918b)

G07834311

Courtesy of FORD MOTOR CO.

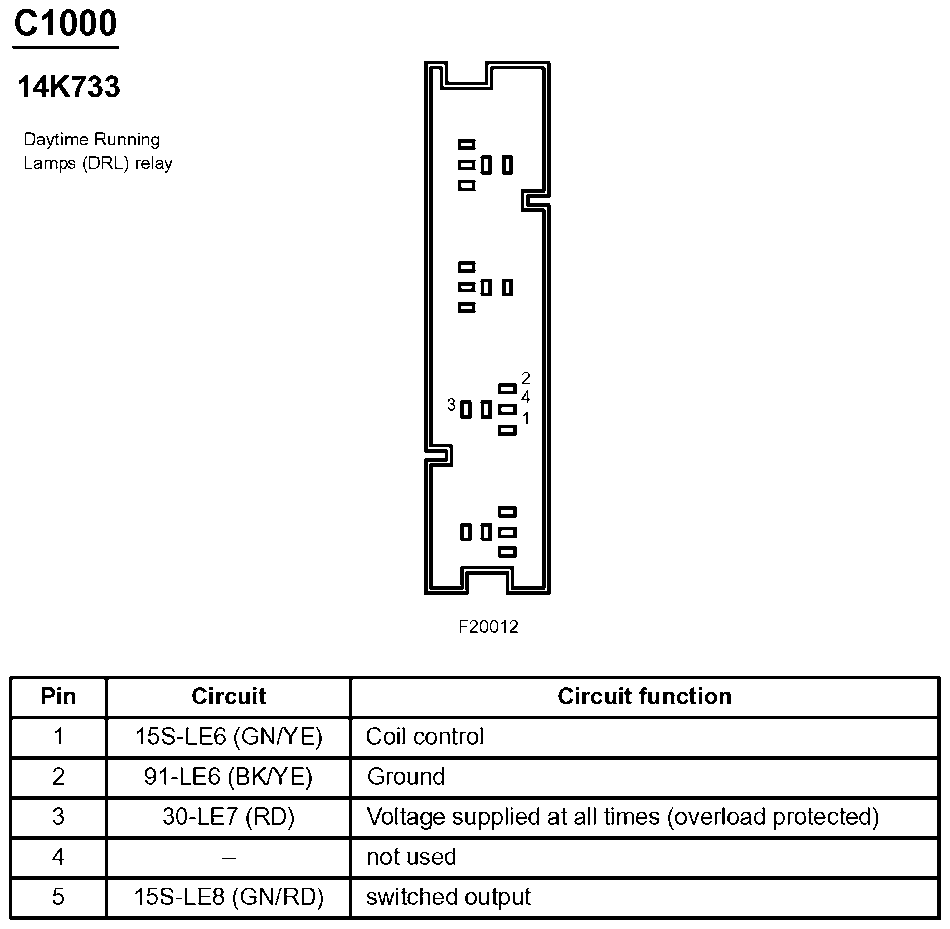

Fig 184: Daytime Running Lamps (DRL) Relay Connector End View (C1000)

G07834312

Courtesy of FORD MOTOR CO.

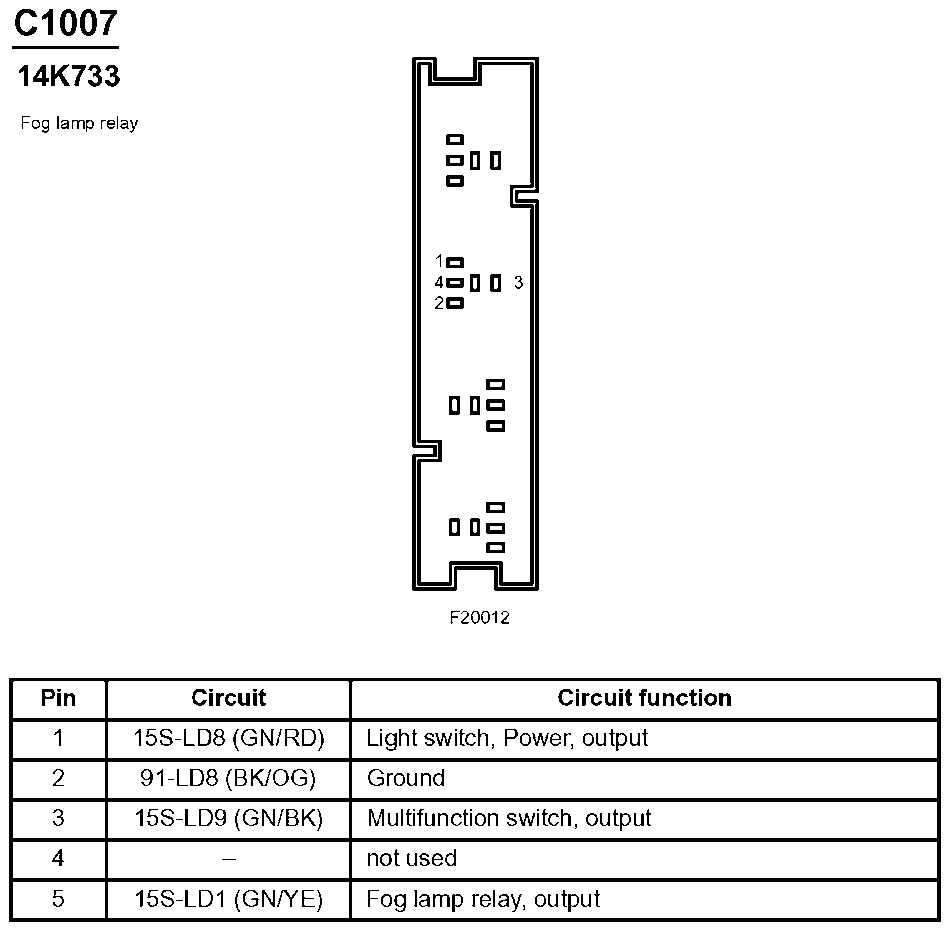

Fig 185: Fog Lamp Relay Connector End View (C1007)

G07834313

Courtesy of FORD MOTOR CO.

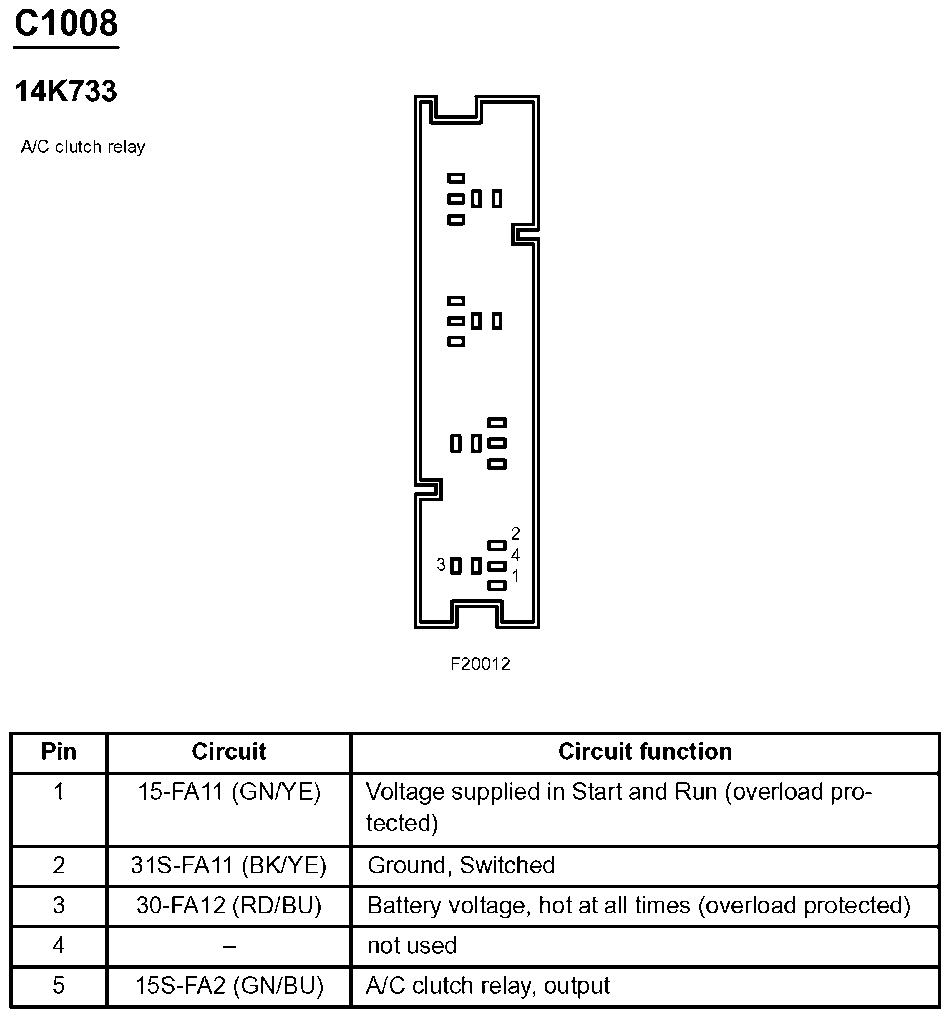

Fig 186: A/C Clutch Relay Connector End View (C1008)

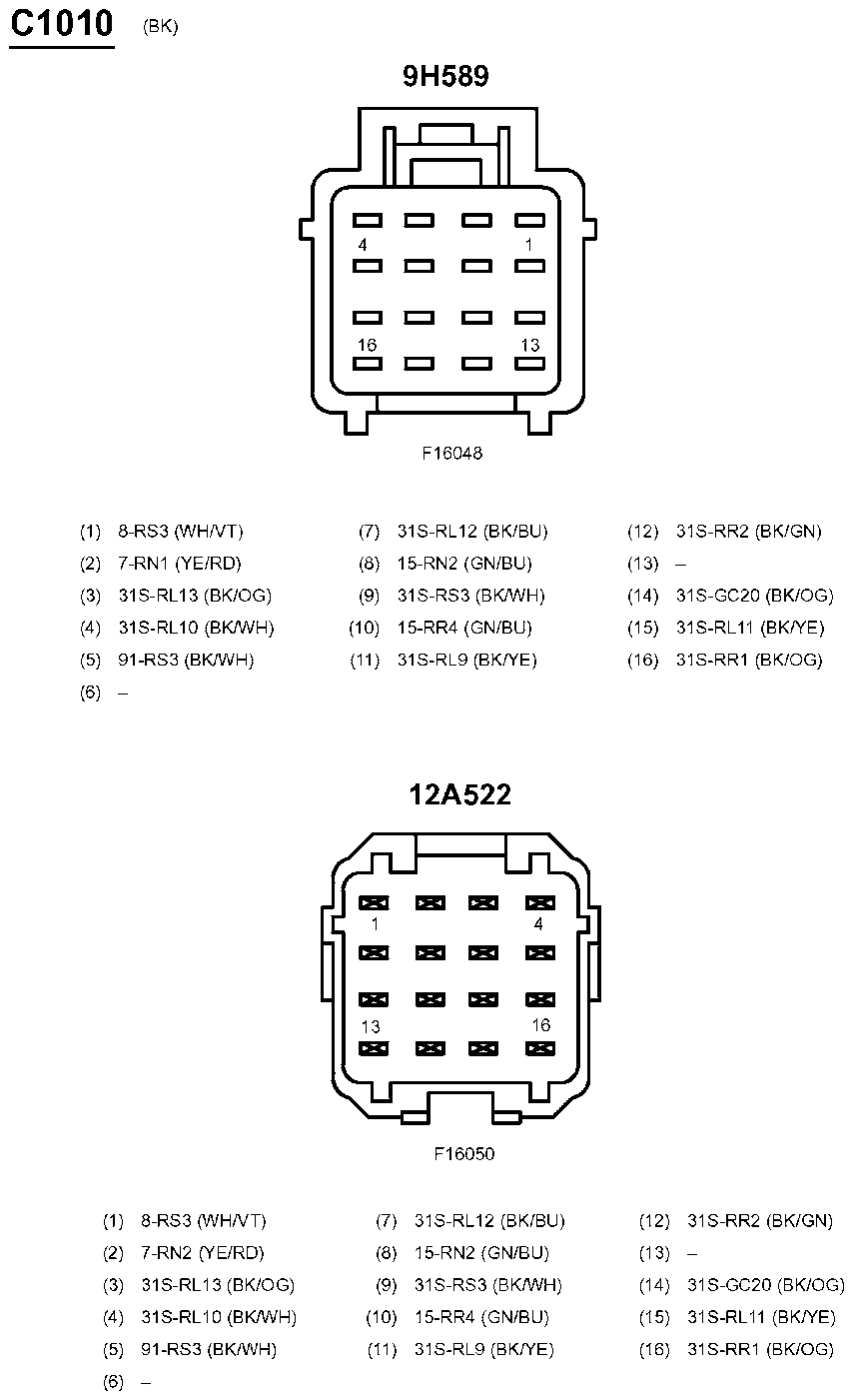

G07834314

Courtesy of FORD MOTOR CO.

Fig 187: Inline Connector End View (C1010)

G07834315

Courtesy of FORD MOTOR CO.

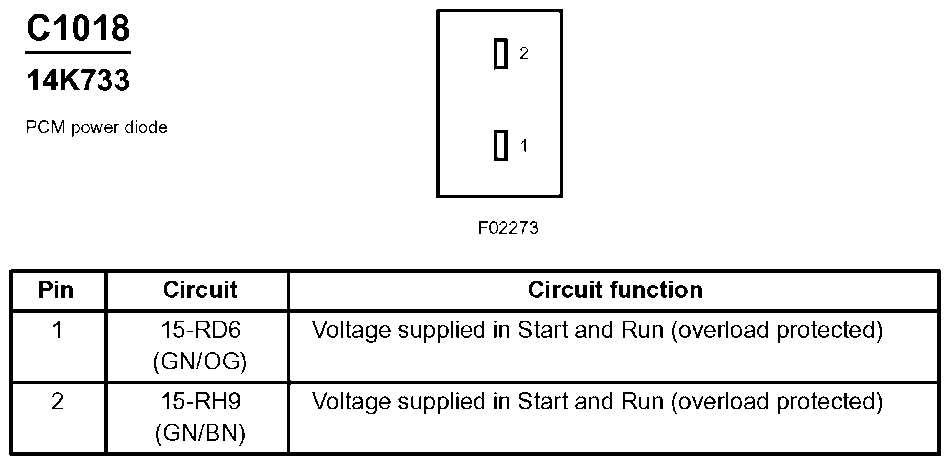

Fig 188: PCM Power Diode Connector End View (C1018)

G07834316

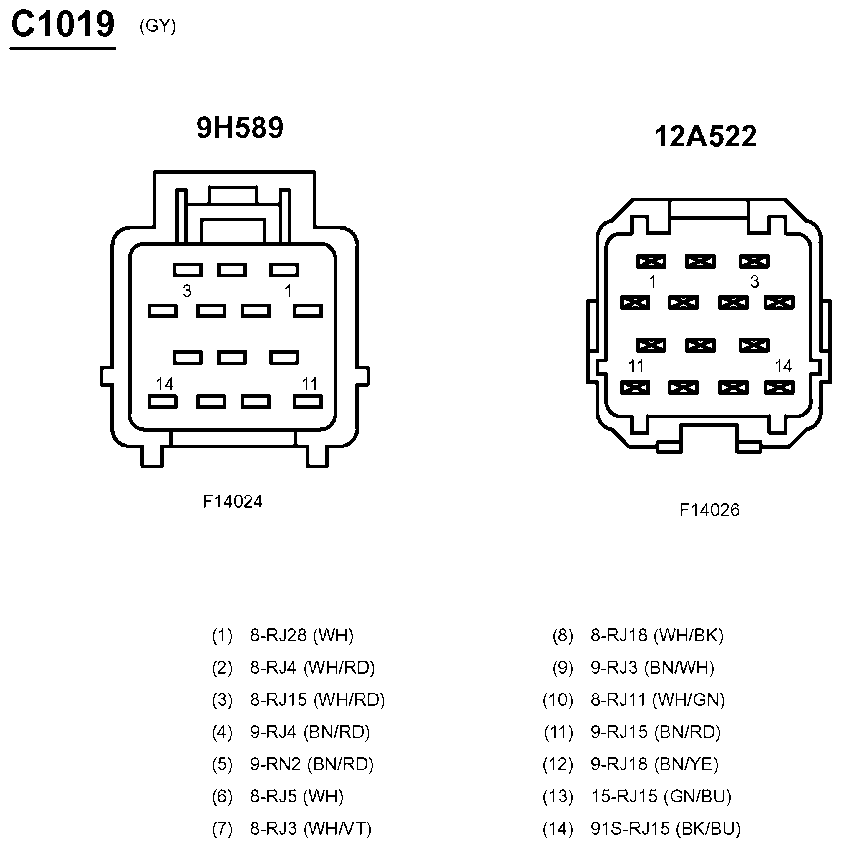

Courtesy of FORD MOTOR CO.

Fig 189: Inline Connector End View (C1019)

G07834317

Courtesy of FORD MOTOR CO.

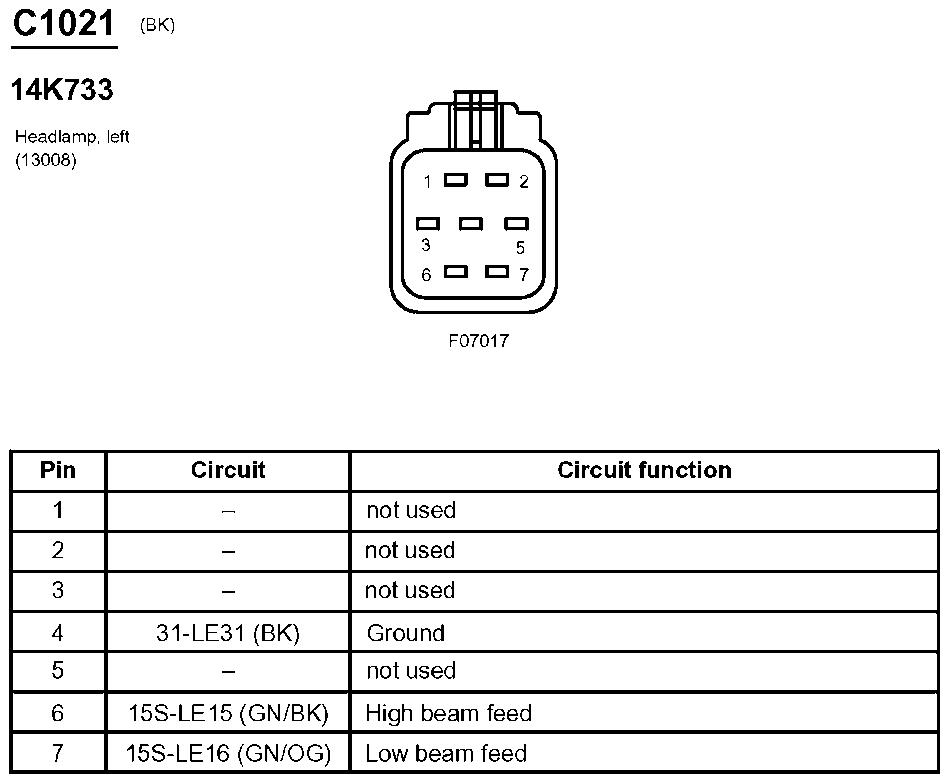

Fig 190: Headlamp, Left Connector End View (C1021)

G07834318

Courtesy of FORD MOTOR CO.

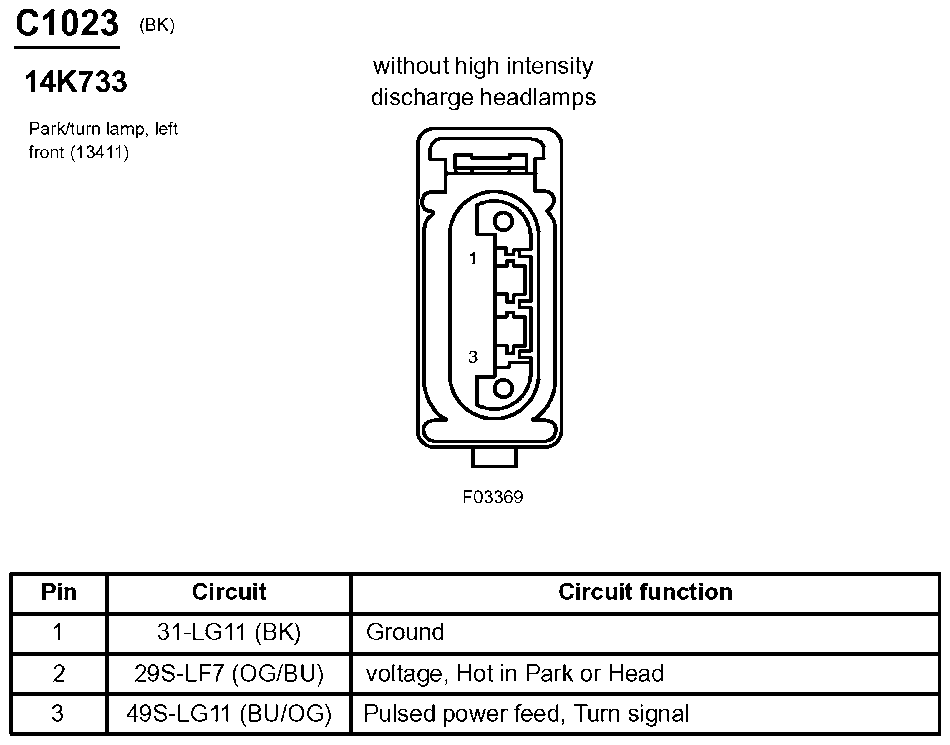

Fig 191: Park/Turn Lamp, Left Front Connector End View (C1023)

G03776930

Courtesy of FORD MOTOR CO.

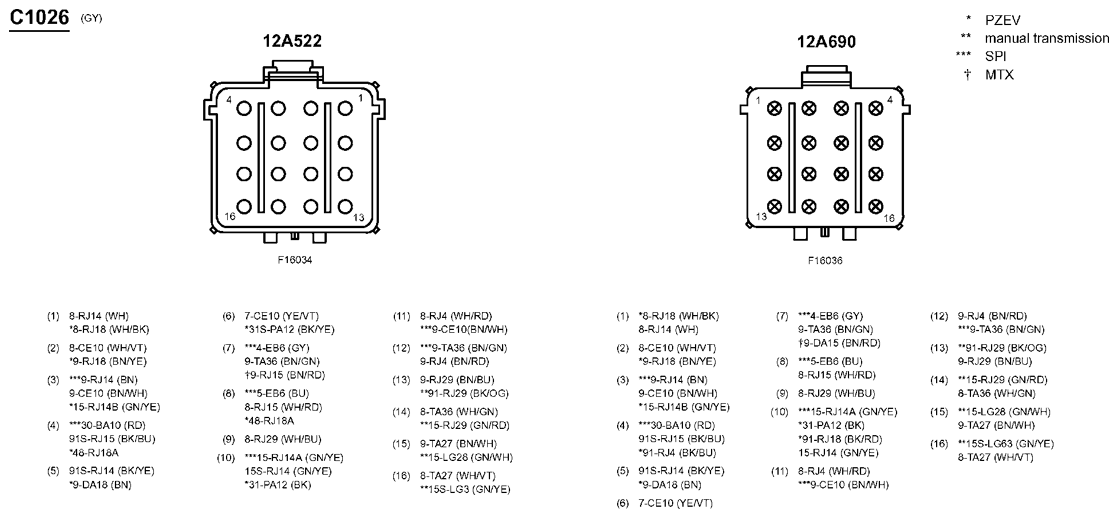

Fig 192: Inline Connector End View (C1026)

G07834319

Courtesy of FORD MOTOR CO.

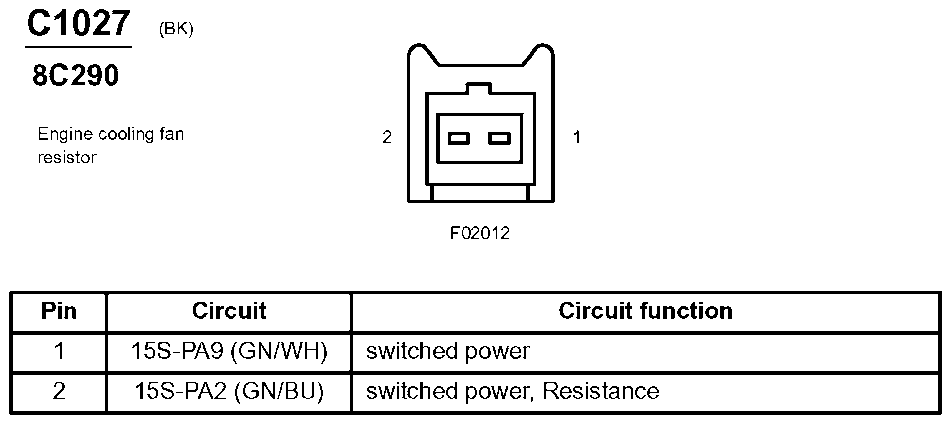

Fig 193: Engine Cooling Fan Resistor Connector End View (C1027)

G07834320

Courtesy of FORD MOTOR CO.

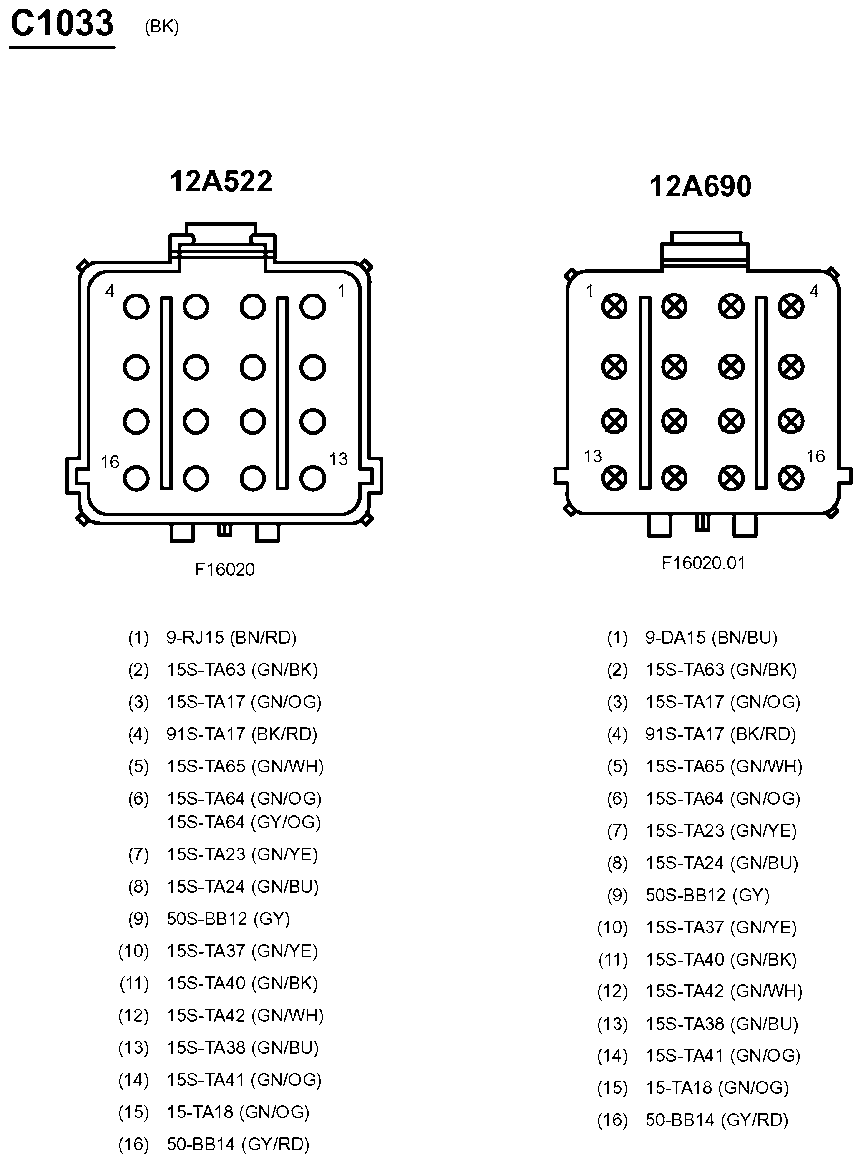

Fig 194: Inline Connector End View (C1033)

G07834321

Courtesy of FORD MOTOR CO.

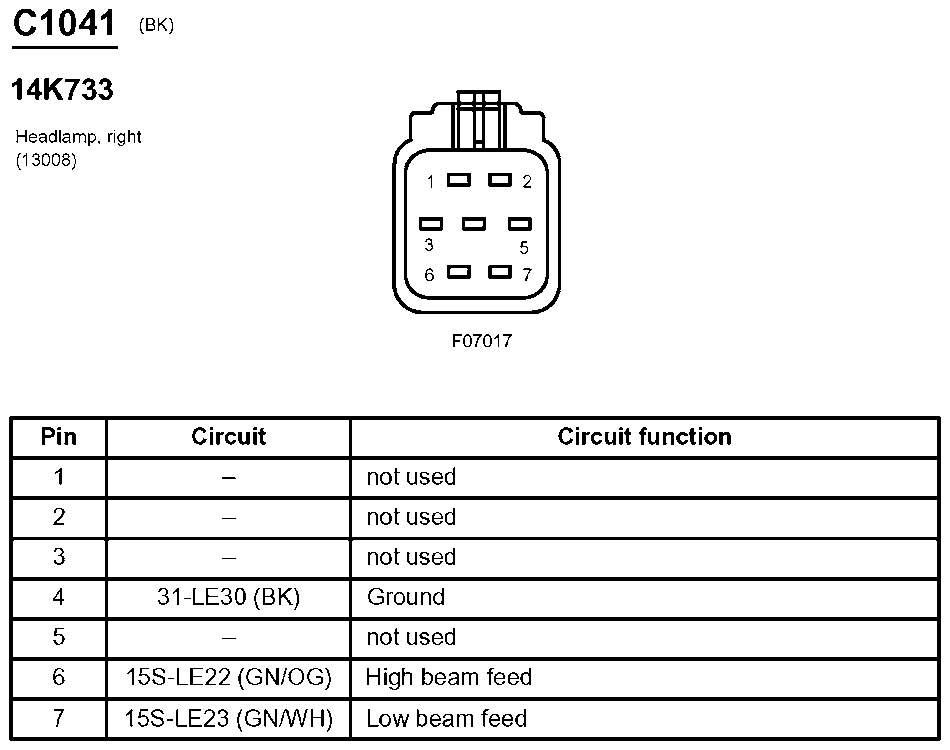

Fig 195: Headlamp, Right Connector End View (C1041)

G07834322

Courtesy of FORD MOTOR CO.

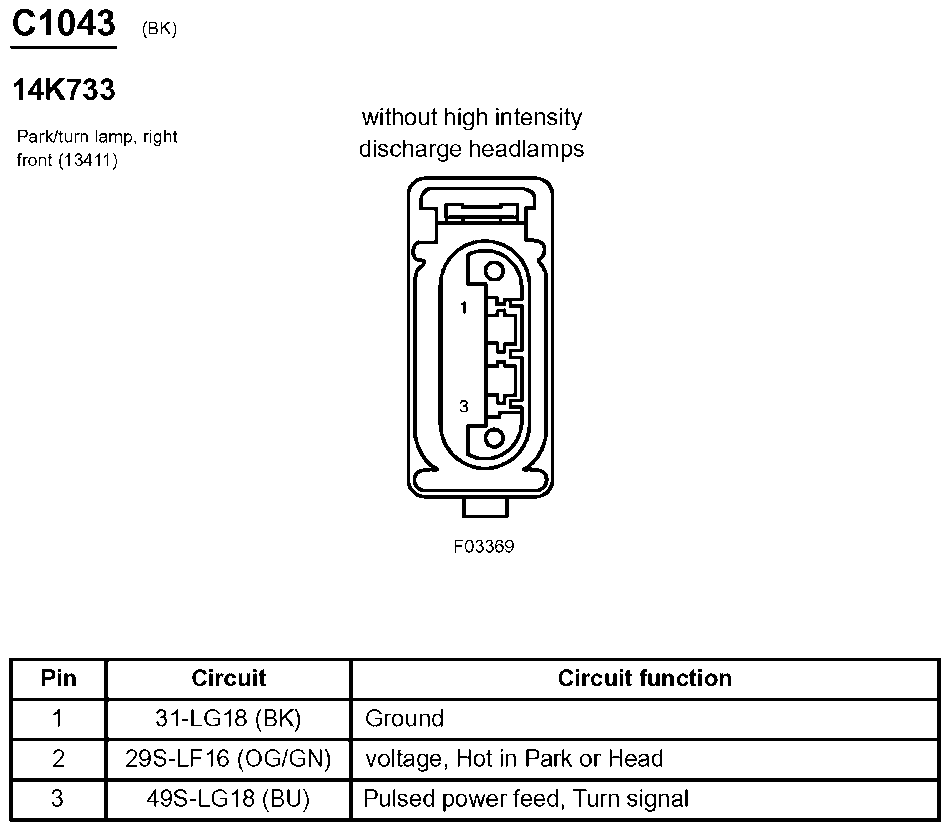

Fig 196: Park/Turn Lamp, Right Front Connector End View (C1043)

G07834323

Courtesy of FORD MOTOR CO.

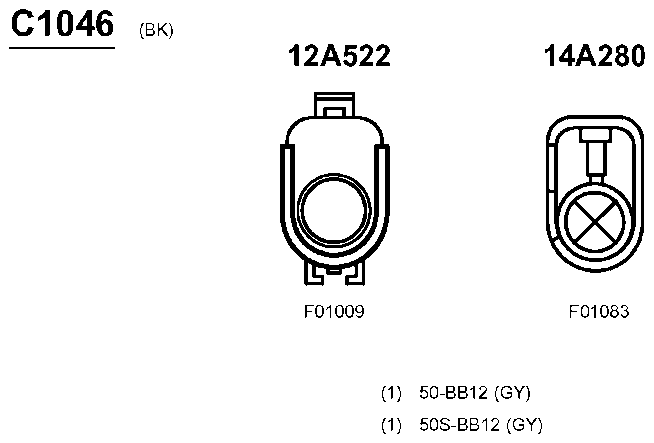

Fig 197: Inline Connector End View (C1046)

G07834324

Courtesy of FORD MOTOR CO.

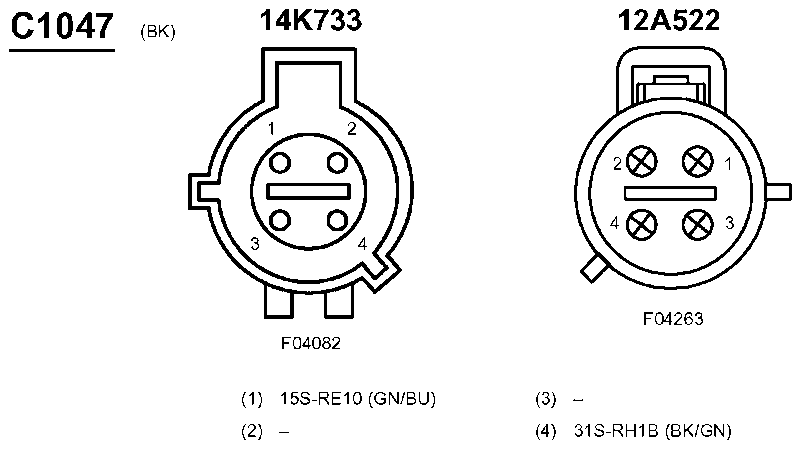

Fig 198: Inline Connector End View (C1047)

G07834325

Courtesy of FORD MOTOR CO.

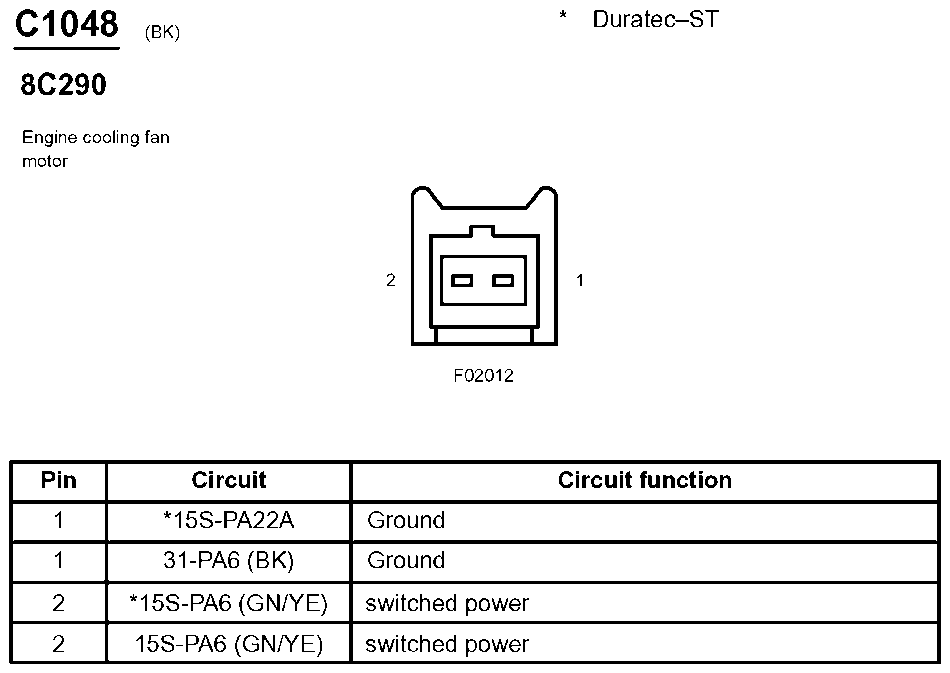

Fig 199: Engine Cooling Fan Motor Connector End View (C1048)

G07834326

Courtesy of FORD MOTOR CO.

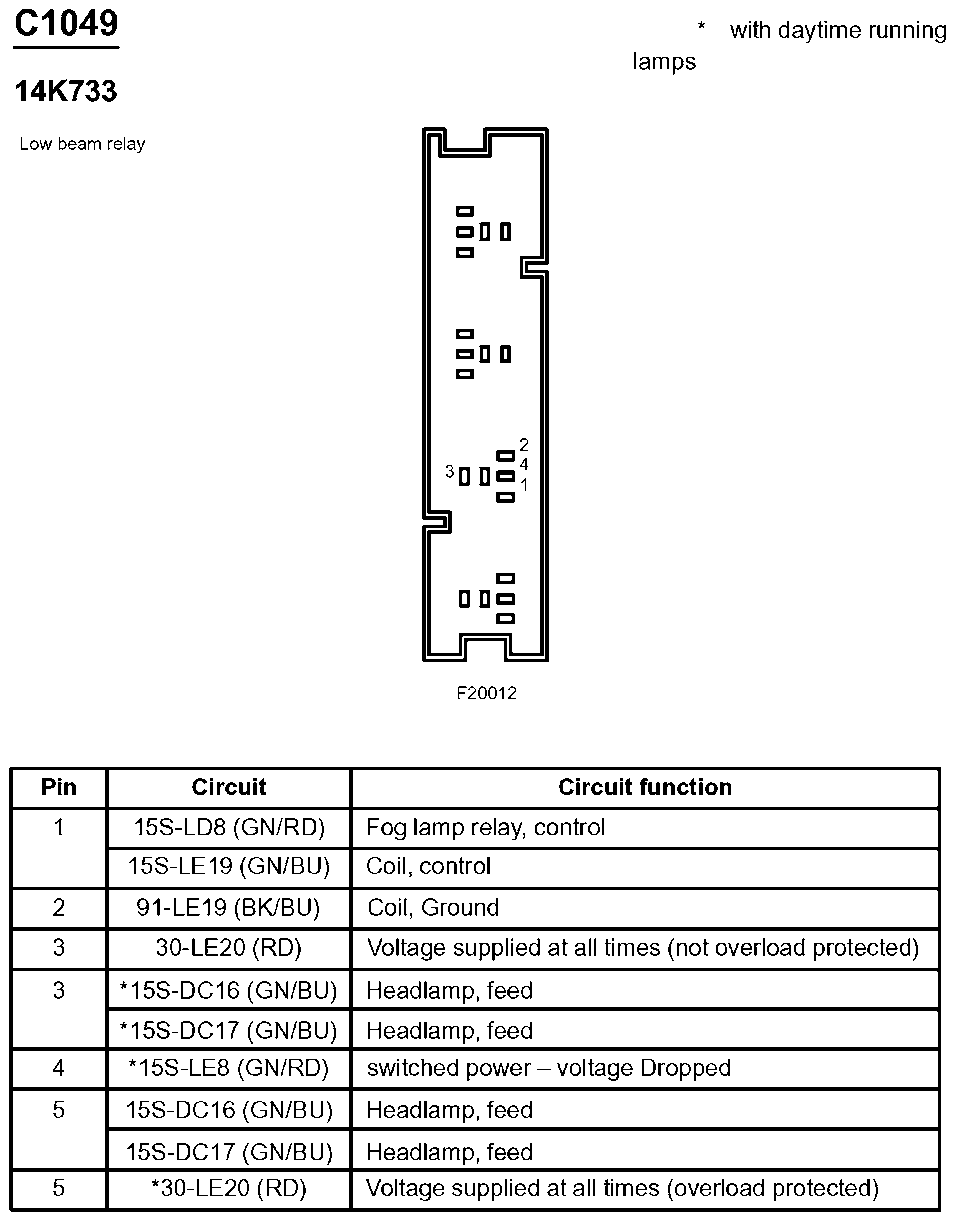

Fig 200: Low Beam Relay Connector End View (C1049)

G07834327

Courtesy of FORD MOTOR CO.

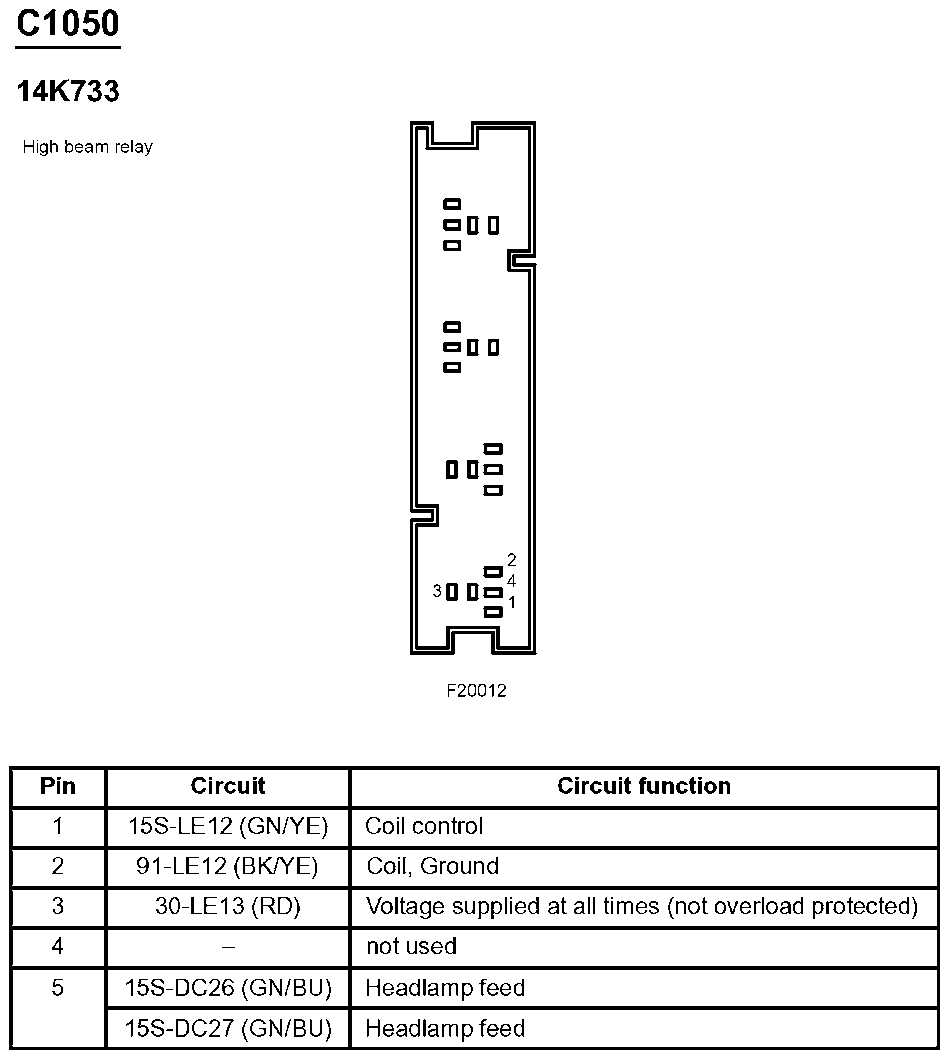

Fig 201: High Beam Relay Connector End View (C1050)

G07834328

Courtesy of FORD MOTOR CO.

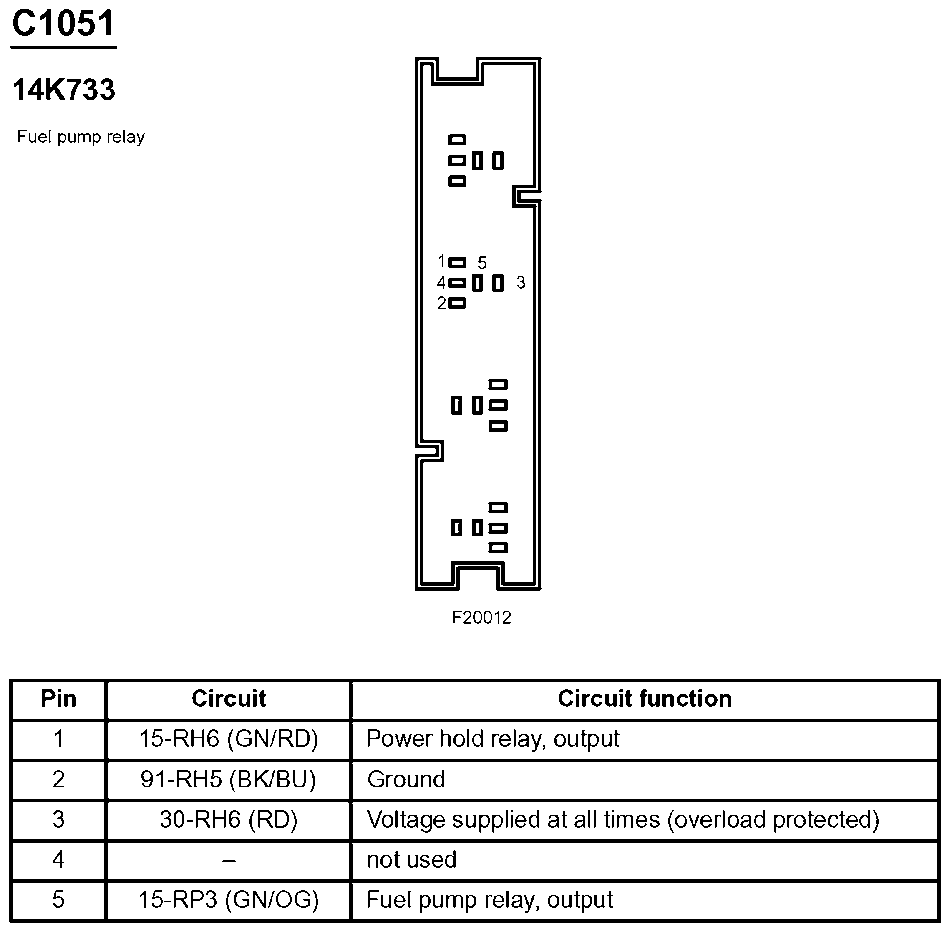

Fig 202: Fuel Pump Relay Connector End View (C1051)

G07834329

Courtesy of FORD MOTOR CO.

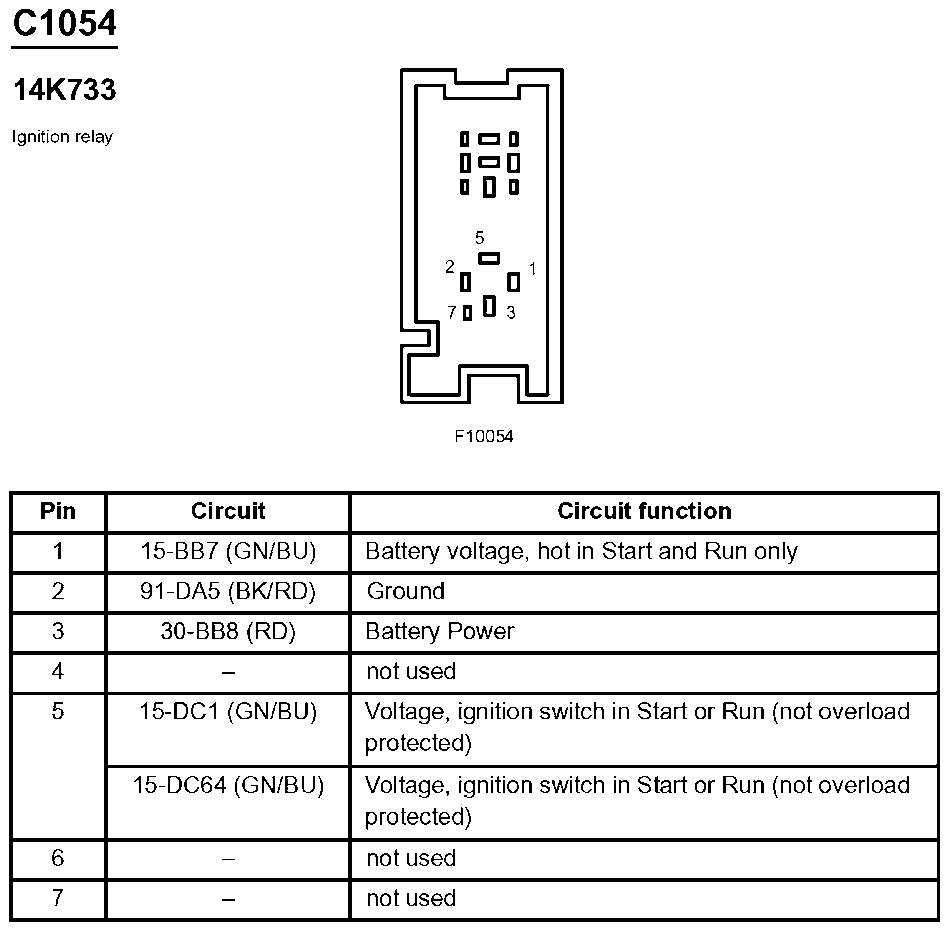

Fig 203: Ignition Relay Connector End View (C1054)

G07834330

Courtesy of FORD MOTOR CO.

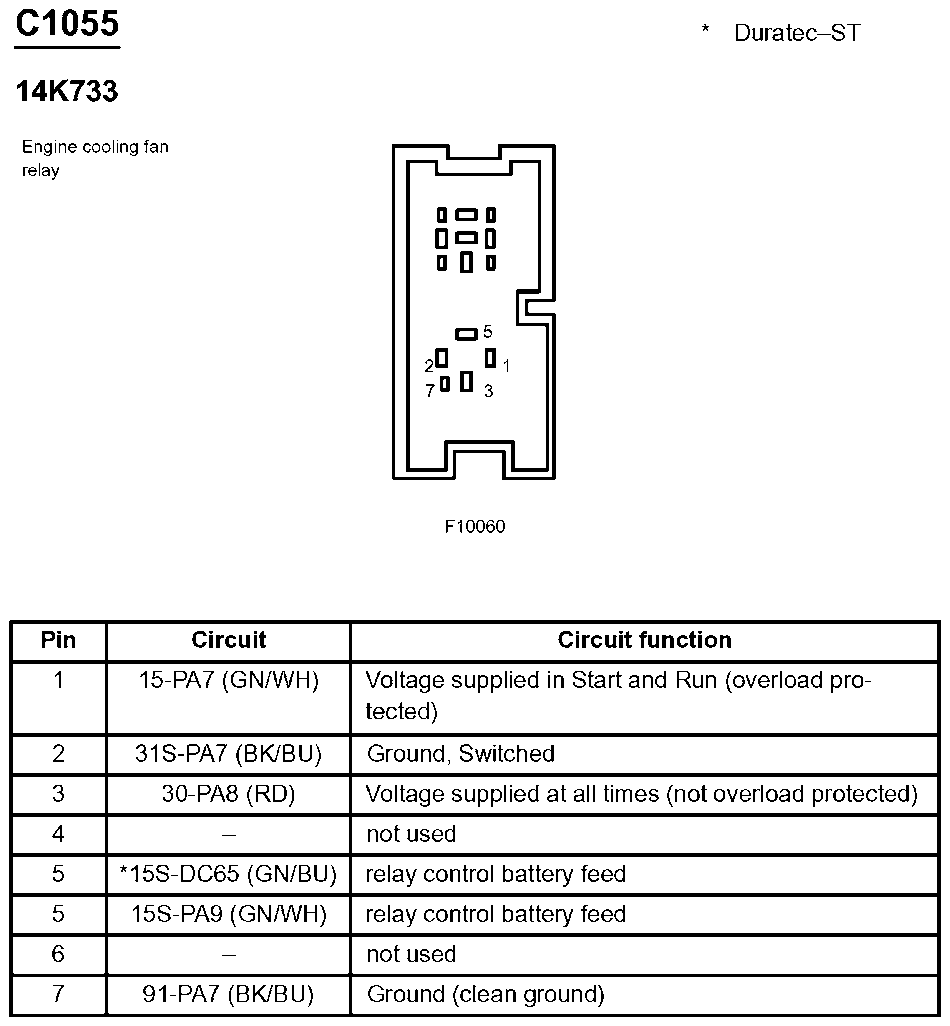

Fig 204: Engine Cooling Fan Relay Connector End View (C1055)

G07834331

Courtesy of FORD MOTOR CO.

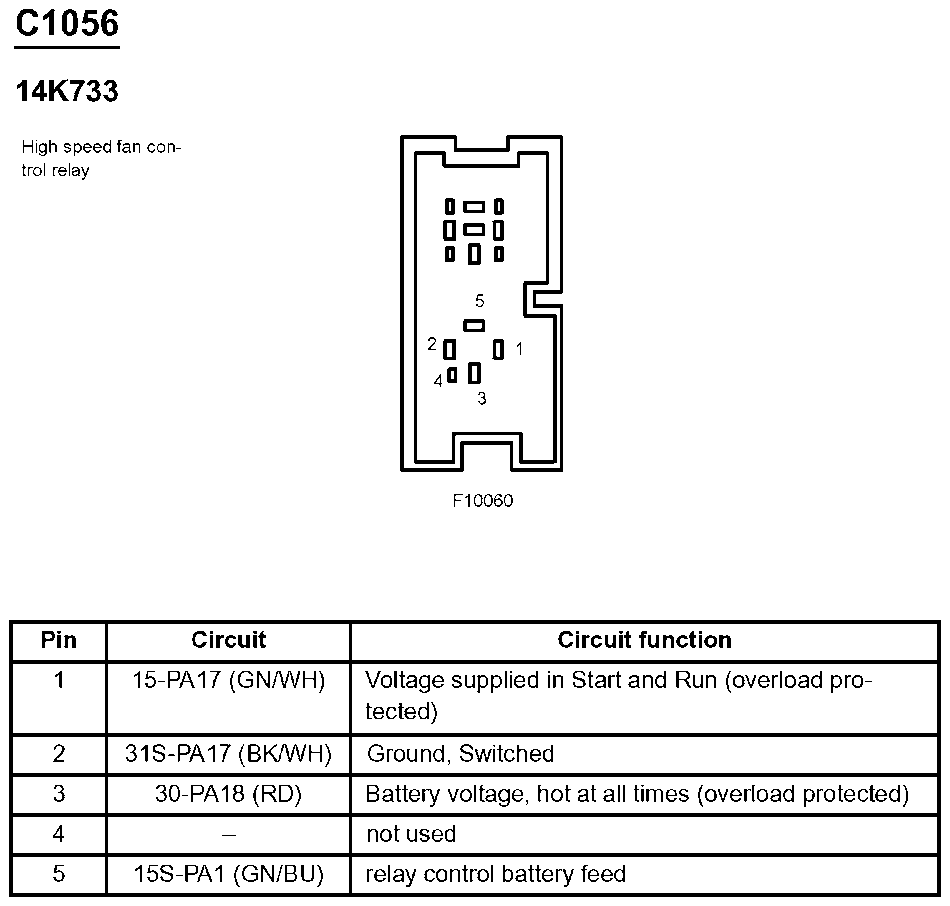

Fig 205: High Speed Fan Control Relay Connector End View (C1056)

G07834332

Courtesy of FORD MOTOR CO.

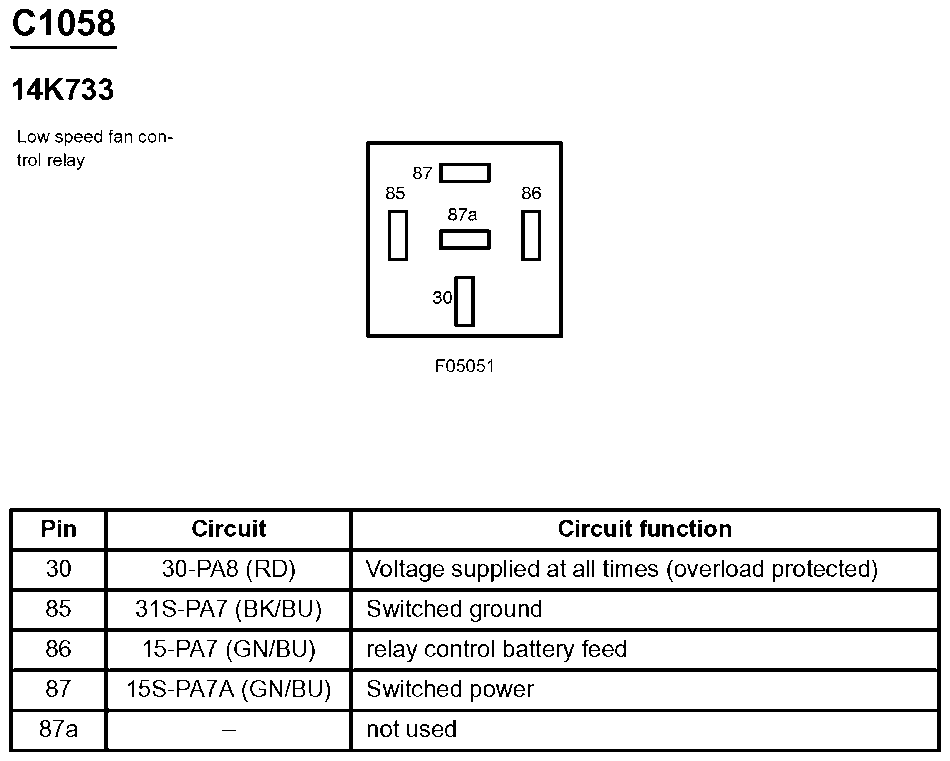

Fig 206: Low Speed Fan Control Relay Connector End View (C1058)

G07834333

Courtesy of FORD MOTOR CO.

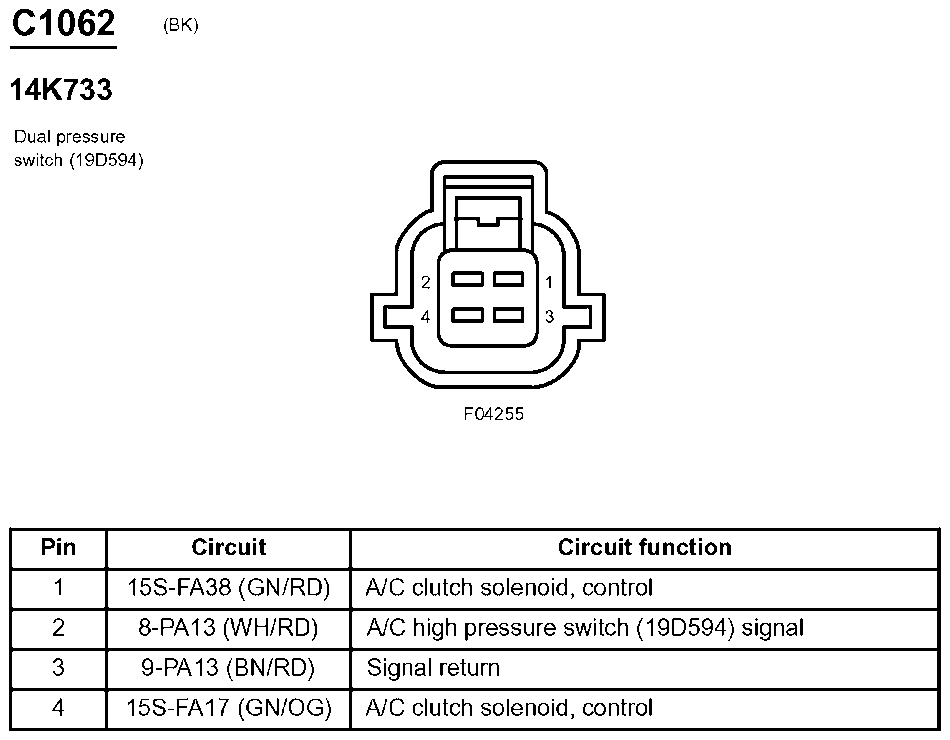

Fig 207: Dual Pressure Switch Connector End View (C1062)

G07834334

Courtesy of FORD MOTOR CO.

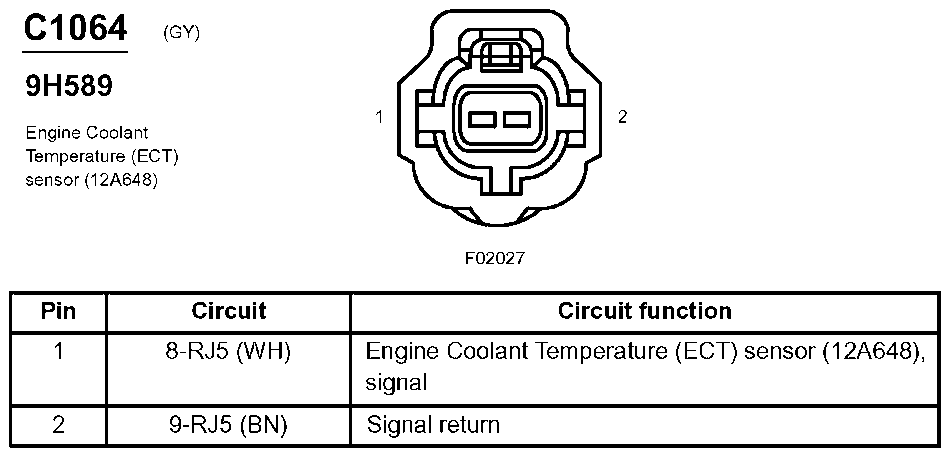

Fig 208: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07834335

Courtesy of FORD MOTOR CO.

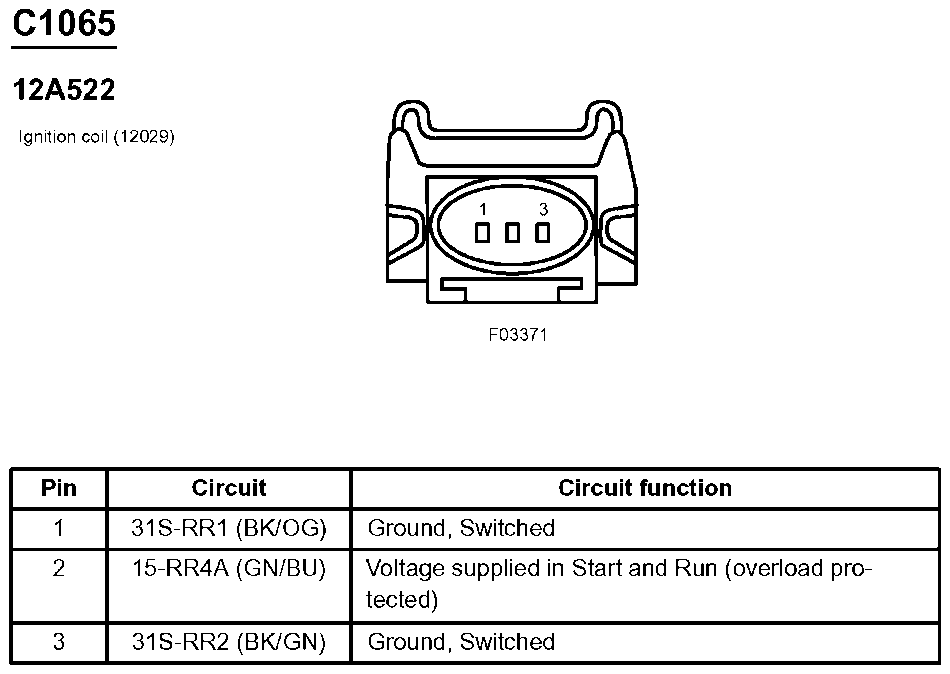

Fig 209: Ignition Coil Connector End View (C1065)

G07834336

Courtesy of FORD MOTOR CO.

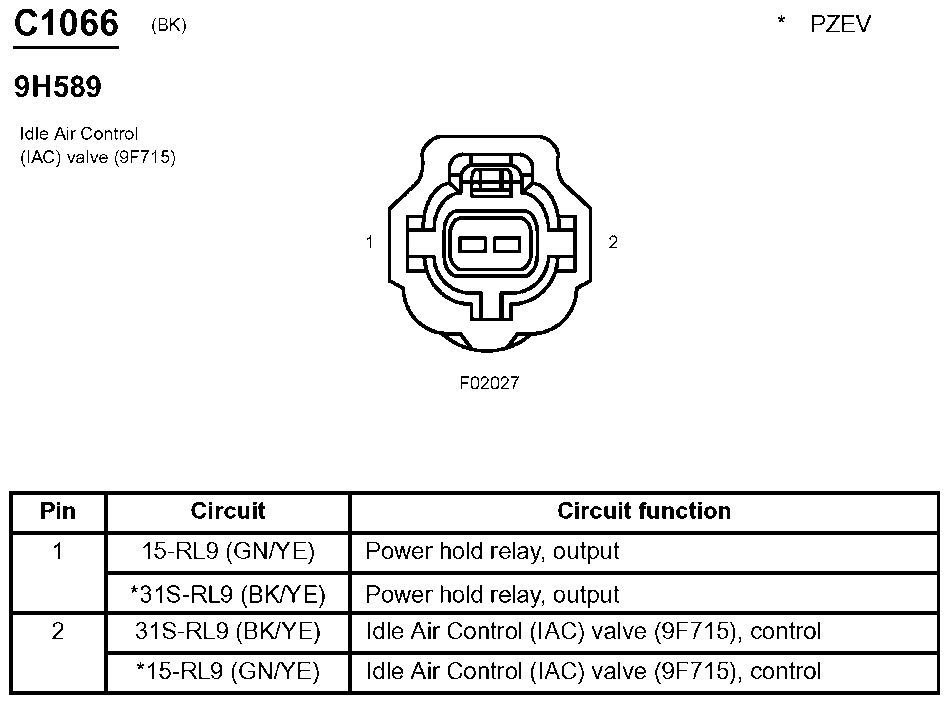

Fig 210: Idle Air Control (IAC) Valve Connector End View (C1066)

G07834337

Courtesy of FORD MOTOR CO.

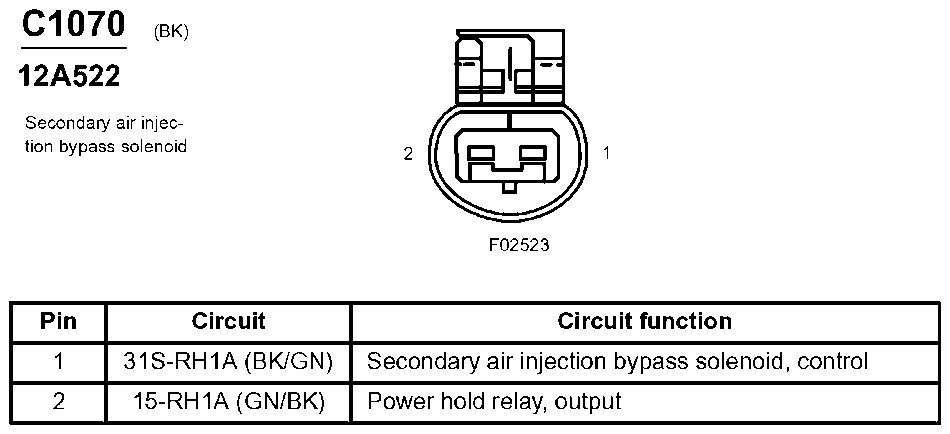

Fig 211: Secondary Air Injection Bypass Solenoid Connector End View (C1070)

G07834338

Courtesy of FORD MOTOR CO.

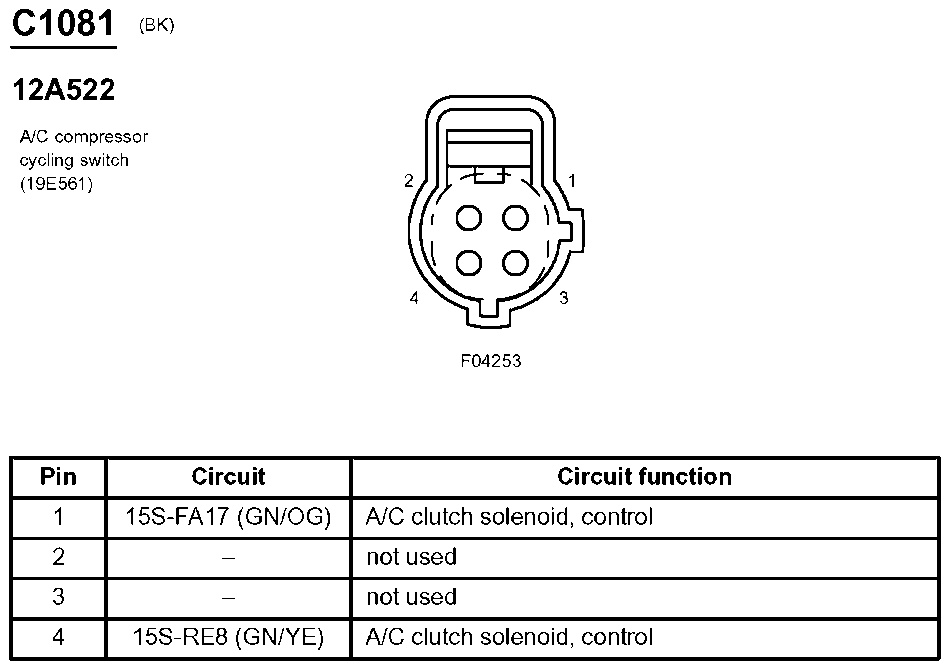

Fig 212: A/C Compressor Cycling Switch Connector End View (C1081)

G07834339

Courtesy of FORD MOTOR CO.

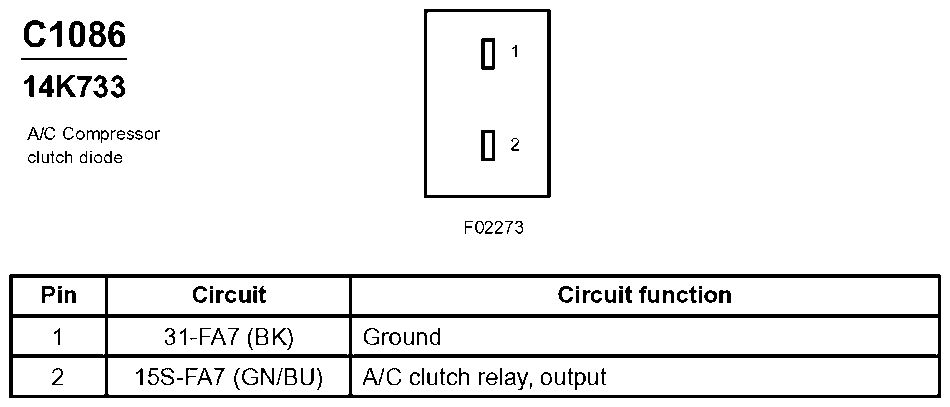

Fig 213: A/C Compressor Clutch Diode Connector End View (C1086)

G07834340

Courtesy of FORD MOTOR CO.

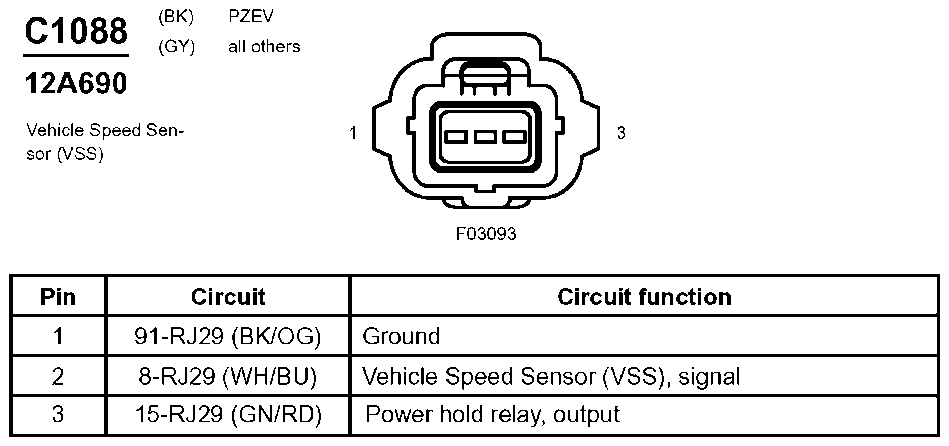

Fig 214: Vehicle Speed Sensor (VSS) Connector End View (C1088)

G07834341

Courtesy of FORD MOTOR CO.

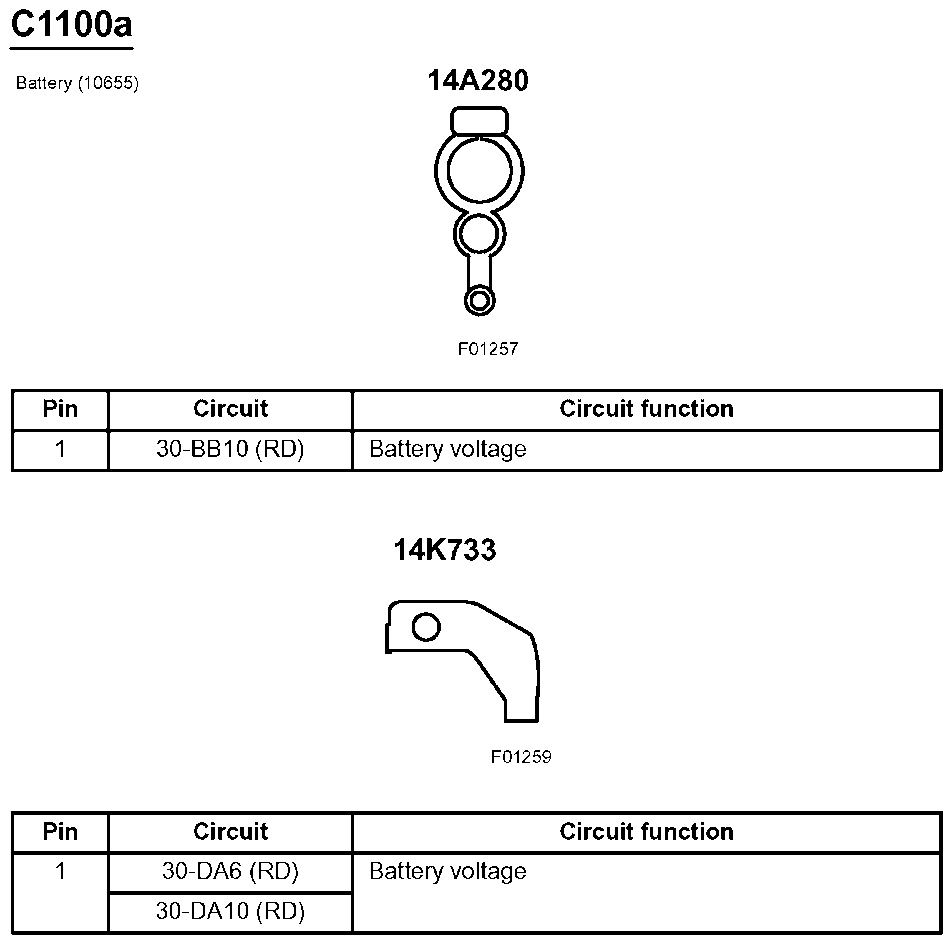

Fig 215: Battery Connector End View (C1100a)

G07834342

Courtesy of FORD MOTOR CO.

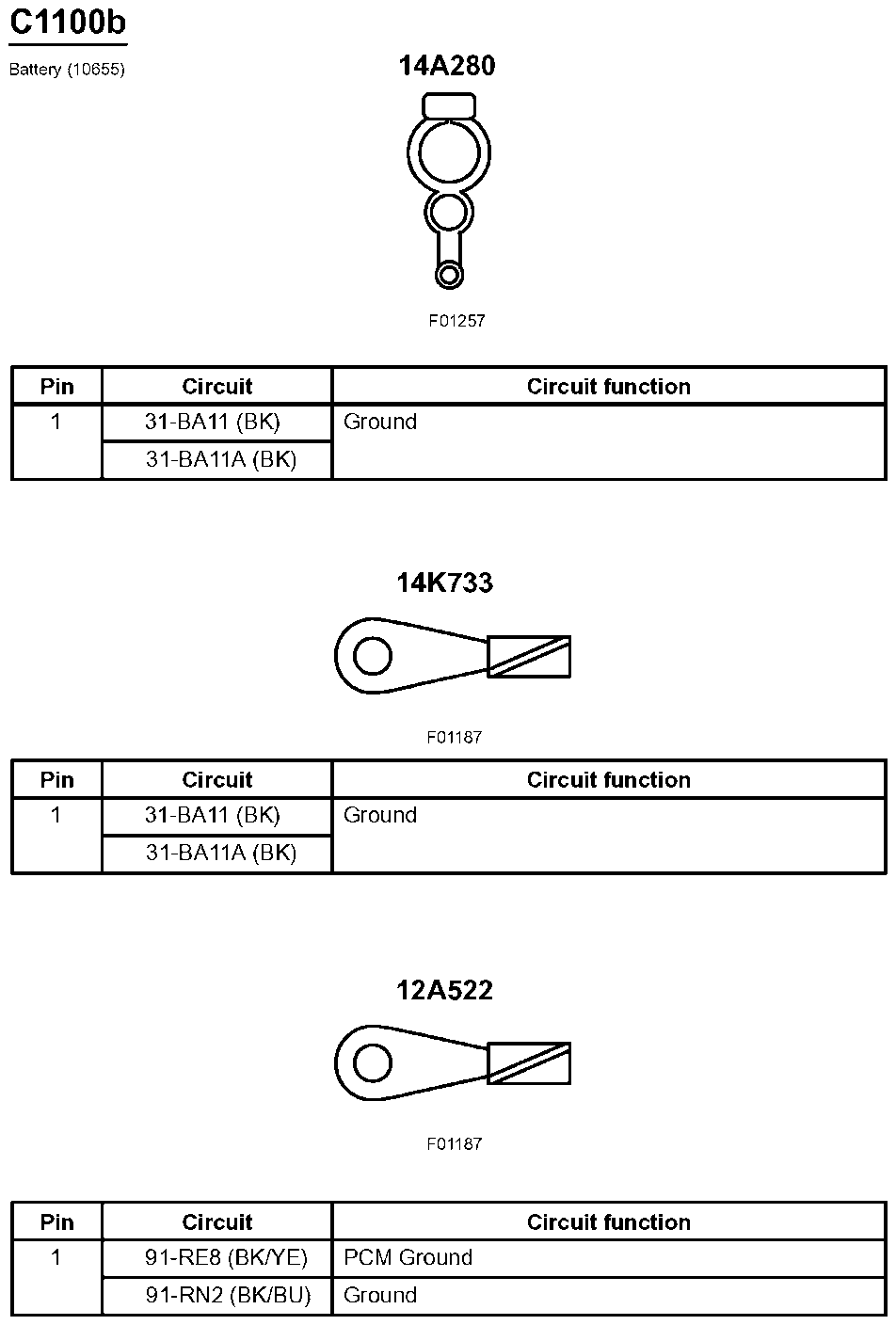

Fig 216: Battery Connector End View (C1100b)

G07834343

Courtesy of FORD MOTOR CO.

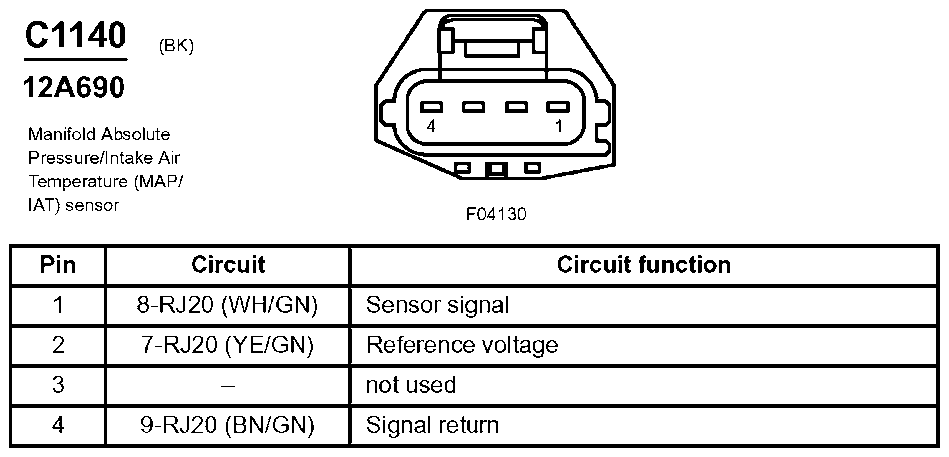

Fig 217: Manifold Absolute Pressure/Intake Air Temperature (MAP/IAT) Sensor Connector End View (C1140)

G07834344

Courtesy of FORD MOTOR CO.

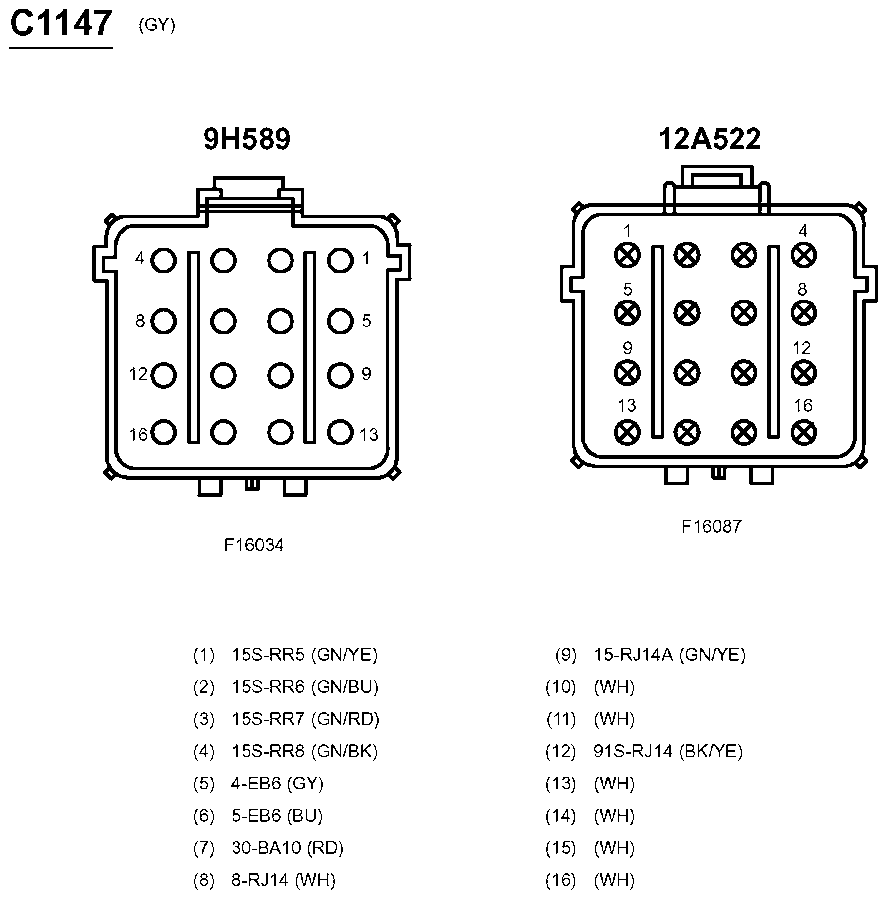

Fig 218: Inline Connector End View (C1147)

G07834345

Courtesy of FORD MOTOR CO.

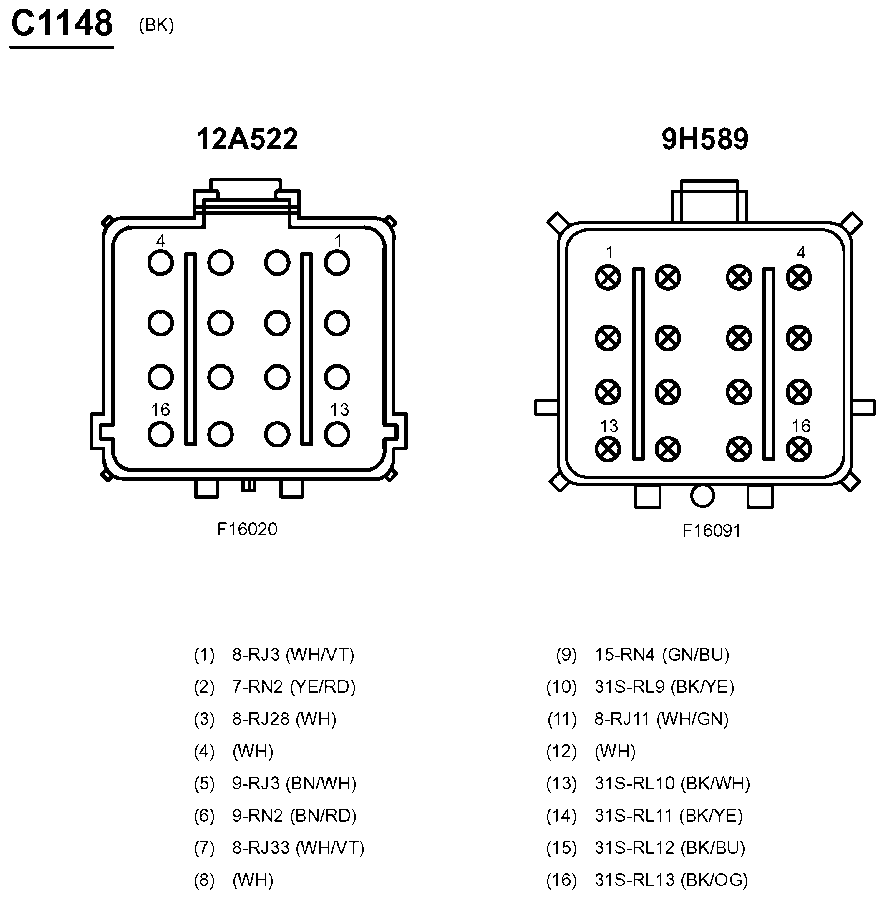

Fig 219: Inline Connector End View (C1148)

G07834346

Courtesy of FORD MOTOR CO.

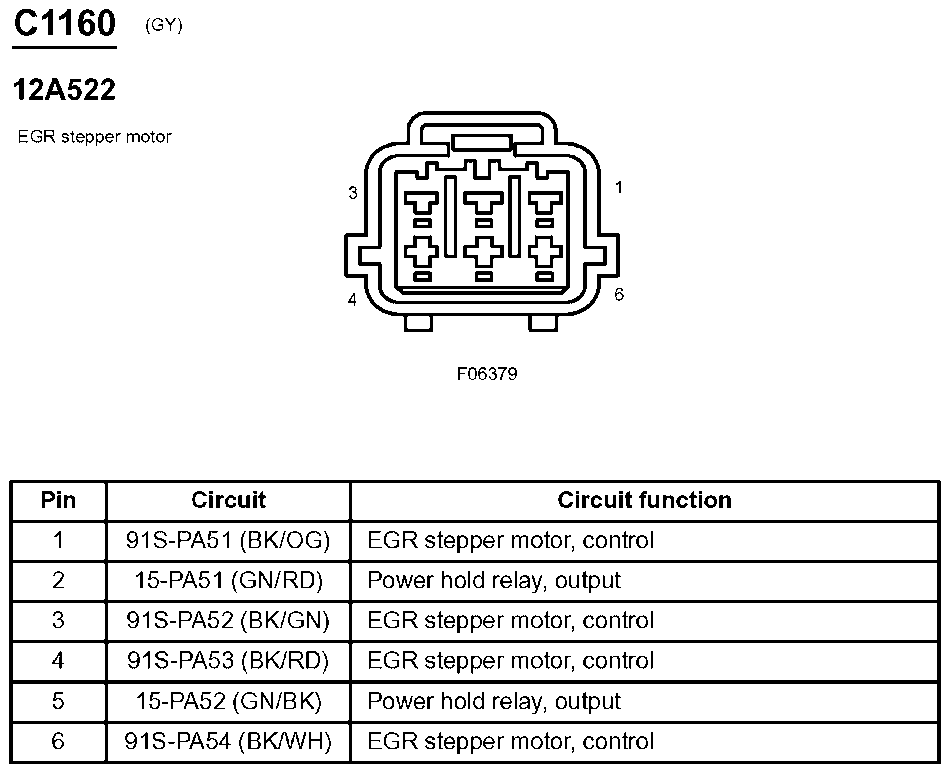

Fig 220: EGR Stepper Motor Connector End View (C1160)

G07834347

Courtesy of FORD MOTOR CO.

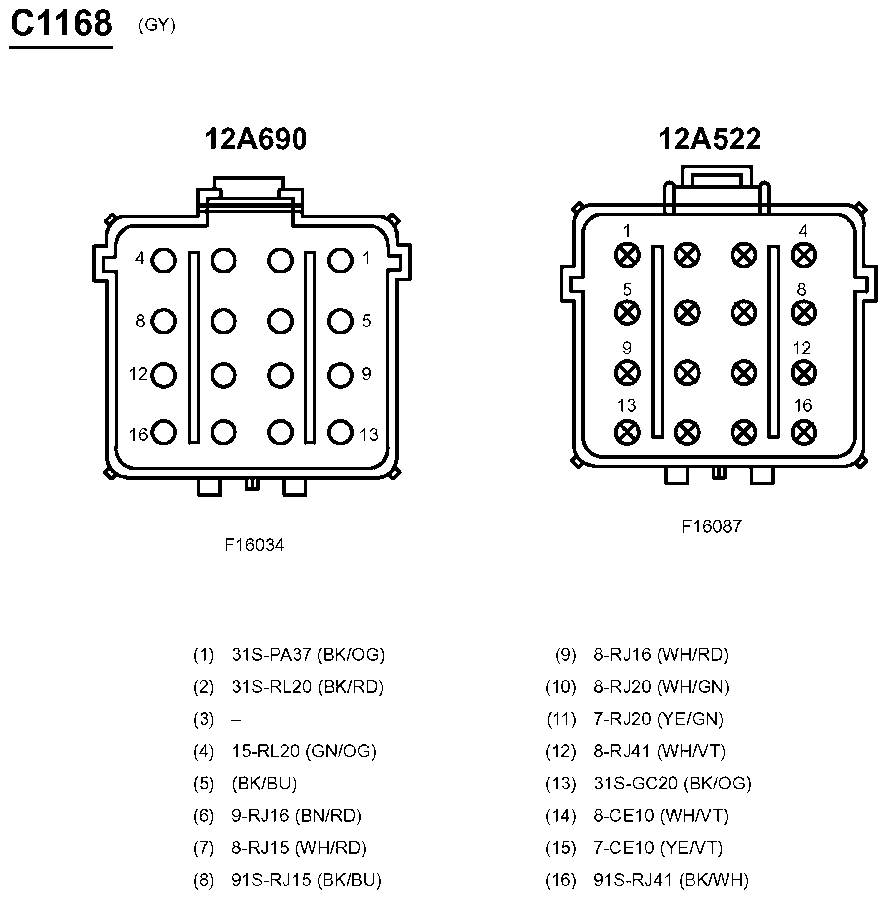

Fig 221: Inline Connector End View (C1168)

G07834348

Courtesy of FORD MOTOR CO.

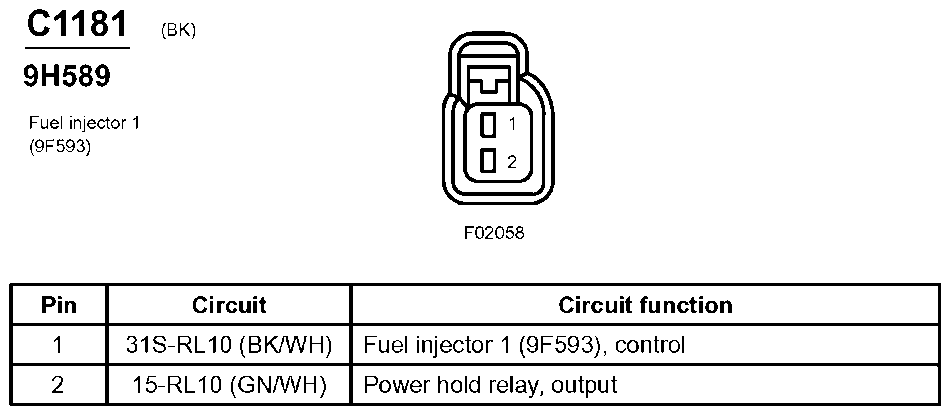

Fig 222: Fuel Injector 1 Connector End View (C1181)

G07834349

Courtesy of FORD MOTOR CO.

Fig 223: Fuel Injector 2 Connector End View (C1182)

G07834350

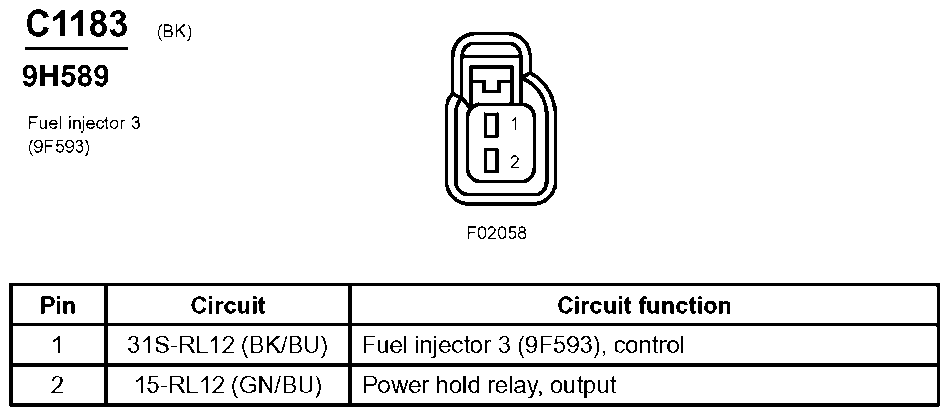

Courtesy of FORD MOTOR CO.

Fig 224: Fuel Injector 3 Connector End View (C1183)

G07834351

Courtesy of FORD MOTOR CO.

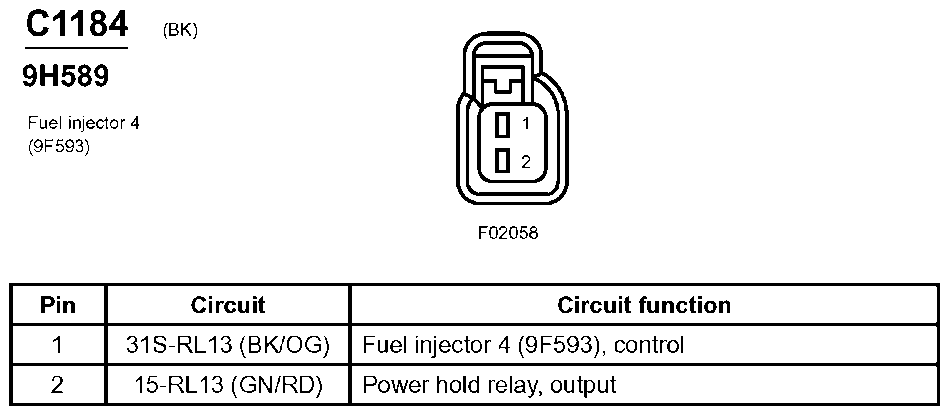

Fig 225: Fuel Injector 4 Connector End View (C1184)

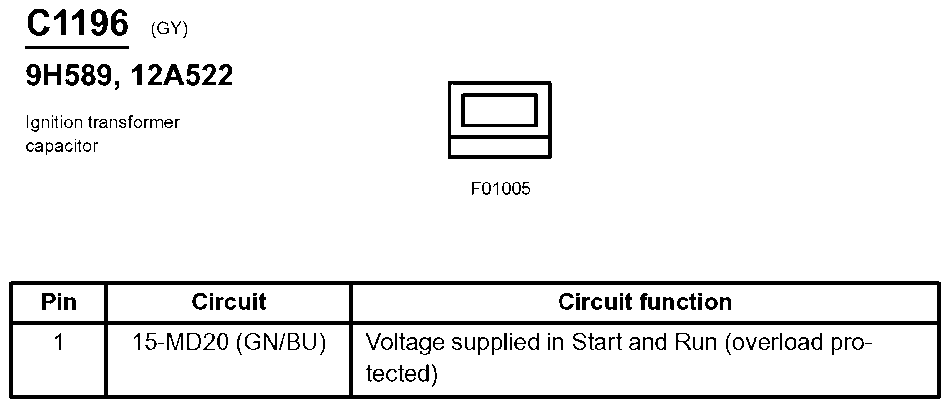

G07834352

Courtesy of FORD MOTOR CO.

Fig 226: Ignition Transformer Capacitor Connector End View (C1196)

G07834353

Courtesy of FORD MOTOR CO.

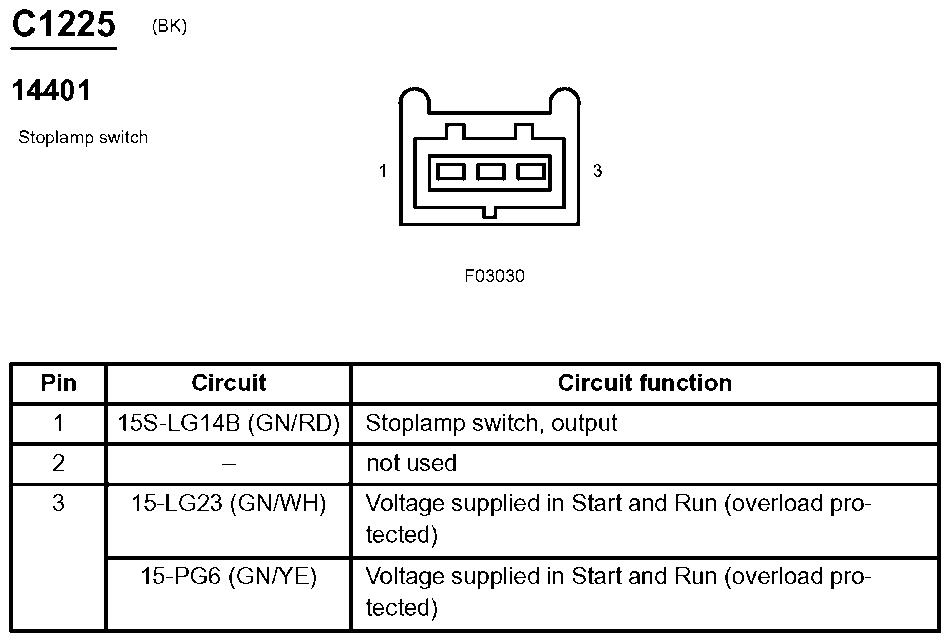

Fig 227: Stoplamp Switch Connector End View (C1225)

G07834354

Courtesy of FORD MOTOR CO.

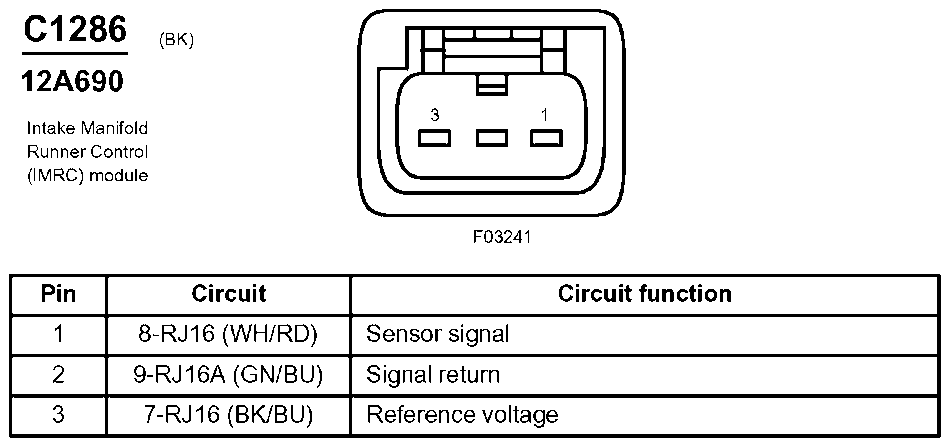

Fig 228: Intake Manifold Runner Control (IMRC) Module Connector End View (C1286)

G07834355

Courtesy of FORD MOTOR CO.

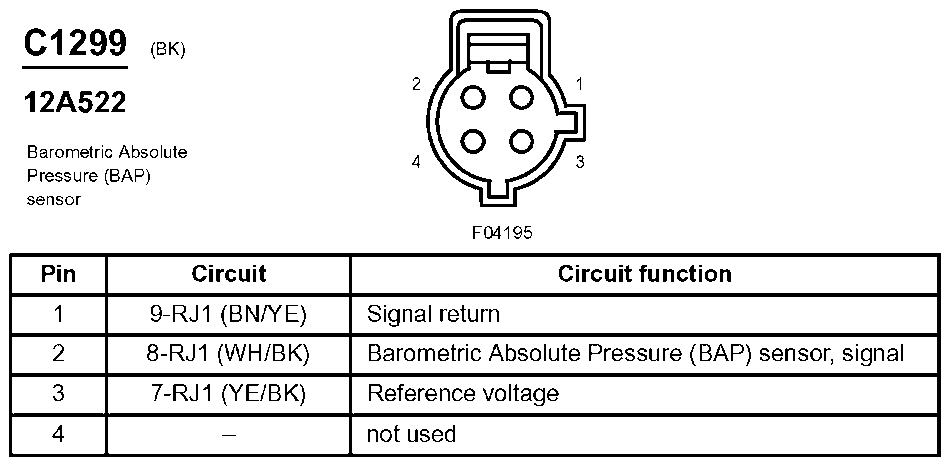

Fig 229: Barometric Absolute Pressure (BAP) Sensor Connector End View (C1299)

G07834356

Courtesy of FORD MOTOR CO.

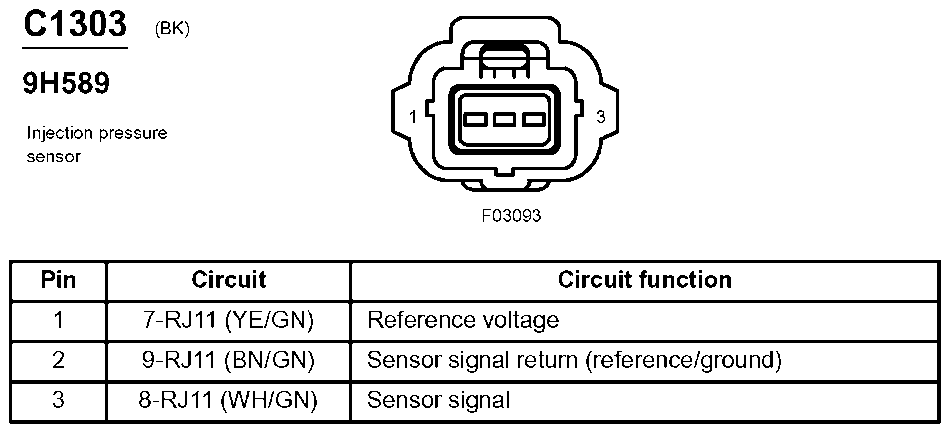

Fig 230: Injection Pressure Sensor Connector End View (C1303)

G07834357

Courtesy of FORD MOTOR CO.

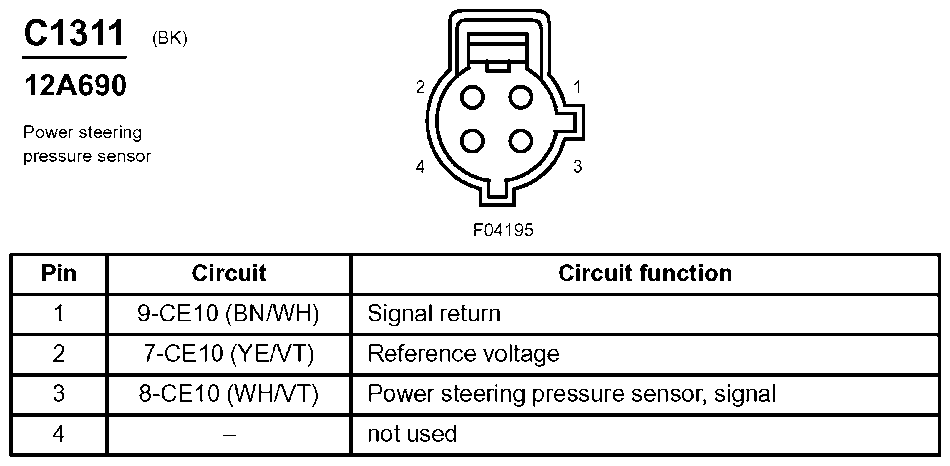

Fig 231: Power Steering Pressure Sensor Connector End View (C1311)

G07834358

Courtesy of FORD MOTOR CO.

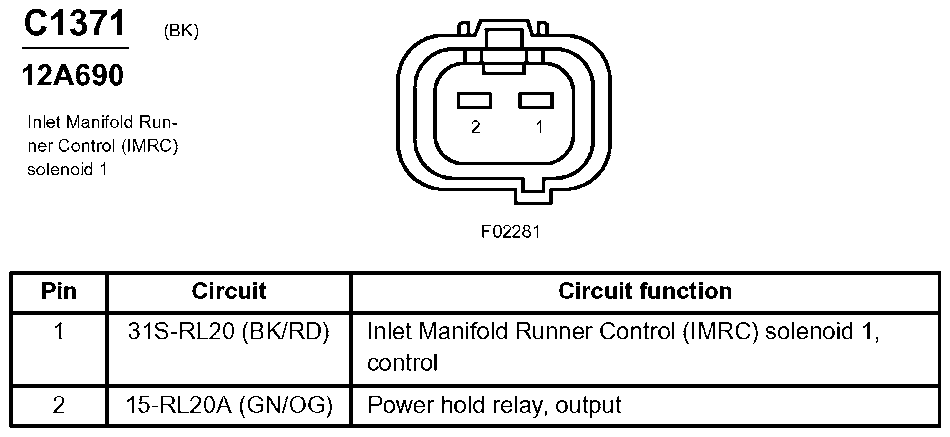

Fig 232: Inlet Manifold Runner Control (IMRC) Solenoid 1 Connector End View (C1371)

G07834359

Courtesy of FORD MOTOR CO.

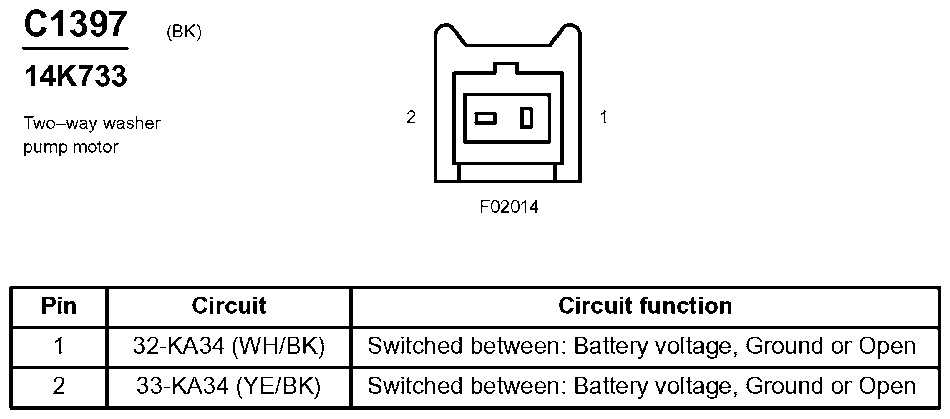

Fig 233: Two-Way Washer Pump Motor Connector End View (C1397)

G07834360

Courtesy of FORD MOTOR CO.

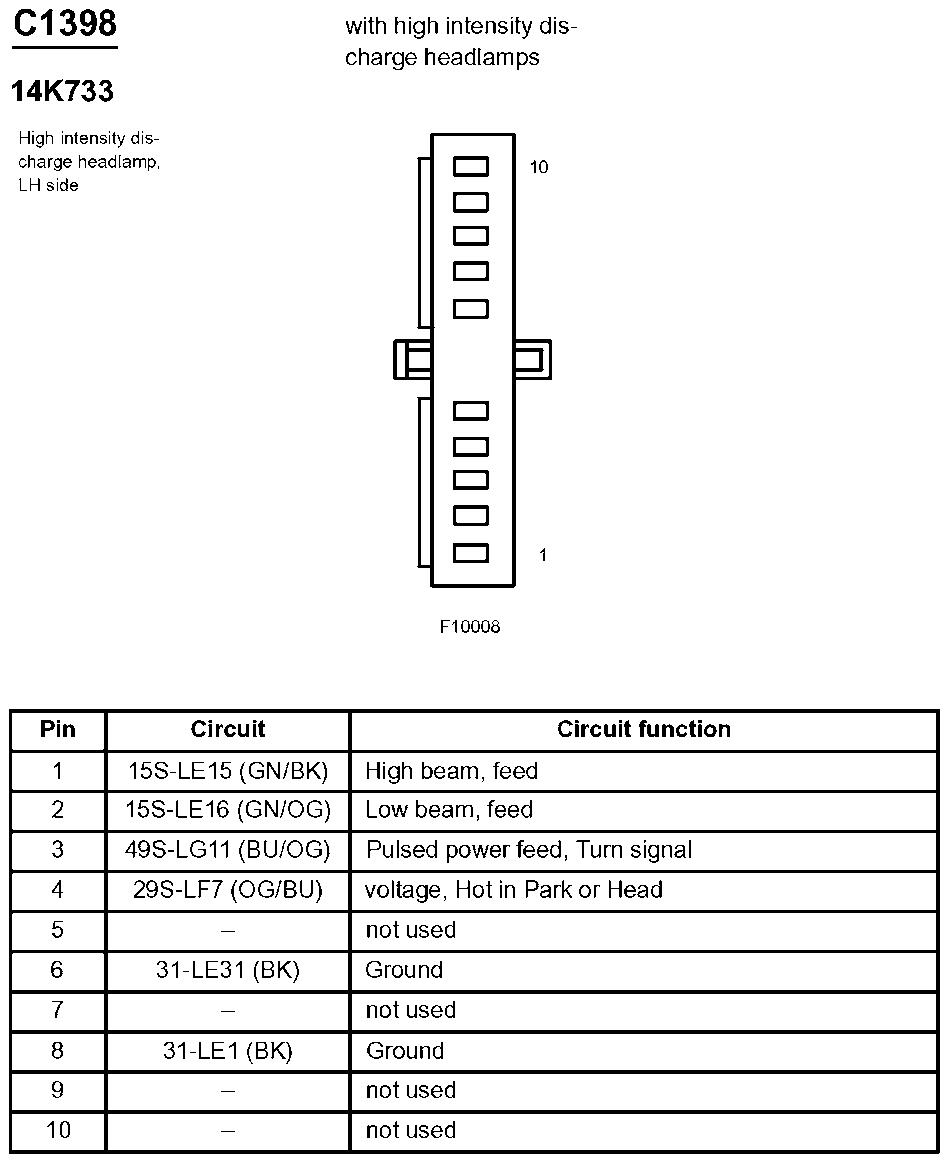

Fig 234: High Intensity Discharge Headlamp, LH Side Connector End View (C1398)

G07834361

Courtesy of FORD MOTOR CO.

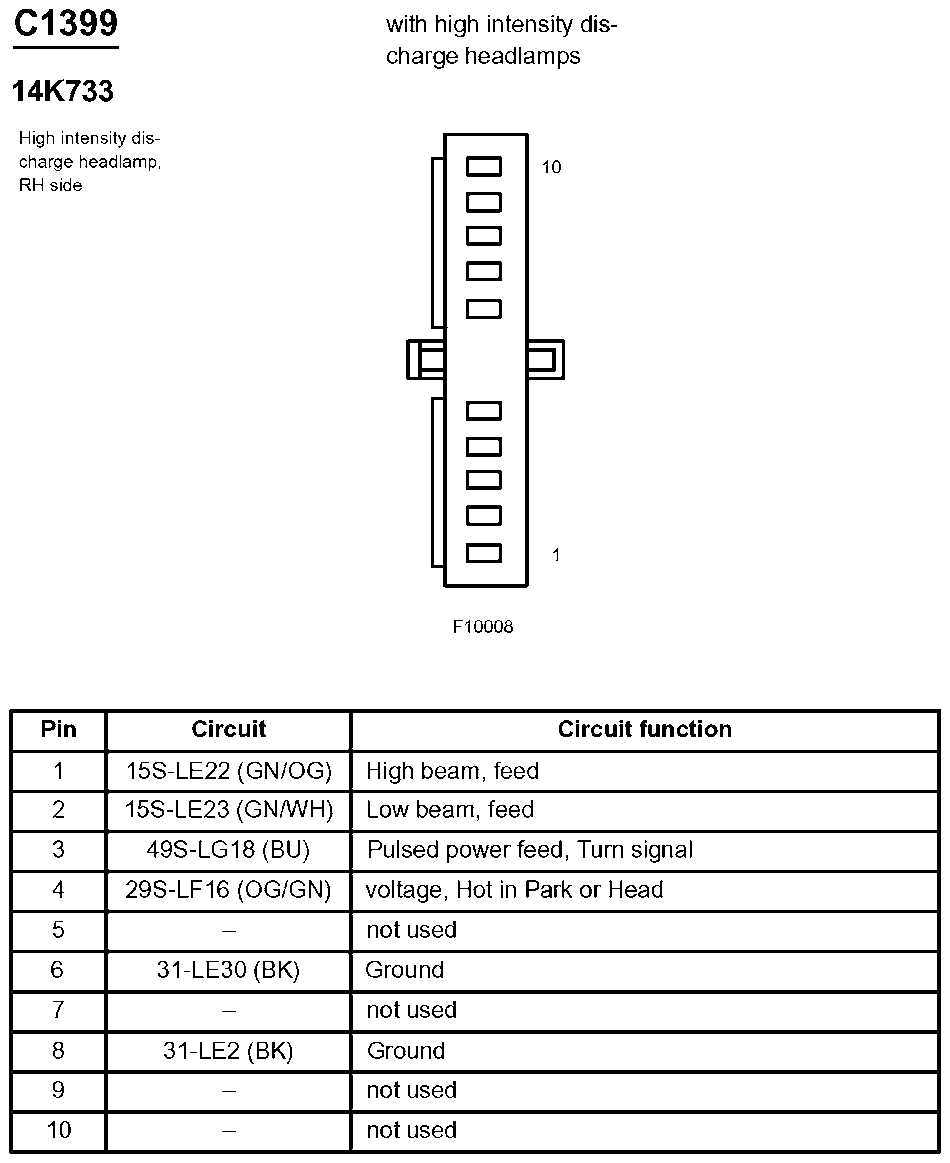

Fig 235: High Intensity Discharge Headlamp, RH Side Connector End View (C1399)

G07834362

Courtesy of FORD MOTOR CO.

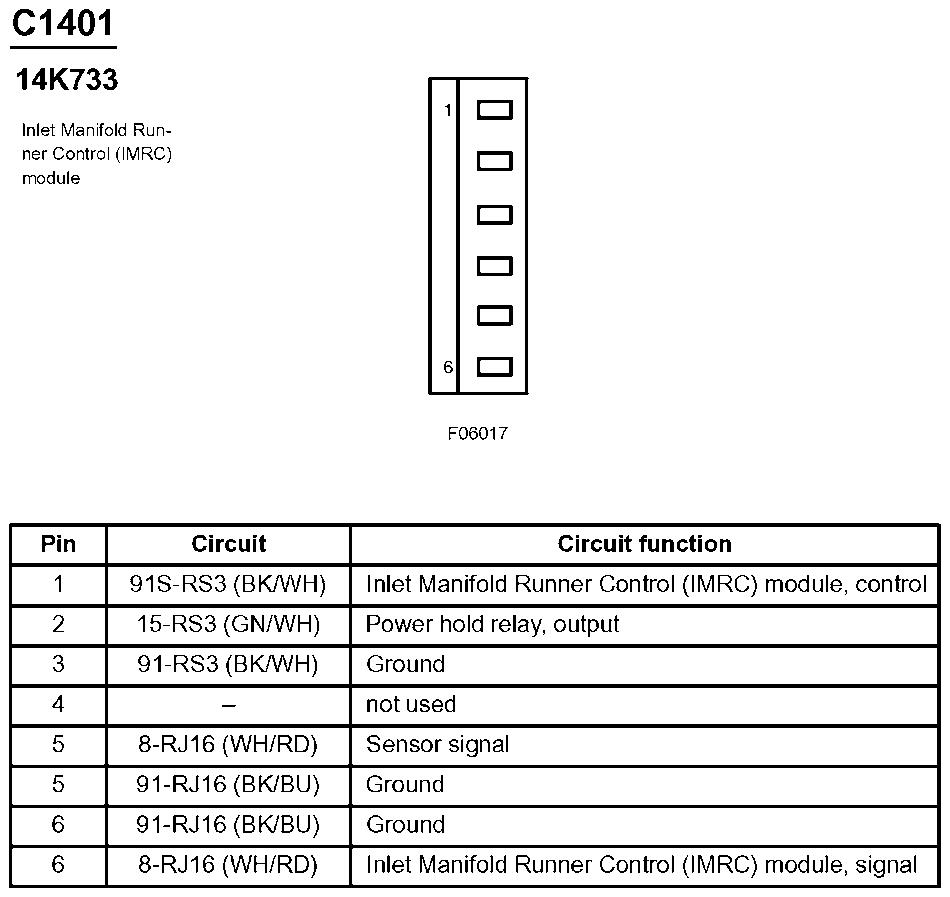

Fig 236: Inlet Manifold Runner Control (IMRC) Module Connector End View (C1401)

G07834363

Courtesy of FORD MOTOR CO.

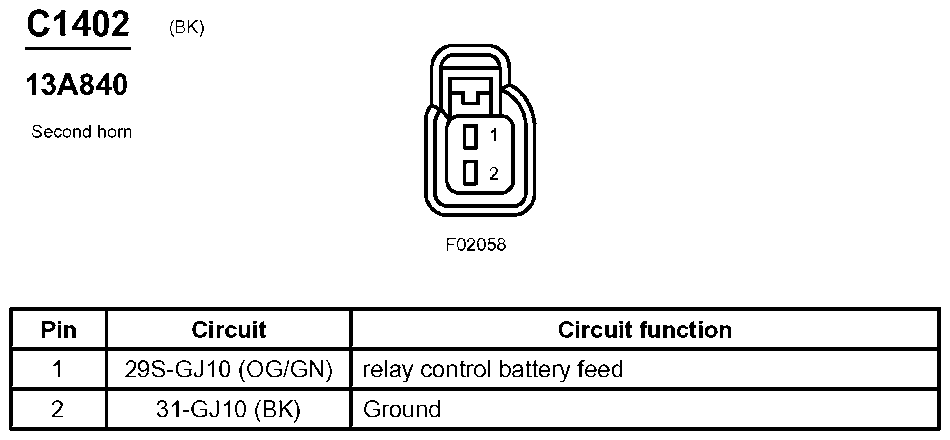

Fig 237: Second Horn Connector End View (C1402)

G07834364

Courtesy of FORD MOTOR CO.

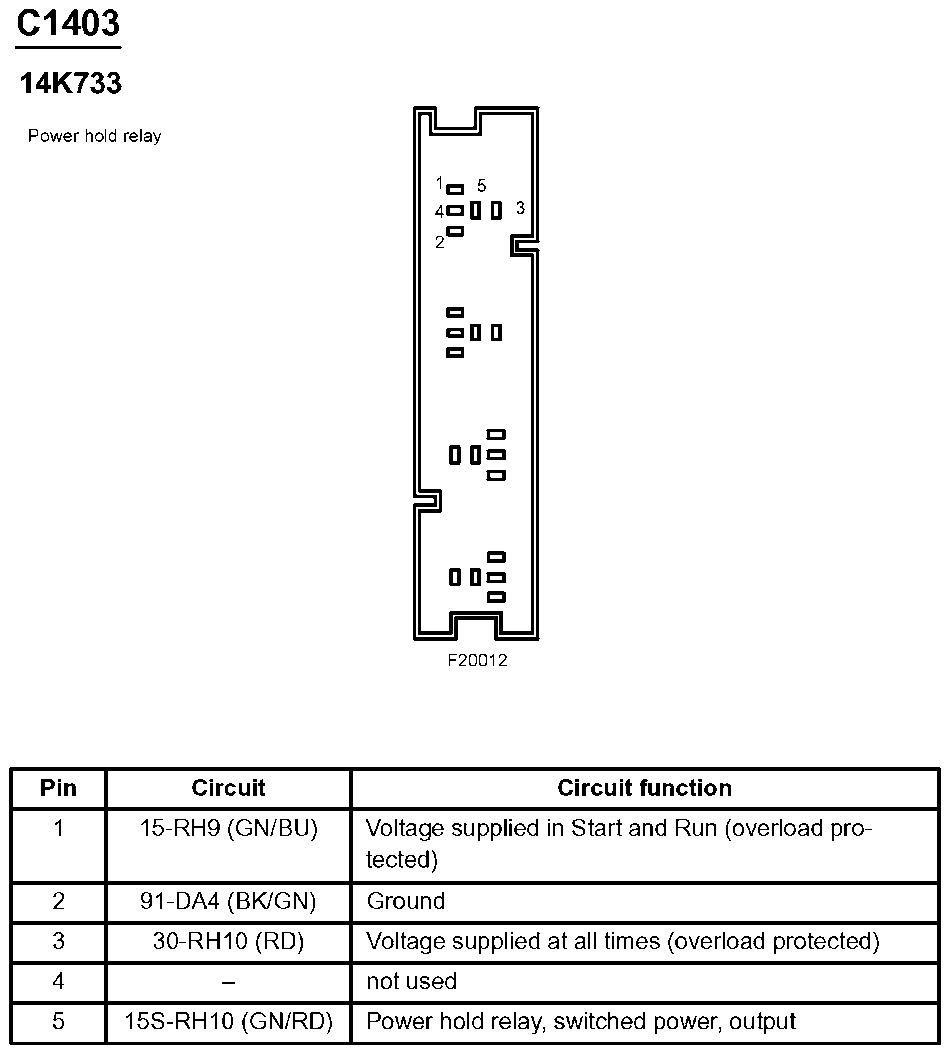

Fig 238: Power Hold Relay Connector End View (C1403)

G07834365

Courtesy of FORD MOTOR CO.

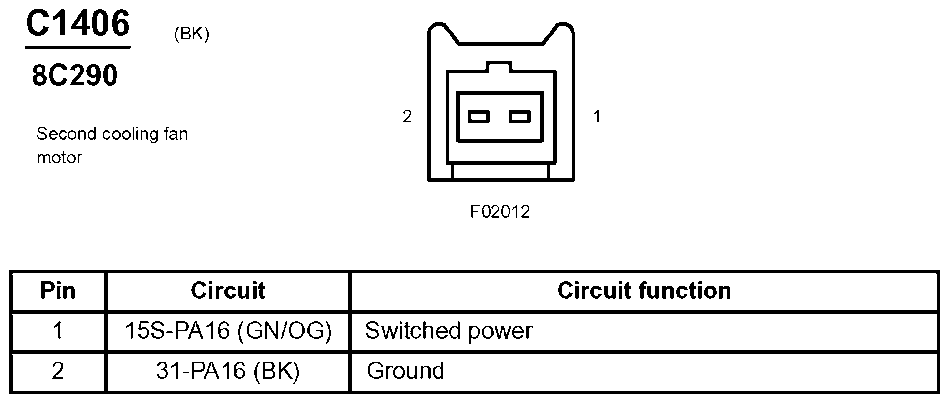

Fig 239: Second Cooling Fan Motor Connector End View (C1406)

G07834366

Courtesy of FORD MOTOR CO.

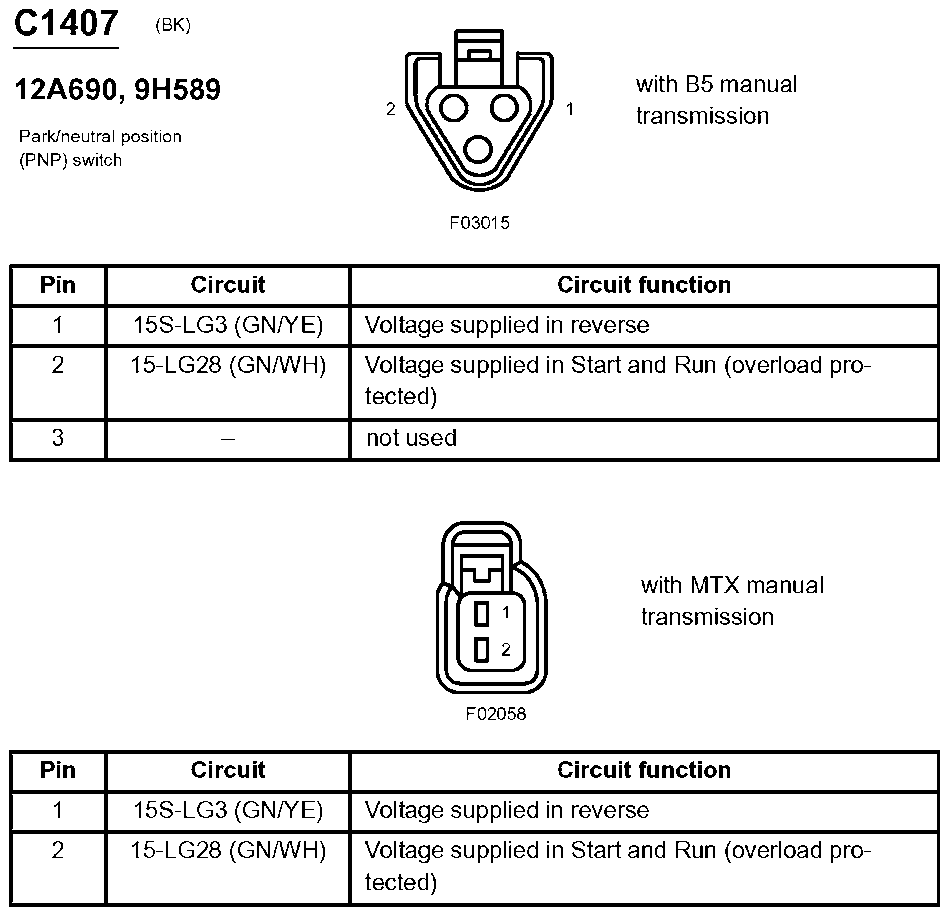

Fig 240: Park/Neutral Position (PNP) Switch Connector End View (C1407)

G07834367

Courtesy of FORD MOTOR CO.

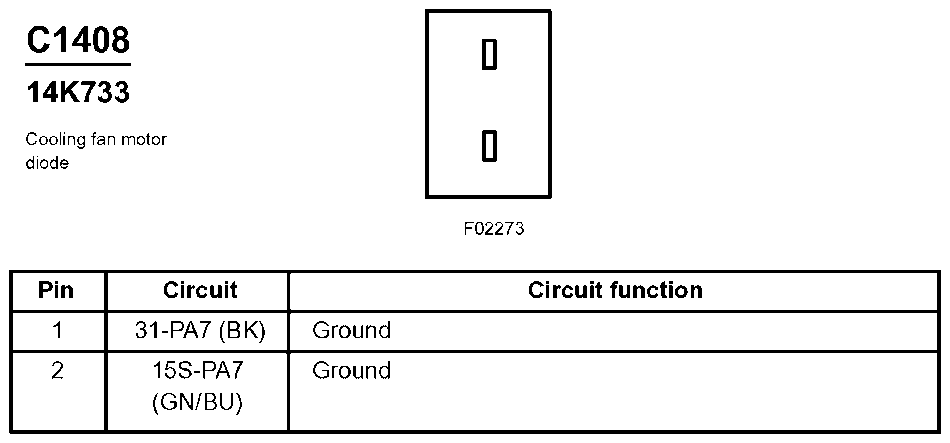

Fig 241: Cooling Fan Motor Diode Connector End View (C1408)

G07834368

Courtesy of FORD MOTOR CO.

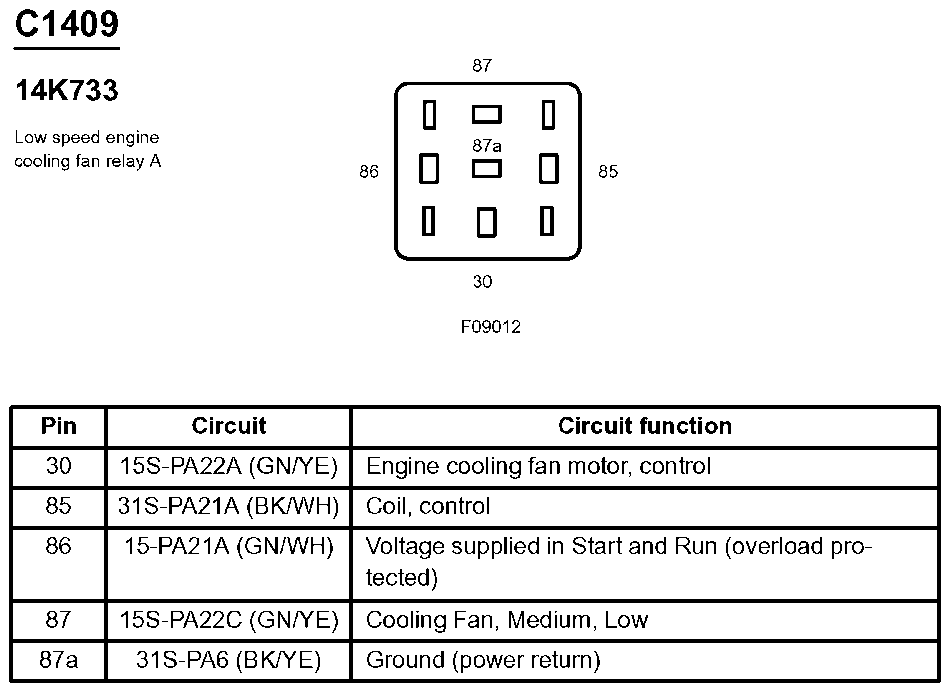

Fig 242: Low Speed Engine Cooling Fan Relay A Connector End View (C1409)

G07834369

Courtesy of FORD MOTOR CO.

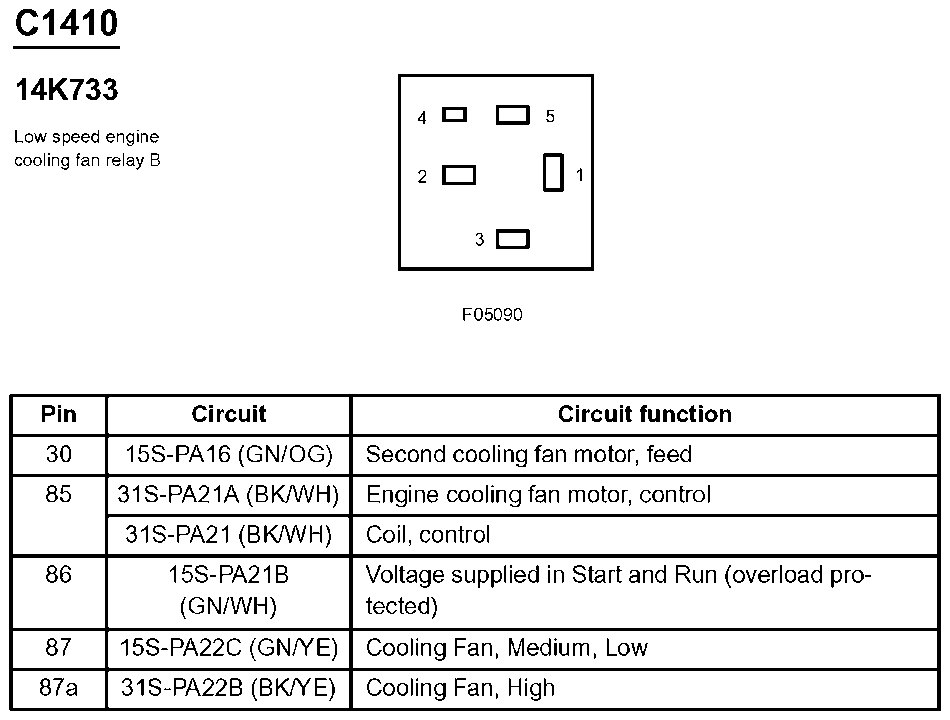

Fig 243: Low Speed Engine Cooling Fan Relay B Connector End View (C1410)

G07834370

Courtesy of FORD MOTOR CO.

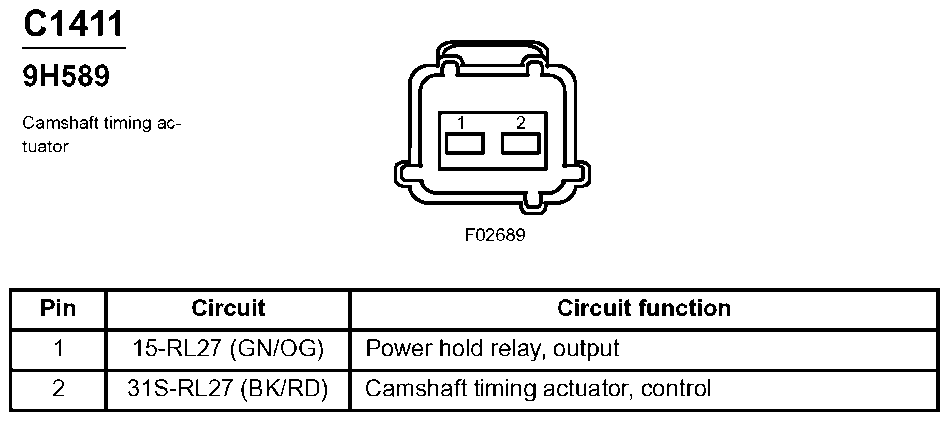

Fig 244: Camshaft Timing Actuator Connector End View (C1411)

G07834371

Courtesy of FORD MOTOR CO.

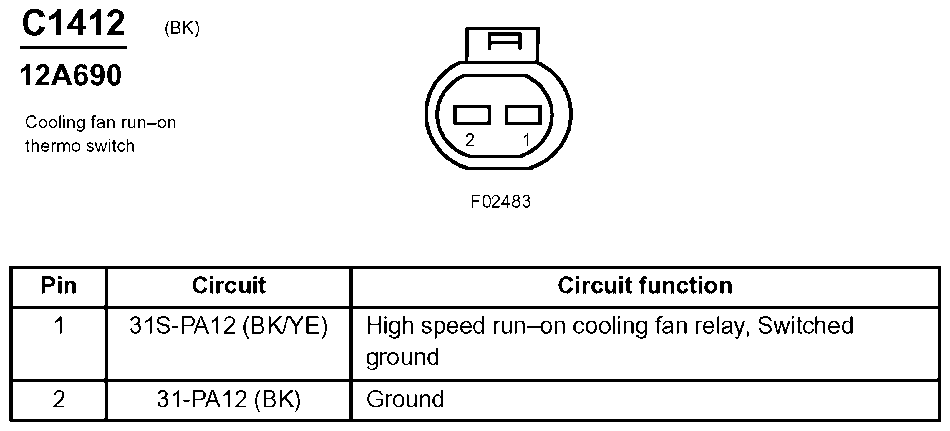

Fig 245: Cooling Fan Run-On Thermo Switch Connector End View (C1412)

G07834372

Courtesy of FORD MOTOR CO.

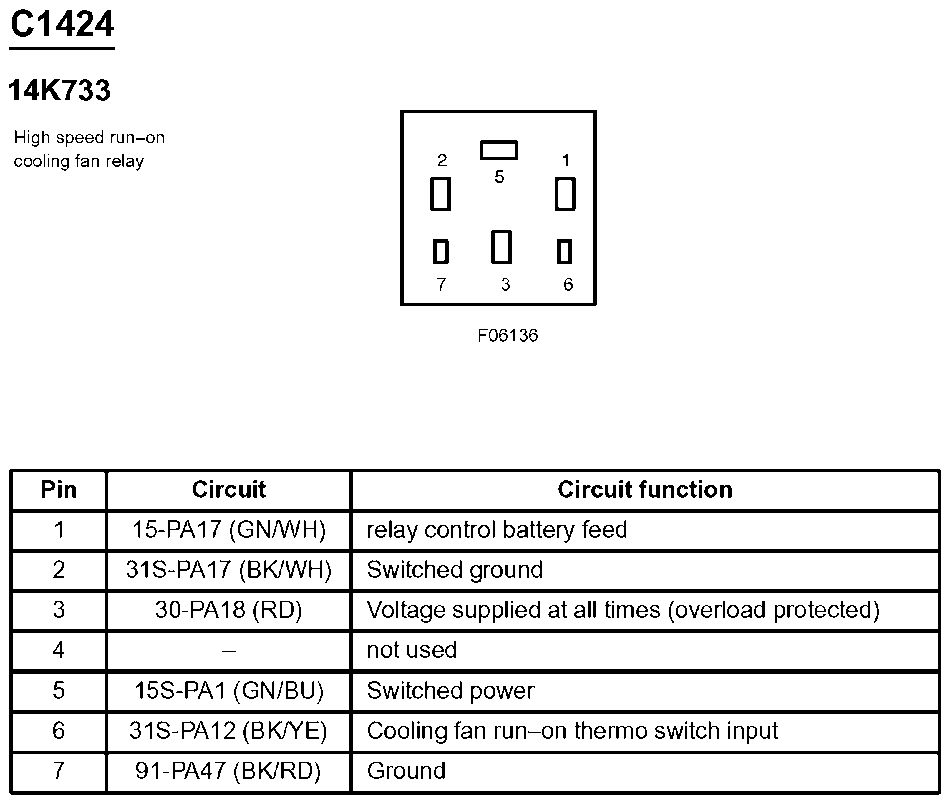

Fig 246: High Speed Run-On Cooling Fan Relay Connector End View (C1424)

G07834373

Courtesy of FORD MOTOR CO.

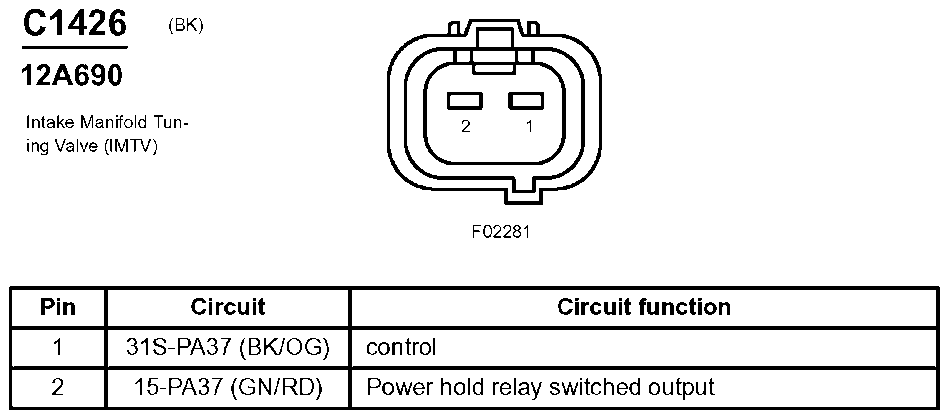

Fig 247: Intake Manifold Tuning Valve (IMTV) Connector End View (C1426)

G07834374

Courtesy of FORD MOTOR CO.

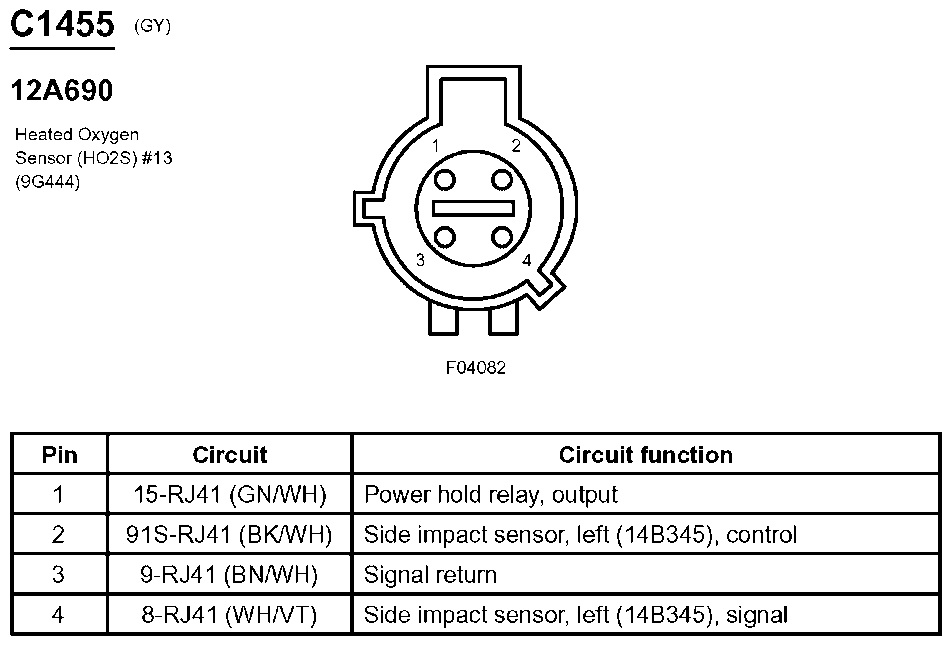

Fig 248: Heated Oxygen Sensor (HO2S) #13 Connector End View (C1455)

G07834375

Courtesy of FORD MOTOR CO.

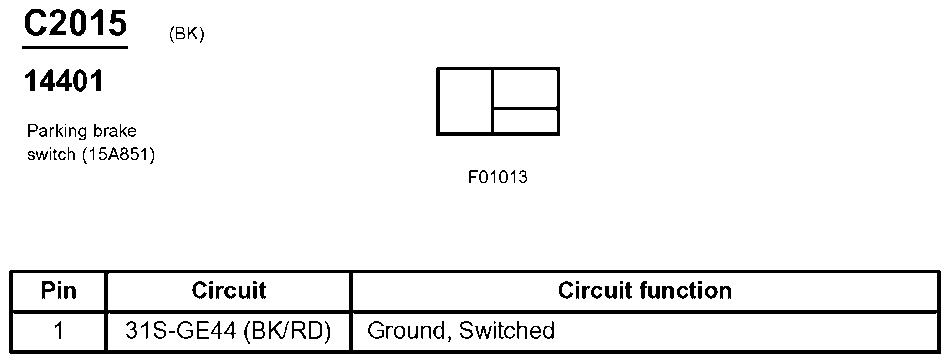

Fig 249: Parking Brake Switch Connector End View (C2015)

G07834376

Courtesy of FORD MOTOR CO.

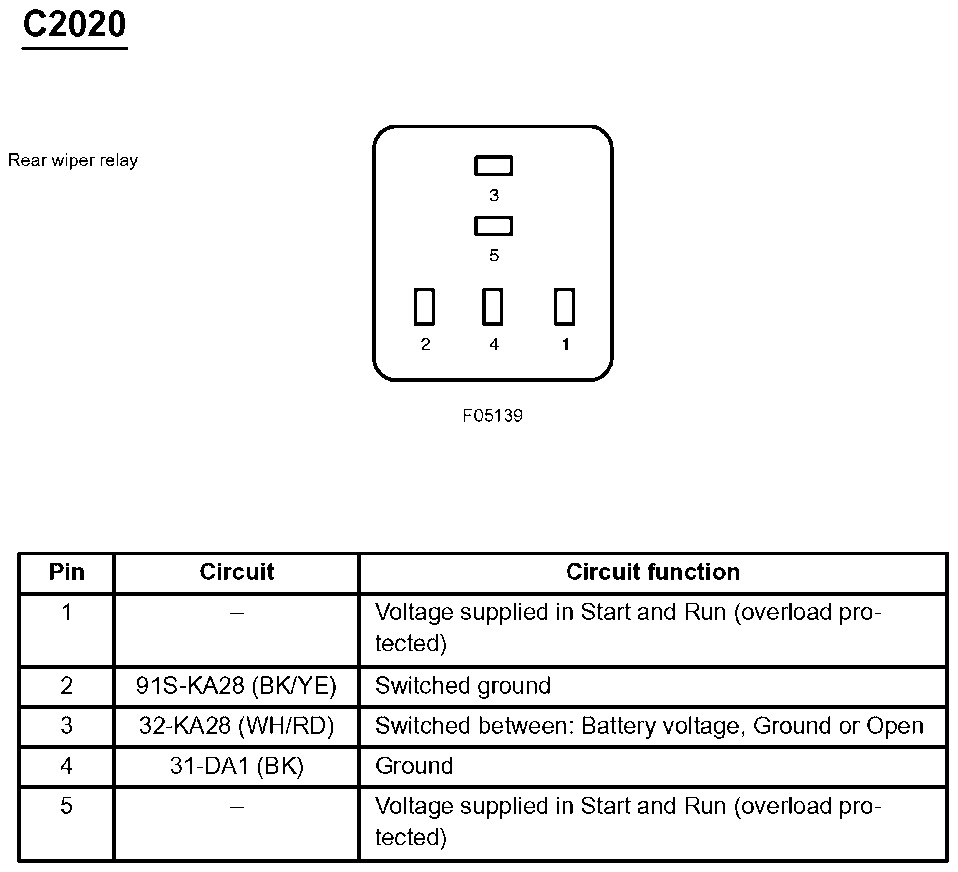

Fig 250: Rear Wiper Relay Connector End View (C2020)

G07834377

Courtesy of FORD MOTOR CO.

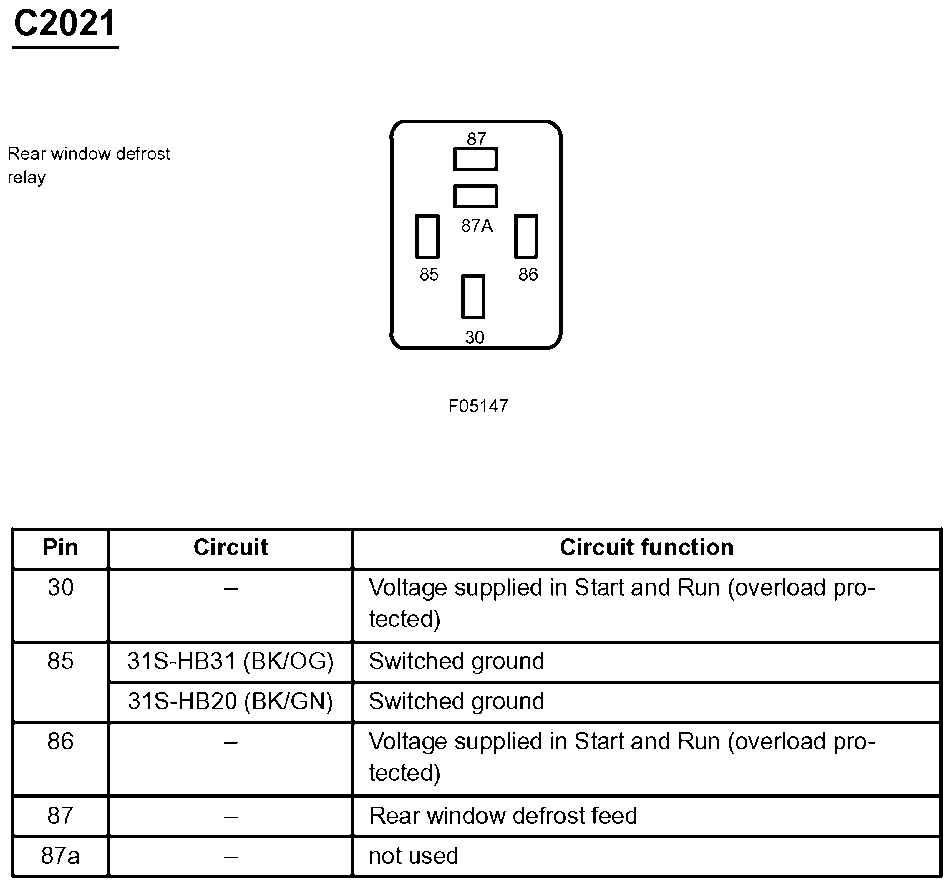

Fig 251: Rear Window Defrost Relay Connector End View (C2021)

G07834378

Courtesy of FORD MOTOR CO.

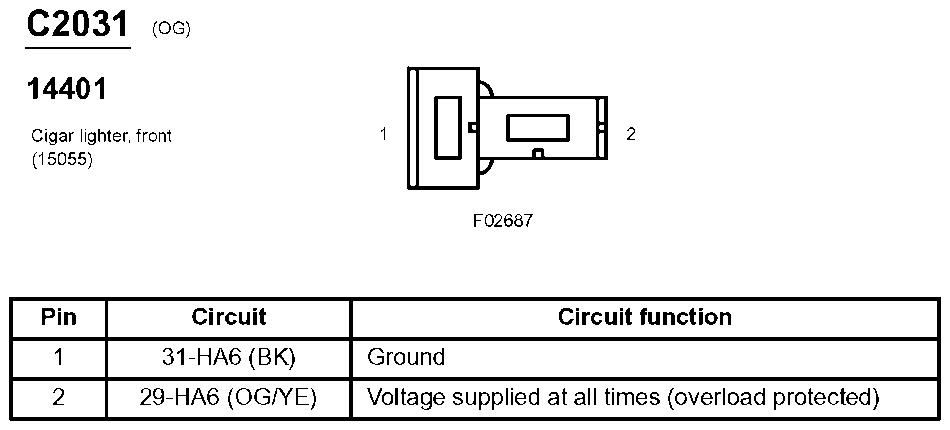

Fig 252: Cigar Lighter, Front Connector End View (C2031)

G07834379

Courtesy of FORD MOTOR CO.

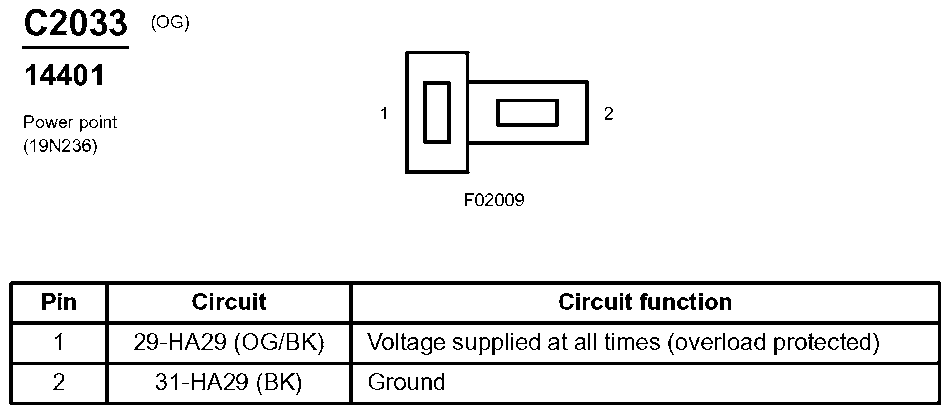

Fig 253: Power Point Connector End View (C2033)

G07834380

Courtesy of FORD MOTOR CO.

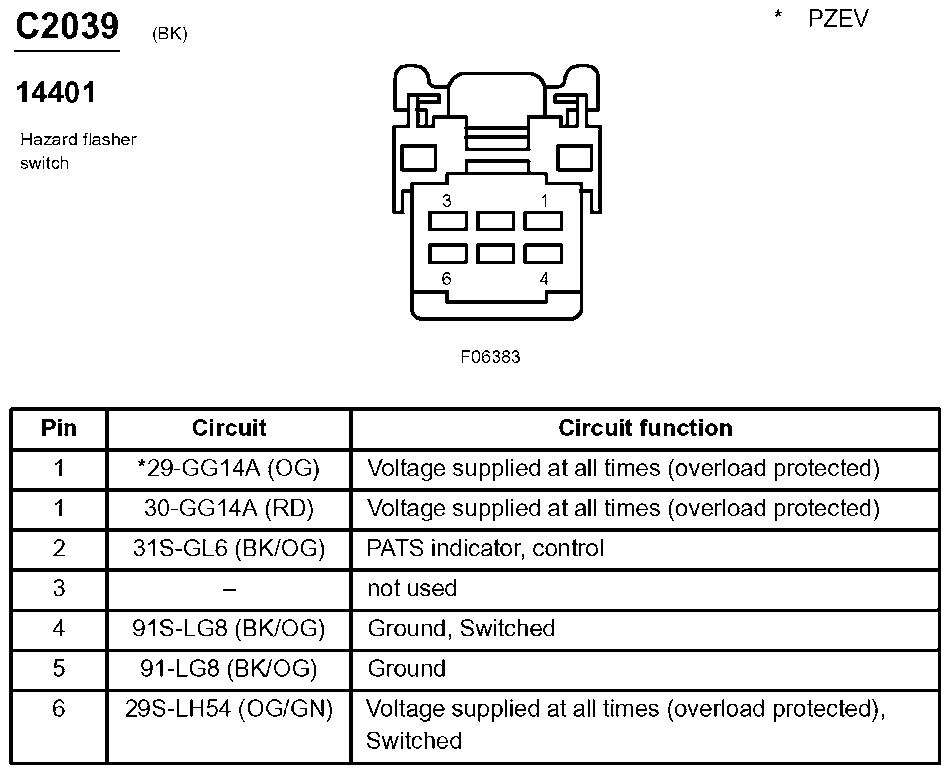

Fig 254: Hazard Flasher Switch Connector End View (C2039)

G07834381

Courtesy of FORD MOTOR CO.

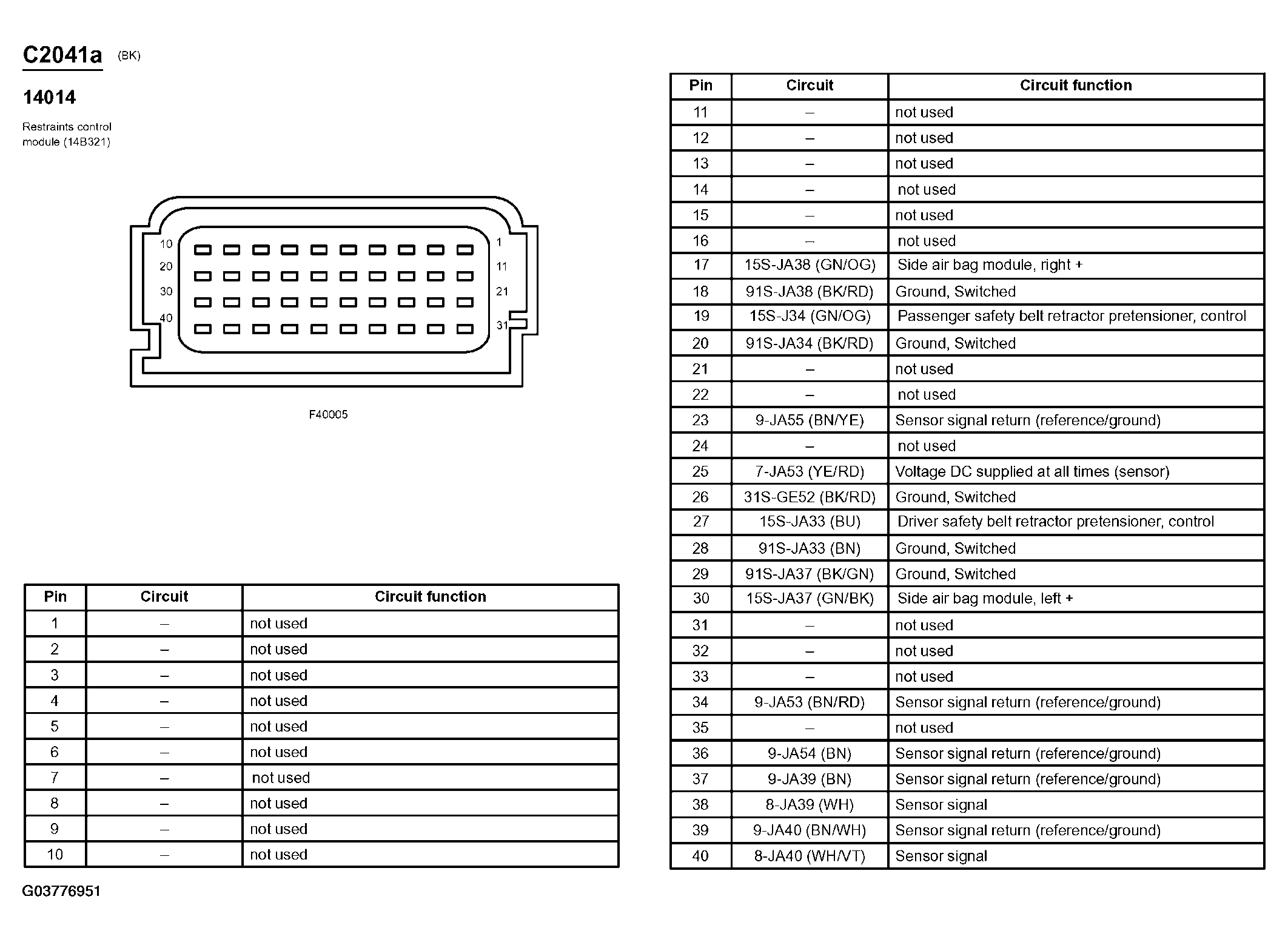

Fig 255: Restraints Control Module Connector End View (C2041a)

G03776951

Courtesy of FORD MOTOR CO.

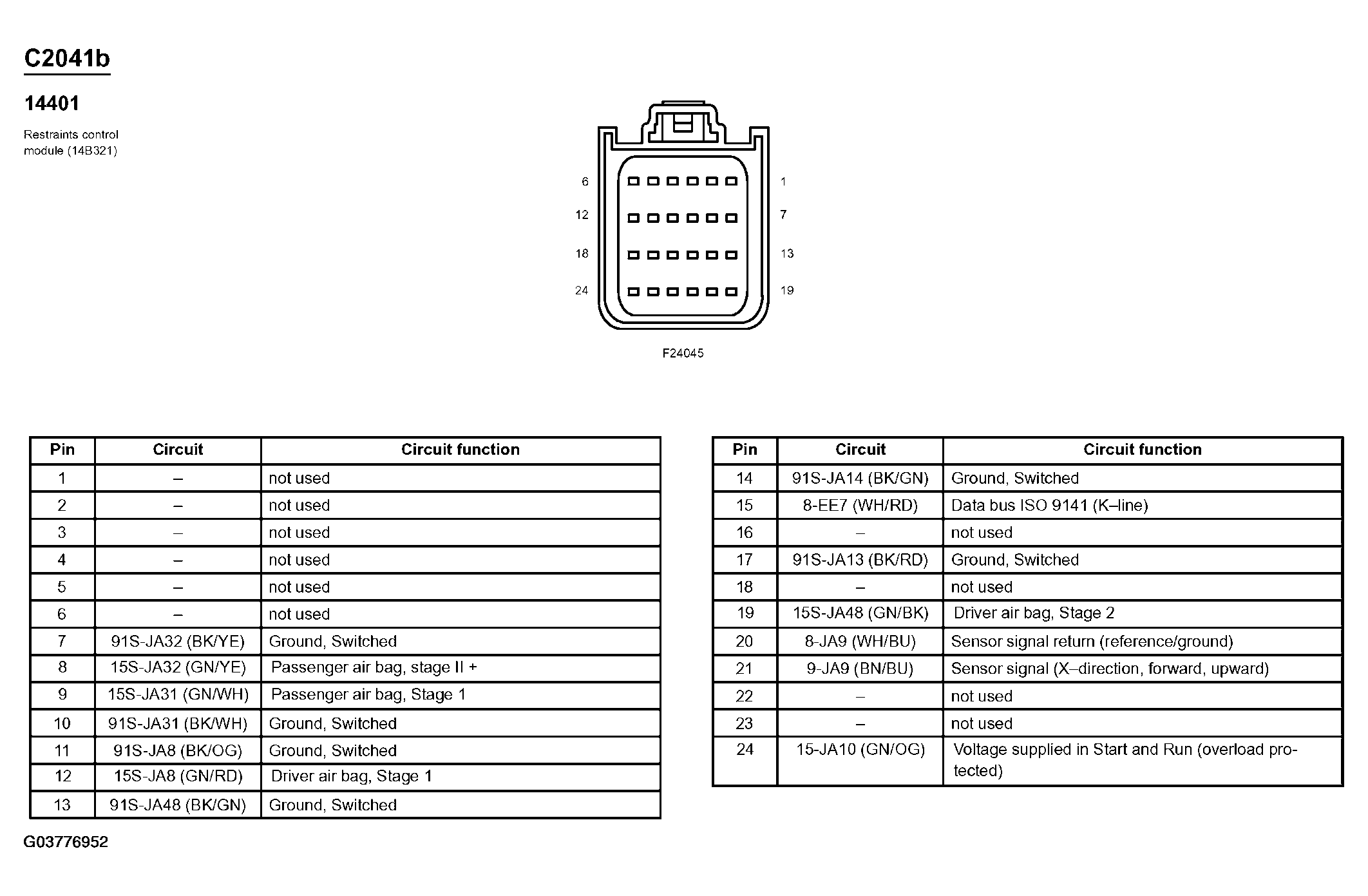

Fig 256: Restraints Control Module Connector End View (C2041b)

G03776952

Courtesy of FORD MOTOR CO.

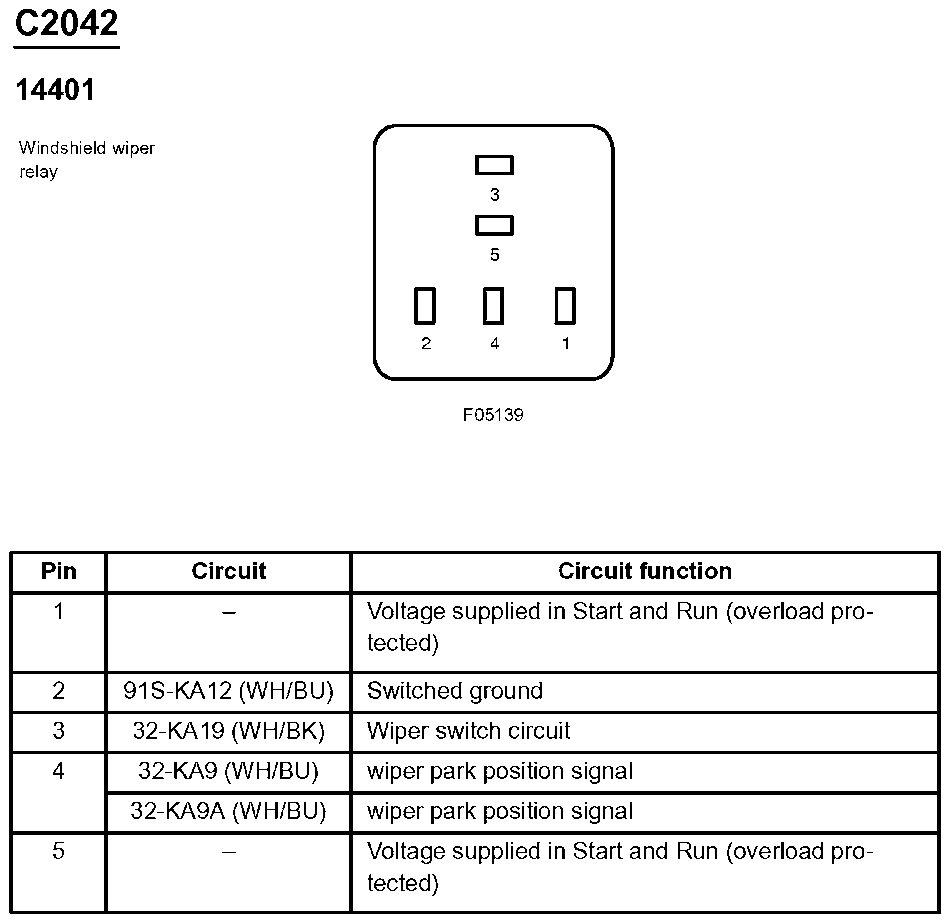

Fig 257: Windshield Wiper Relay Connector End View (C2042)

G07834382

Courtesy of FORD MOTOR CO.

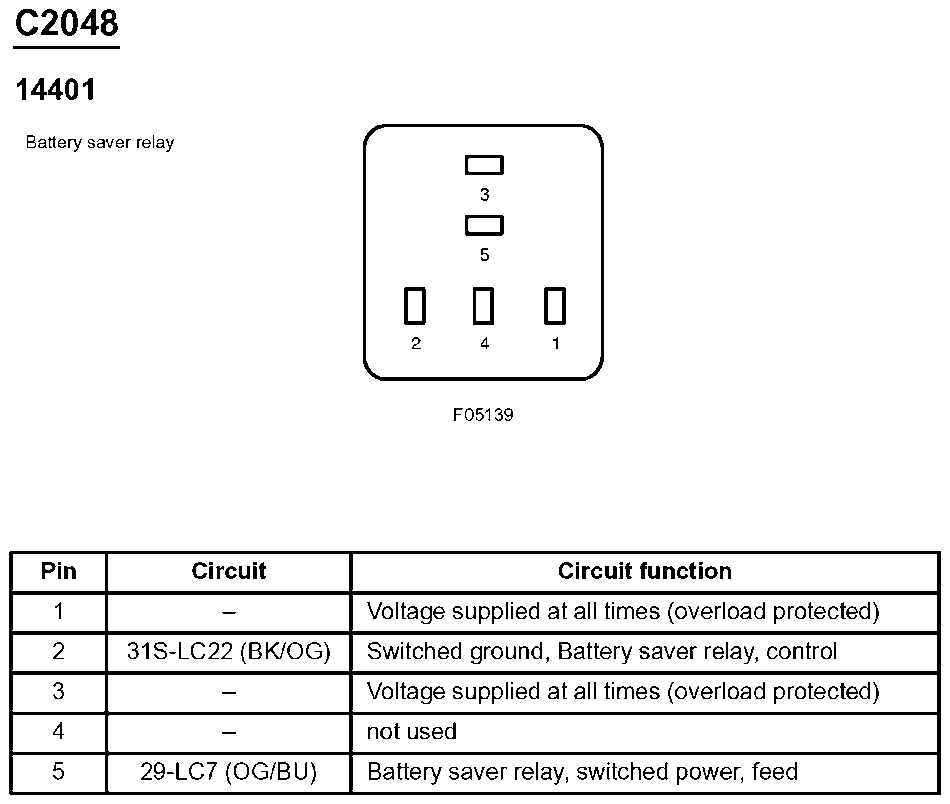

Fig 258: Battery Saver Relay Connector End View (C2048)

G07834383

Courtesy of FORD MOTOR CO.

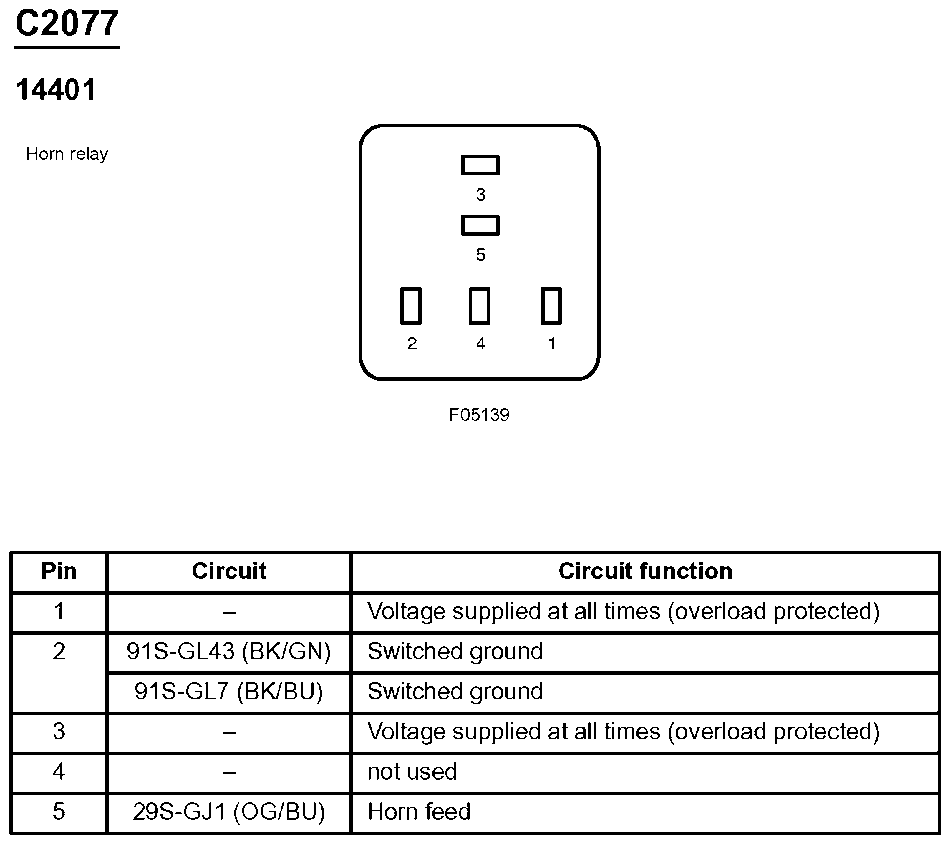

Fig 259: Horn Relay Connector End View (C2077)

G07834384

Courtesy of FORD MOTOR CO.

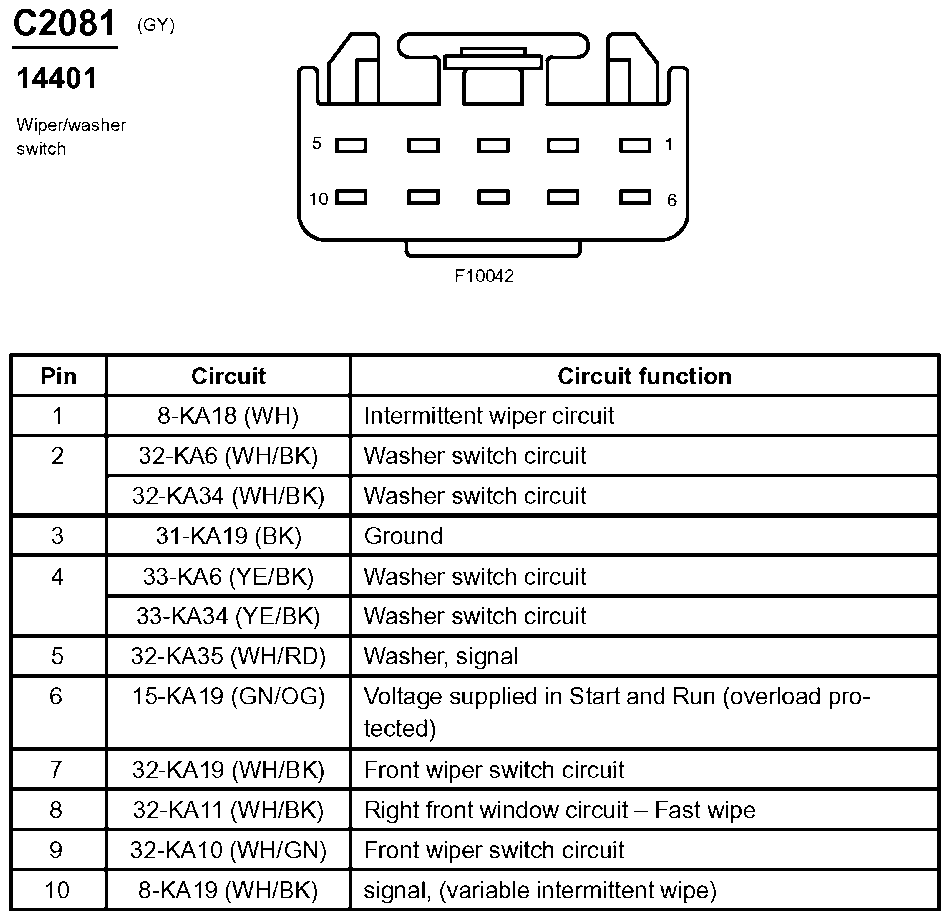

Fig 260: Wiper/Washer Switch Connector End View (C2081)

G07834385

Courtesy of FORD MOTOR CO.

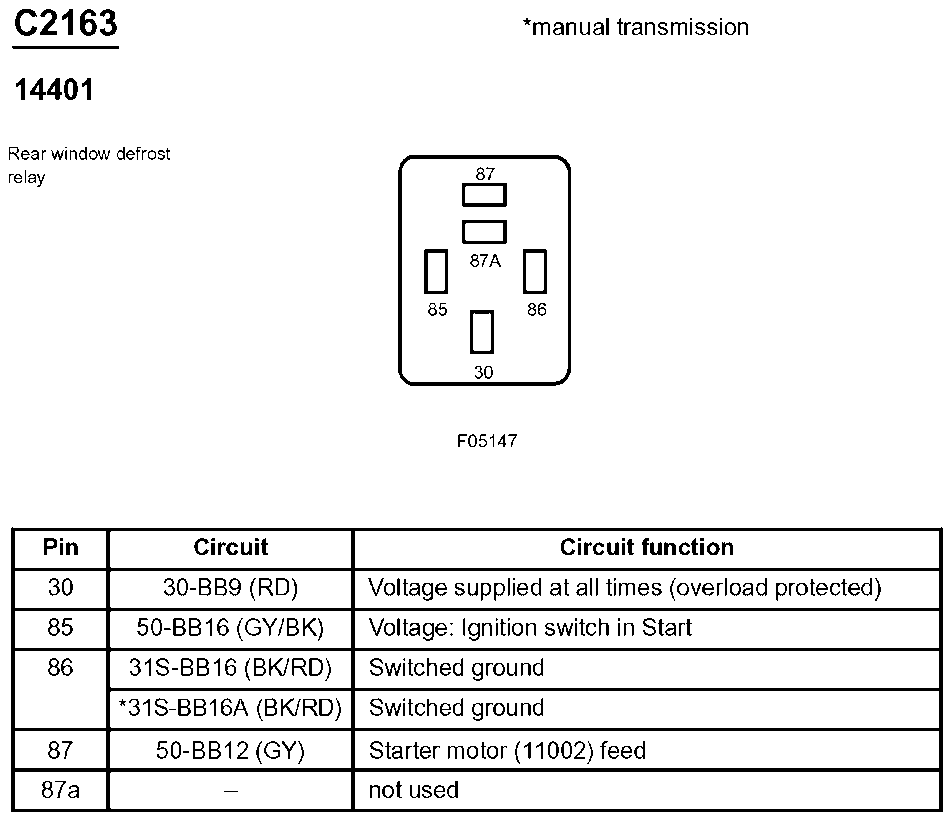

Fig 261: Rear Window Defrost Relay Connector End View (C2163)

G07834386

Courtesy of FORD MOTOR CO.

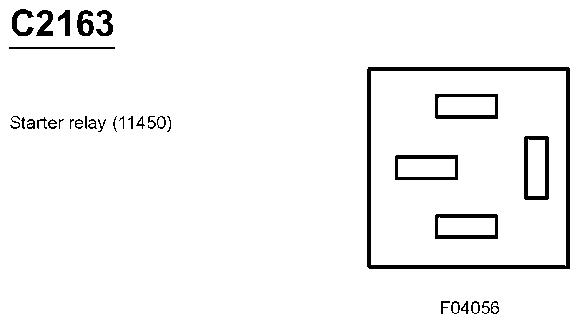

Fig 262: Starter Relay Connector End View (C2163)

G07834387

Courtesy of FORD MOTOR CO.

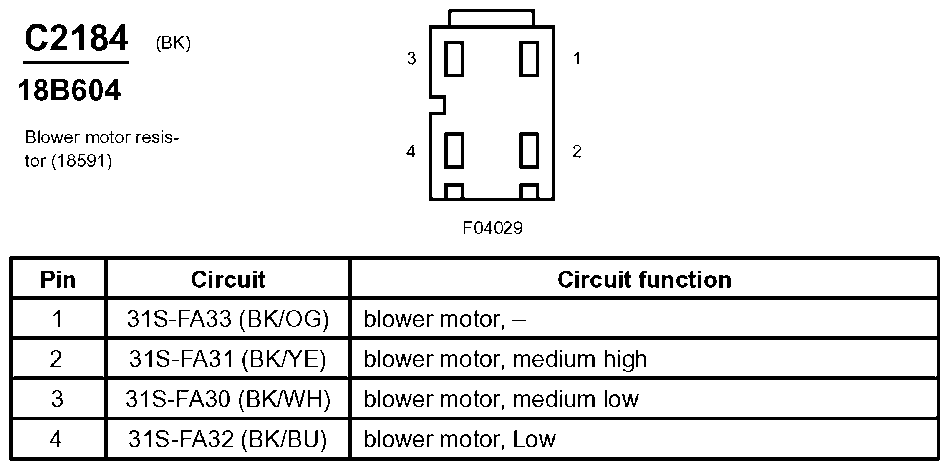

Fig 263: Blower Motor Resistor Connector End View (C2184)

G07834388

Courtesy of FORD MOTOR CO.

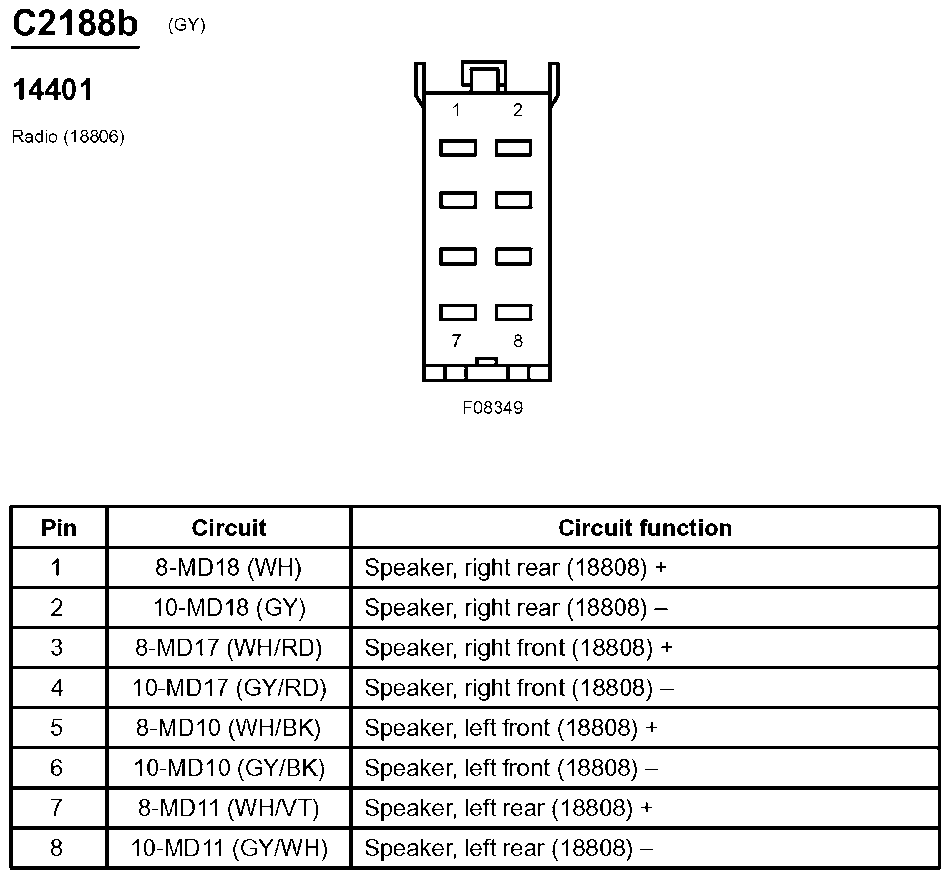

Fig 264: Radio Connector End View (C2188b)

G07834389

Courtesy of FORD MOTOR CO.

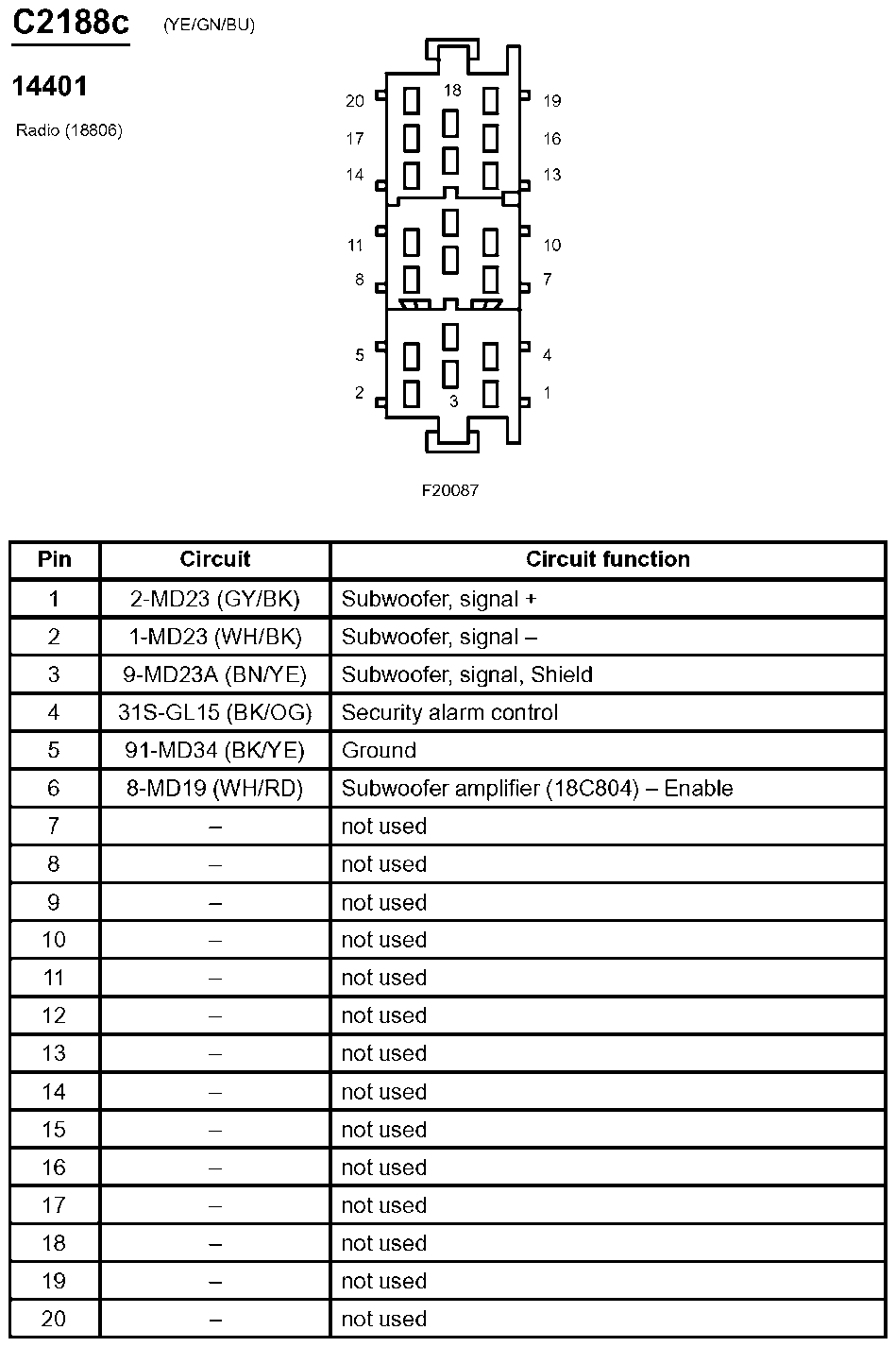

Fig 265: Radio Connector End View (C2188c)

G07834390

Courtesy of FORD MOTOR CO.

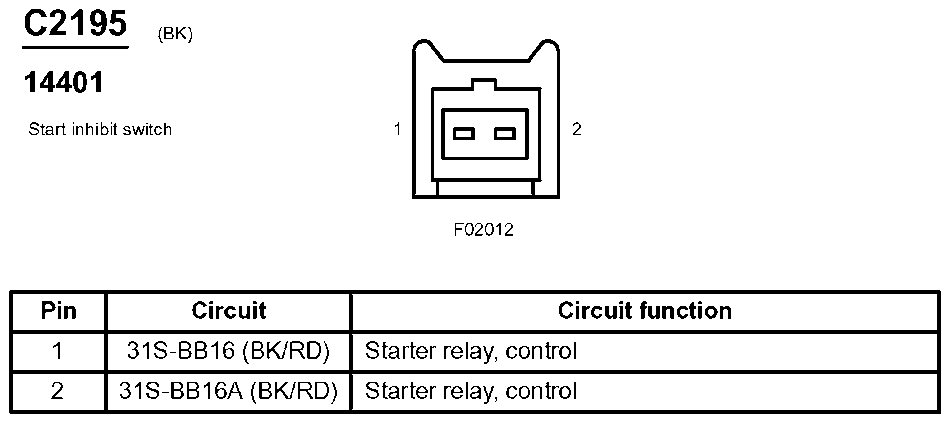

Fig 266: Start Inhibit Switch Connector End View (C2195)

G03776957

Courtesy of FORD MOTOR CO.

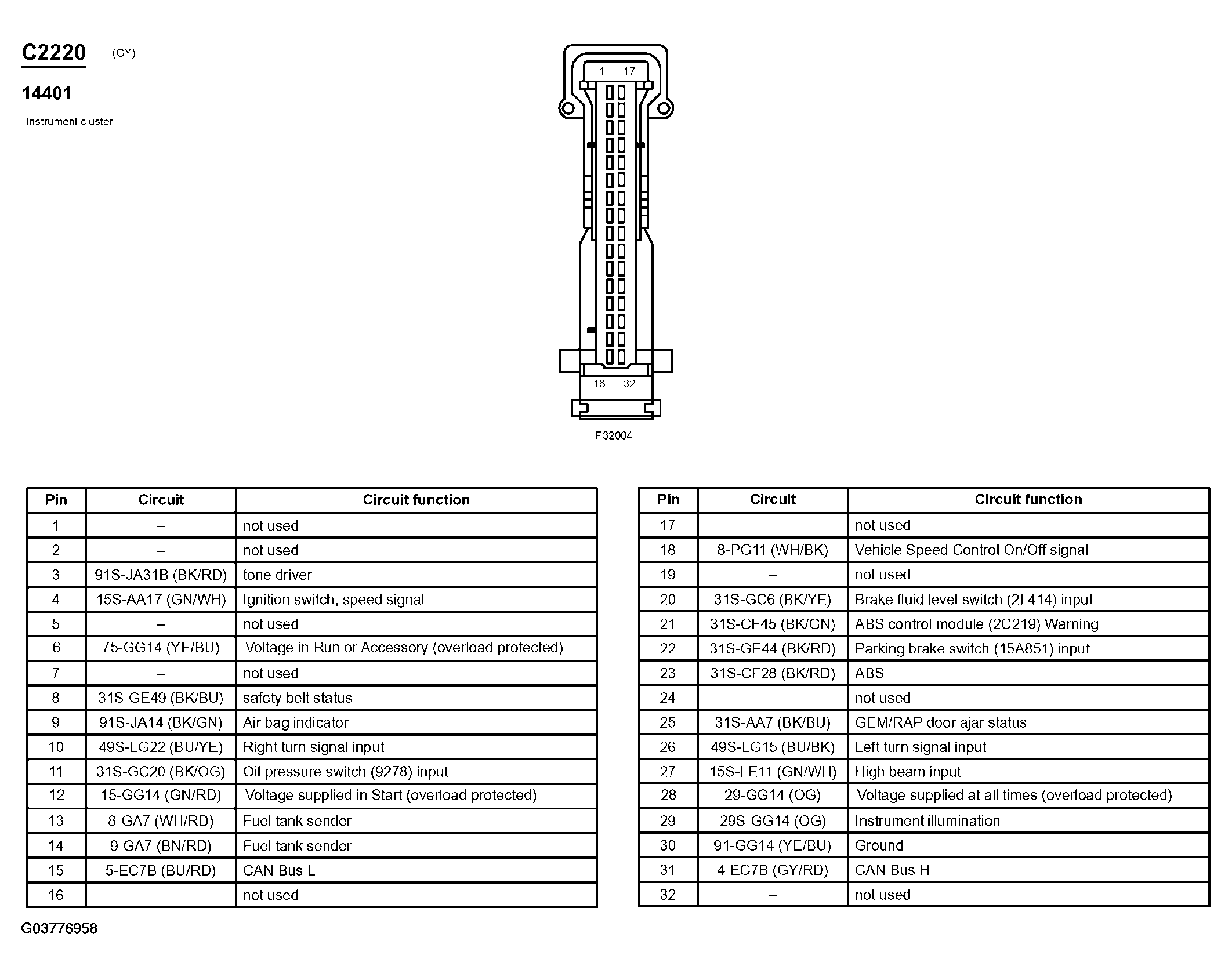

Fig 267: Instrument Cluster Connector End View (C2220)

G03776958

Courtesy of FORD MOTOR CO.

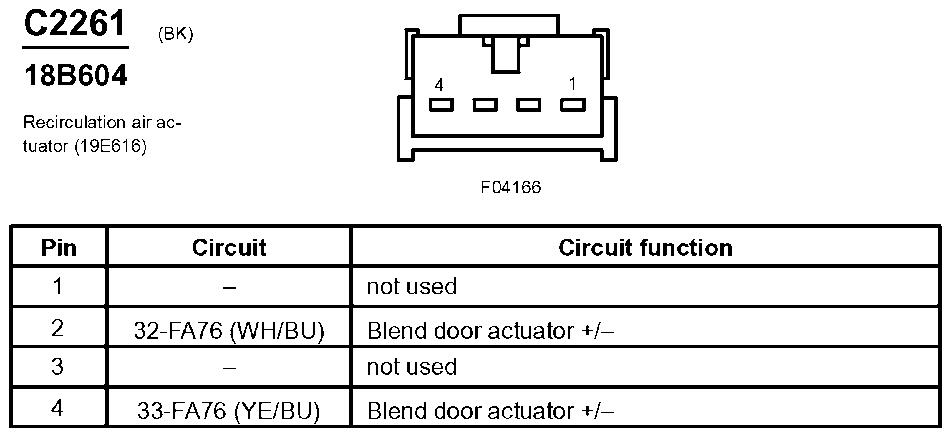

Fig 268: Recirculation Air Actuator Connector End View (C2261)

G07834391

Courtesy of FORD MOTOR CO.

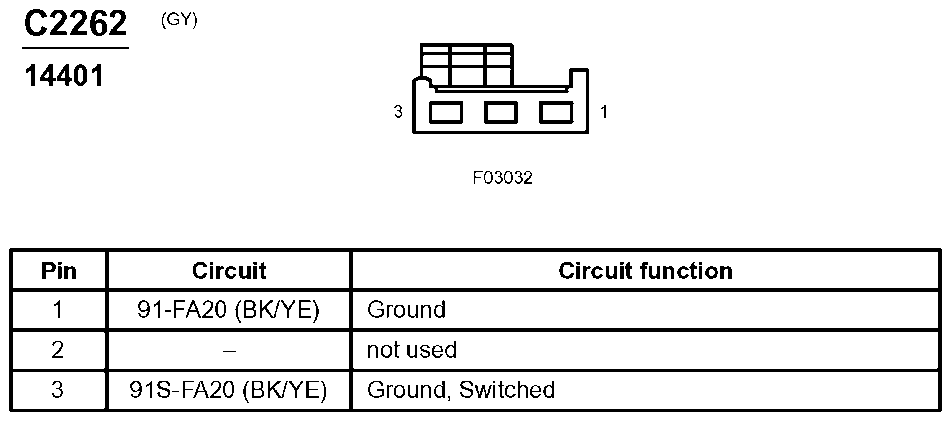

Fig 269: Inline Connector End View (C2262)

G07834392

Courtesy of FORD MOTOR CO.

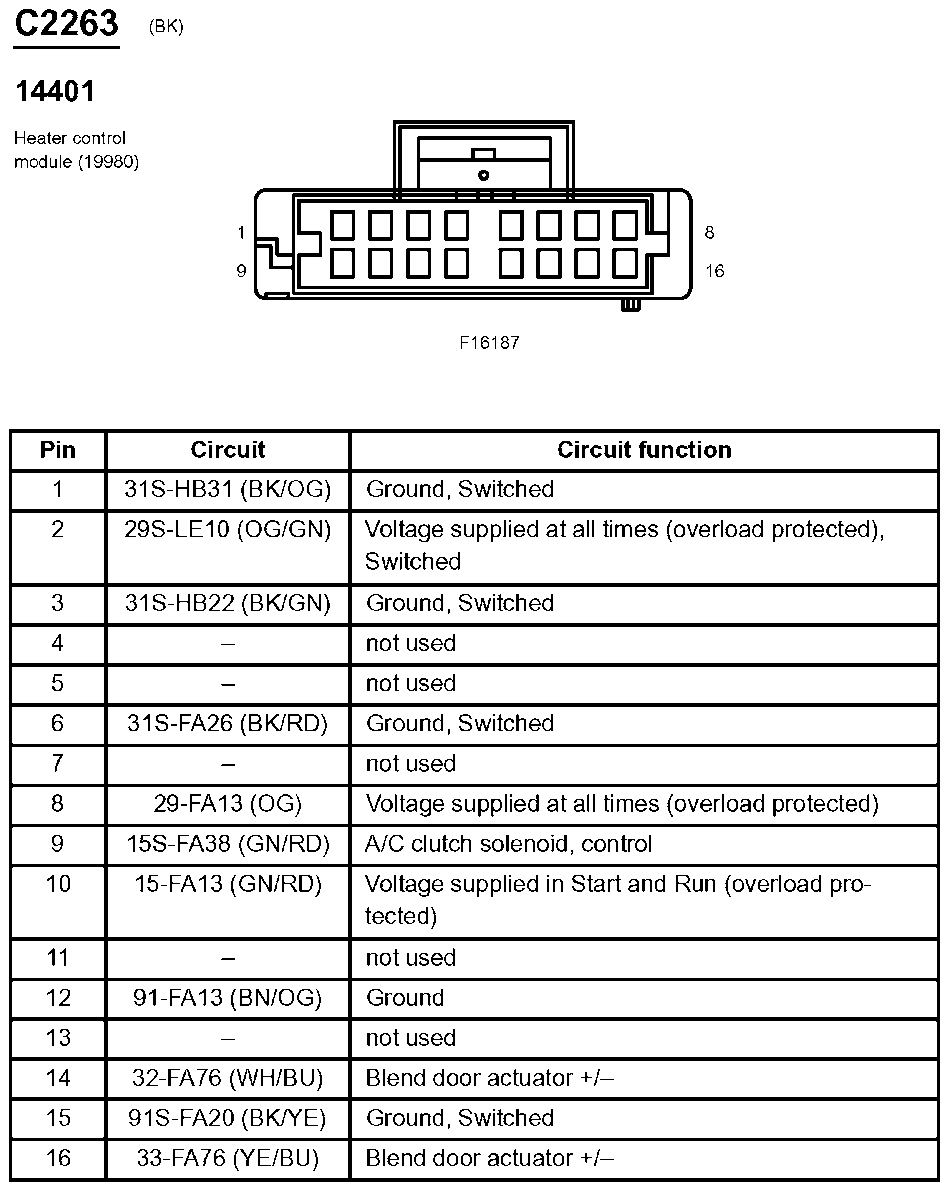

Fig 270: Heater Control Module Connector End View (C2263)

G07834393

Courtesy of FORD MOTOR CO.

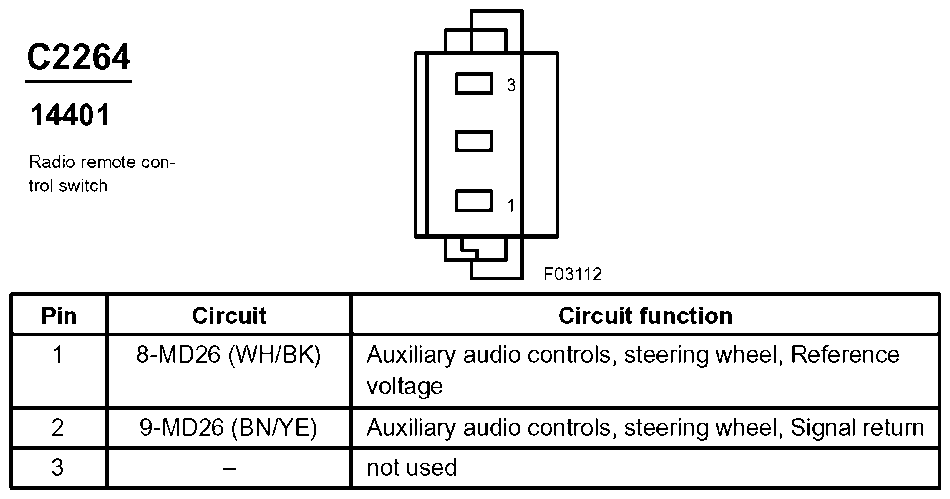

Fig 271: Radio Remote Control Switch Connector End View (C2264)

G07834394

Courtesy of FORD MOTOR CO.

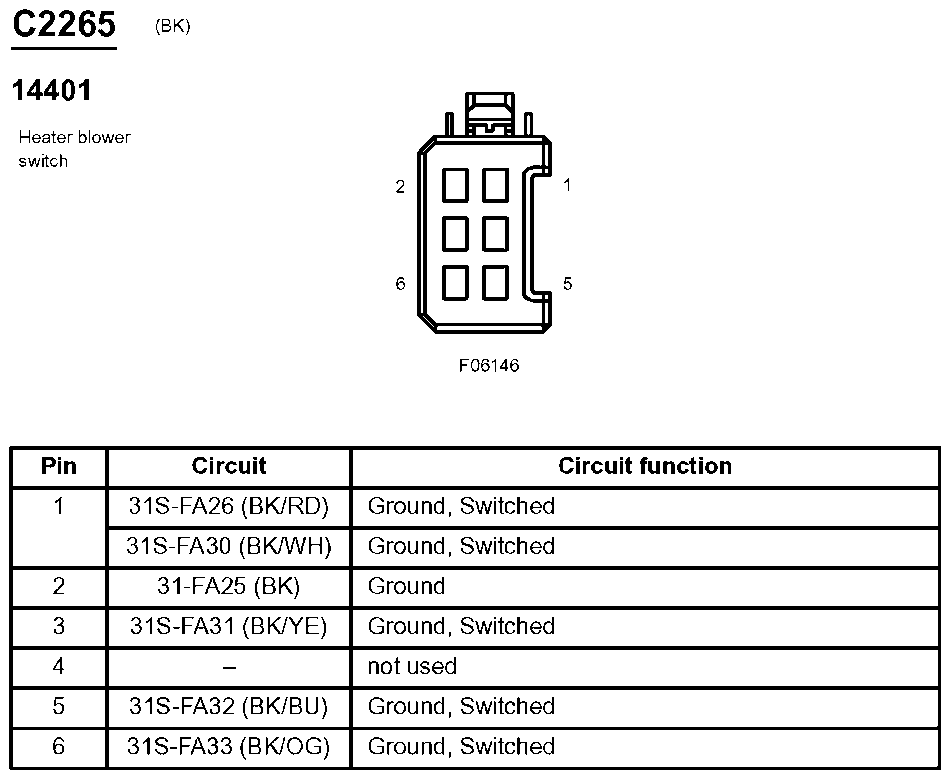

Fig 272: Heater Blower Switch Connector End View (C2265)

G07834395

Courtesy of FORD MOTOR CO.

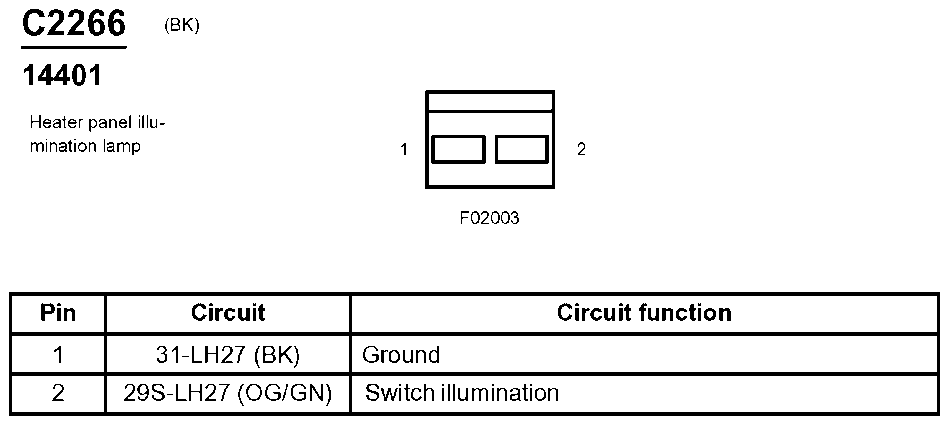

Fig 273: Heater Panel Illumination Lamp Connector End View (C2266)

G07834396

Courtesy of FORD MOTOR CO.

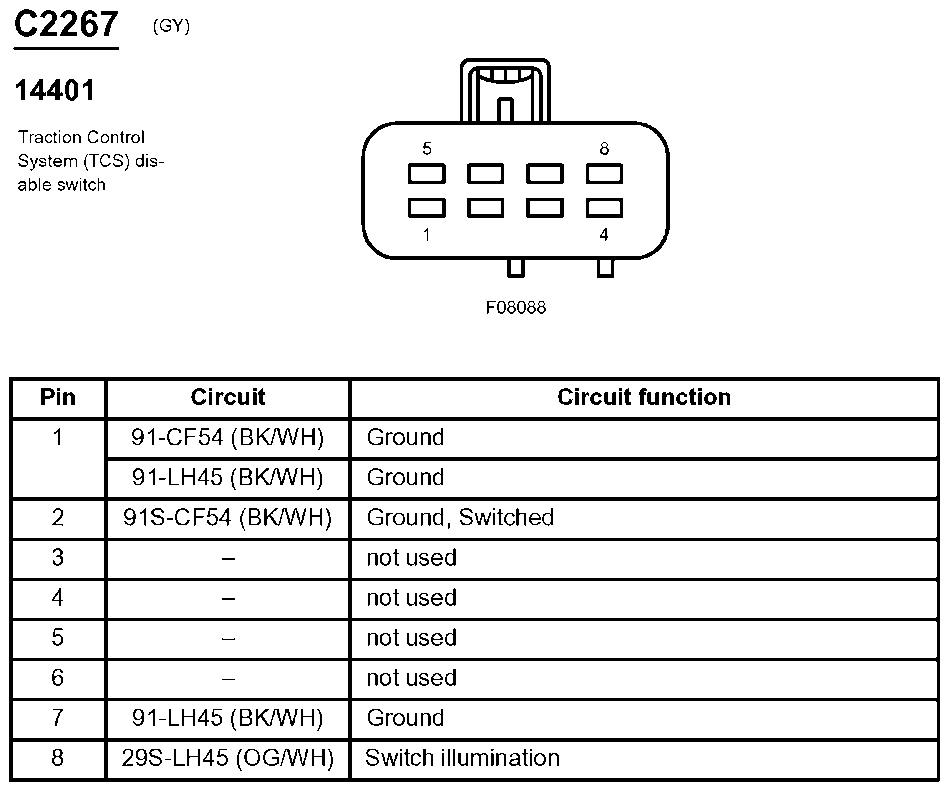

Fig 274: Traction Control System (TCS) Disable Switch Connector End View (C2267)

G07834397

Courtesy of FORD MOTOR CO.

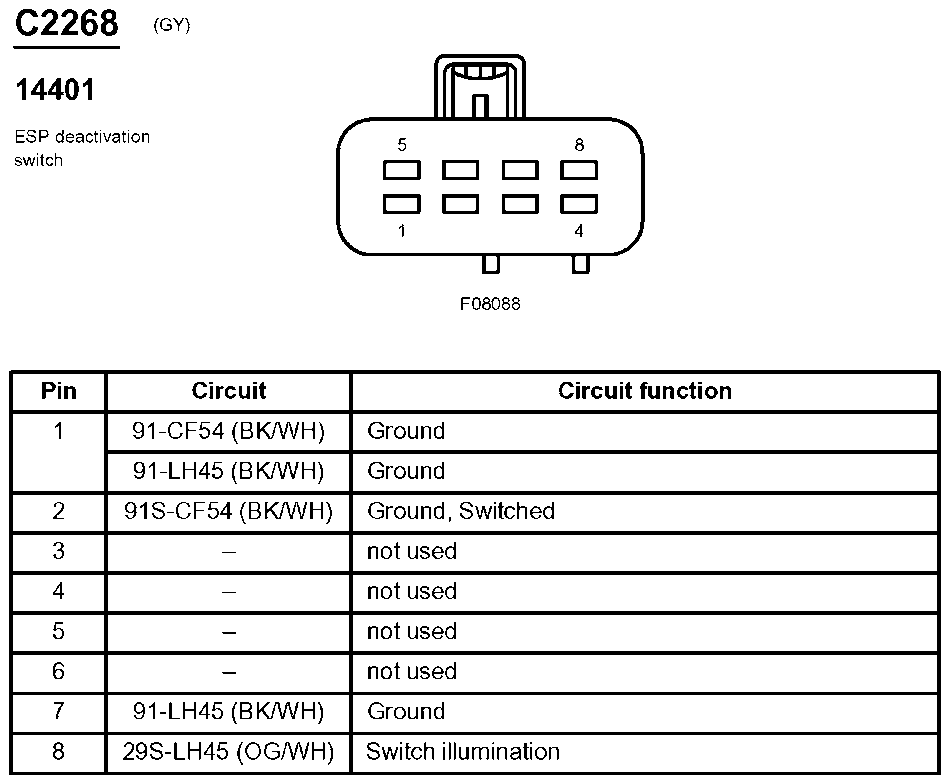

Fig 275: ESP Deactivation Switch Connector End View (C2268)

G07834398

Courtesy of FORD MOTOR CO.

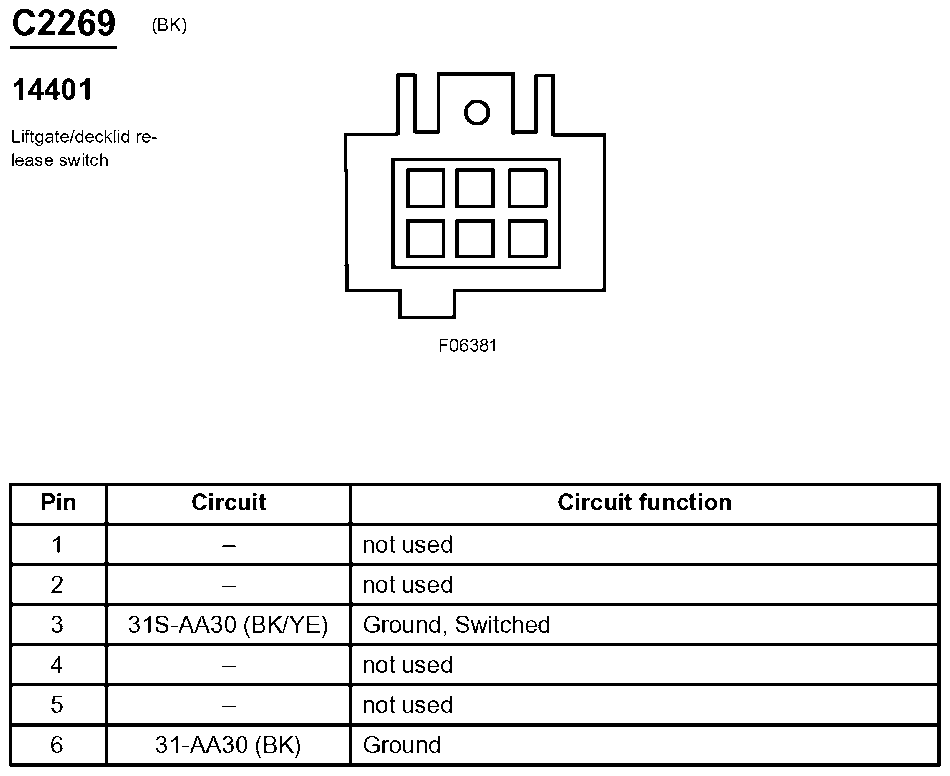

Fig 276: Liftgate/Decklid Release Switch Connector End View (C2269)

G07834399

Courtesy of FORD MOTOR CO.

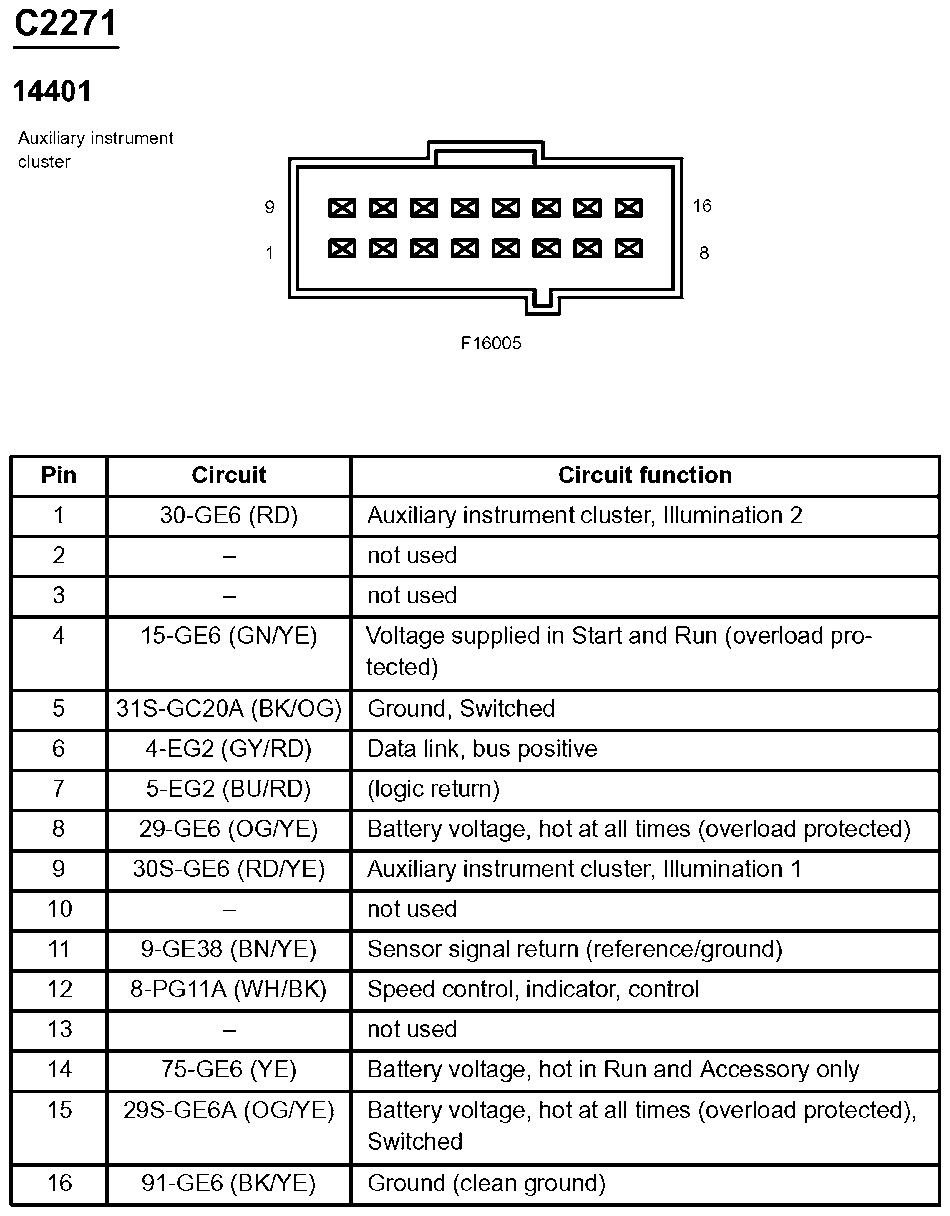

Fig 277: Auxiliary Instrument Cluster Connector End View (C2271)

G07834400

Courtesy of FORD MOTOR CO.

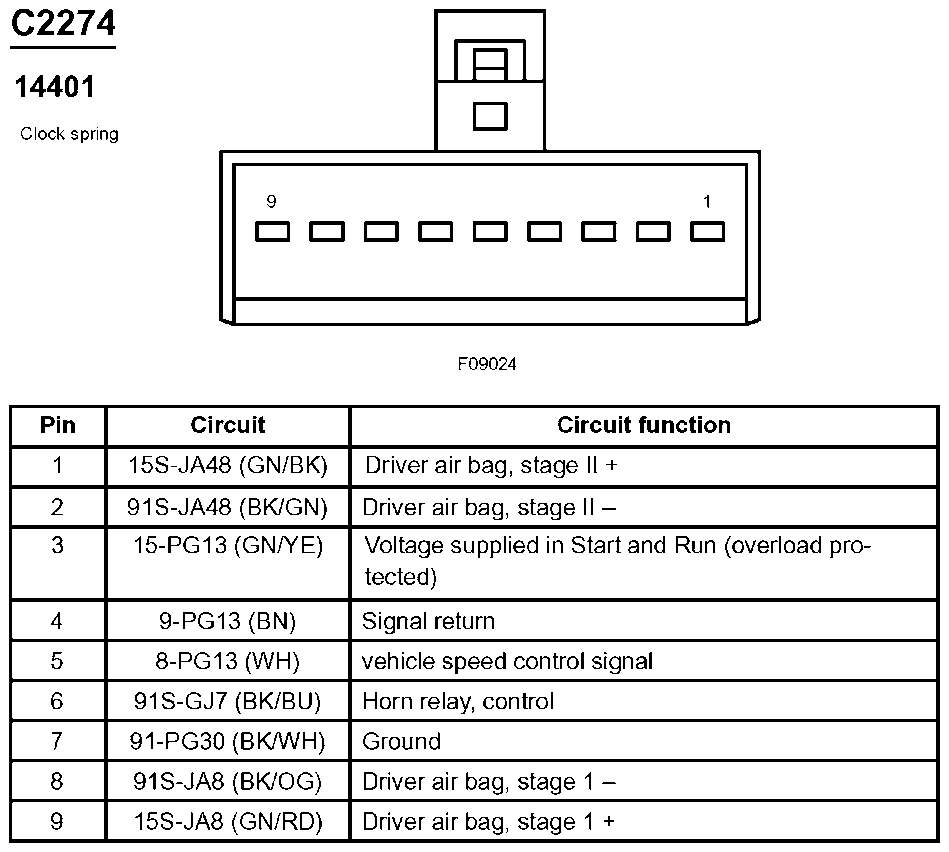

Fig 278: Clock Spring Connector End View (C2274)

G07834401

Courtesy of FORD MOTOR CO.

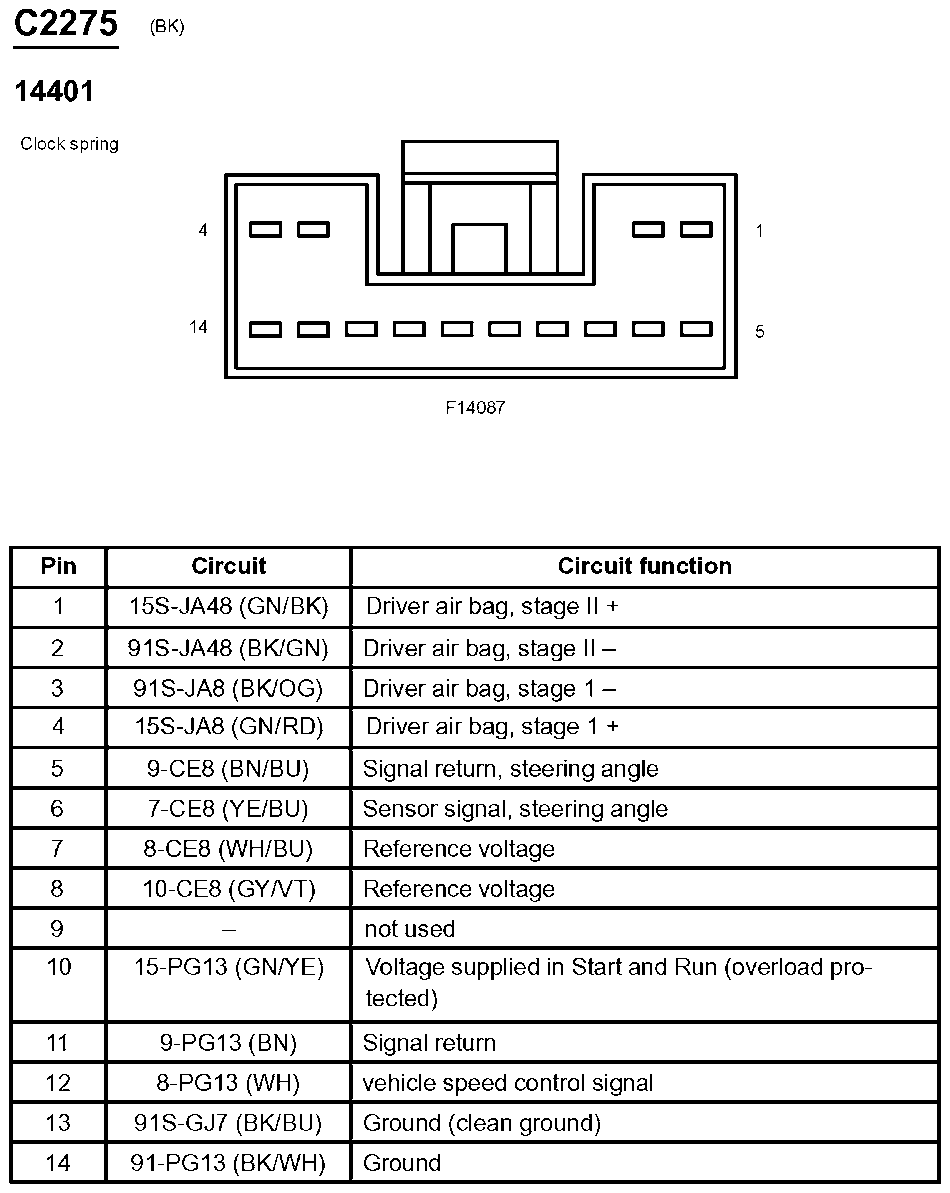

Fig 279: Clock Spring Connector End View (C2275)

G07834402

Courtesy of FORD MOTOR CO.

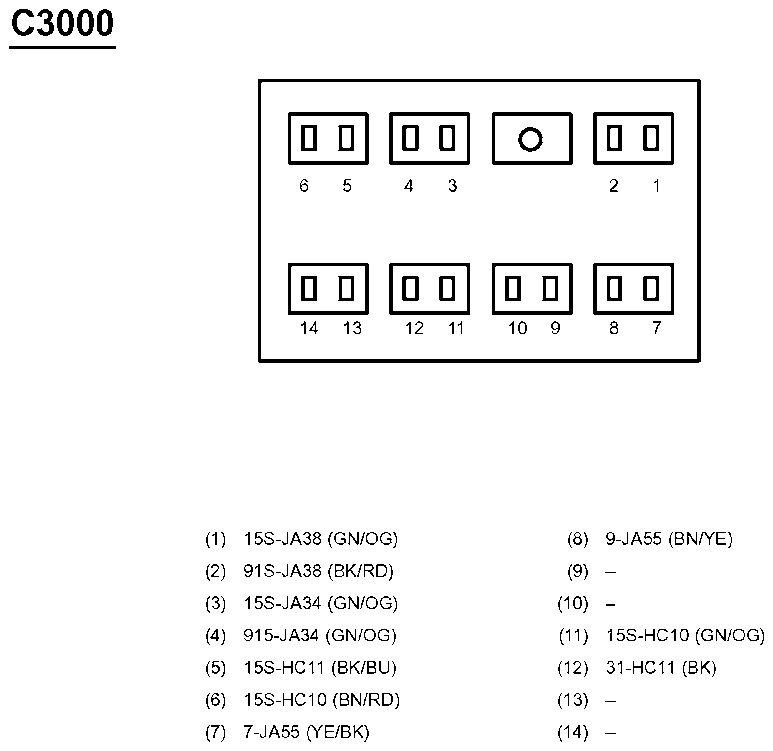

Fig 280: Inline Connector End View (C3000)

G07834403

Courtesy of FORD MOTOR CO.

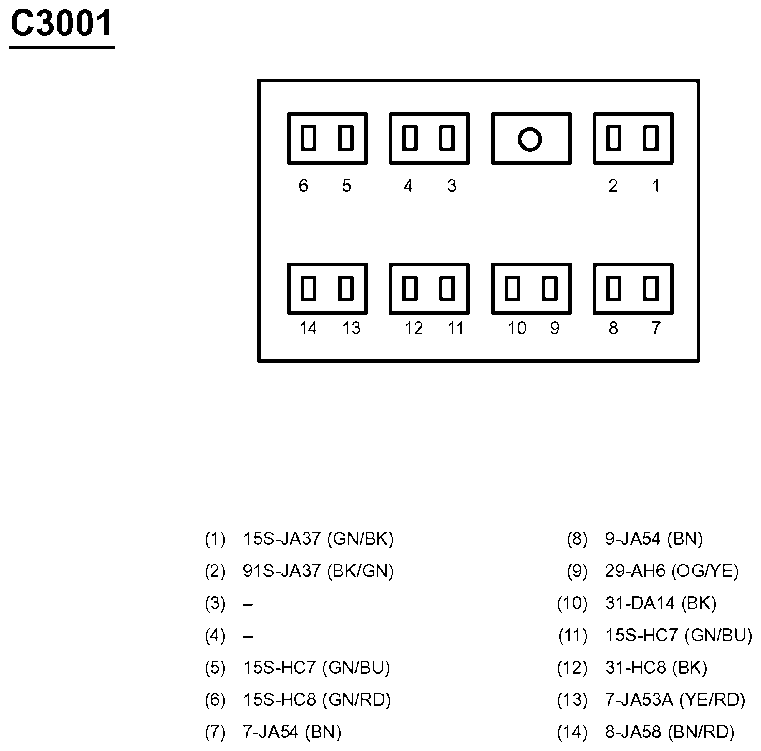

Fig 281: Inline Connector End View (C3001)

G07834404

Courtesy of FORD MOTOR CO.

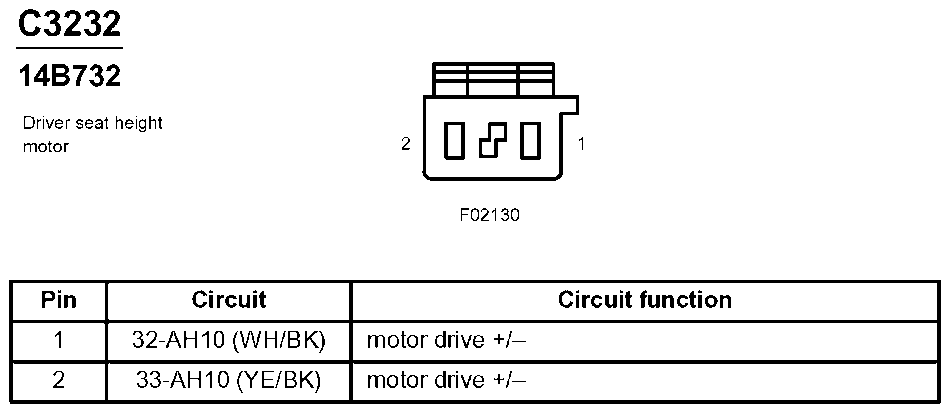

Fig 282: Driver Seat Height Motor Connector End View (C3232)

G07834405

Courtesy of FORD MOTOR CO.

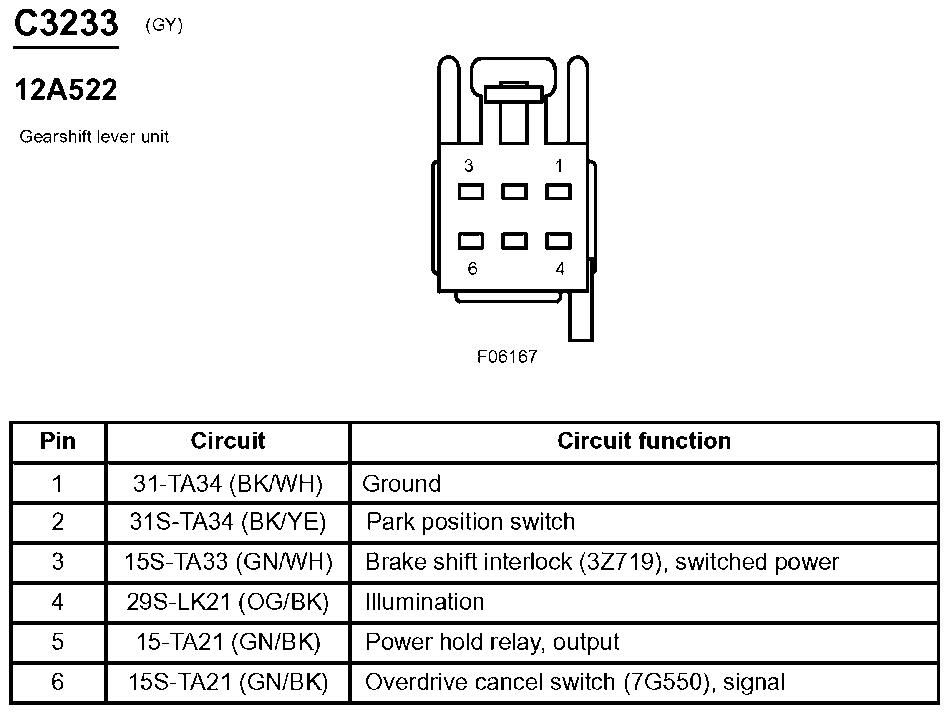

Fig 283: Gearshift Lever Unit Connector End View (C3233)

G07834406

Courtesy of FORD MOTOR CO.

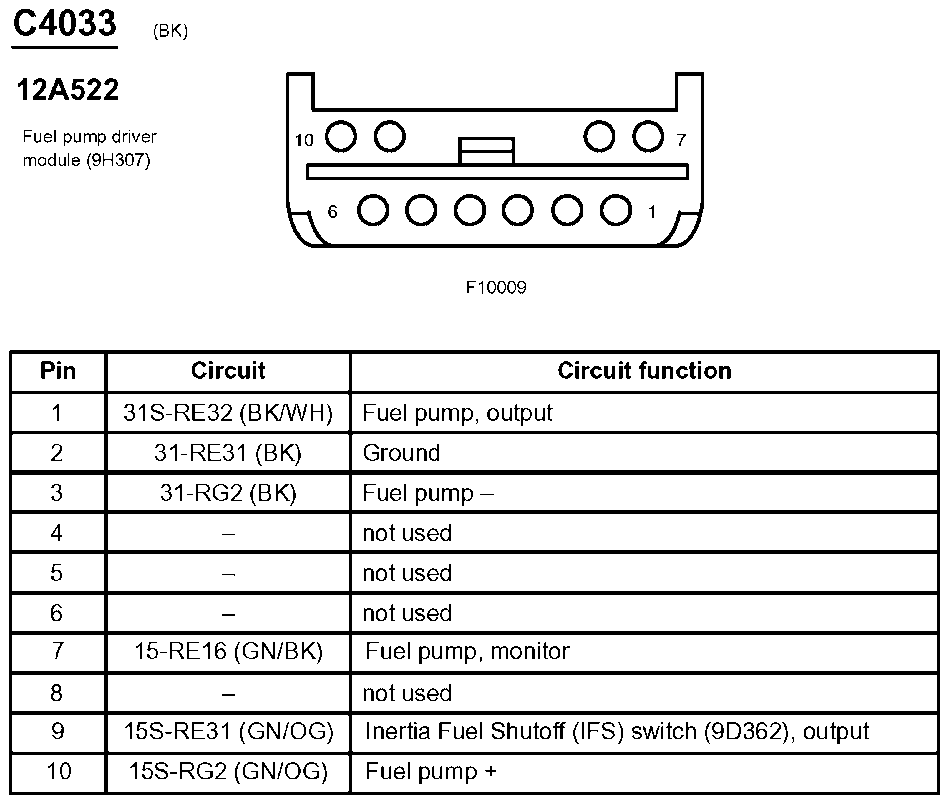

Fig 284: Fuel Pump Driver Module Connector End View (C4033)

G07834407

Courtesy of FORD MOTOR CO.

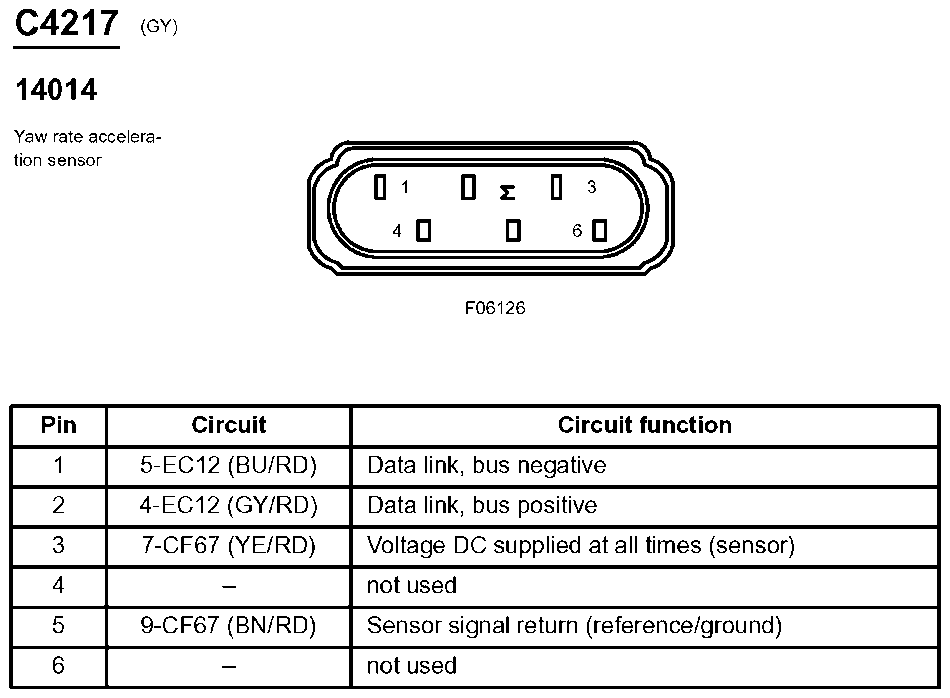

Fig 285: Yaw Rate Acceleration Sensor Connector End View (C4217)

G07834408

Courtesy of FORD MOTOR CO.

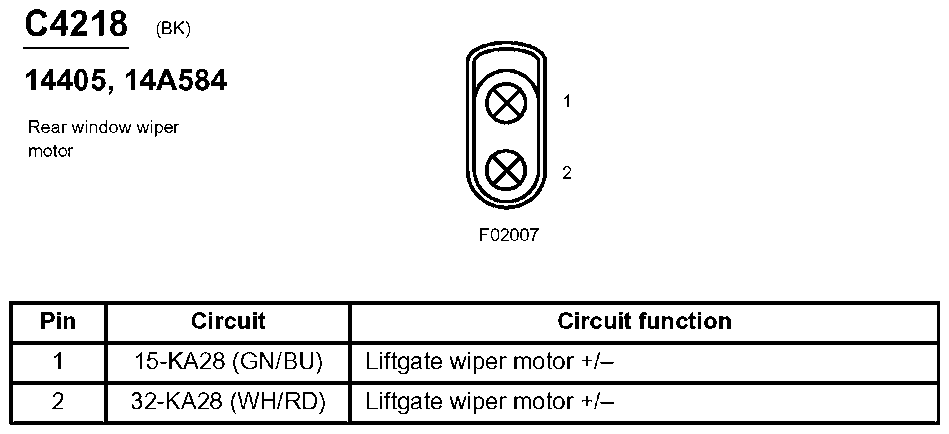

Fig 286: Rear Window Wiper Motor Connector End View (C4218)

G07834409

Courtesy of FORD MOTOR CO.

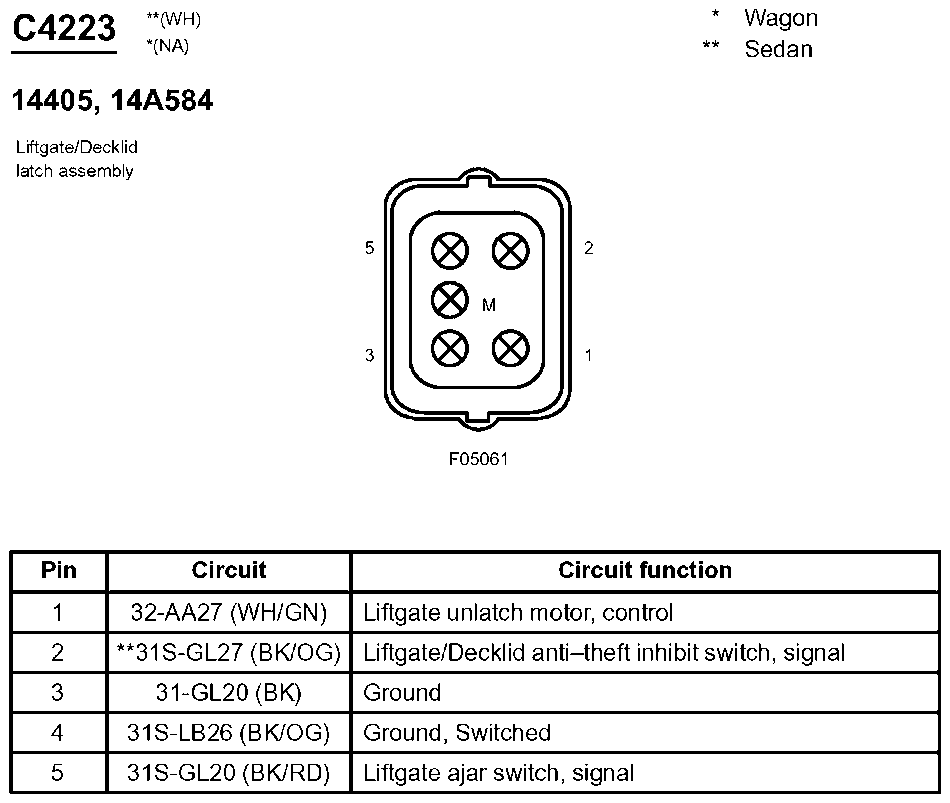

Fig 287: Liftgate/Decklid Latch Assembly Connector End View (C4223)

G07834410

Courtesy of FORD MOTOR CO.

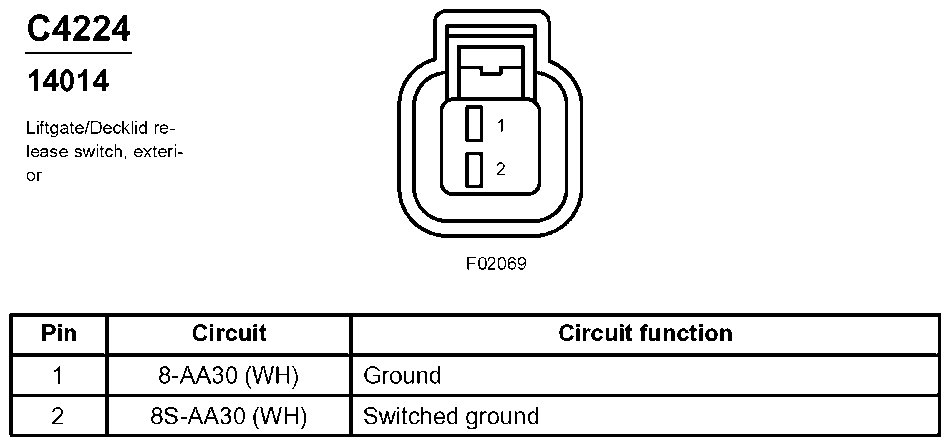

Fig 288: Liftgate/Decklid Release Switch, Exterior Connector End View (C4224)

G07834411

Courtesy of FORD MOTOR CO.

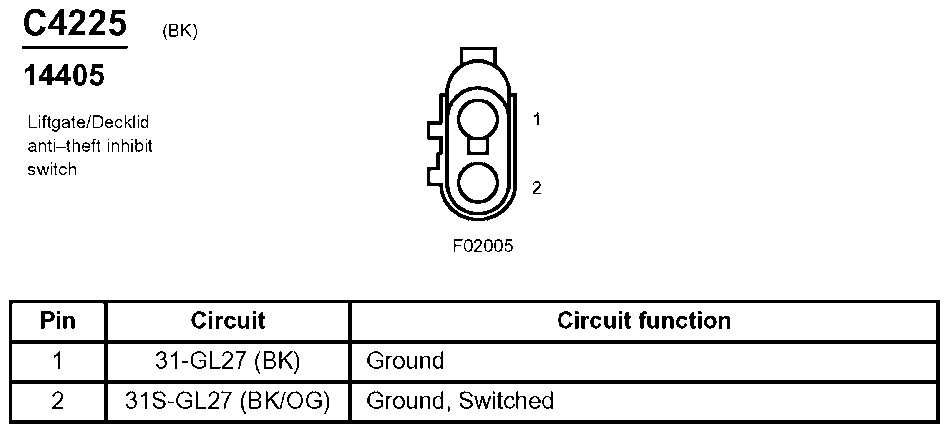

Fig 289: Liftgate/Decklid Anti-Theft Inhibit Switch Connector End View (C4225)

G07834412

Courtesy of FORD MOTOR CO.

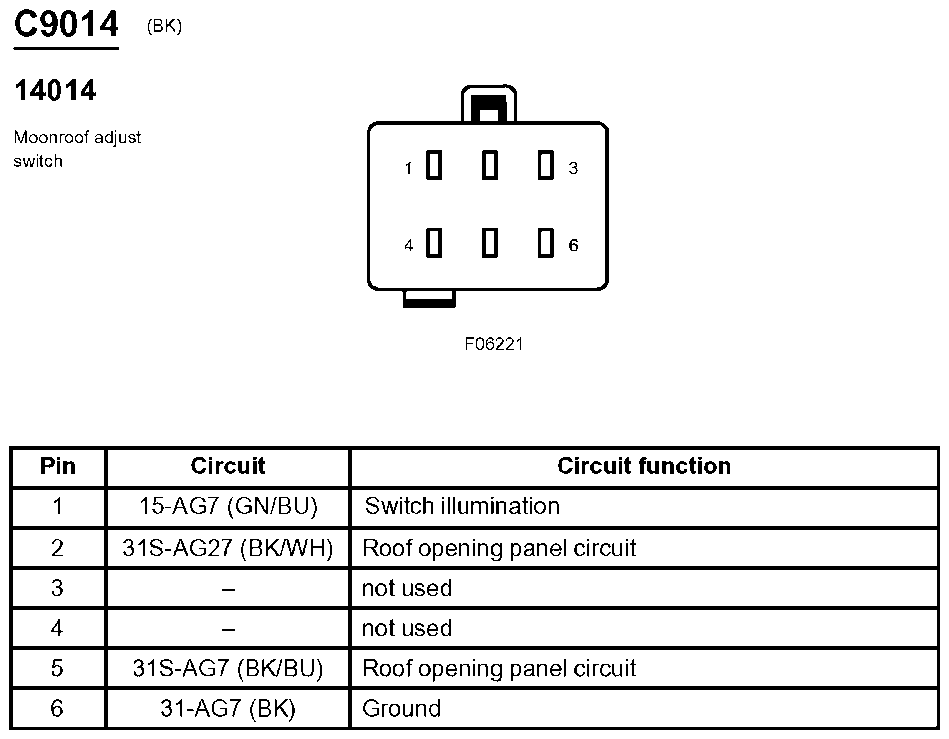

Fig 290: Moonroof Adjust Switch Connector End View (C9014)

G07834413

Courtesy of FORD MOTOR CO.

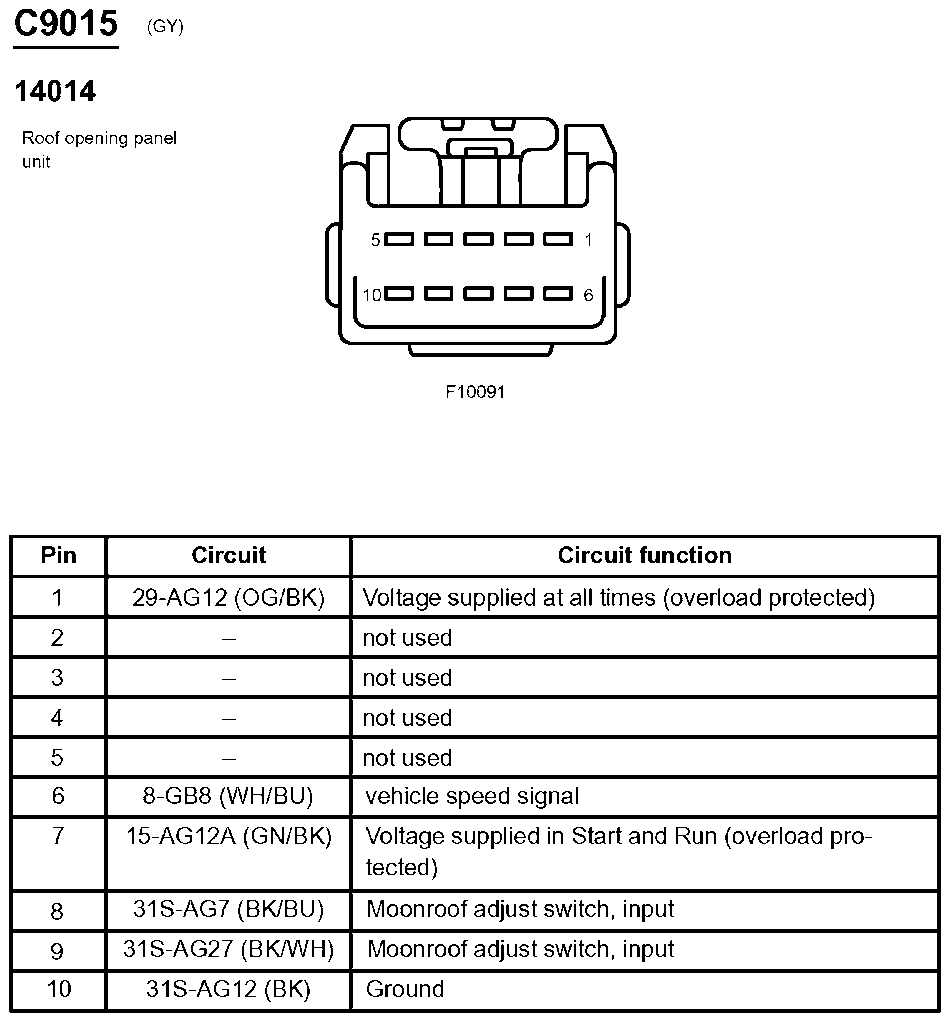

Fig 291: Roof Opening Panel Unit Connector End View (C9015)

G03776967

Courtesy of FORD MOTOR CO.
