Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|
| G100 | At left front of engine compartment. See Figure. |
| G101 | At left front of engine compartment. See Figure. |
| G102 | At right front of engine compartment. See Figure. |

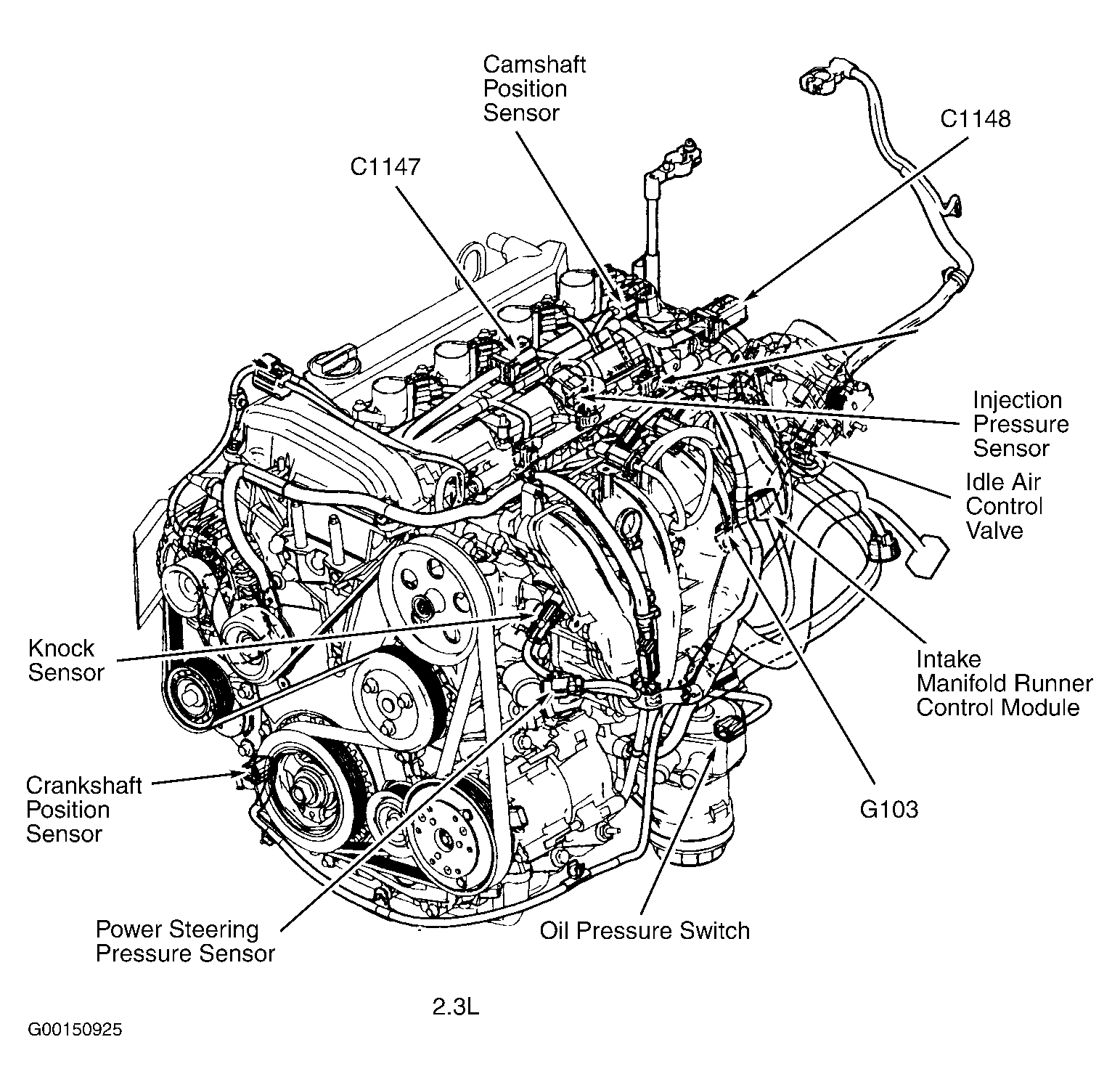

| G103 (2.3L) | At left side of engine compartment. See Figure. |
| G104 | On cylinder head. |
| G200 | At left "A" pillar. |
| G201 | At left "A" pillar. |
| G202 | At right "A" pillar. |
| G203 | At right "A" pillar. |
| G204 | At left "A" pillar. |
| G205 | Behind center of dash. |
| G300 | At right "A" pillar. |
| G301 | Under right rear seat. |
| G400 | In tailgate. |
| G401 (4 Door) | At right side of luggage compartment. |
| G401 (Wagon) | At right "D" pillar. |
| G402 (Except Wagon) | At left side of luggage compartment. |
| G402 (Wagon) | At left "D" pillar. |
