Symptom Chart

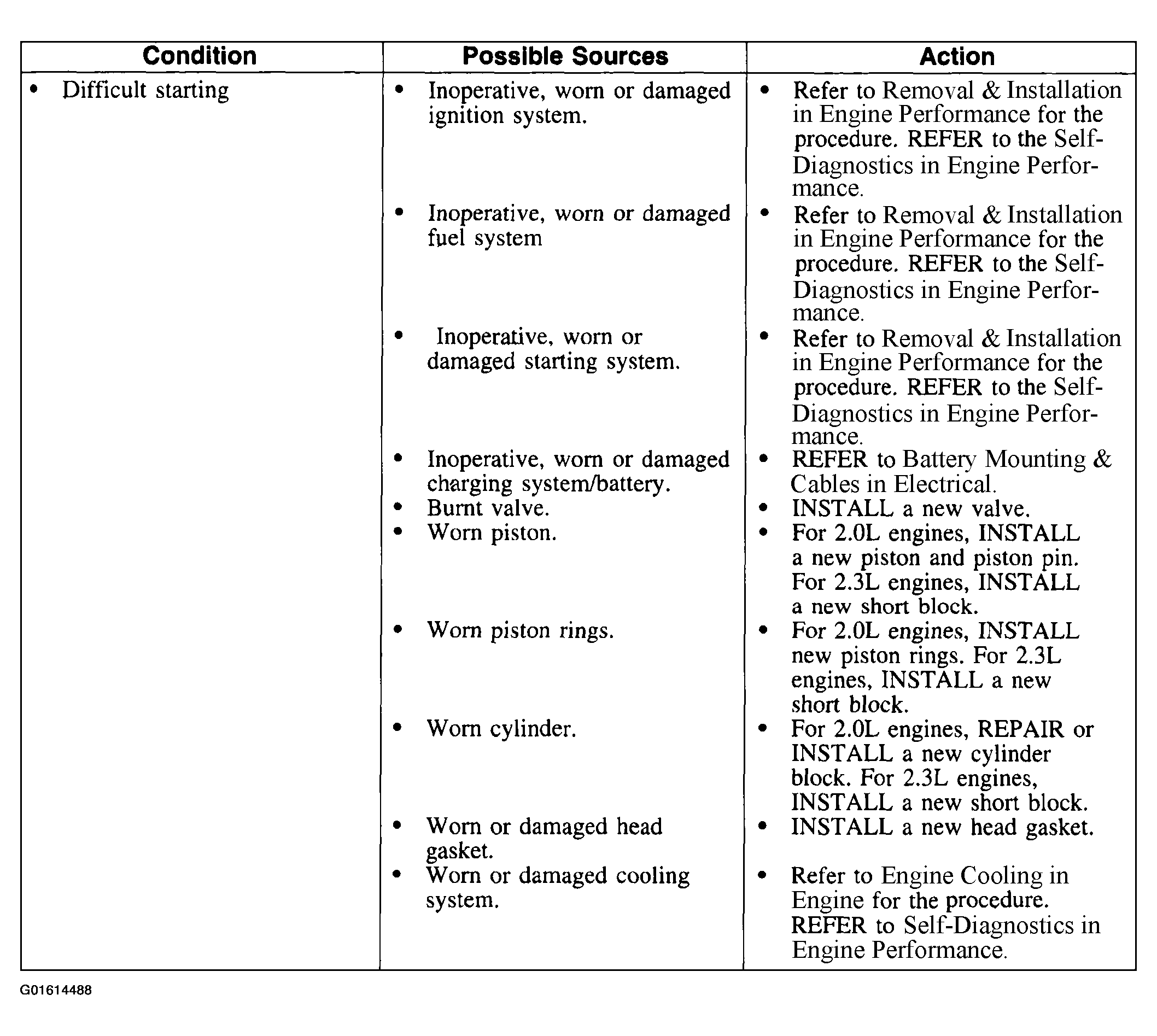

Fig 1: Engine Trouble Symptom Chart (1 Of 6)
G01614488Courtesy of FORD MOTOR CO.

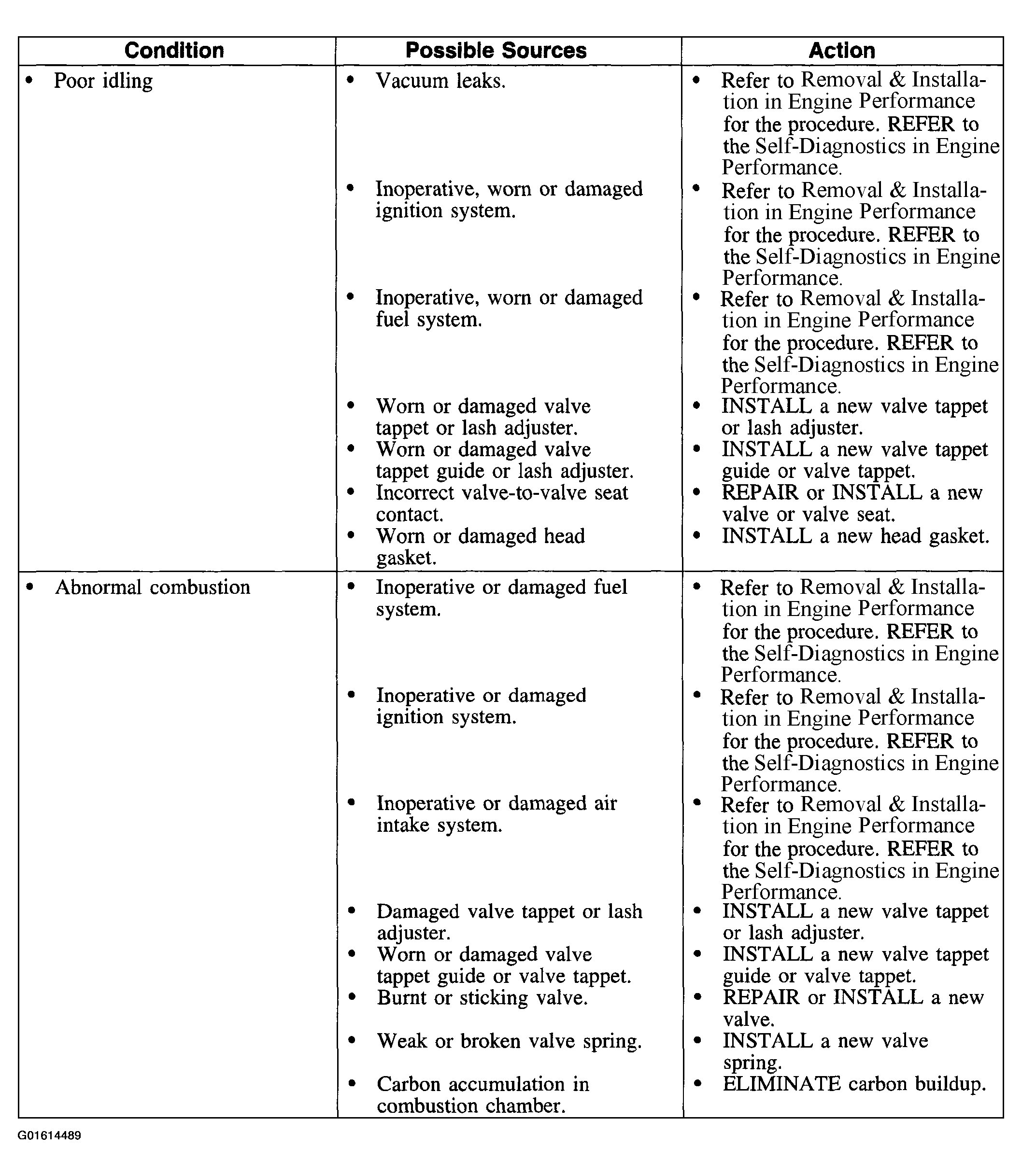

Fig 2: Engine Trouble Symptom Chart (2 Of 6)
G01614489Courtesy of FORD MOTOR CO.

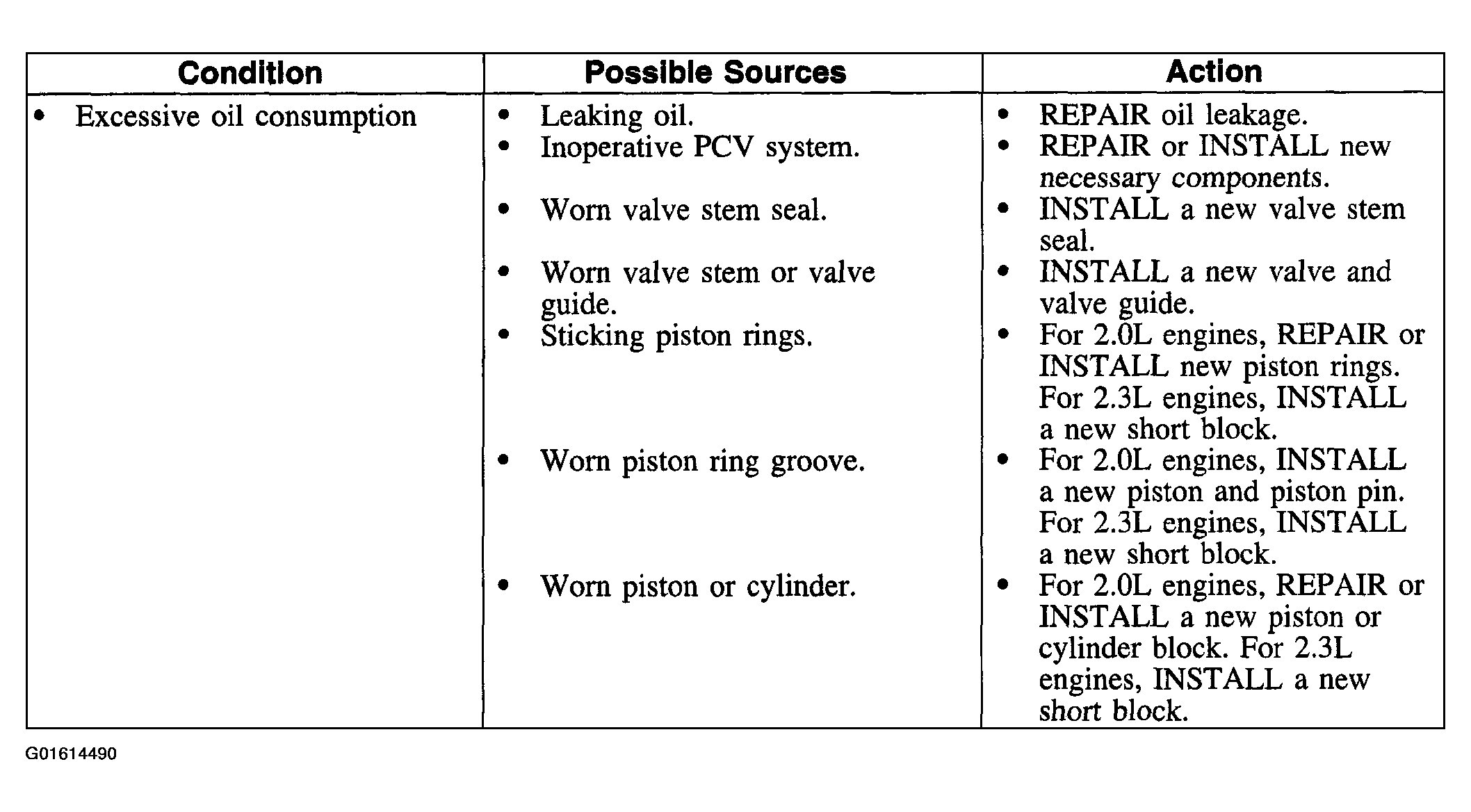

Fig 3: Engine Trouble Symptom Chart (3 Of 6)
G01614490Courtesy of FORD MOTOR CO.

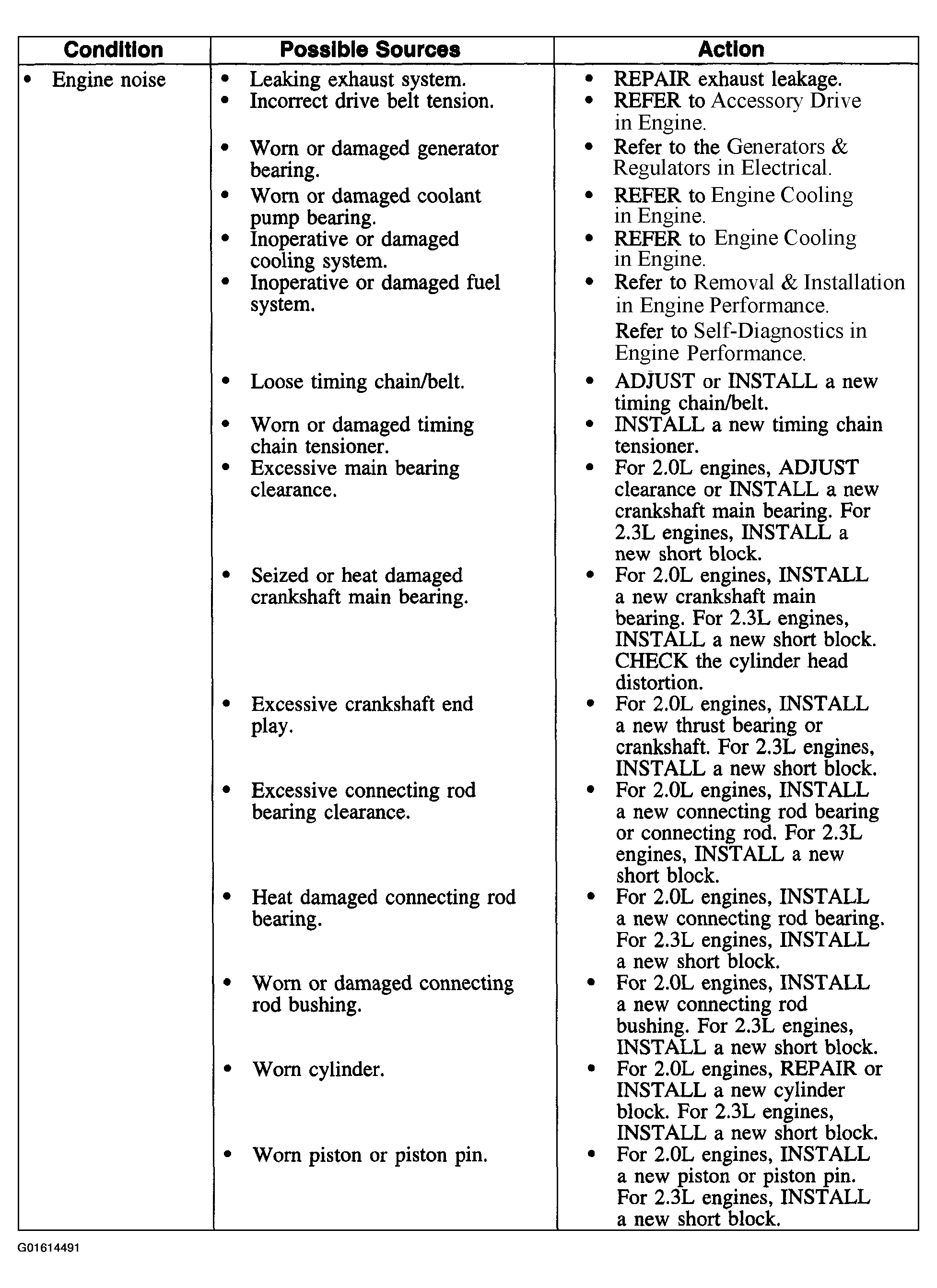

Fig 4: Engine Trouble Symptom Chart (4 Of 6)
G01614491Courtesy of FORD MOTOR CO.

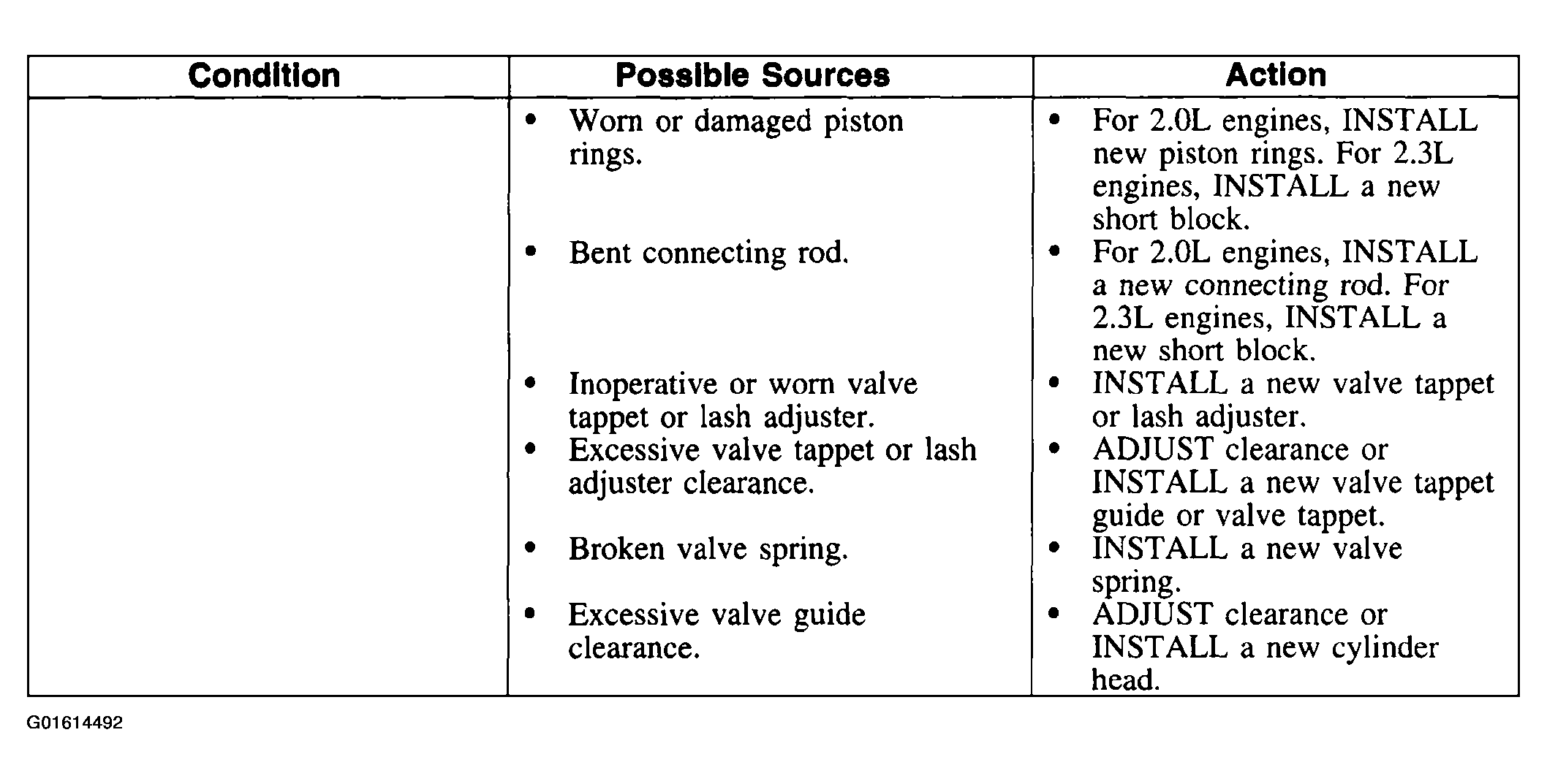

Fig 5: Engine Trouble Symptom Chart (5 Of 6)
G01614492Courtesy of FORD MOTOR CO.

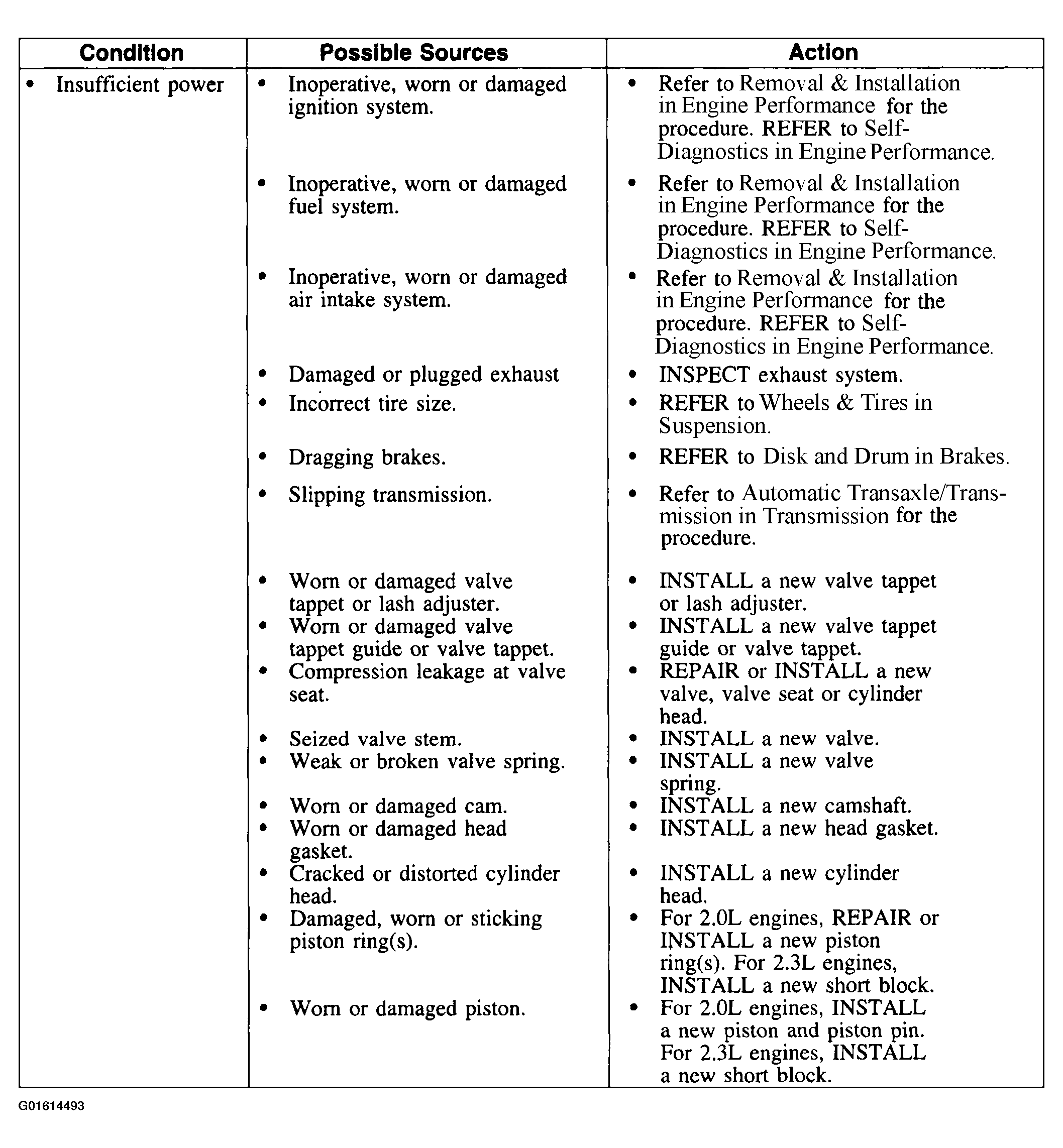

Fig 6: Engine Trouble Symptom Chart (6 Of 6)
G01614493Courtesy of FORD MOTOR CO.
