Valve Seat Inspection

  1. Measure the width of the valve seat.
    • Measure the valve seat width using the Valve seat width scale.
    • If the value is not to specification rework the valve seat.

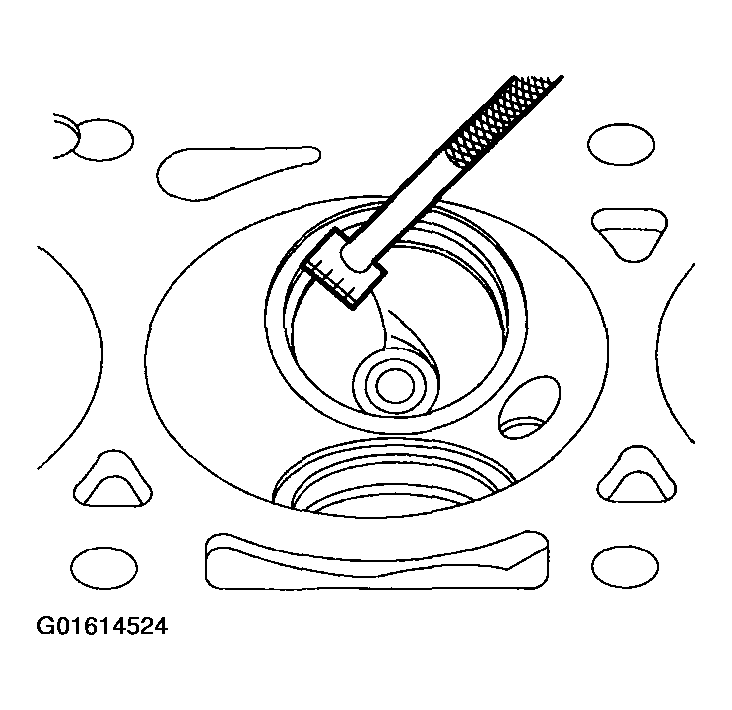

      Fig 1: Measuring Width Of Valve Seat
      G01614524Courtesy of FORD MOTOR CO.
