Exhaust Manifold: Removal

Remove the oil level indicator and tube.

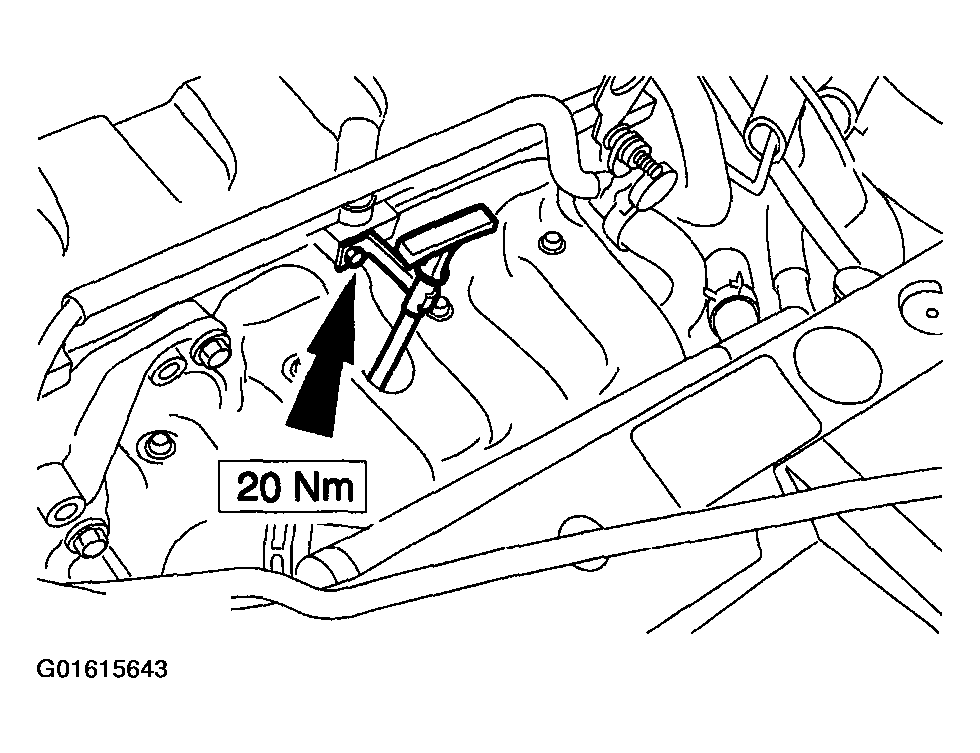

Fig 1: Removing Oil Level Indicator And Tube
Courtesy of FORD MOTOR CO.
Remove the radiator fan and shroud. For additional information, refer to ENGINE COOLING .
Remove the exhaust manifold heat shield lower retaining bolts.

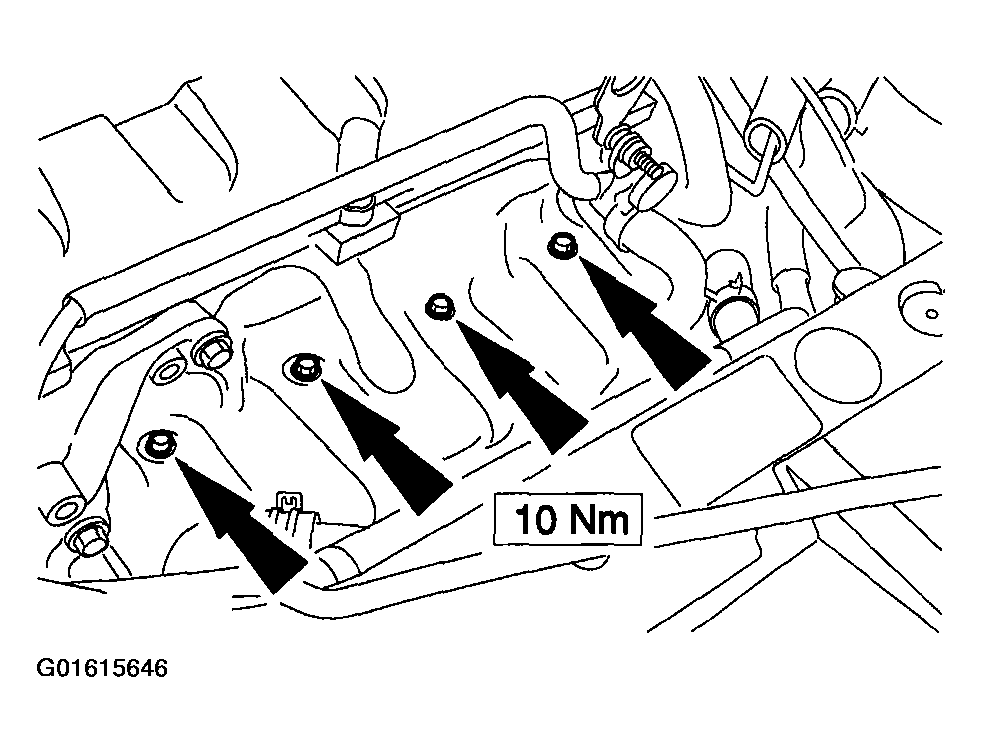

Fig 2: Removing Exhaust Manifold Heat Shield Lower Retaining Bolts
Courtesy of FORD MOTOR CO.
Detach the exhaust manifold from the catalytic converter.

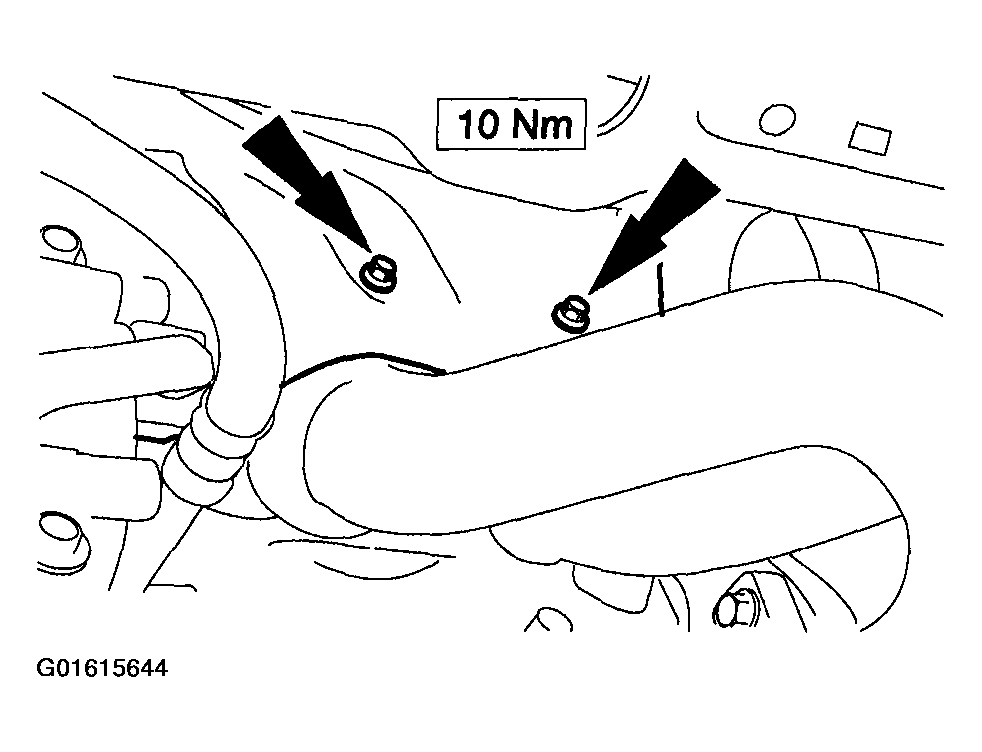

Fig 3: Detaching Exhaust Manifold From Catalytic Converter
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Remove the exhaust manifold heat shield.

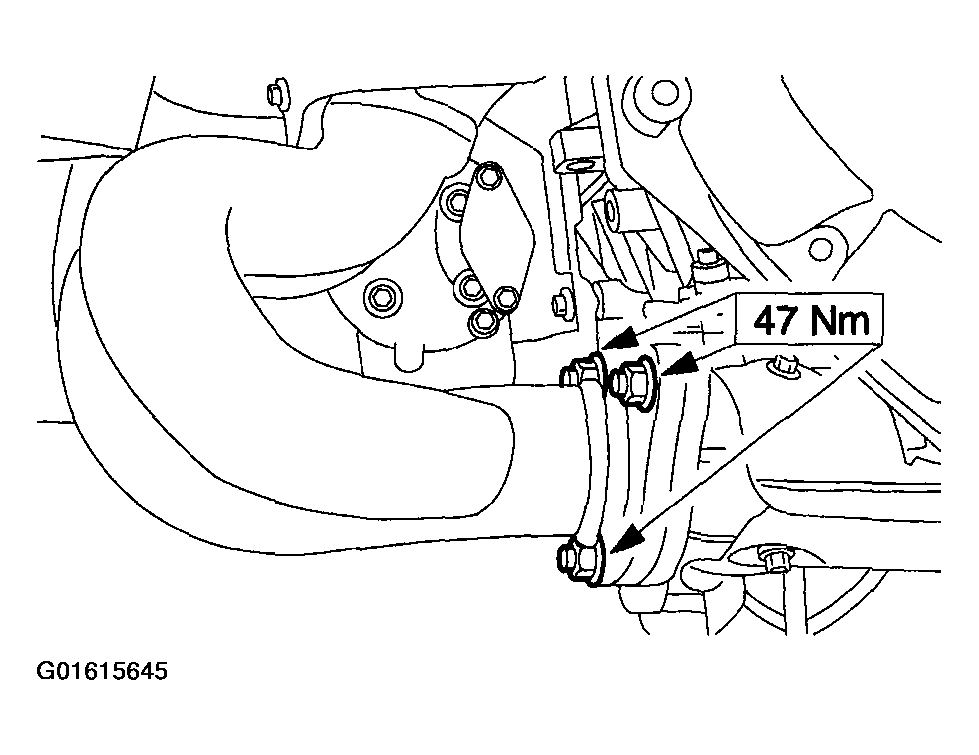

Fig 4: Removing Exhaust Manifold Heat Shield
Courtesy of FORD MOTOR CO.
Remove the exhaust manifold.
- Remove the exhaust manifold downwards.
- Discard the gaskets.

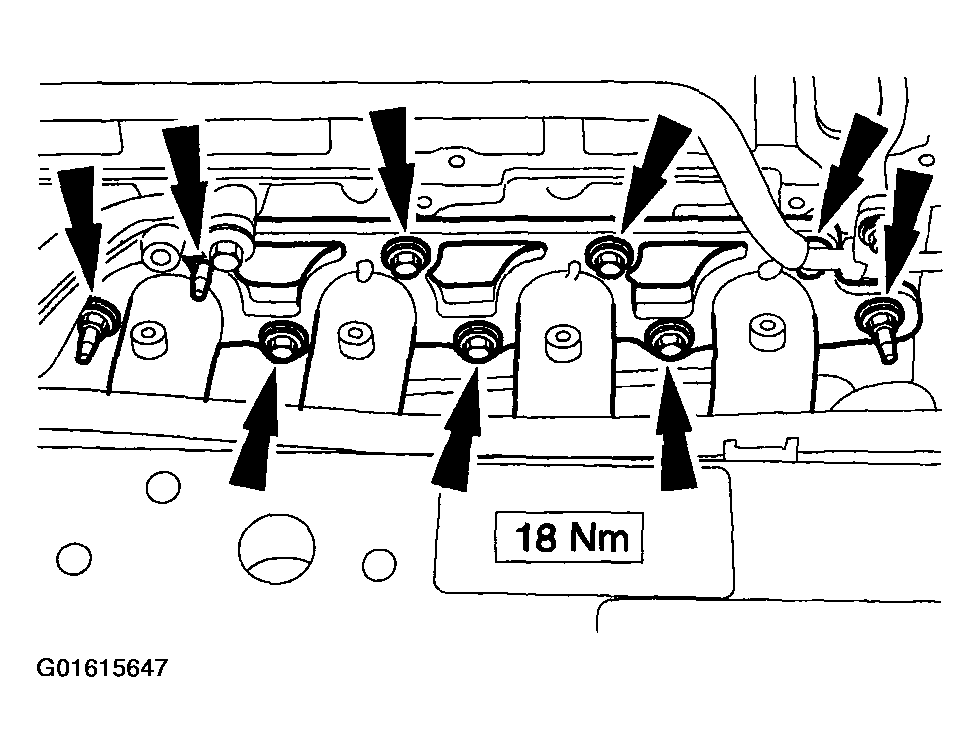

  Fig 5: Removing Exhaust Manifold
  Courtesy of FORD MOTOR CO.
