In-Vehicle Repair: Valves: Removal

    NOTE: Lay the cylinder head down on a clean support on the workbench.
  1. Remove the cylinder head.
    2. NOTE: Insert wooden wedges in the combustion chamber recesses in the cylinder head so that the valves are held in place for removal.
  2. Remove the valve.
    1. Compress the valve spring.
    2. Remove the valve collets.

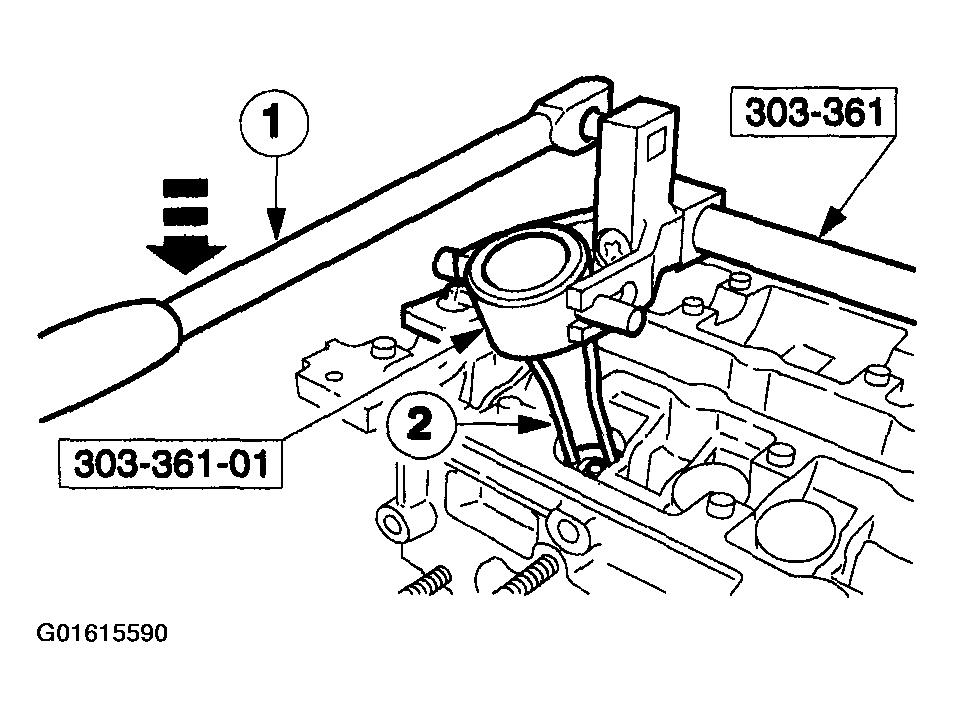

      Fig 1: Removing Valve
      G01615590Courtesy of FORD MOTOR CO.
    3. NOTE: Keep all parts in order.
  3. Remove the valve springs.
  4. Remove the valve stem oil seal.
    1. Insert the special tool.
    2. Turn the special tool clockwise and pull it out.

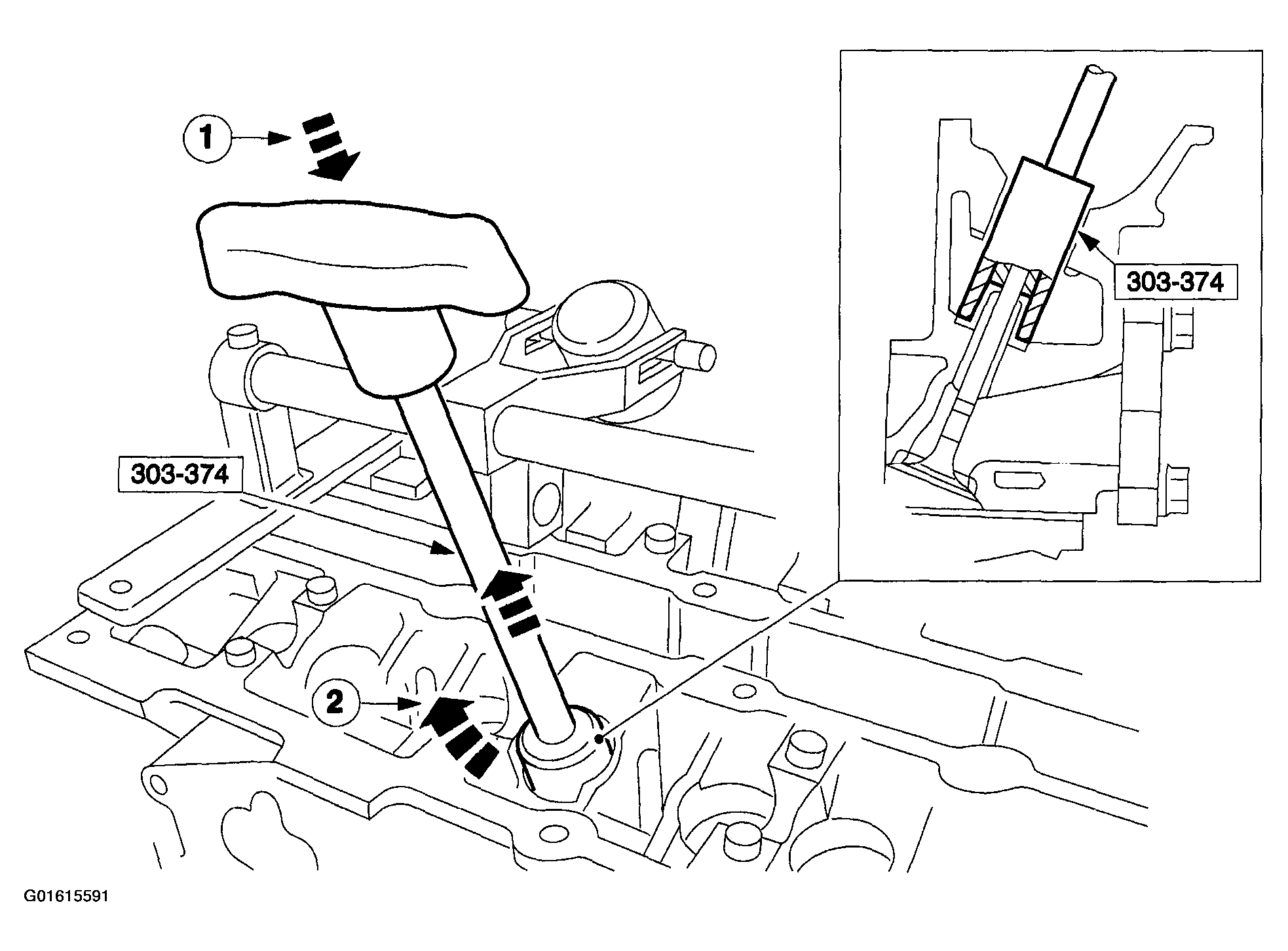

      Fig 2: Removing Valve Stem Oil Seal
      G01615591Courtesy of FORD MOTOR CO.
  5. Repeat the removal steps for the remaining valves.
