Cylinder Head

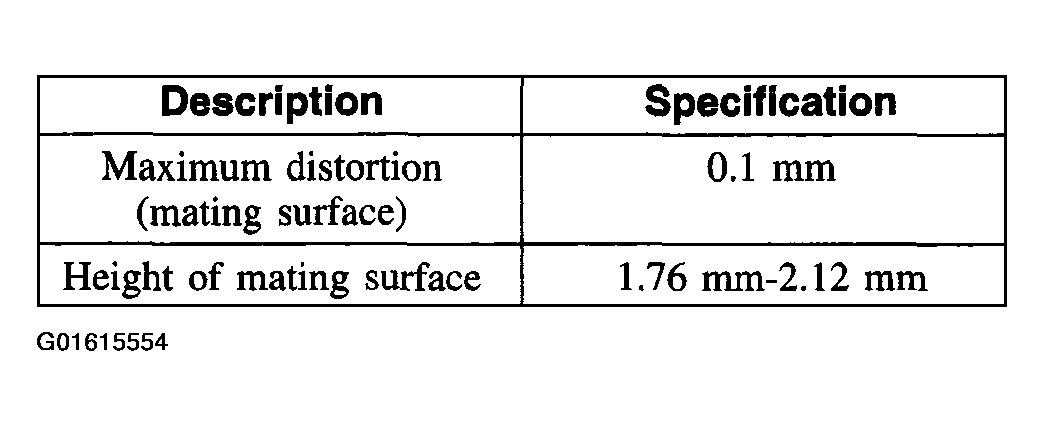

Fig 1: Cylinder Head Specifications Chart (1 Of 2)
G01615554Courtesy of FORD MOTOR CO.

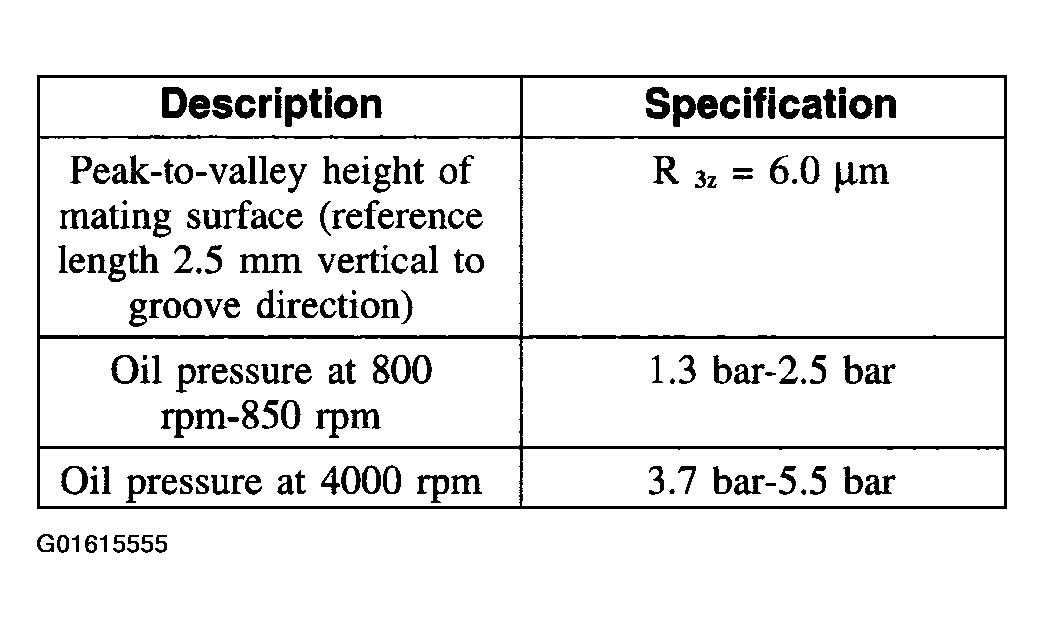

Fig 2: Cylinder Head Specifications Chart (2 Of 2)
G01615555Courtesy of FORD MOTOR CO.
