Front Safety Belt Retractor: Installation

CAUTION: Make sure the spacer is correctly located between the floor covering and inner sill.

CAUTION: Make sure the pin on the B-pillar trim is located correctly into the height adjuster.

CAUTION: Make sure that the rear end of the anchor rail, on 3-door vehicles, is correctly located before tightening the Torx bolt.

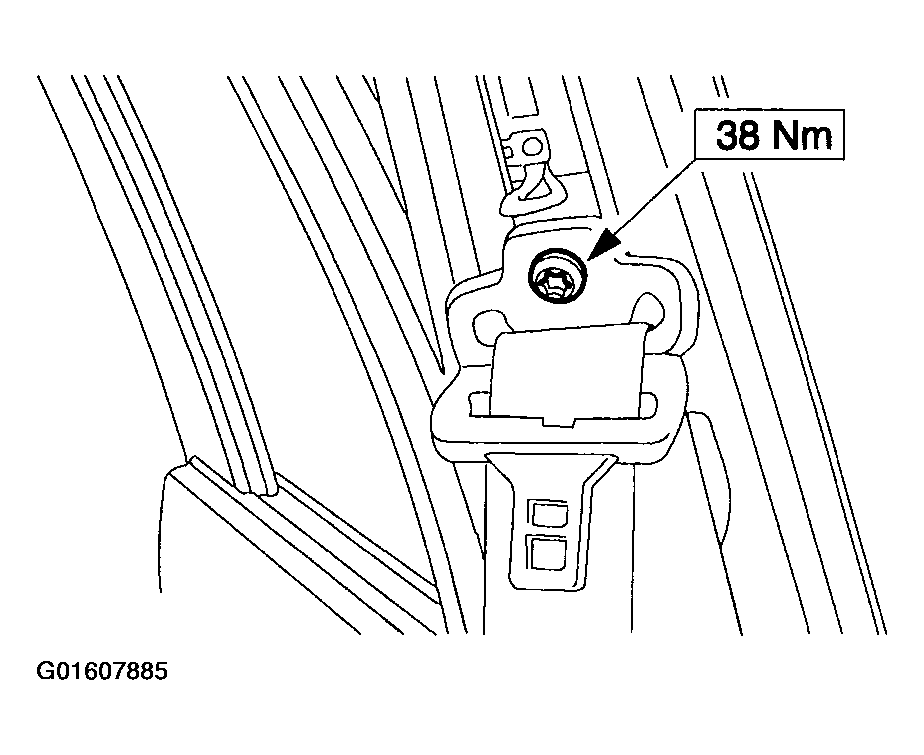

Fig 1: Installing Safety Belt Retractor Bolt

Courtesy of FORD MOTOR CO.

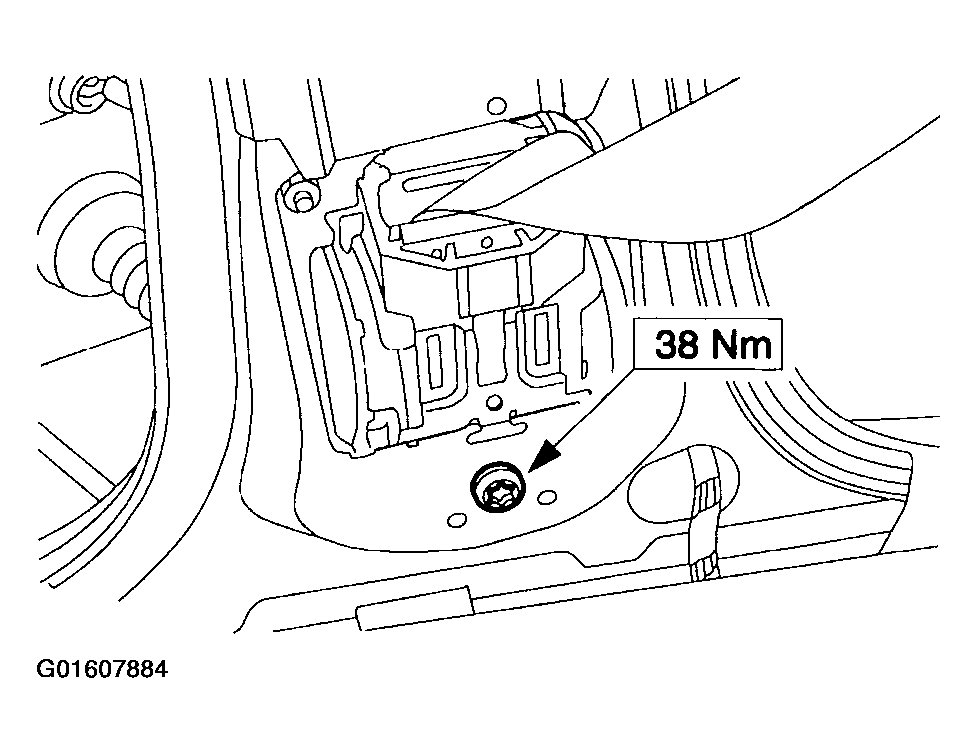

Fig 2: Installing Safety Belt Upper Anchor

Courtesy of FORD MOTOR CO.

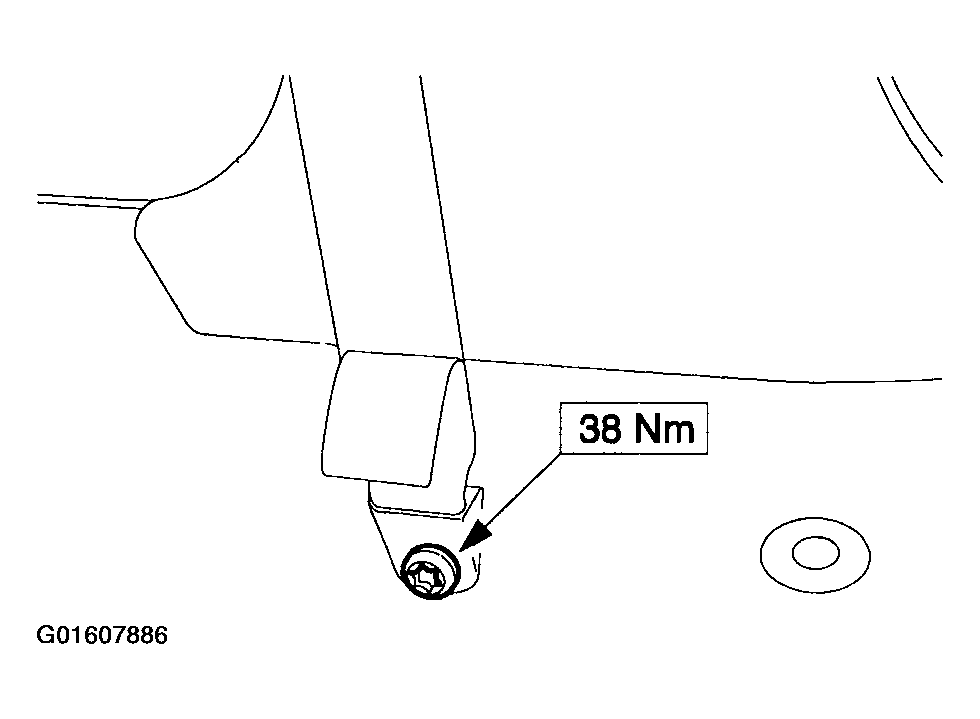

Fig 3: Installing Safety Belt Lower Anchor (1 Of 2)

Courtesy of FORD MOTOR CO.

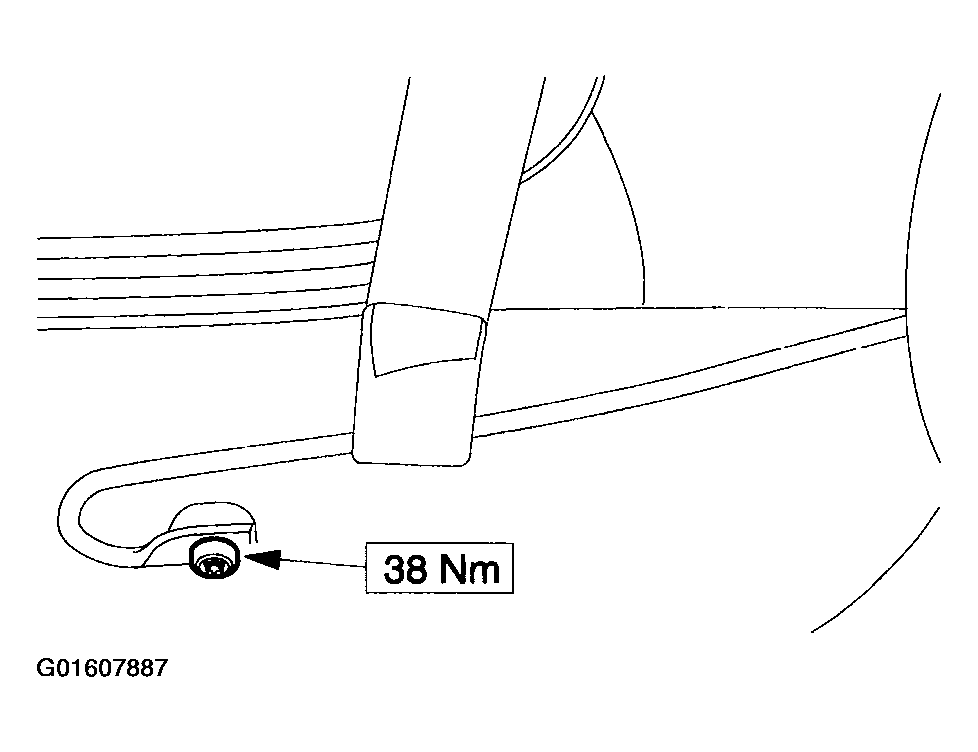

Fig 4: Installing Safety Belt Lower Anchor (2 Of 2)

Courtesy of FORD MOTOR CO.
