Pinpoint Test G: Yellow Abs Warning Indicator Does Not Self-Check

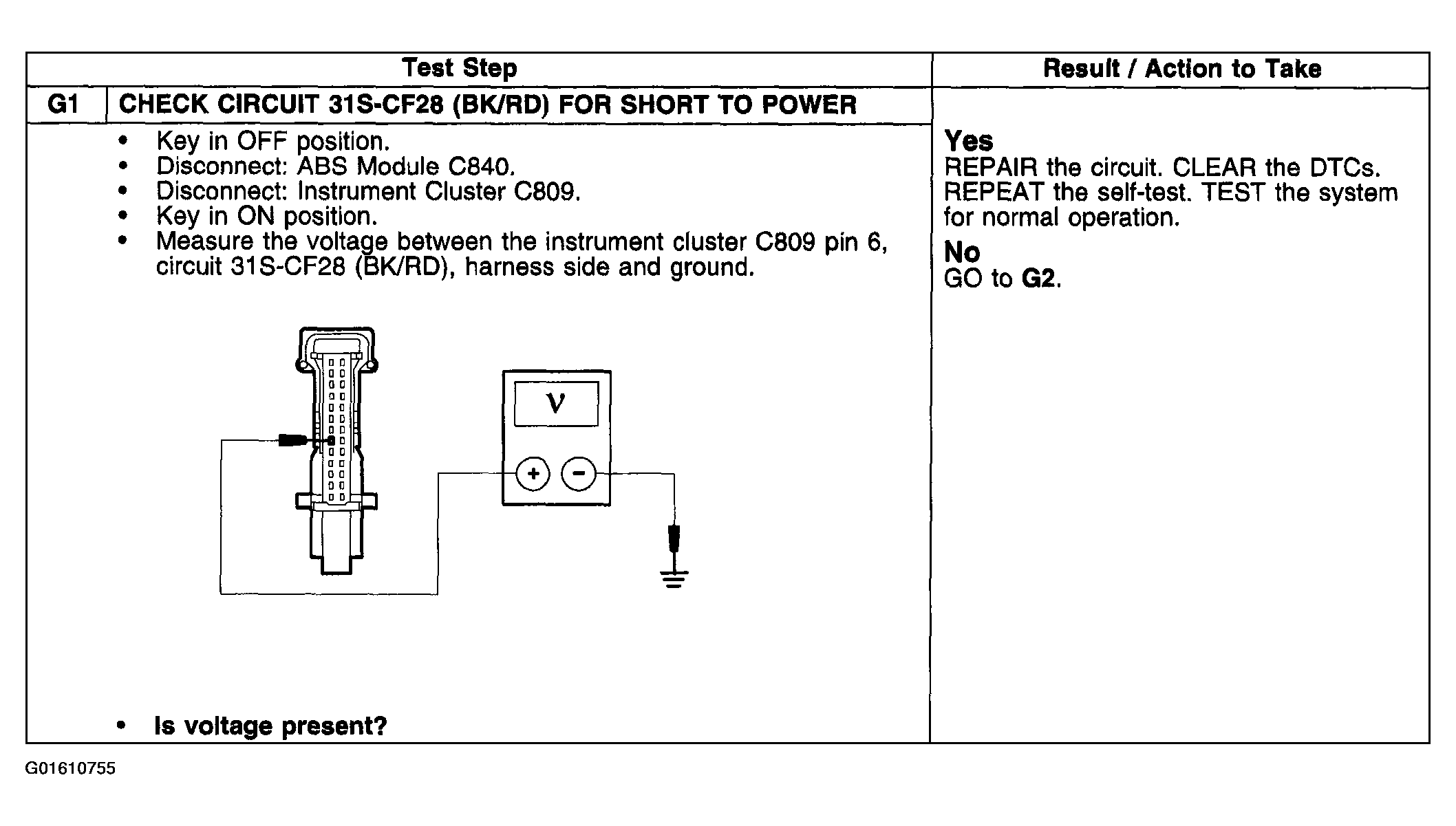

Fig 1: Pinpoint Test G: Yellow ABS Warning Indicator Does Not Self-Check (G1)

Courtesy of FORD MOTOR CO.

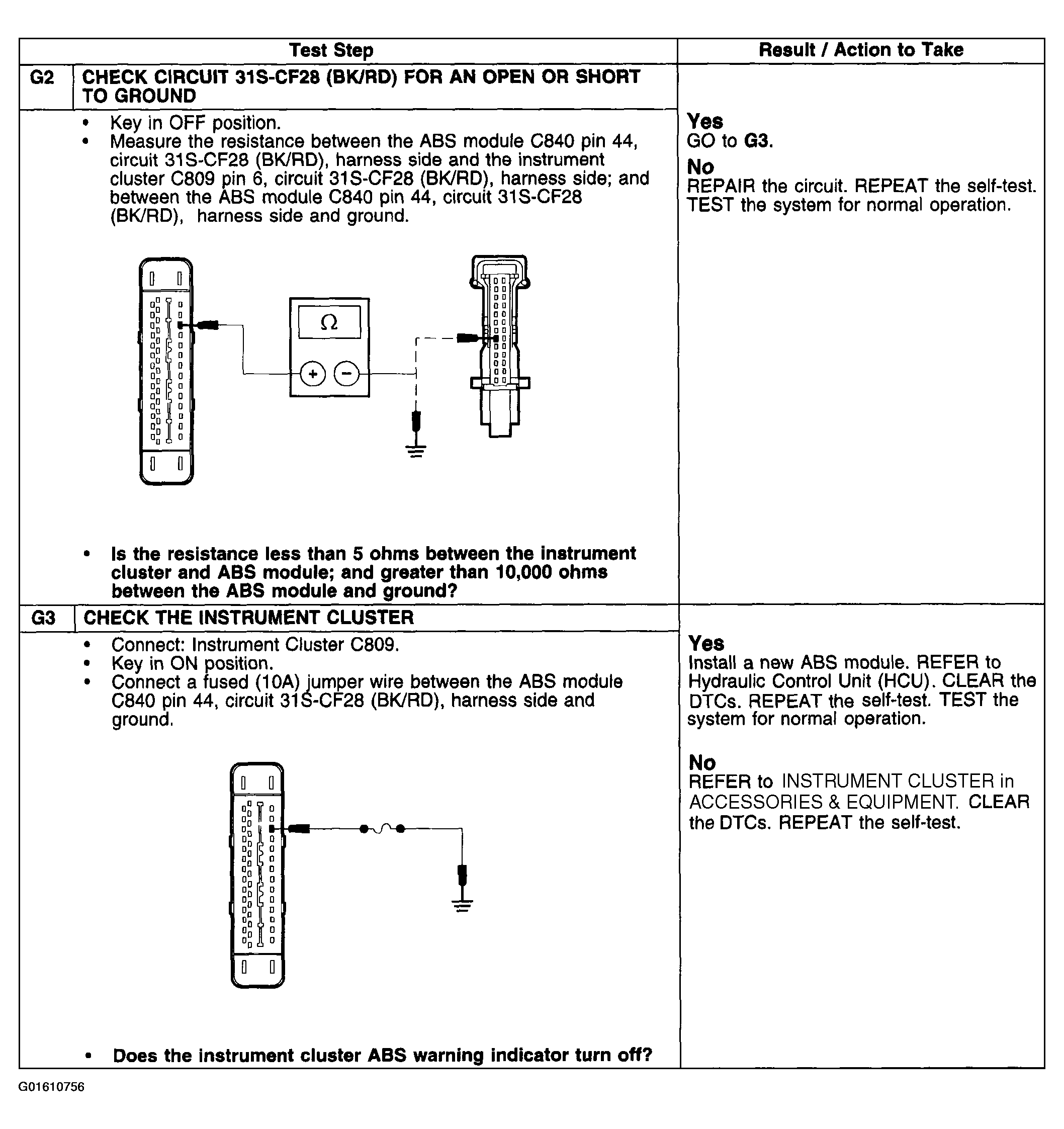

Fig 2: Pinpoint Test G: Yellow ABS Warning Indicator Does Not Self-Check (G2-G3)

Courtesy of FORD MOTOR CO.
