Symptom Chart

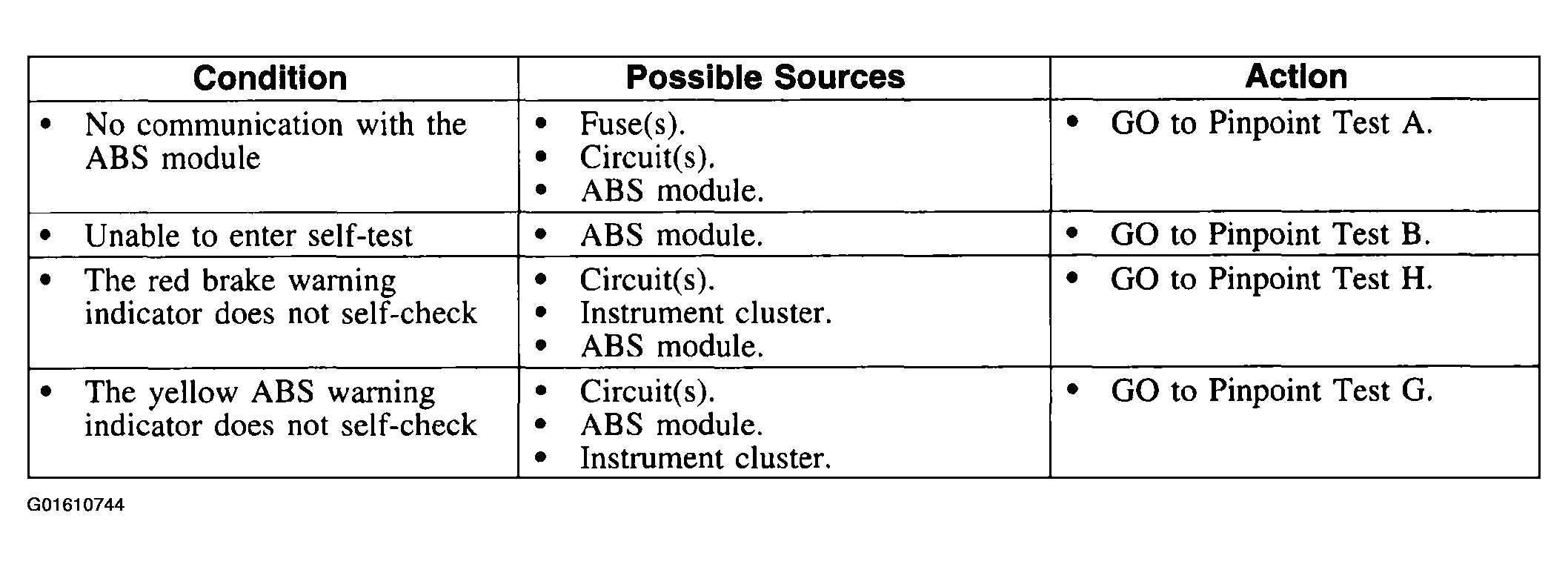

Fig 1: Anti-Lock Control Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
