Pinpoint Test K: Yellow Abs Warning Indicator Is Never/Always On

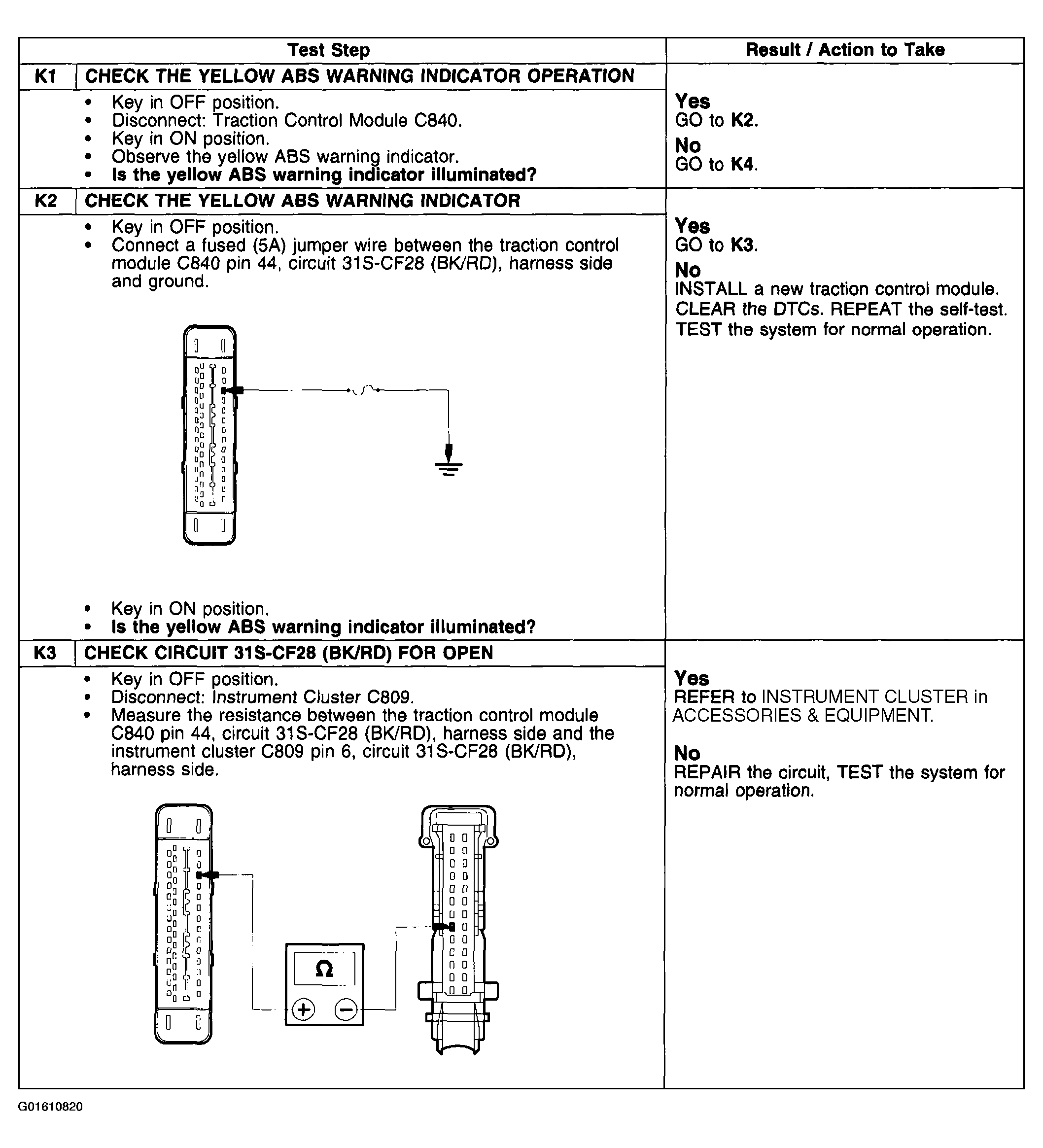

Fig 1: Pinpoint Test K: Yellow ABS Warning Indicator Is Never/Always On (K1-K3)

Courtesy of FORD MOTOR CO.

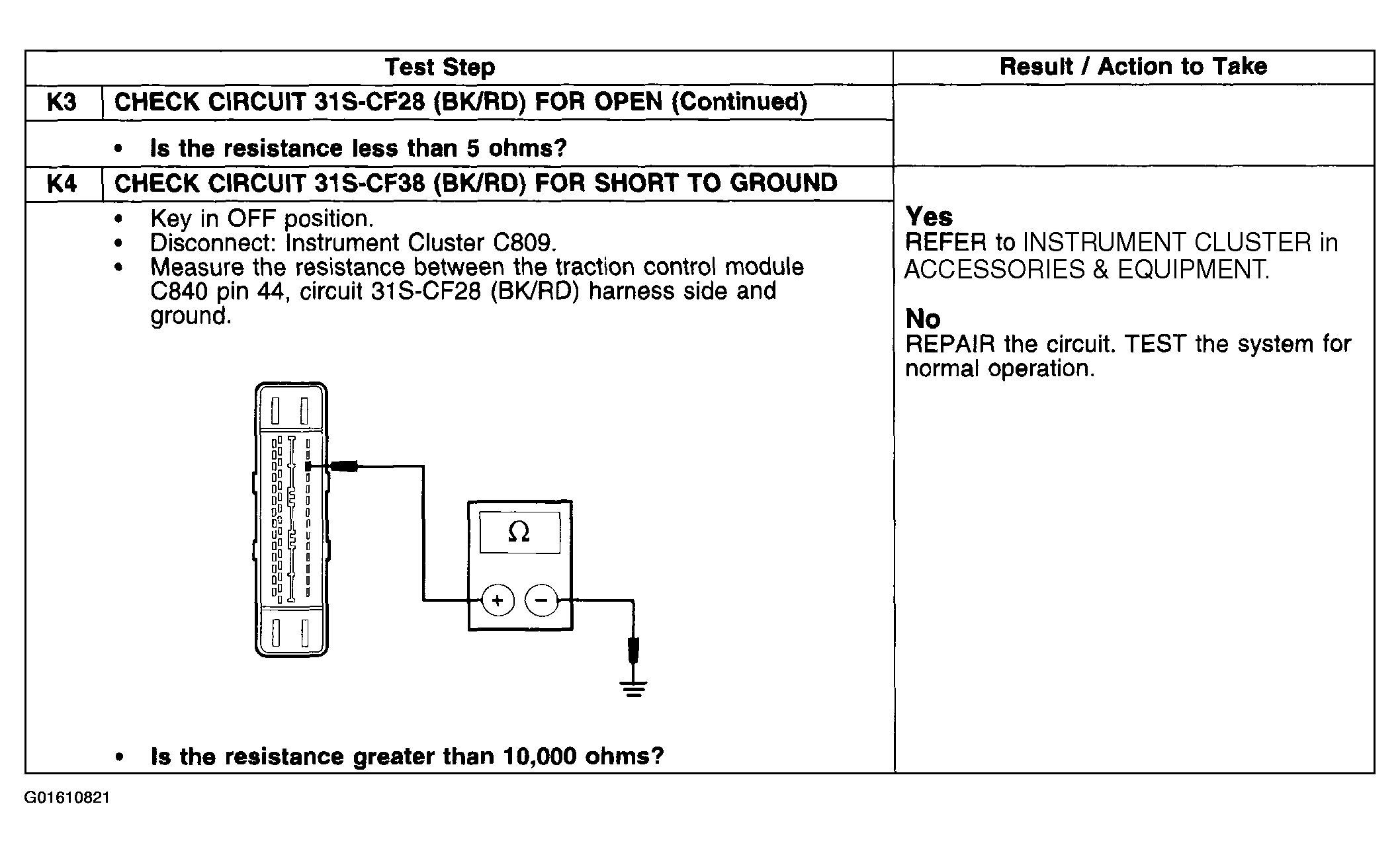

Fig 2: Pinpoint Test K: Yellow ABS Warning Indicator Is Never/Always On (K3 Conti.-K4)

Courtesy of FORD MOTOR CO.
