Pinpoint Test N: Traction Control System Cannot Be Disabled

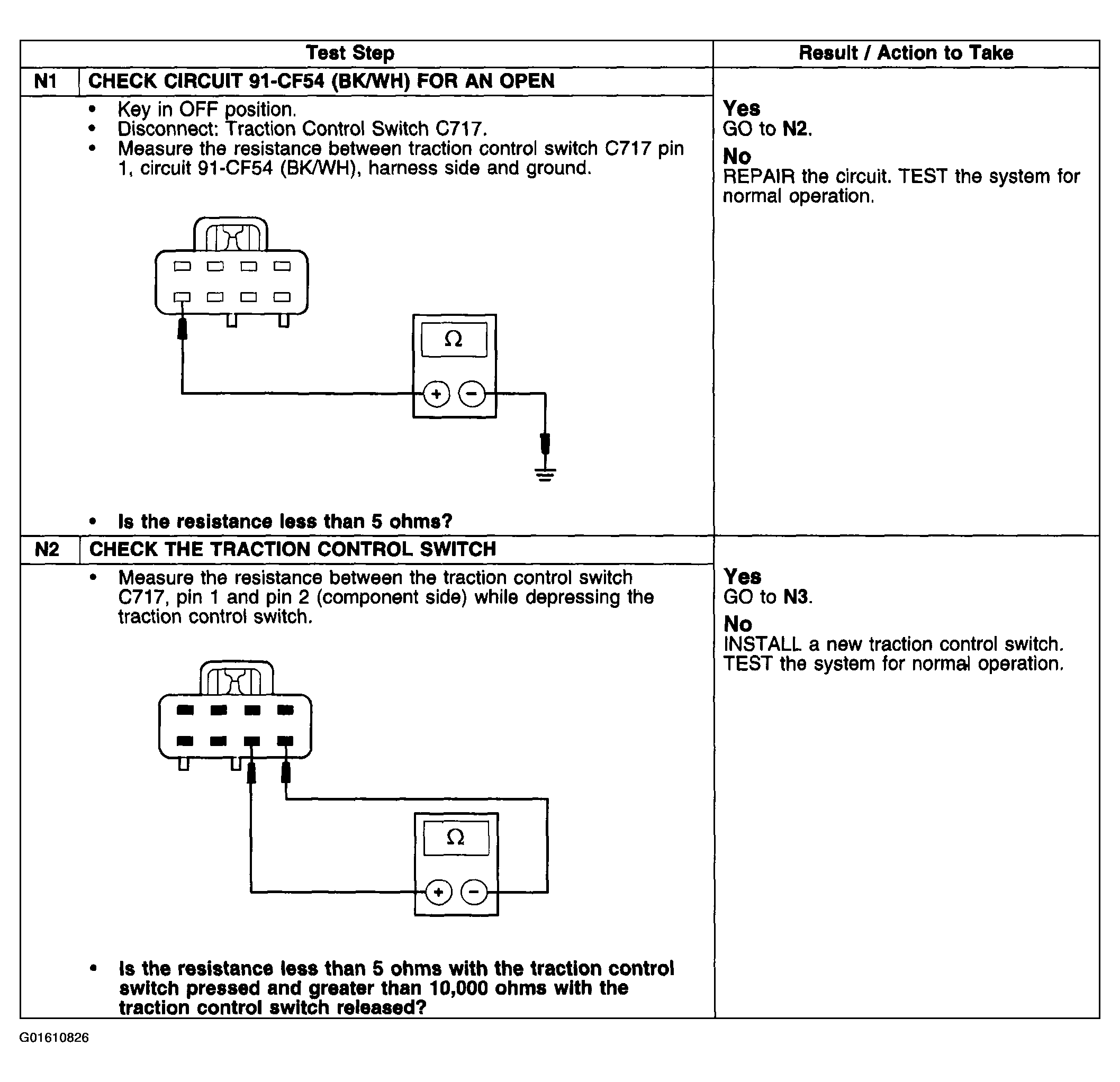

Fig 1: Pinpoint Test N: Traction Control System Cannot Be Disabled (N1-N2)

Courtesy of FORD MOTOR CO.

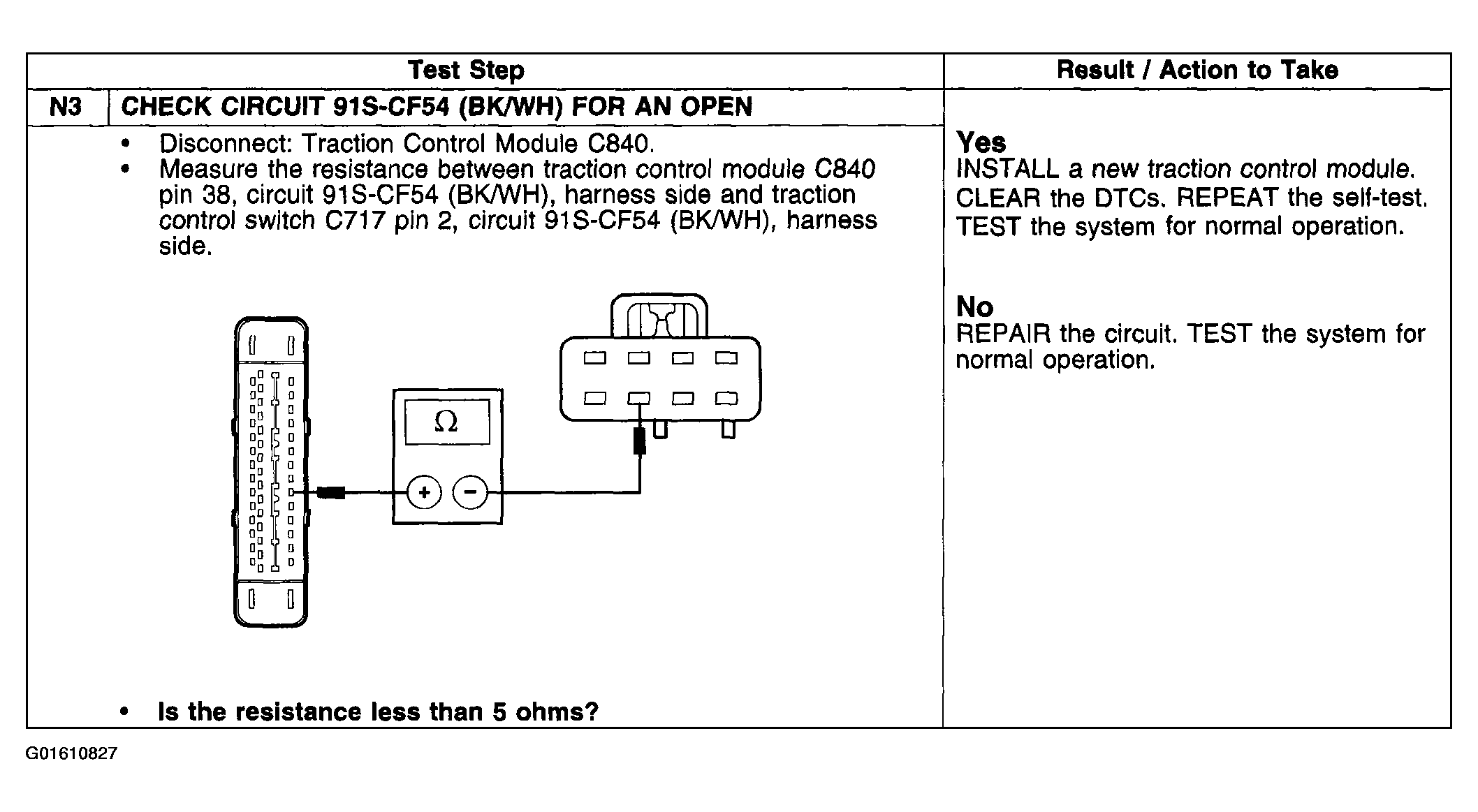

Fig 2: Pinpoint Test N: Traction Control System Cannot Be Disabled (N3)

Courtesy of FORD MOTOR CO.
