Anti-Lock Control System - Traction Control System
>>
Diagnosis And Testing
>>
Anti-Lock Control - Traction Control-SVT
>>
Symptom Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Symptom Chart

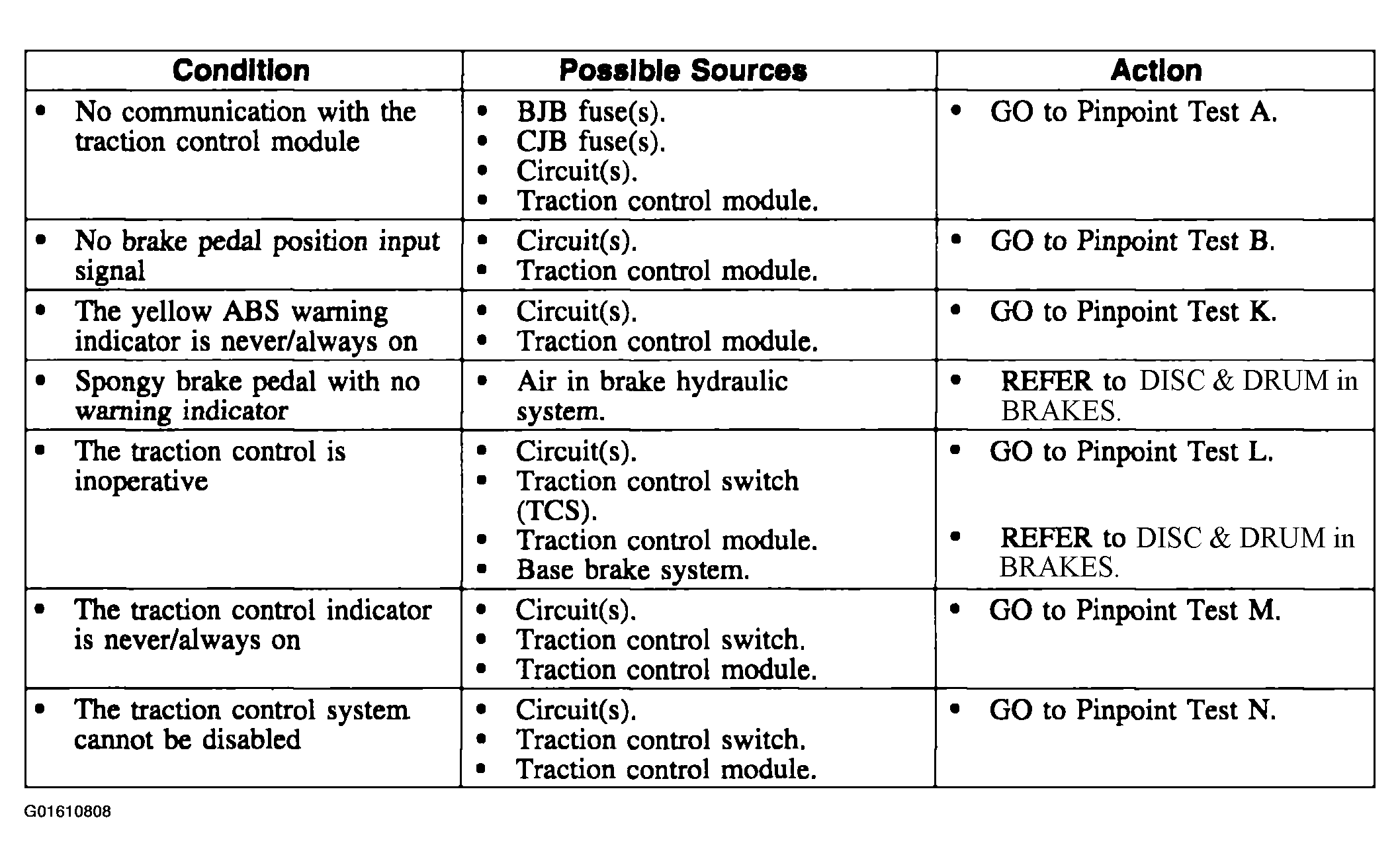

Fig 1: Anti-Lock Control - Traction Control Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
