Torque Specifications

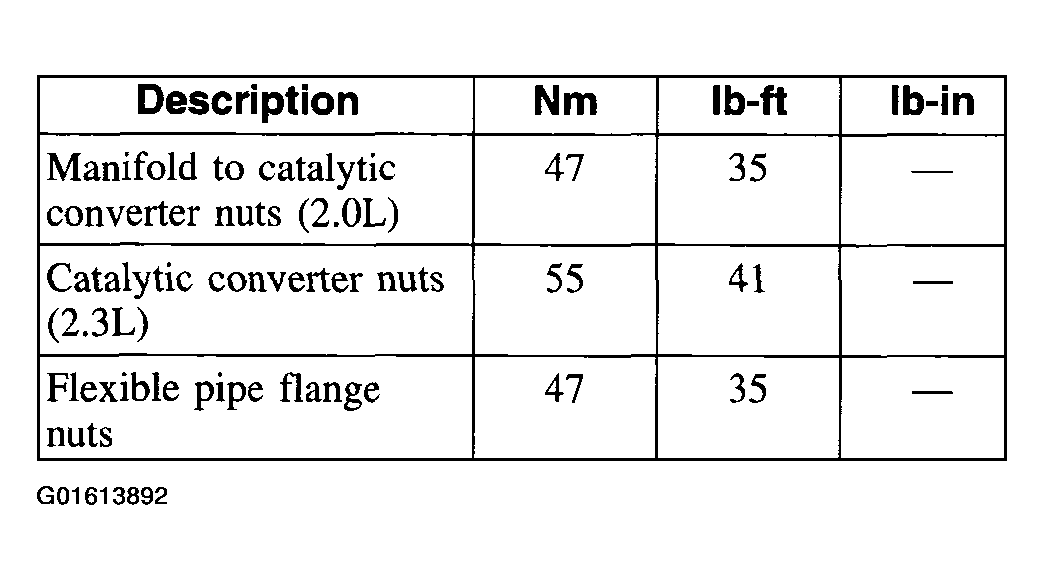

Fig 1: Exhaust System Torque Specifications (1 Of 2)
G01613892Courtesy of FORD MOTOR CO.

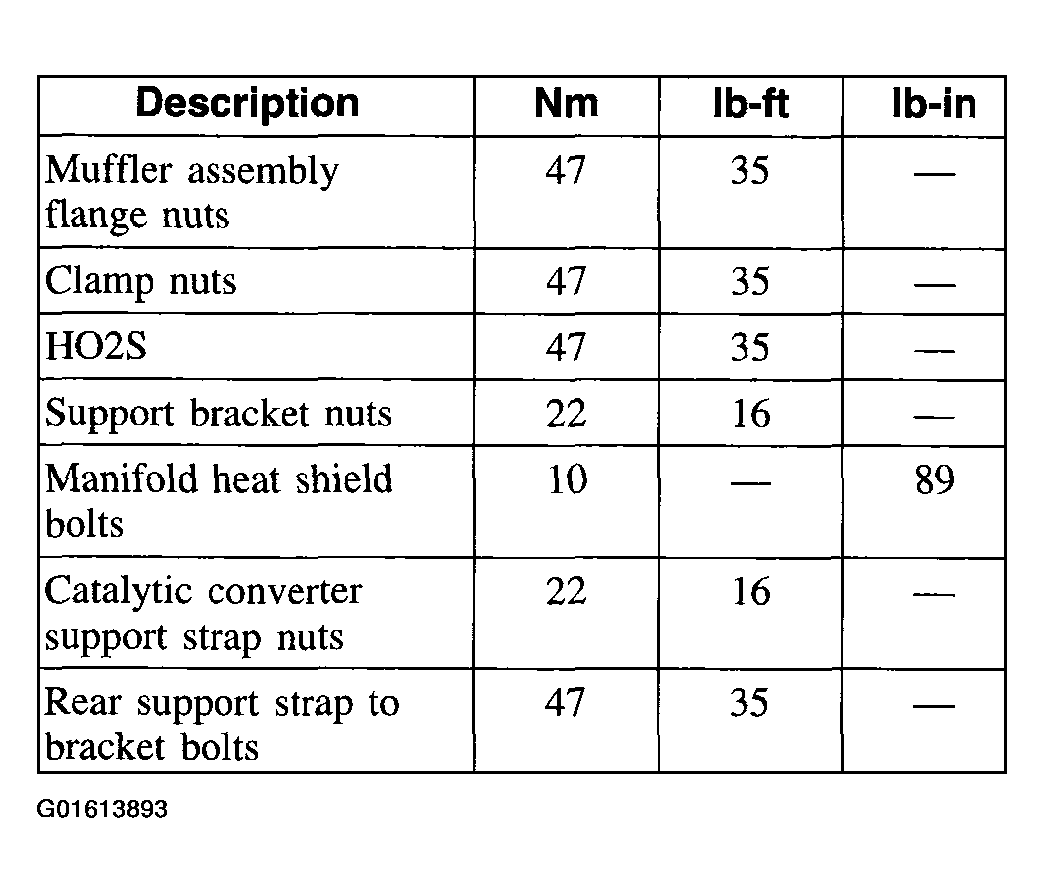

Fig 2: Exhaust System Torque Specifications (2 Of 2)
G01613893Courtesy of FORD MOTOR CO.
