Connecting Rod Large End Bore

  1. Measure the bearing bore in two directions. The difference is the connecting rod bore out-of-round. Verify the out-of-round and the bearing bore is within specification.

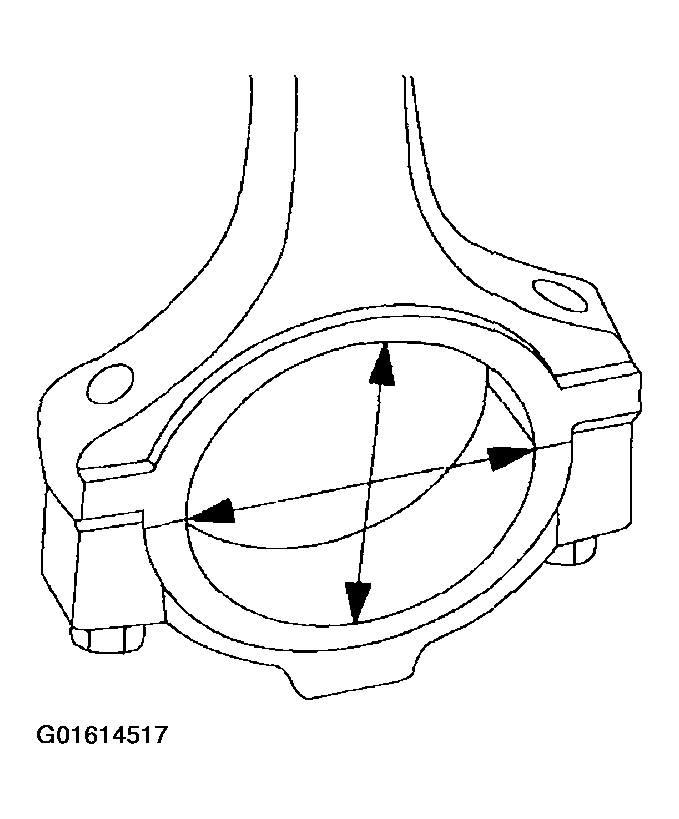

    Fig 1: Measuring Connecting Rod Large End Bore
    G01614517Courtesy of FORD MOTOR CO.
