Torque Specifications

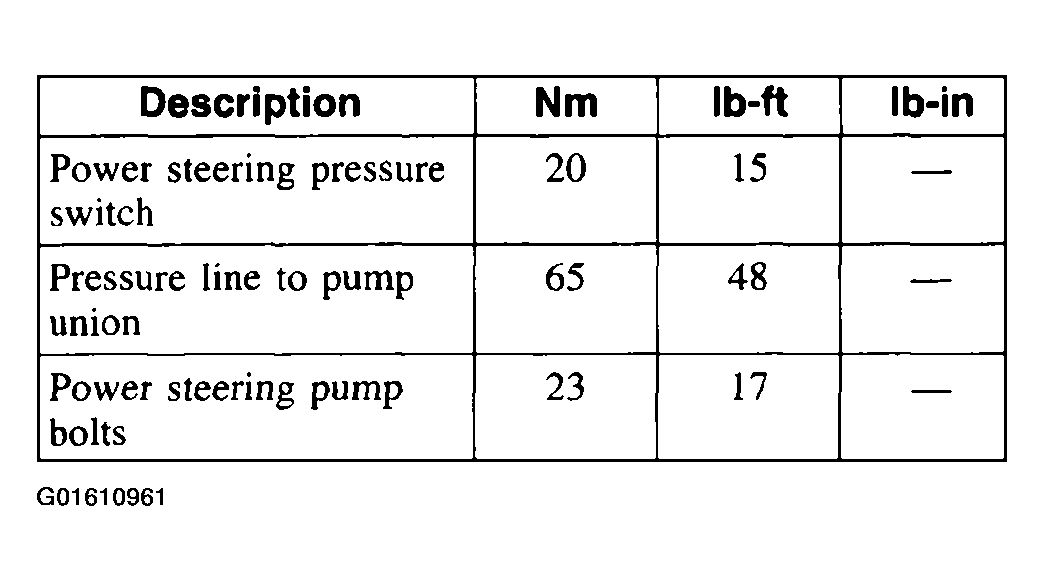

Fig 1: Power Steering Torque Specifications (1 Of 2)
G01610961Courtesy of FORD MOTOR CO.

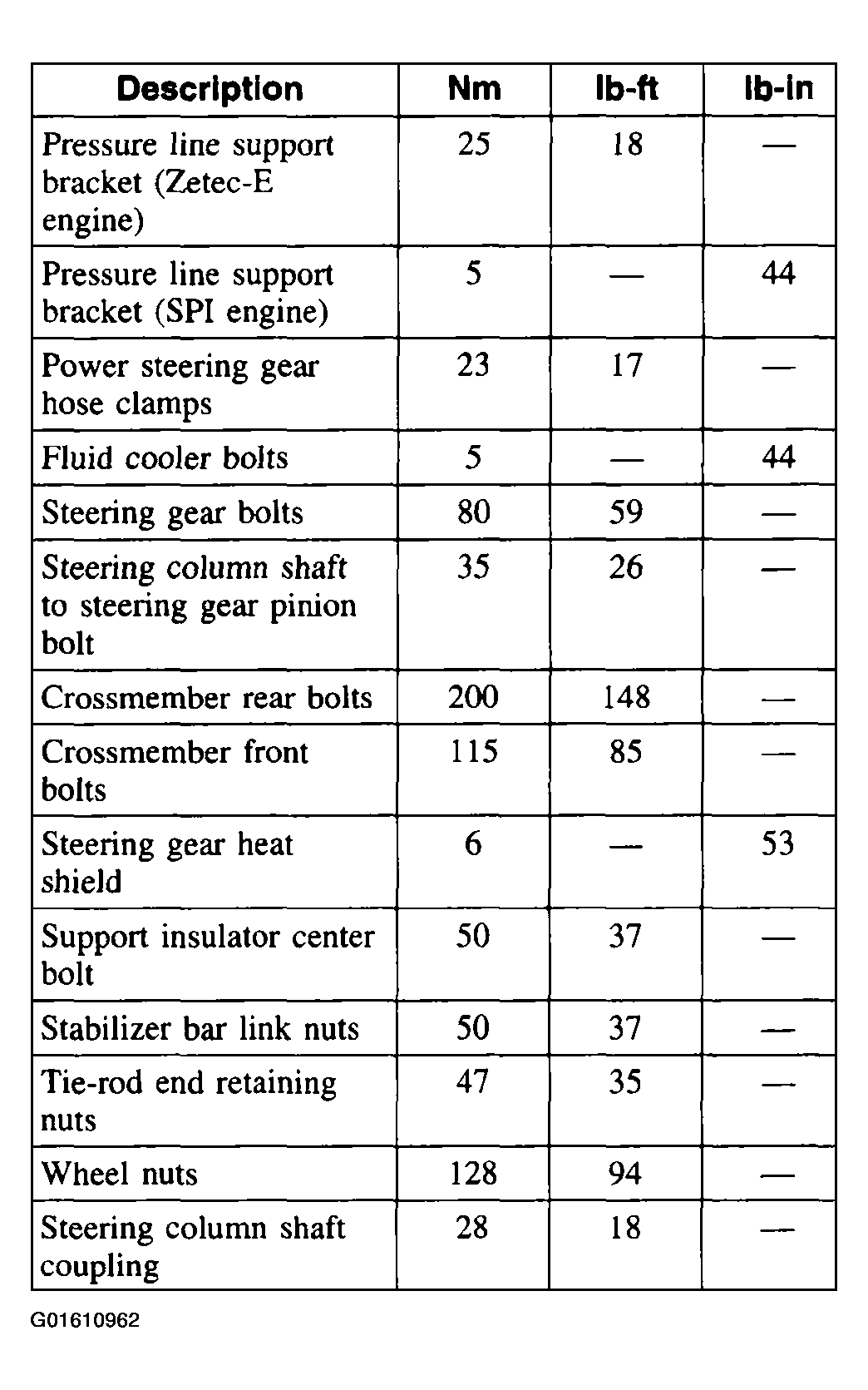

Fig 2: Power Steering Torque Specifications (2 Of 2)
G01610962Courtesy of FORD MOTOR CO.
