Fuel Line Fittings - Push Connect: Connect

    NOTE: Lubricate the tube end with clean engine oil to ease assembly

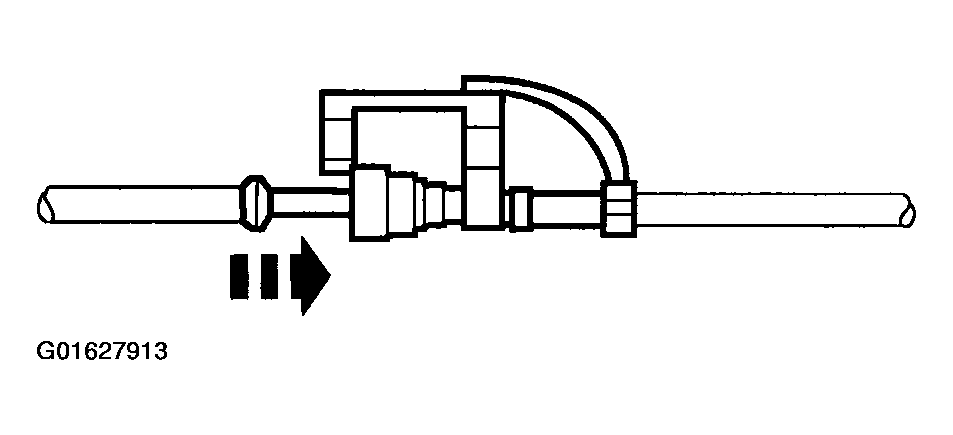

    Fig 1: Connecting Fitting
    G01627913Courtesy of FORD MOTOR CO.
    • Align the tube to the fitting and push until you hear a click.
  2. Pull on the fitting to make sure it is fully engaged, then install the safety clip.

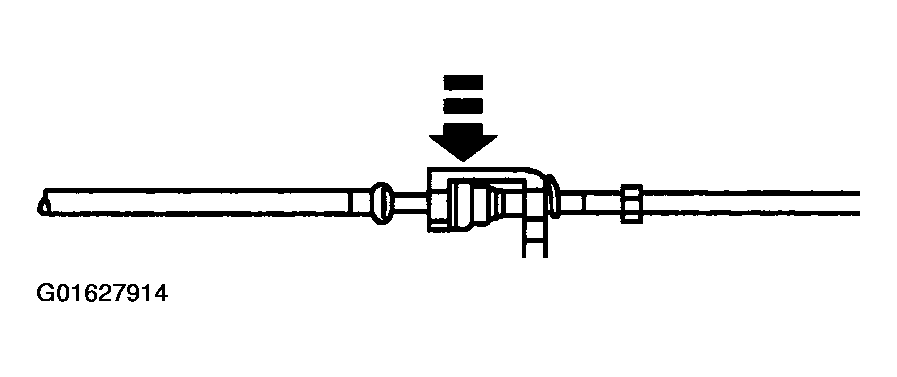

    Fig 2: Checking Fully Engaging Of Fitting
    G01627914Courtesy of FORD MOTOR CO.
