Symptom Chart

NOTE: Refer to the wiring diagrams for connector numbers stated in the pinpoint test.

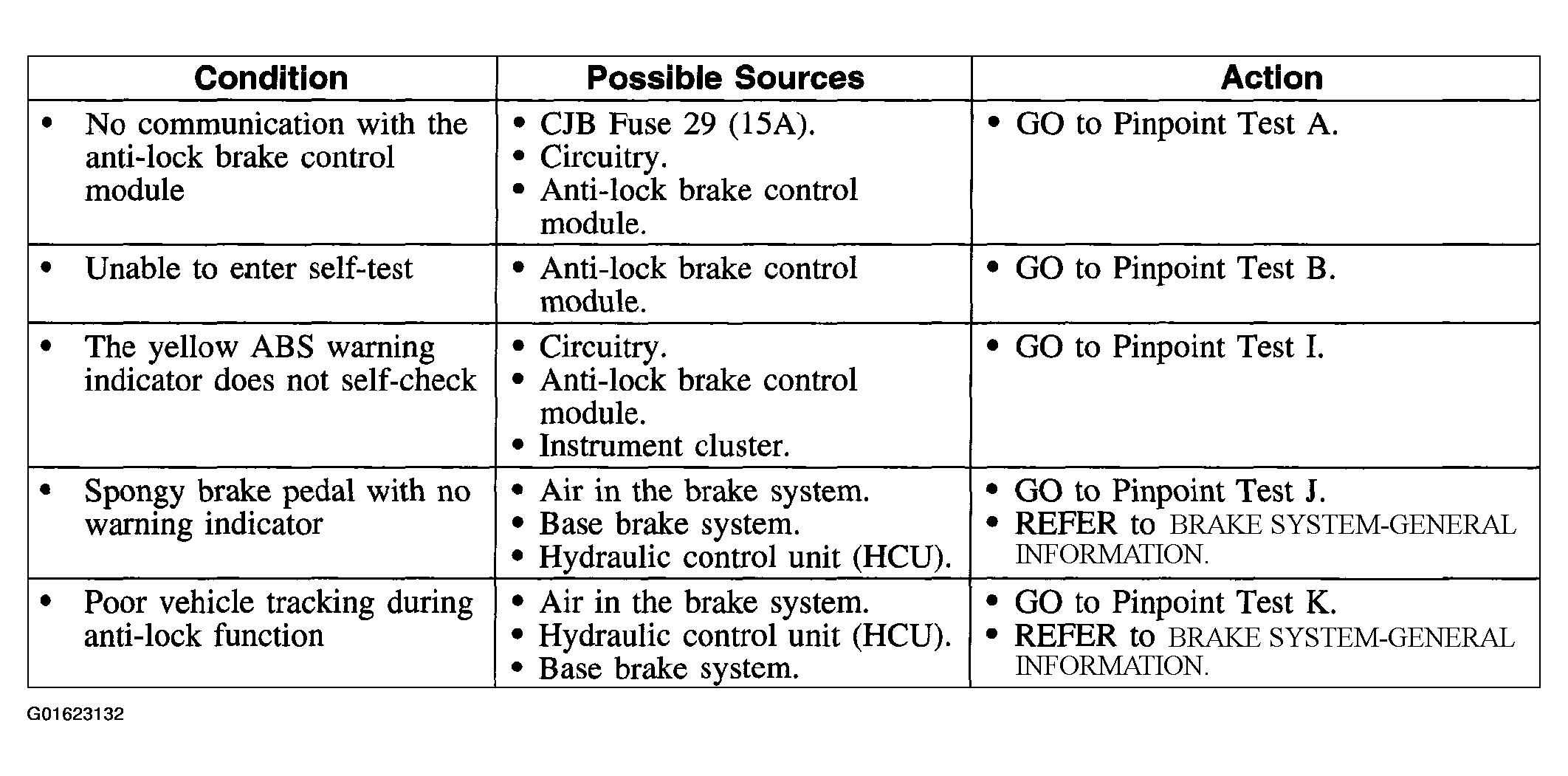

Fig 1: Anti-Lock Control - Traction Control Symptom Chart (1 Of 2)
G01623132Courtesy of FORD MOTOR CO.

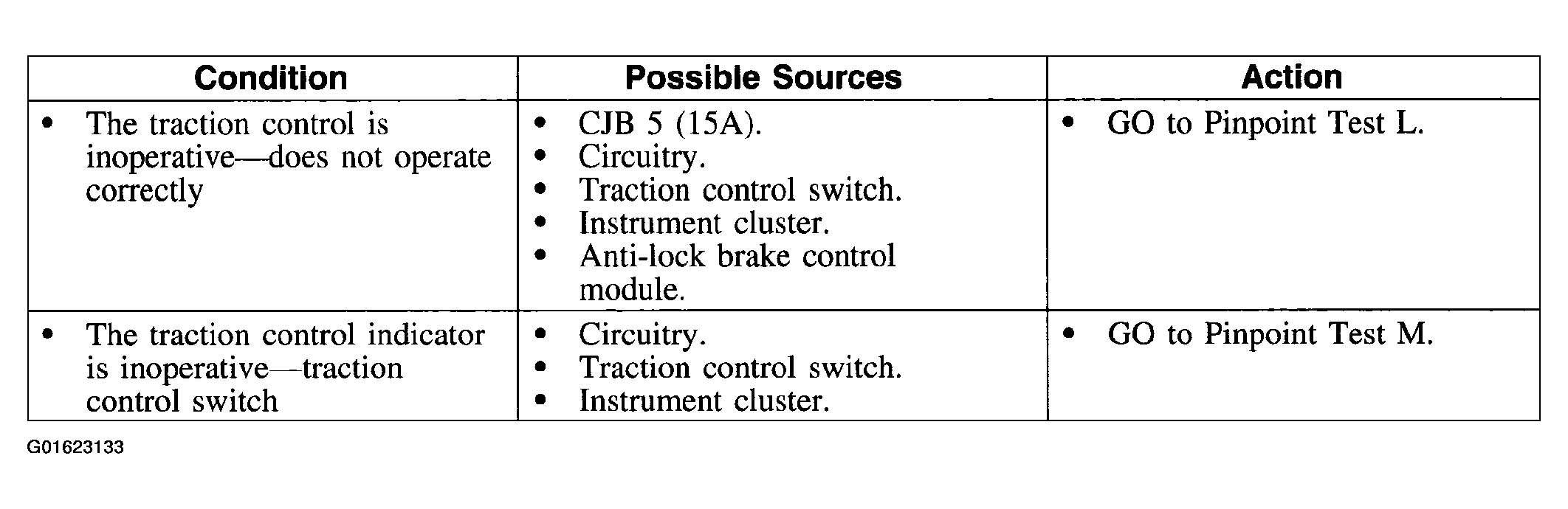

Fig 2: Anti-Lock Control - Traction Control Symptom Chart (2 Of 2)
G01623133Courtesy of FORD MOTOR CO.
