Switch - Window Regulator Control: Removal

    CAUTION: Use a shop towel or similar material between the tool and the door trim panel or damage to the door trim panel may occur.
  1. Position the window regulator switch plate aside.
    1. Pull at the service notch.
    2. Lift to release the clip at the rear edge.

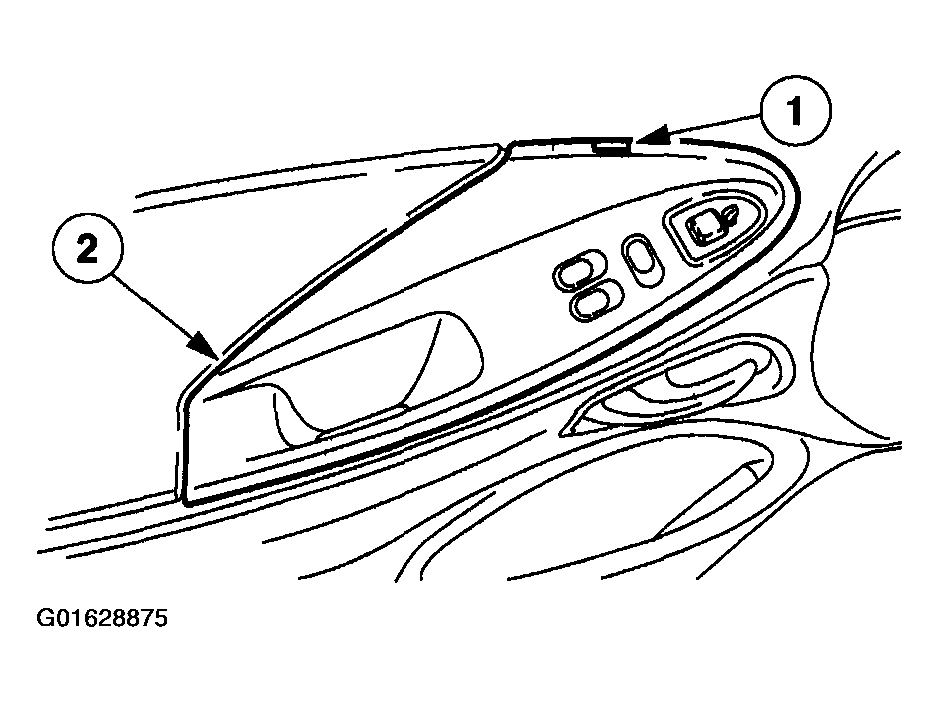

      Fig 1: Releasing Clip At Rear Edge
      G01628875Courtesy of FORD MOTOR CO.
  2. Remove the window regulator control switch.
    1. Remove the screws.
    2. Disconnect the connectors.

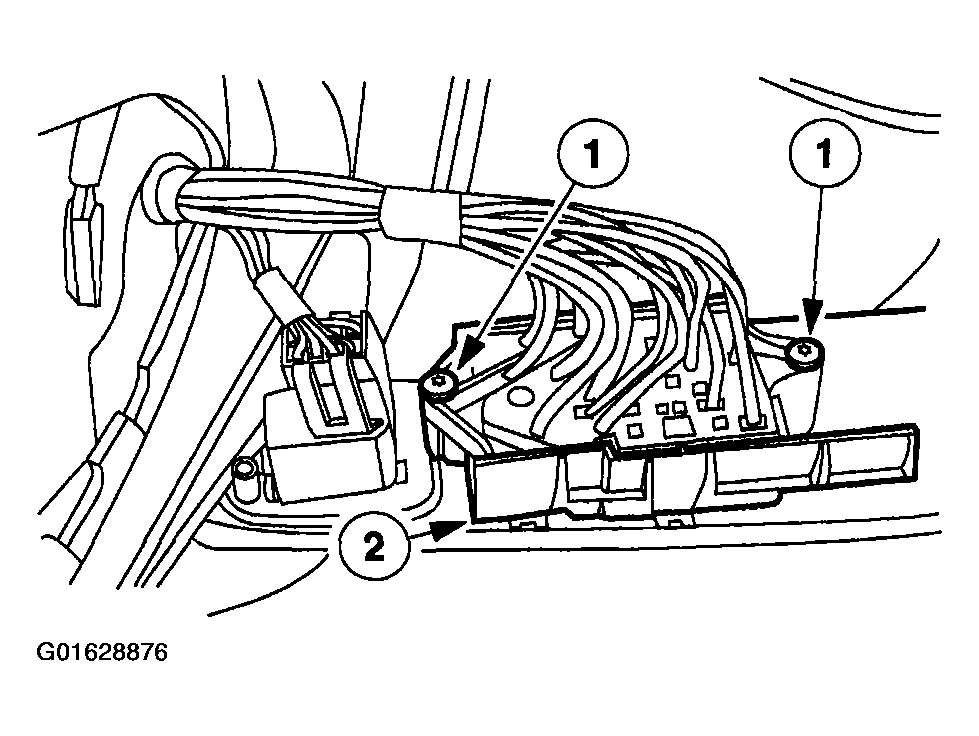

      Fig 2: Removing Window Regulator Control Switch
      G01628876Courtesy of FORD MOTOR CO.
