Hydraulic Control Unit: Installation

NOTE: The brake system must be bled after the HCU is installed or replaced. refer to BRAKE SYSTEM-GENERAL INFORMATION .

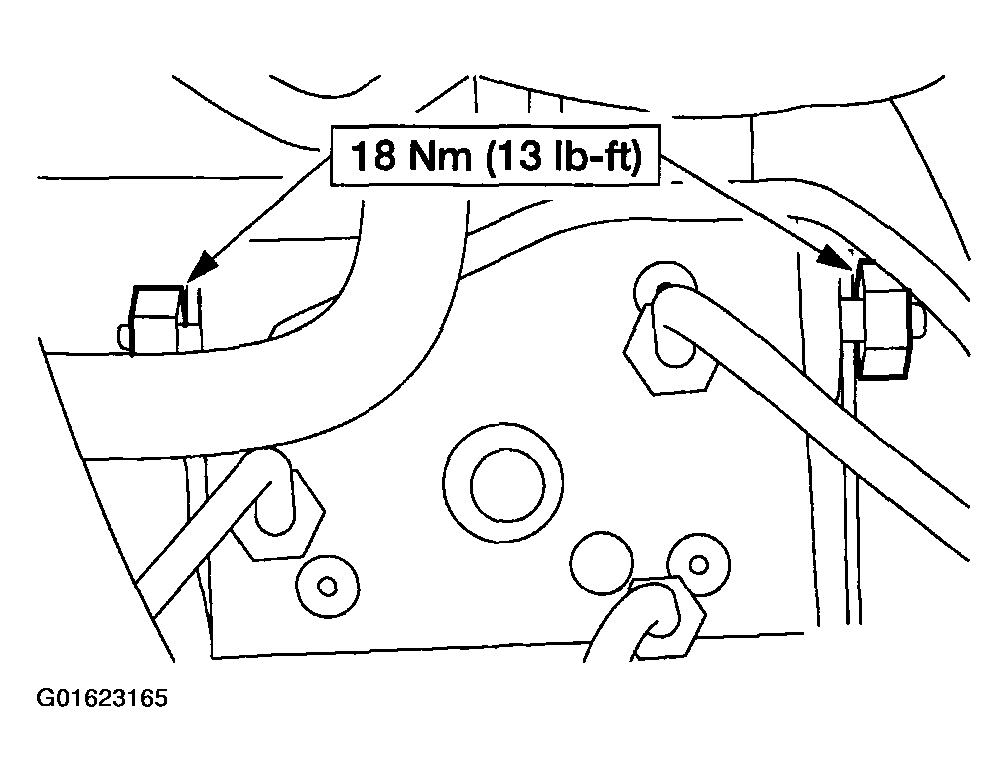

Fig 1: Installing HCU Bracket Nuts To HCU

Courtesy of FORD MOTOR CO.

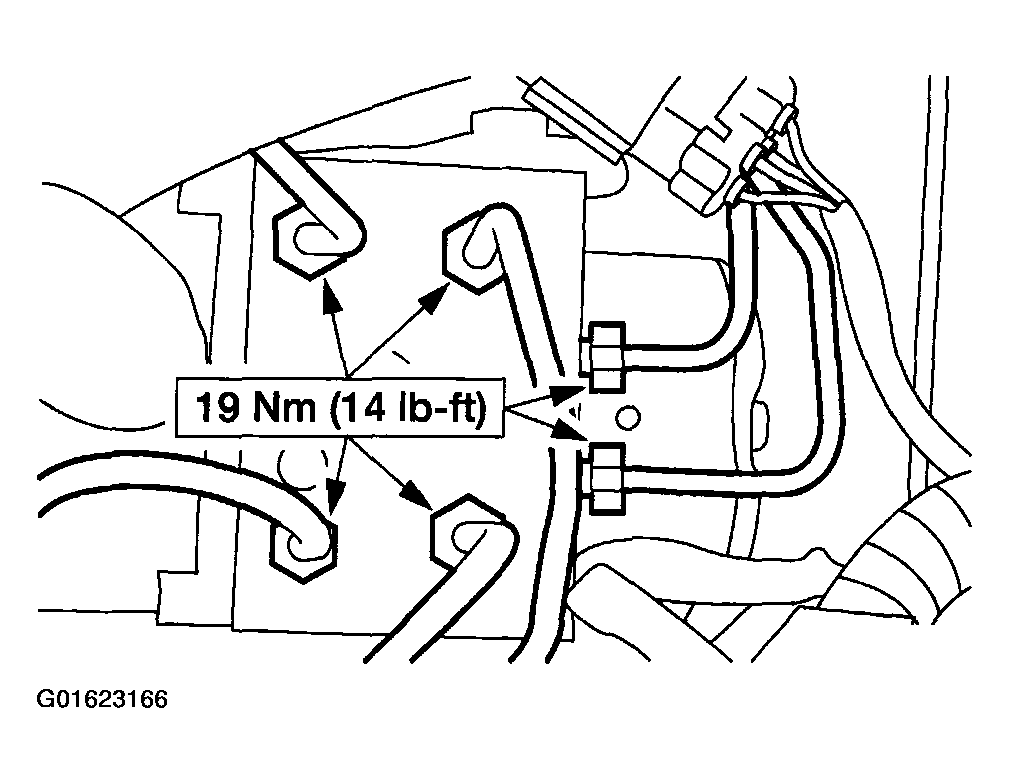

Fig 2: Installing Brake Lines From Hydraulic Control Unit

Courtesy of FORD MOTOR CO.
