Sensor - Front: Removal

  1. Remove the wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
  2. Remove the inner fender splash shield.
    1. Remove the inner fender splash shield push pins.
    2. Remove the inner fender splash shield screw.
    3. Remove the inner fender splash shield.

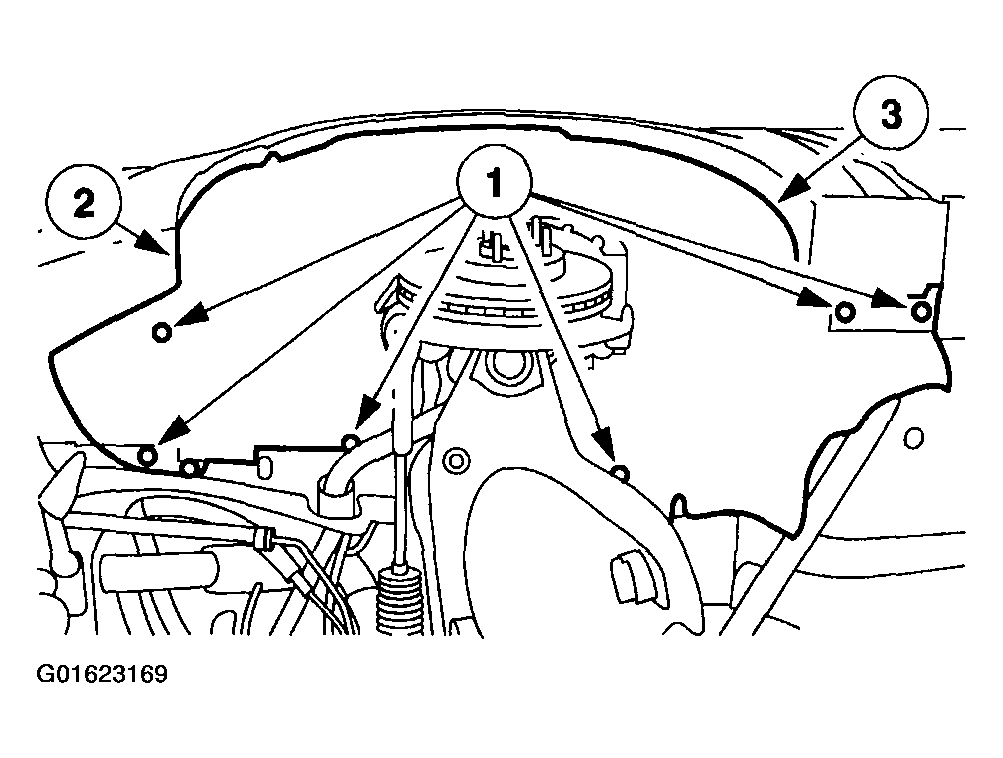

      Fig 1: Removing Inner Fender Splash Shield
      G01623169Courtesy of FORD MOTOR CO.
  3. Remove the front anti-lock brake sensor electrical connector.

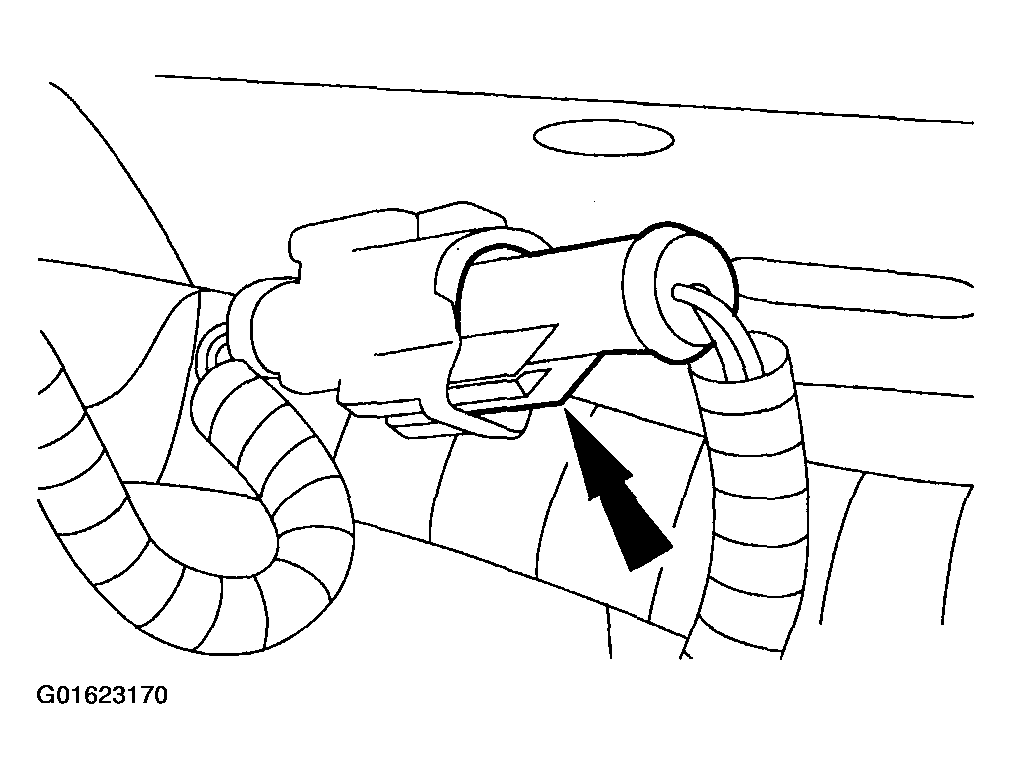

    Fig 2: Removing Front Anti-Lock Brake Sensor Electrical Connector
    G01623170Courtesy of FORD MOTOR CO.
  4. Remove the front anti-lock brake sensor harness from the anti-lock brake sensor harness clips.

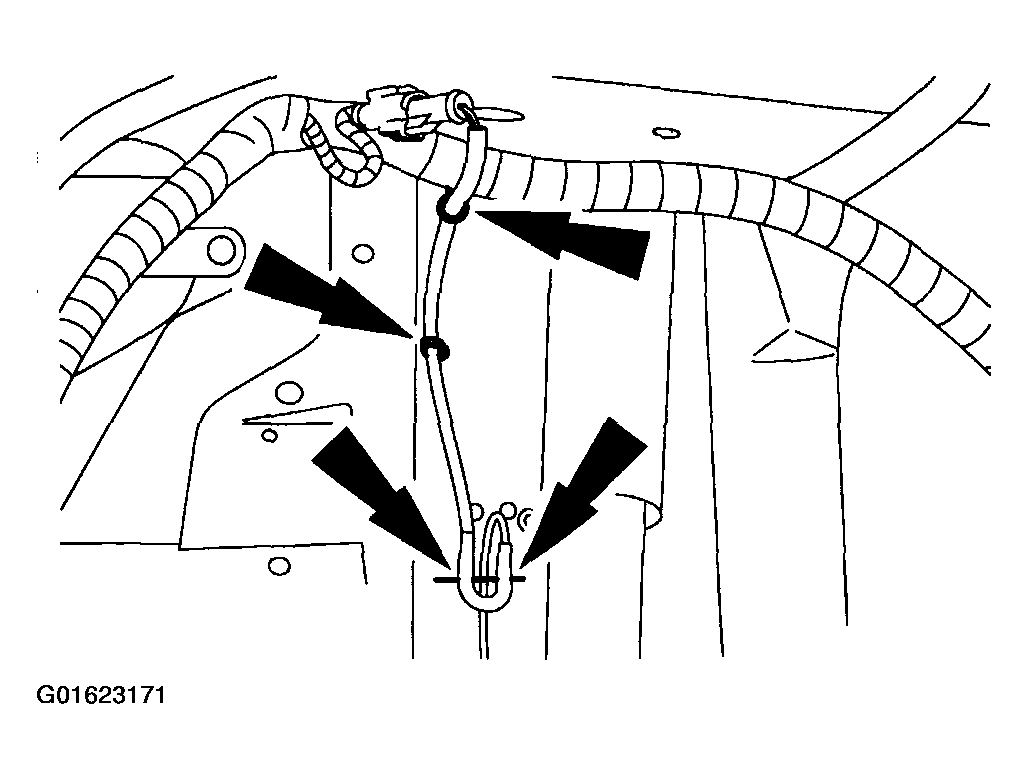

    Fig 3: Removing Front Anti-Lock Brake Sensor Harness From Clips
    G01623171Courtesy of FORD MOTOR CO.
  5. Remove the front anti-lock brake sensor.
    1. Remove the front anti-lock brake sensor bolt.
    2. Remove the anti-lock brake sensor harness from the harness clips.
    3. Remove the front anti-lock brake sensor.

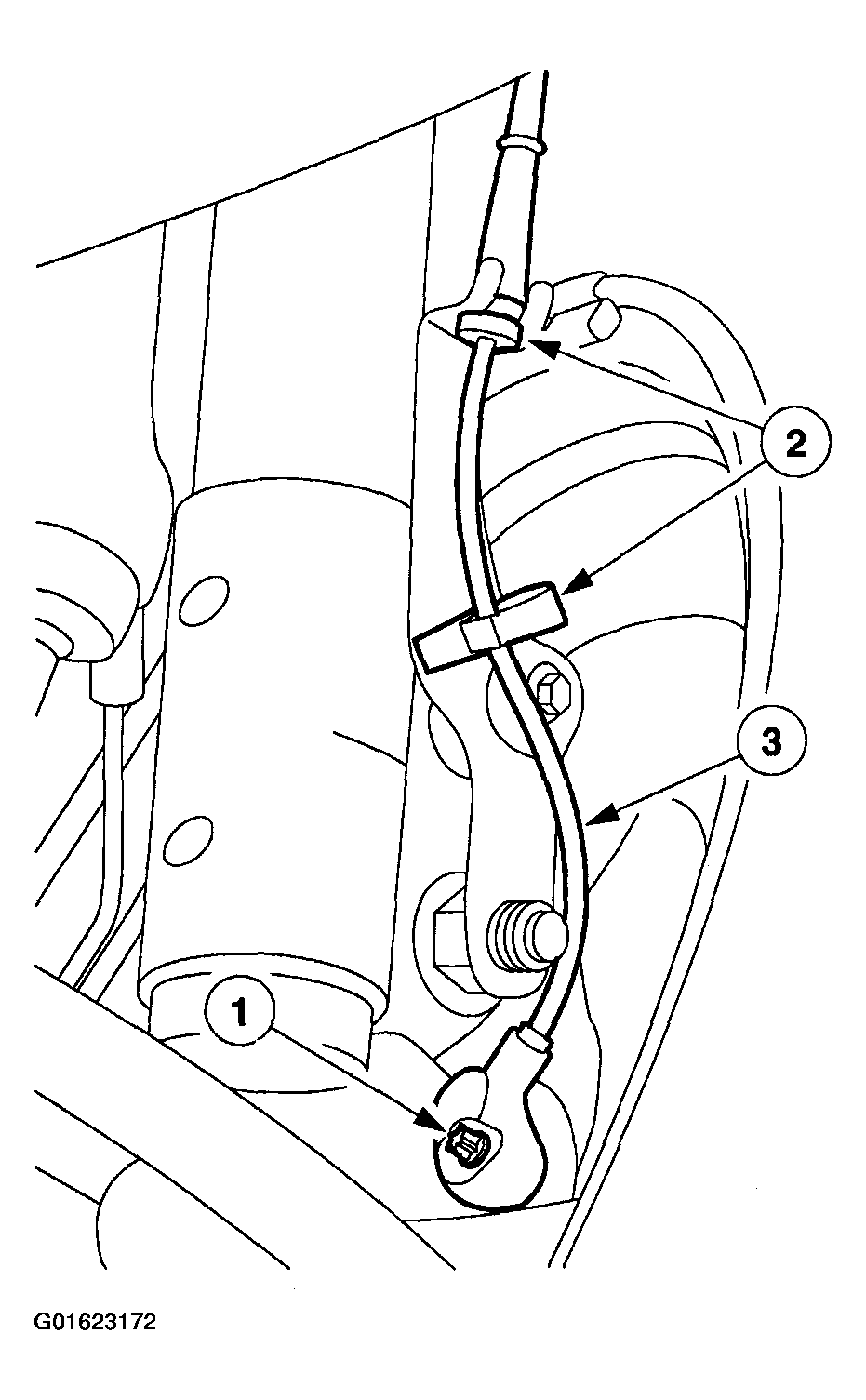

    Fig 4: Removing Front Anti-Lock Brake Sensor
    G01623172Courtesy of FORD MOTOR CO.
