Sensor - Rear: Installation

    NOTE: Be sure to apply High Temperature Nickel Anti-Sieze Lubricant F6AZ-9LA494-AA meeting Ford specification ESE-M124A-A to the sensor body where it will make contact when installed.

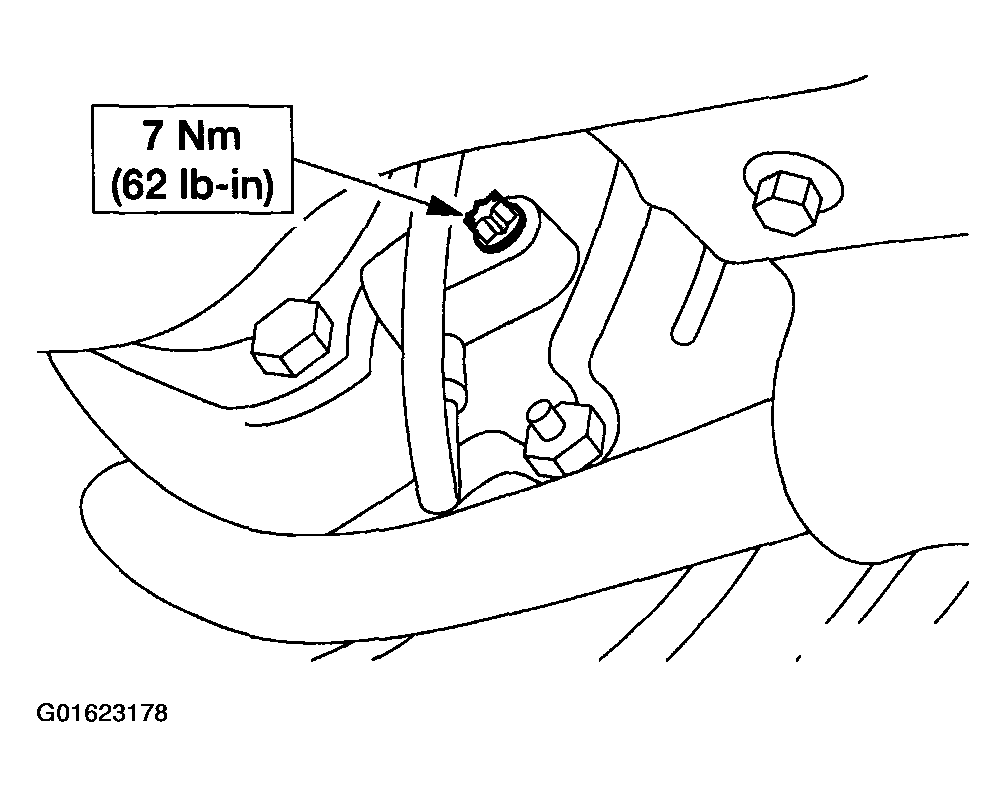

    Fig 1: Installing Rear Anti-Lock Brake Sensor
    G01623178Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
