Connector Views

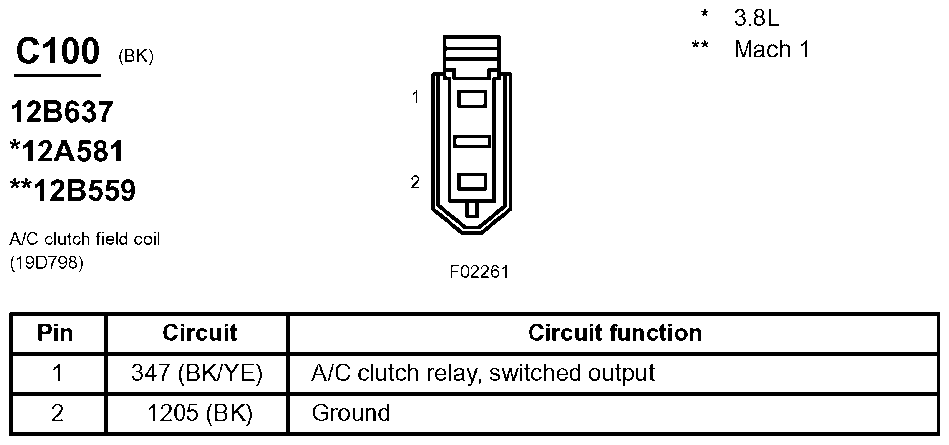

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07834414

Courtesy of FORD MOTOR CO.

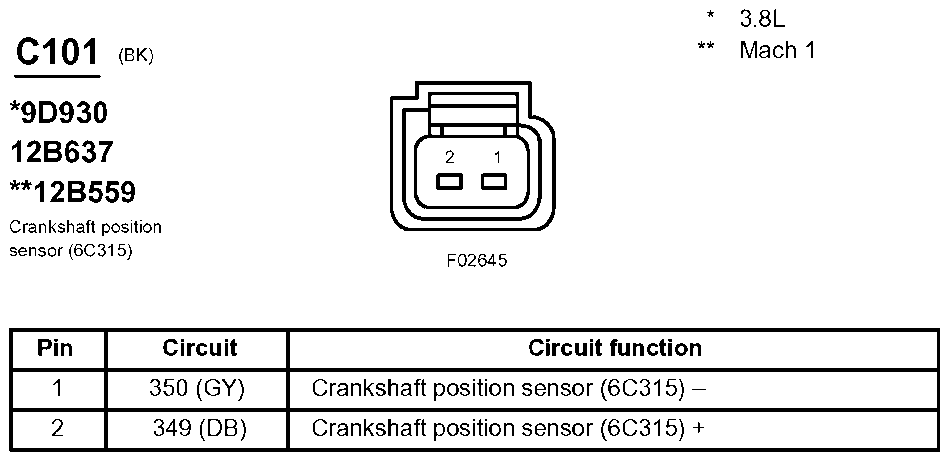

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07834415

Courtesy of FORD MOTOR CO.

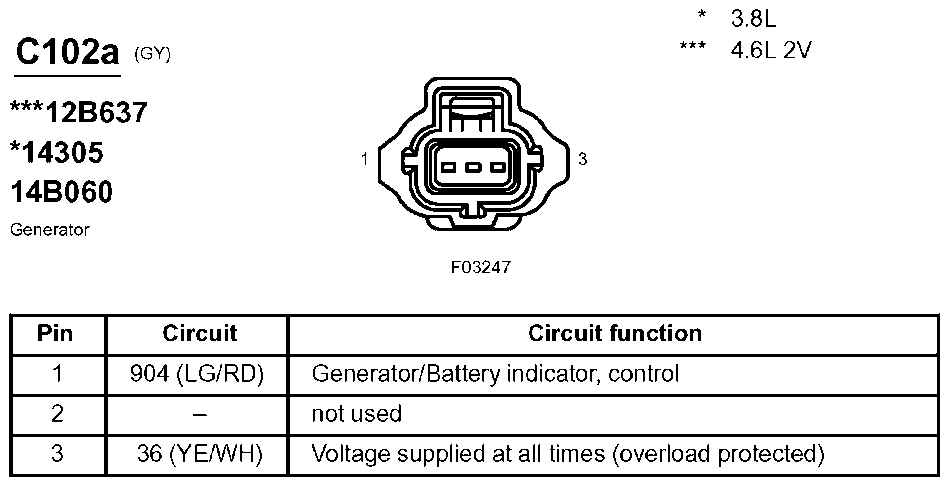

Fig 3: Generator Connector End View (C102a)

G07834416

Courtesy of FORD MOTOR CO.

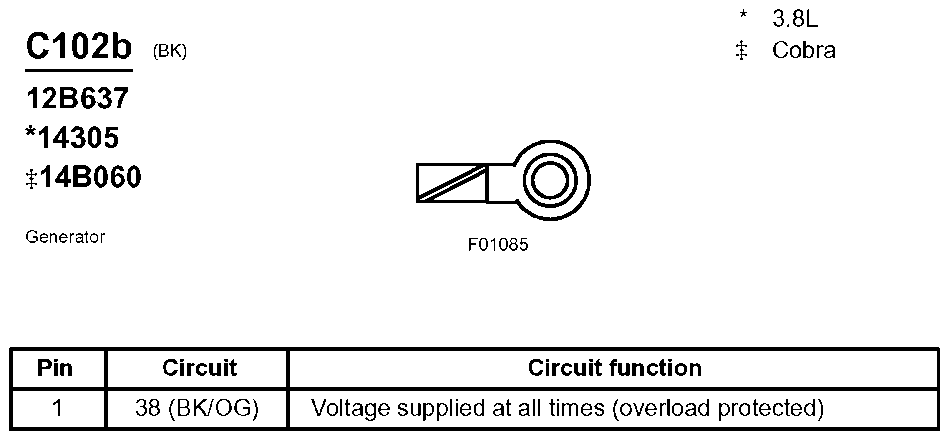

Fig 4: Generator Connector End View (C102b)

G07834417

Courtesy of FORD MOTOR CO.

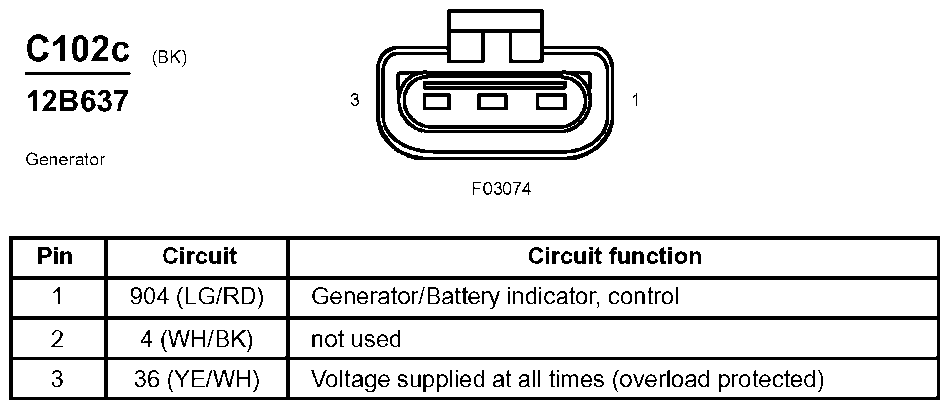

Fig 5: Generator Connector End View (C102c)

G07834418

Courtesy of FORD MOTOR CO.

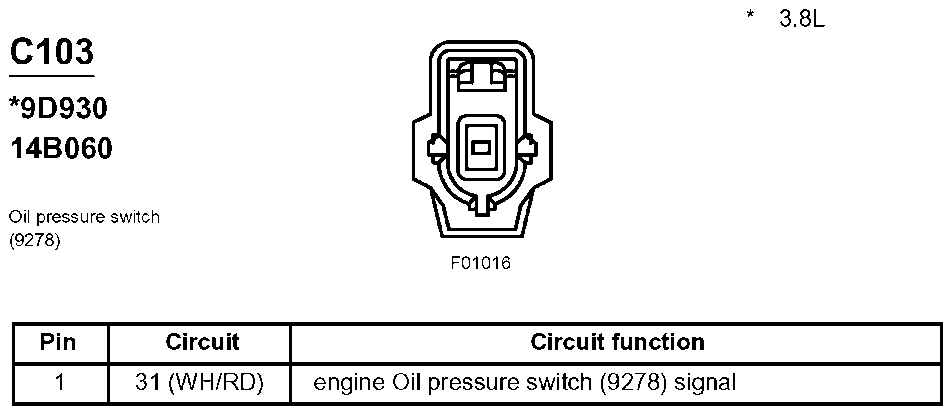

Fig 6: Oil Pressure Switch Connector End View (C103)

G07834419

Courtesy of FORD MOTOR CO.

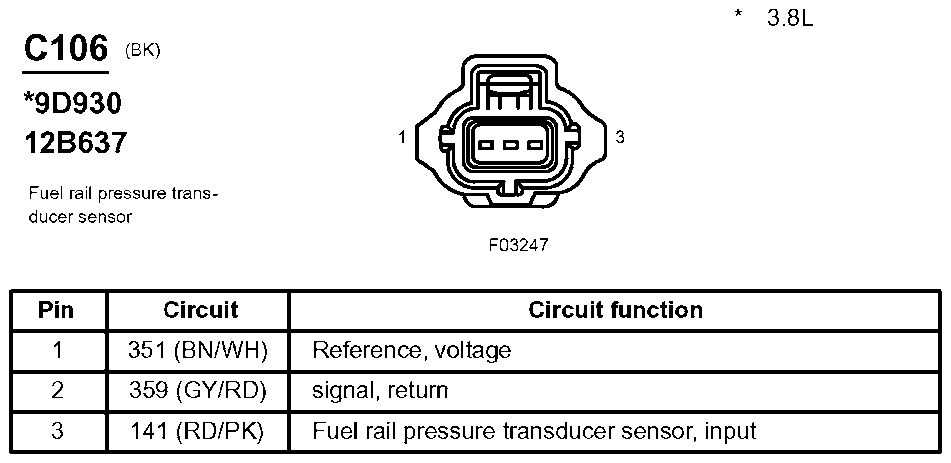

Fig 7: Fuel Rail Pressure Transducer Sensor Connector End View (C106)

G07834420

Courtesy of FORD MOTOR CO.

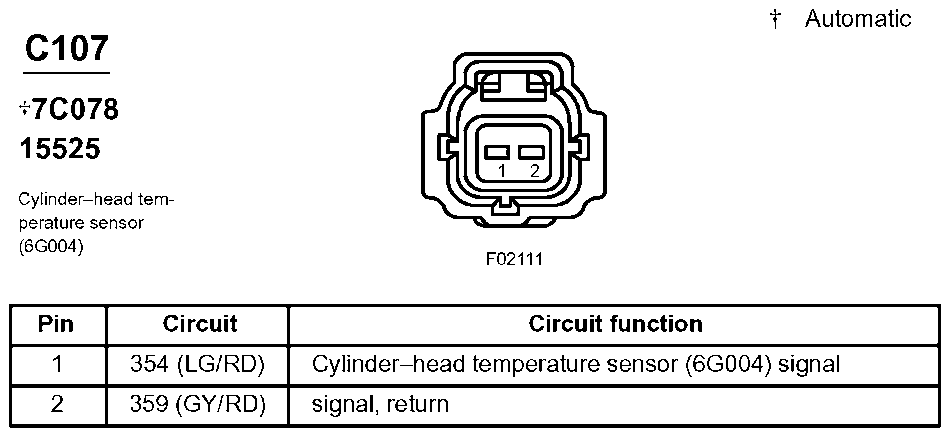

Fig 8: Cylinder-Head Temperature Sensor Connector End View (C107)

G07834421

Courtesy of FORD MOTOR CO.

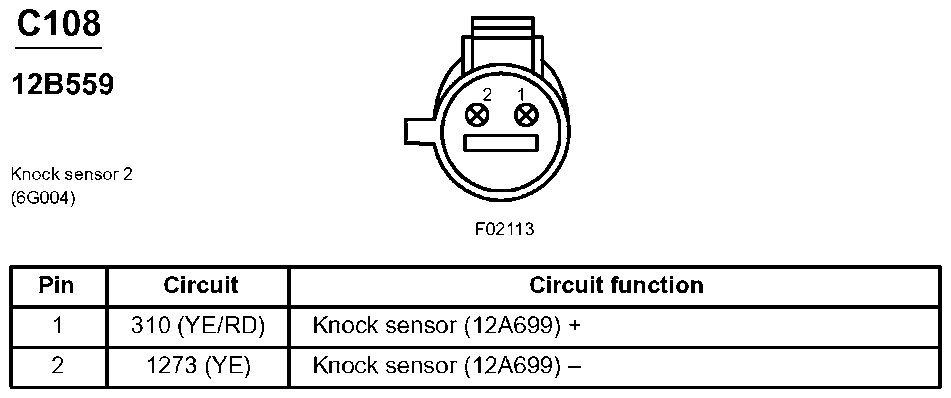

Fig 9: Knock Sensor 2 Connector End View (C108)

G07834422

Courtesy of FORD MOTOR CO.

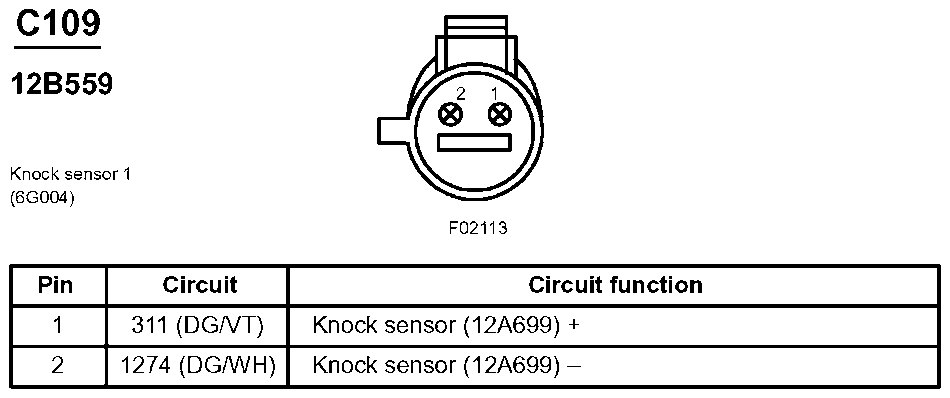

Fig 10: Knock Sensor 1 Connector End View (C109)

G07834423

Courtesy of FORD MOTOR CO.

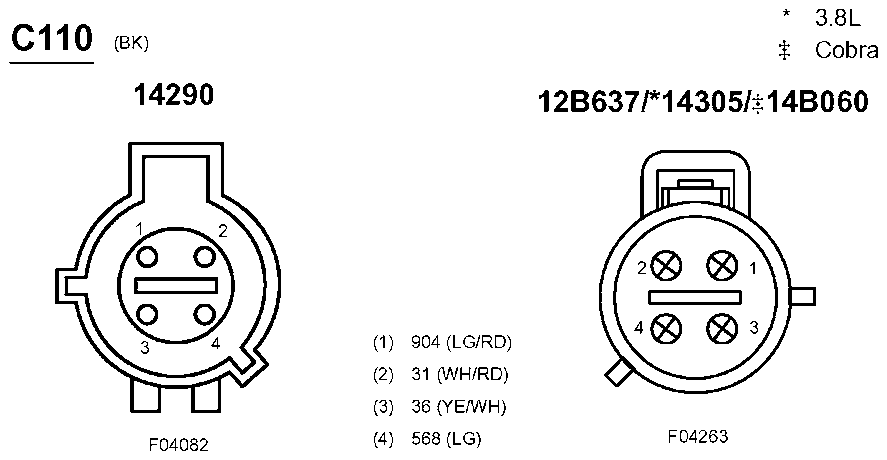

Fig 11: Inline Connector End View (C110)

G07834424

Courtesy of FORD MOTOR CO.

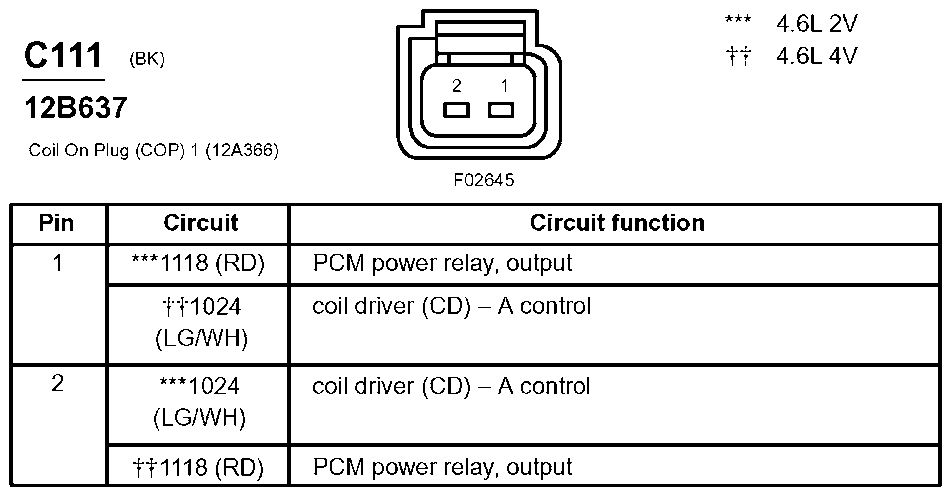

Fig 12: Coil On Plug (COP) 1 Connector End View (C111)

G07834425

Courtesy of FORD MOTOR CO.

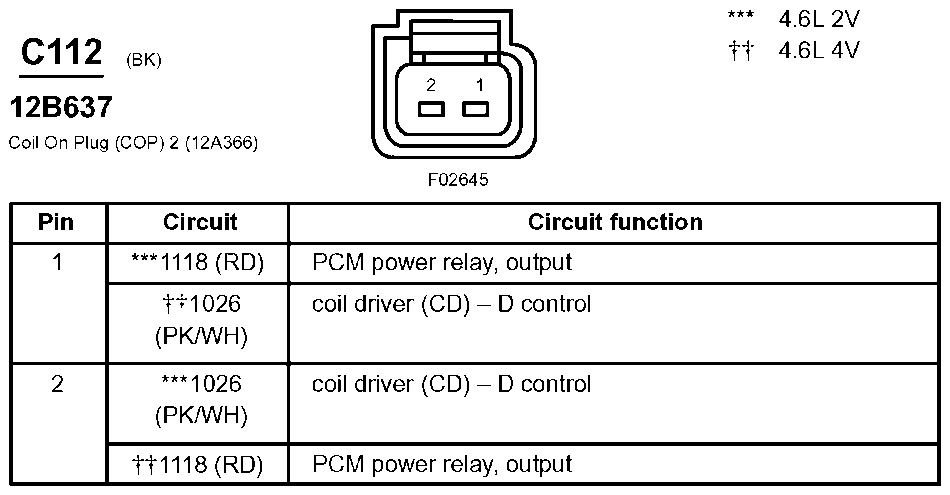

Fig 13: Coil On Plug (COP) 2 Connector End View (C112)

G07834426

Courtesy of FORD MOTOR CO.

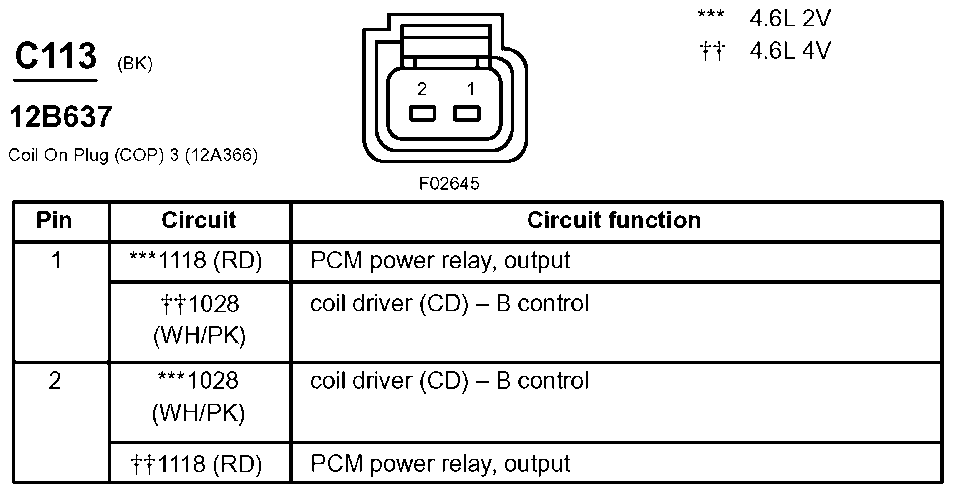

Fig 14: Coil On Plug (COP) 3 Connector End View (C113)

G07834427

Courtesy of FORD MOTOR CO.

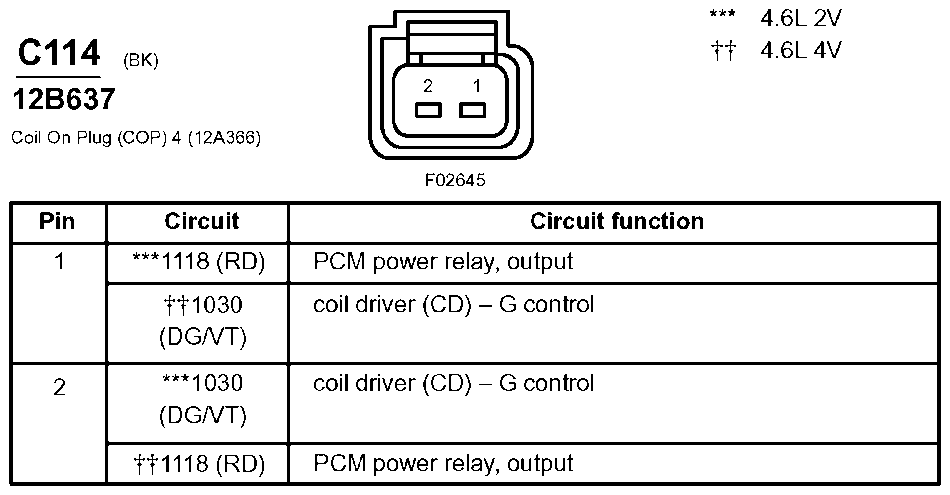

Fig 15: Coil On Plug (COP) 4 Connector End View (C114)

G07834428

Courtesy of FORD MOTOR CO.

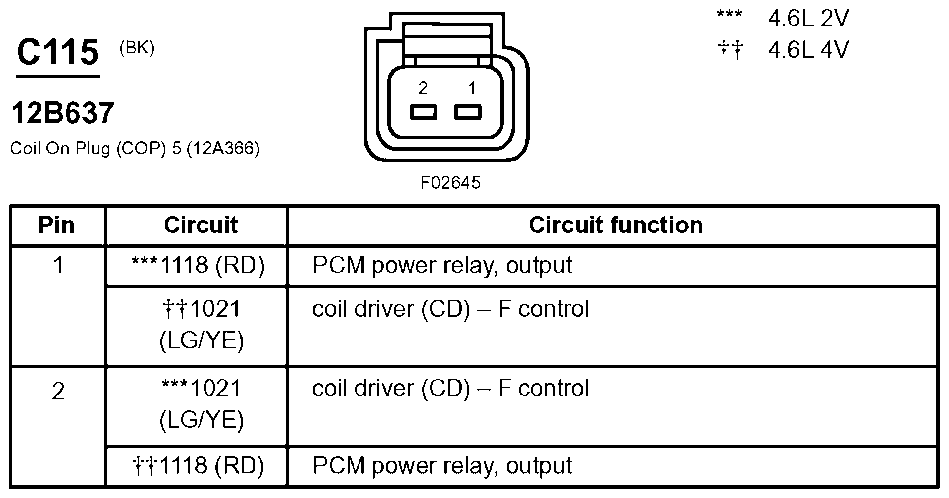

Fig 16: Coil On Plug (COP) 5 Connector End View (C115)

G07834429

Courtesy of FORD MOTOR CO.

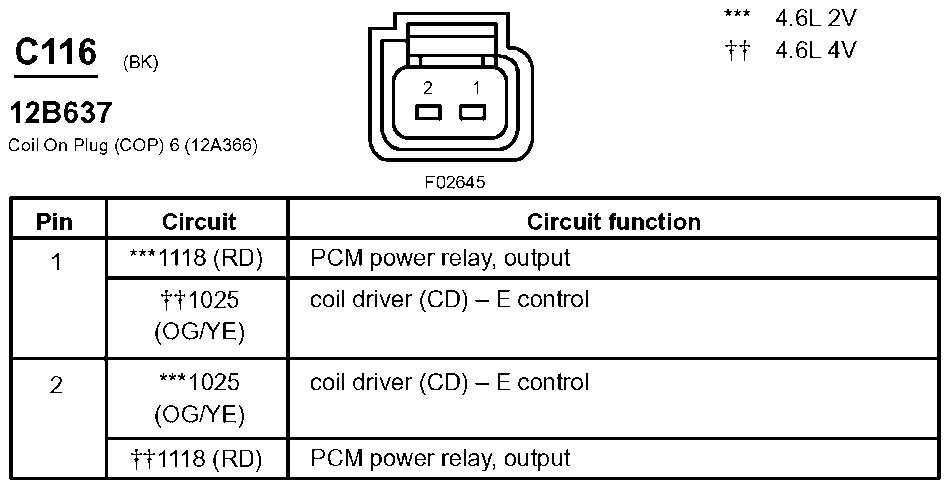

Fig 17: Coil On Plug (COP) 6 Connector End View (C116)

G07834430

Courtesy of FORD MOTOR CO.

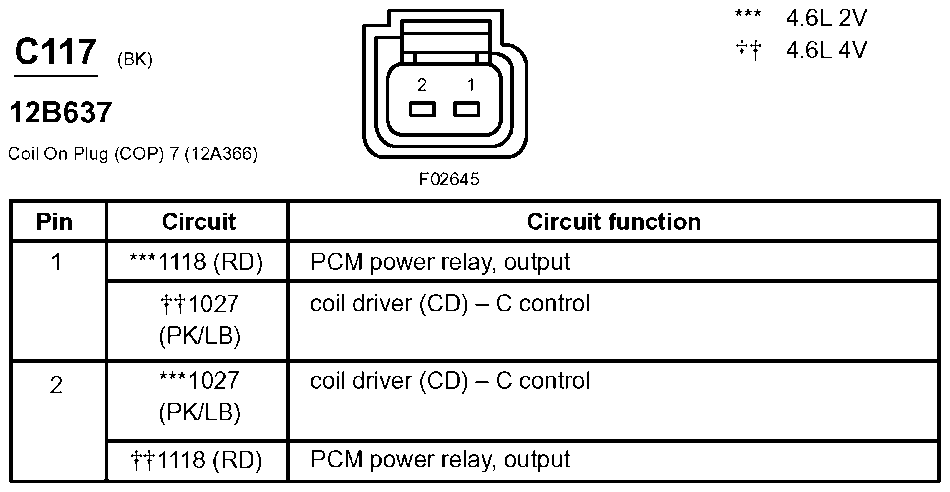

Fig 18: Coil On Plug (COP) 7 Connector End View (C117)

G07834431

Courtesy of FORD MOTOR CO.

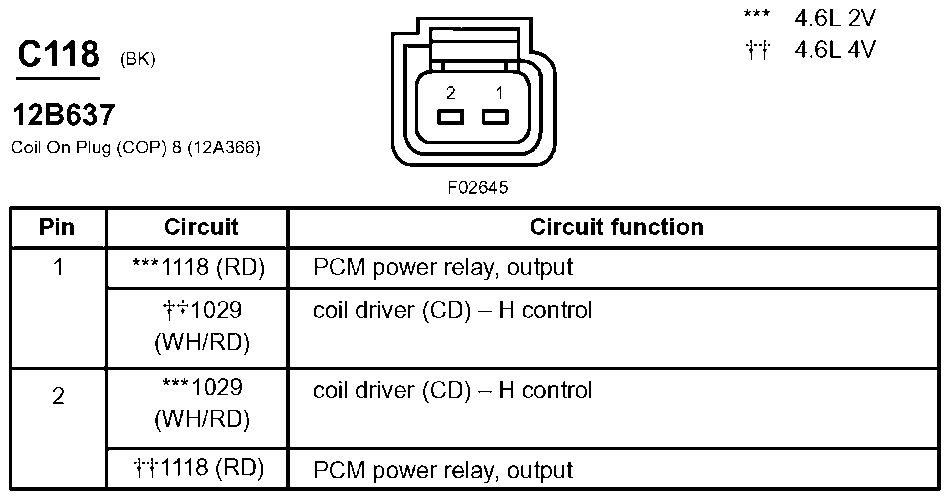

Fig 19: Coil On Plug (COP) 8 Connector End View (C118)

G07834432

Courtesy of FORD MOTOR CO.

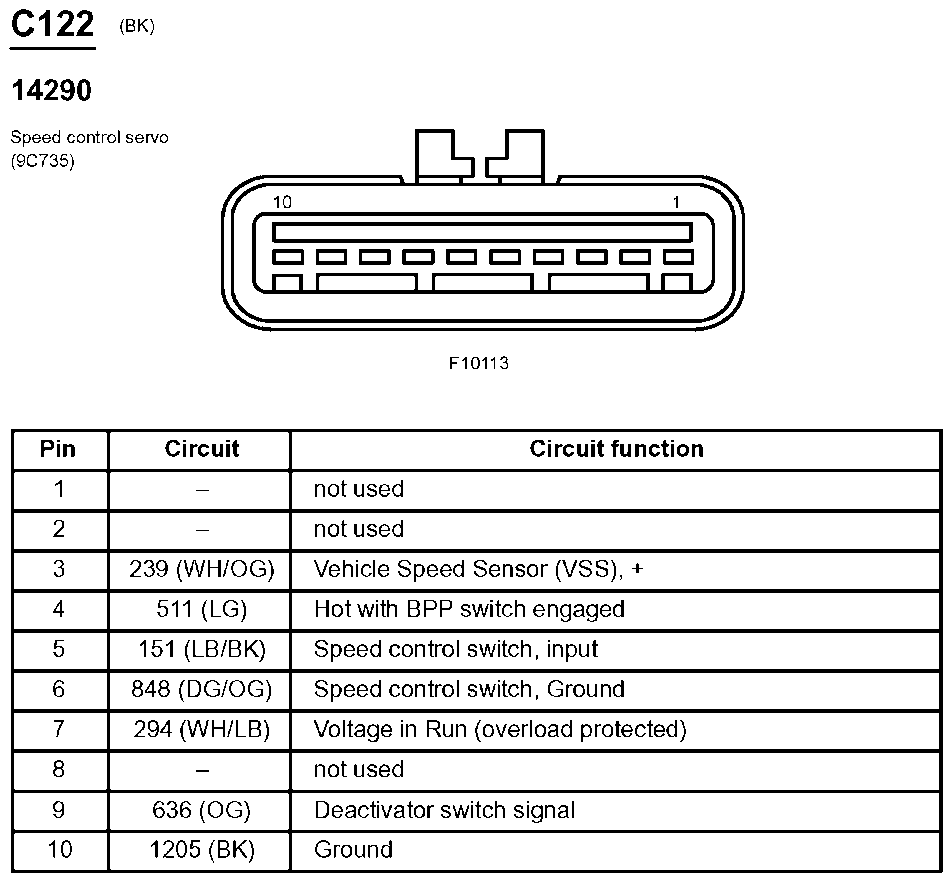

Fig 20: Speed Control Servo Connector End View (C122)

G07834433

Courtesy of FORD MOTOR CO.

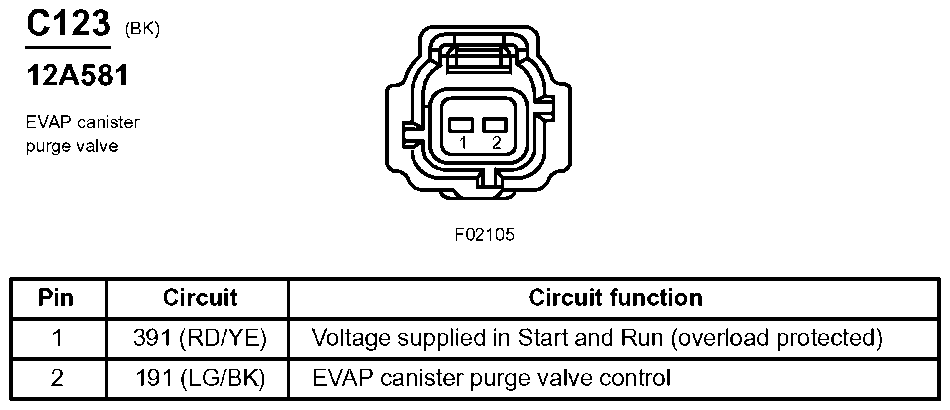

Fig 21: EVAP Canister Purge Valve Connector End View (C123)

G07834434

Courtesy of FORD MOTOR CO.

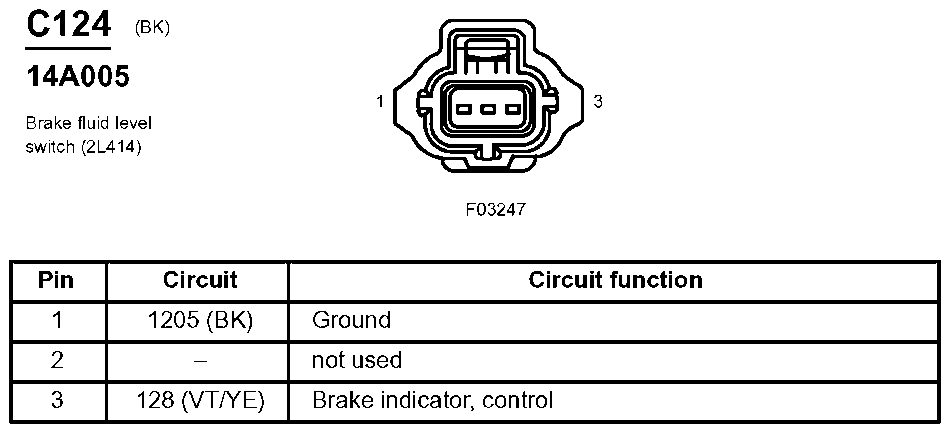

Fig 22: Brake Fluid Level Switch Connector End View (C124)

G07834435

Courtesy of FORD MOTOR CO.

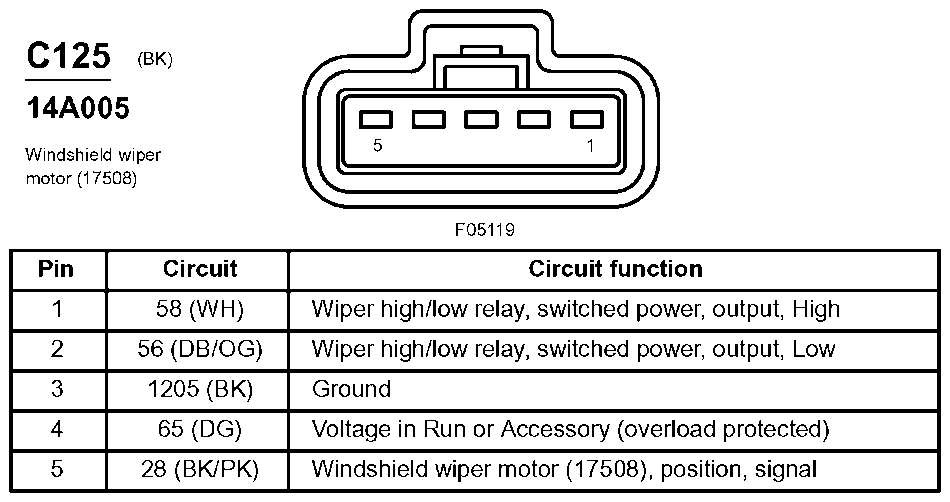

Fig 23: Windshield Wiper Motor Connector End View (C125)

G07834436

Courtesy of FORD MOTOR CO.

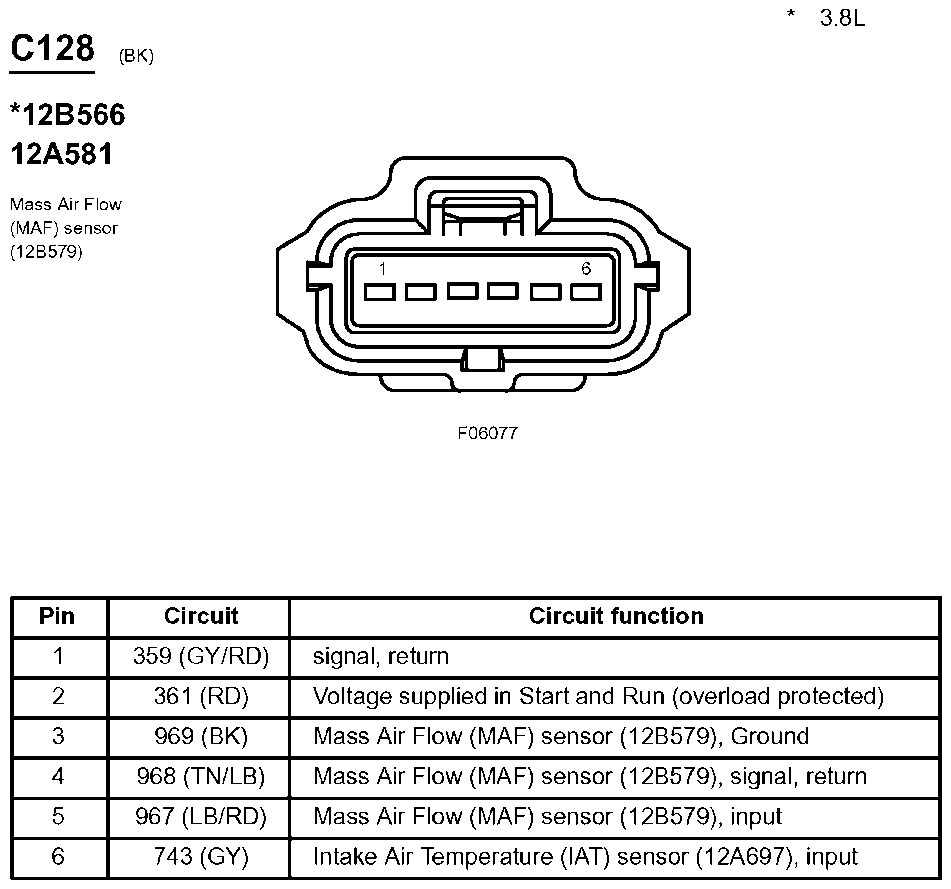

Fig 24: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07834437

Courtesy of FORD MOTOR CO.

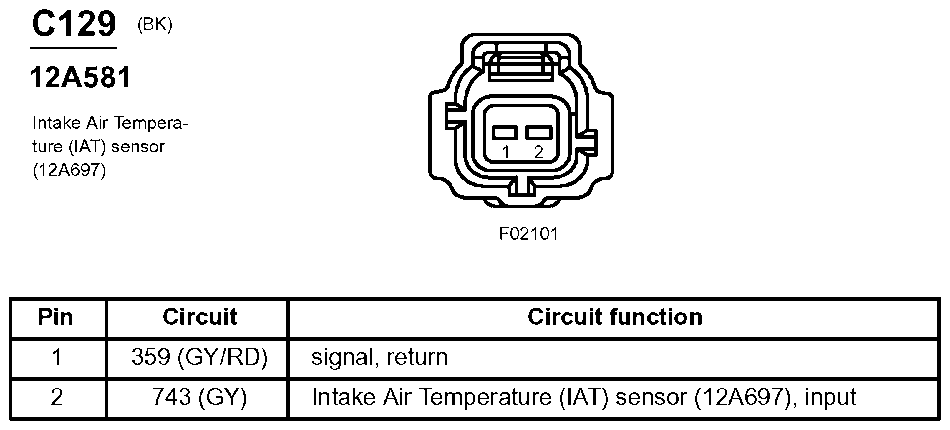

Fig 25: Intake Air Temperature (IAT) Sensor Connector End View (C129)

G07834438

Courtesy of FORD MOTOR CO.

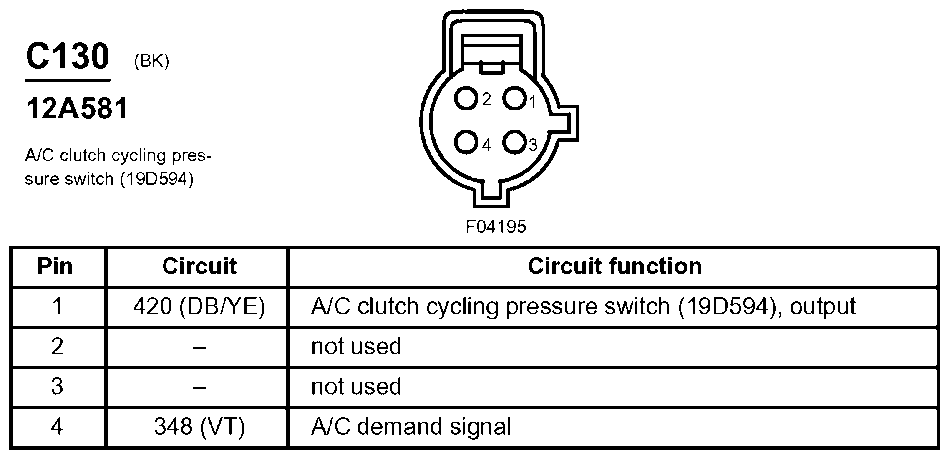

Fig 26: A/C Clutch Cycling Pressure Switch Connector End View (C130)

G07834439

Courtesy of FORD MOTOR CO.

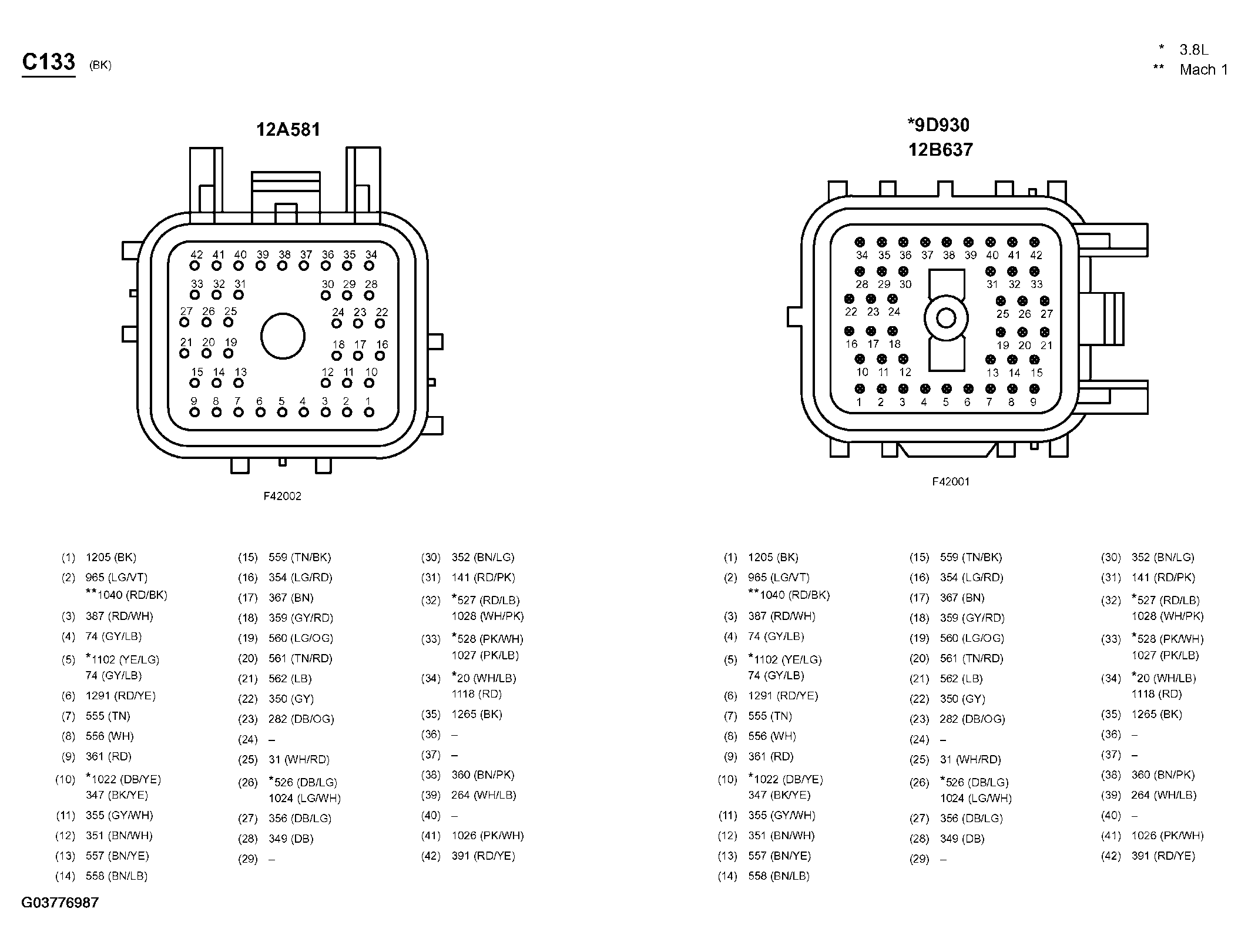

Fig 27: Inline Connector End View (C133)

G03776987

Courtesy of FORD MOTOR CO.

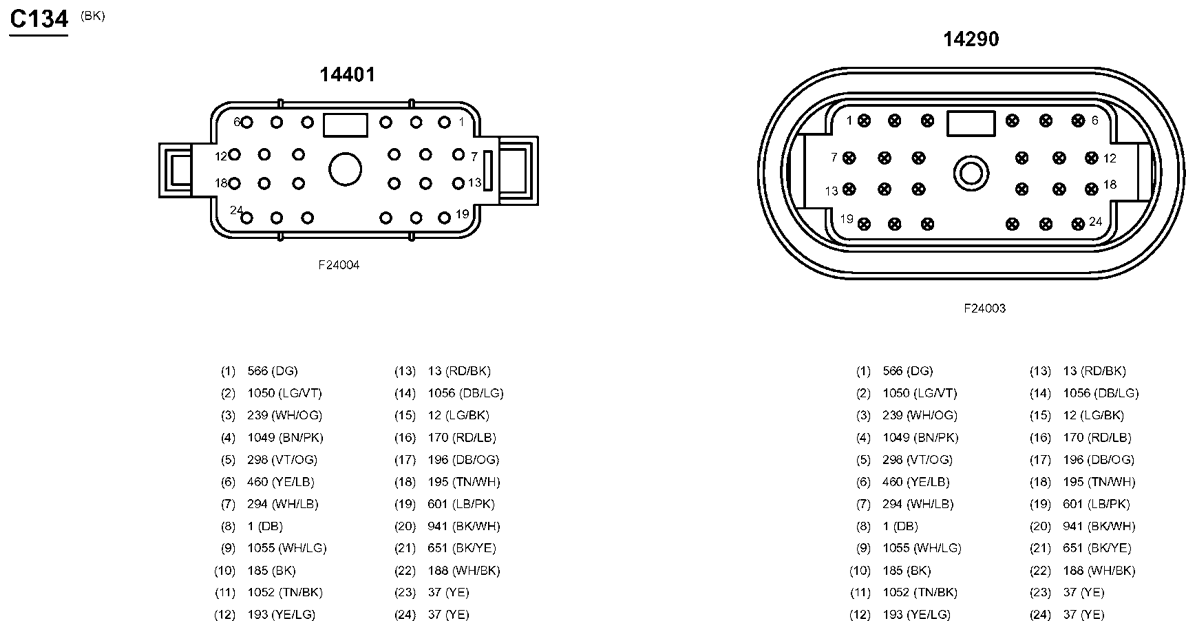

Fig 28: Inline Connector End View (C134)

G03776988

Courtesy of FORD MOTOR CO.

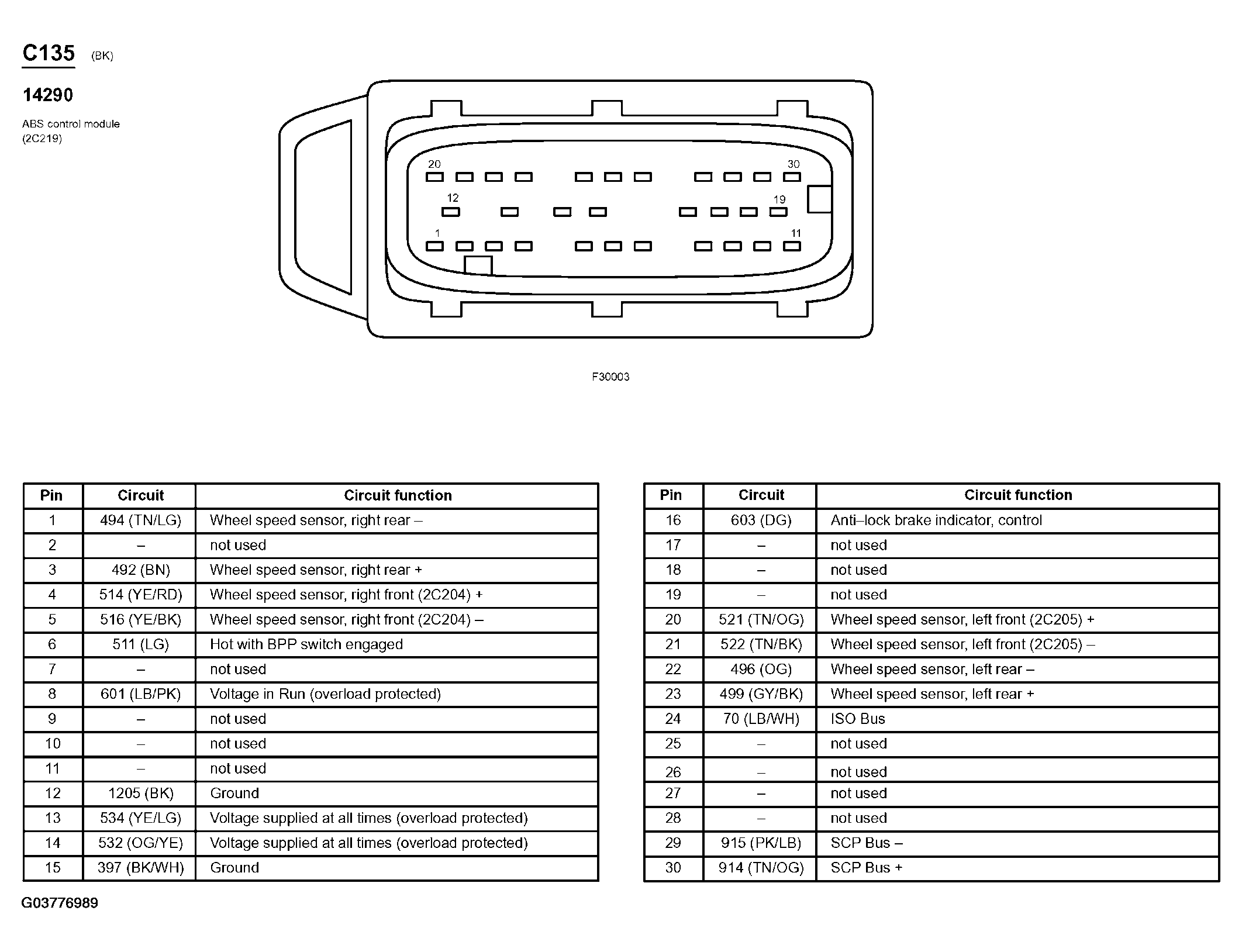

Fig 29: ABS Control Module Connector End View (C135)

G03776989

Courtesy of FORD MOTOR CO.

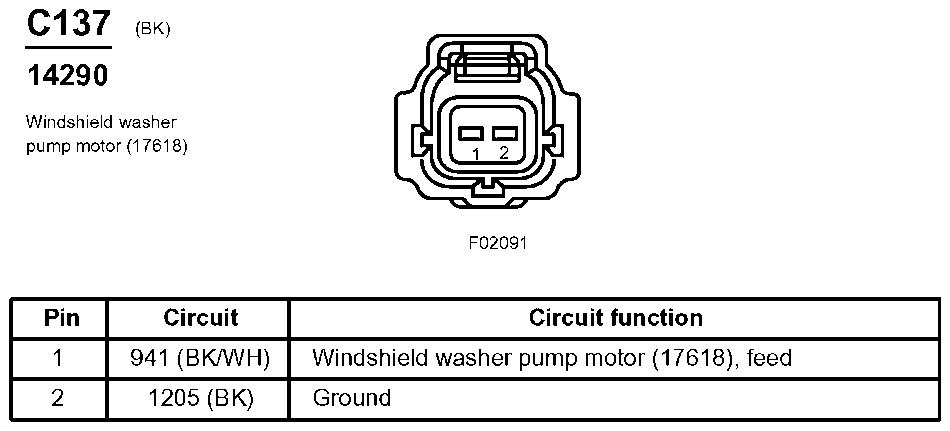

Fig 30: Windshield Washer Pump Motor Connector End View (C137)

G07834440

Courtesy of FORD MOTOR CO.

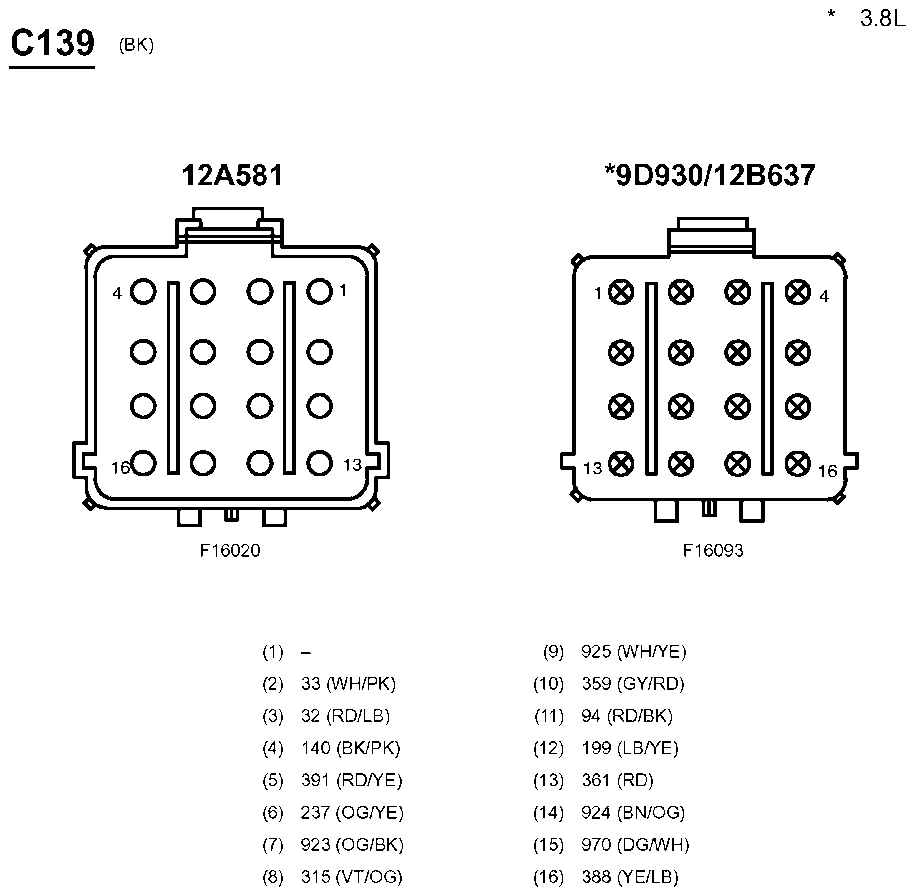

Fig 31: Inline Connector End View (C139)

G07834441

Courtesy of FORD MOTOR CO.

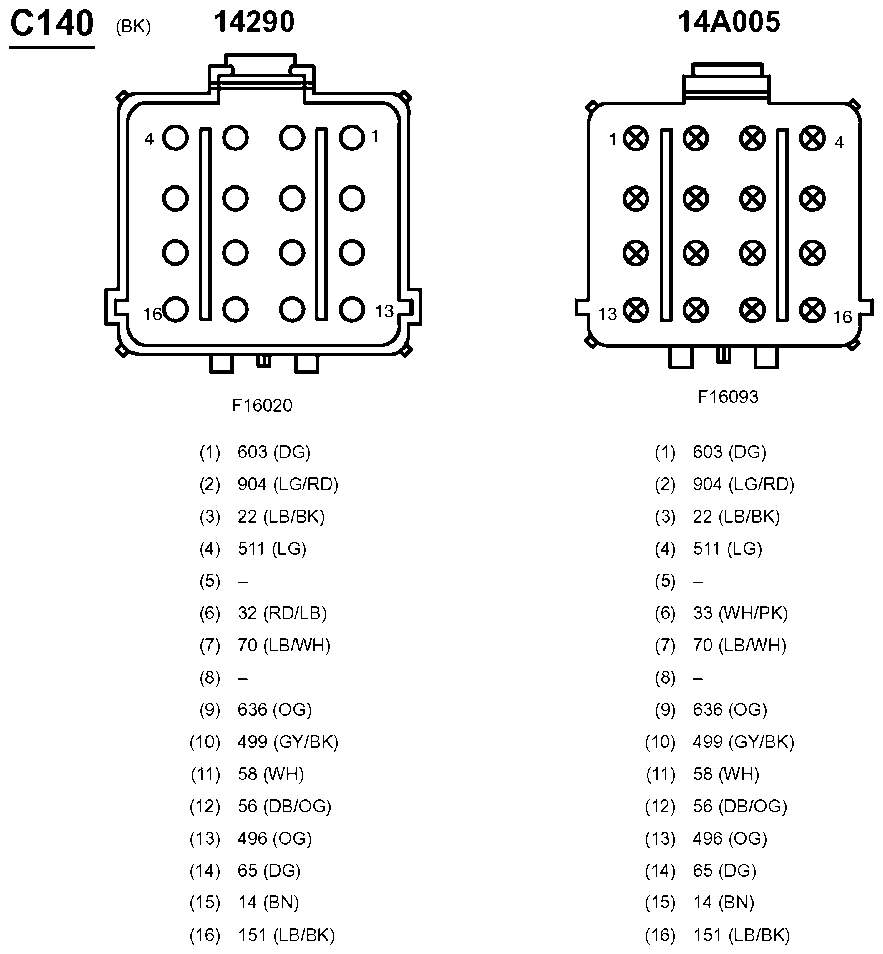

Fig 32: Inline Connector End View (C140)

G07834442

Courtesy of FORD MOTOR CO.

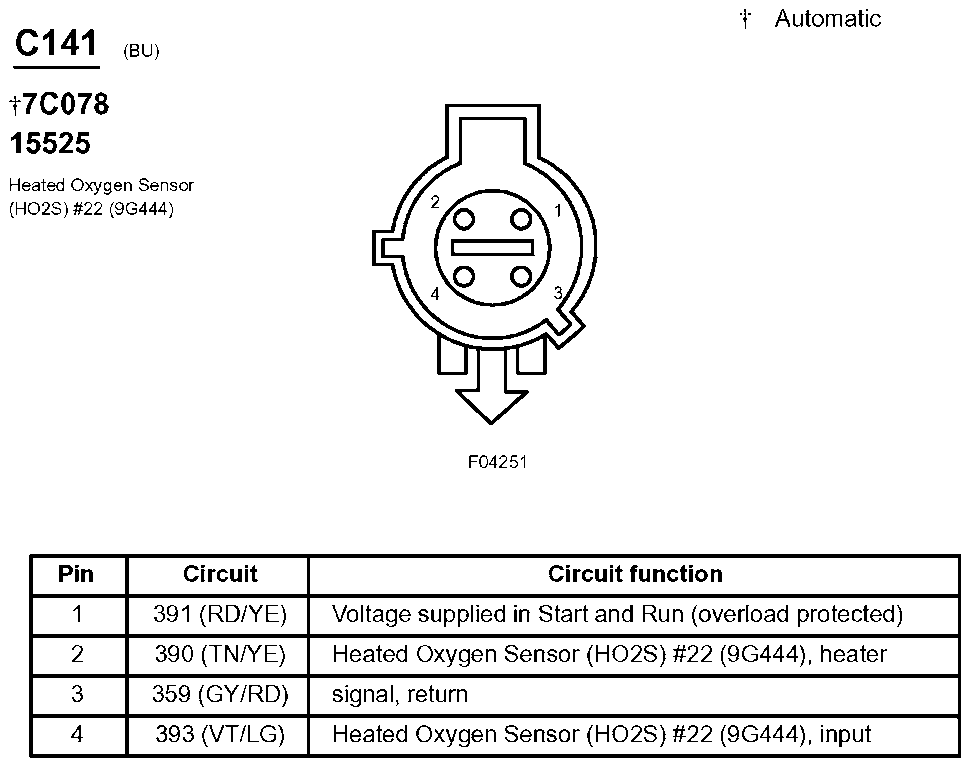

Fig 33: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07834443

Courtesy of FORD MOTOR CO.

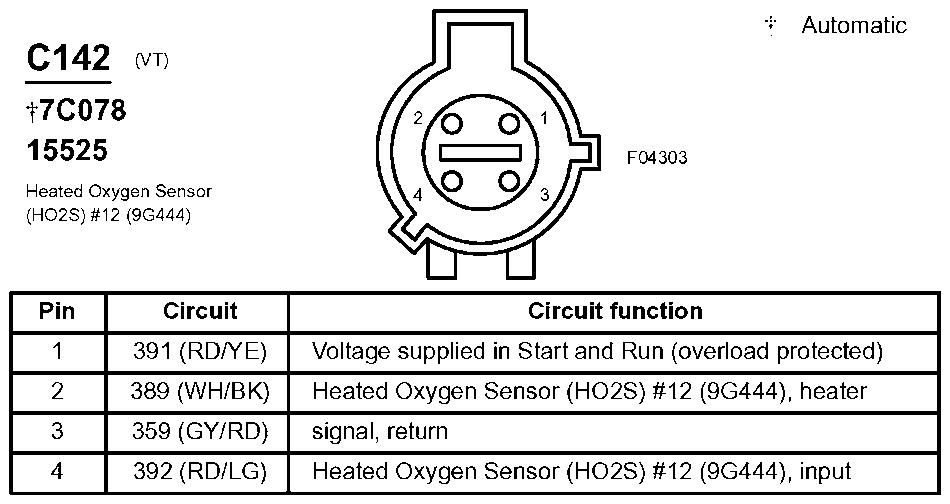

Fig 34: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07834444

Courtesy of FORD MOTOR CO.

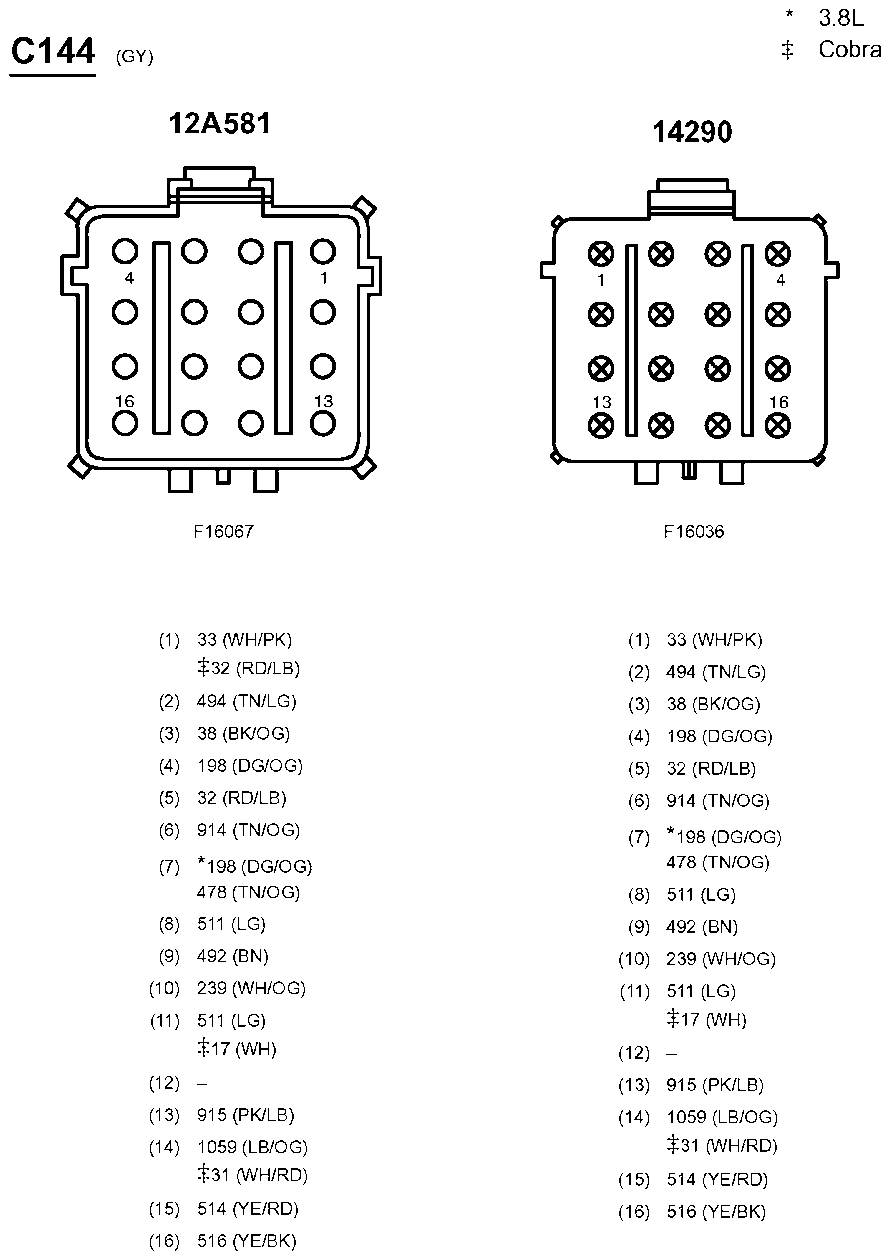

Fig 35: Inline Connector End View (C144)

G07834445

Courtesy of FORD MOTOR CO.

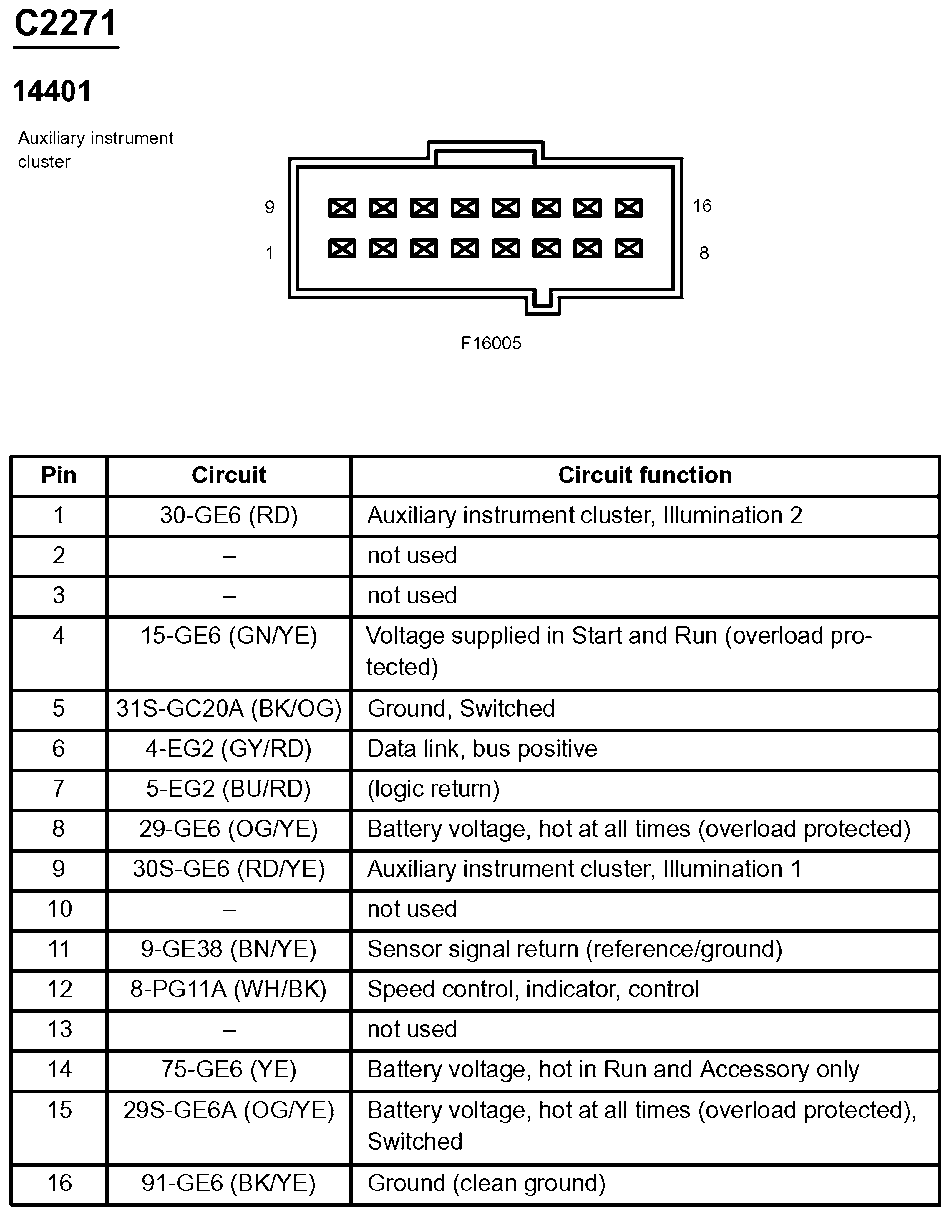

Fig 36: Auxiliary Instrument Cluster Connector End View (C2271)

G07834446

Courtesy of FORD MOTOR CO.

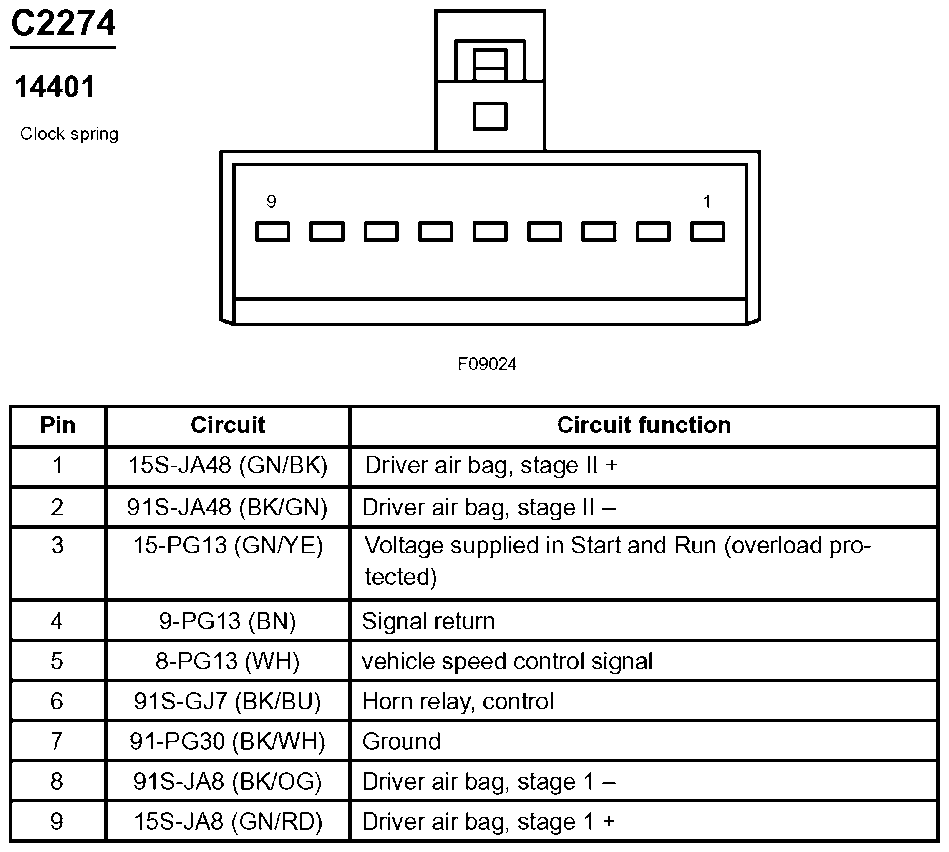

Fig 37: Clock Spring Connector End View (C2274)

G07834447

Courtesy of FORD MOTOR CO.

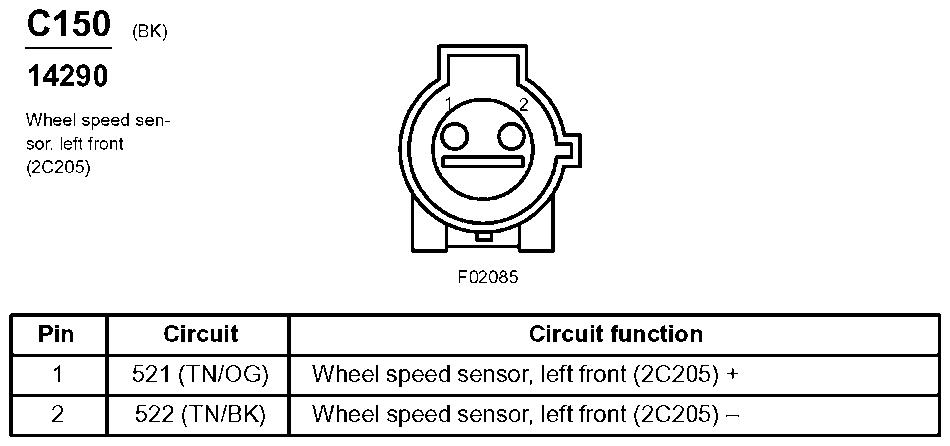

Fig 38: Wheel Speed Sensor, Left Front Connector End View (C150)

G07834448

Courtesy of FORD MOTOR CO.

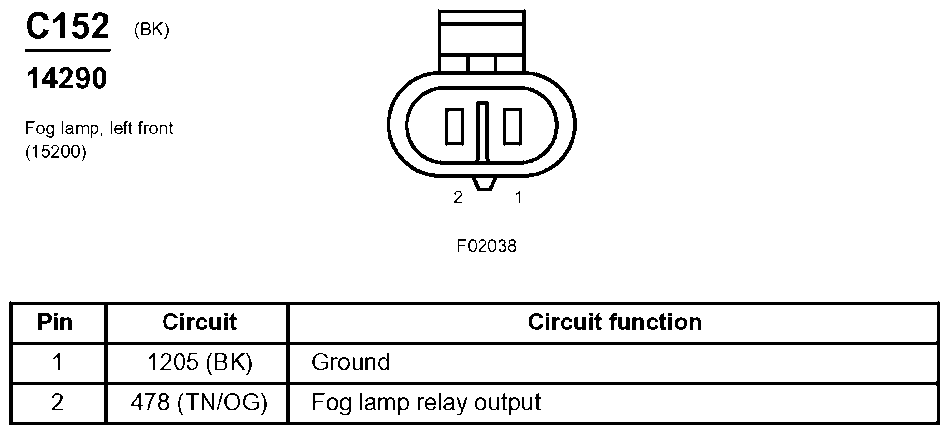

Fig 39: Fog Lamp, Left Front Connector End View (C152)

G07834449

Courtesy of FORD MOTOR CO.

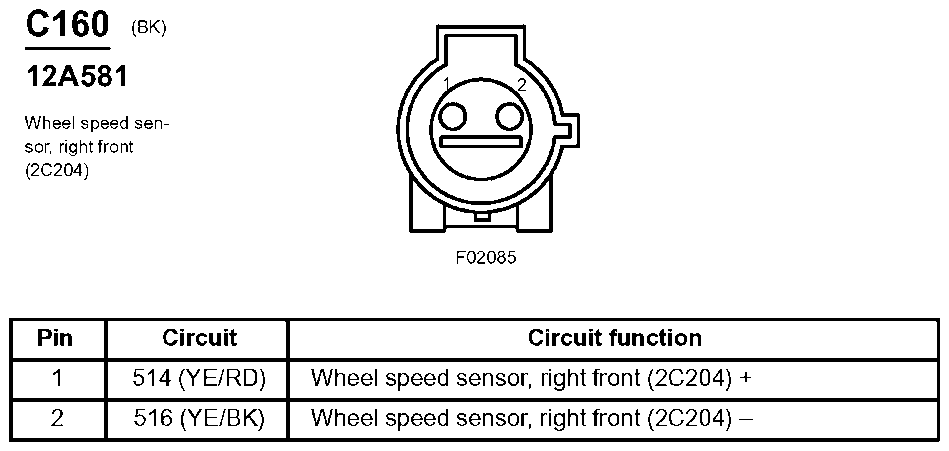

Fig 40: Wheel Speed Sensor, Right Front Connector End View (C160)

G07834450

Courtesy of FORD MOTOR CO.

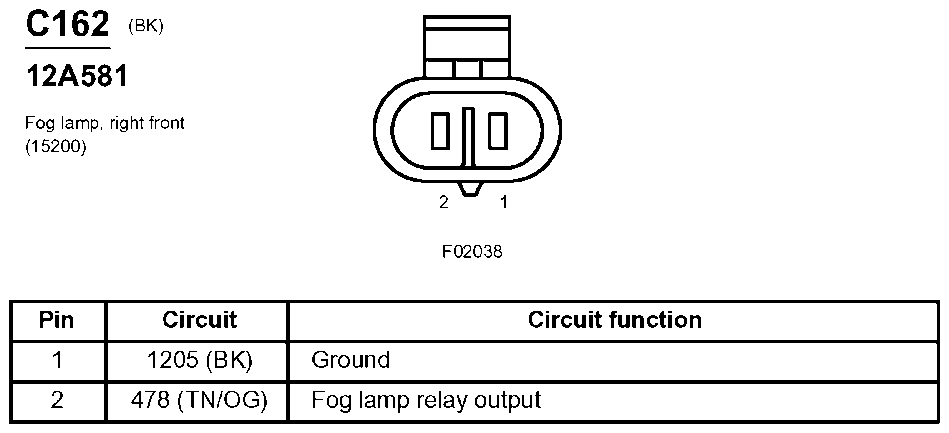

Fig 41: Fog Lamp, Right Front Connector End View (C162)

G07834451

Courtesy of FORD MOTOR CO.

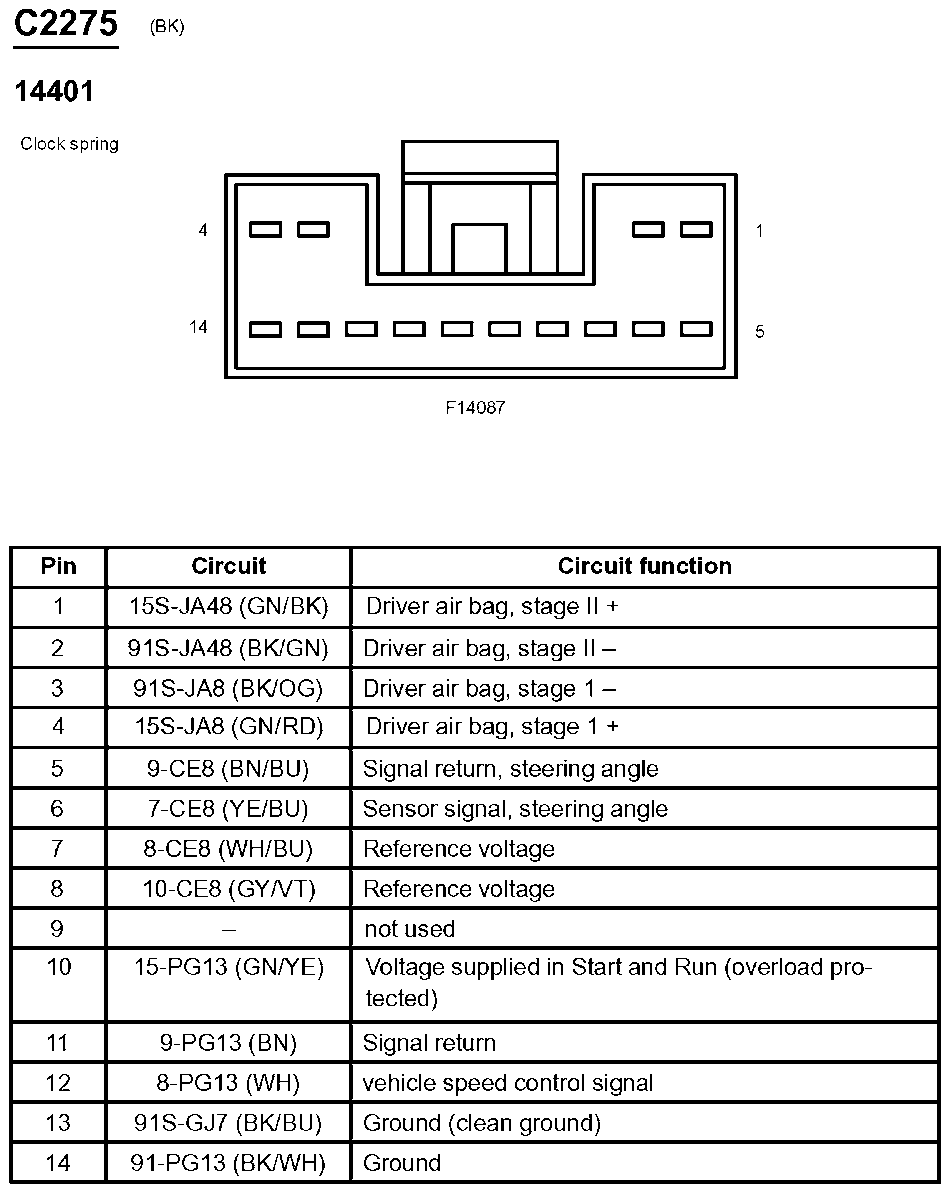

Fig 42: Clock Spring Connector End View (C2275)

G07834452

Courtesy of FORD MOTOR CO.

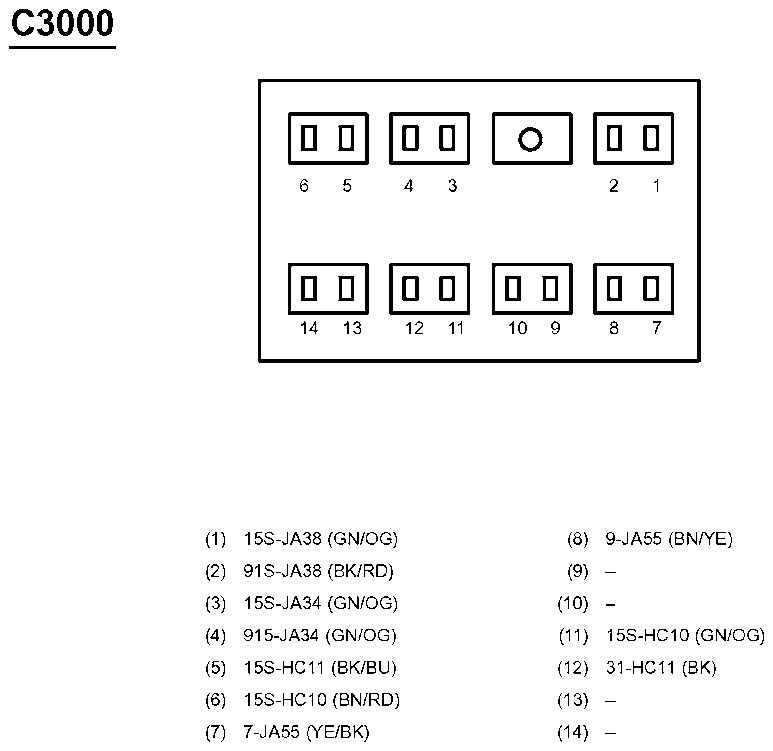

Fig 43: Inline Connector End View (C3000)

G07834453

Courtesy of FORD MOTOR CO.

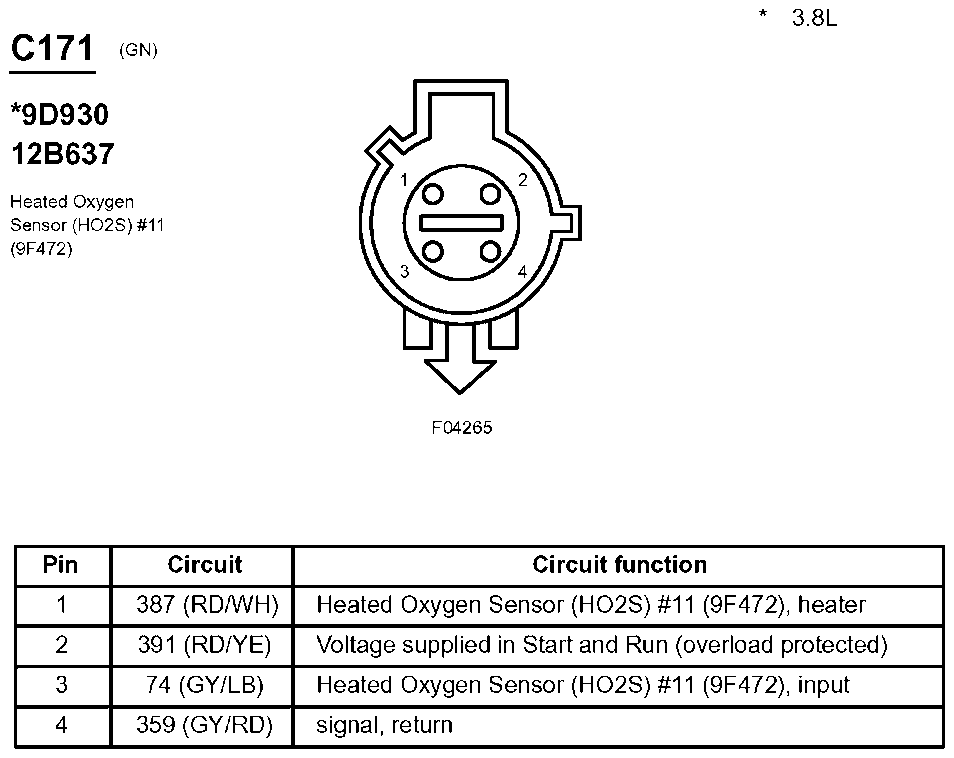

Fig 44: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07834454

Courtesy of FORD MOTOR CO.

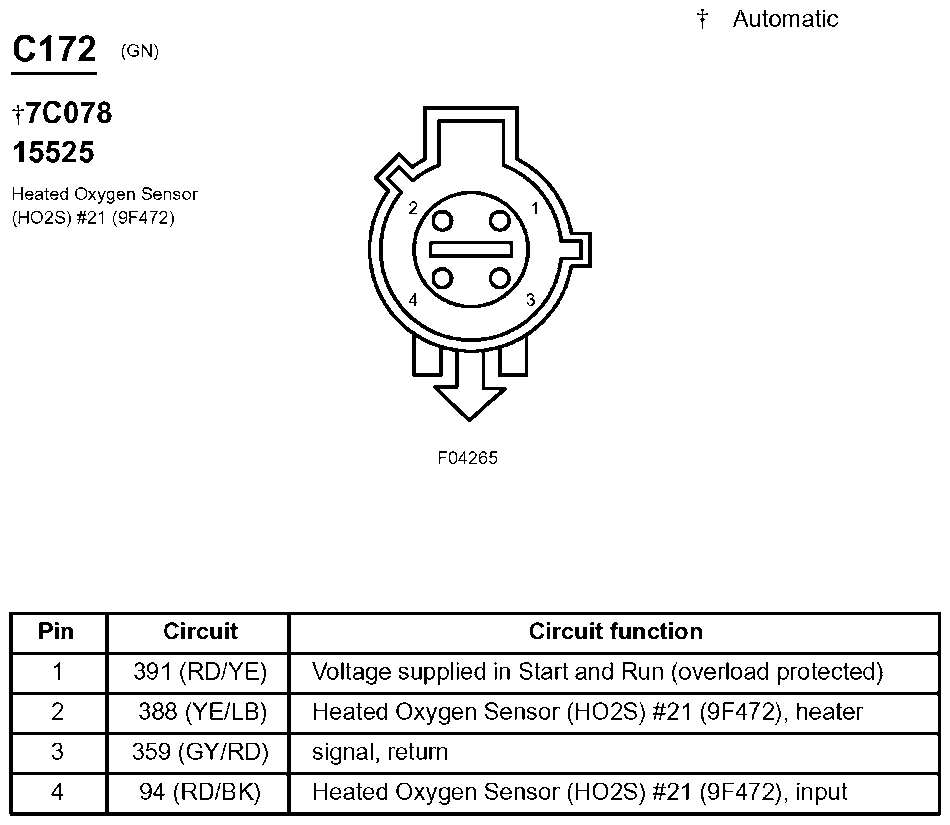

Fig 45: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07834455

Courtesy of FORD MOTOR CO.

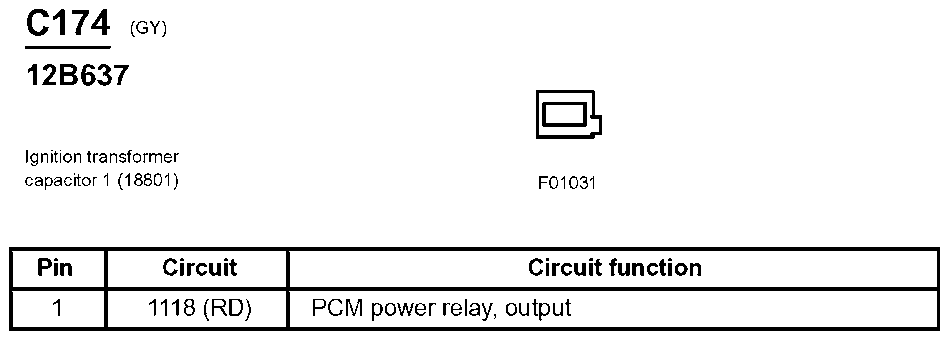

Fig 46: Ignition Transformer Capacitor 1 Connector End View (C174)

G07834456

Courtesy of FORD MOTOR CO.

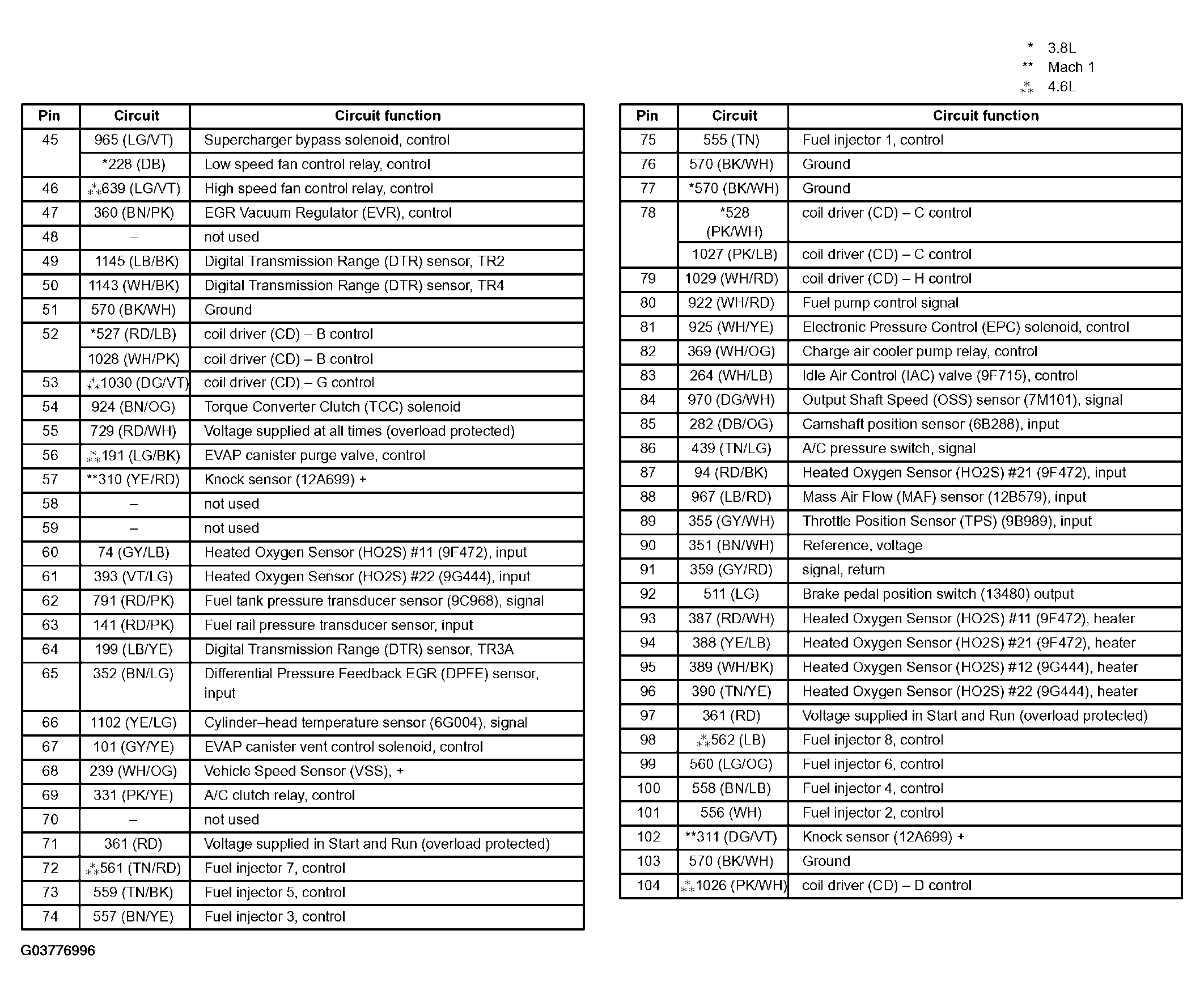

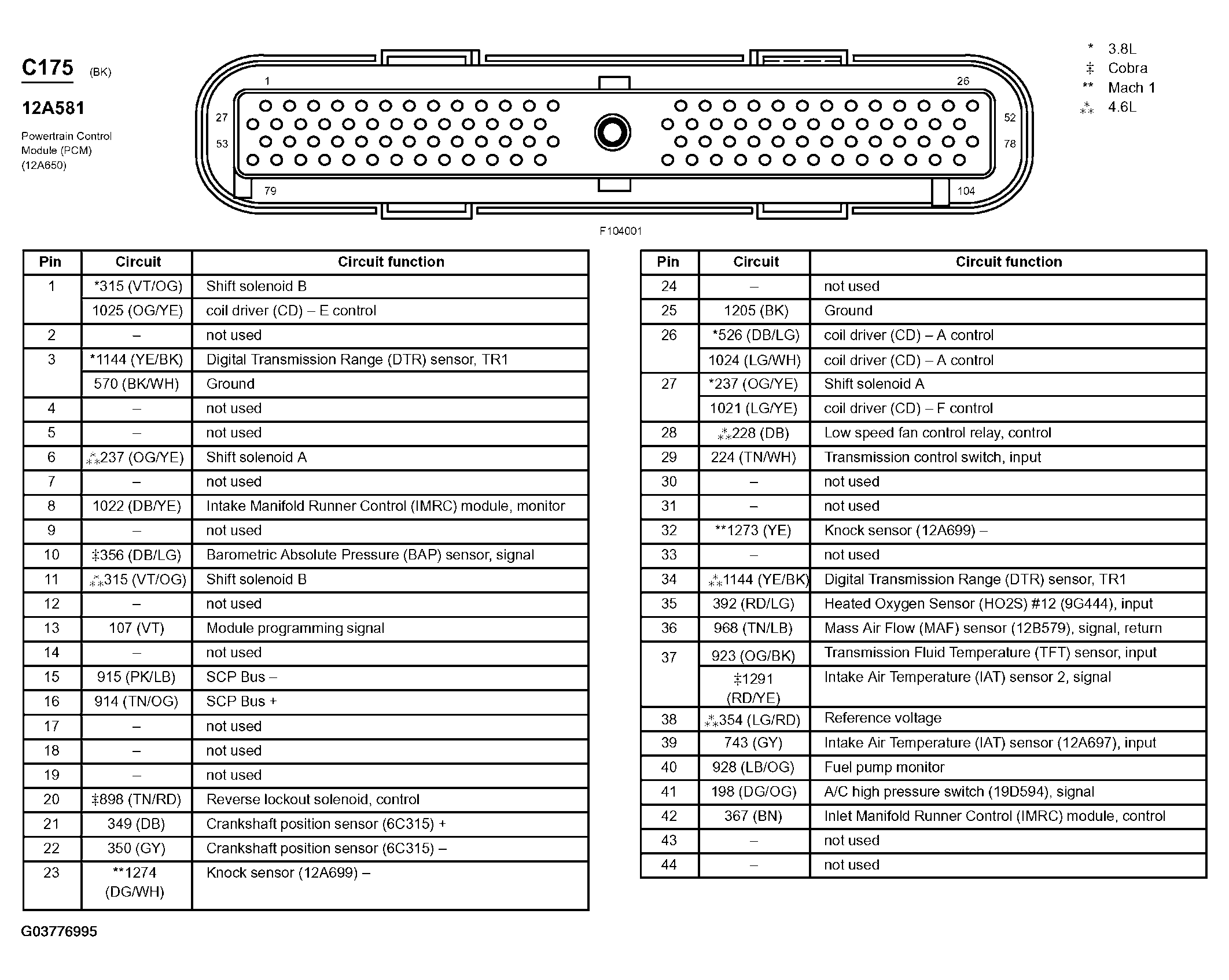

Fig 47: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

G03776995

Courtesy of FORD MOTOR CO.

Fig 48: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

G03776996

Courtesy of FORD MOTOR CO.

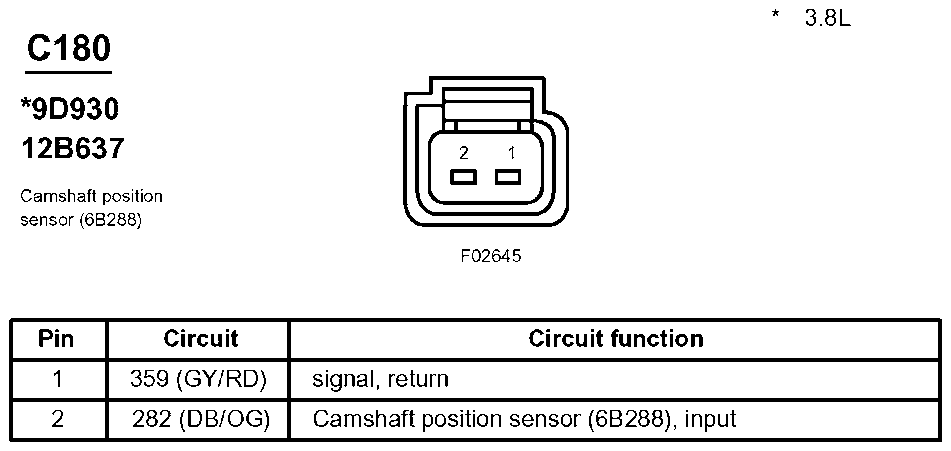

Fig 49: Camshaft Position Sensor Connector End View (C180)

G07834457

Courtesy of FORD MOTOR CO.

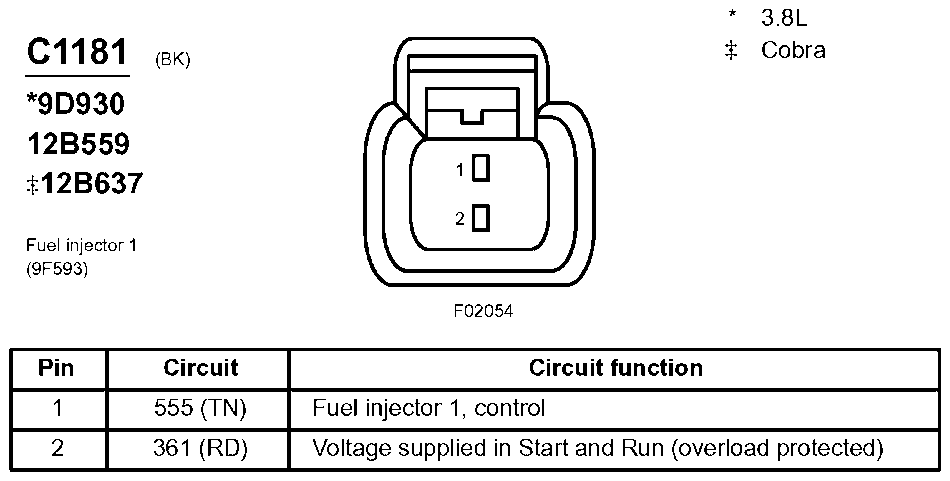

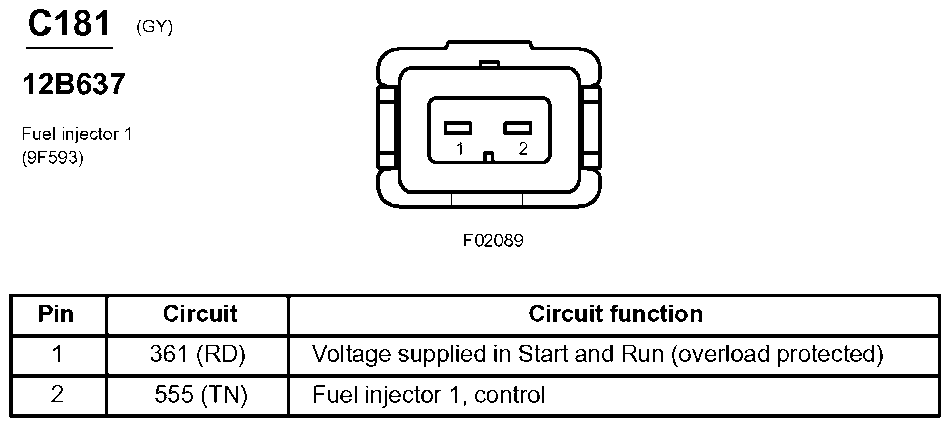

Fig 50: Fuel Injector 1 Connector End View (C181)

G07834458

Courtesy of FORD MOTOR CO.

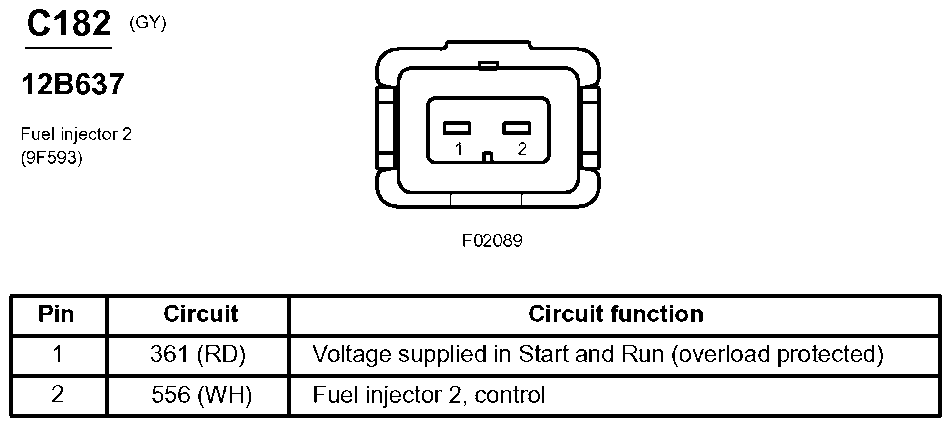

Fig 51: Fuel Injector 2 Connector End View (C182)

G07834459

Courtesy of FORD MOTOR CO.

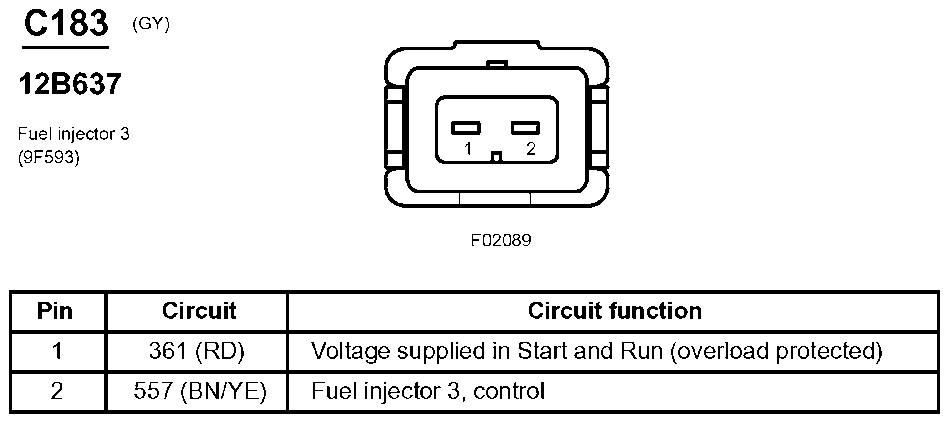

Fig 52: Fuel Injector 3 Connector End View (C183)

G07834460

Courtesy of FORD MOTOR CO.

Fig 53: Fuel Injector 4 Connector End View (C184)

G07834461

Courtesy of FORD MOTOR CO.

Fig 54: Fuel Injector 5 Connector End View (C185)

G07834462

Courtesy of FORD MOTOR CO.

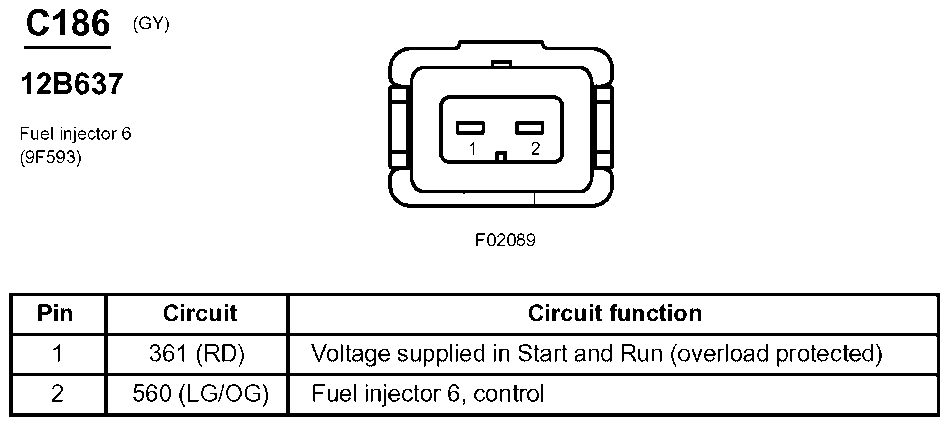

Fig 55: Fuel Injector 6 Connector End View (C186)

G07834463

Courtesy of FORD MOTOR CO.

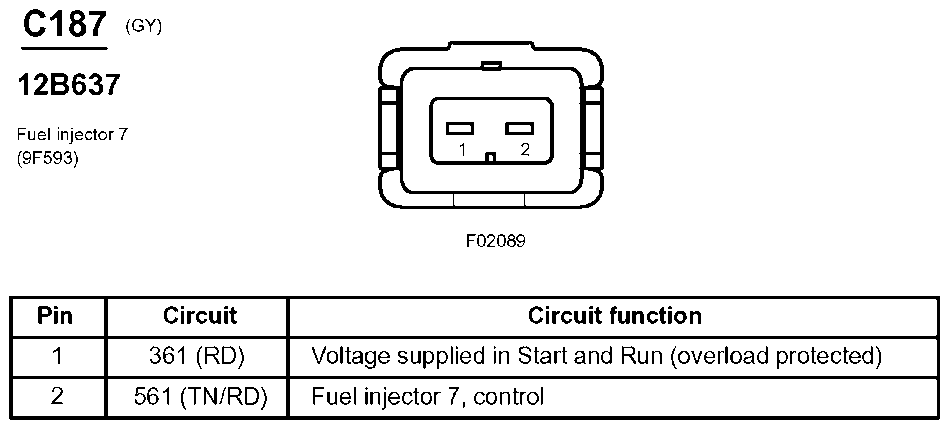

Fig 56: Fuel Injector 7 Connector End View (C187)

G07834464

Courtesy of FORD MOTOR CO.

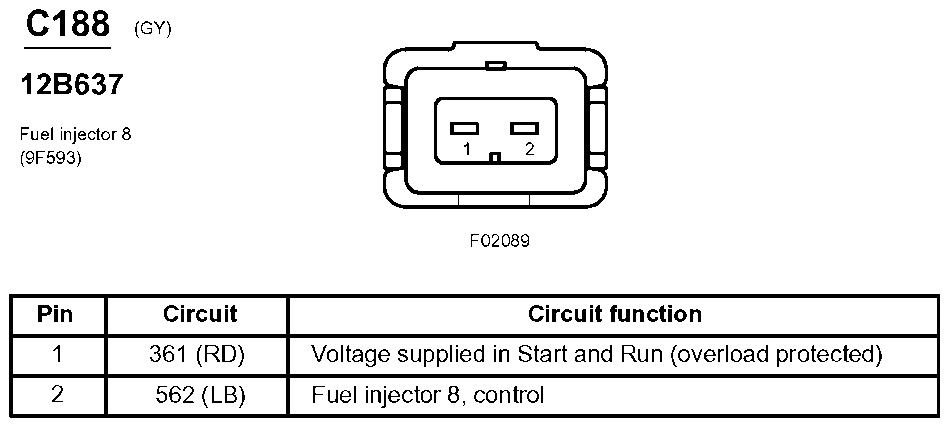

Fig 57: Fuel Injector 8 Connector End View (C188)

G07834465

Courtesy of FORD MOTOR CO.

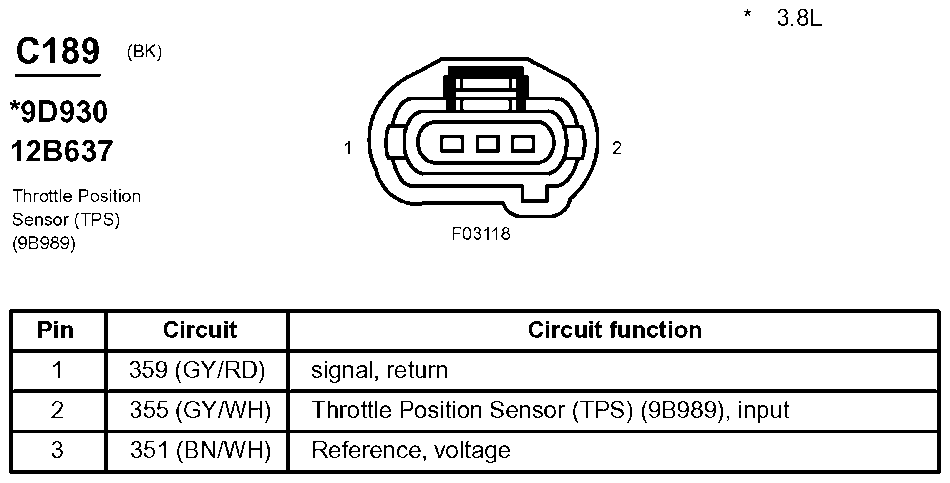

Fig 58: Throttle Position Sensor (TPS) Connector End View (C189)

G07834466

Courtesy of FORD MOTOR CO.

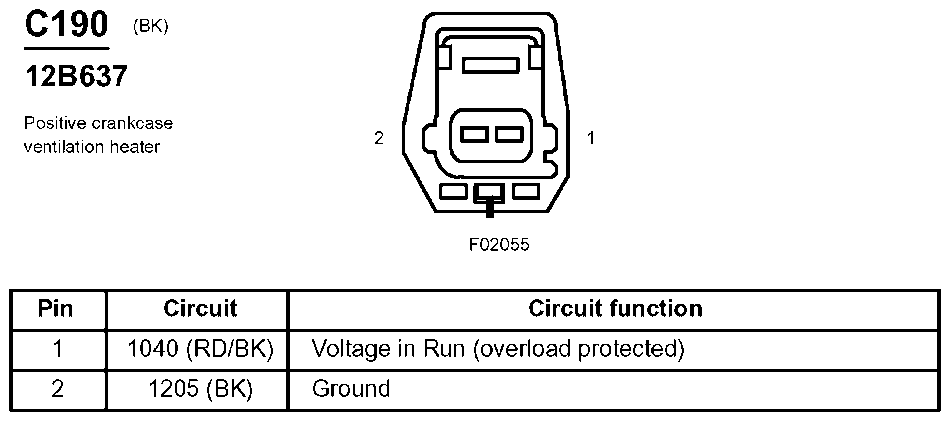

Fig 59: Positive Crankcase Ventilation Heater Connector End View (C190)

G07834467

Courtesy of FORD MOTOR CO.

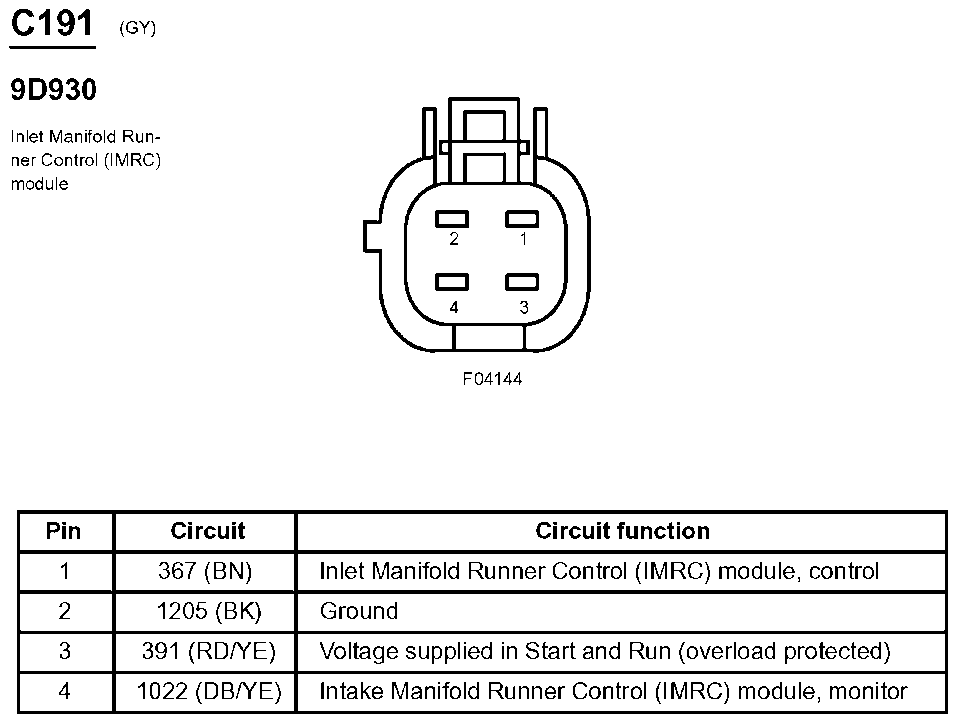

Fig 60: Inlet Manifold Runner Control (IMRC) Module Connector End View (C191)

G07834468

Courtesy of FORD MOTOR CO.

Fig 61: Inline Connector End View (C192)

G07834469

Courtesy of FORD MOTOR CO.

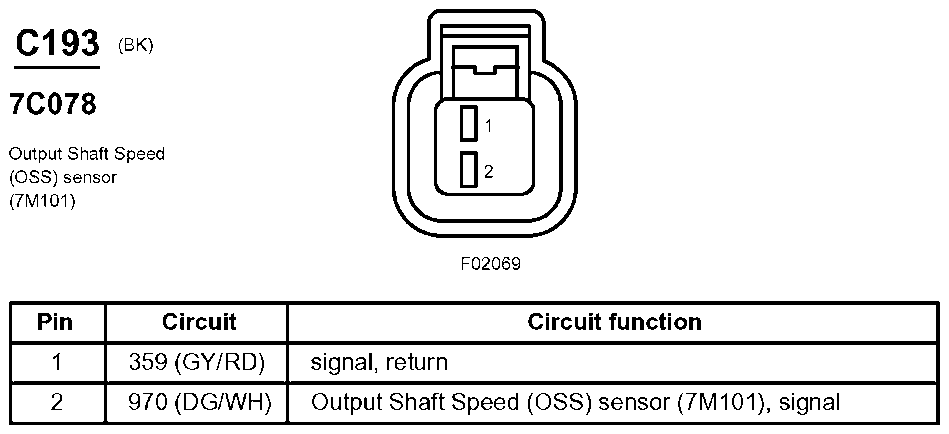

Fig 62: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07834470

Courtesy of FORD MOTOR CO.

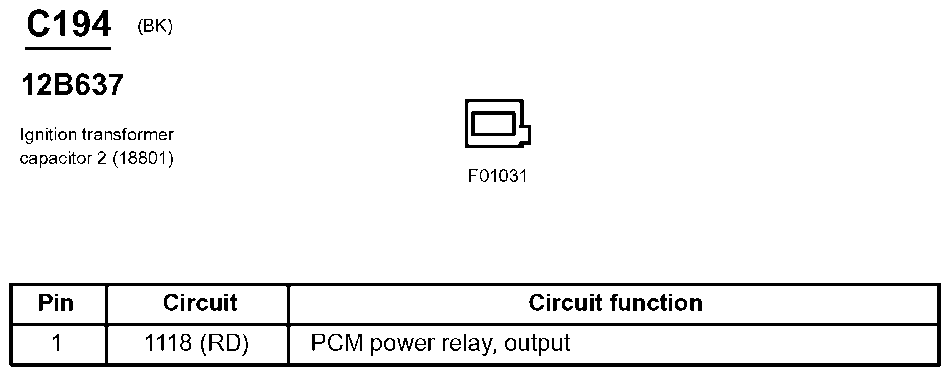

Fig 63: Ignition Transformer Capacitor 2 Connector End View (C194)

G07834471

Courtesy of FORD MOTOR CO.

Fig 64: Starter Motor Connector End View (C197a)

G07834472

Courtesy of FORD MOTOR CO.

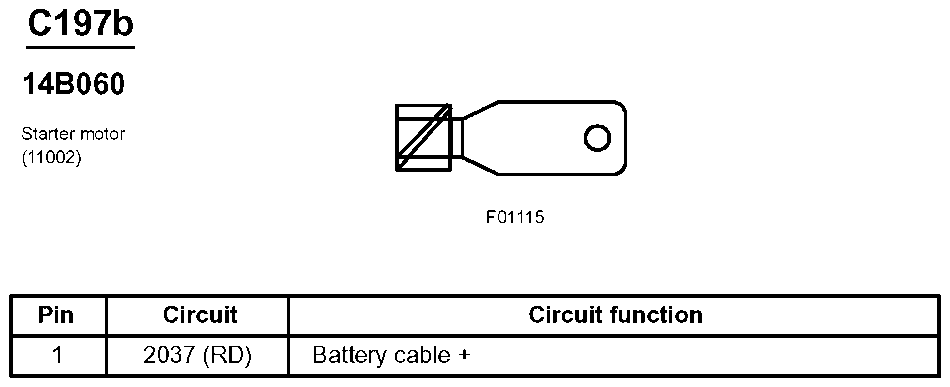

Fig 65: Starter Motor Connector End View (C197b)

G07834473

Courtesy of FORD MOTOR CO.

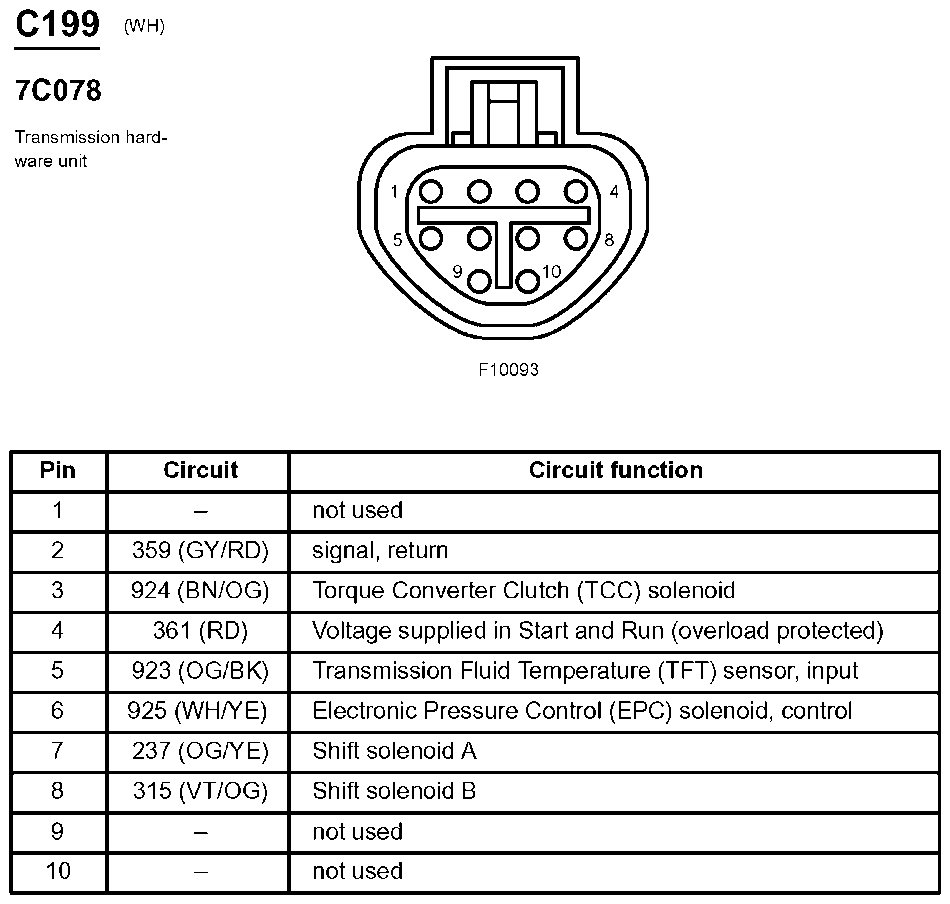

Fig 66: Transmission Hardware Unit Connector End View (C199)

G07834474

Courtesy of FORD MOTOR CO.

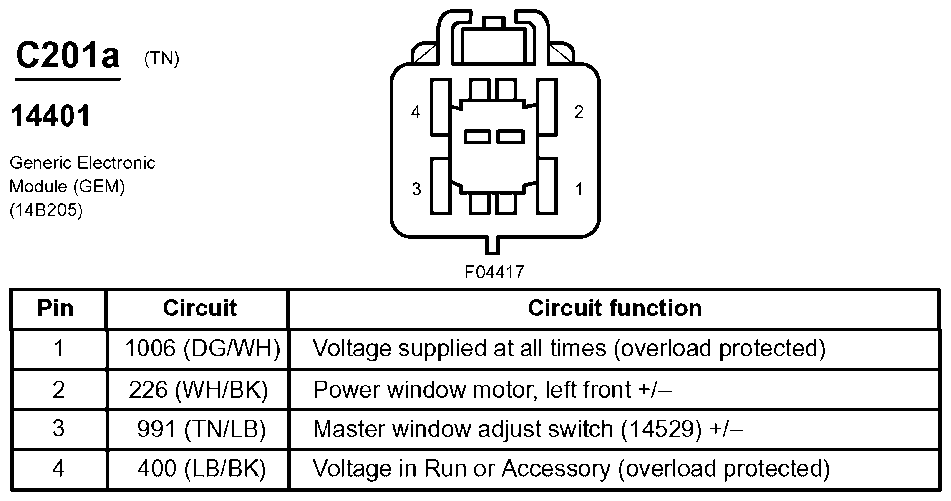

Fig 67: Generic Electronic Module (GEM) Connector End View (C201a)

G07834475

Courtesy of FORD MOTOR CO.

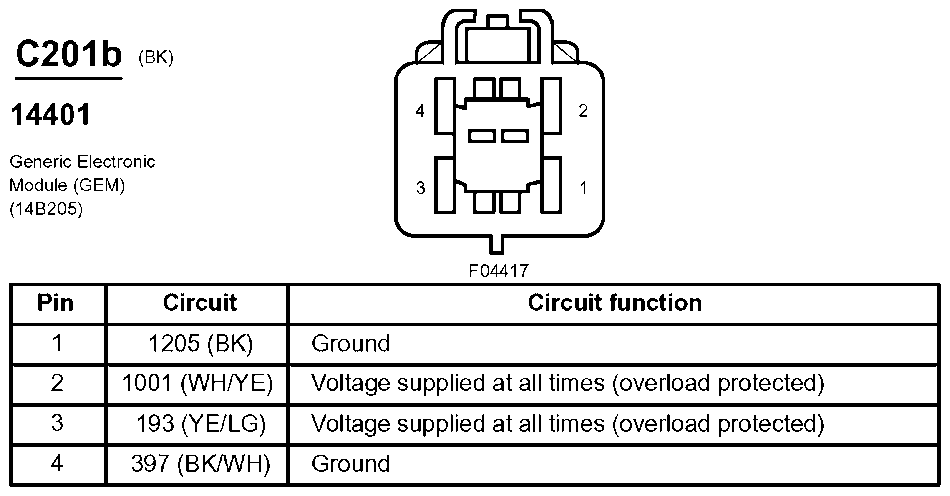

Fig 68: Generic Electronic Module (GEM) Connector End View (C201b)

G07834476

Courtesy of FORD MOTOR CO.

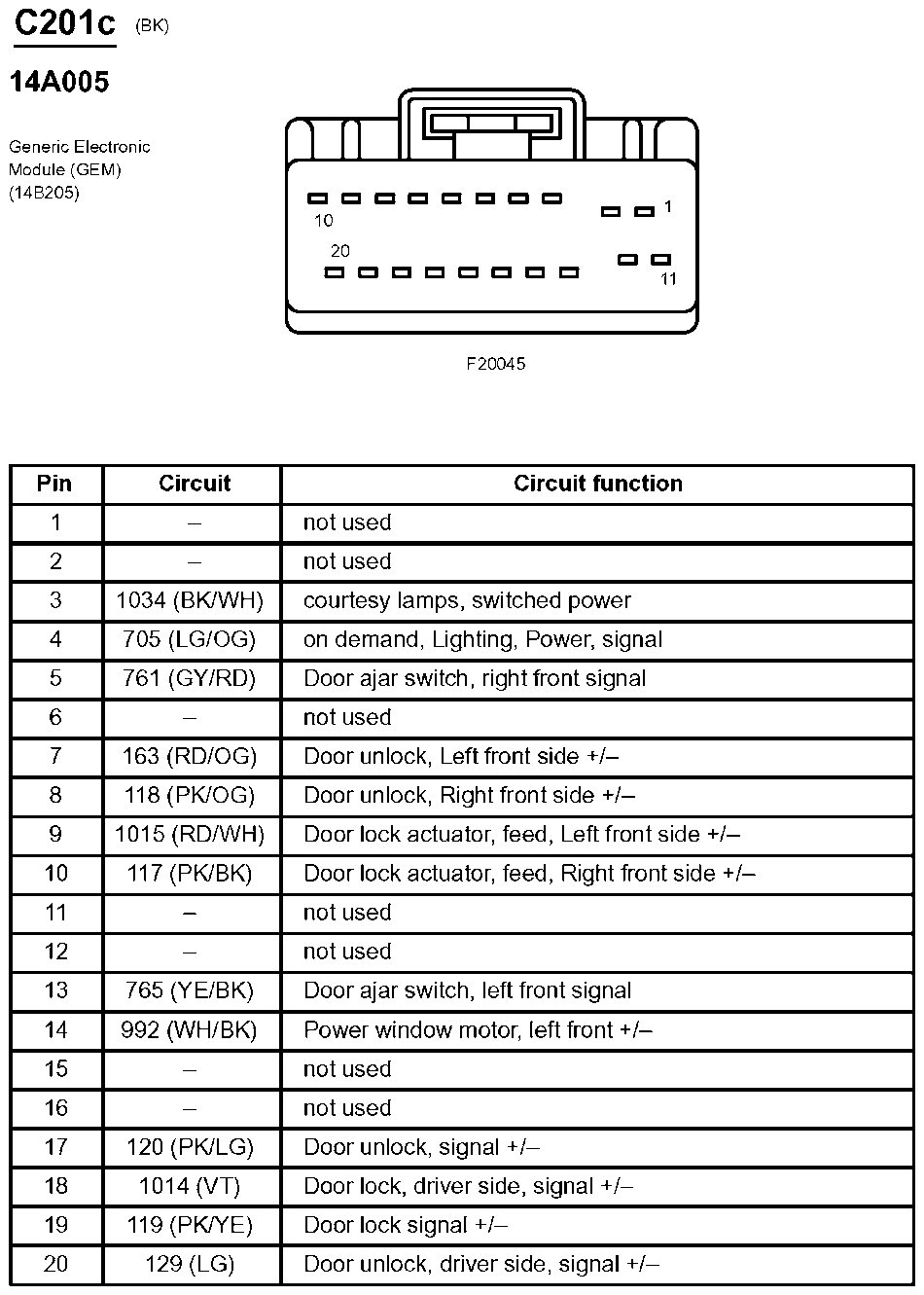

Fig 69: Generic Electronic Module (GEM) Connector End View (C201c)

G07834477

Courtesy of FORD MOTOR CO.

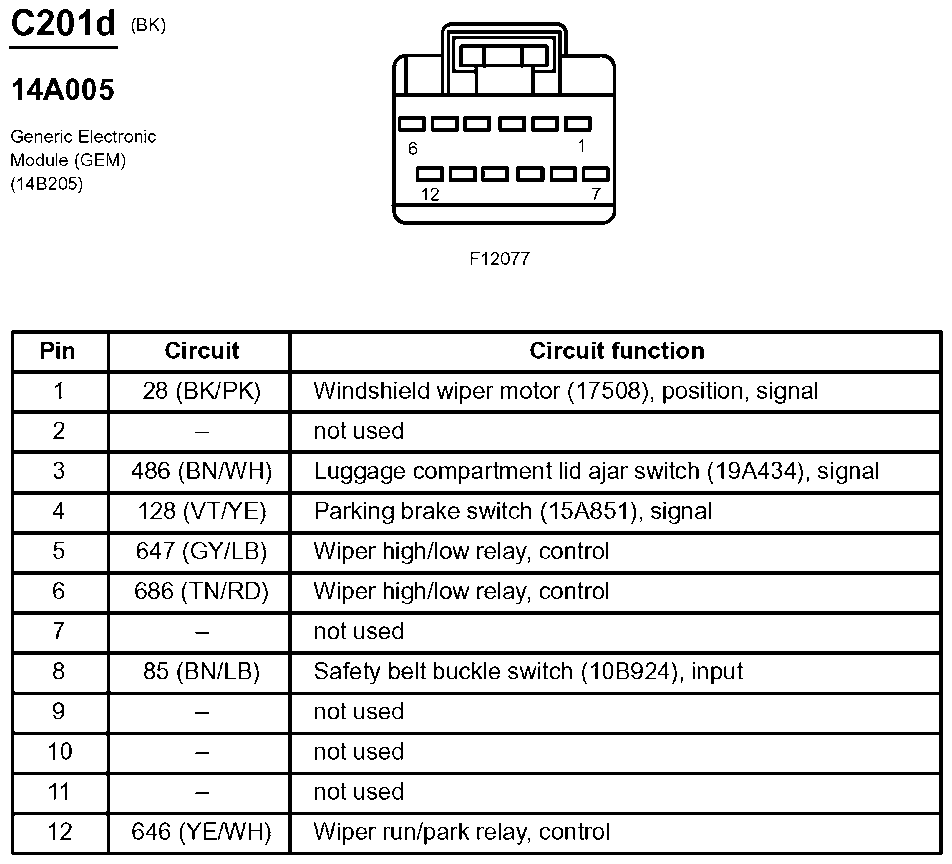

Fig 70: Generic Electronic Module (GEM) Connector End View (C201d)

G07834478

Courtesy of FORD MOTOR CO.

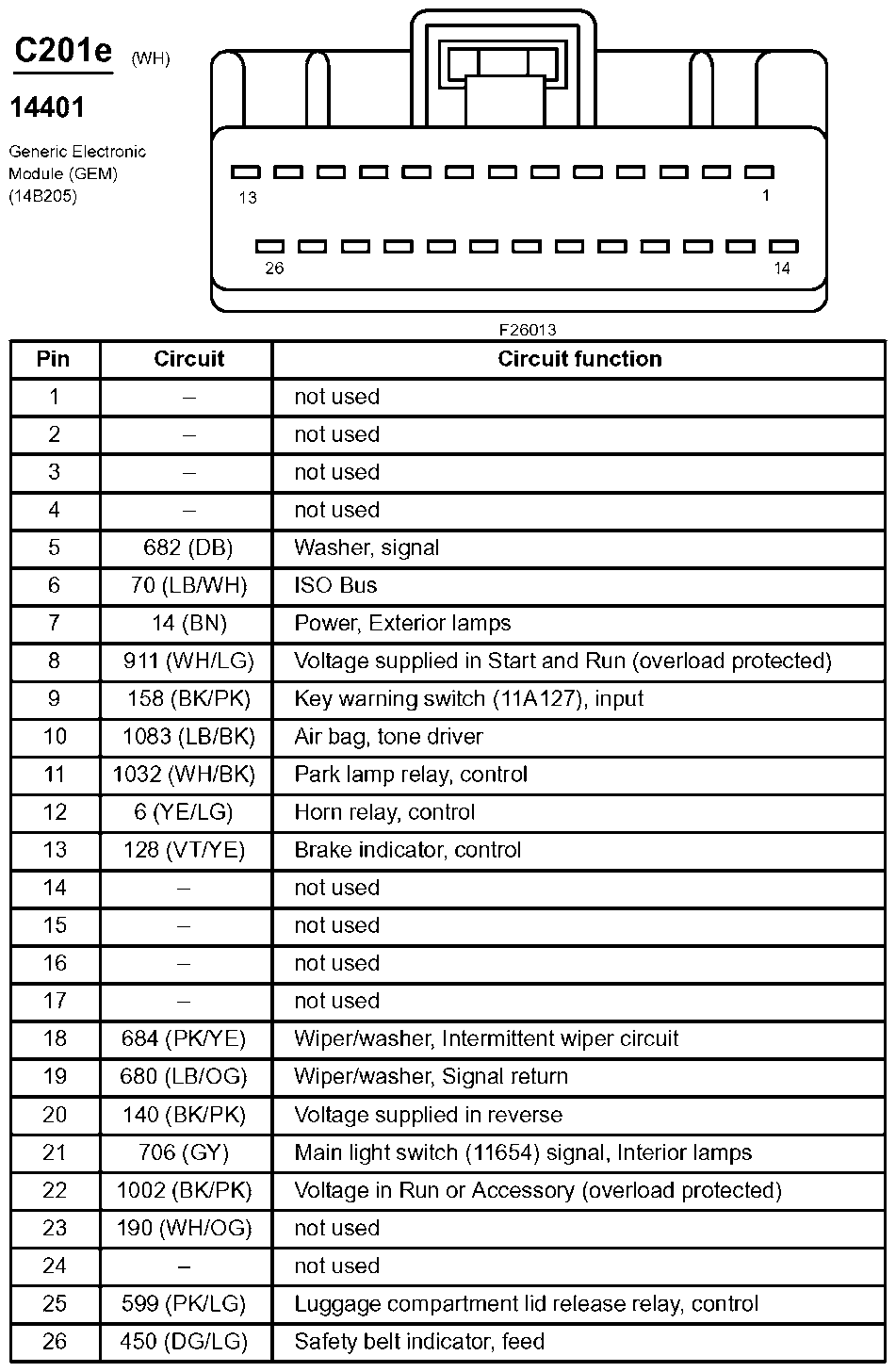

Fig 71: Generic Electronic Module (GEM) Connector End View (C201e)

G07834479

Courtesy of FORD MOTOR CO.

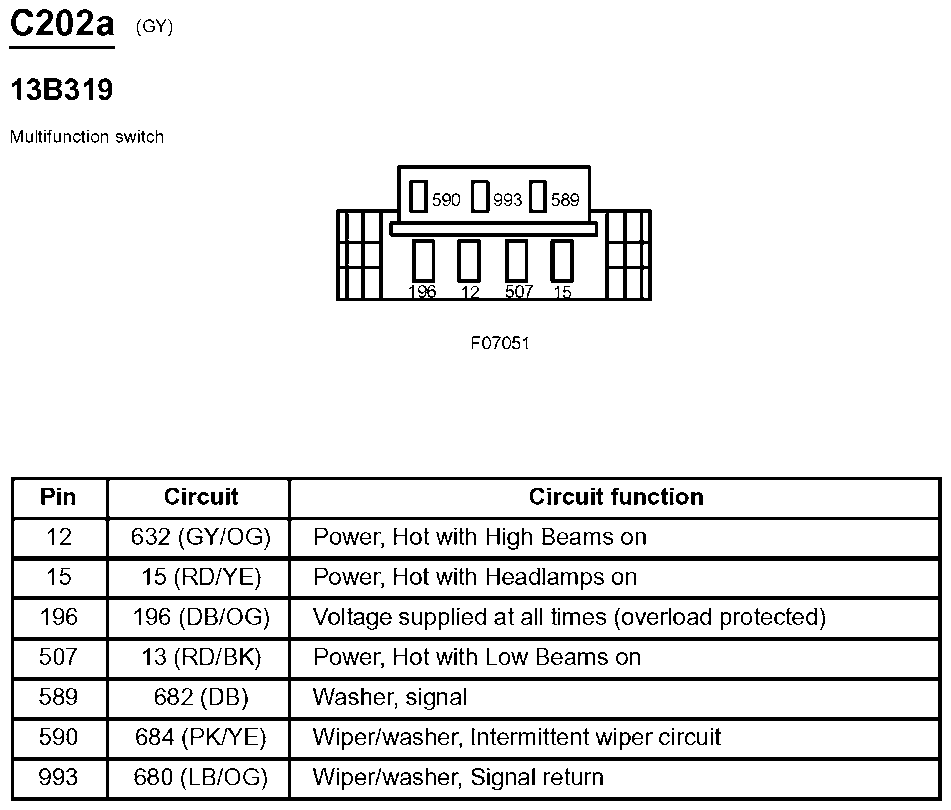

Fig 72: Multifunction Switch Connector End View (C202a)

G07834480

Courtesy of FORD MOTOR CO.

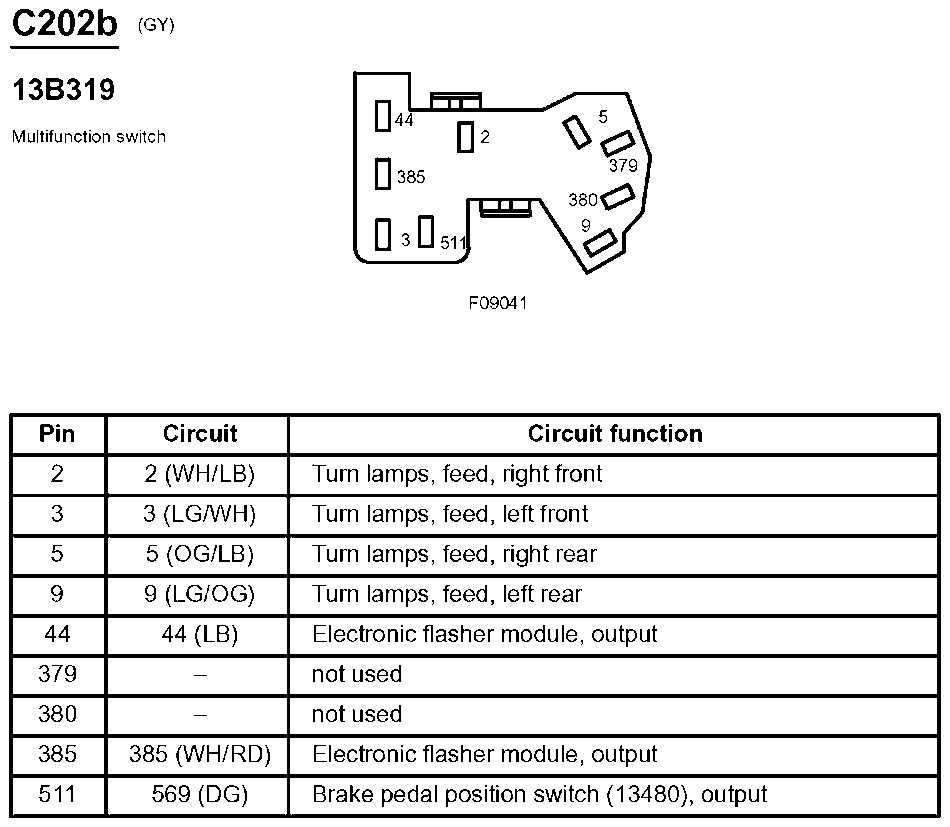

Fig 73: Multifunction Switch Connector End View (C202b)

G07834481

Courtesy of FORD MOTOR CO.

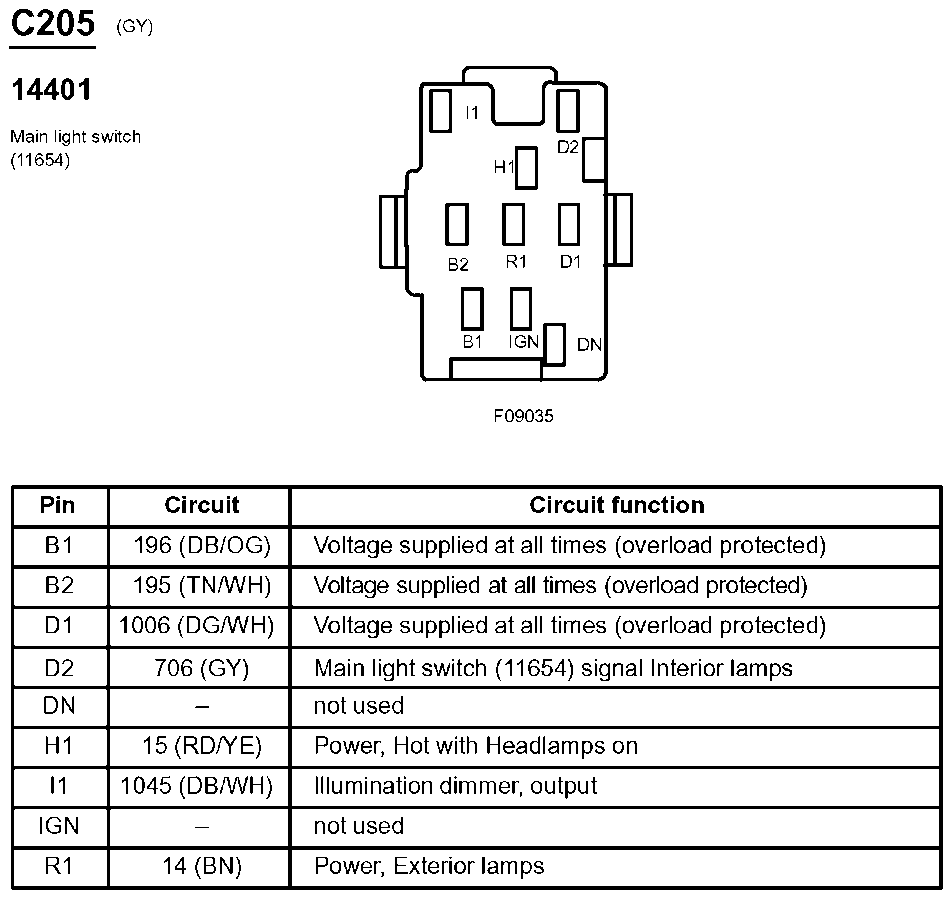

Fig 74: Main Light Switch Connector End View (C205)

G07834482

Courtesy of FORD MOTOR CO.

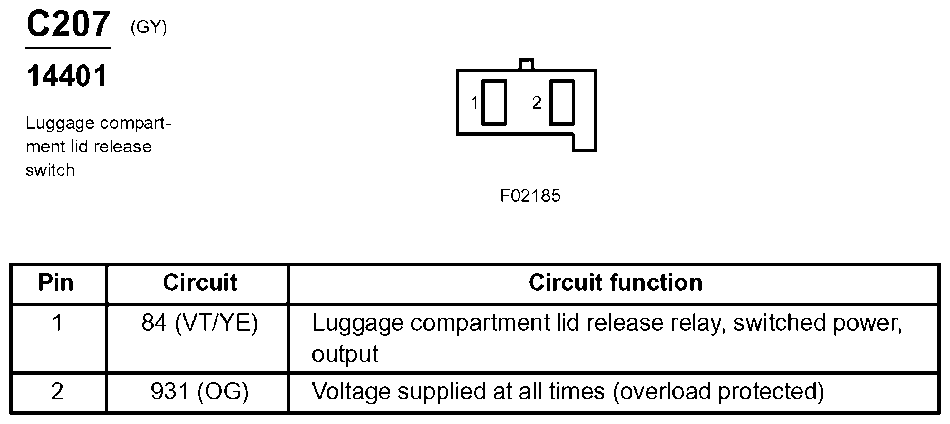

Fig 75: Luggage Compartment Lid Release Switch Connector End View (C207)

G07834483

Courtesy of FORD MOTOR CO.

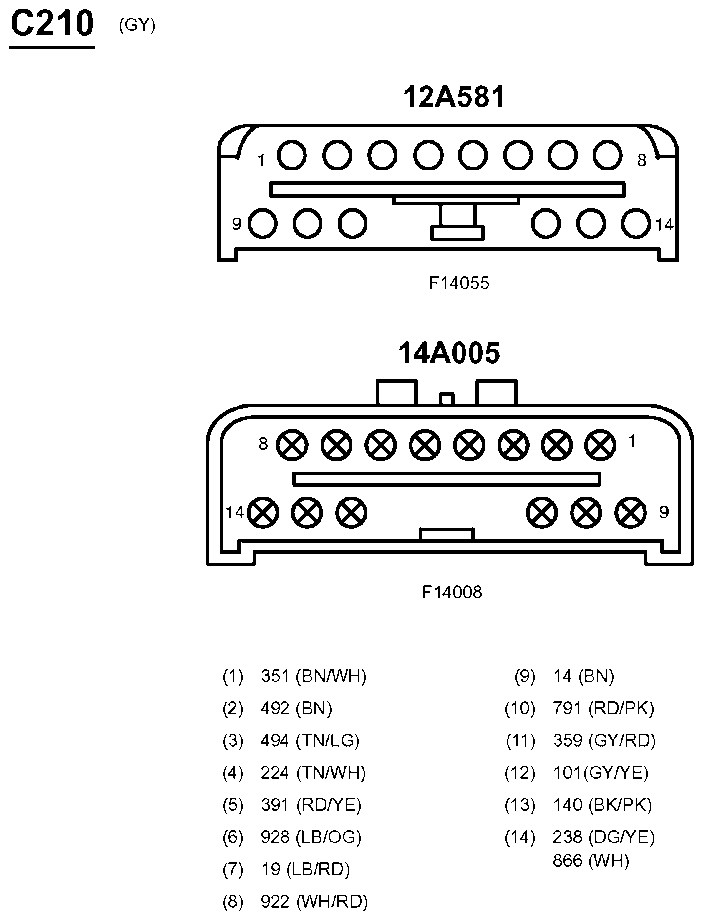

Fig 76: Inline Connector End View (C210)

G07834484

Courtesy of FORD MOTOR CO.

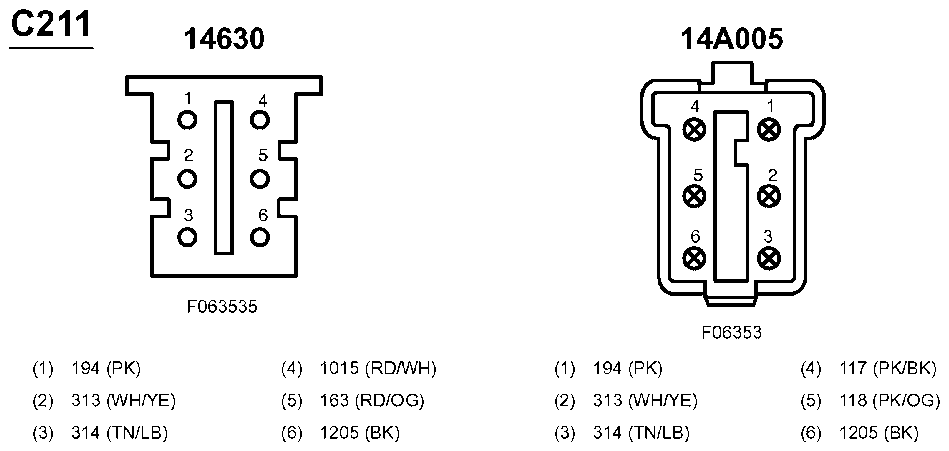

Fig 77: Inline Connector End View (C211)

G07834485

Courtesy of FORD MOTOR CO.

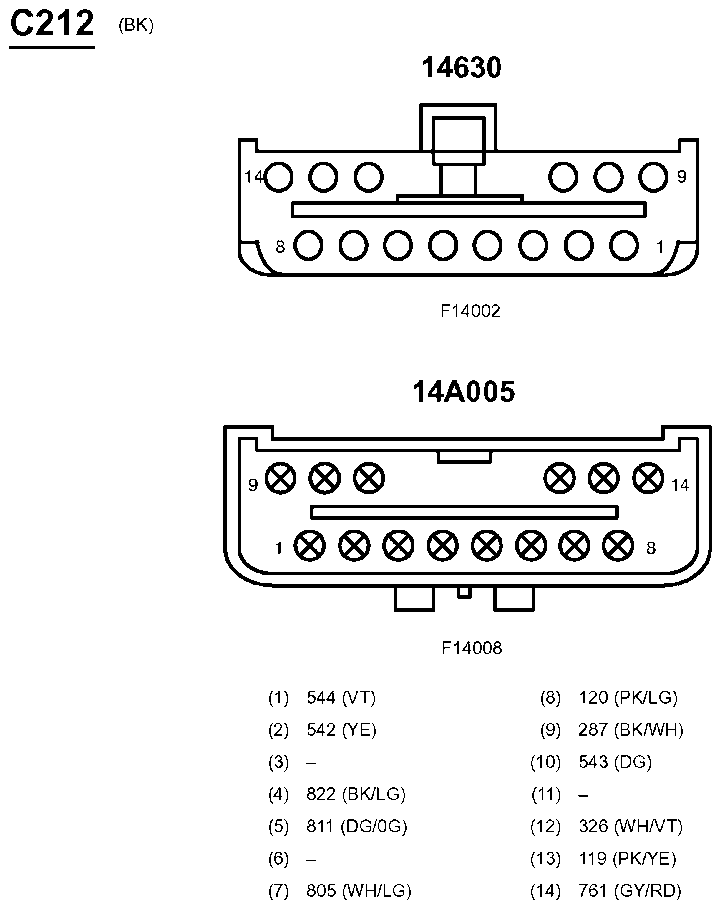

Fig 78: Inline Connector End View (C212)

G07834486

Courtesy of FORD MOTOR CO.

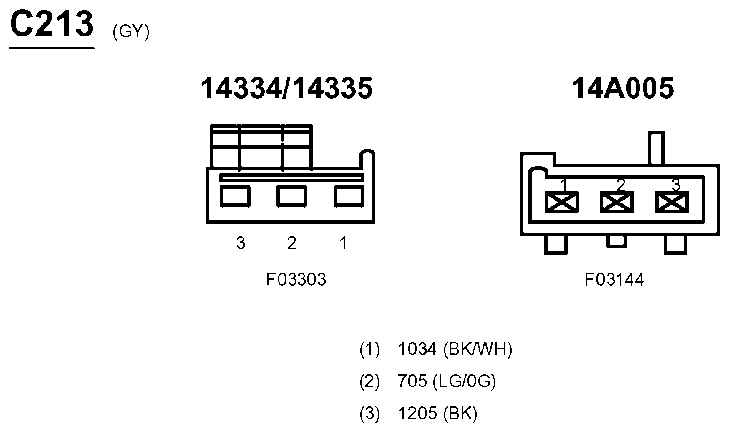

Fig 79: Inline Connector End View (C213)

G07834487

Courtesy of FORD MOTOR CO.

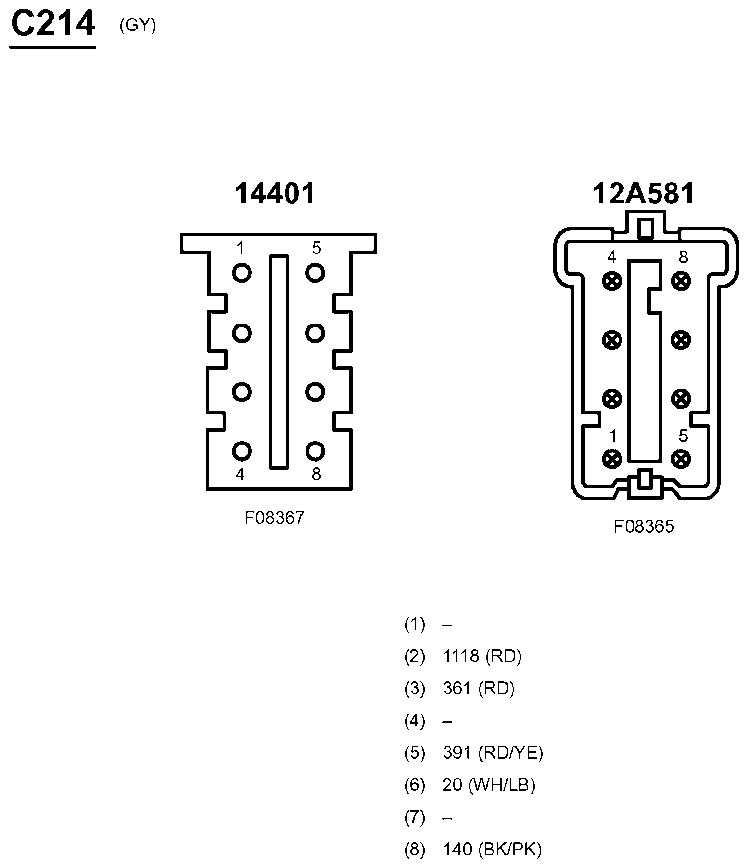

Fig 80: Inline Connector End View (C214)

G07834488

Courtesy of FORD MOTOR CO.

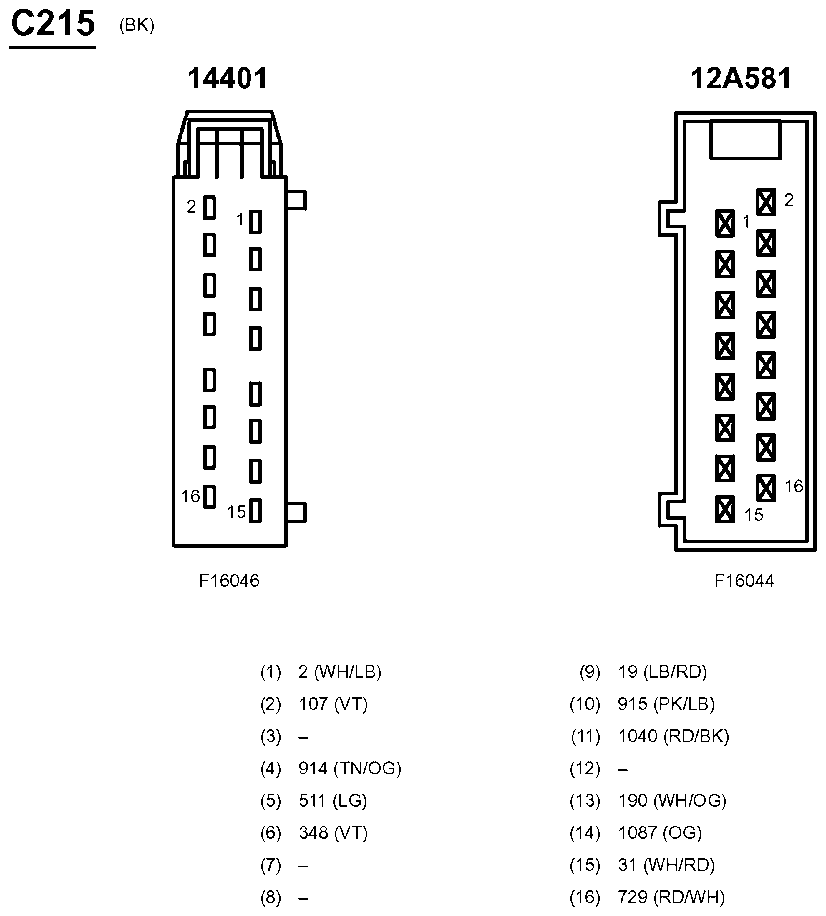

Fig 81: Inline Connector End View (C215)

G07834489

Courtesy of FORD MOTOR CO.

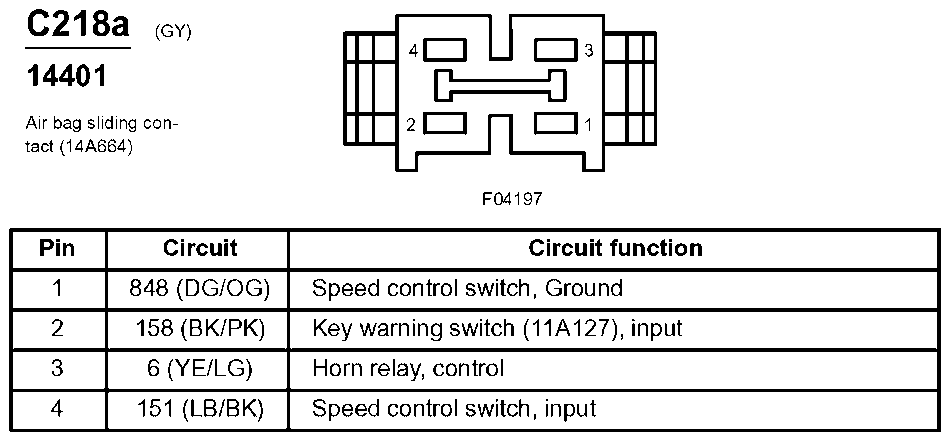

Fig 82: Air Bag Sliding Contact Connector End View (C218a)

G07834490

Courtesy of FORD MOTOR CO.

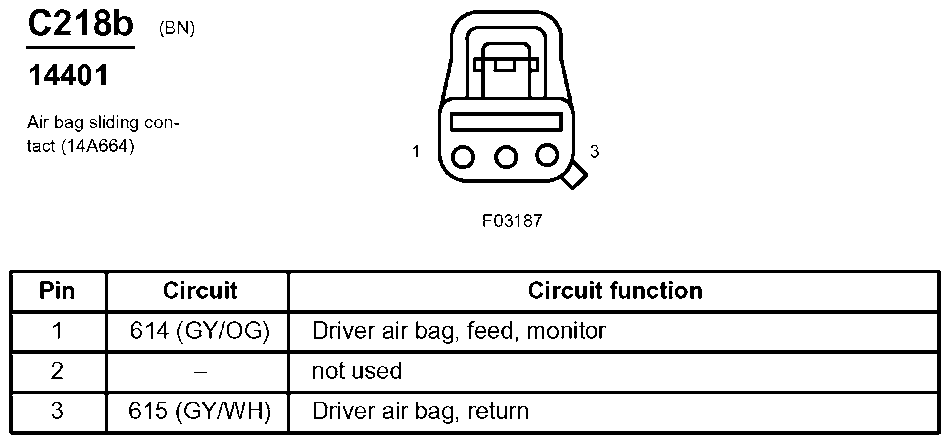

Fig 83: Air Bag Sliding Contact Connector End View (C218b)

G07834491

Courtesy of FORD MOTOR CO.

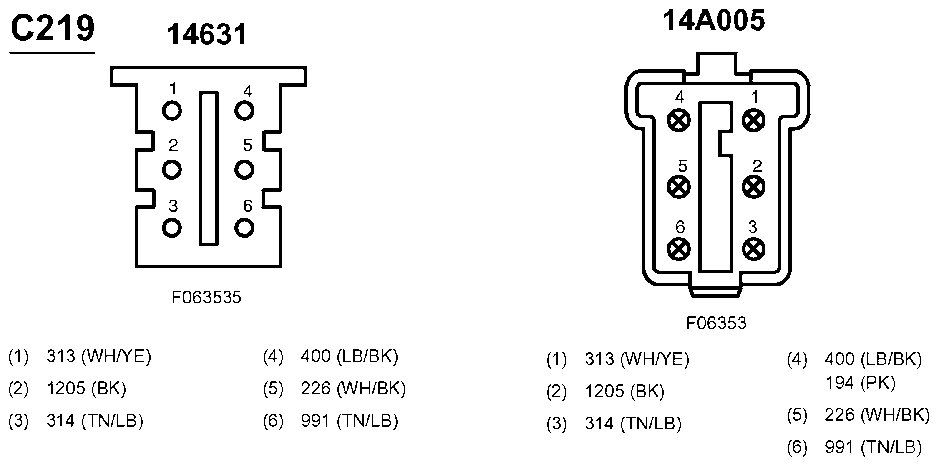

Fig 84: Inline Connector End View (C219)

G07834492

Courtesy of FORD MOTOR CO.

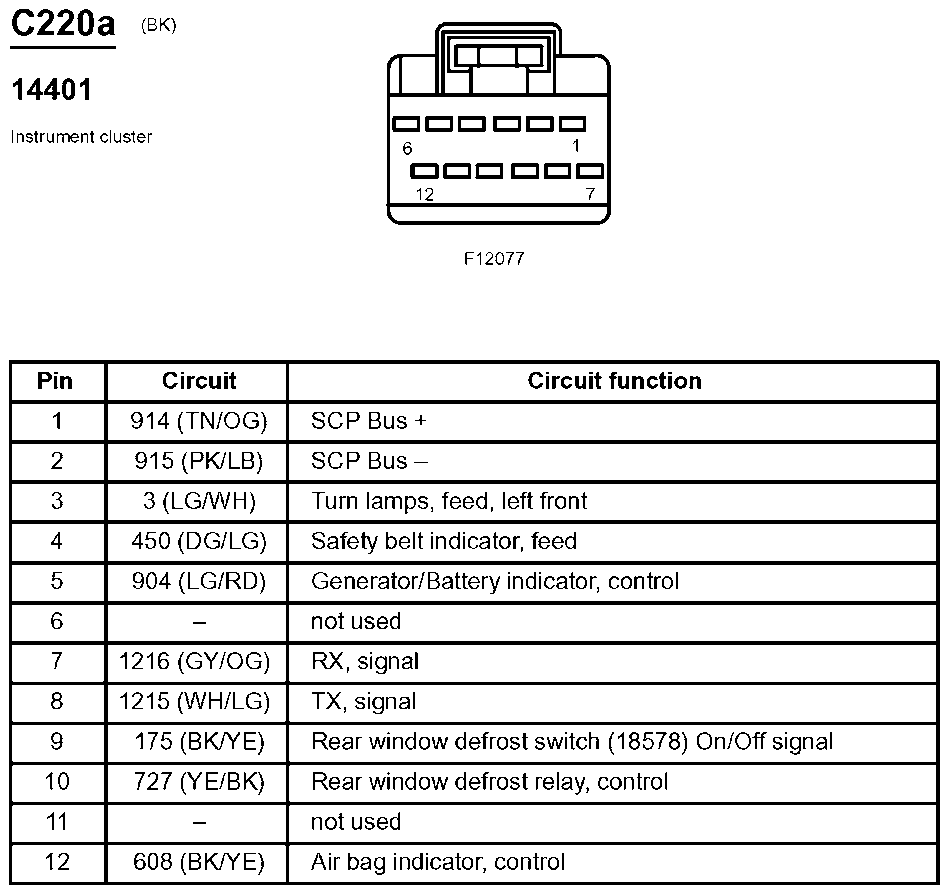

Fig 85: Instrument Cluster Connector End View (C220a)

G07834493

Courtesy of FORD MOTOR CO.

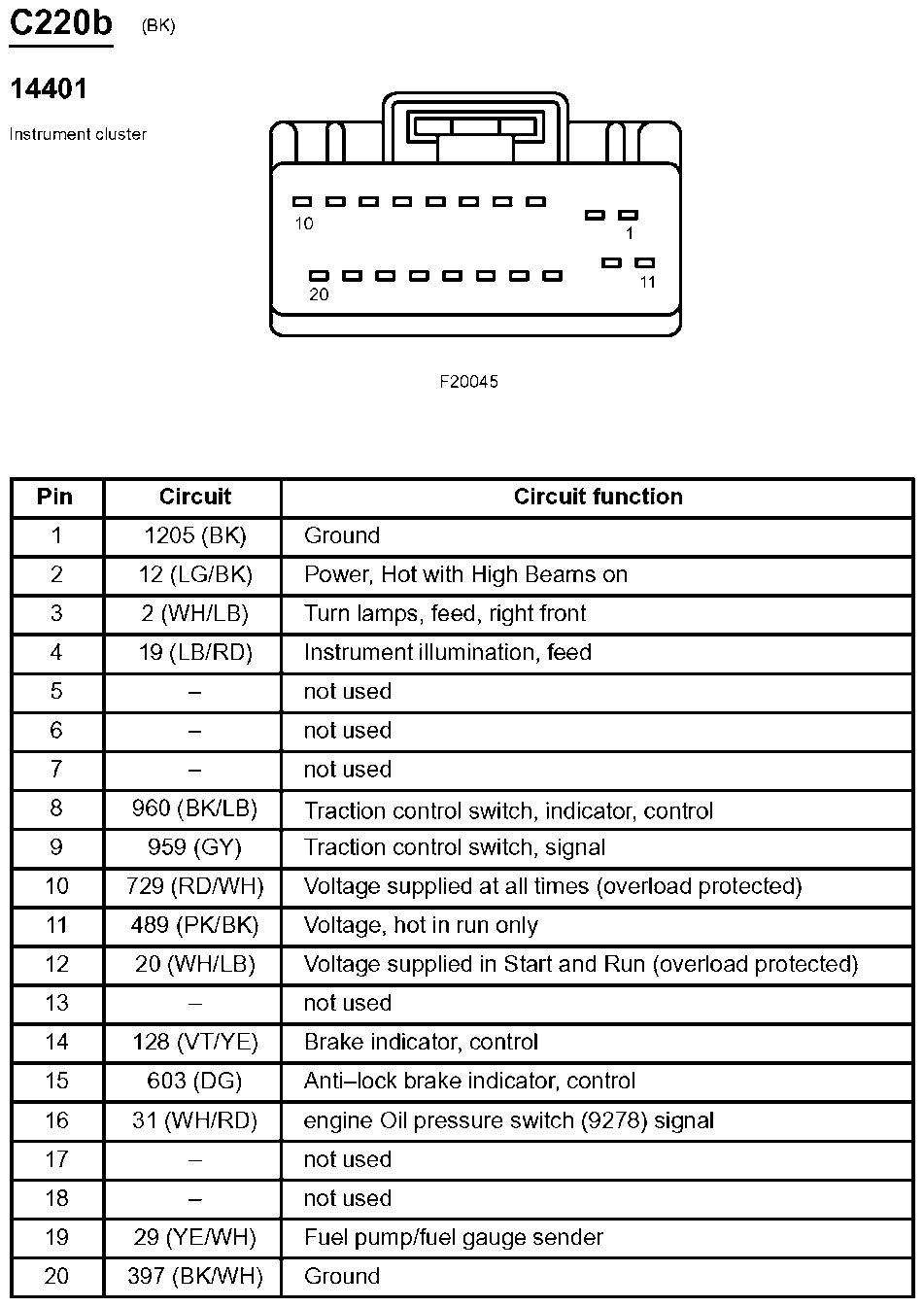

Fig 86: Instrument Cluster Connector End View (C220b)

G07834494

Courtesy of FORD MOTOR CO.

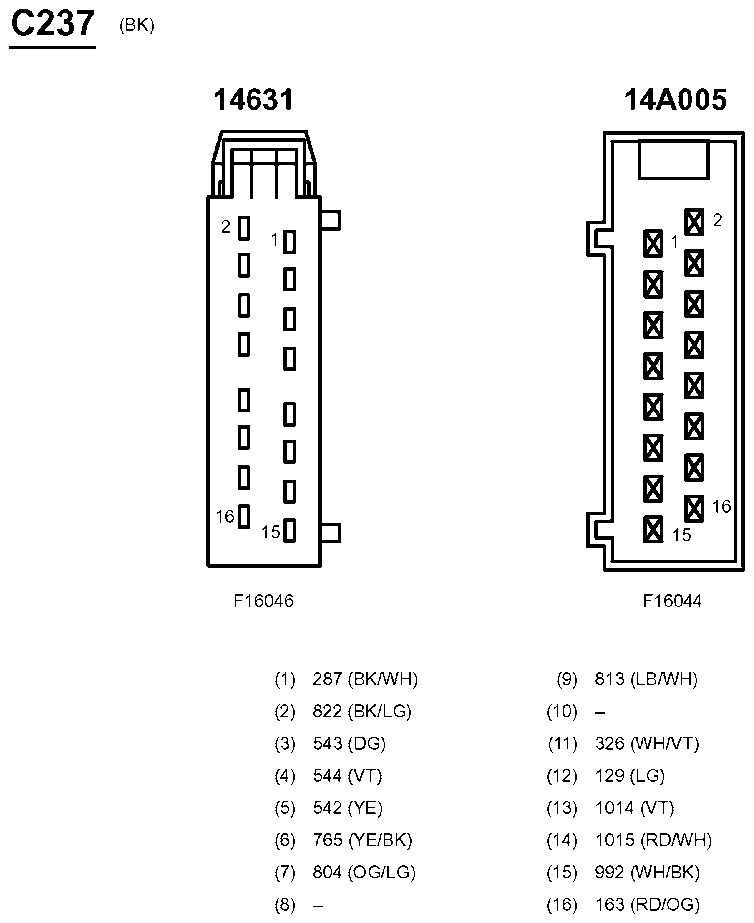

Fig 87: Inline Connector End View (C237)

G07834495

Courtesy of FORD MOTOR CO.

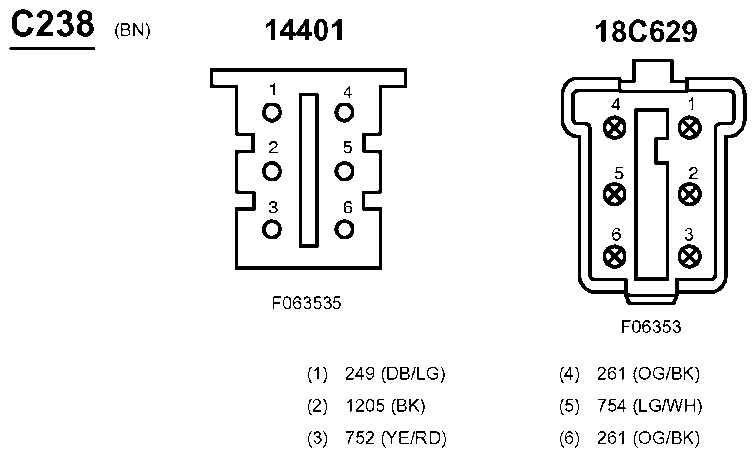

Fig 88: Inline Connector End View (C238)

G07834496

Courtesy of FORD MOTOR CO.

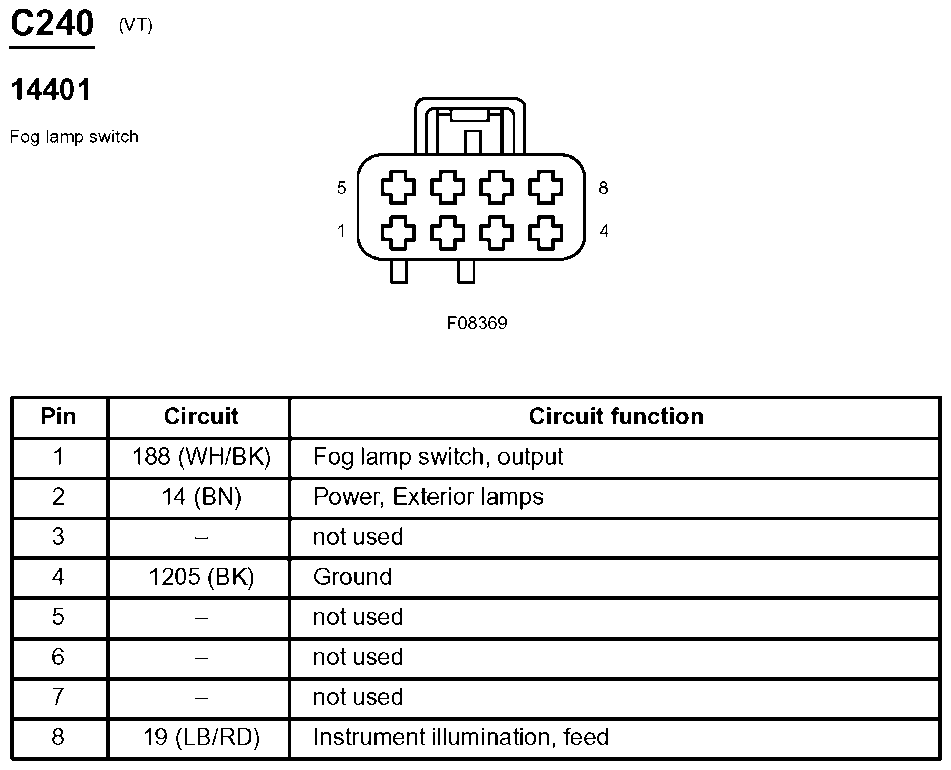

Fig 89: Fog Lamp Switch Connector End View (C240)

G07834497

Courtesy of FORD MOTOR CO.

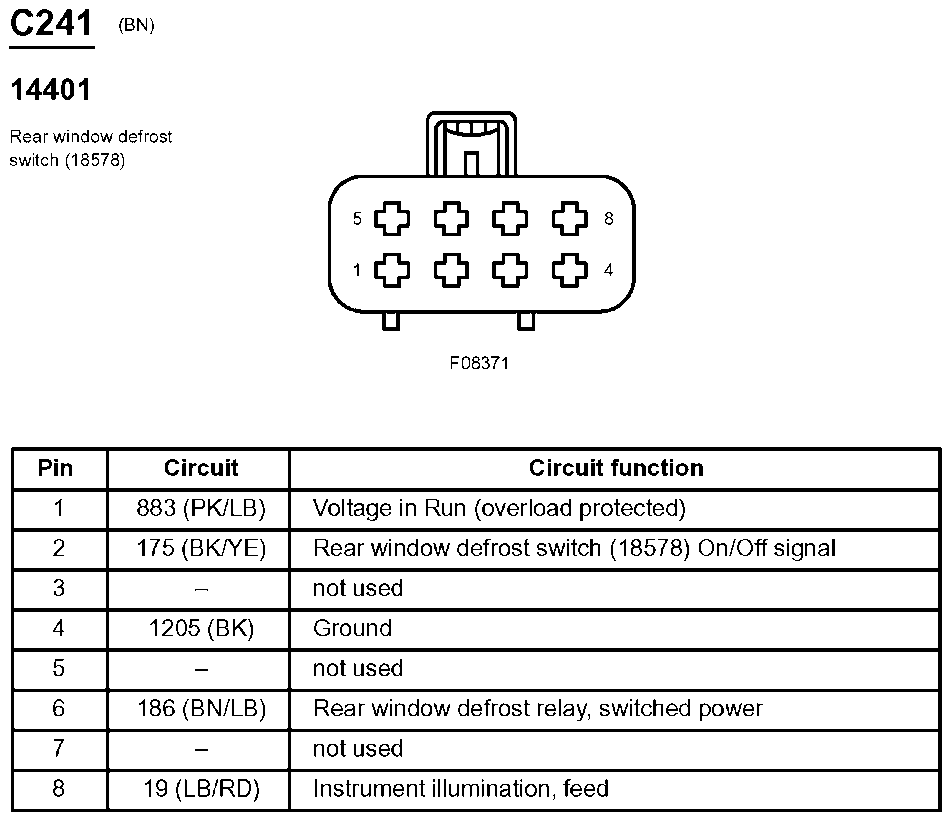

Fig 90: Rear Window Defrost Switch Connector End View (C241)

G07834498

Courtesy of FORD MOTOR CO.

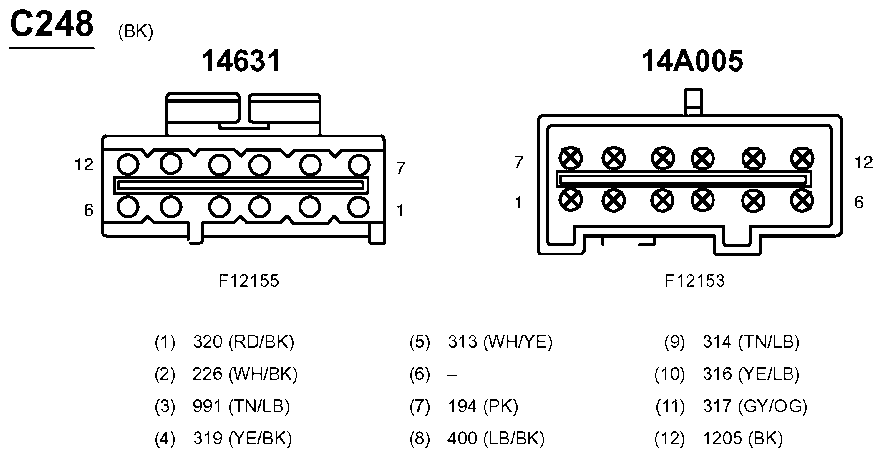

Fig 91: Inline Connector End View (C248)

G07834499

Courtesy of FORD MOTOR CO.

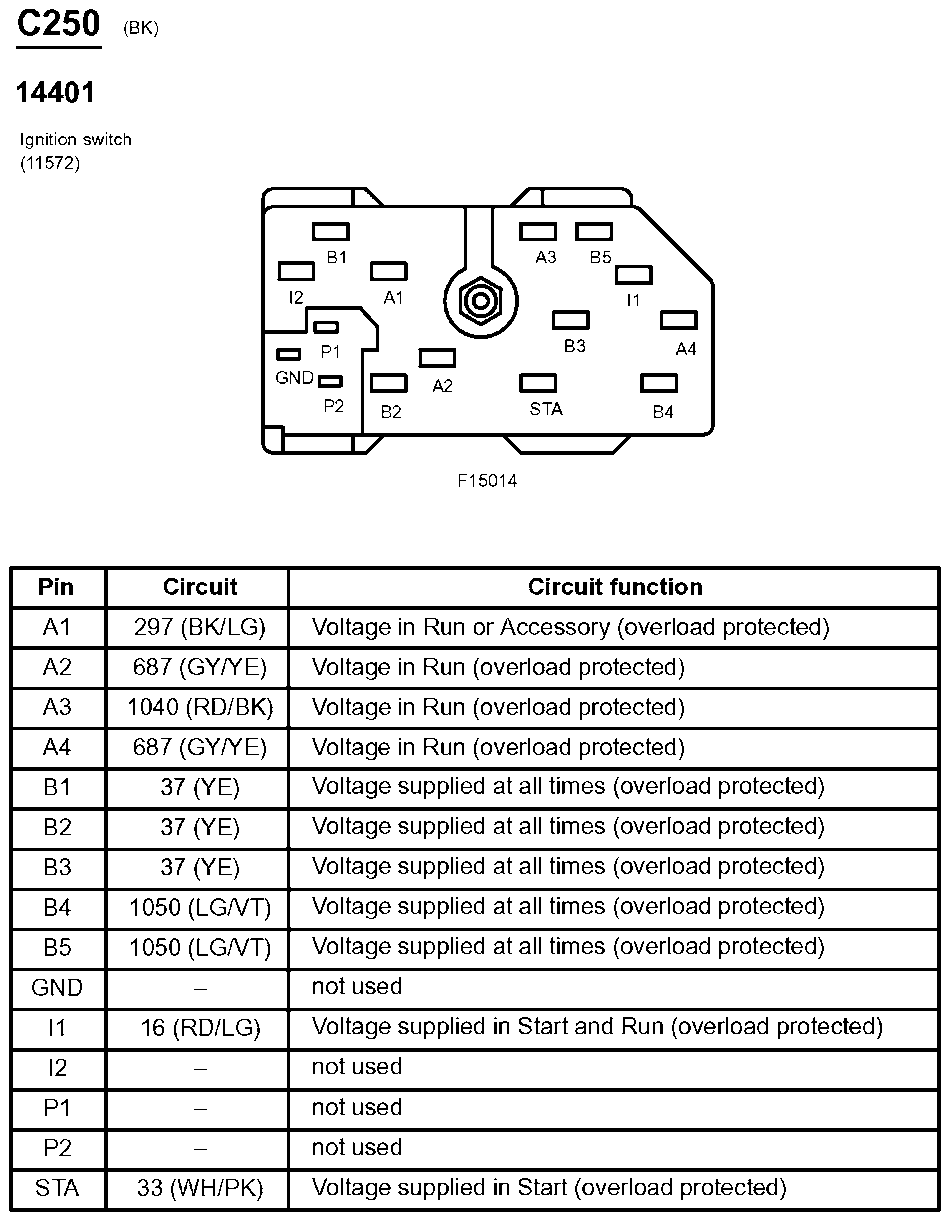

Fig 92: Ignition Switch Connector End View (C250)

G07834500

Courtesy of FORD MOTOR CO.

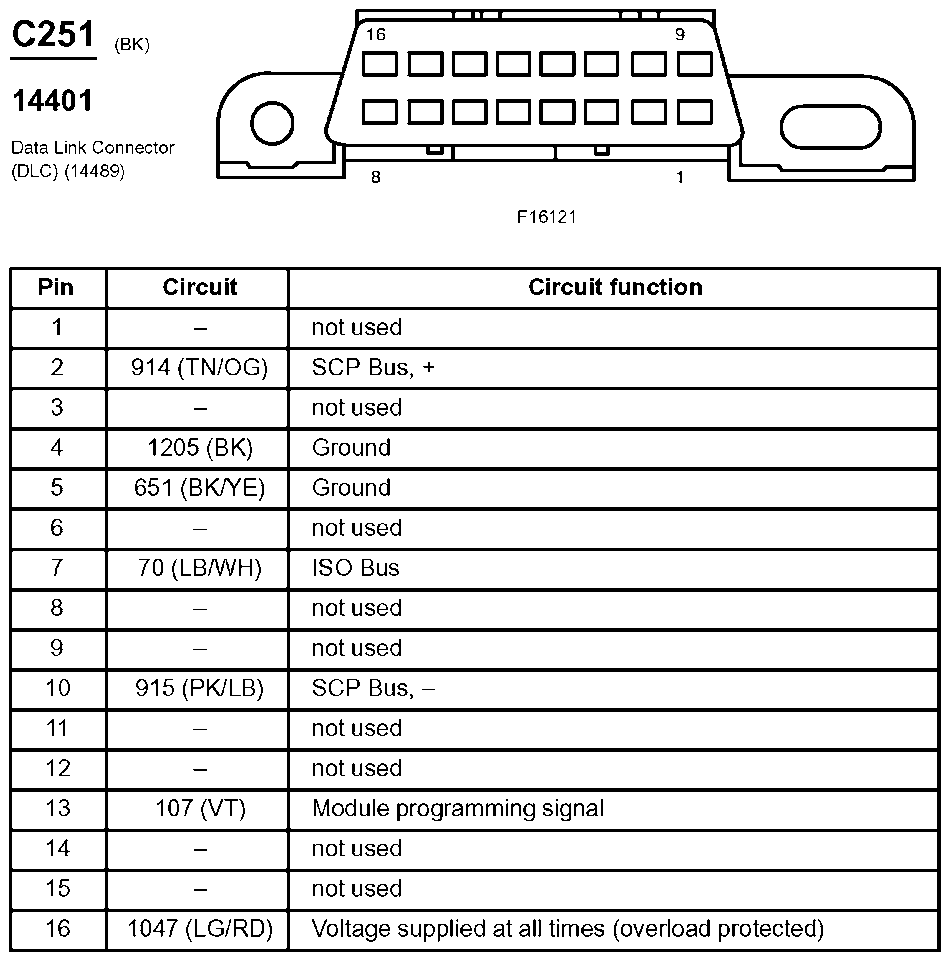

Fig 93: Data Link Connector (DLC) Connector End View (C251)

G07834501

Courtesy of FORD MOTOR CO.

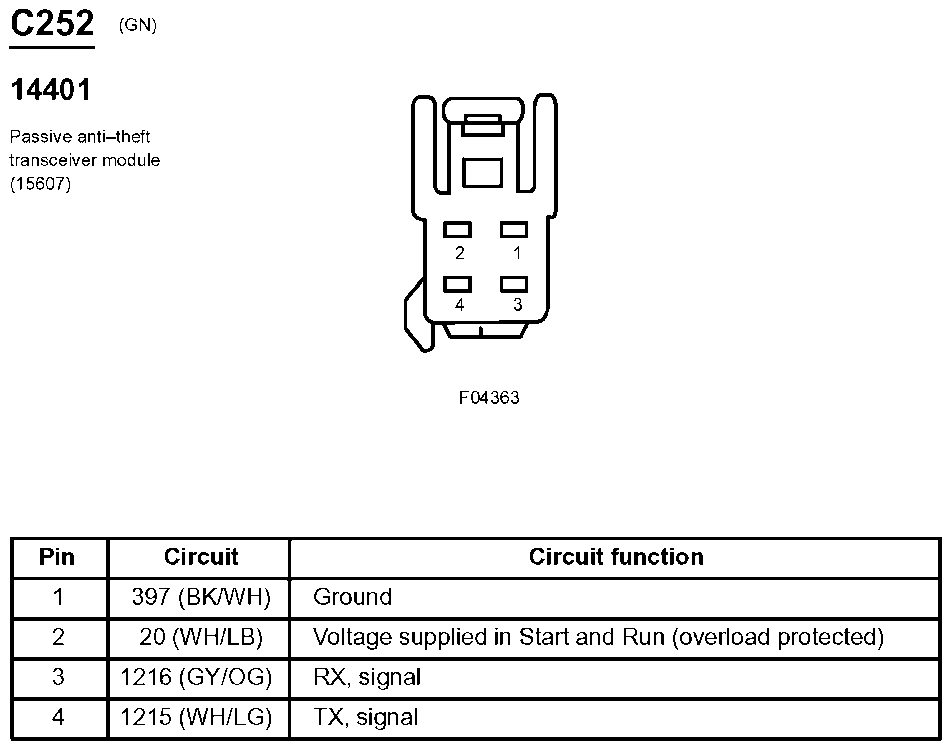

Fig 94: Passive Anti-Theft Transceiver Module Connector End View (C252)

G07834502

Courtesy of FORD MOTOR CO.

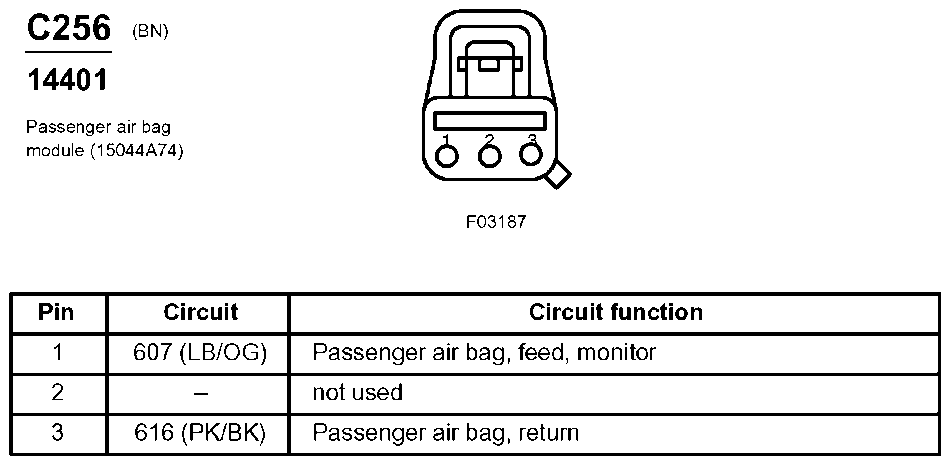

Fig 95: Passenger Air Bag Module Connector End View (C256)

G07834503

Courtesy of FORD MOTOR CO.

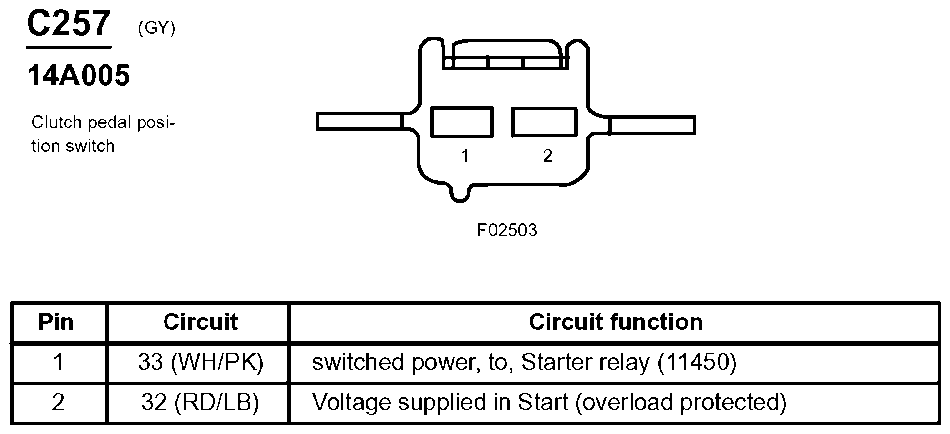

Fig 96: Clutch Pedal Position Switch Connector End View (C257)

G07834504

Courtesy of FORD MOTOR CO.

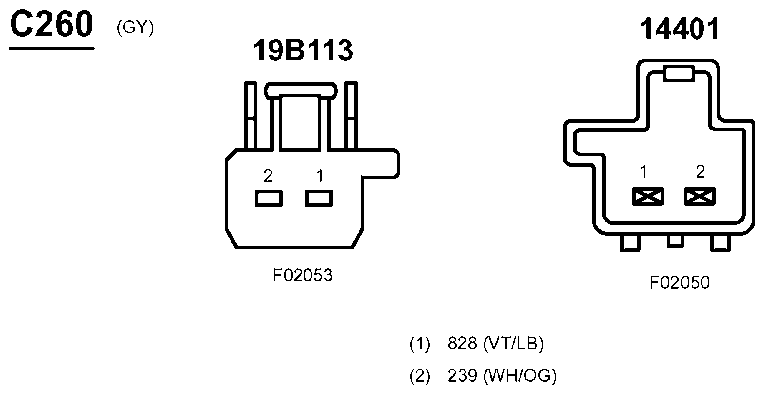

Fig 97: Inline Connector End View (C260)

G07834505

Courtesy of FORD MOTOR CO.

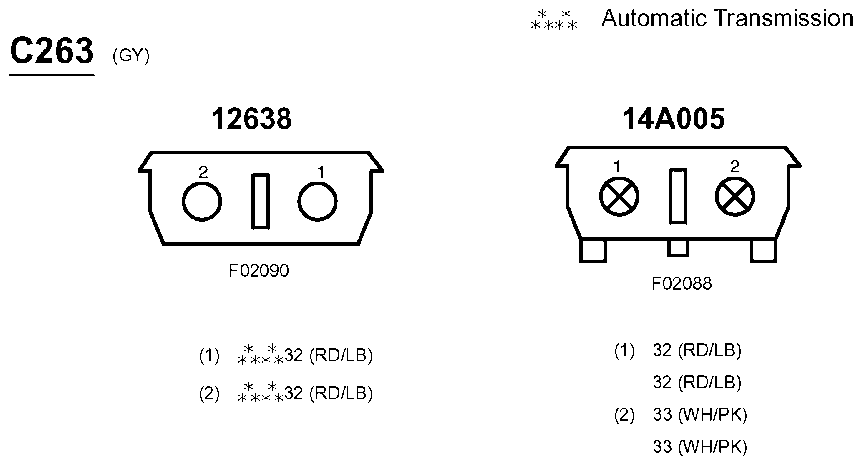

Fig 98: Inline Connector End View (C263)

G07834506

Courtesy of FORD MOTOR CO.

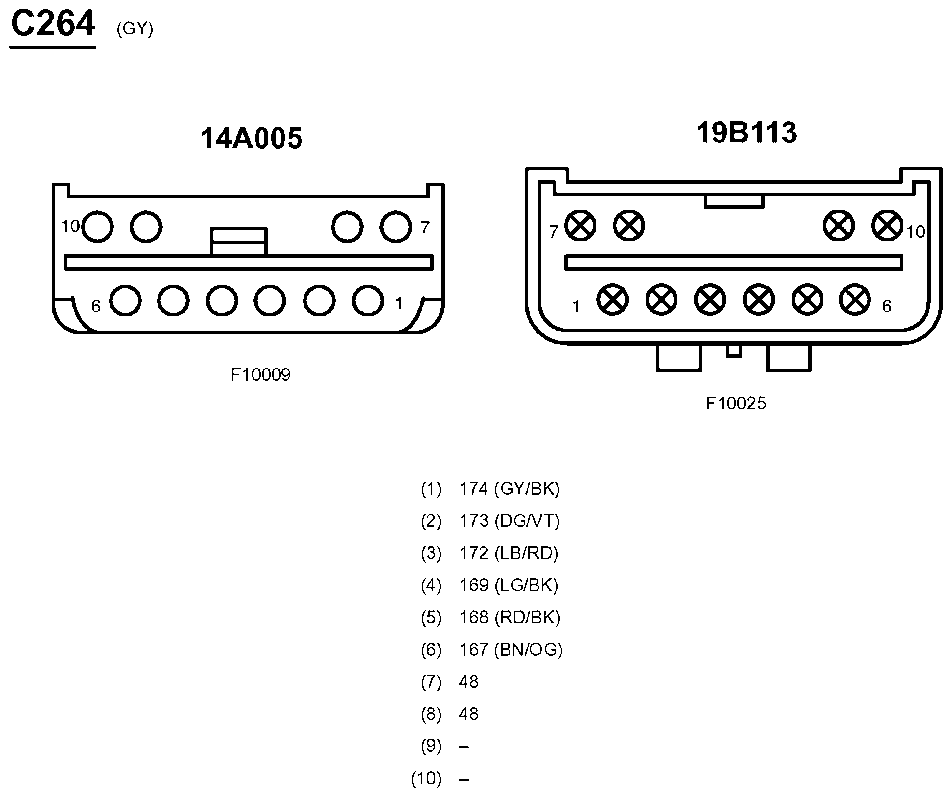

Fig 99: Inline Connector End View (C264)

G07834507

Courtesy of FORD MOTOR CO.

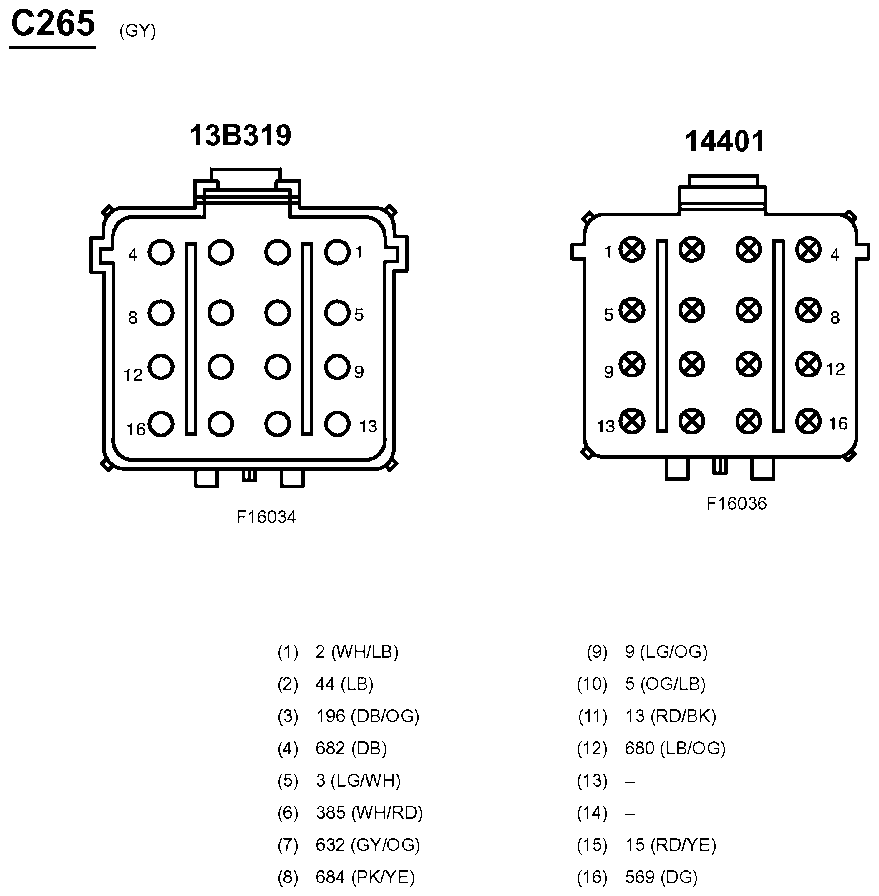

Fig 100: Inline Connector End View (C265)

G07834508

Courtesy of FORD MOTOR CO.

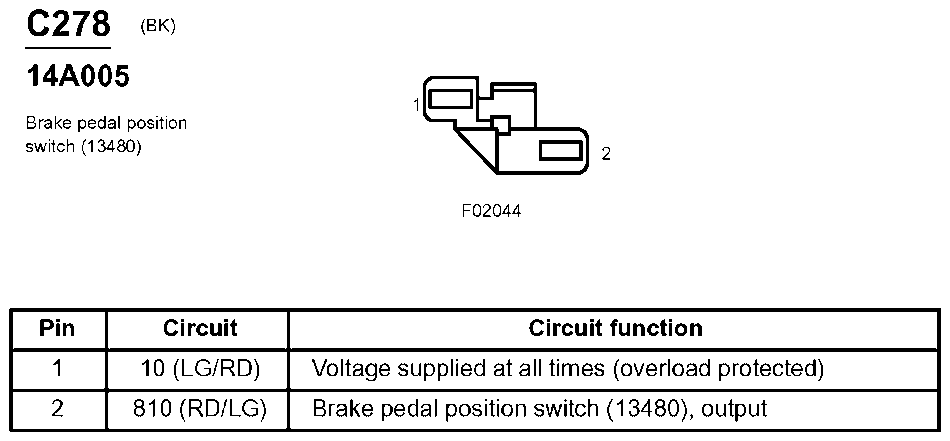

Fig 101: Brake Pedal Position Switch Connector End View (C278)

G07834509

Courtesy of FORD MOTOR CO.

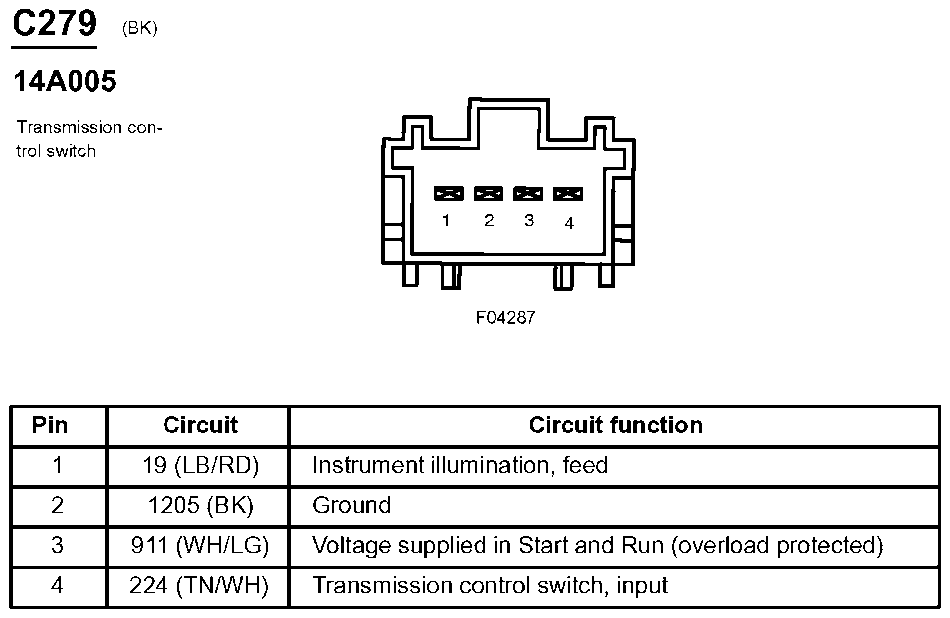

Fig 102: Transmission Control Switch Connector End View (C279)

G07834510

Courtesy of FORD MOTOR CO.

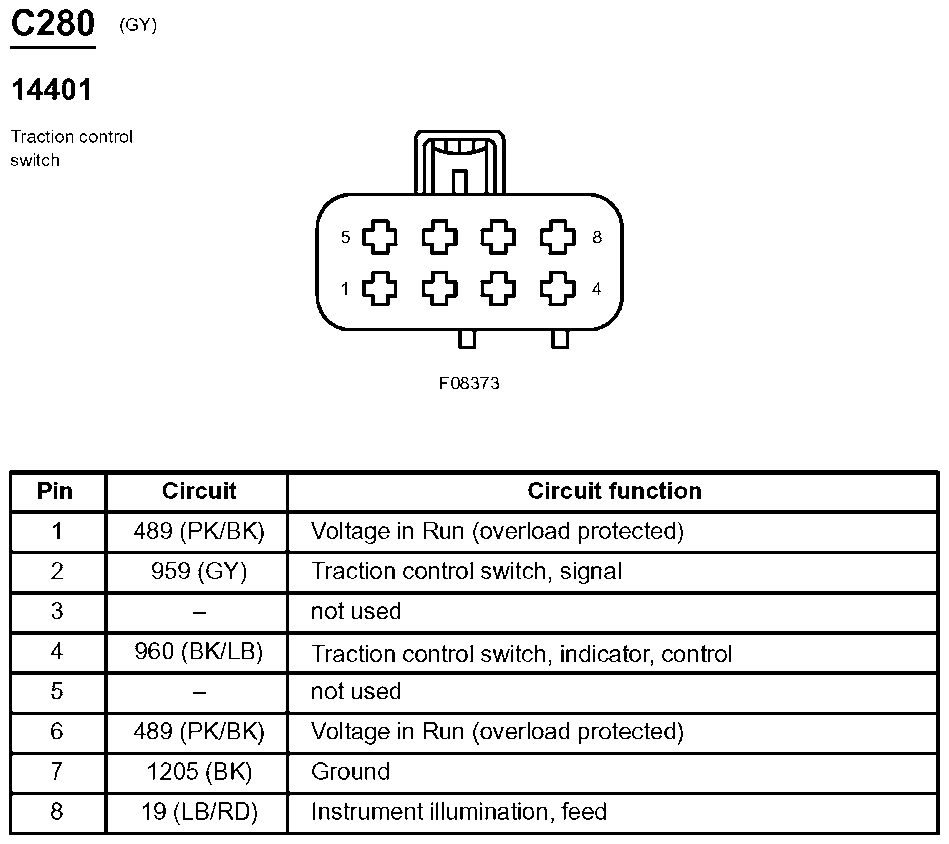

Fig 103: Traction Control Switch Connector End View (C280)

G07834511

Courtesy of FORD MOTOR CO.

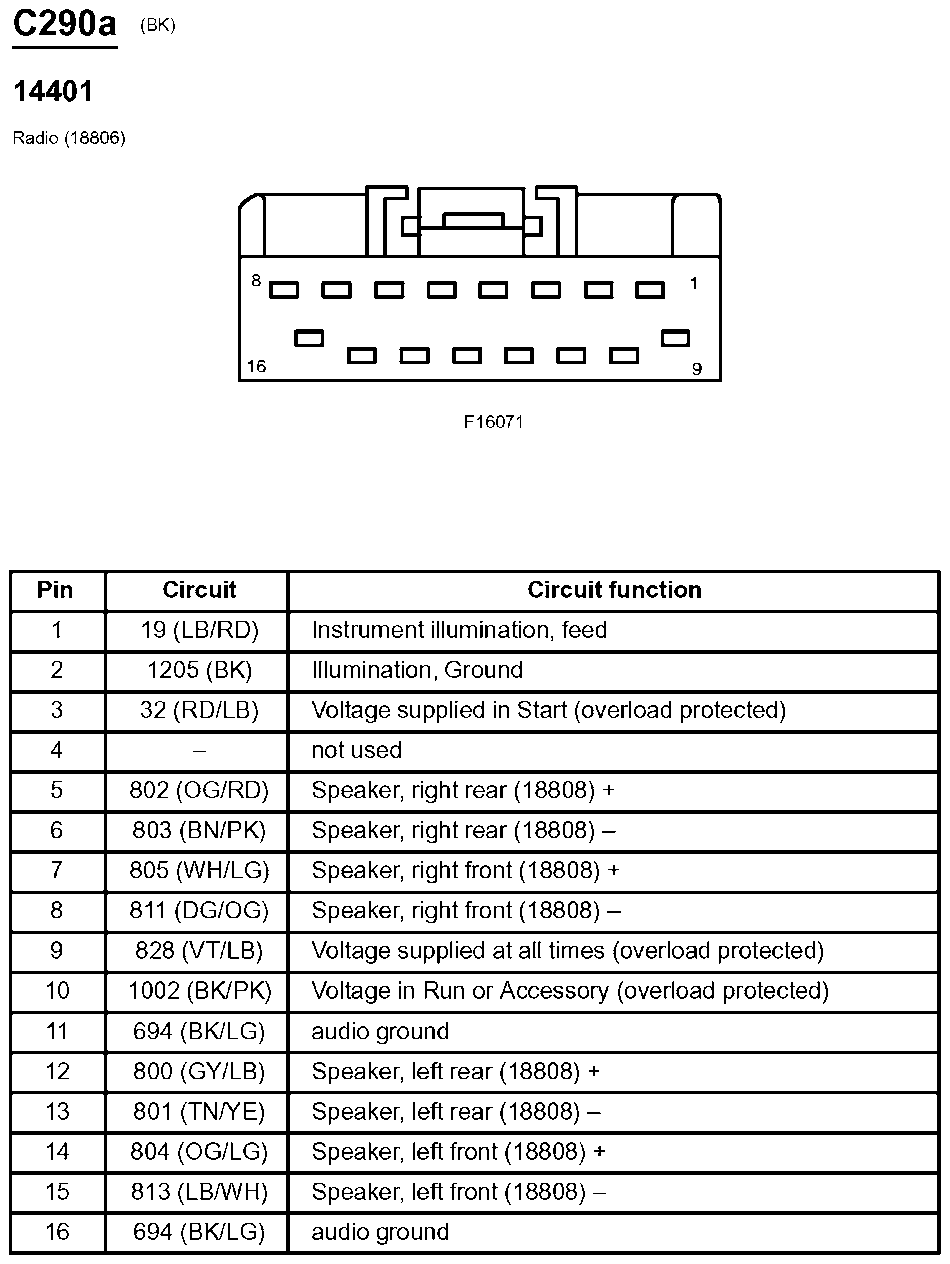

Fig 104: Radio Connector End View (C290a)

G07834512

Courtesy of FORD MOTOR CO.

Fig 105: Radio Connector End View (C290b)

G07834513

Courtesy of FORD MOTOR CO.

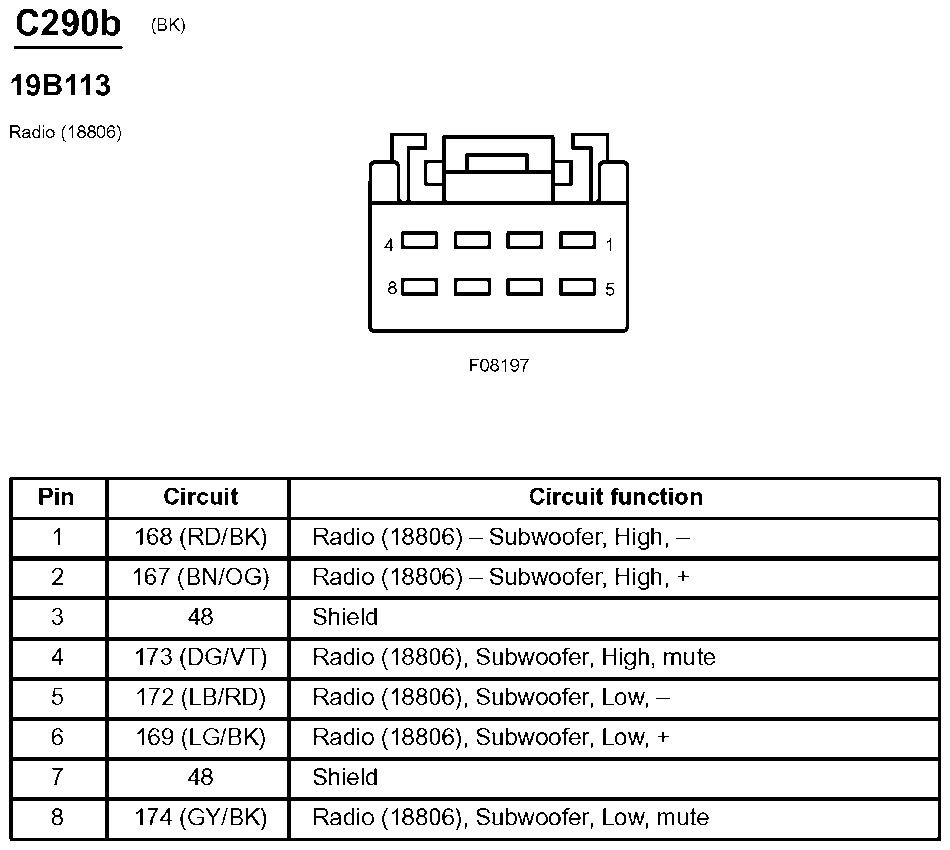

Fig 106: Radio Connector End View (C290b)

G07834514

Courtesy of FORD MOTOR CO.

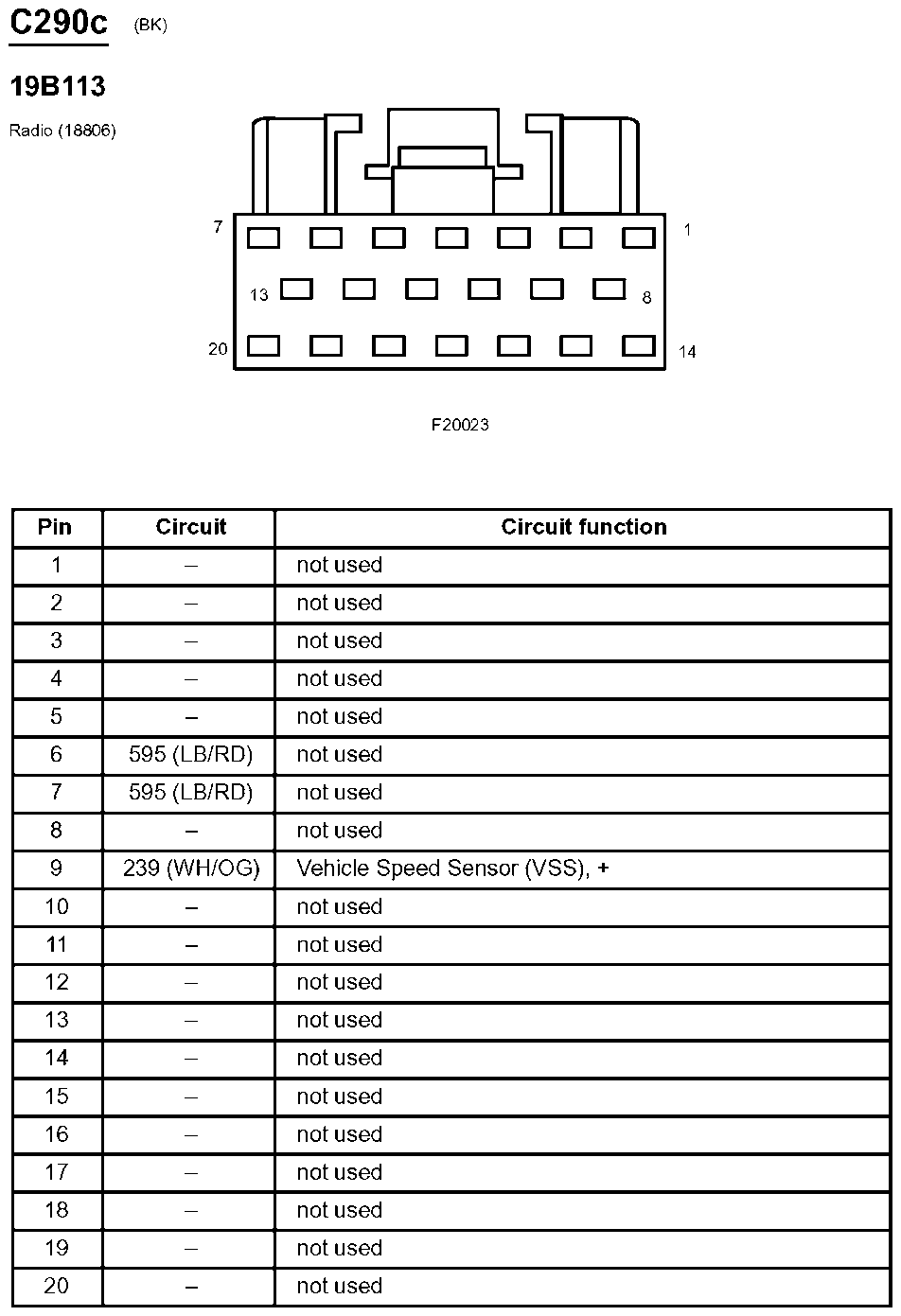

Fig 107: Radio Connector End View (C290c)

G07834515

Courtesy of FORD MOTOR CO.

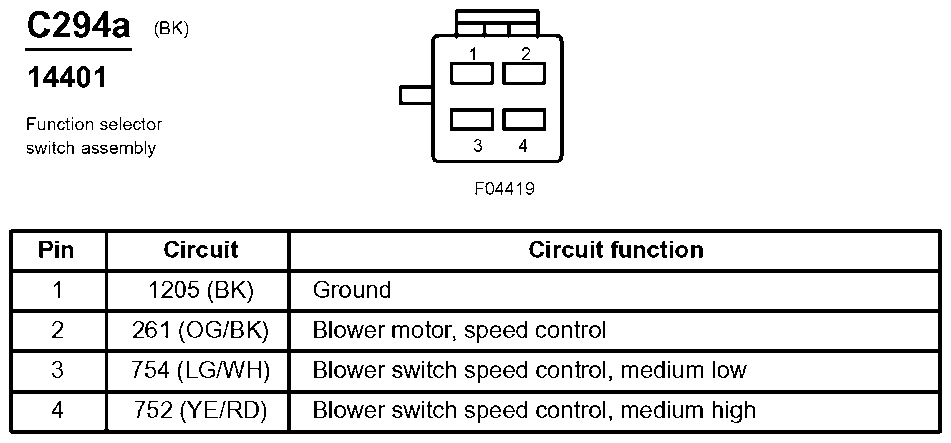

Fig 108: Function Selector Switch Assembly Connector End View (C294a)

G07834516

Courtesy of FORD MOTOR CO.

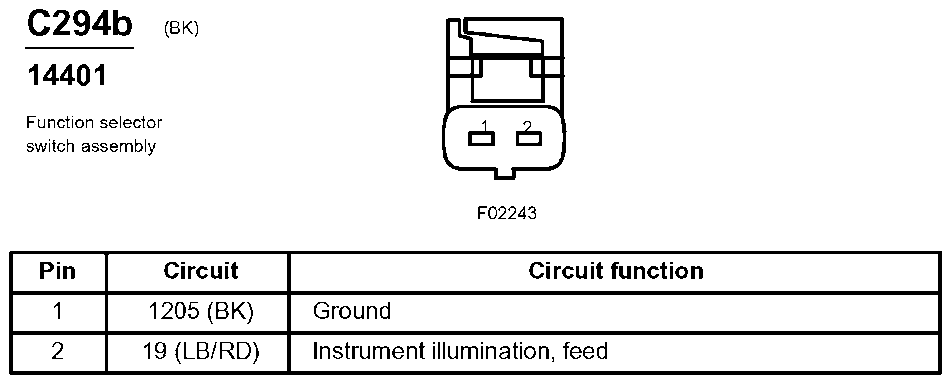

Fig 109: Function Selector Switch Assembly Connector End View (C294b)

G07834517

Courtesy of FORD MOTOR CO.

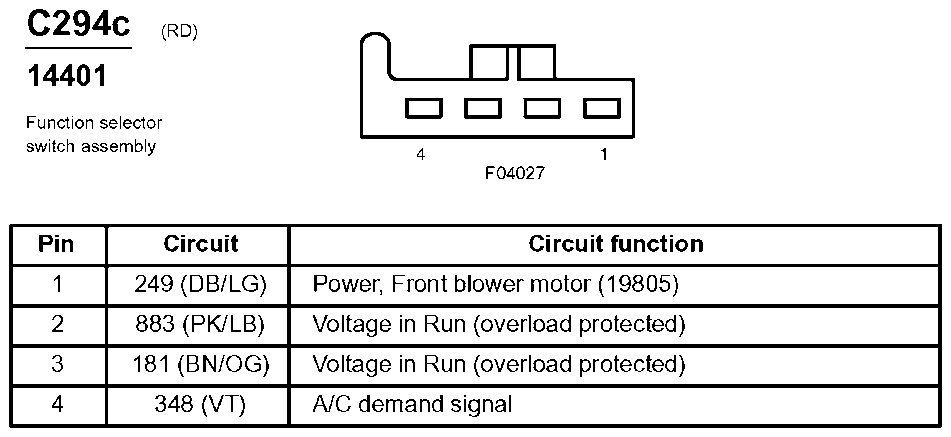

Fig 110: Function Selector Switch Assembly Connector End View (C294c)

G07834518

Courtesy of FORD MOTOR CO.

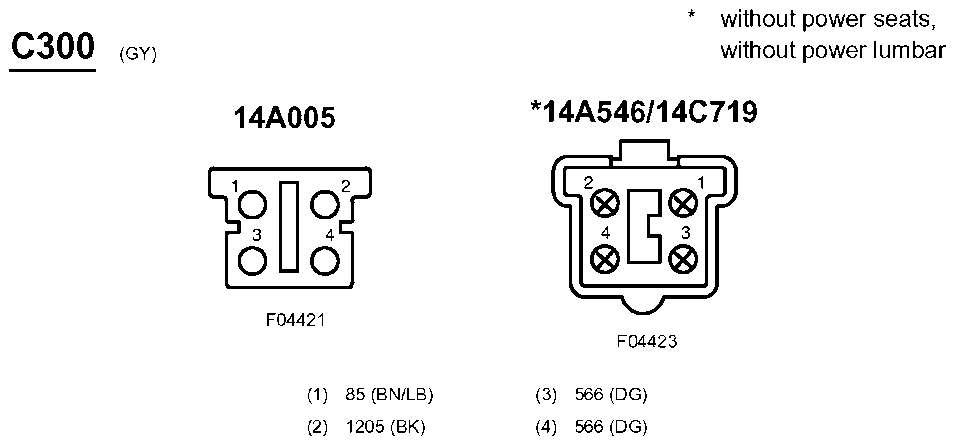

Fig 111: Inline Connector End View (C300)

G07834519

Courtesy of FORD MOTOR CO.

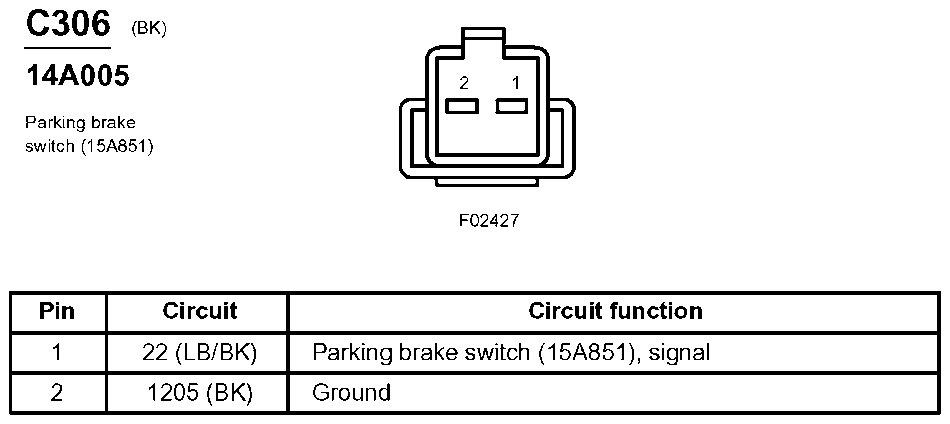

Fig 112: Parking Brake Switch Connector End View (C306)

G07834520

Courtesy of FORD MOTOR CO.

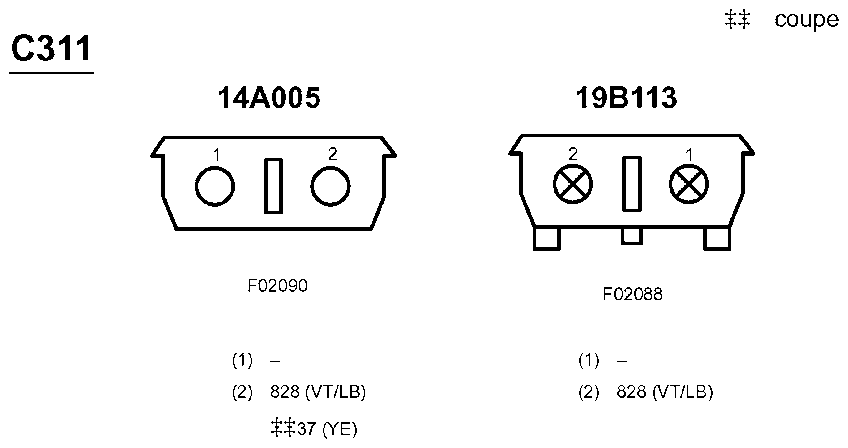

Fig 113: Inline Connector End View (C311)

G07834521

Courtesy of FORD MOTOR CO.

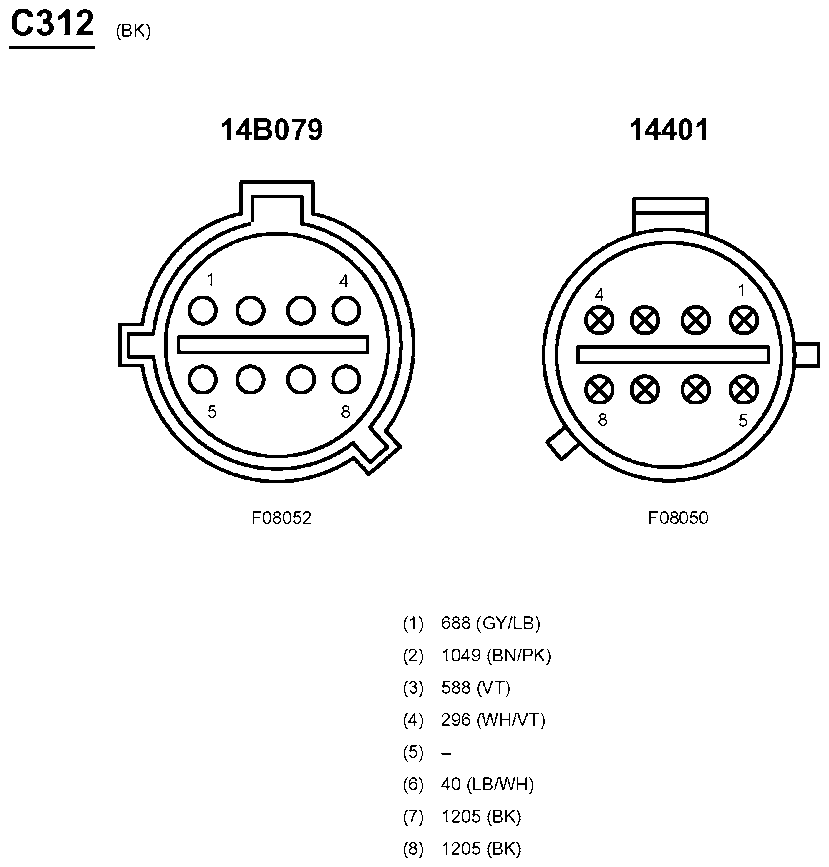

Fig 114: Inline Connector End View (C312)

G07834522

Courtesy of FORD MOTOR CO.

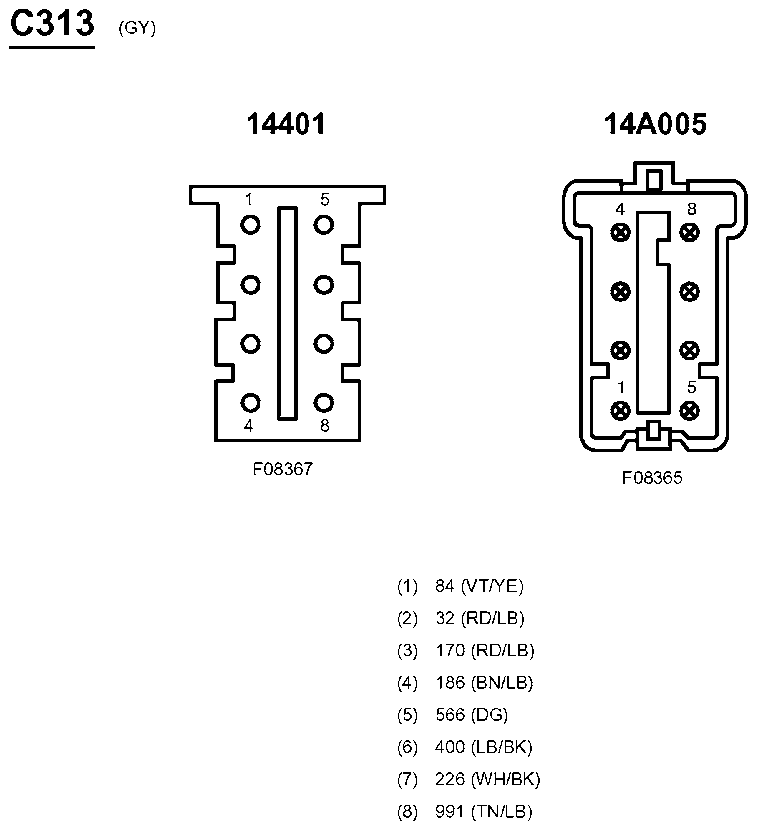

Fig 115: Inline Connector End View (C313)

G07834523

Courtesy of FORD MOTOR CO.

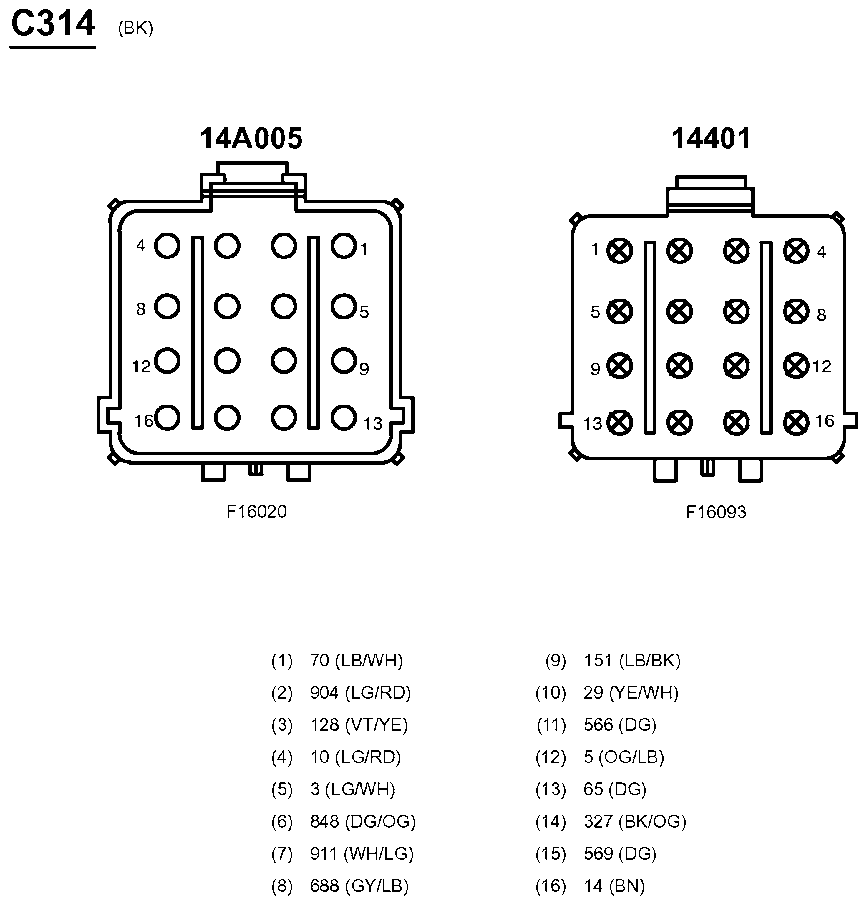

Fig 116: Inline Connector End View (C314)

G07834524

Courtesy of FORD MOTOR CO.

Fig 117: Inline Connector End View (C315)

G07834525

Courtesy of FORD MOTOR CO.

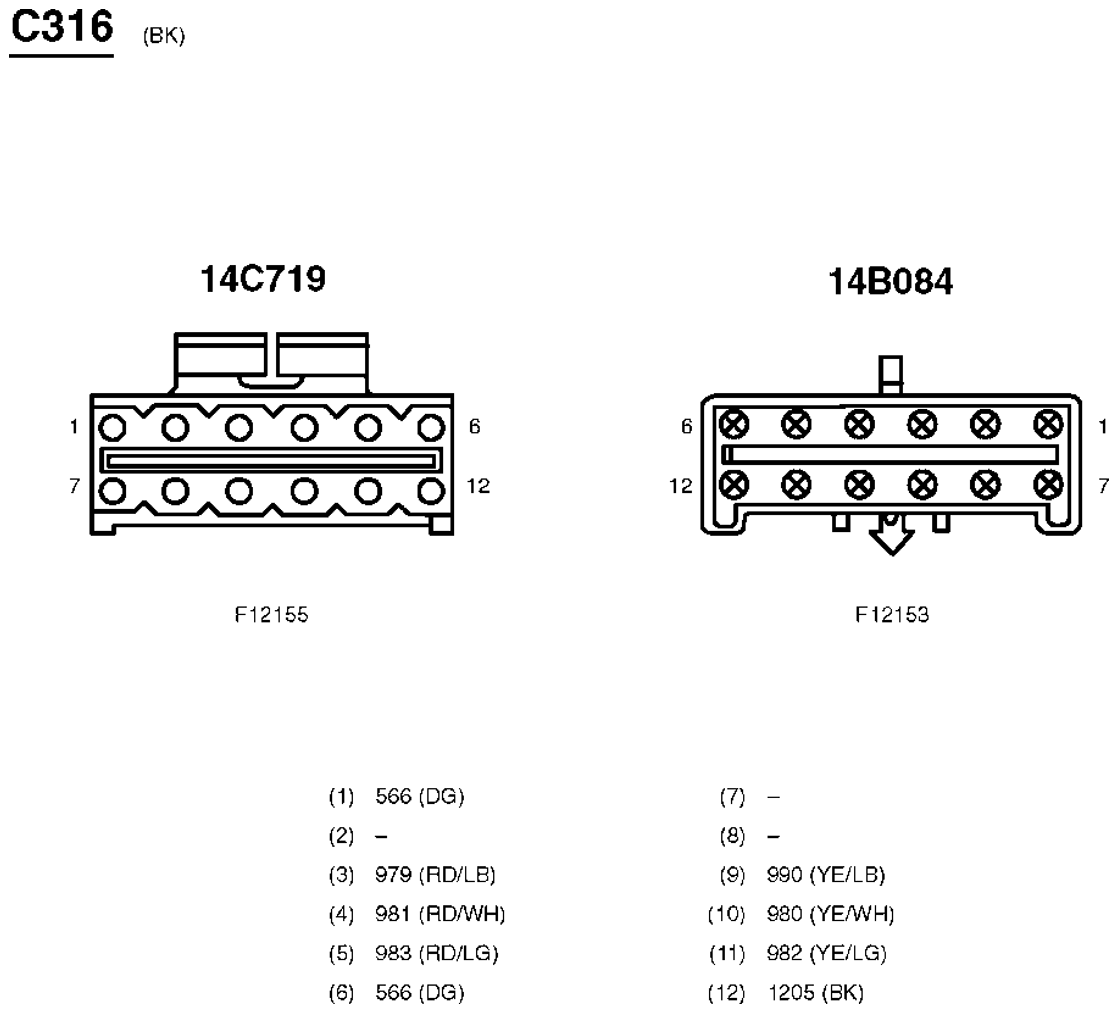

Fig 118: Inline Connector End View (C316)

G07834526

Courtesy of FORD MOTOR CO.

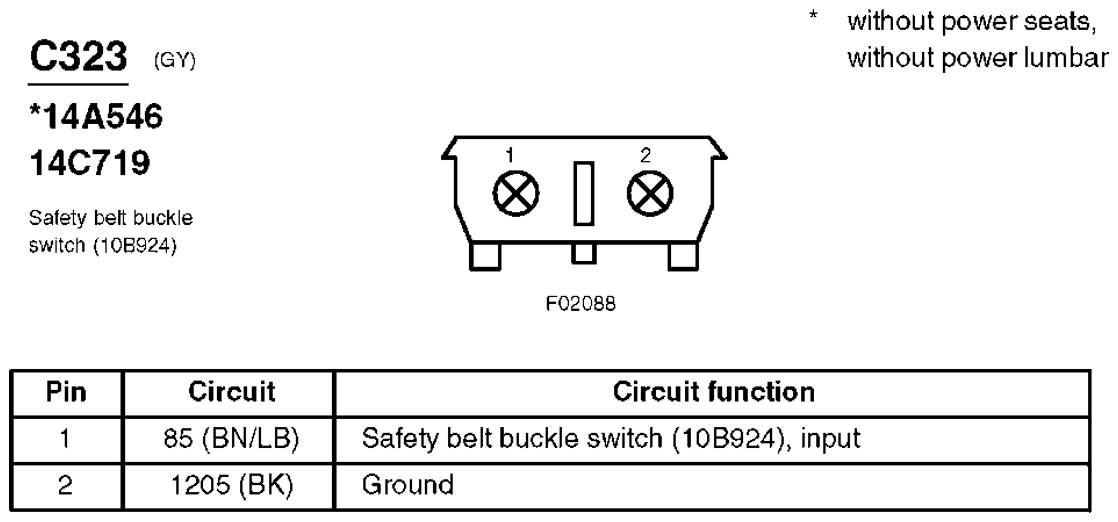

Fig 119: Safety Belt Buckle Switch Connector End View (C323)

G07834527

Courtesy of FORD MOTOR CO.

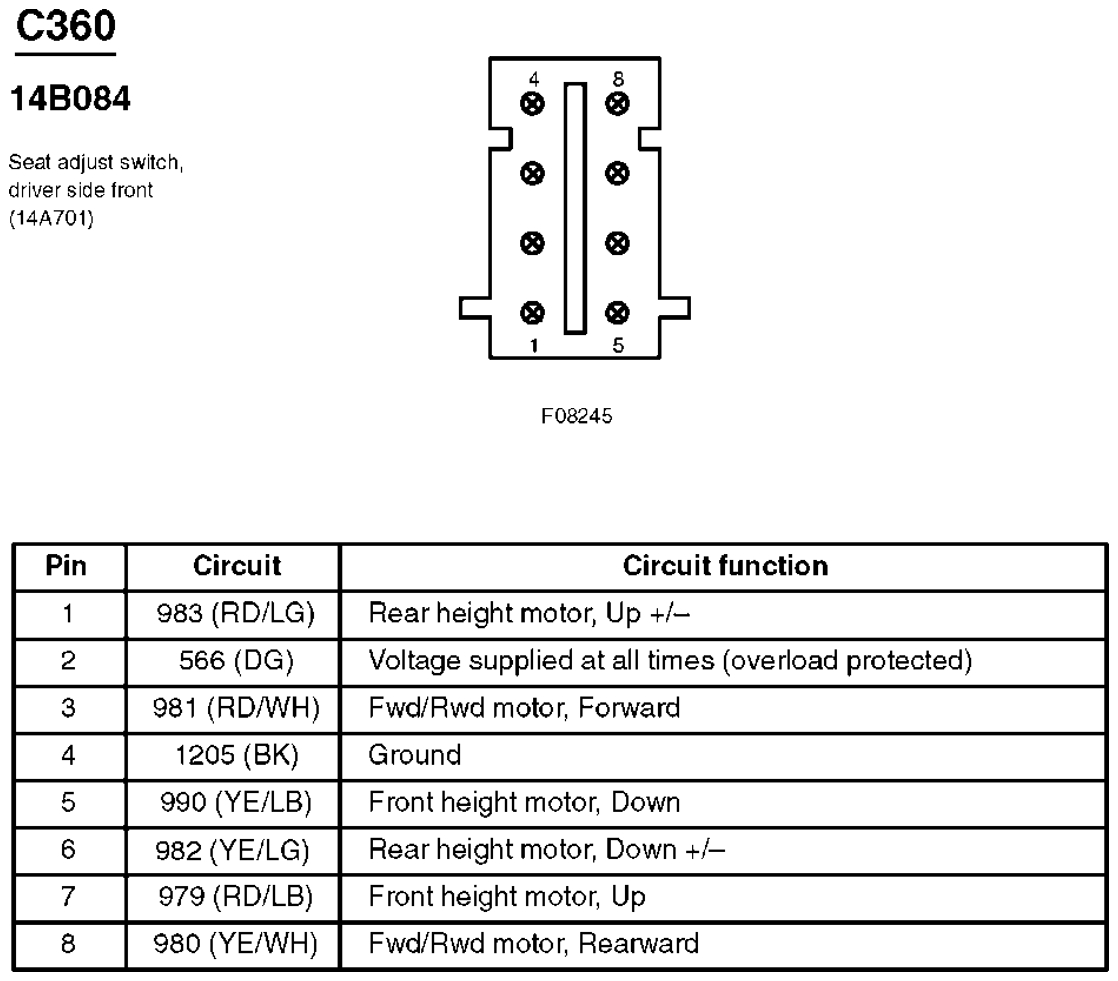

Fig 120: Seat Adjust Switch, Driver Side Front Connector End View (C360)

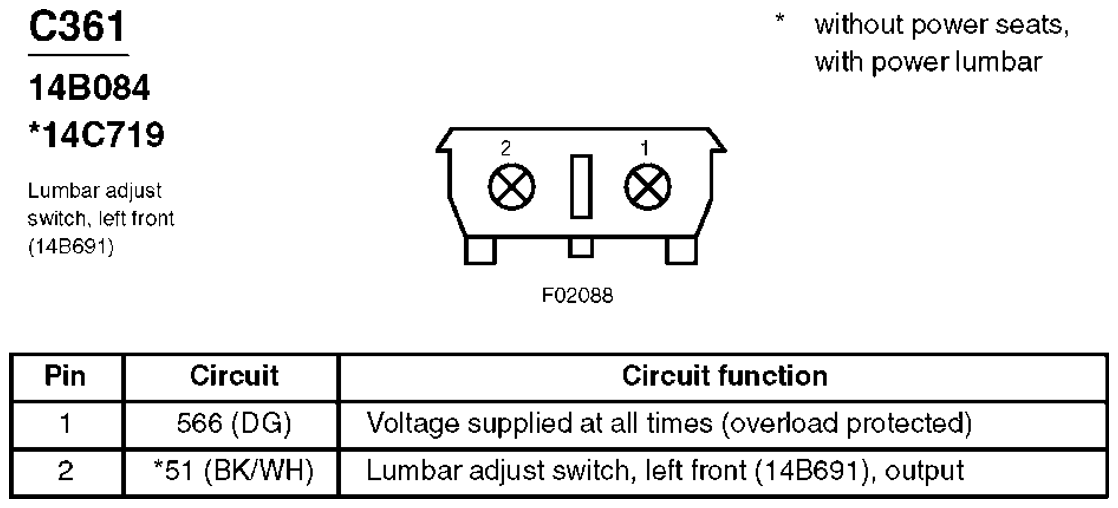

G07834528

Courtesy of FORD MOTOR CO.

Fig 121: Lumbar Adjust Switch, Left Front Connector End View (C361)

G07834529

Courtesy of FORD MOTOR CO.

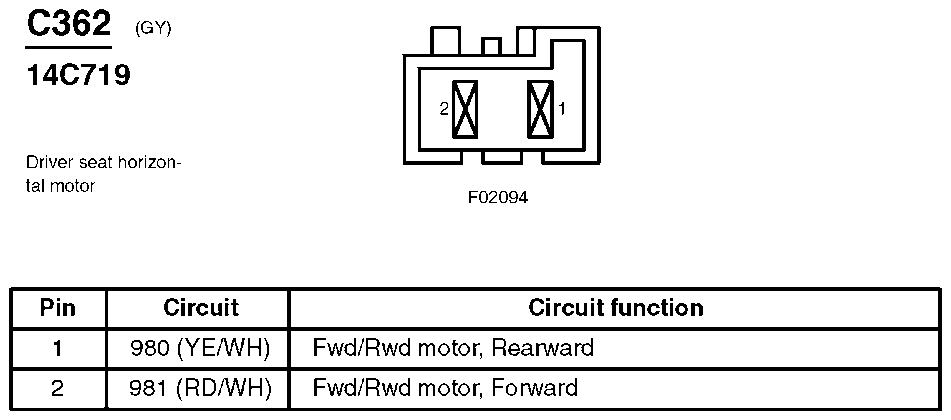

Fig 122: Driver Seat Horizontal Motor Connector End View (C362)

G07834530

Courtesy of FORD MOTOR CO.

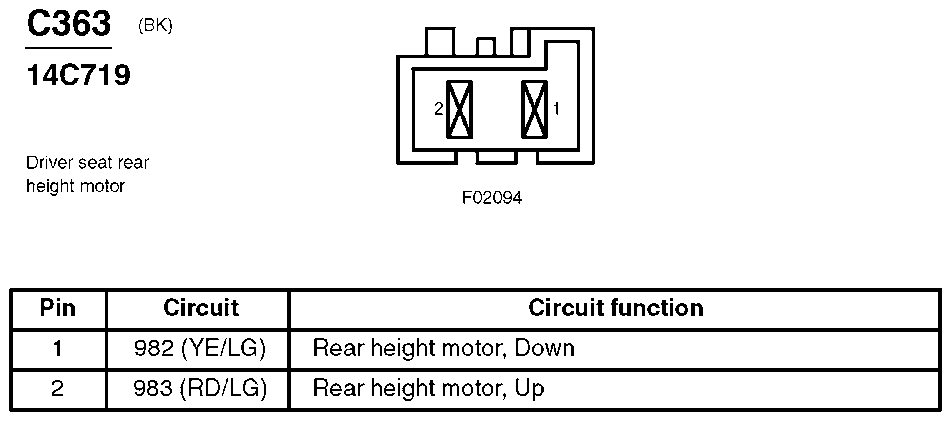

Fig 123: Driver Seat Rear Height Motor Connector End View (C363)

G07834531

Courtesy of FORD MOTOR CO.

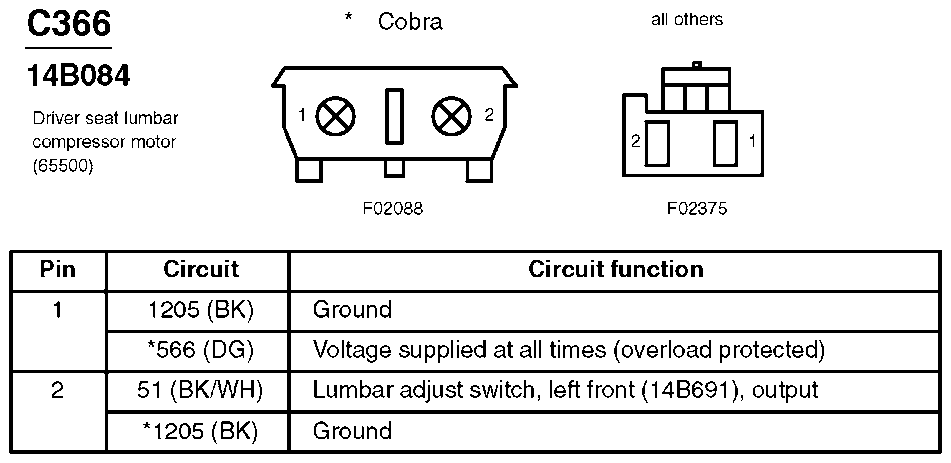

Fig 124: Driver Seat Lumbar Compressor Motor Connector End View (C366)

G07834532

Courtesy of FORD MOTOR CO.

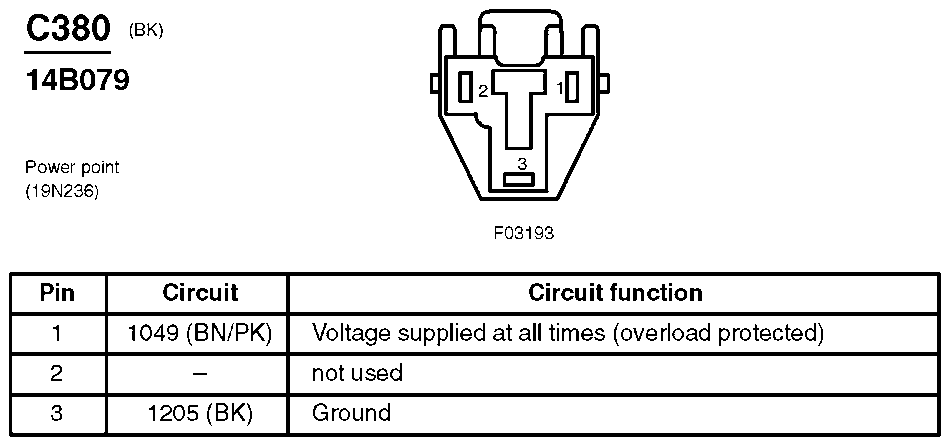

Fig 125: Power Point Connector End View (C380)

G07834533

Courtesy of FORD MOTOR CO.

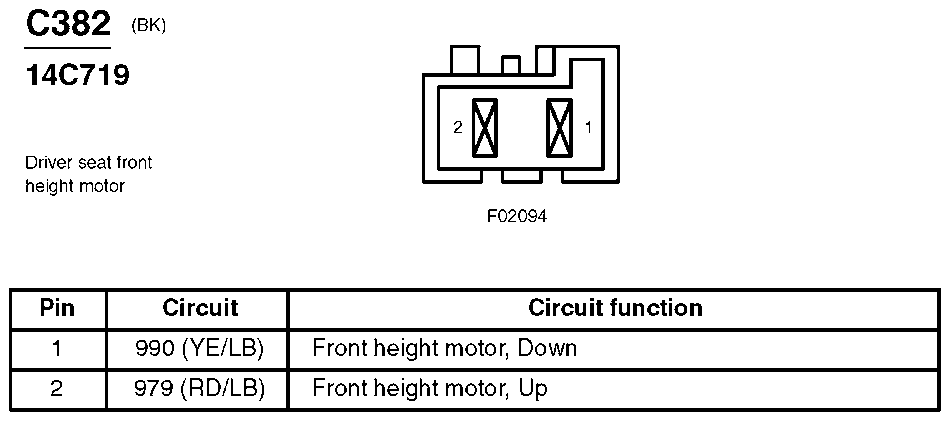

Fig 126: Driver Seat Front Height Motor Connector End View (C382)

G07834534

Courtesy of FORD MOTOR CO.

Fig 127: Speaker, Left Rear Connector End View (C395)

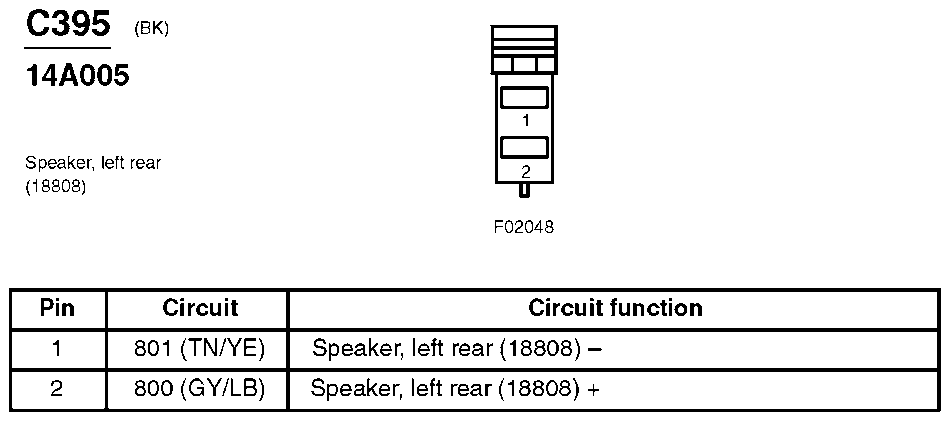

G07834535

Courtesy of FORD MOTOR CO.

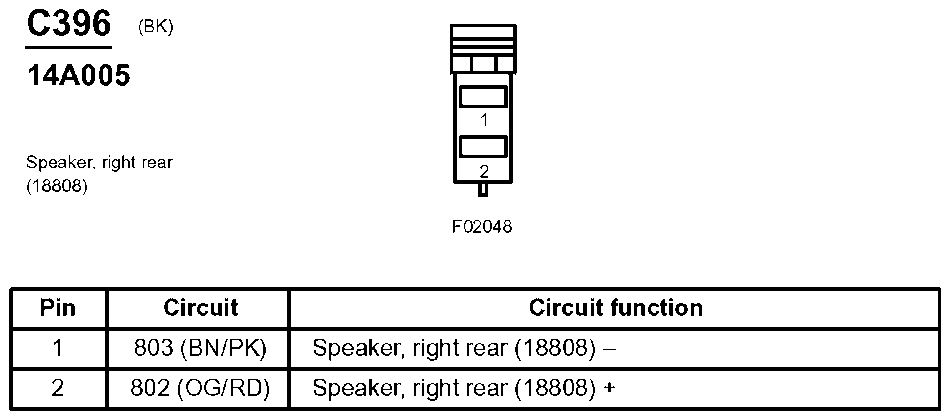

Fig 128: Speaker, Right Rear Connector End View (C396)

G07834536

Courtesy of FORD MOTOR CO.

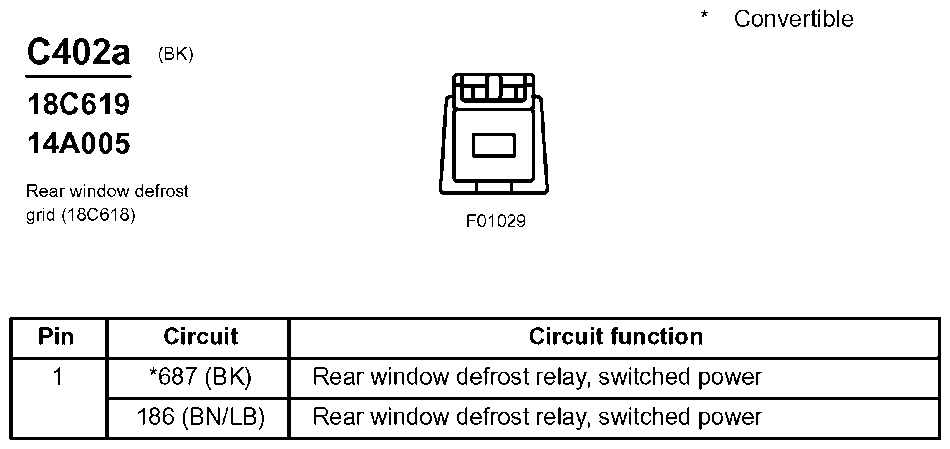

Fig 129: Rear Window Defrost Grid Connector End View (C402a)

G07834537

Courtesy of FORD MOTOR CO.

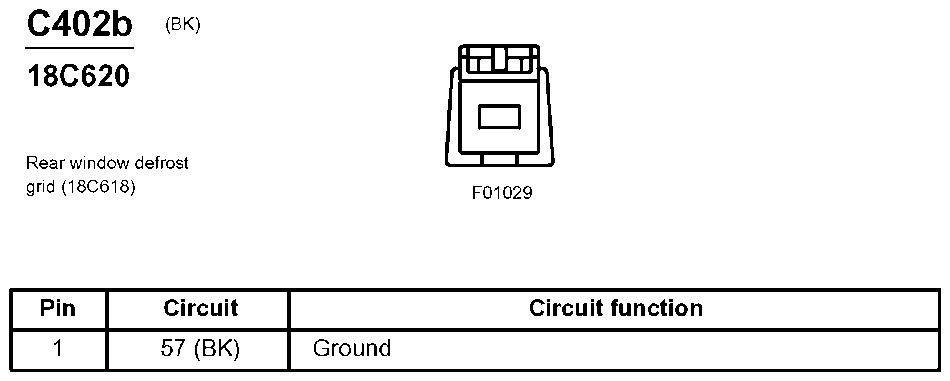

Fig 130: Rear Window Defrost Grid Connector End View (C402b)

G07834538

Courtesy of FORD MOTOR CO.

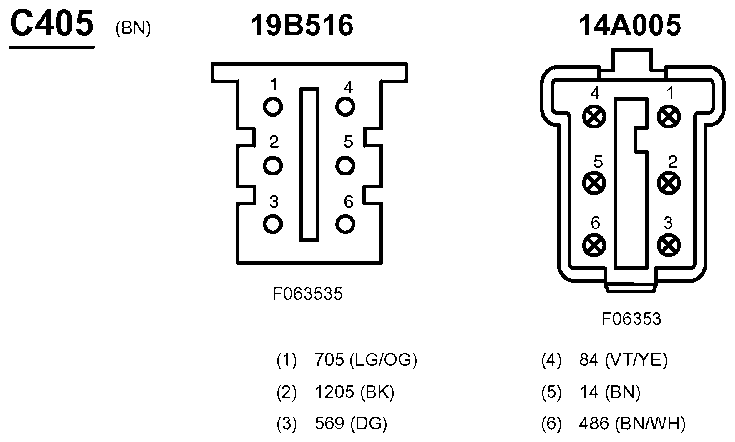

Fig 131: Inline Connector End View (C405)

G07834539

Courtesy of FORD MOTOR CO.

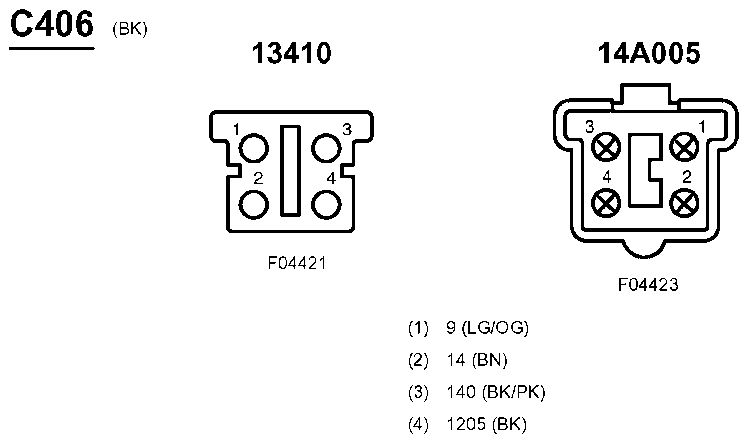

Fig 132: Inline Connector End View (C406)

G07834540

Courtesy of FORD MOTOR CO.

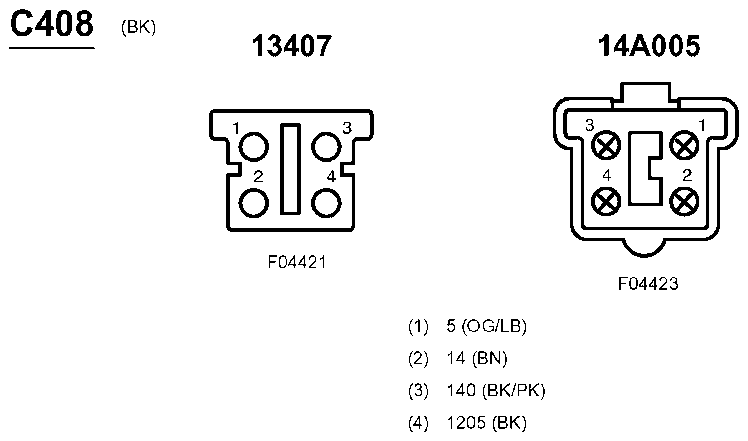

Fig 133: Inline Connector End View (C408)

G07834541

Courtesy of FORD MOTOR CO.

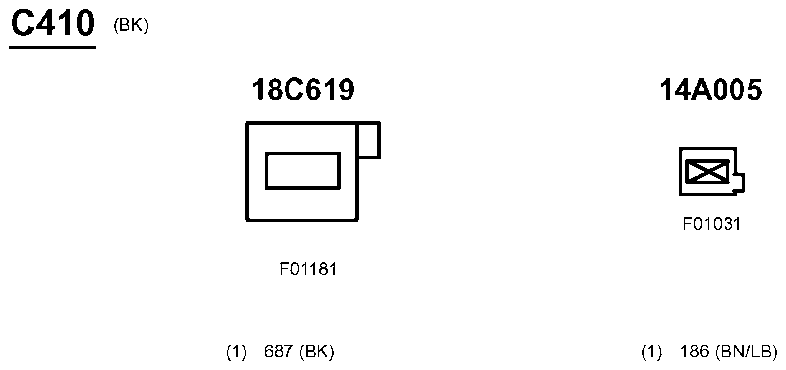

Fig 134: Inline Connector End View (C410)

G07834542

Courtesy of FORD MOTOR CO.

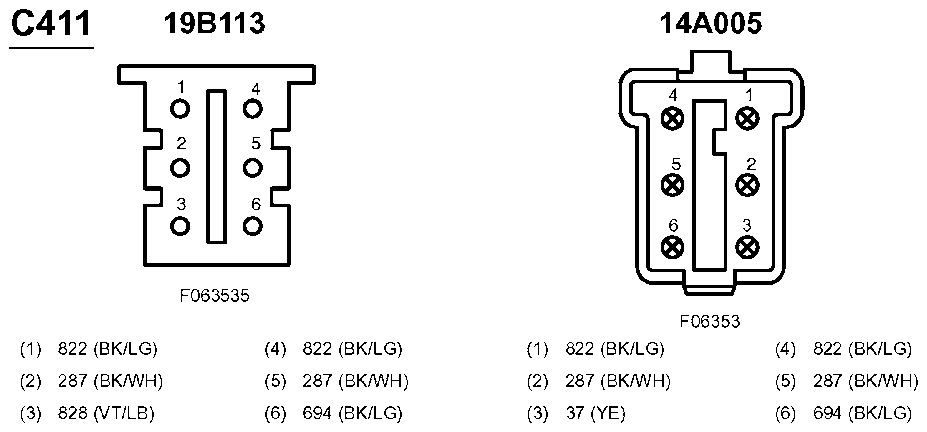

Fig 135: Inline Connector End View (C411)

G07834543

Courtesy of FORD MOTOR CO.

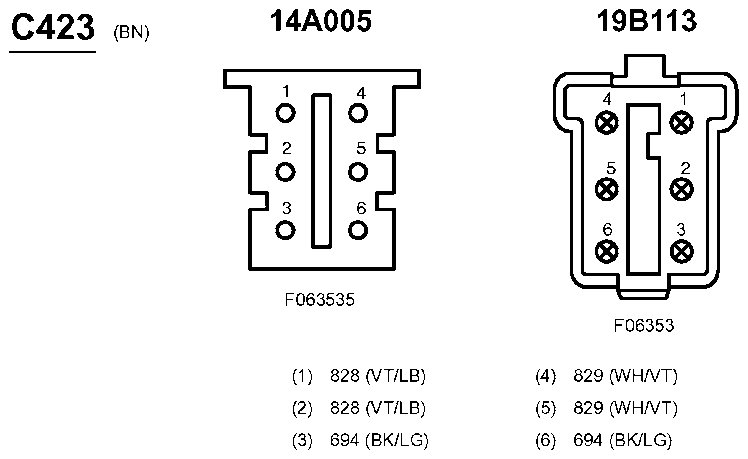

Fig 136: Inline Connector End View (C423)

G07834544

Courtesy of FORD MOTOR CO.

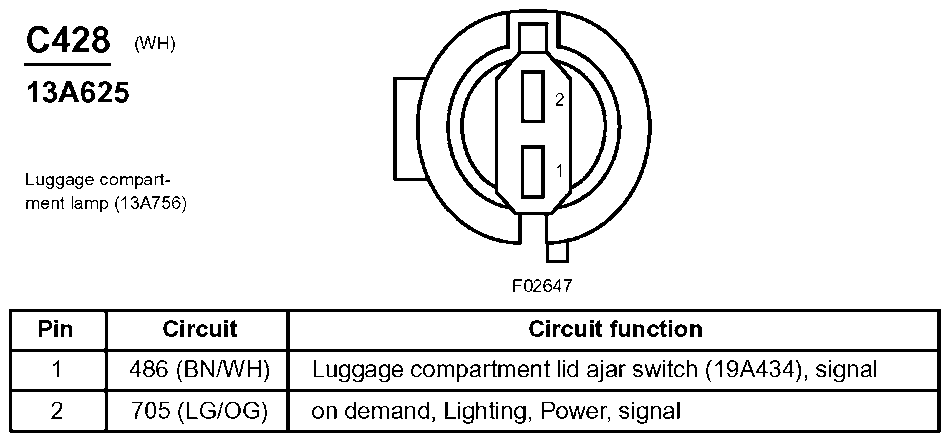

Fig 137: Luggage Compartment Lamp Connector End View (C428)

G07834545

Courtesy of FORD MOTOR CO.

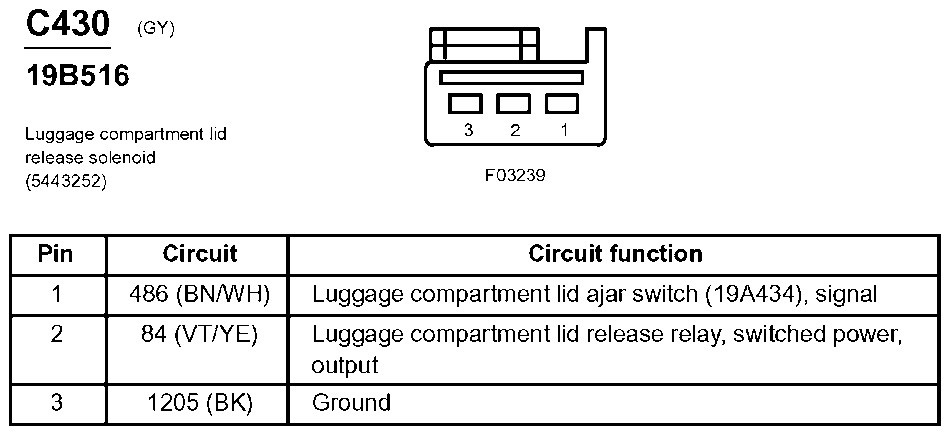

Fig 138: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G07834546

Courtesy of FORD MOTOR CO.

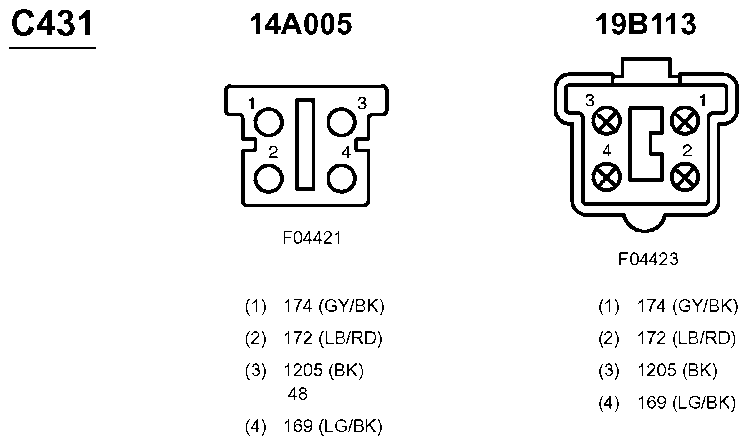

Fig 139: Inline Connector End View (C431)

G07834547

Courtesy of FORD MOTOR CO.

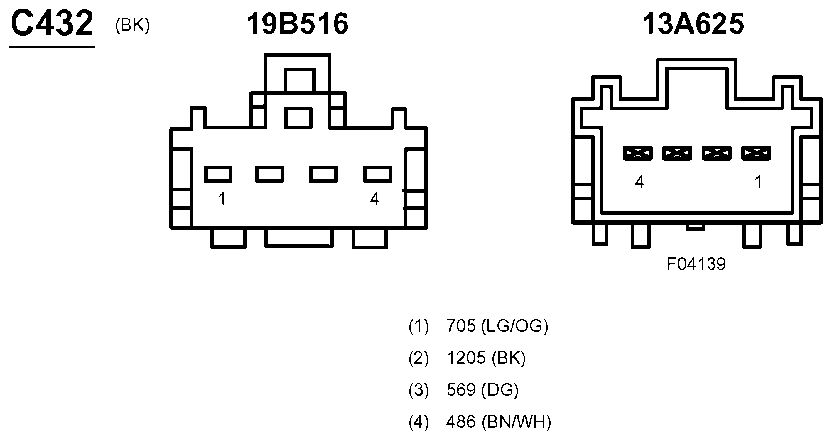

Fig 140: Inline Connector End View (C432)

G07834548

Courtesy of FORD MOTOR CO.

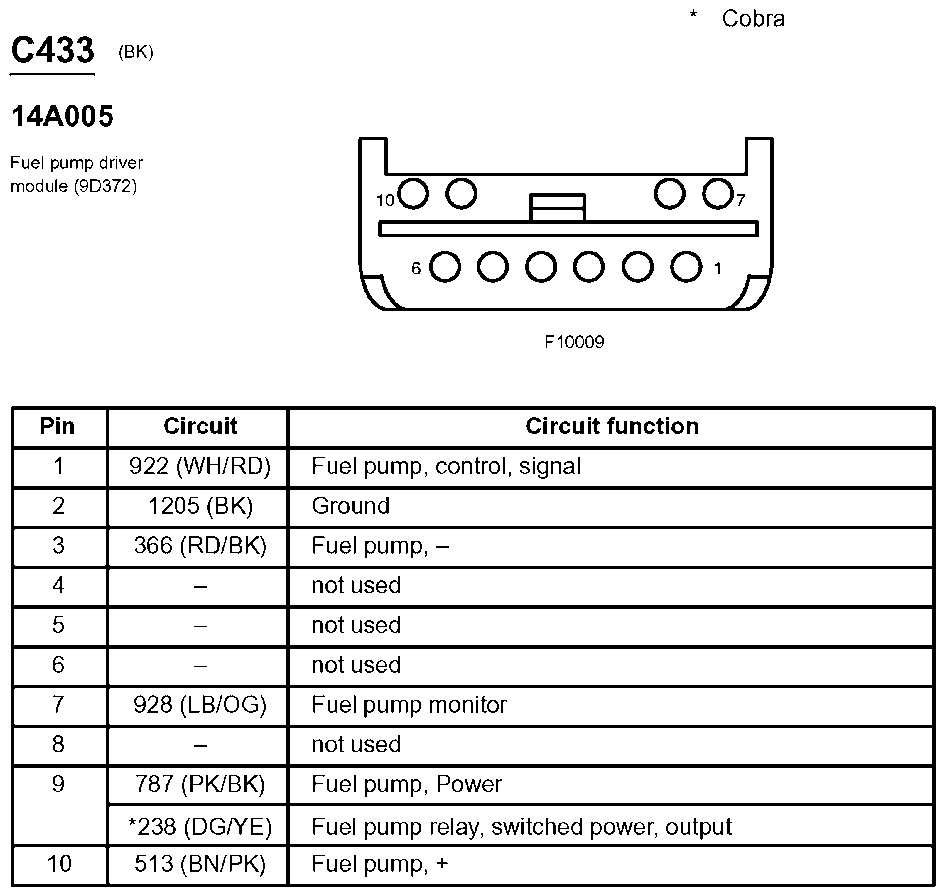

Fig 141: Fuel Pump Driver Module Connector End View (C433)

G07834549

Courtesy of FORD MOTOR CO.

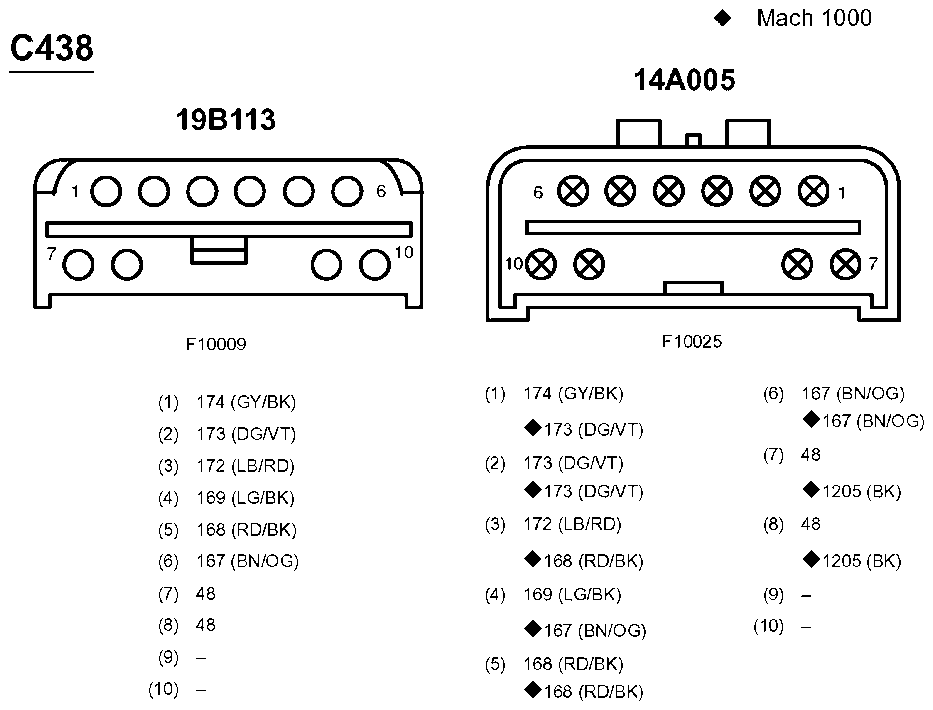

Fig 142: Inline Connector End View (C438)

G07834550

Courtesy of FORD MOTOR CO.

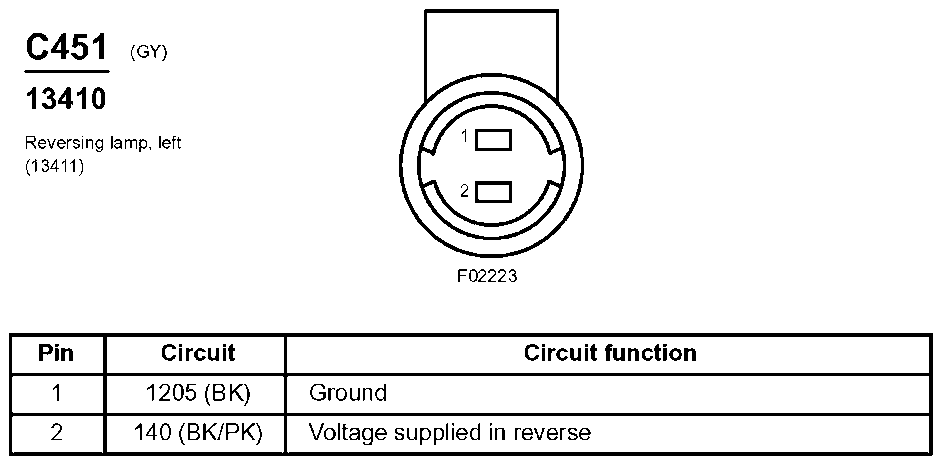

Fig 143: Reversing Lamp, Left Connector End View (C451)

G07834551

Courtesy of FORD MOTOR CO.

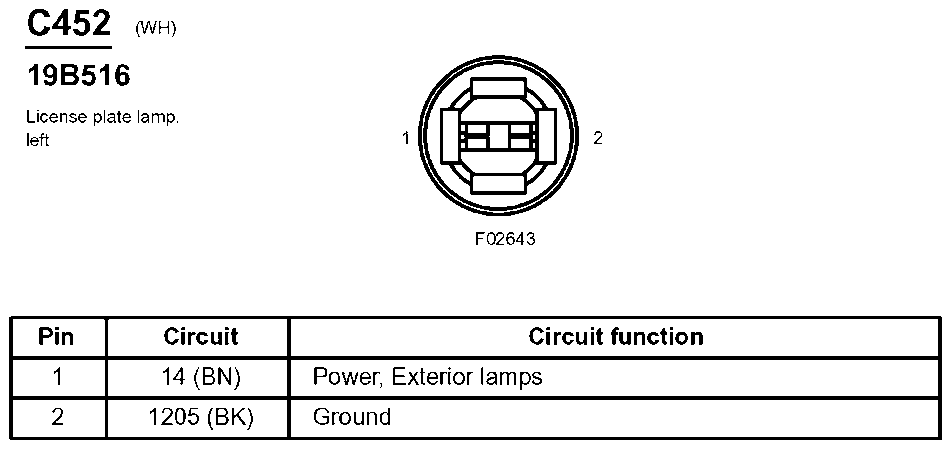

Fig 144: License Plate Lamp, Left Connector End View (C452)

G07834552

Courtesy of FORD MOTOR CO.

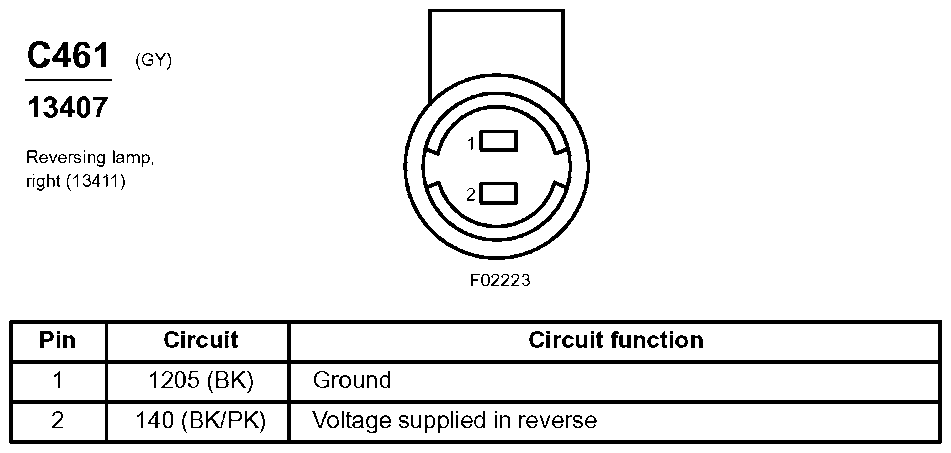

Fig 145: Reversing Lamp, Right Connector End View (C461)

G07834553

Courtesy of FORD MOTOR CO.

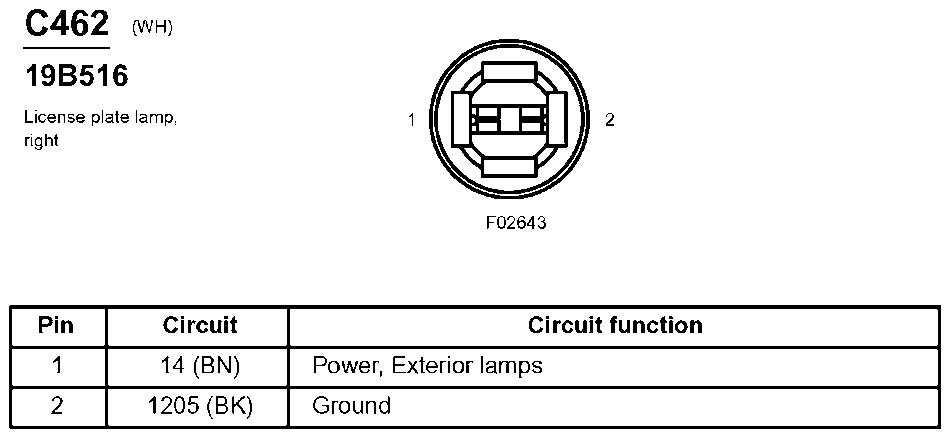

Fig 146: License Plate Lamp, Right Connector End View (C462)

G07834554

Courtesy of FORD MOTOR CO.

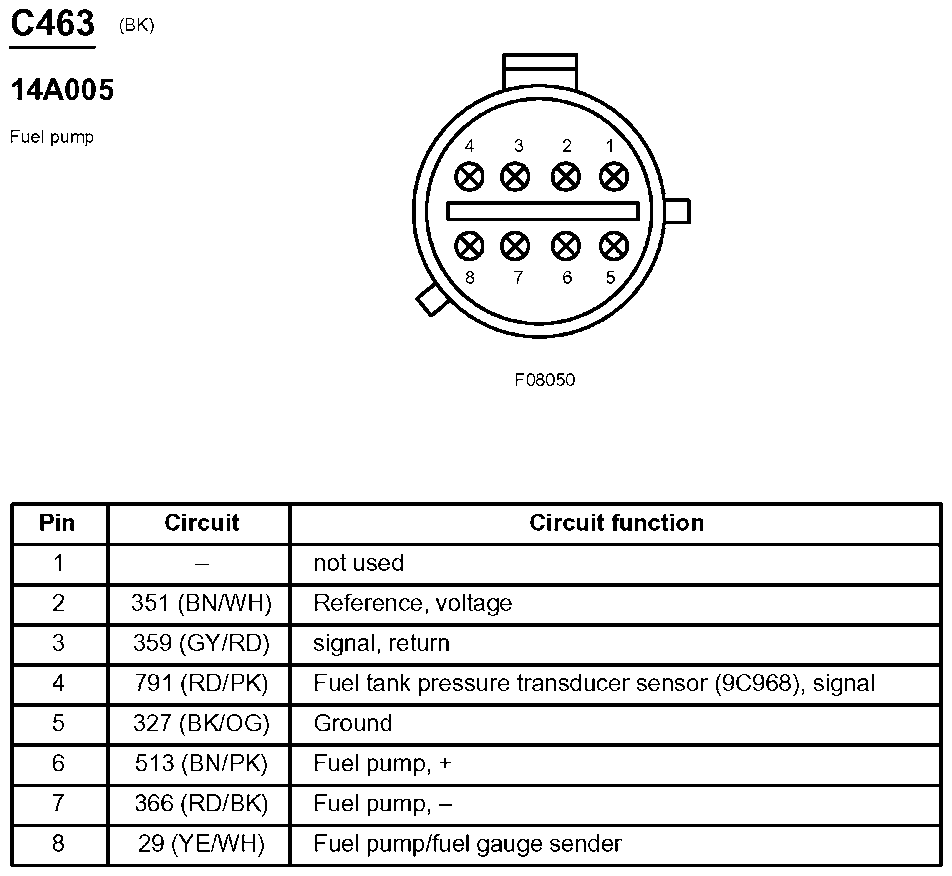

Fig 147: Fuel Pump Connector End View (C463)

G07834555

Courtesy of FORD MOTOR CO.

Fig 148: High Mounted Stoplamp Connector End View (C475a)

G07834556

Courtesy of FORD MOTOR CO.

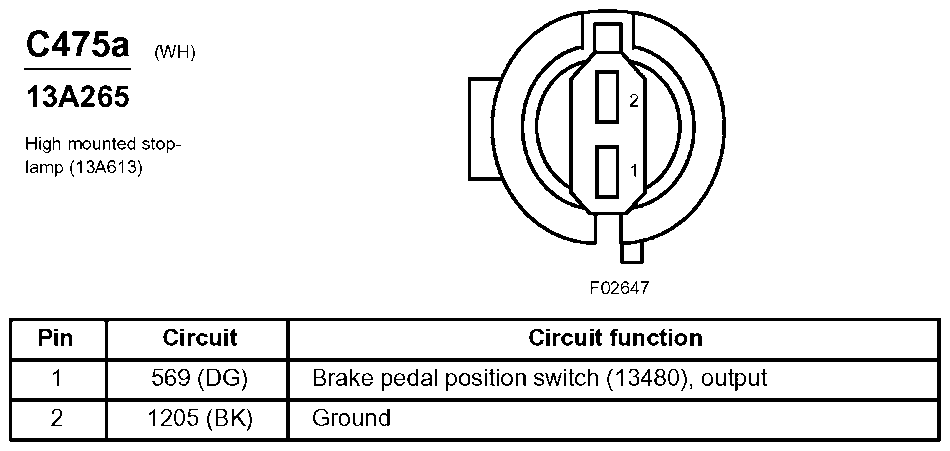

Fig 149: High Mounted Stoplamp Connector End View (C475b)

G07834557

Courtesy of FORD MOTOR CO.

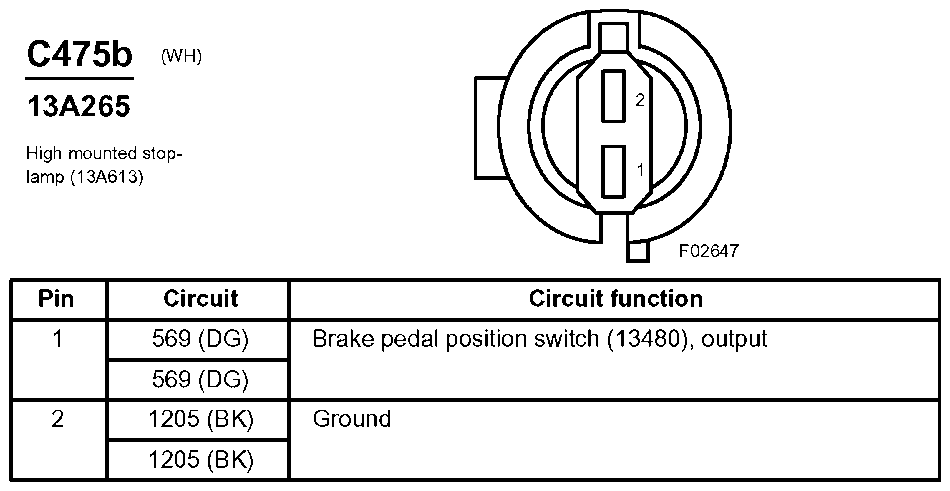

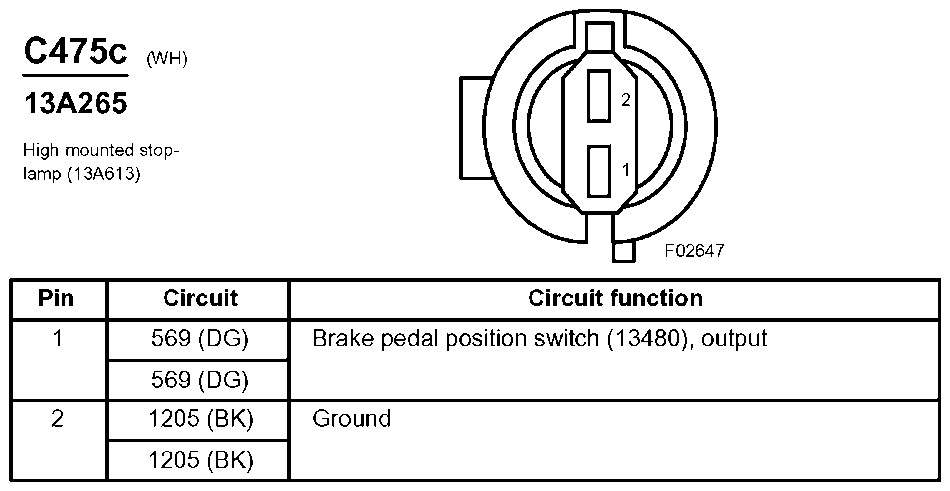

Fig 150: High Mounted Stoplamp Connector End View (C475c)

G07834558

Courtesy of FORD MOTOR CO.

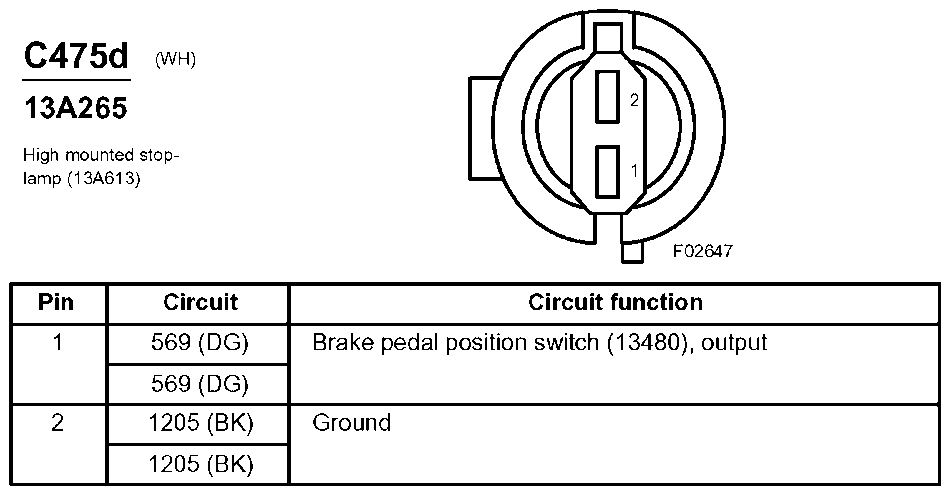

Fig 151: High Mounted Stoplamp Connector End View (C475d)

G07834559

Courtesy of FORD MOTOR CO.

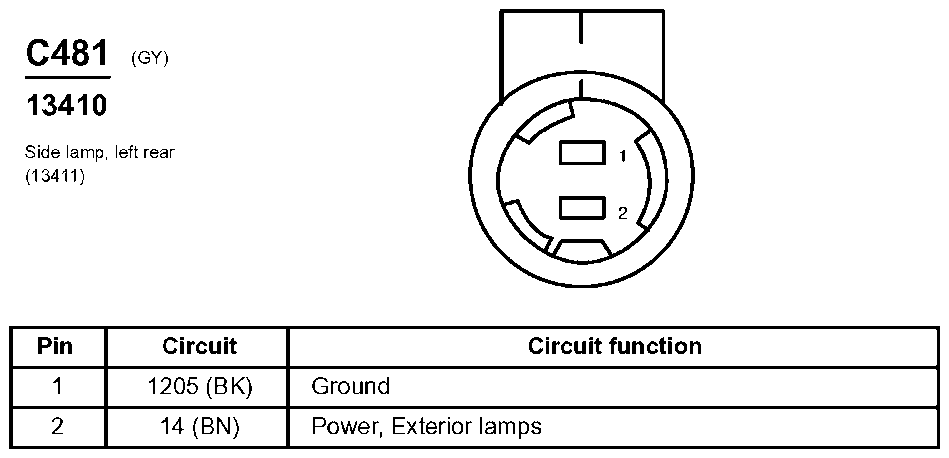

Fig 152: Side Lamp, Left Rear Connector End View (C481)

G07834560

Courtesy of FORD MOTOR CO.

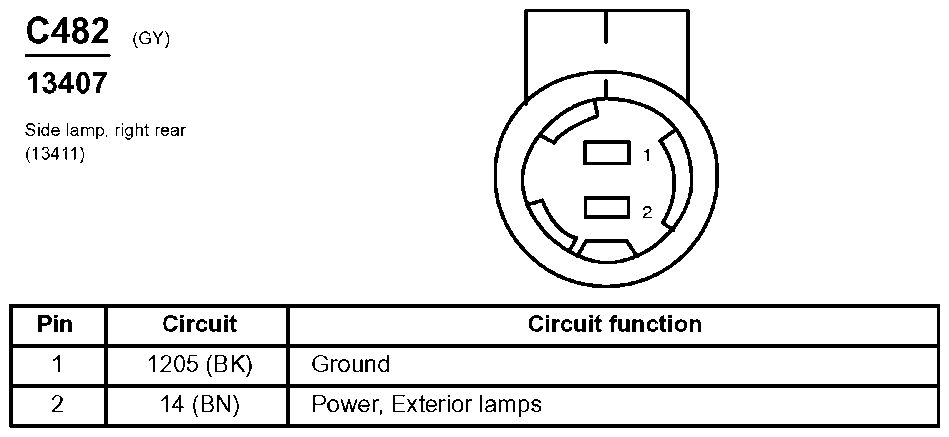

Fig 153: Side Lamp, Right Rear Connector End View (C482)

G07834561

Courtesy of FORD MOTOR CO.

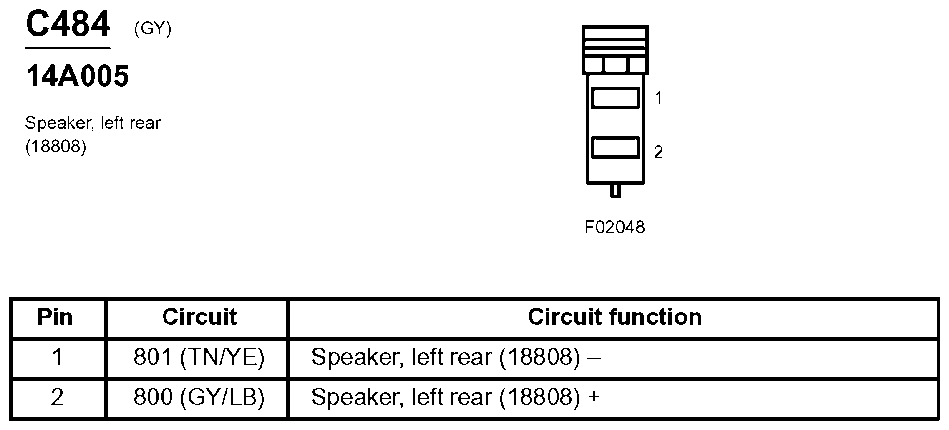

Fig 154: Speaker, Left Rear Connector End View (C484)

G07834562

Courtesy of FORD MOTOR CO.

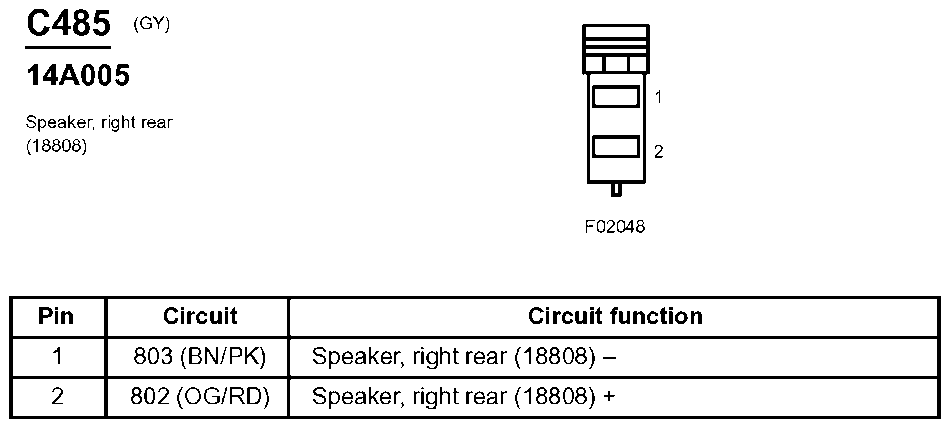

Fig 155: Speaker, Right Rear Connector End View (C485)

G07834563

Courtesy of FORD MOTOR CO.

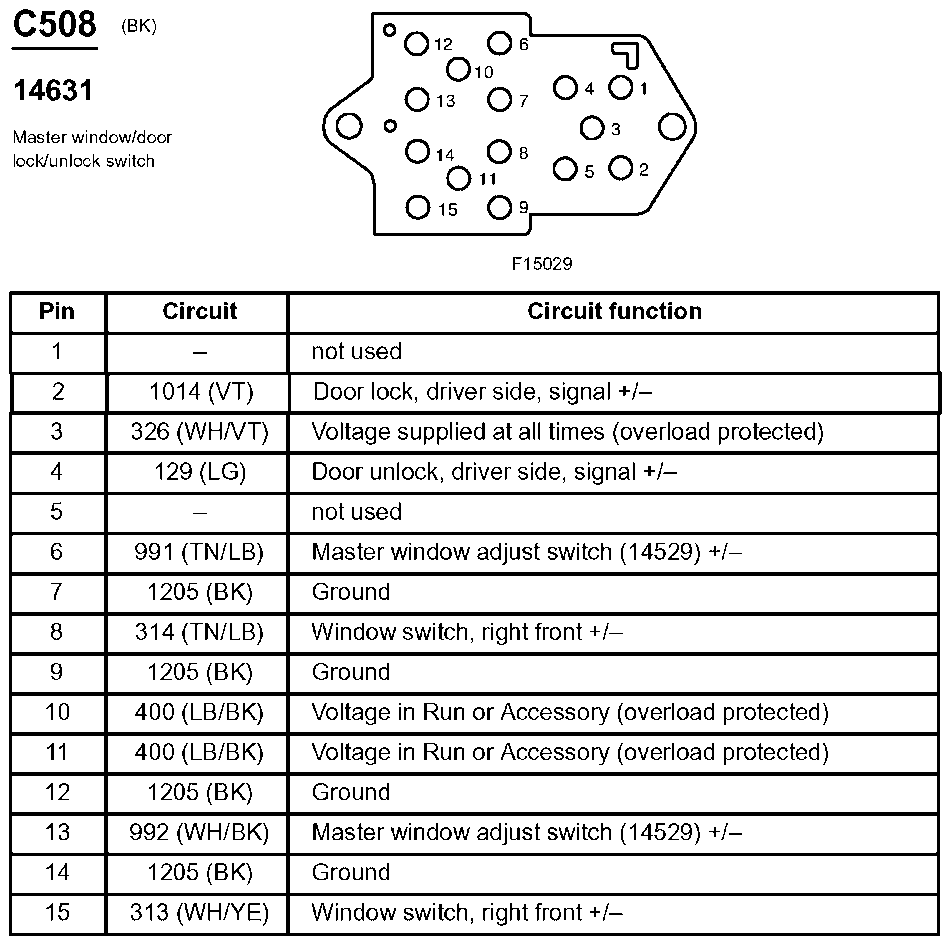

Fig 156: Master Window/Door Lock/Unlock Switch Connector End View (C508)

G07834564

Courtesy of FORD MOTOR CO.

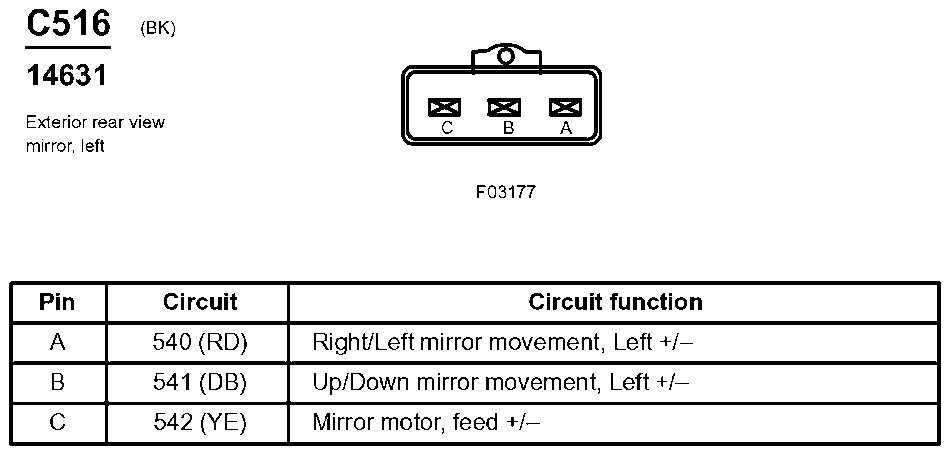

Fig 157: Exterior Rear View Mirror, Left Connector End View (C516)

G07834565

Courtesy of FORD MOTOR CO.

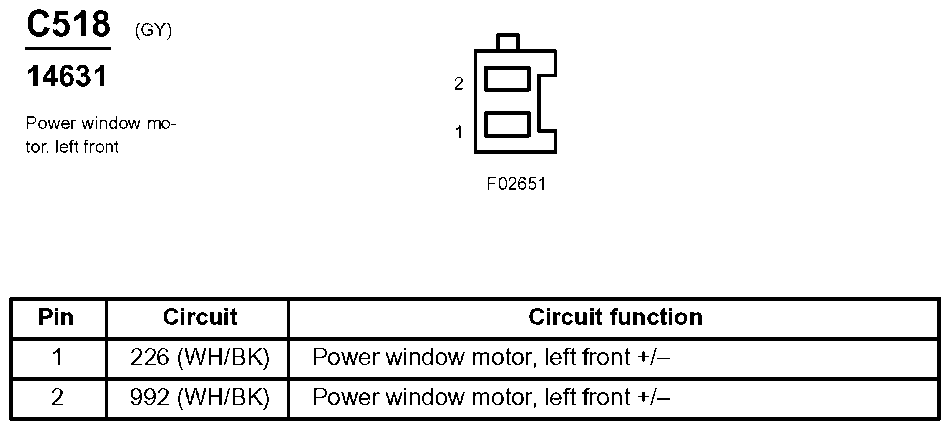

Fig 158: Power Window Motor, Left Front Connector End View (C518)

G07834566

Courtesy of FORD MOTOR CO.

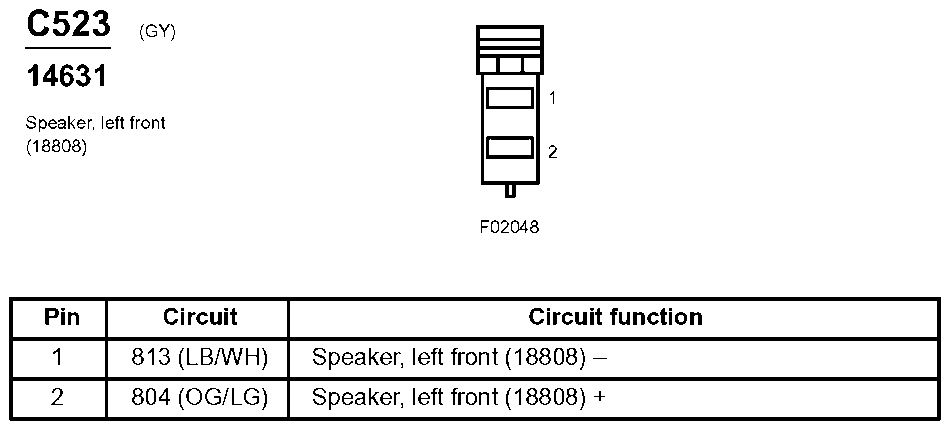

Fig 159: Speaker, Left Front Connector End View (C523)

G07834567

Courtesy of FORD MOTOR CO.

Fig 160: Door Lock Actuator, Left Front Connector End View (C525)

G07834568

Courtesy of FORD MOTOR CO.

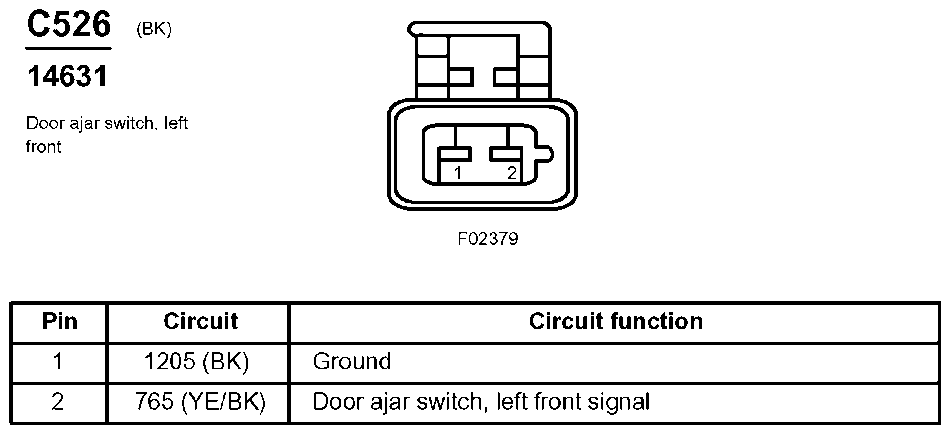

Fig 161: Door Ajar Switch, Left Front Connector End View (C526)

G07834569

Courtesy of FORD MOTOR CO.

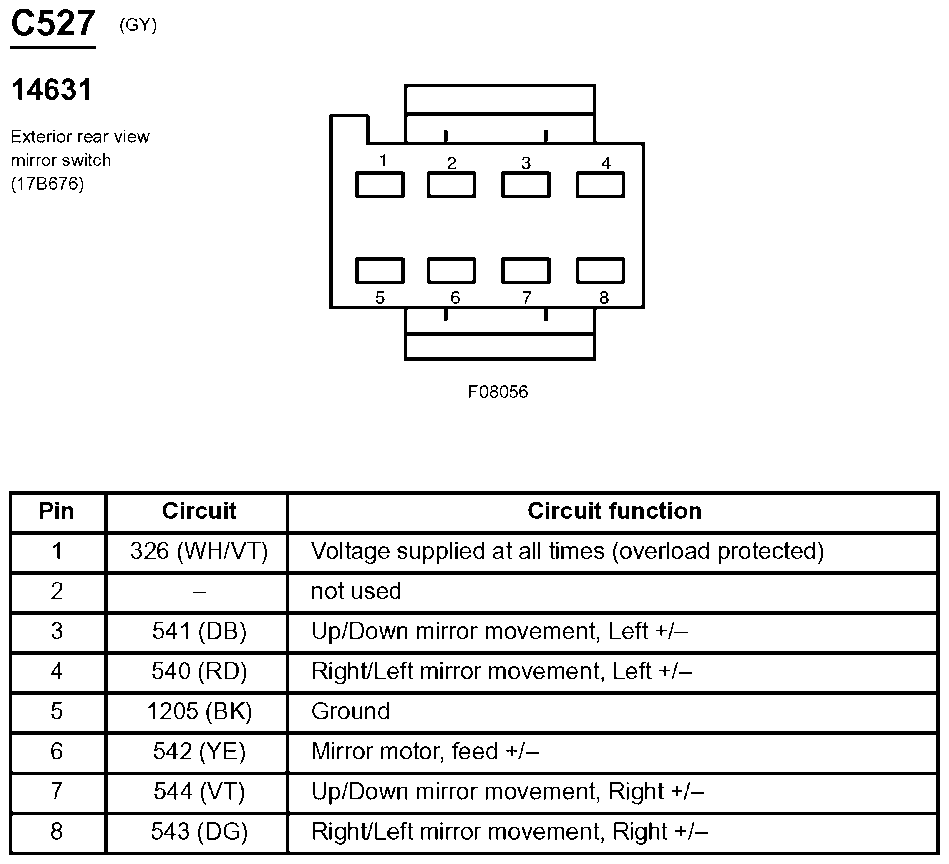

Fig 162: Exterior Rear View Mirror Switch Connector End View (C527)

G07834570

Courtesy of FORD MOTOR CO.

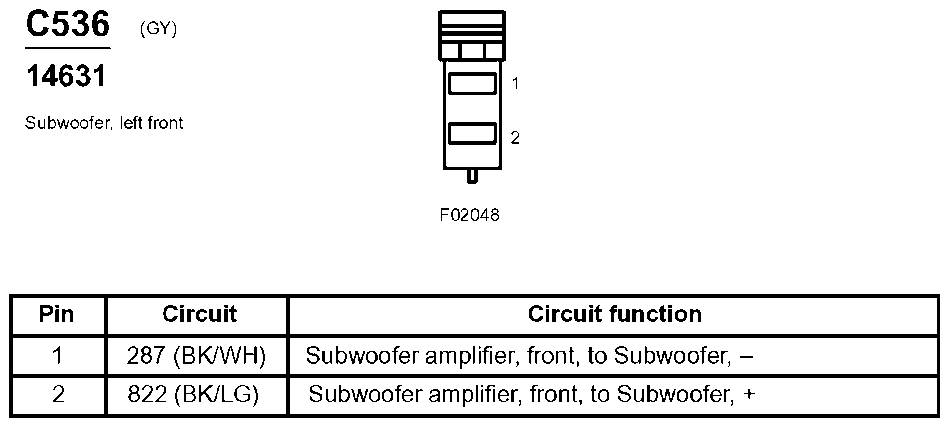

Fig 163: Subwoofer, Left Front Connector End View (C536)

G07834571

Courtesy of FORD MOTOR CO.

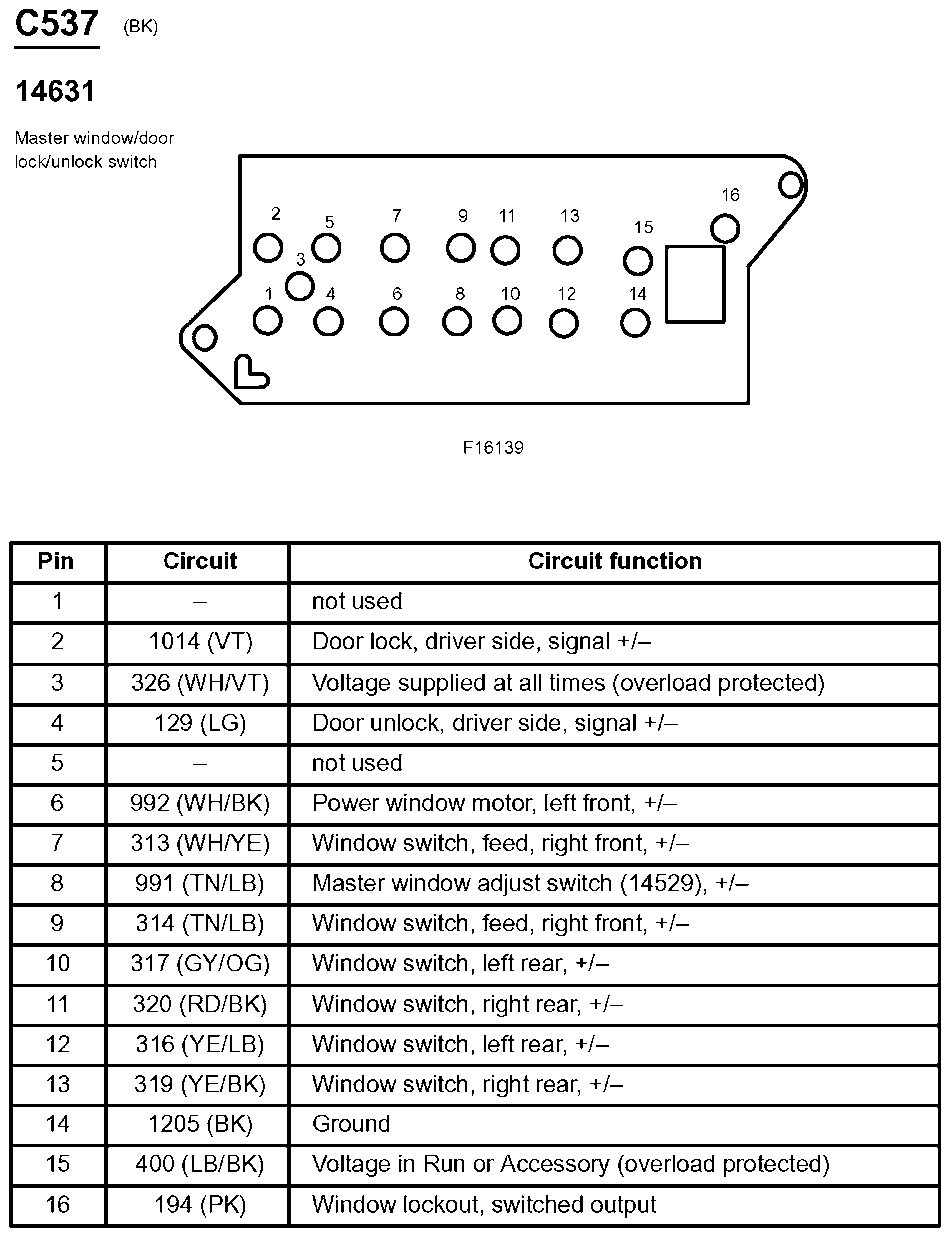

Fig 164: Master Window/Door Lock/Unlock Switch Connector End View (C537)

G07834572

Courtesy of FORD MOTOR CO.

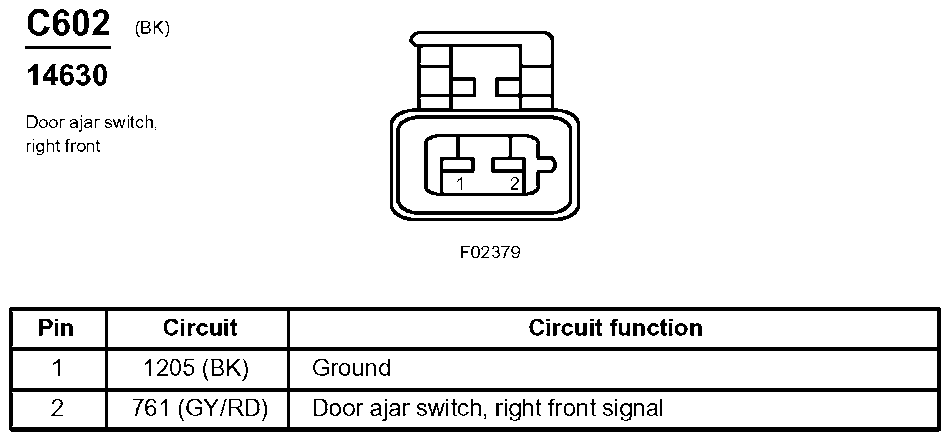

Fig 165: Door Ajar Switch, Right Front Connector End View (C602)

G07834573

Courtesy of FORD MOTOR CO.

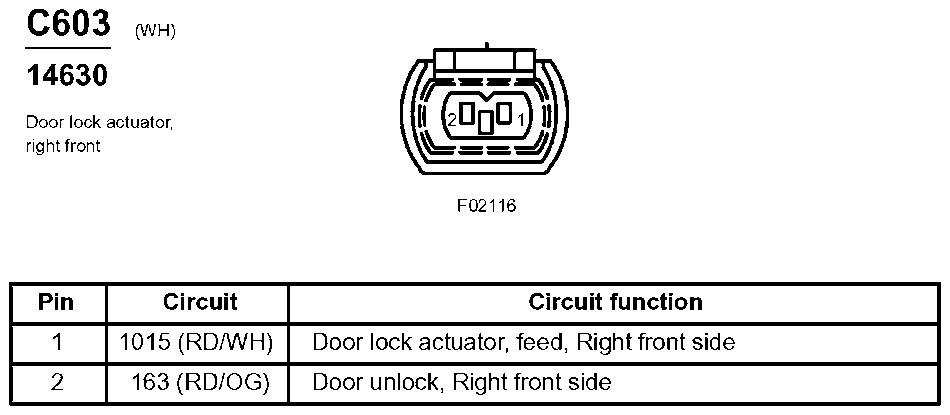

Fig 166: Door Lock Actuator, Right Front Connector End View (C603)

G07834574

Courtesy of FORD MOTOR CO.

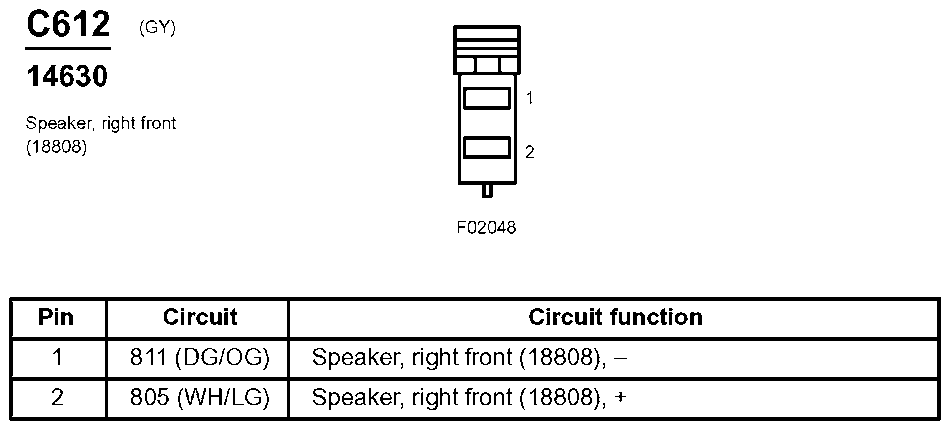

Fig 167: Speaker, Right Front Connector End View (C612)

G07834575

Courtesy of FORD MOTOR CO.

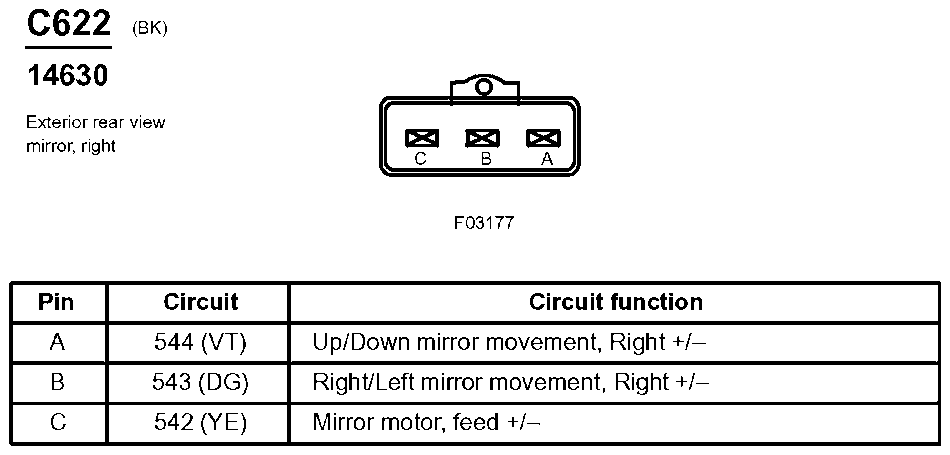

Fig 168: Exterior Rear View Mirror, Right Connector End View (C622)

G07834576

Courtesy of FORD MOTOR CO.

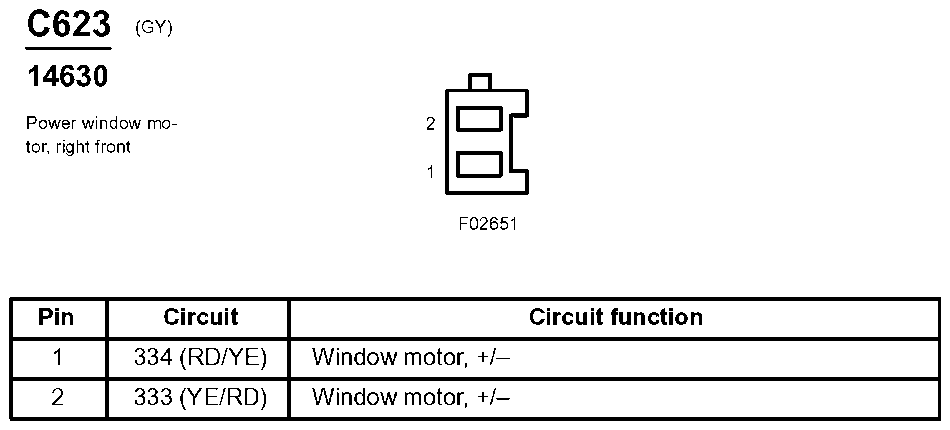

Fig 169: Power Window Motor, Right Front Connector End View (C623)

G07834577

Courtesy of FORD MOTOR CO.

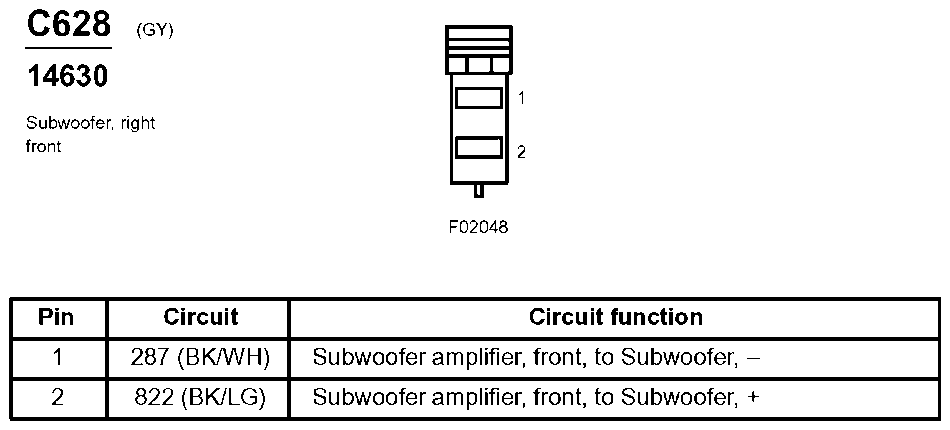

Fig 170: Subwoofer, Right Front Connector End View (C628)

G07834578

Courtesy of FORD MOTOR CO.

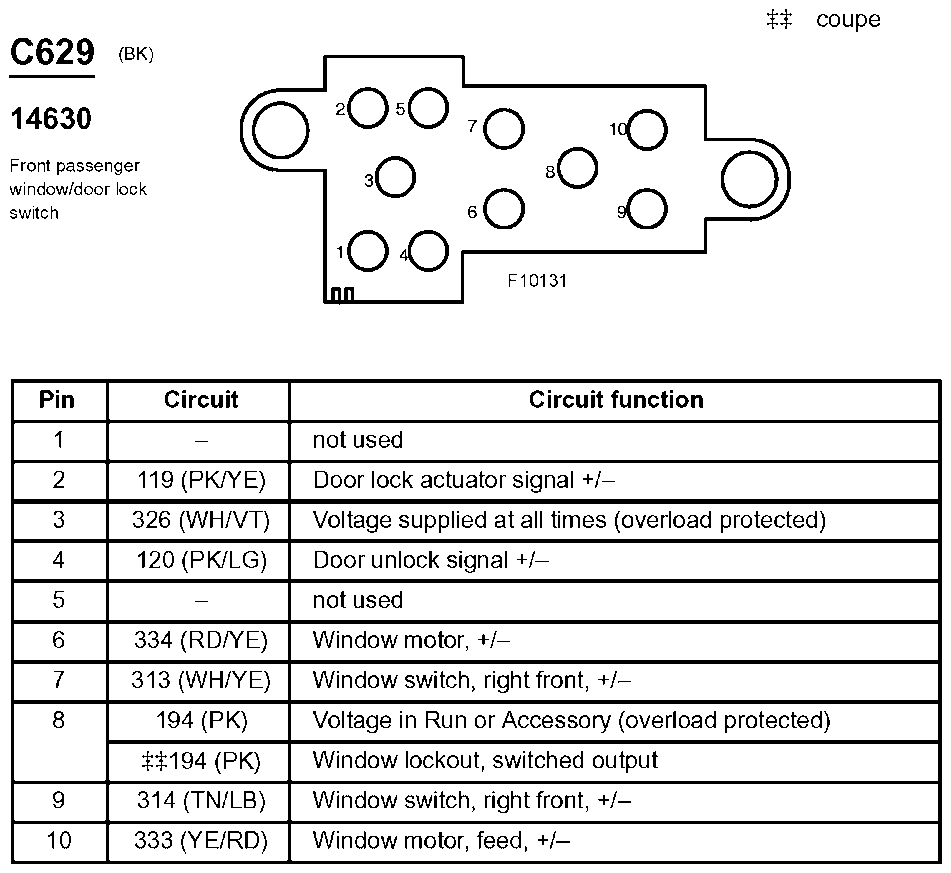

Fig 171: Front Passenger Window/Door Lock Switch Connector End View (C629)

G07834579

Courtesy of FORD MOTOR CO.

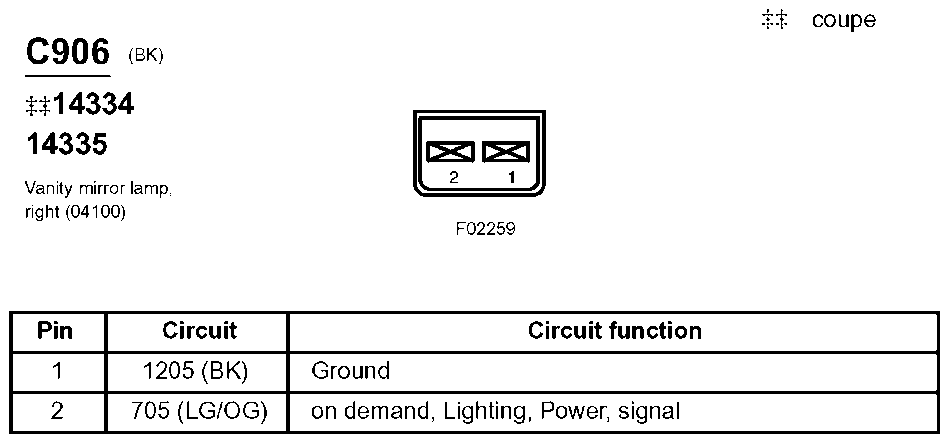

Fig 172: Vanity Mirror Lamp, Right Connector End View (C906)

G07834580

Courtesy of FORD MOTOR CO.

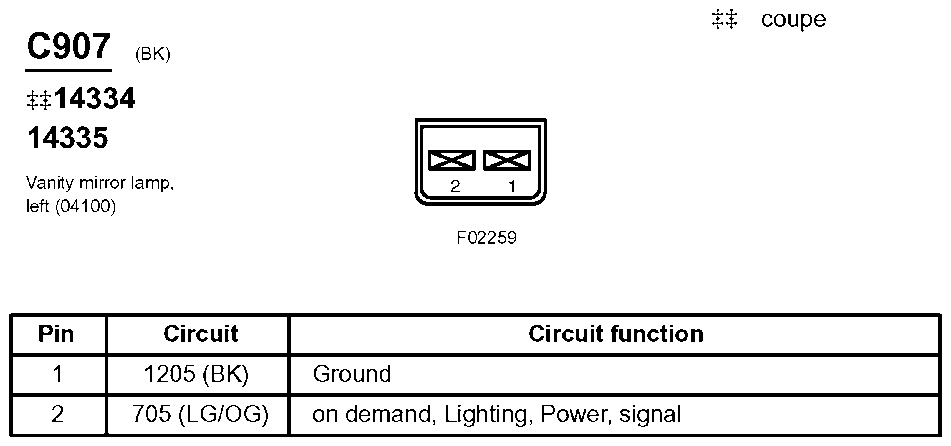

Fig 173: Vanity Mirror Lamp, Left Connector End View (C907)

G07834581

Courtesy of FORD MOTOR CO.

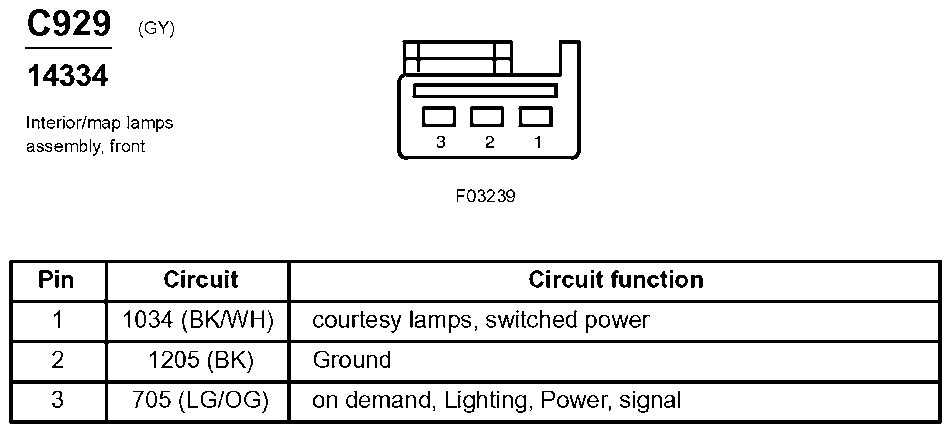

Fig 174: Interior/Map Lamps Assembly, Front Connector End View (C929)

G07834582

Courtesy of FORD MOTOR CO.

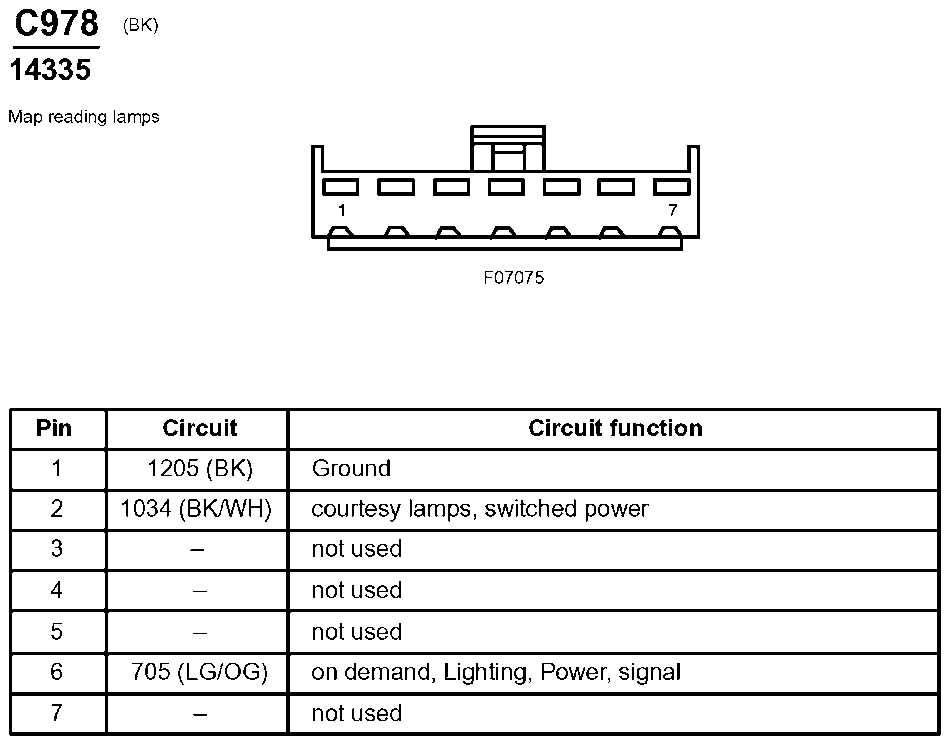

Fig 175: Map Reading Lamps Connector End View (C978)

G07834583

Courtesy of FORD MOTOR CO.

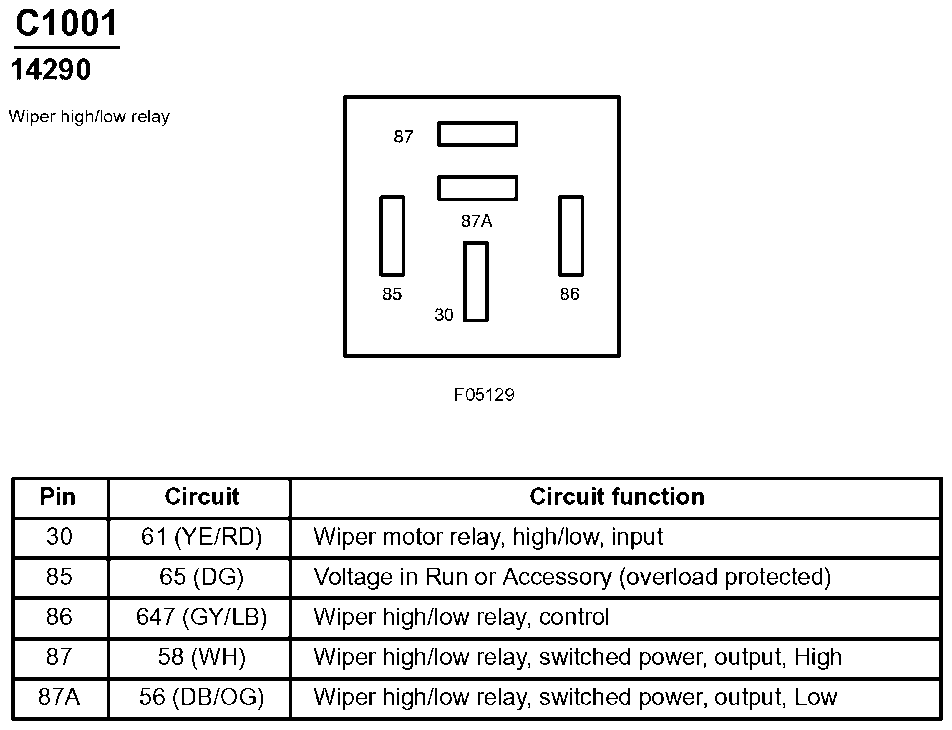

Fig 176: Wiper High/Low Relay Connector End View (C1001)

G07834584

Courtesy of FORD MOTOR CO.

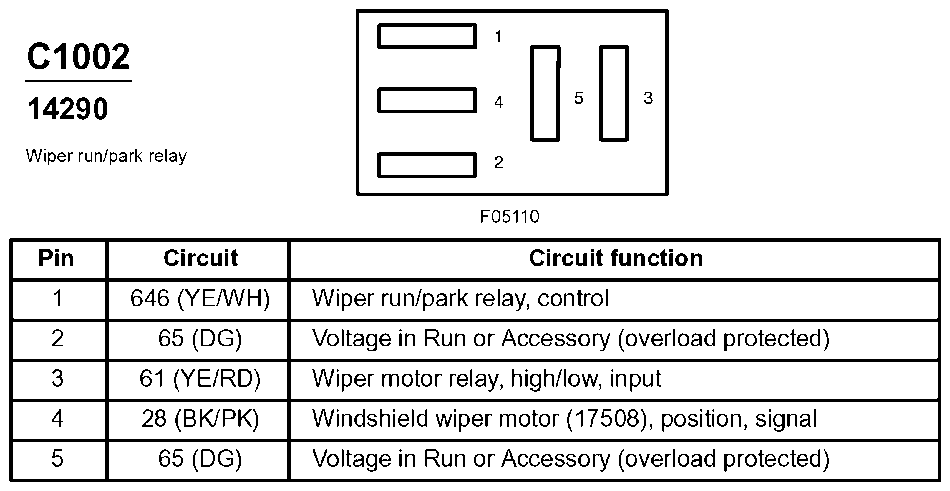

Fig 177: Wiper Run/Park Relay Connector End View (C1002)

G07834585

Courtesy of FORD MOTOR CO.

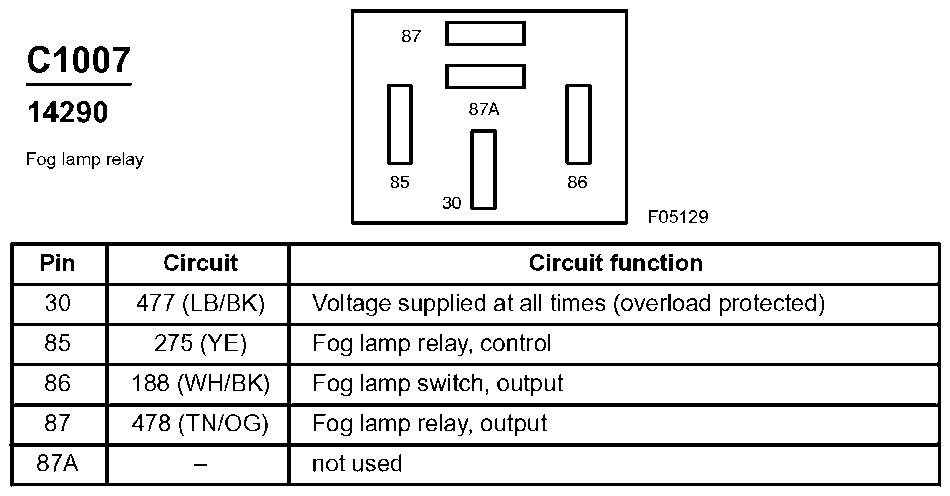

Fig 178: Fog Lamp Relay Connector End View (C1007)

G07834586

Courtesy of FORD MOTOR CO.

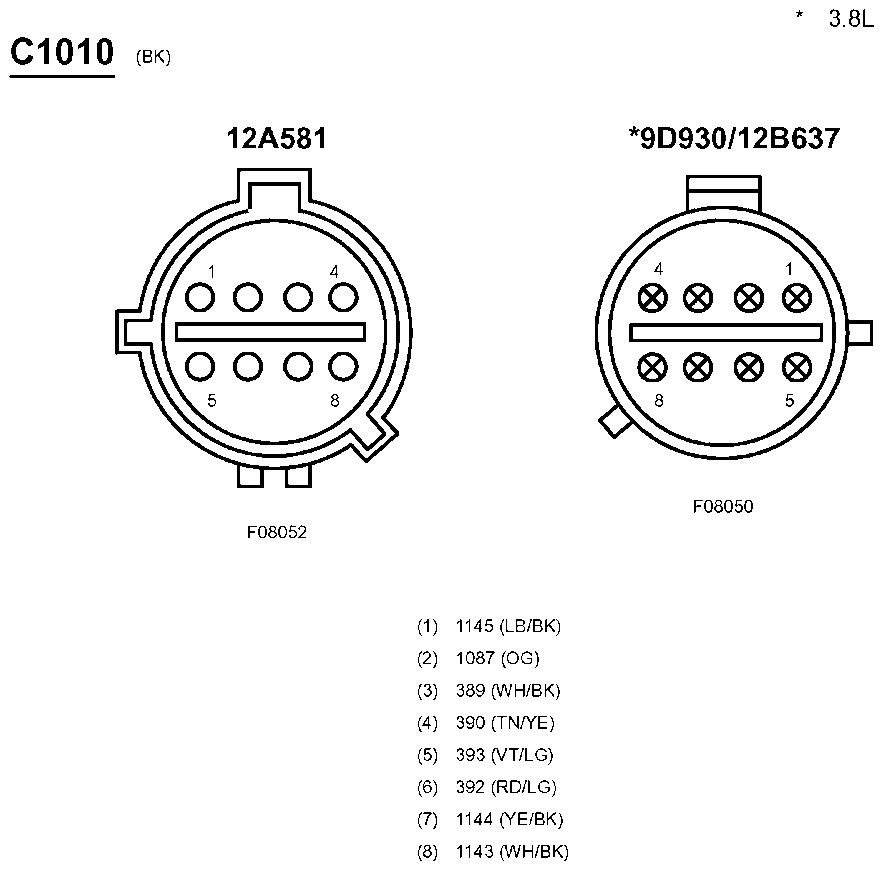

Fig 179: Inline Connector End View (C1010)

G07834587

Courtesy of FORD MOTOR CO.

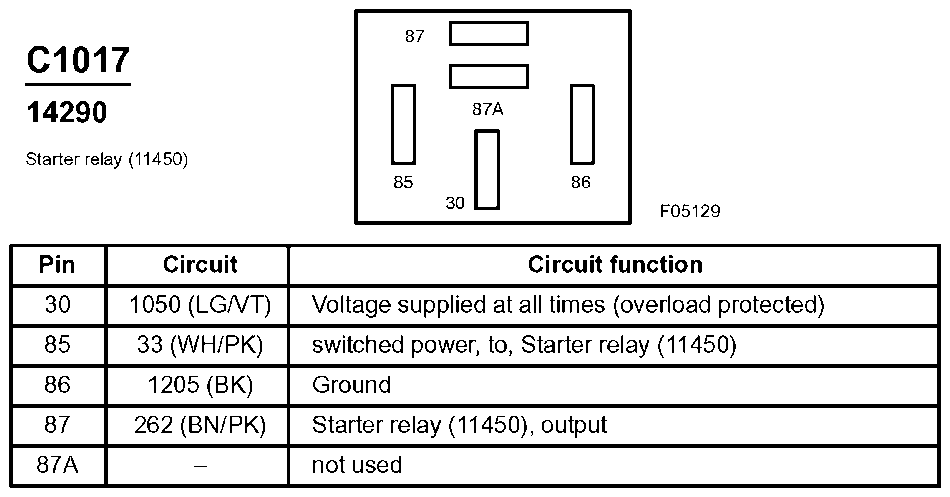

Fig 180: Starter Relay Connector End View (C1017)

G07834588

Courtesy of FORD MOTOR CO.

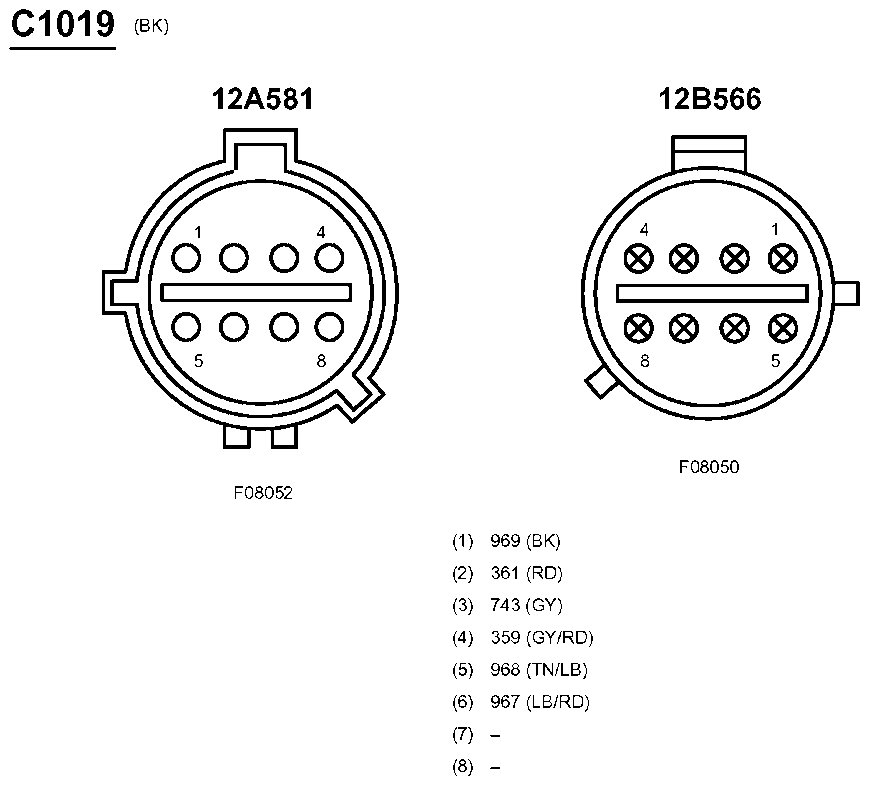

Fig 181: Inline Connector End View (C1019)

G07834589

Courtesy of FORD MOTOR CO.

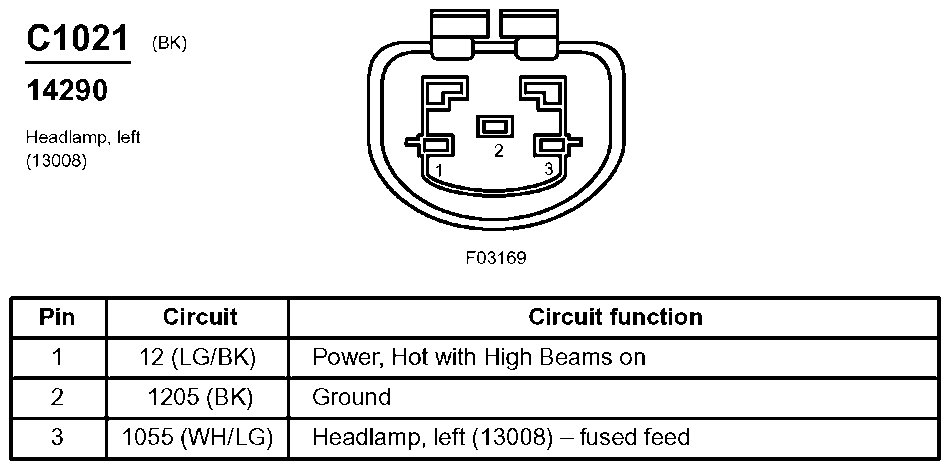

Fig 182: Headlamp, Left Connector End View (C1021)

G07834590

Courtesy of FORD MOTOR CO.

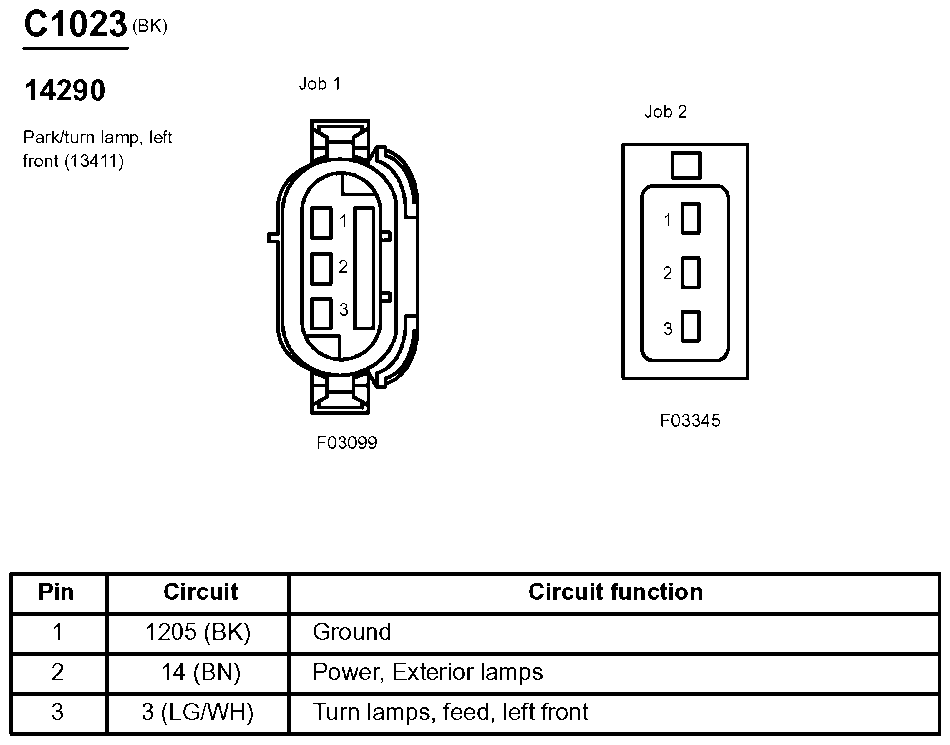

Fig 183: Park/turn Lamp, Left Front Connector End View (C1023)

G07834591

Courtesy of FORD MOTOR CO.

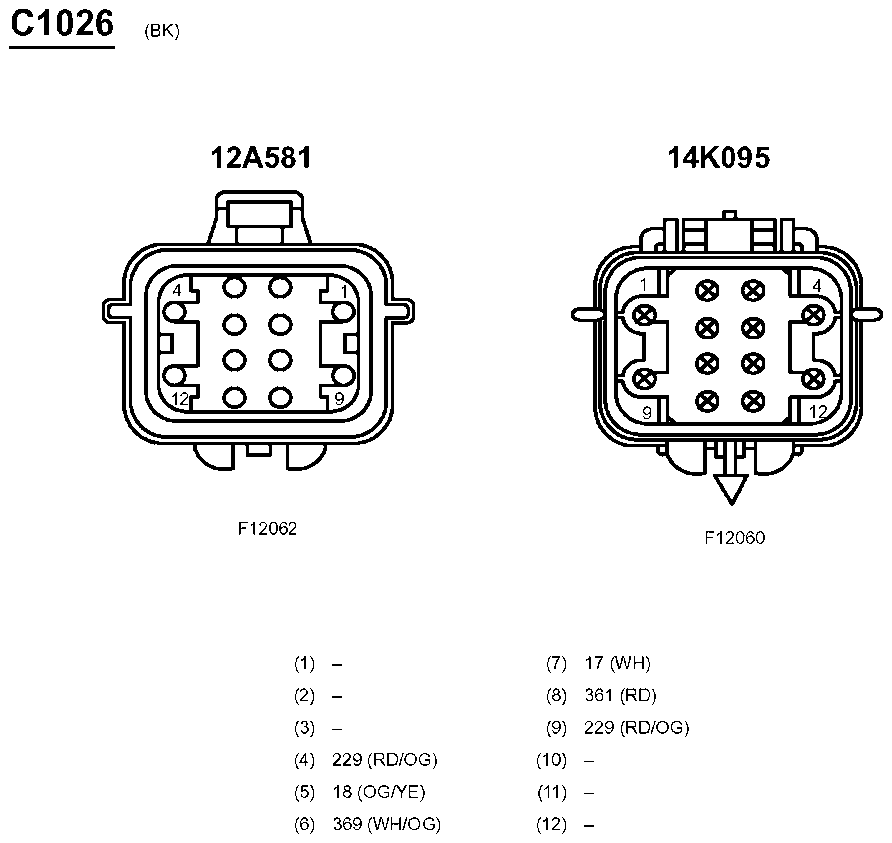

Fig 184: Inline Connector End View (C1026)

G07834592

Courtesy of FORD MOTOR CO.

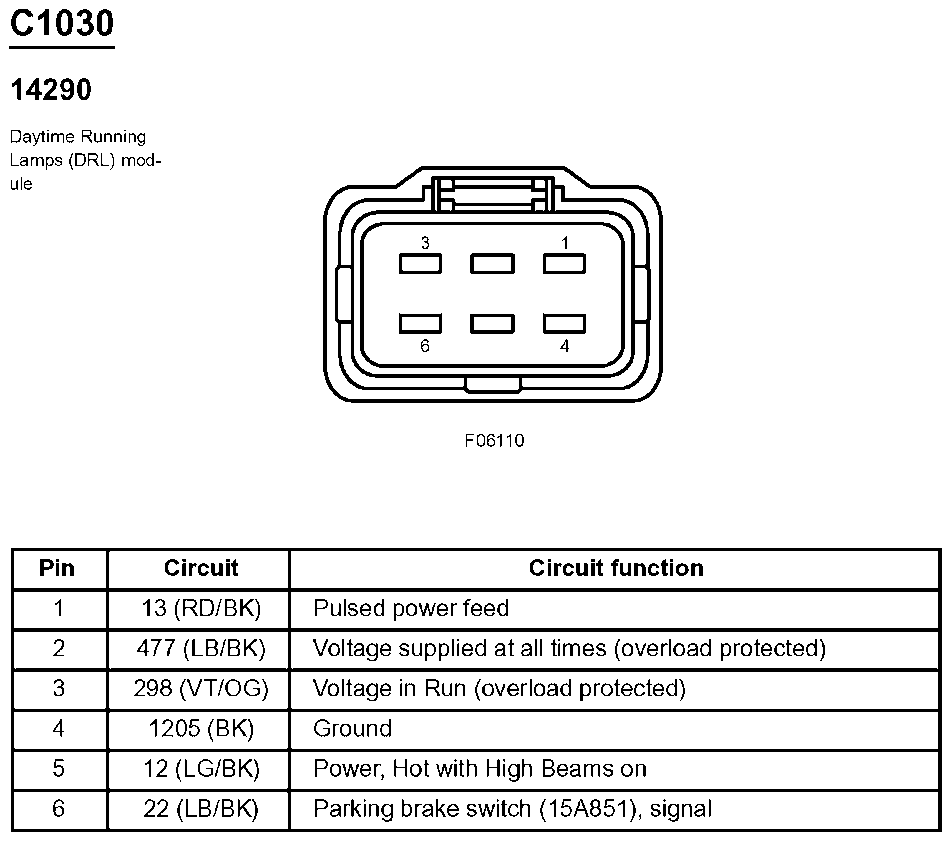

Fig 185: Daytime Running Lamps (DRL) Module Connector End View (C1030)

G07834593

Courtesy of FORD MOTOR CO.

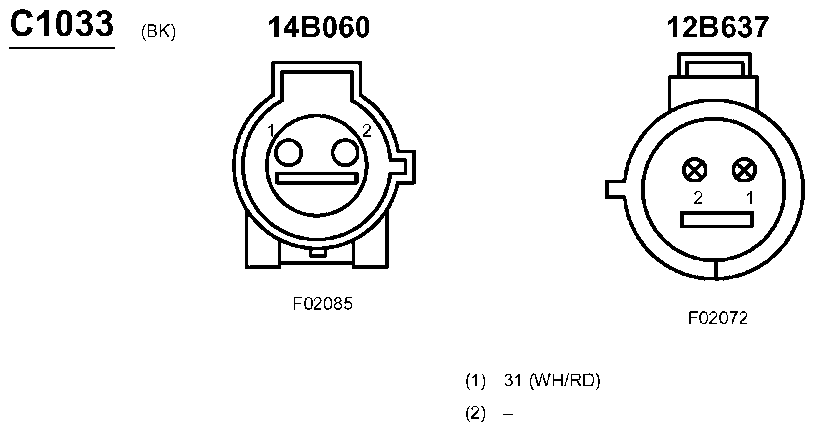

Fig 186: Inline Connector End View (C1033)

G07834594

Courtesy of FORD MOTOR CO.

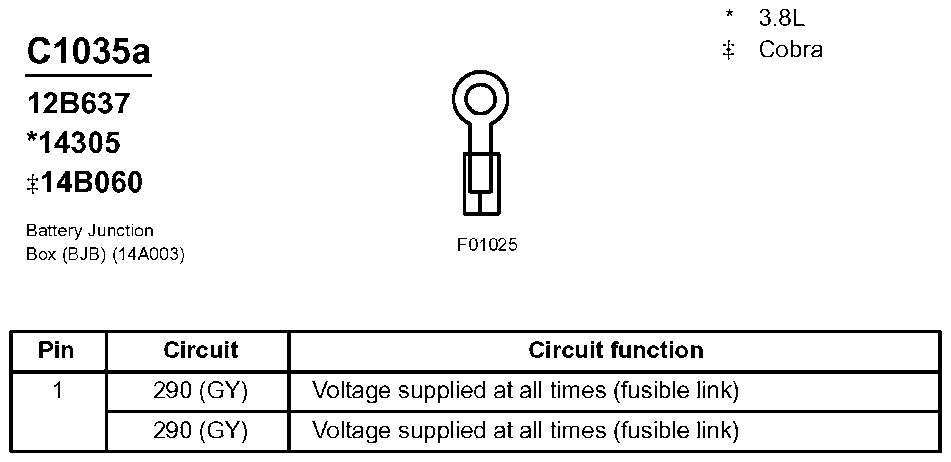

Fig 187: Battery Junction Box (BJB) Connector End View (C1035a)

G07834595

Courtesy of FORD MOTOR CO.

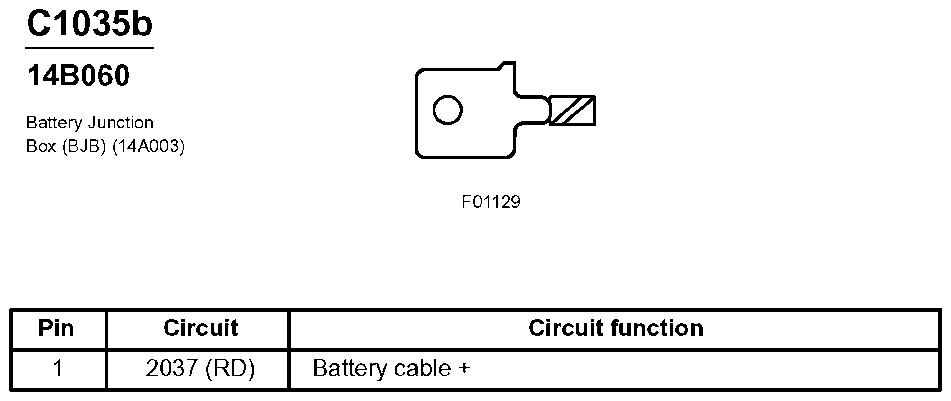

Fig 188: Battery Junction Box (BJB) Connector End View (C1035b)

G07834596

Courtesy of FORD MOTOR CO.

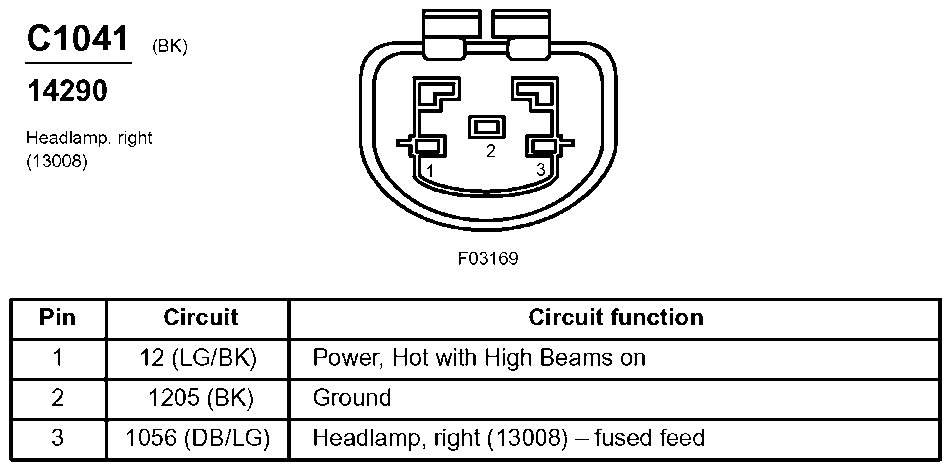

Fig 189: Headlamp, Right Connector End View (C1041)

G07834597

Courtesy of FORD MOTOR CO.

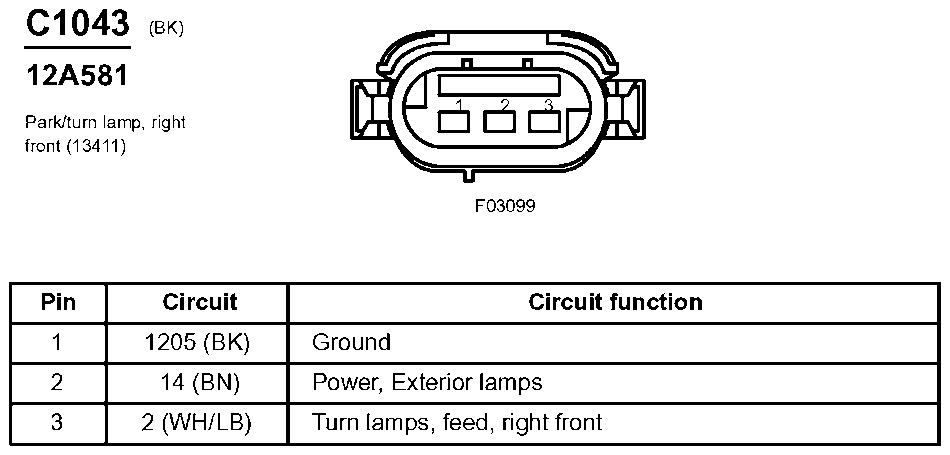

Fig 190: Park/Turn Lamp, Right Front Connector End View (C1043)

G07834598

Courtesy of FORD MOTOR CO.

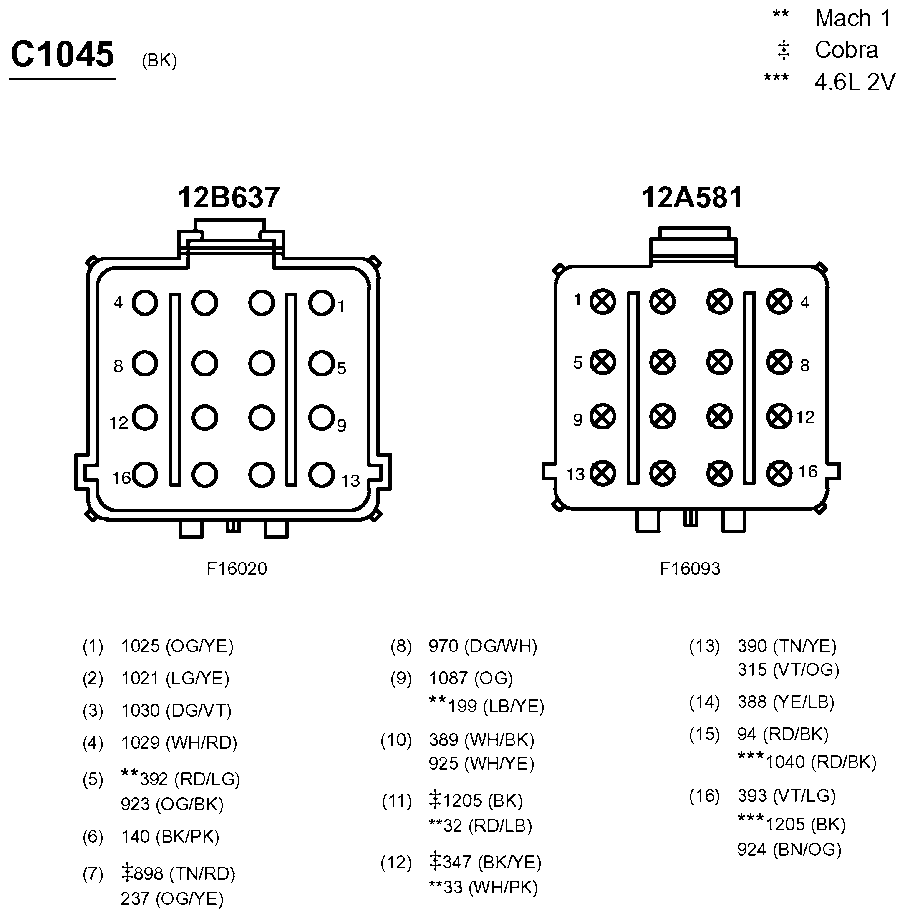

Fig 191: Inline Connector End View (C1045)

G07834599

Courtesy of FORD MOTOR CO.

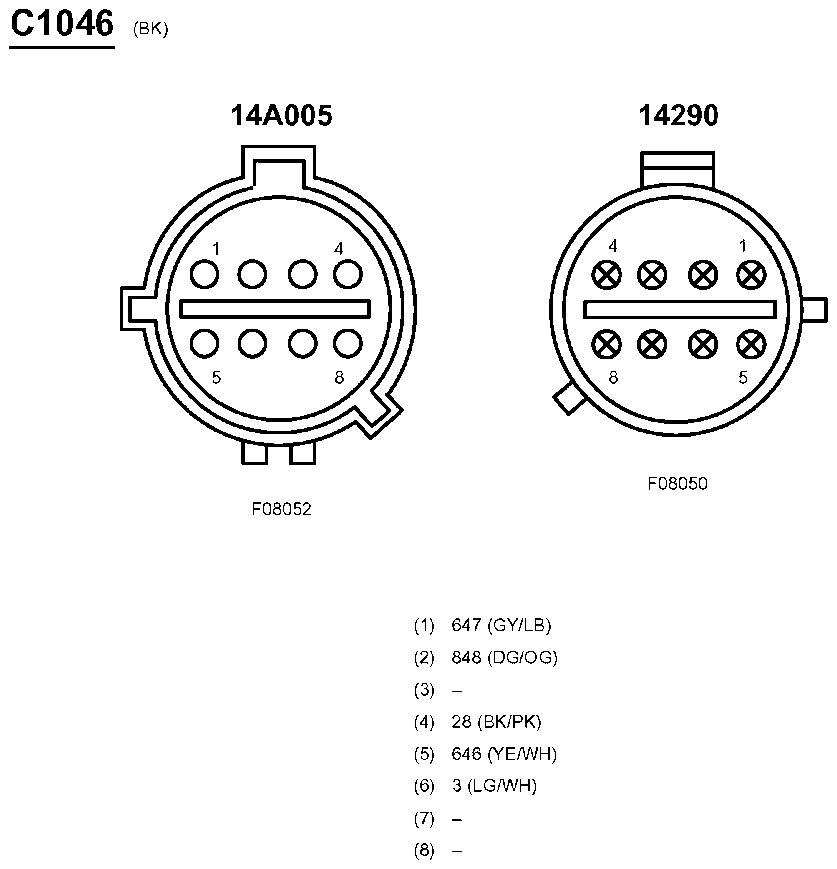

Fig 192: Inline Connector End View (C1046)

G07834600

Courtesy of FORD MOTOR CO.

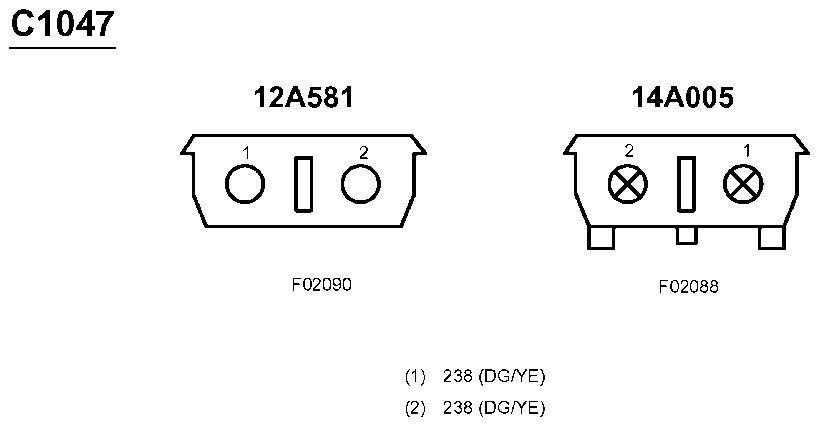

Fig 193: Inline Connector End View (C1047)

G07834601

Courtesy of FORD MOTOR CO.

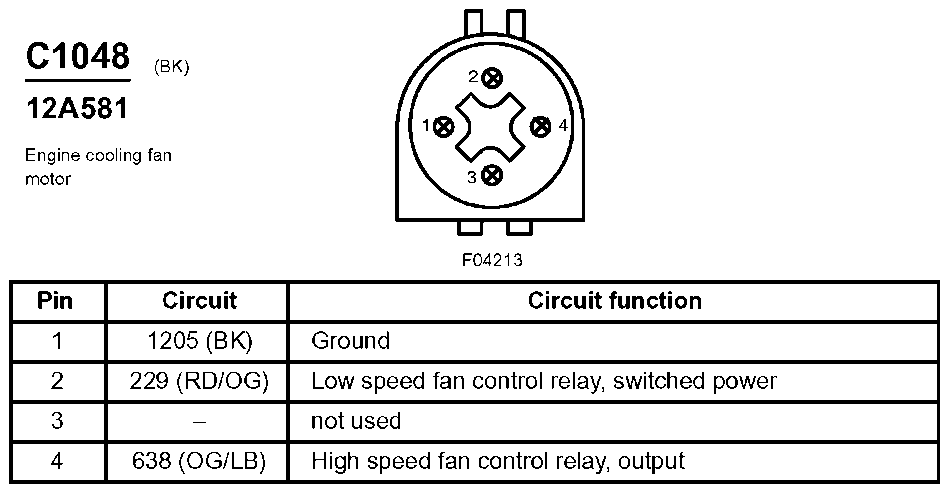

Fig 194: Engine Cooling Fan Motor Connector End View (C1048)

G07834602

Courtesy of FORD MOTOR CO.

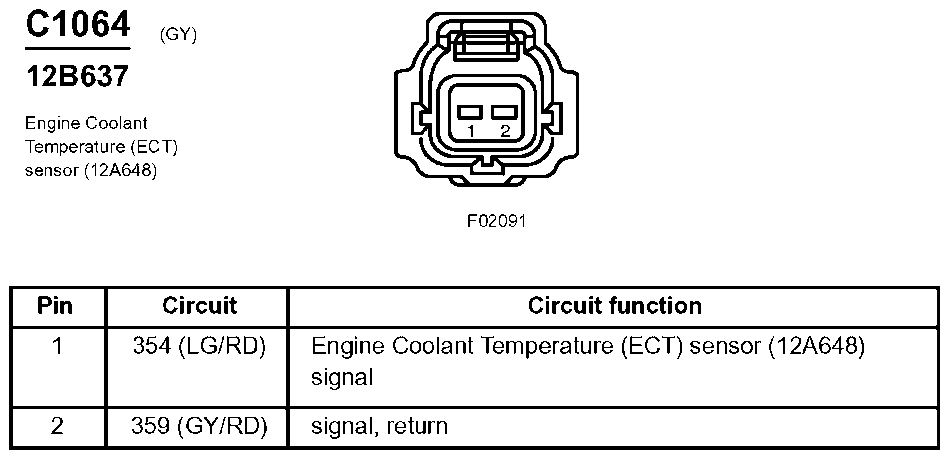

Fig 195: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07834603

Courtesy of FORD MOTOR CO.

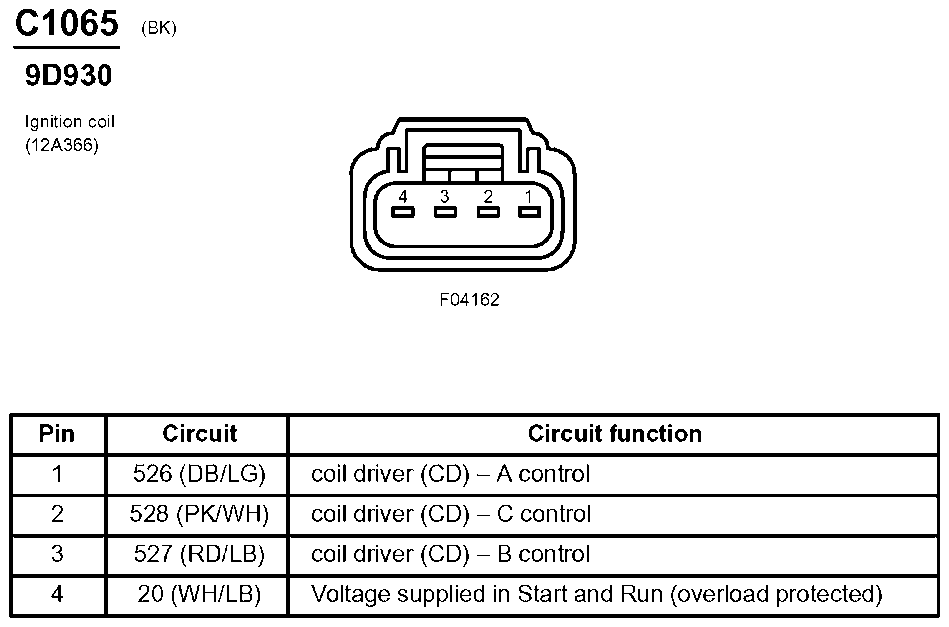

Fig 196: Ignition Coil Connector End View (C1065)

G07834604

Courtesy of FORD MOTOR CO.

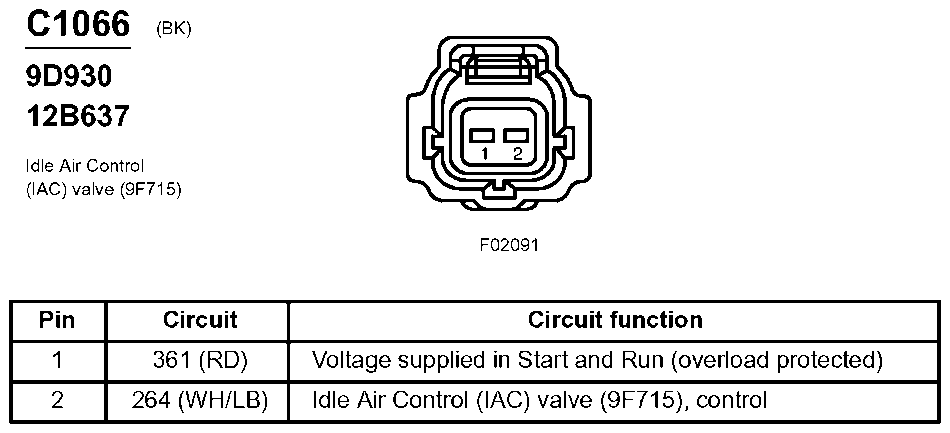

Fig 197: Idle Air Control (IAC) Valve Connector End View (C1066)

G07834605

Courtesy of FORD MOTOR CO.

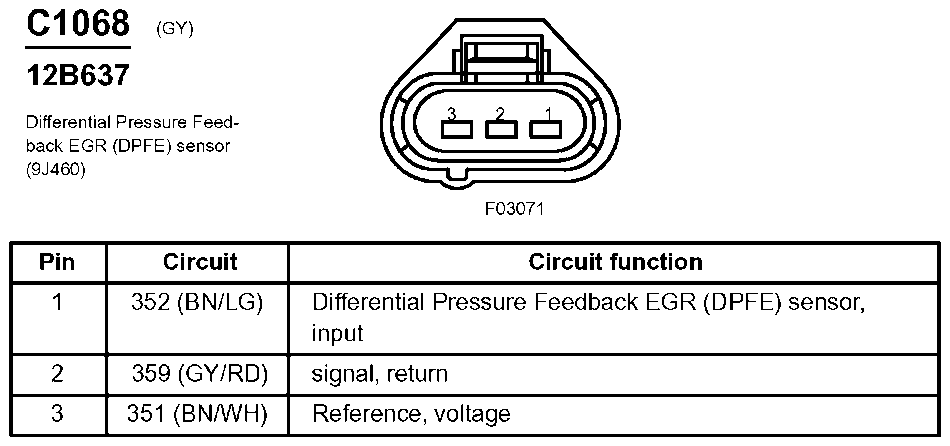

Fig 198: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07834606

Courtesy of FORD MOTOR CO.

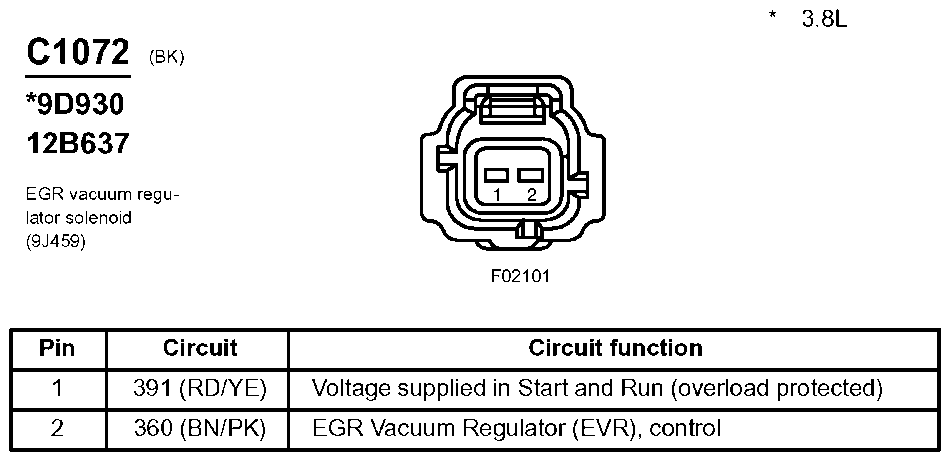

Fig 199: EGR Vacuum Regulator Solenoid Connector End View (C1072)

G07834607

Courtesy of FORD MOTOR CO.

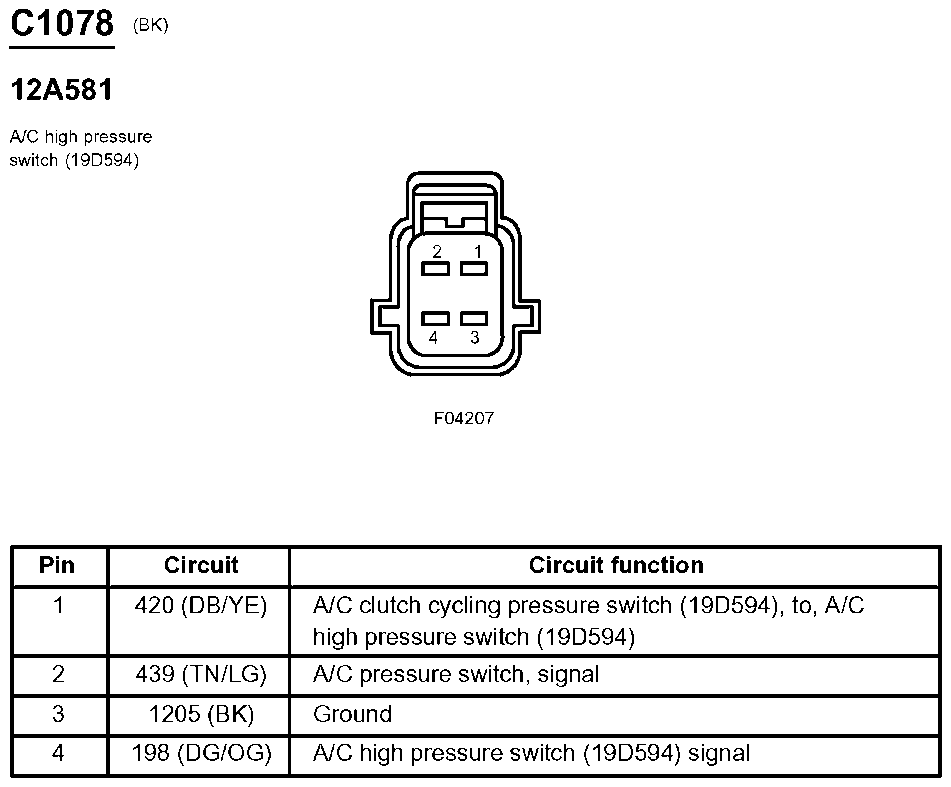

Fig 200: A/C High Pressure Switch Connector End View (C1078)

G07834608

Courtesy of FORD MOTOR CO.

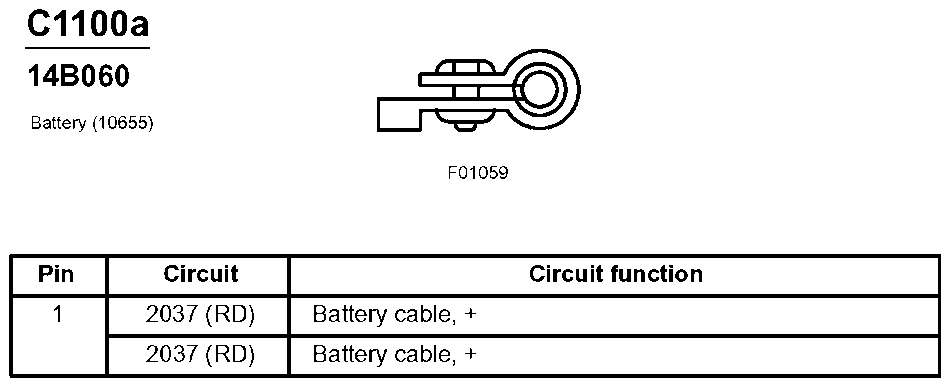

Fig 201: Battery Connector End View (C1100a)

G07834609

Courtesy of FORD MOTOR CO.

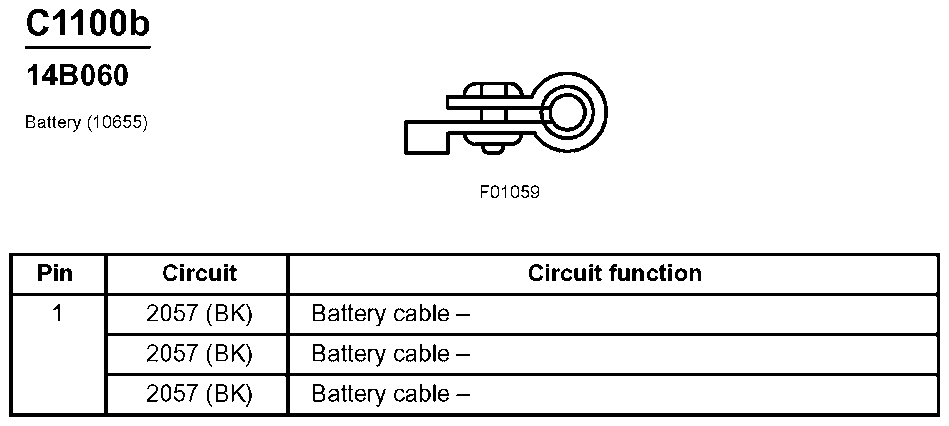

Fig 202: Battery Connector End View (C1100b)

G07834610

Courtesy of FORD MOTOR CO.

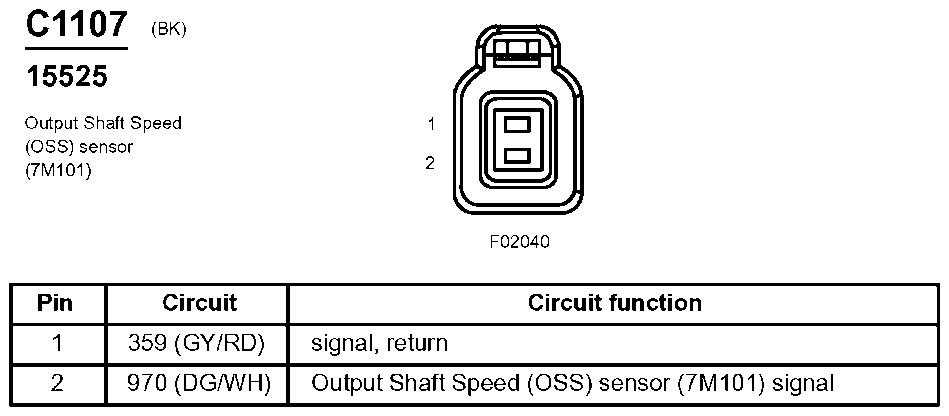

Fig 203: Output Shaft Speed (OSS) Sensor Connector End View (C1107)

G07834611

Courtesy of FORD MOTOR CO.

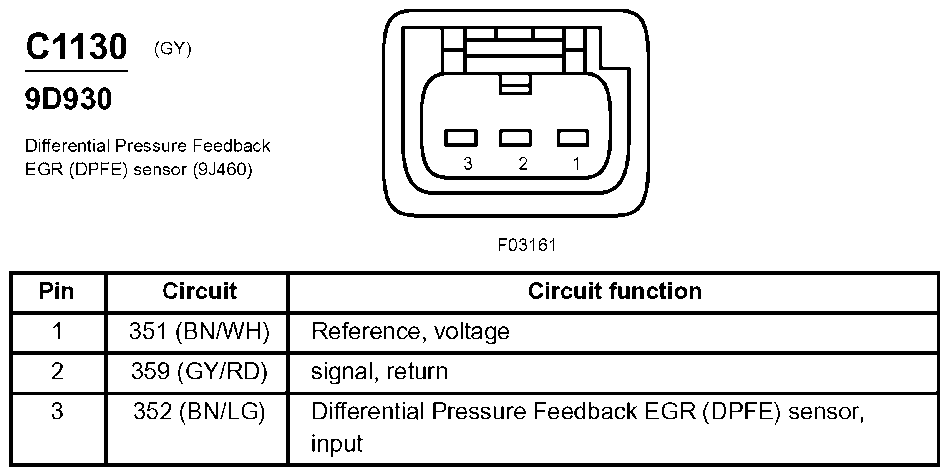

Fig 204: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1130)

G07834612

Courtesy of FORD MOTOR CO.

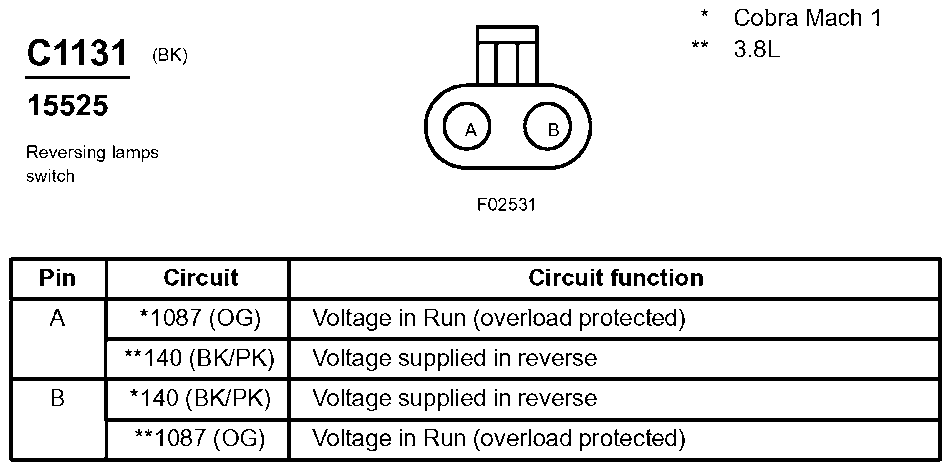

Fig 205: Reversing Lamps Switch Connector End View (C1131)

G07834613

Courtesy of FORD MOTOR CO.

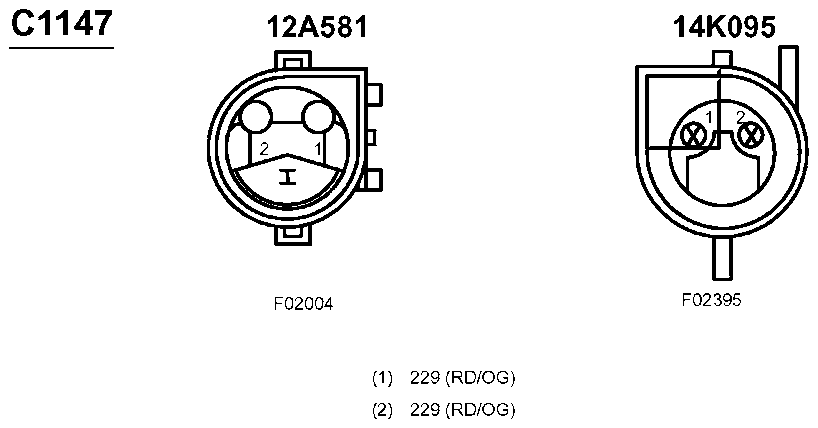

Fig 206: Inline Connector End View (C1147)

G07834614

Courtesy of FORD MOTOR CO.

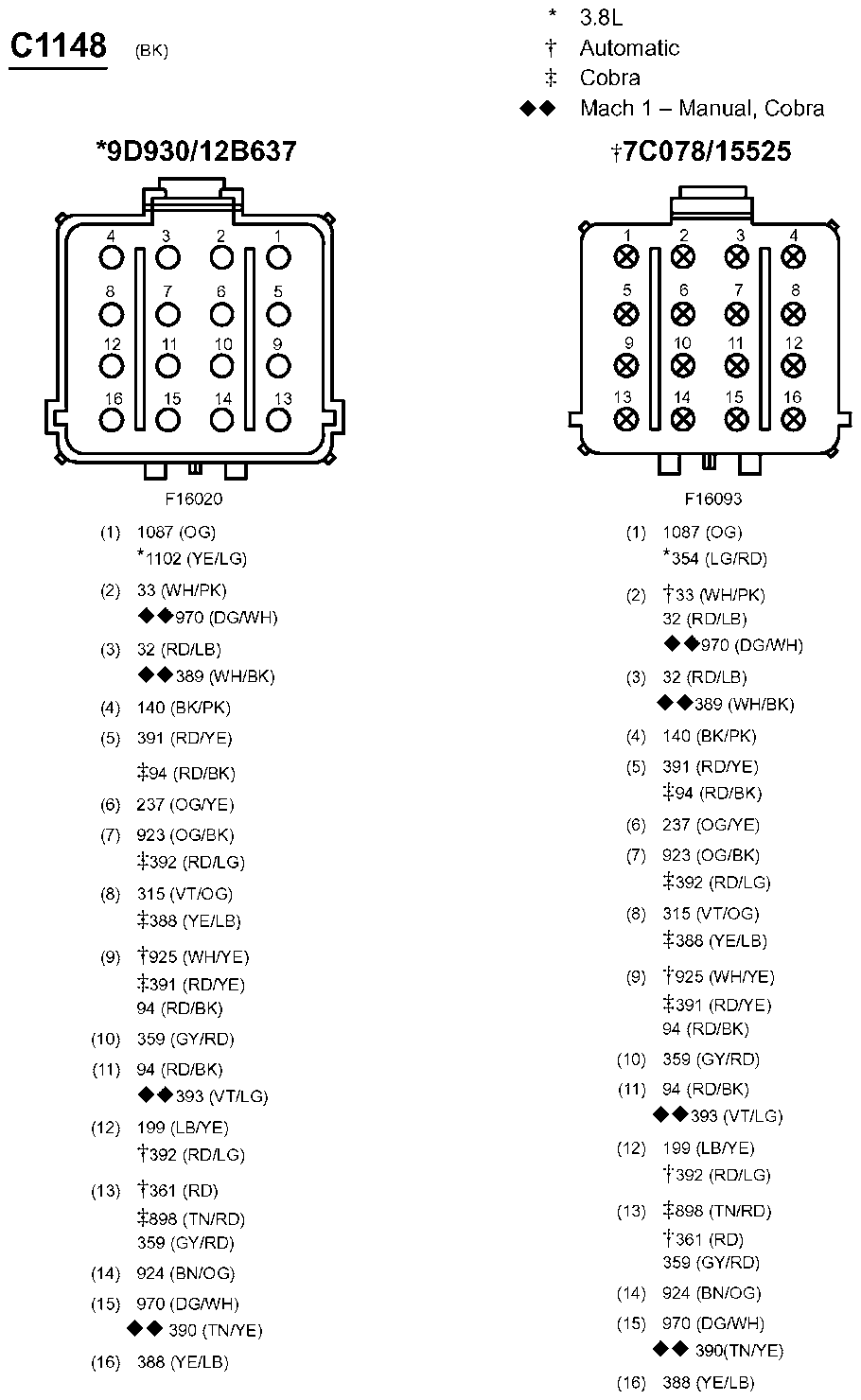

Fig 207: Inline Connector End View (C1148)

G07834615

Courtesy of FORD MOTOR CO.

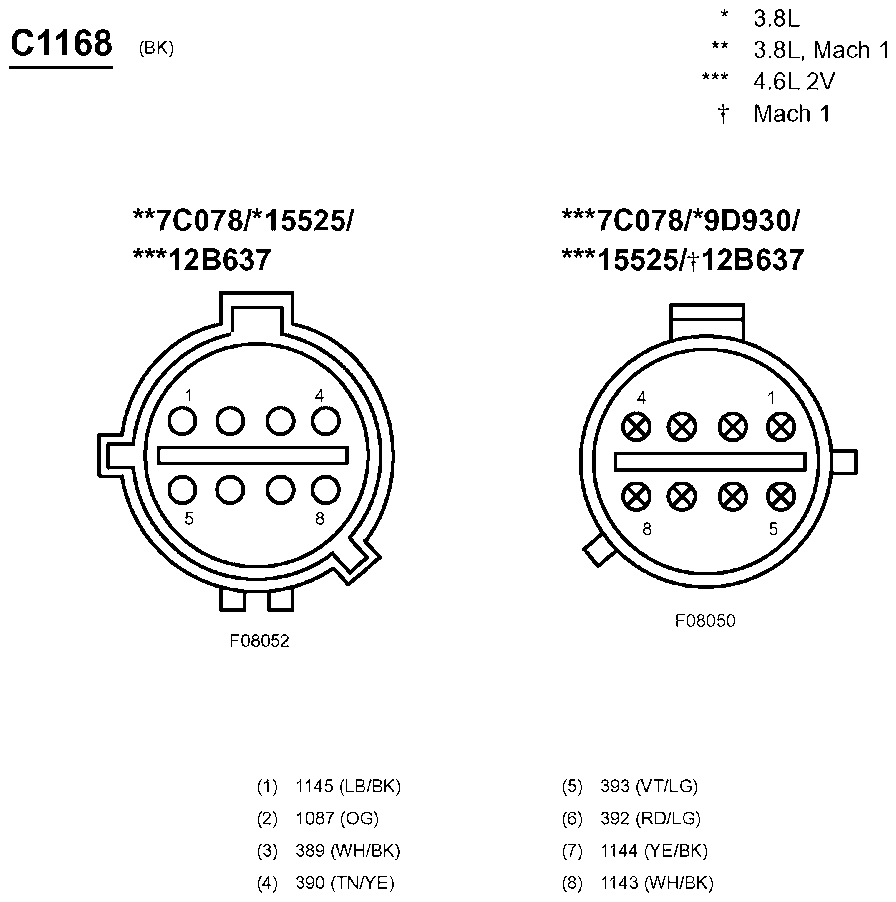

Fig 208: Inline Connector End View (C1168)

G07834616

Courtesy of FORD MOTOR CO.

Fig 209: Fuel Injector 1 Connector End View (C1181)

G07834617

Courtesy of FORD MOTOR CO.

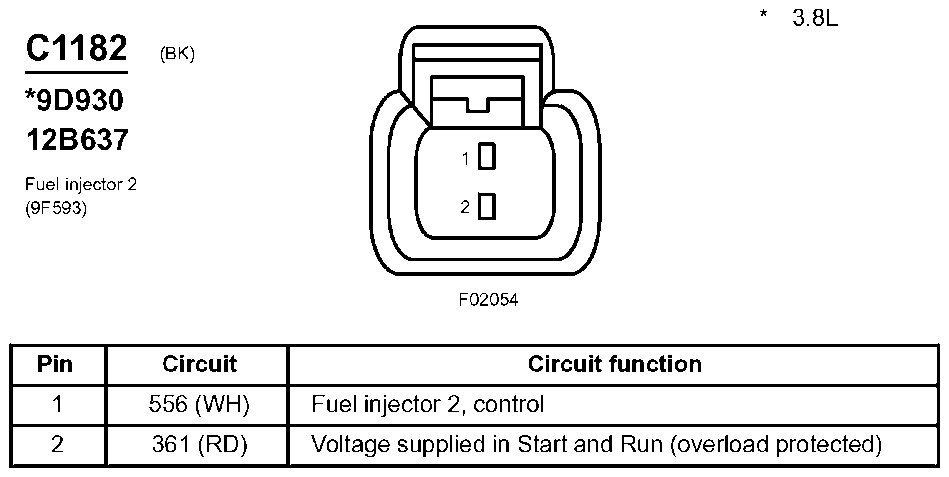

Fig 210: Fuel Injector 2 Connector End View (C1182)

G07834618

Courtesy of FORD MOTOR CO.

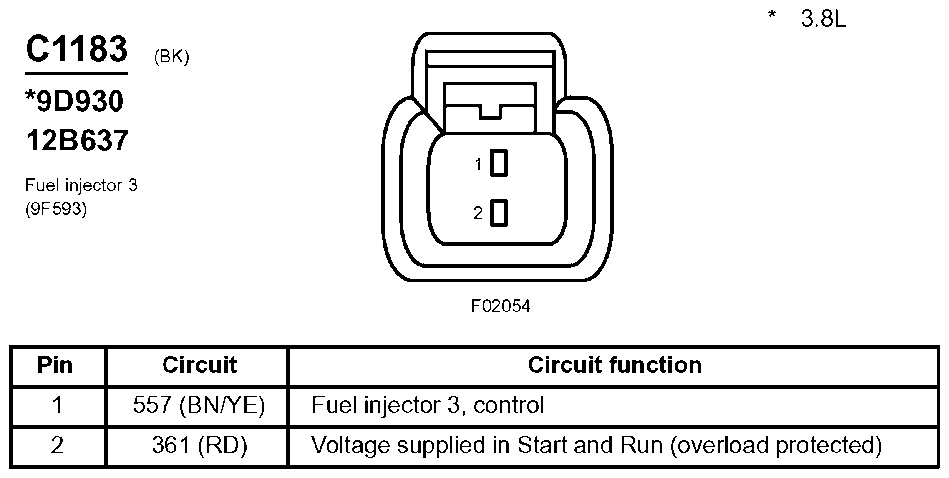

Fig 211: Fuel Injector 3 Connector End View (C1183)

G07834619

Courtesy of FORD MOTOR CO.

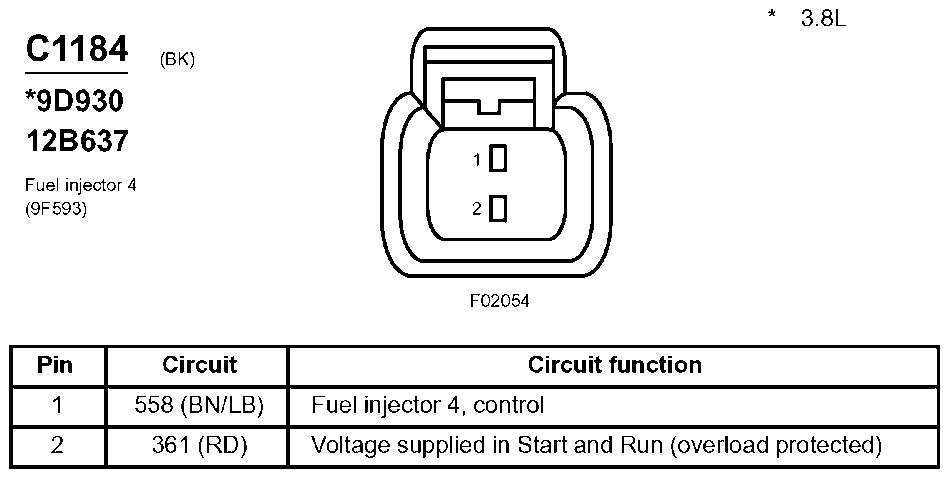

Fig 212: Fuel Injector 4 Connector End View (C1184)

G07834620

Courtesy of FORD MOTOR CO.

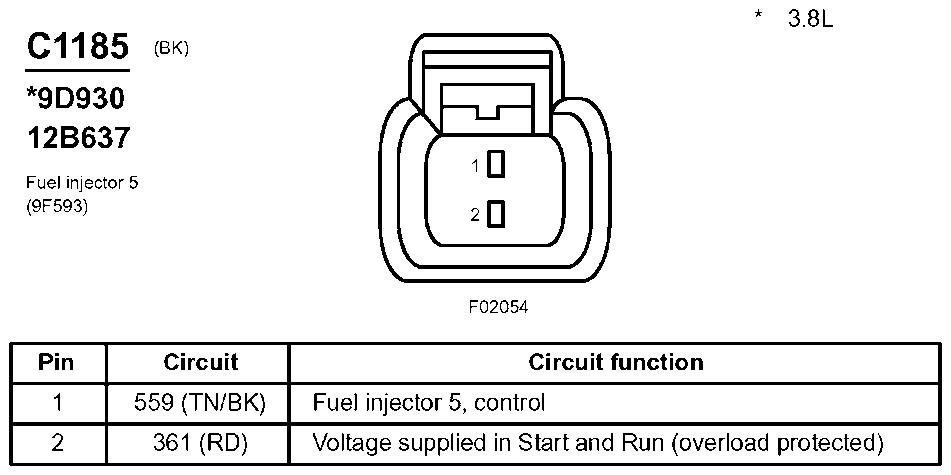

Fig 213: Fuel Injector 5 Connector End View (C1185)

G07834621

Courtesy of FORD MOTOR CO.

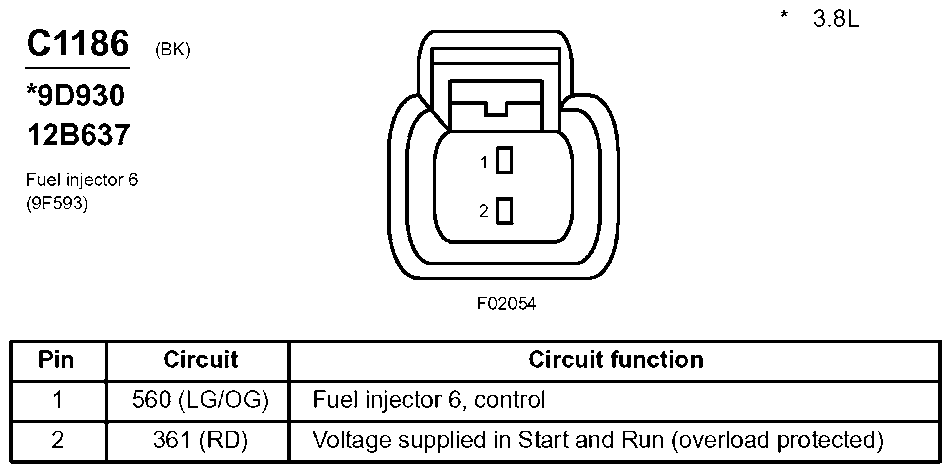

Fig 214: Fuel Injector 6 Connector End View (C1186)

G07834622

Courtesy of FORD MOTOR CO.

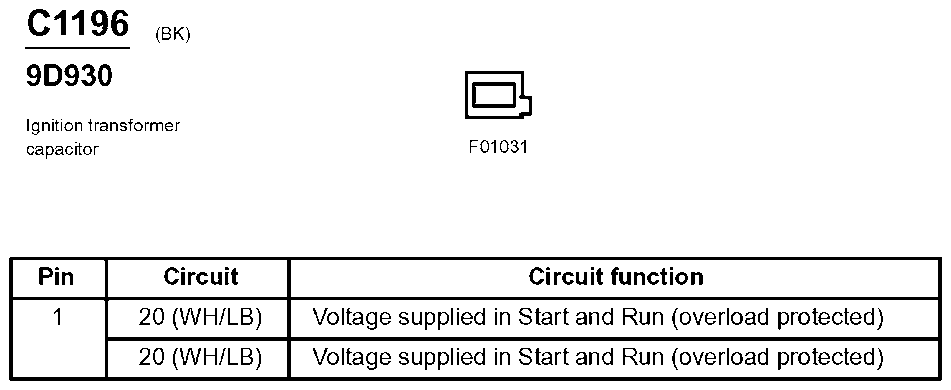

Fig 215: Ignition Transformer Capacitor Connector End View (C1196)

G07834623

Courtesy of FORD MOTOR CO.

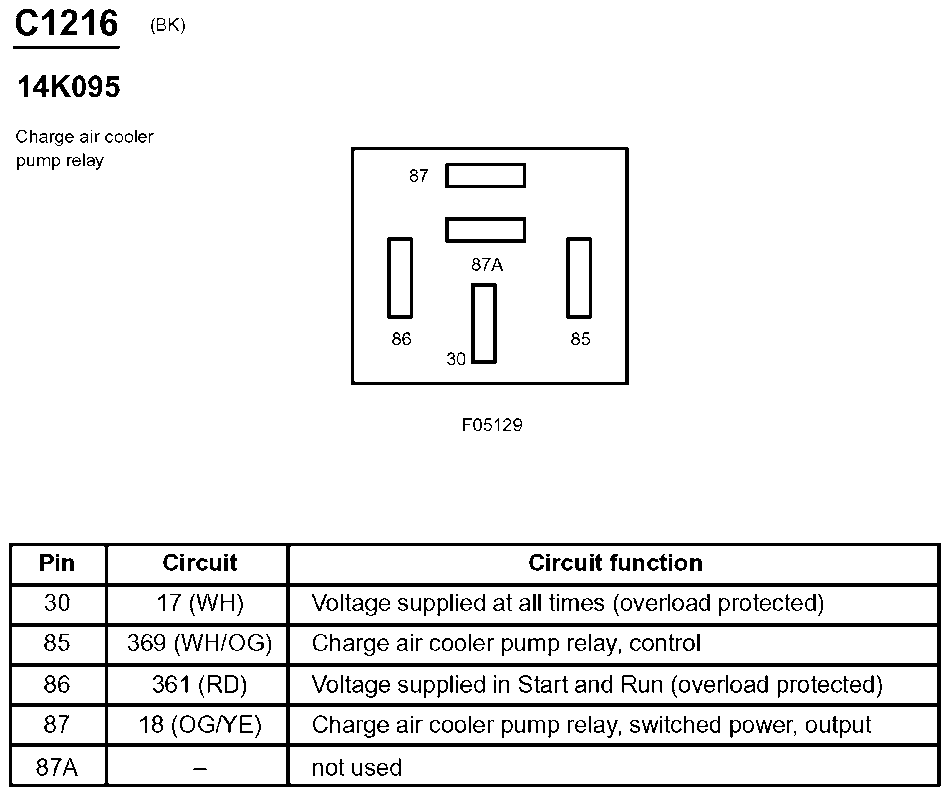

Fig 216: Charge Air Cooler Pump Relay Connector End View (C1216)

G07834624

Courtesy of FORD MOTOR CO.

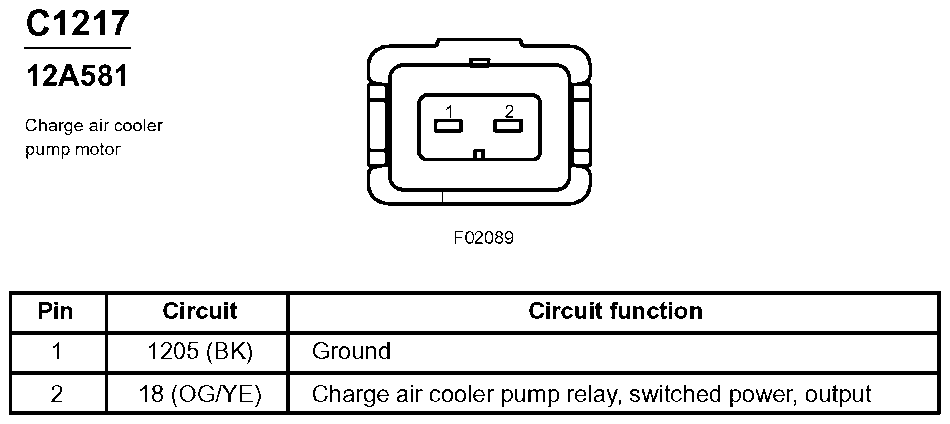

Fig 217: Charge Air Cooler Pump Motor Connector End View (C1217)

G07834625

Courtesy of FORD MOTOR CO.

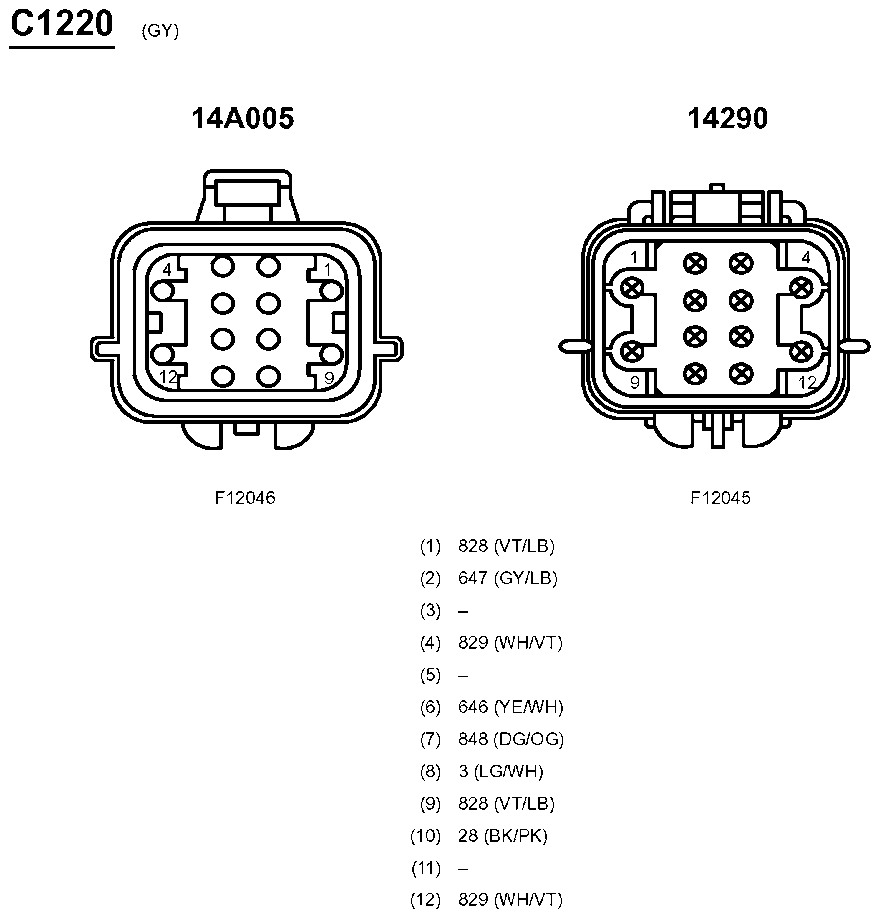

Fig 218: Inline Connector End View (C1220)

G07834626

Courtesy of FORD MOTOR CO.

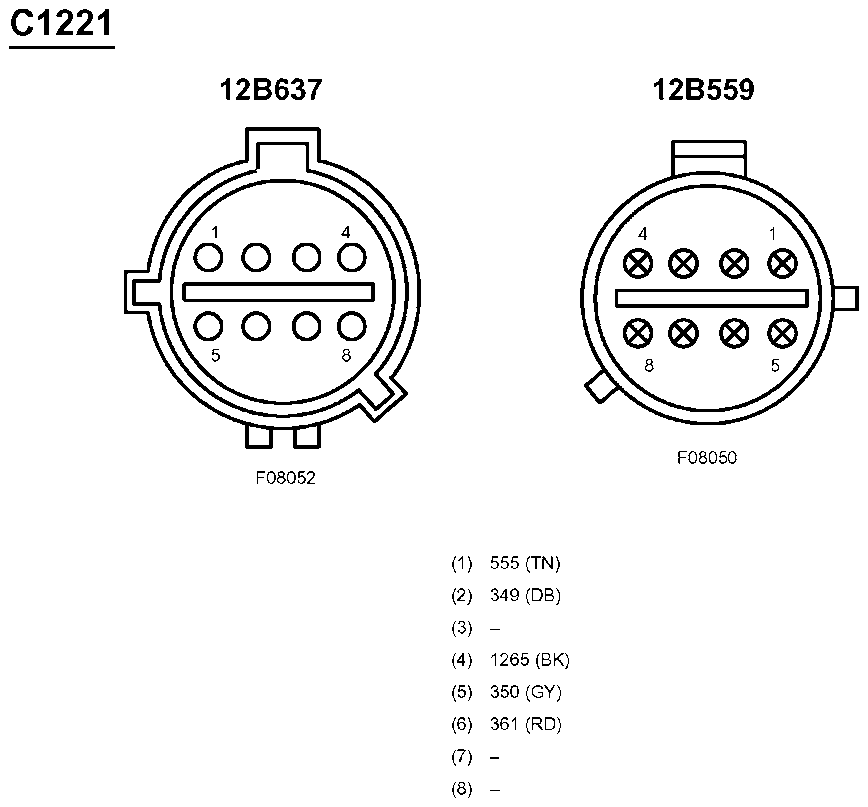

Fig 219: Inline Connector End View (C1221)

G07834627

Courtesy of FORD MOTOR CO.

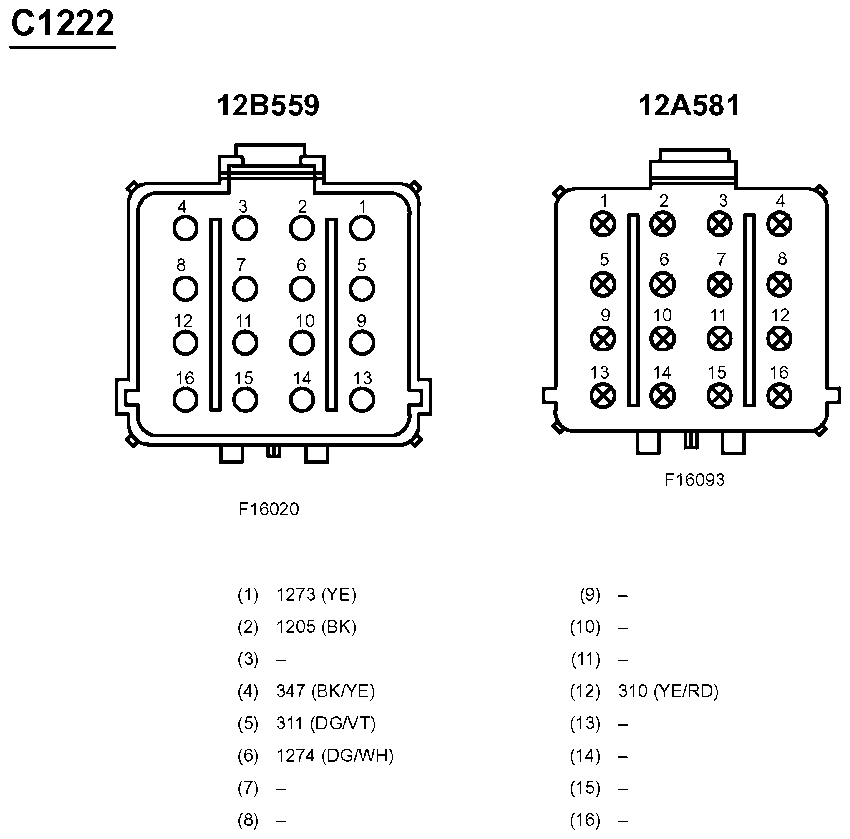

Fig 220: Inline Connector End View (C1222)

G07834628

Courtesy of FORD MOTOR CO.

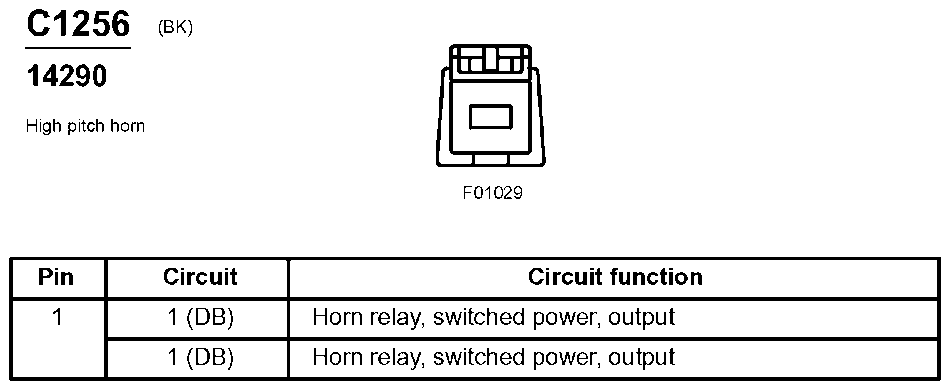

Fig 221: High Pitch Horn Connector End View (C1256)

G07834629

Courtesy of FORD MOTOR CO.

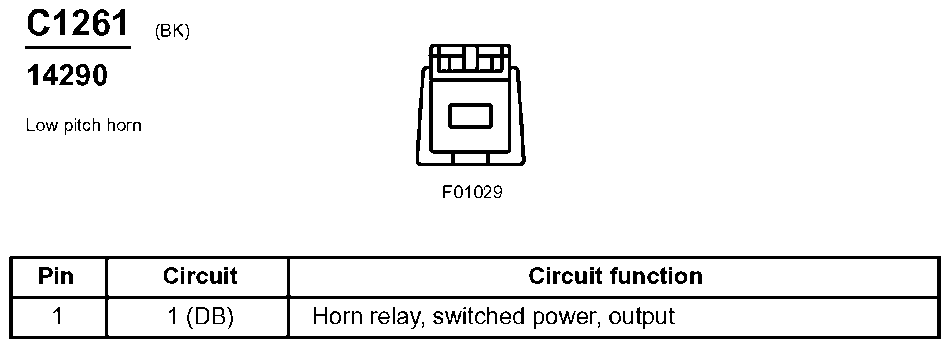

Fig 222: Low Pitch Horn Connector End View (C1261)

G07834630

Courtesy of FORD MOTOR CO.

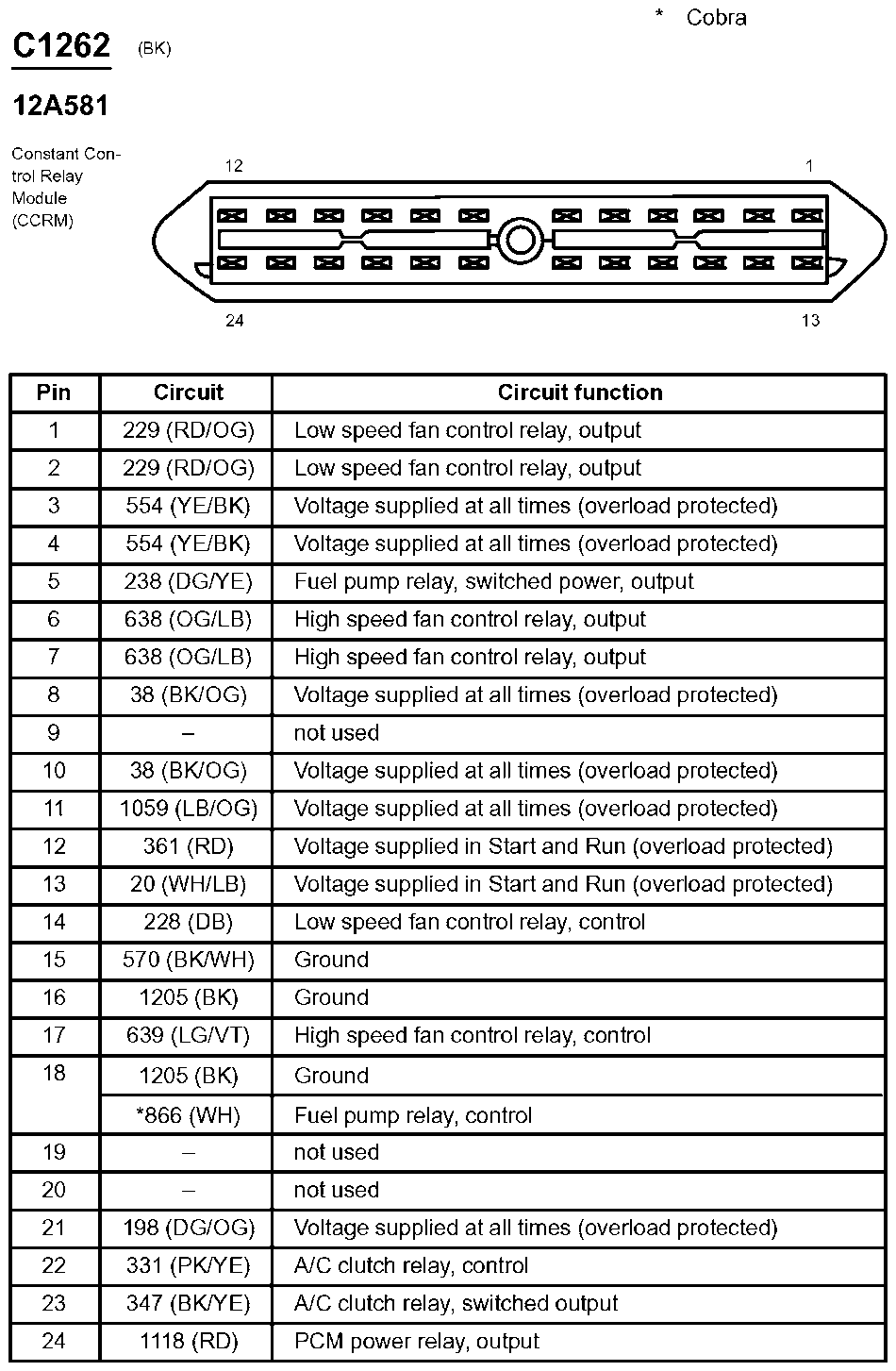

Fig 223: Constant Control Relay Module Connector End View (C1262)

G07834631

Courtesy of FORD MOTOR CO.

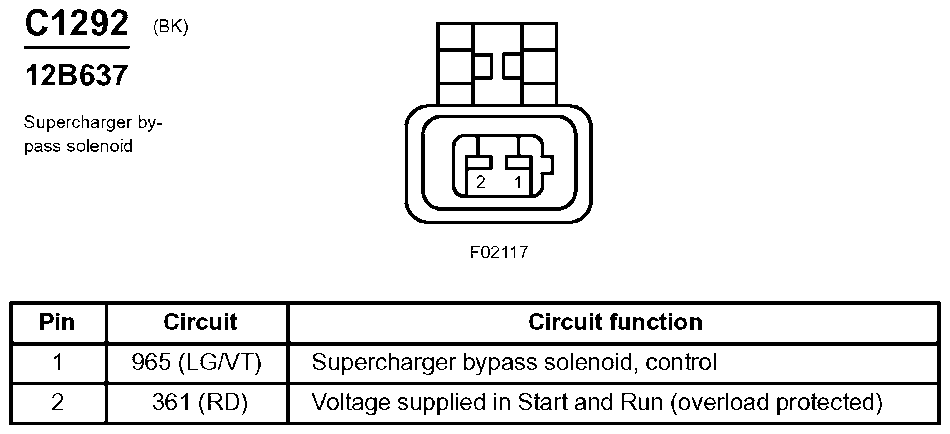

Fig 224: Supercharger Bypass Solenoid Connector End View (C1292)

G07834632

Courtesy of FORD MOTOR CO.

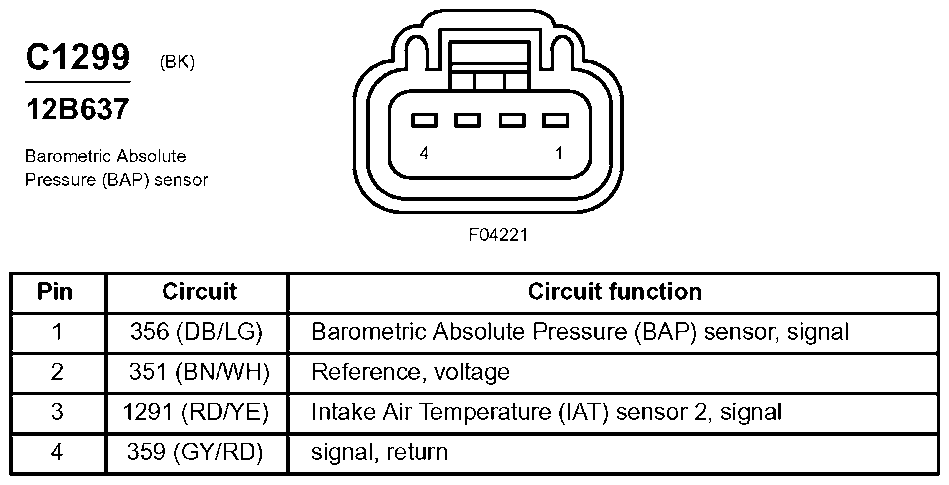

Fig 225: Barometric Absolute Pressure (BAP) Sensor Connector End View (C1299)

G07834633

Courtesy of FORD MOTOR CO.

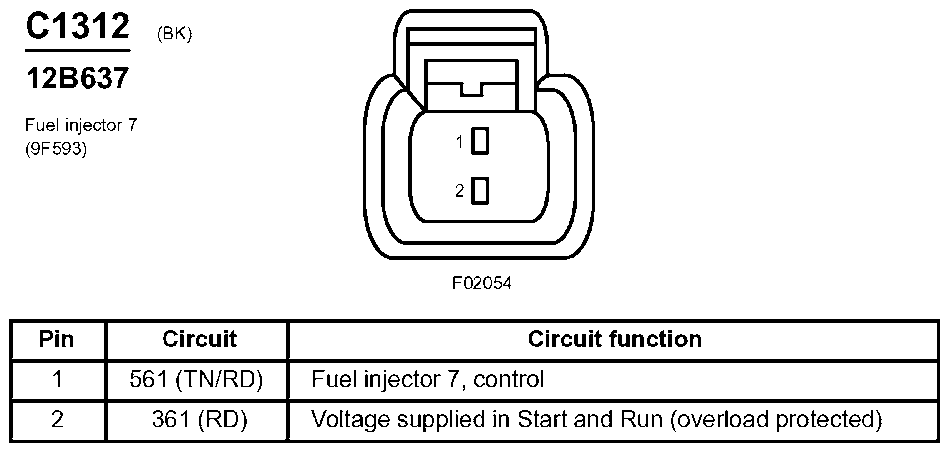

Fig 226: Fuel Injector 7 Connector End View (C1312)

G07834634

Courtesy of FORD MOTOR CO.

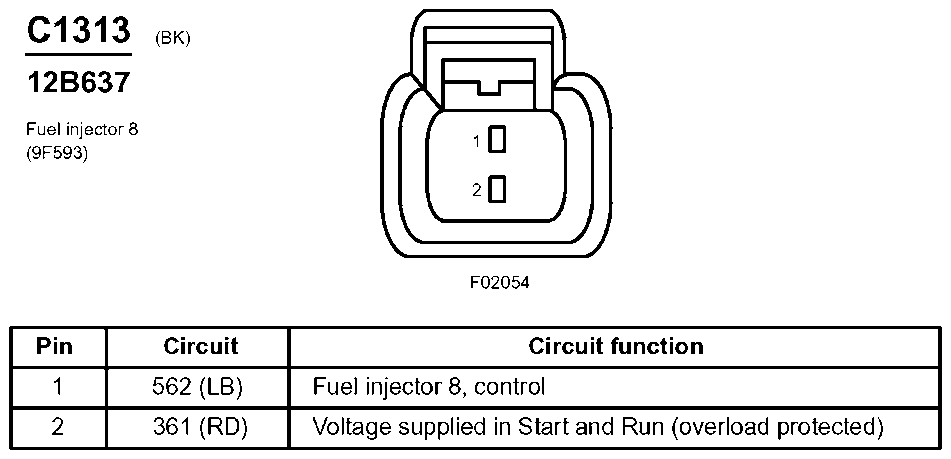

Fig 227: Fuel Injector 8 Connector End View (C1313)

G07834635

Courtesy of FORD MOTOR CO.

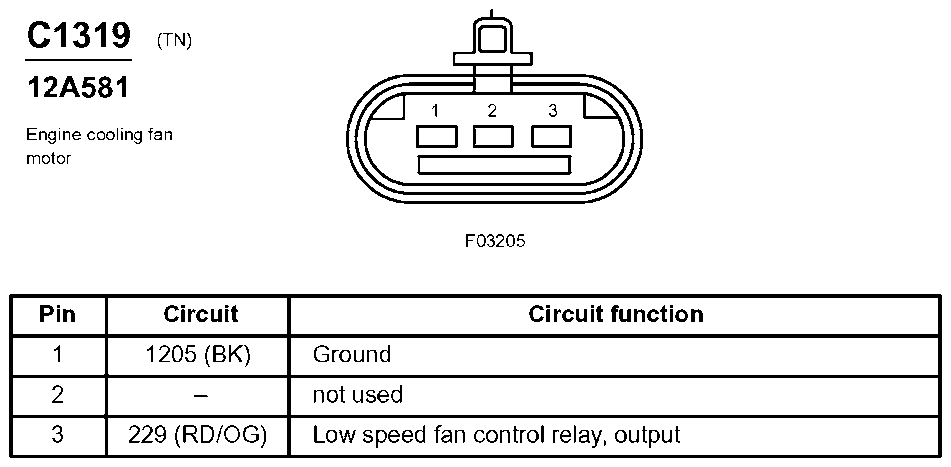

Fig 228: Engine Cooling Fan Motor Connector End View (C1319)

G07834636

Courtesy of FORD MOTOR CO.

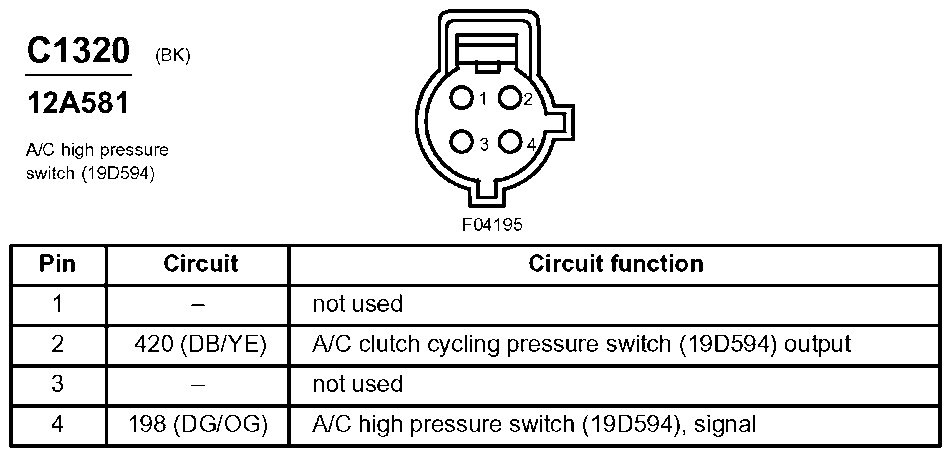

Fig 229: A/C High Pressure Switch Connector End View (C1320)

G07834637

Courtesy of FORD MOTOR CO.

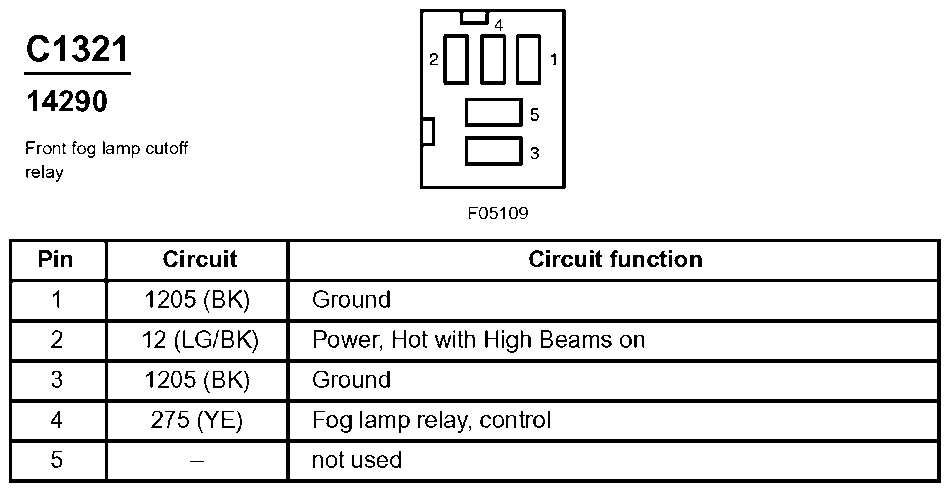

Fig 230: Front Fog Lamp Cutoff Relay Connector End View (C1321)

G07834638

Courtesy of FORD MOTOR CO.

Fig 231: Fog Lamp, Left Front Connector End View (C1322)

G07834639

Courtesy of FORD MOTOR CO.

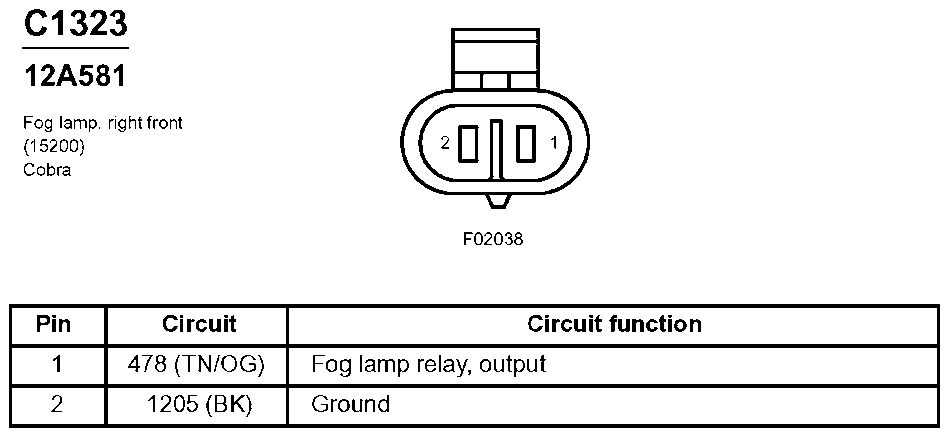

Fig 232: Fog Lamp, Right Front Connector End View (C1323)

G07834640

Courtesy of FORD MOTOR CO.

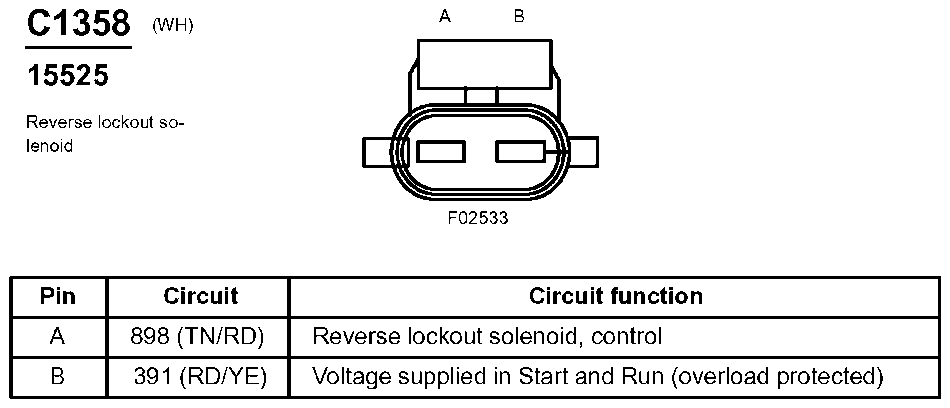

Fig 233: Reverse Lockout Solenoid Connector End View (C1358)

G07834641

Courtesy of FORD MOTOR CO.

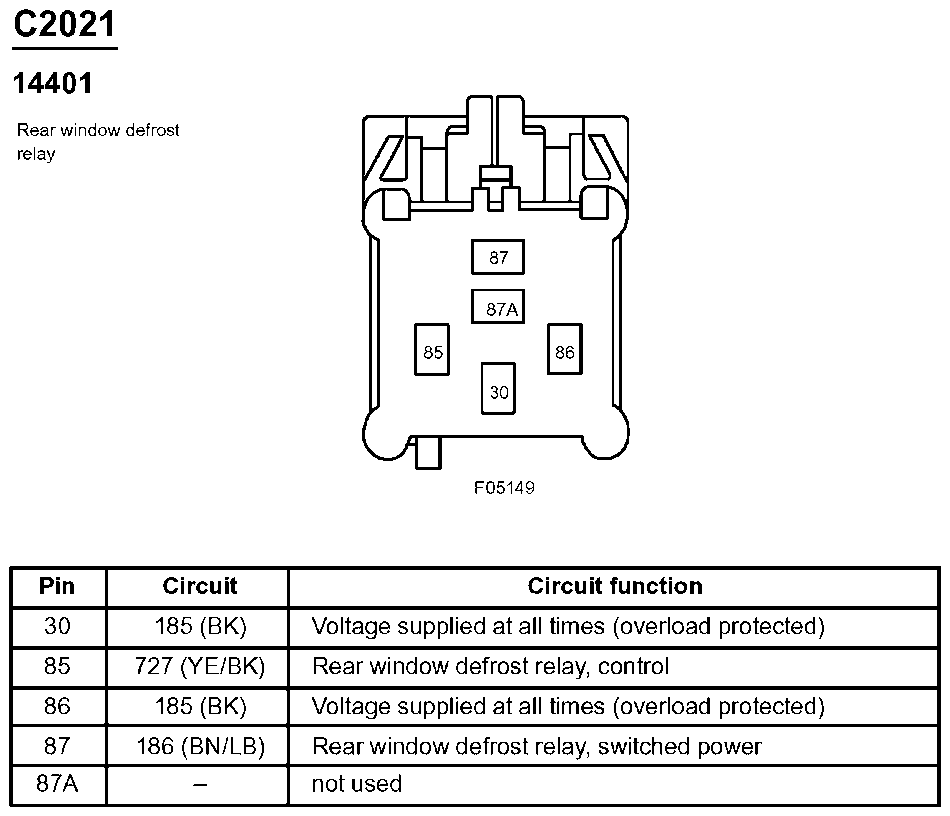

Fig 234: Rear Window Defrost Relay Connector End View (C2021)

G07834642

Courtesy of FORD MOTOR CO.

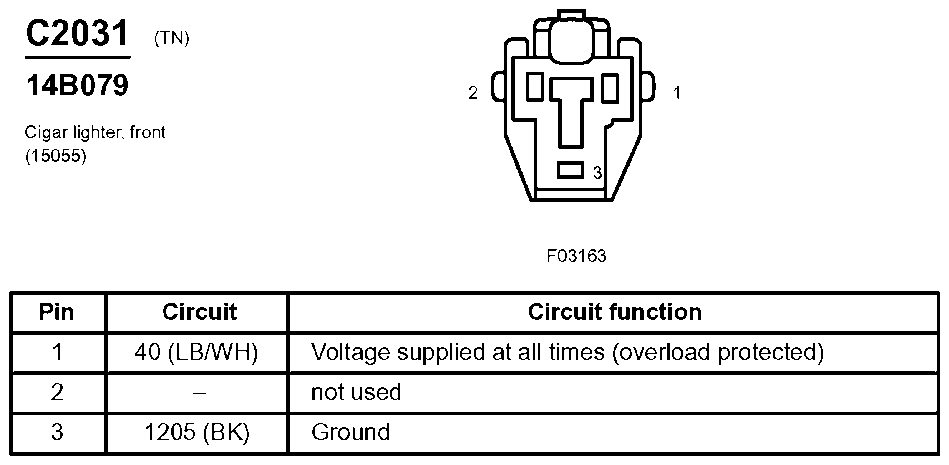

Fig 235: Cigar Lighter, Front Connector End View (C2031)

G07834643

Courtesy of FORD MOTOR CO.

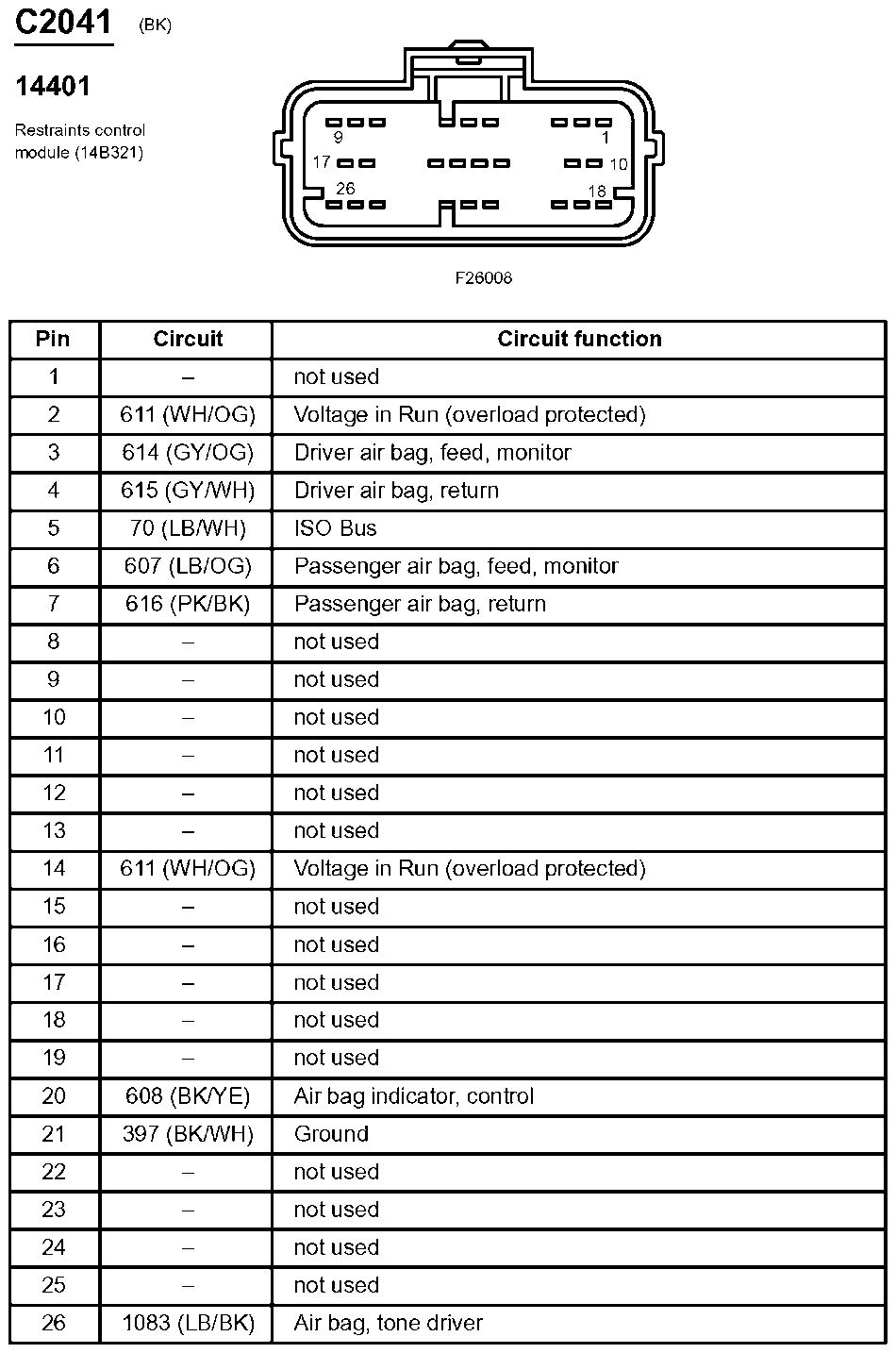

Fig 236: Restraints Control Module Connector End View (C2041)

G07834644

Courtesy of FORD MOTOR CO.

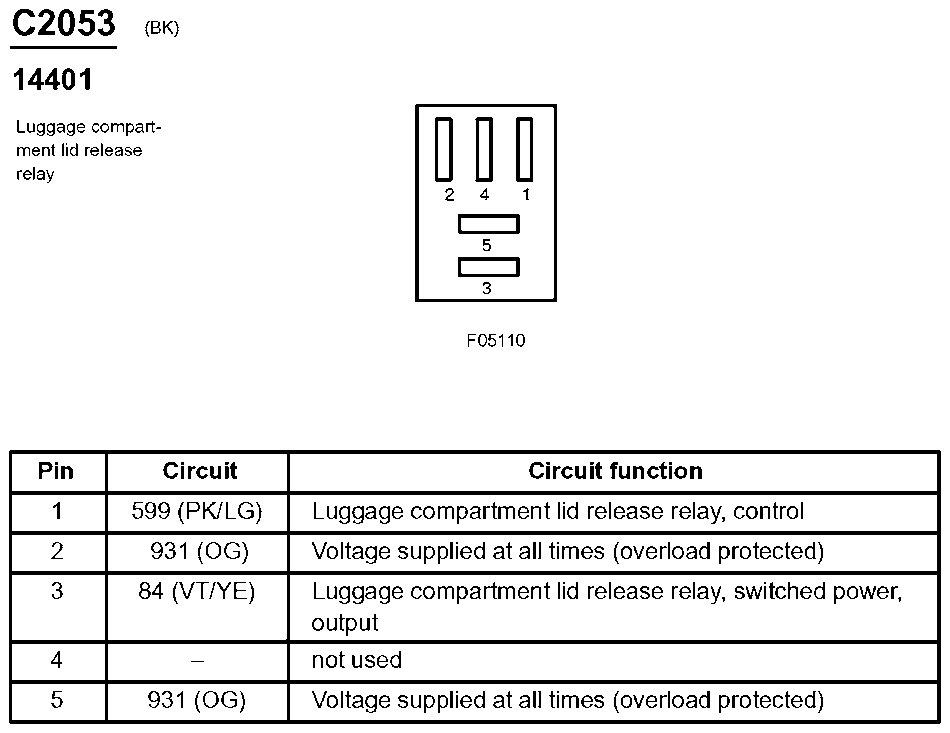

Fig 237: Luggage Compartment Lid Release Relay Connector End View (C2053)

G07834645

Courtesy of FORD MOTOR CO.

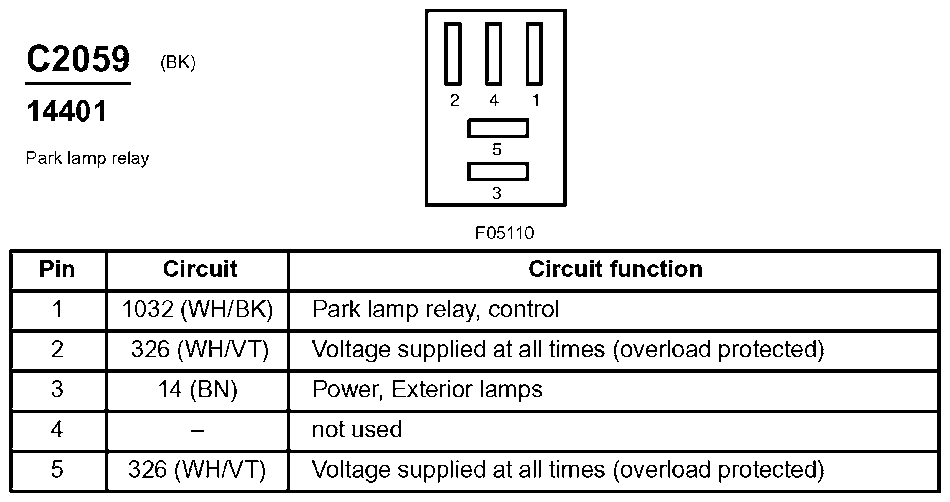

Fig 238: Park Lamp Relay Connector End View (C2059)

G07834646

Courtesy of FORD MOTOR CO.

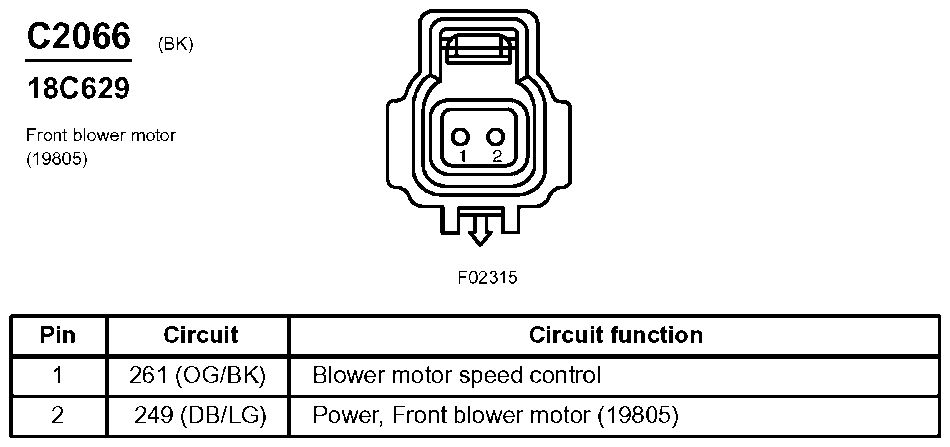

Fig 239: Front Blower Motor Connector End View (C2066)

G07834647

Courtesy of FORD MOTOR CO.

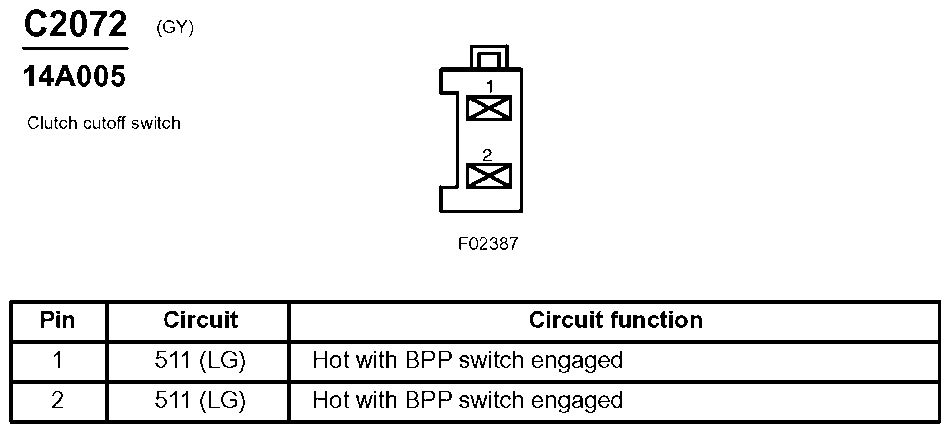

Fig 240: Clutch Cutoff Switch Connector End View (C2072)

G07834648

Courtesy of FORD MOTOR CO.

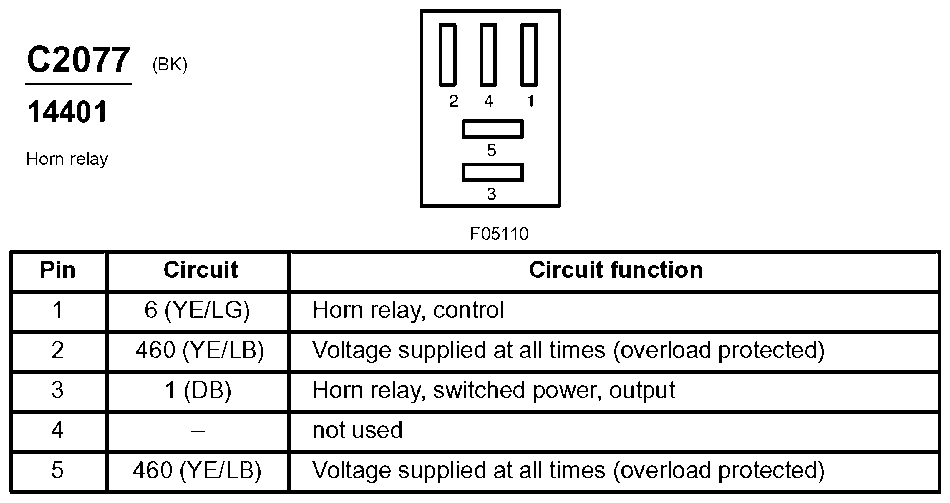

Fig 241: Horn Relay Connector End View (C2077)

G07834649

Courtesy of FORD MOTOR CO.

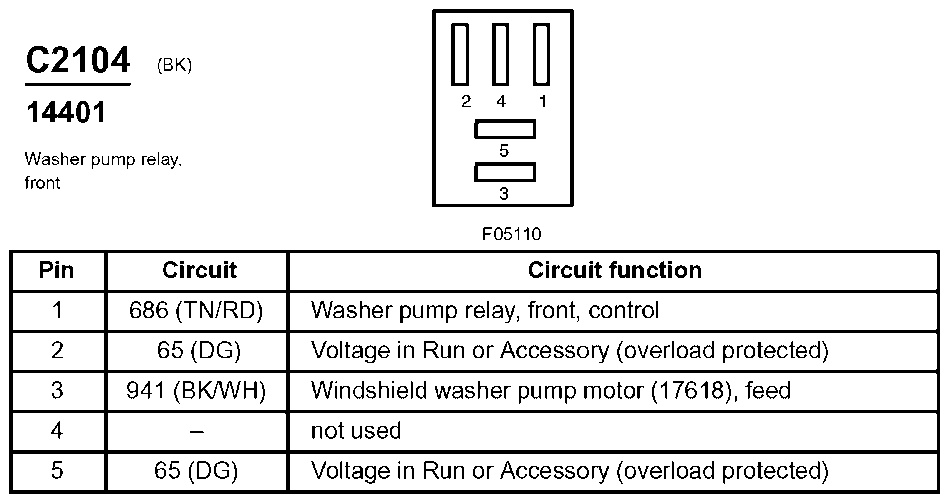

Fig 242: Washer Pump Relay, Front Connector End View (C2104)

G07834650

Courtesy of FORD MOTOR CO.

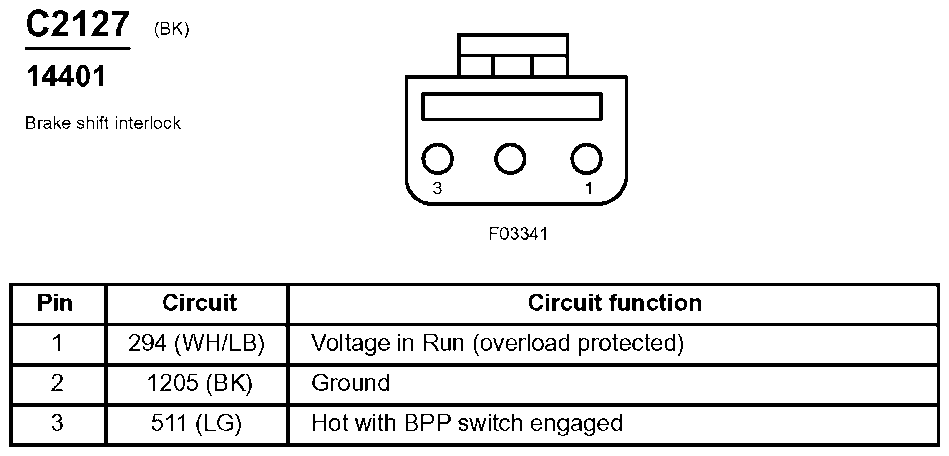

Fig 243: Brake Shift Interlock Connector End View (C2127)

G07834651

Courtesy of FORD MOTOR CO.

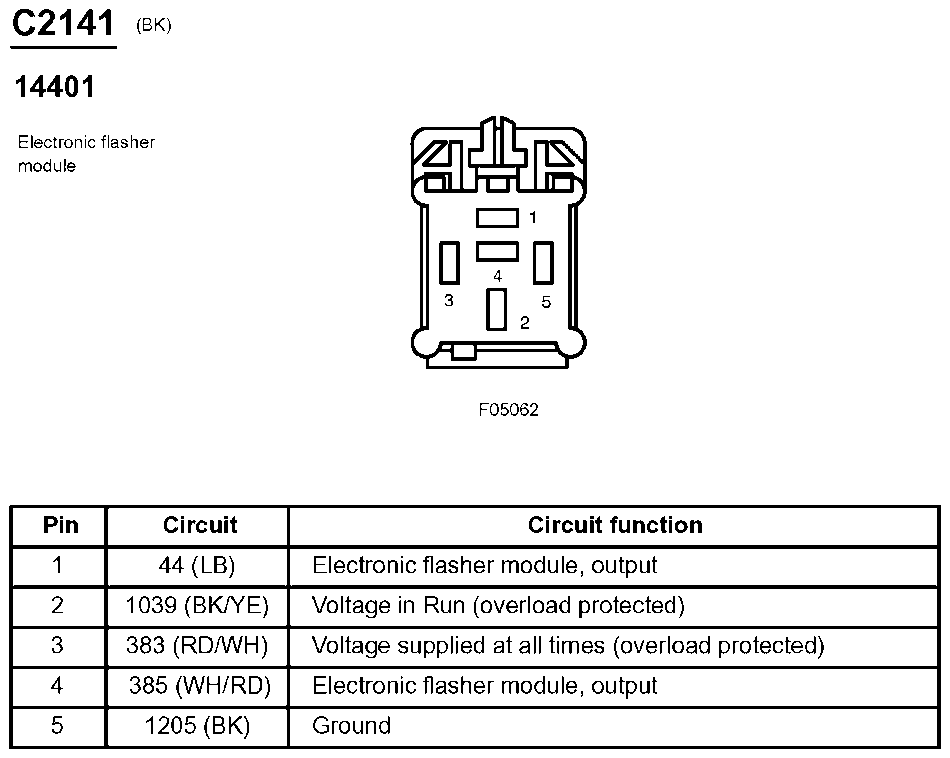

Fig 244: Electronic Flasher Module Connector End View (C2141)

G07834652

Courtesy of FORD MOTOR CO.

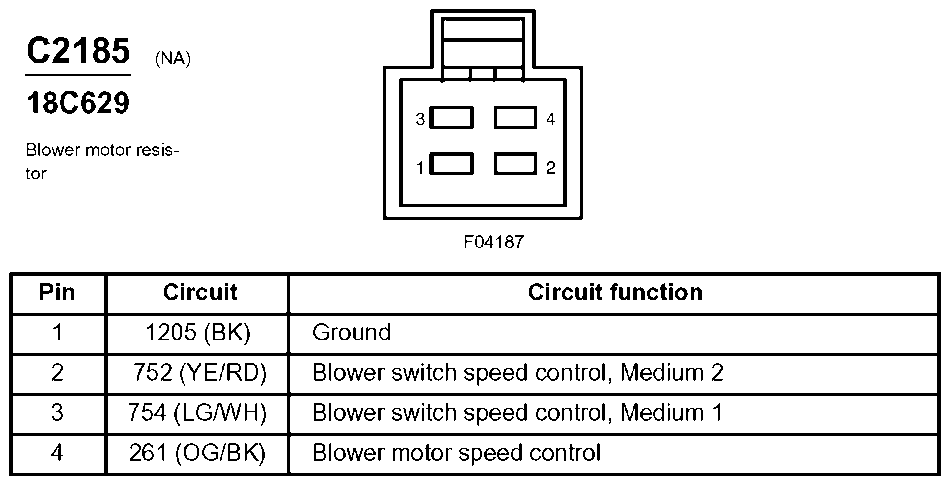

Fig 245: Blower Motor Resistor Connector End View (C2185)

G07834653

Courtesy of FORD MOTOR CO.

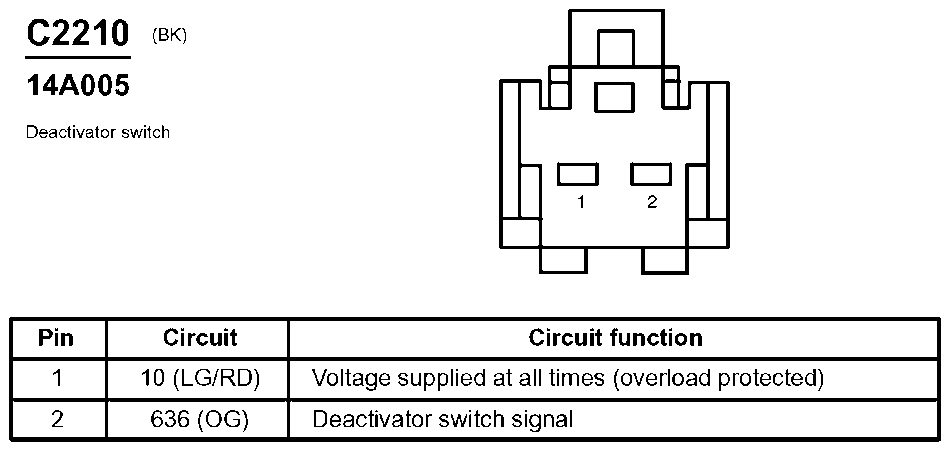

Fig 246: Deactivator Switch Connector End View (C2210)

G07834654

Courtesy of FORD MOTOR CO.

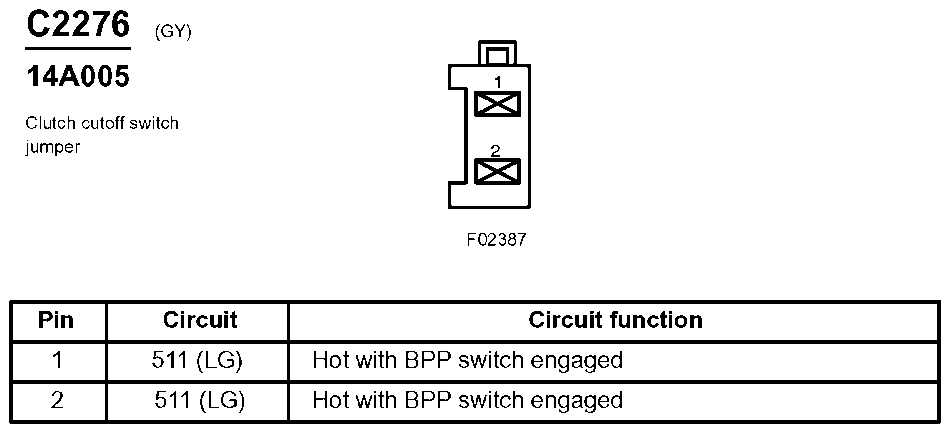

Fig 247: Clutch Cutoff Switch Jumper Connector End View (C2276)

G07834655

Courtesy of FORD MOTOR CO.

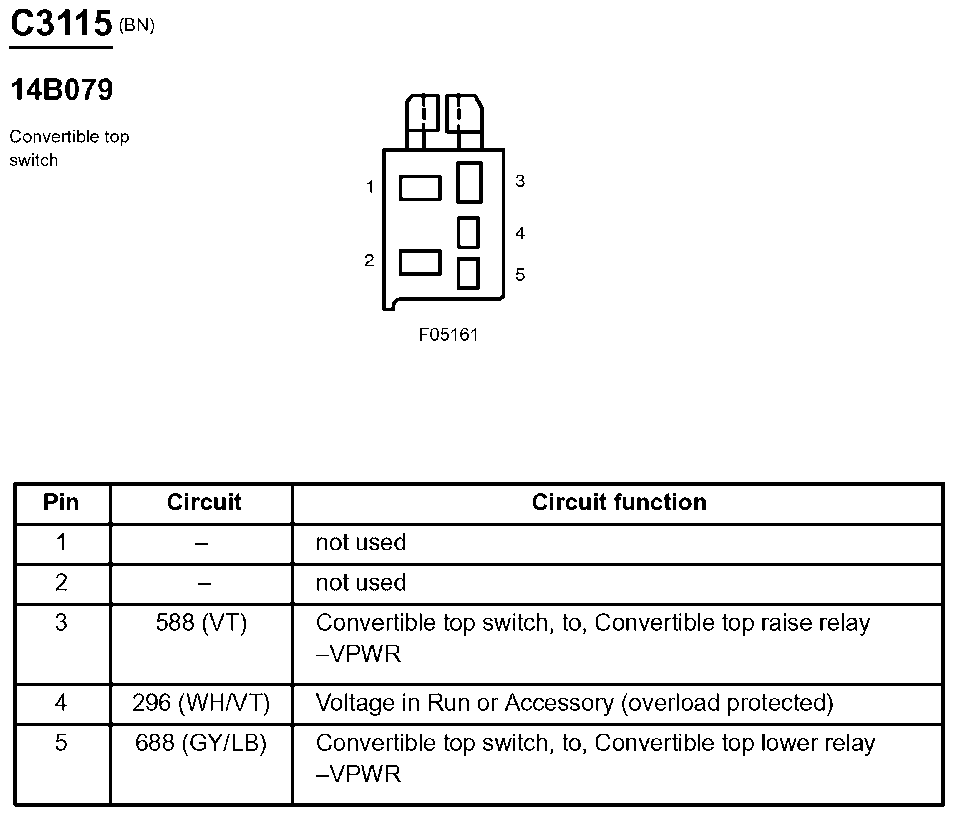

Fig 248: Convertible Top Switch Connector End View (C3115)

G07834656

Courtesy of FORD MOTOR CO.

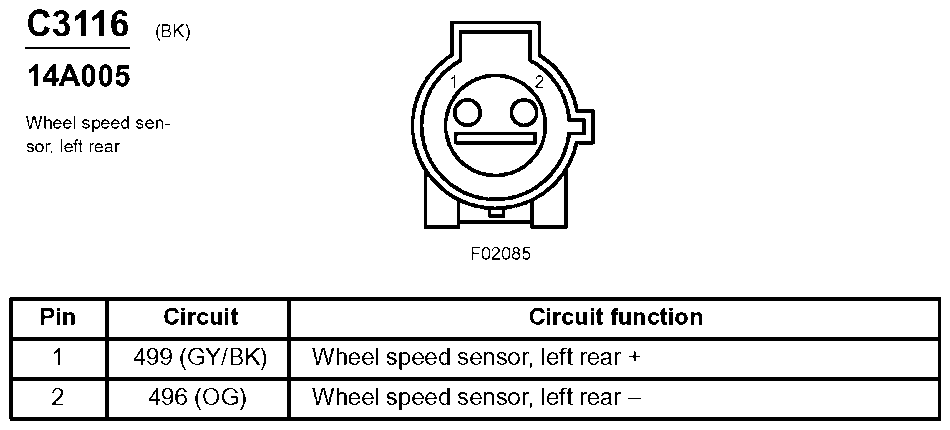

Fig 249: Wheel Speed Sensor, Left Rear Connector End View (C3116)

G07834657

Courtesy of FORD MOTOR CO.

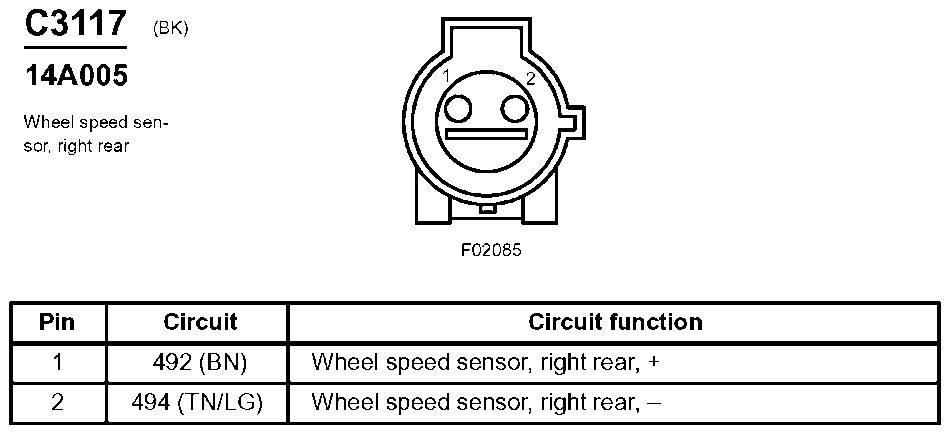

Fig 250: Wheel Speed Sensor, Right Rear Connector End View (C3117)

G07834658

Courtesy of FORD MOTOR CO.

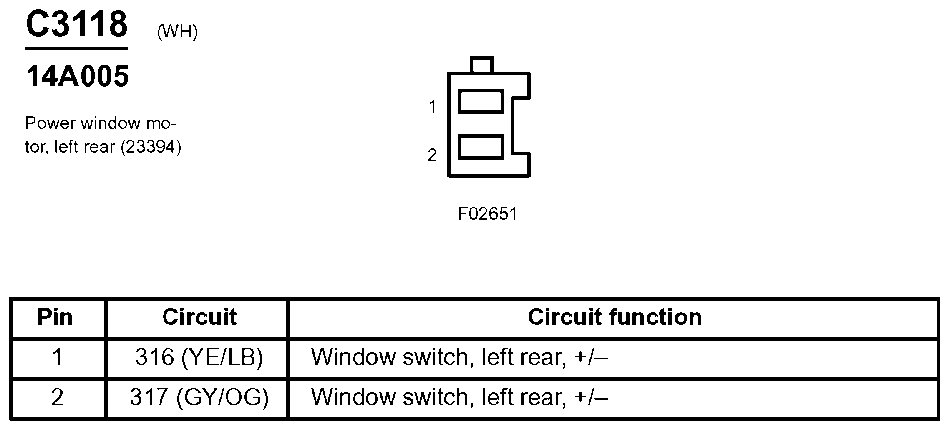

Fig 251: Power Window Motor, Left Rear Connector End View (C3118)

G07834659

Courtesy of FORD MOTOR CO.

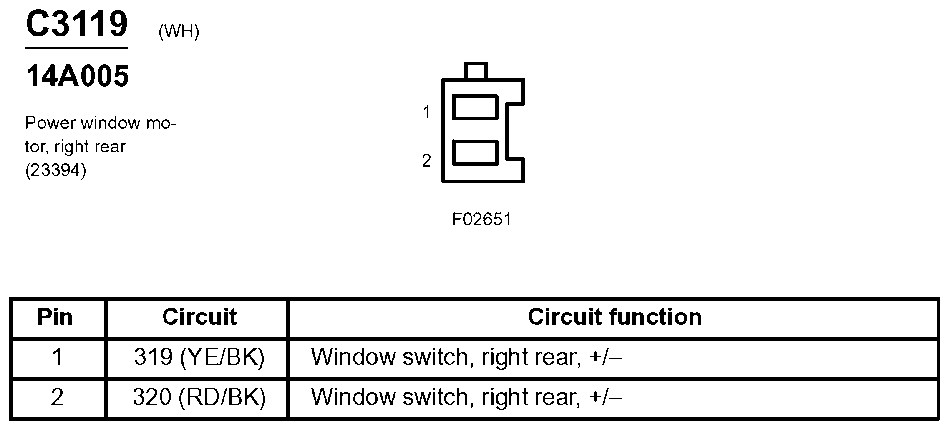

Fig 252: Power Window Motor, Right Rear Connector End View (C3119)

G07834660

Courtesy of FORD MOTOR CO.

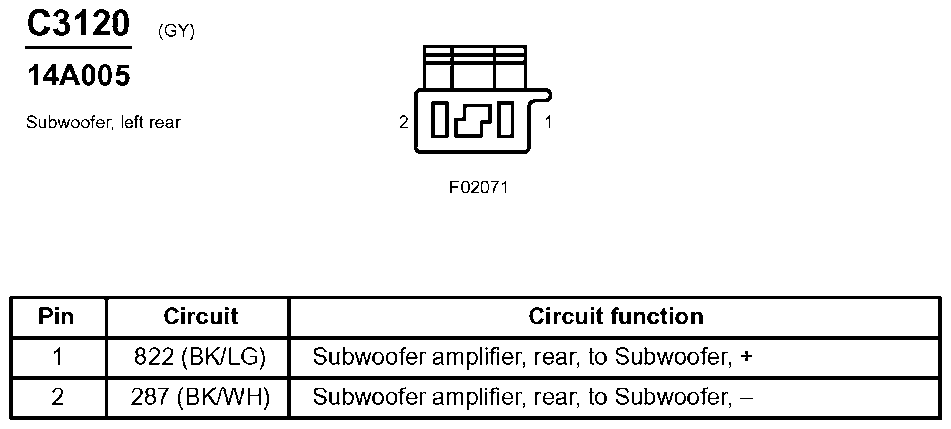

Fig 253: Subwoofer, Left Rear Connector End View (C3120)

G07834661

Courtesy of FORD MOTOR CO.

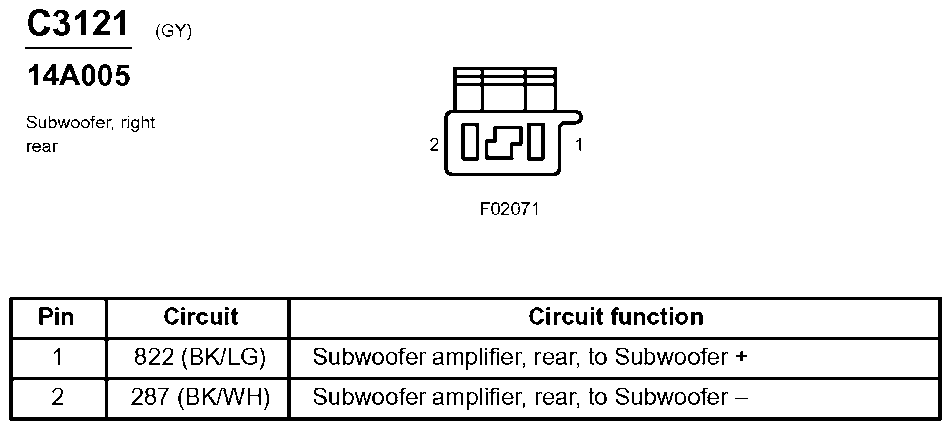

Fig 254: Subwoofer, Right Rear Connector End View (C3121)

G07834662

Courtesy of FORD MOTOR CO.

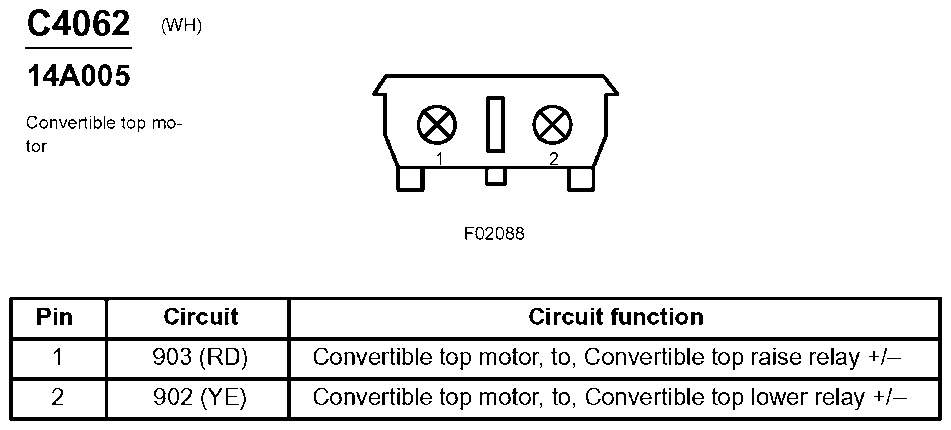

Fig 255: Convertible Top Motor Connector End View (C4062)

G07834663

Courtesy of FORD MOTOR CO.

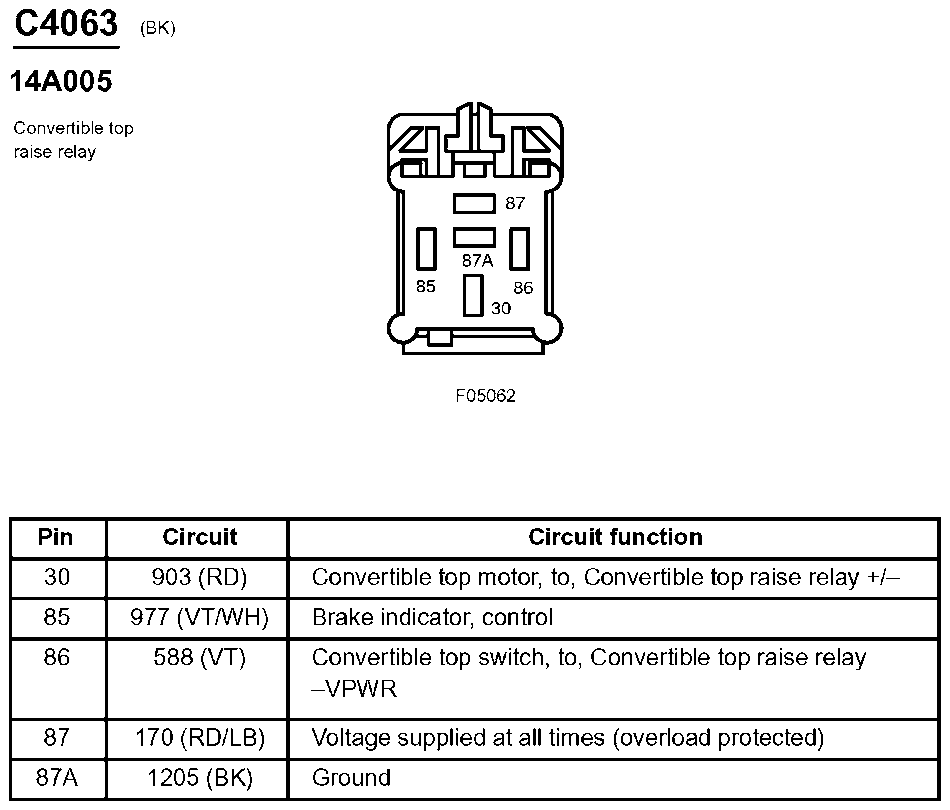

Fig 256: Convertible Top Raise Relay Connector End View (C4063)

G07834664

Courtesy of FORD MOTOR CO.

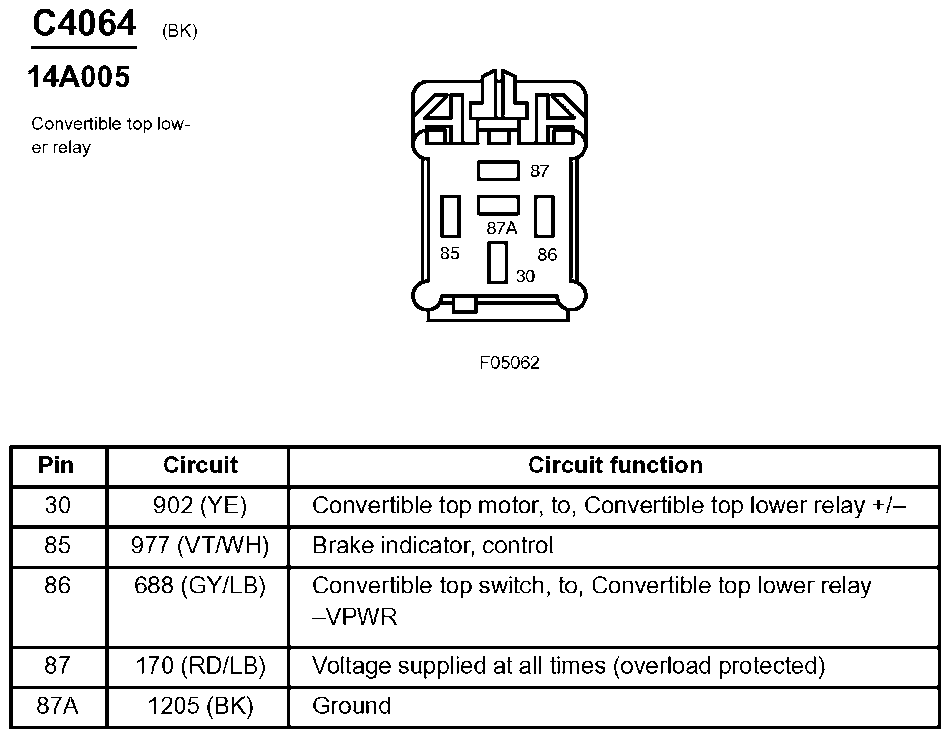

Fig 257: Convertible Top Lower Relay Connector End View (C4064)

G07834665

Courtesy of FORD MOTOR CO.

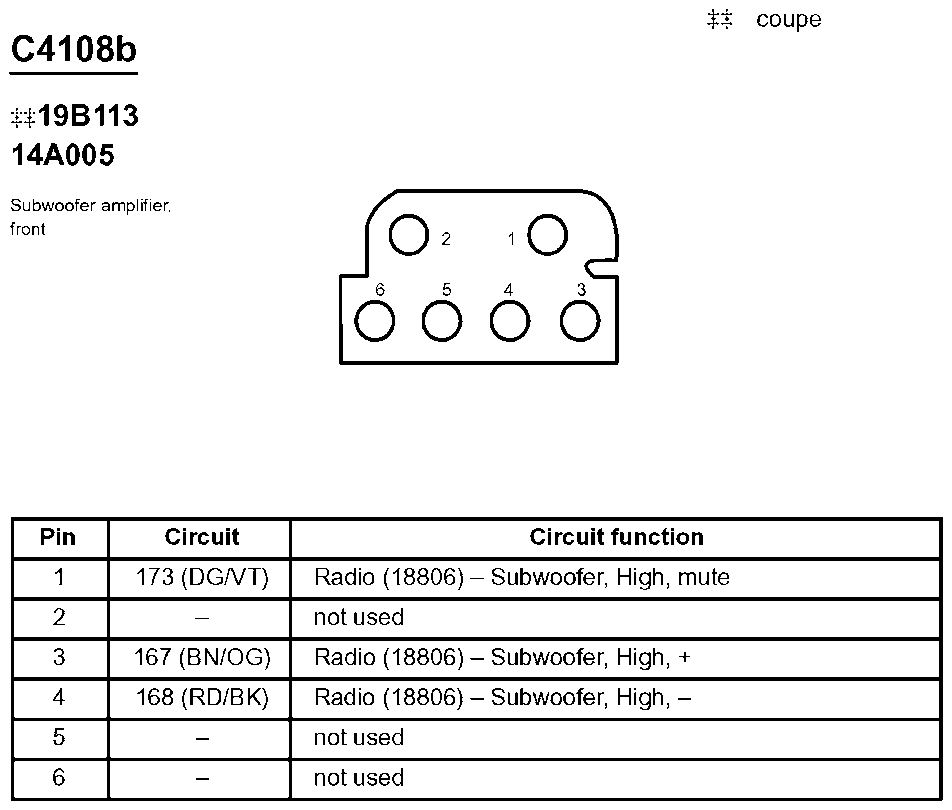

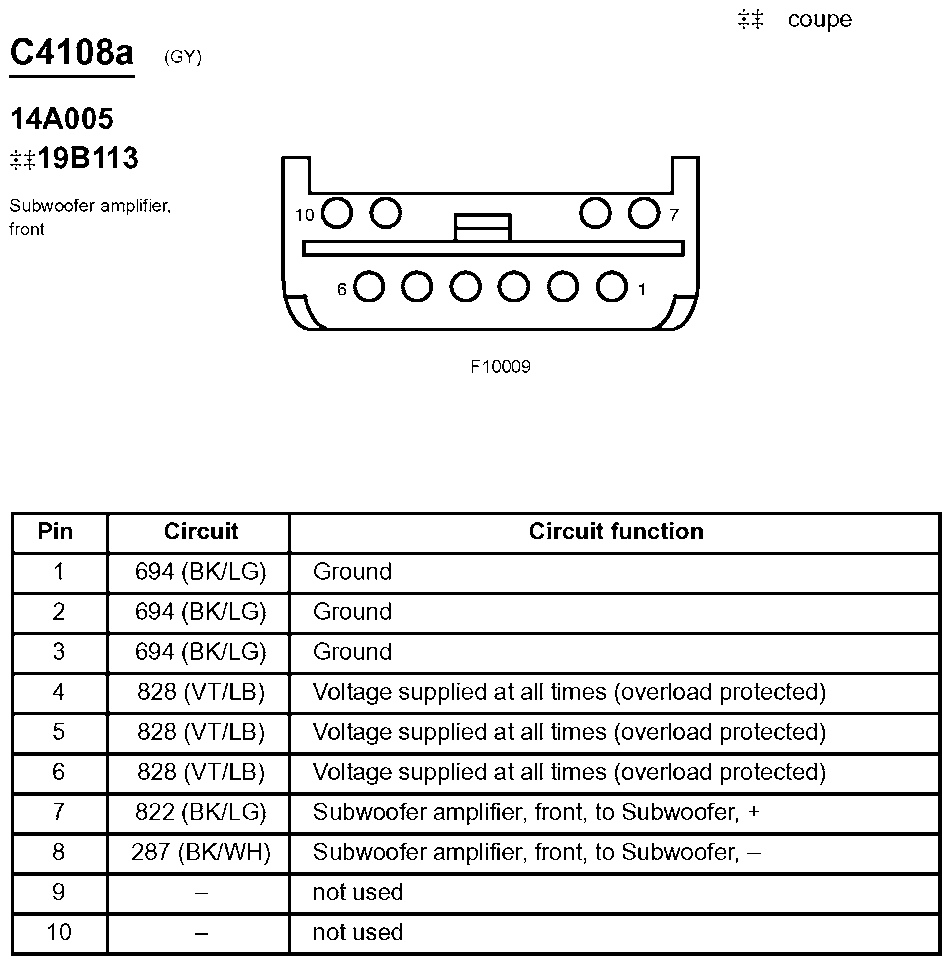

Fig 258: Subwoofer Amplifier, Front Connector End View (C4108a)

G07834666

Courtesy of FORD MOTOR CO.

Fig 259: Subwoofer Amplifier, Front Connector End View (C4108b)

G07834667

Courtesy of FORD MOTOR CO.

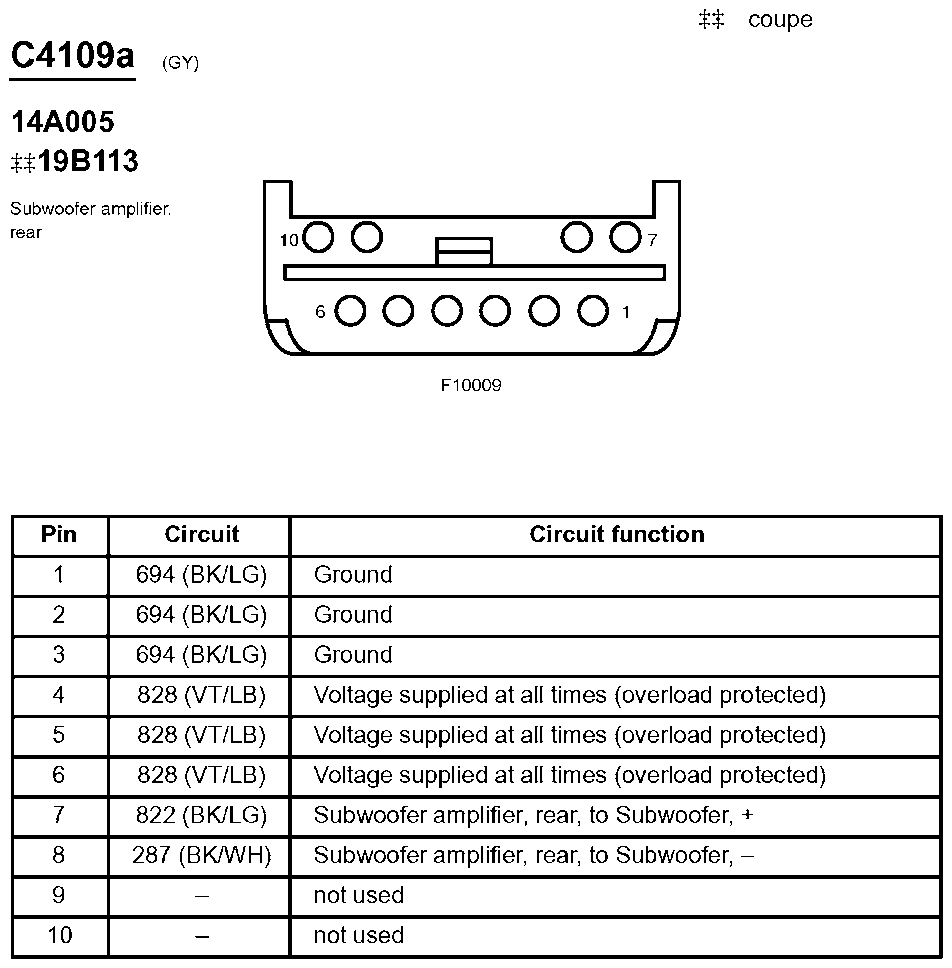

Fig 260: Subwoofer Amplifier, Rear Connector End View (C4109a)

G07834668

Courtesy of FORD MOTOR CO.

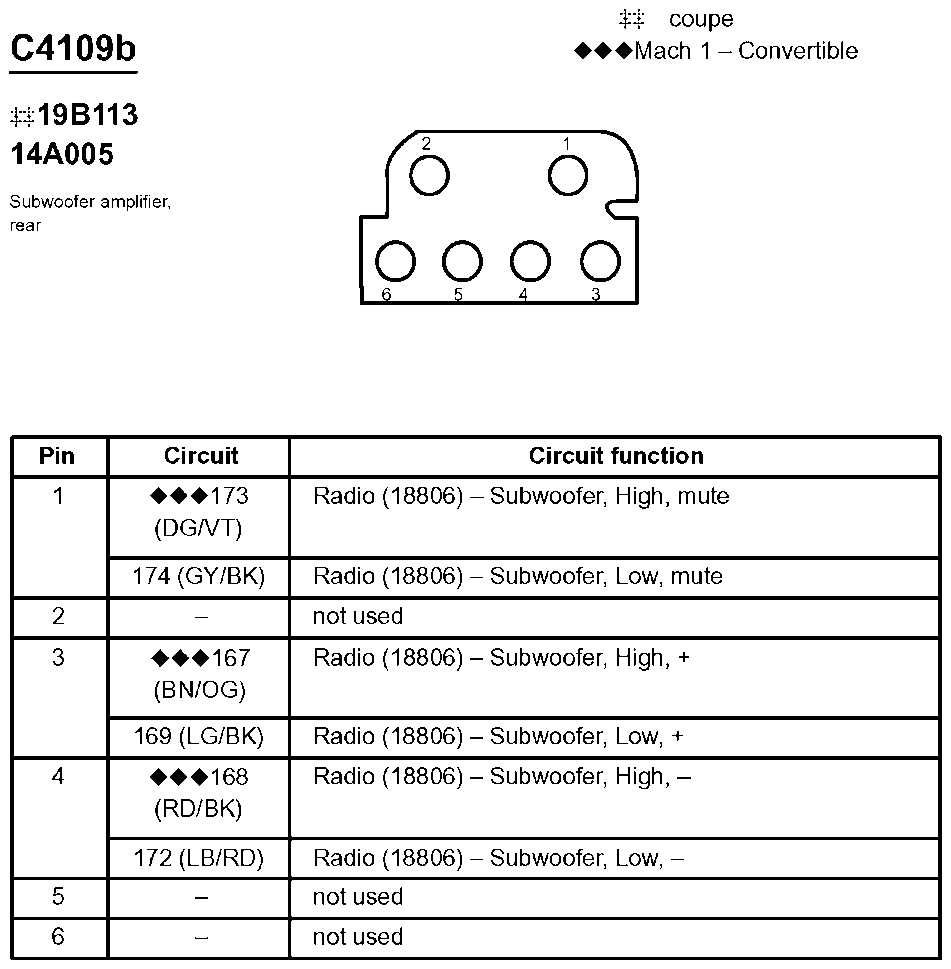

Fig 261: Subwoofer Amplifier, Rear Connector End View (C4109b)

G07834669

Courtesy of FORD MOTOR CO.

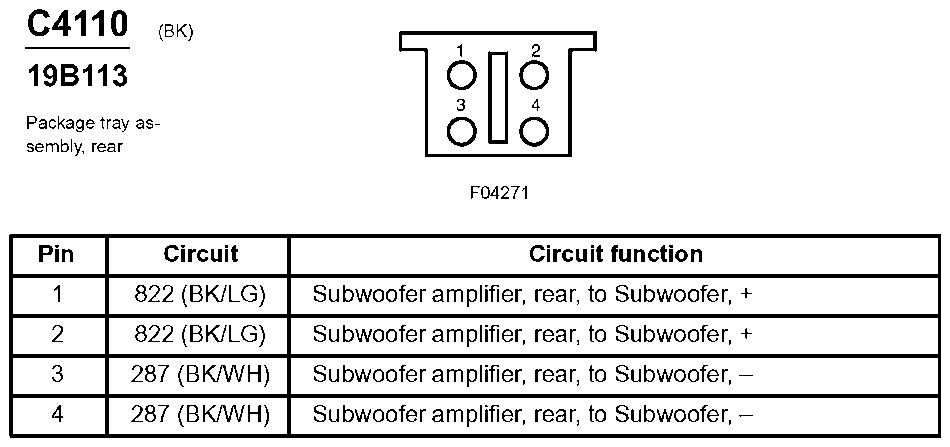

Fig 262: Package Tray Assembly, Rear Connector End View (C4110)

G07834670

Courtesy of FORD MOTOR CO.

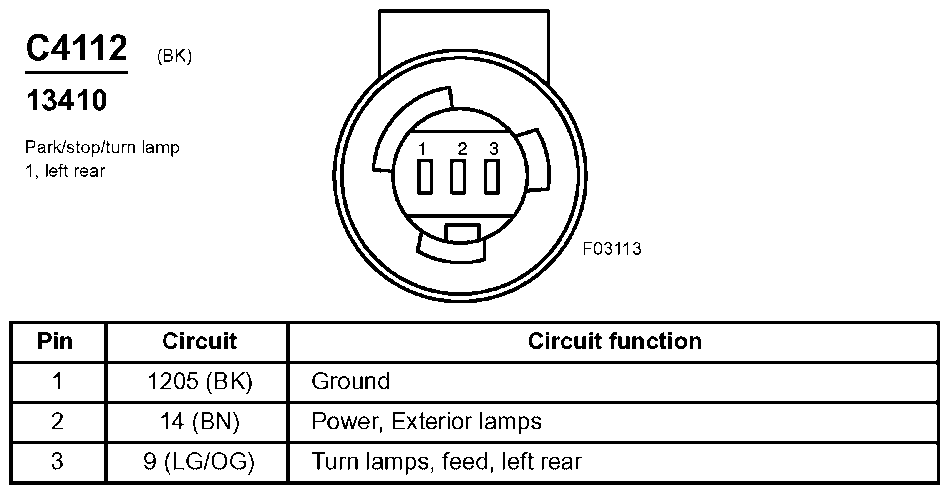

Fig 263: Park/Stop/Turn Lamp 1, Left Rear Connector End View (C4112)

G07834671

Courtesy of FORD MOTOR CO.

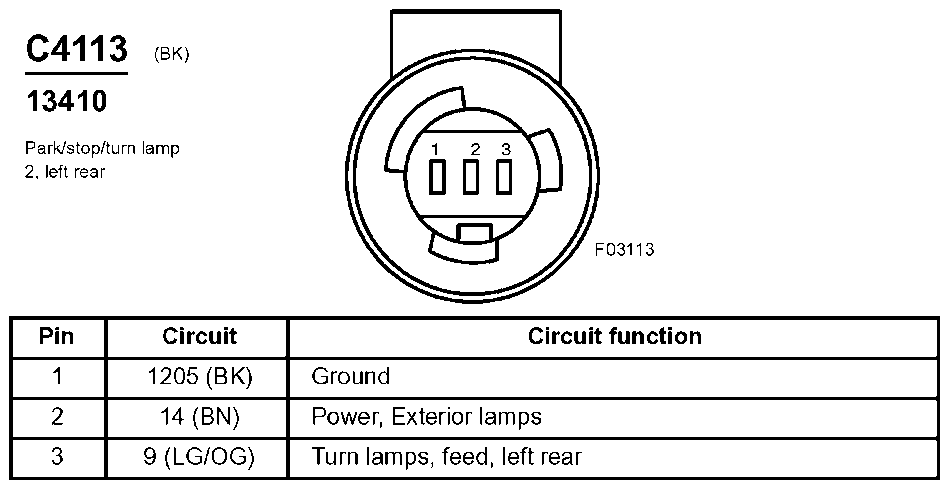

Fig 264: Park/Stop/Turn Lamp 2, Left Rear Connector End View (C4113)

G07834672

Courtesy of FORD MOTOR CO.

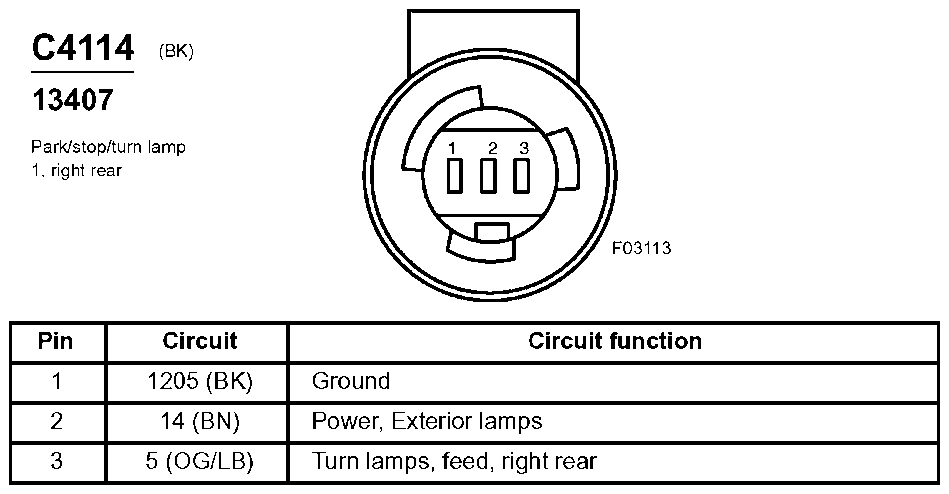

Fig 265: Park/Stop/Turn Lamp 1, Right Rear Connector End View (C4114)

G07834673

Courtesy of FORD MOTOR CO.

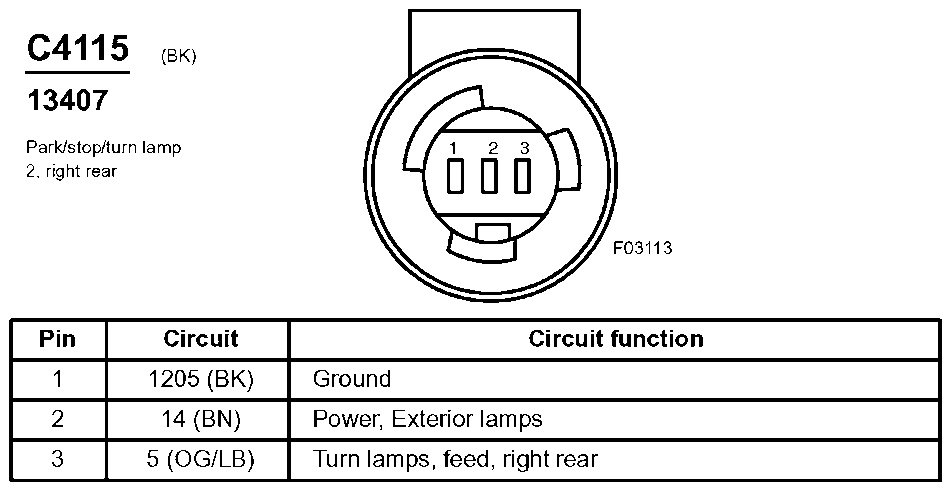

Fig 266: Park/Stop/Turn Lamp 2, Right Rear Connector End View (C4115)

G07834674

Courtesy of FORD MOTOR CO.

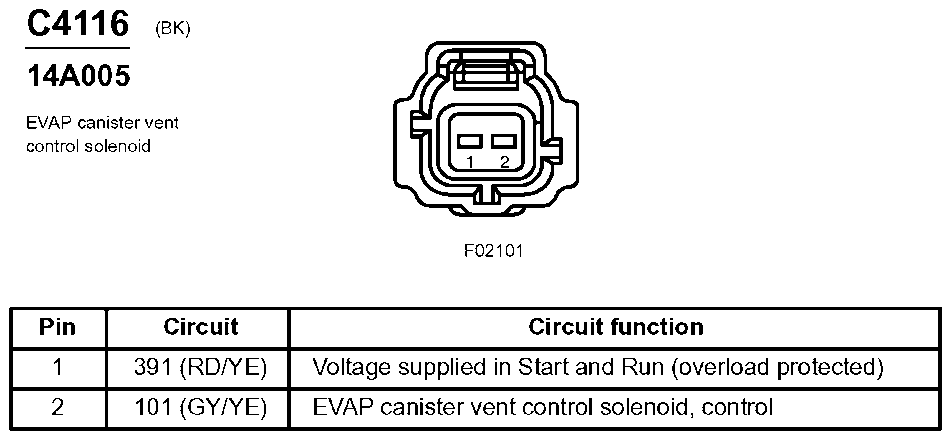

Fig 267: EVAP Canister Vent Control Solenoid Connector End View (C4116)

G07834675

Courtesy of FORD MOTOR CO.

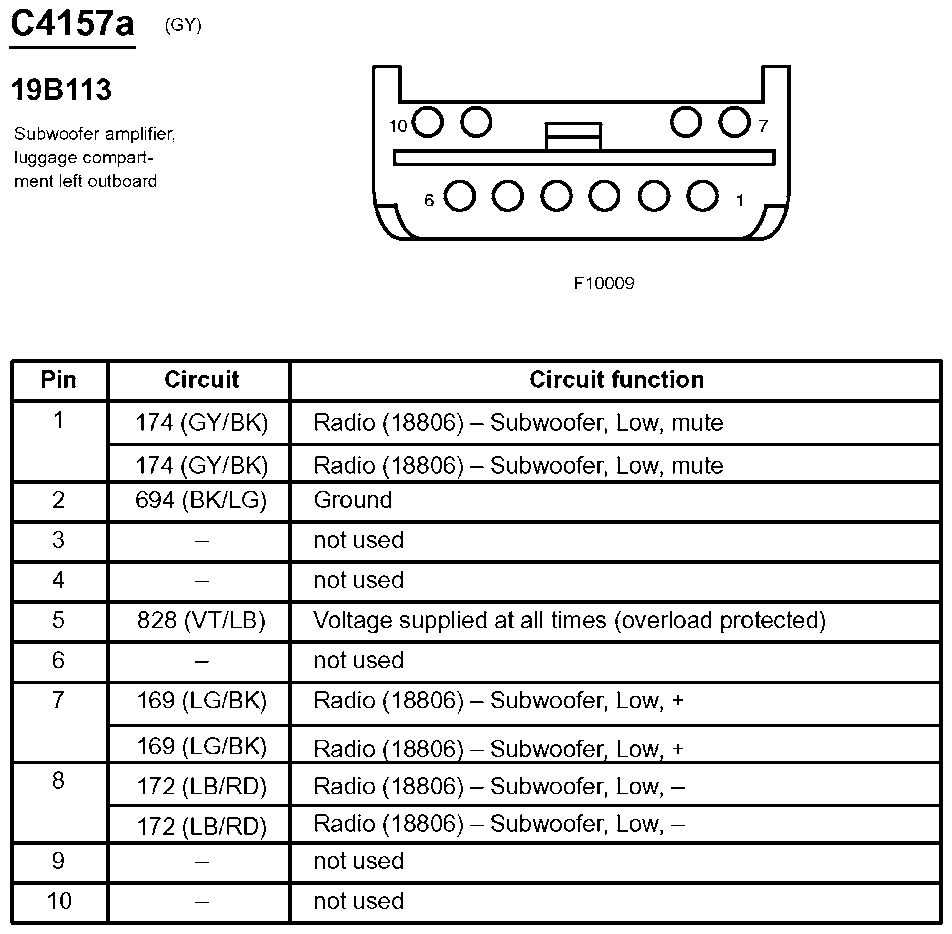

Fig 268: Subwoofer Amplifier, Luggage Compartment Left Outboard Connector End View (C4157a)

G07834676

Courtesy of FORD MOTOR CO.

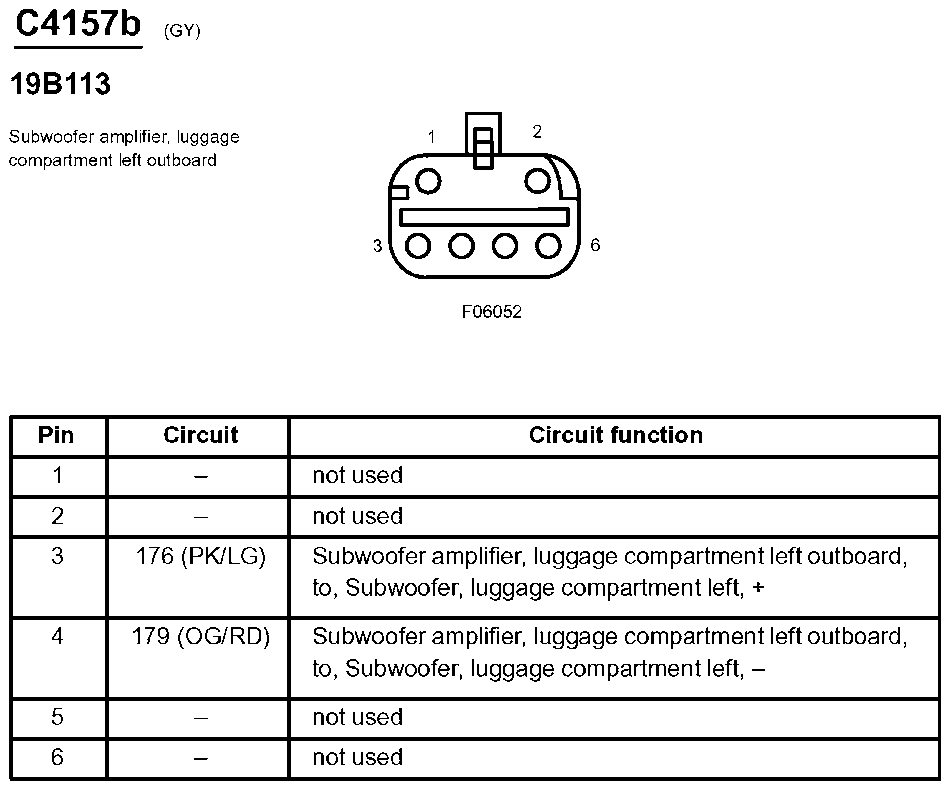

Fig 269: Subwoofer Amplifier, Luggage Compartment Left Outboard Connector End View (C4157b)

G07834677

Courtesy of FORD MOTOR CO.

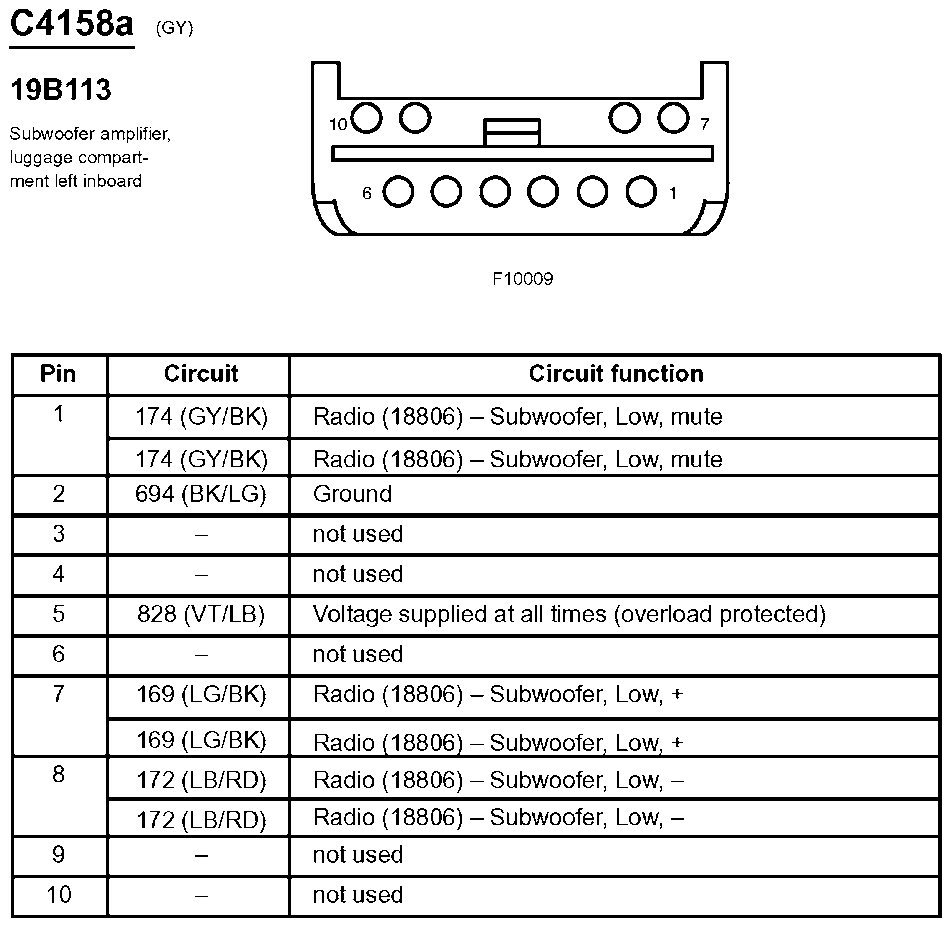

Fig 270: Subwoofer Amplifier, Luggage Compartment Left Inboard Connector End View (C4158a)

G07834678

Courtesy of FORD MOTOR CO.

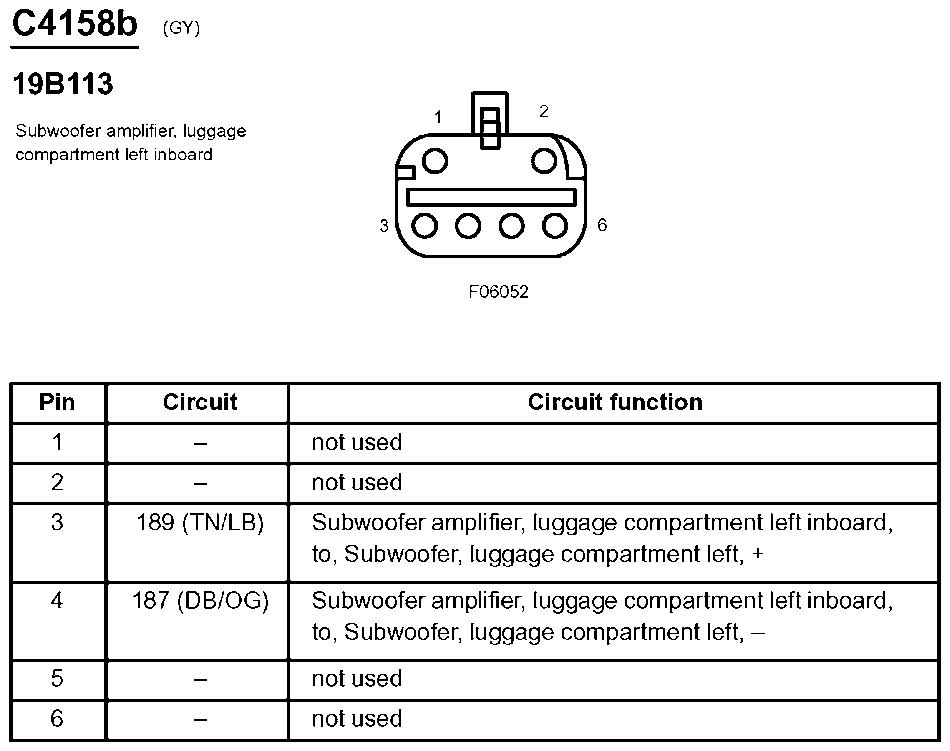

Fig 271: Subwoofer Amplifier, Luggage Compartment Left Inboard Connector End View (C4158b)

G07834679

Courtesy of FORD MOTOR CO.

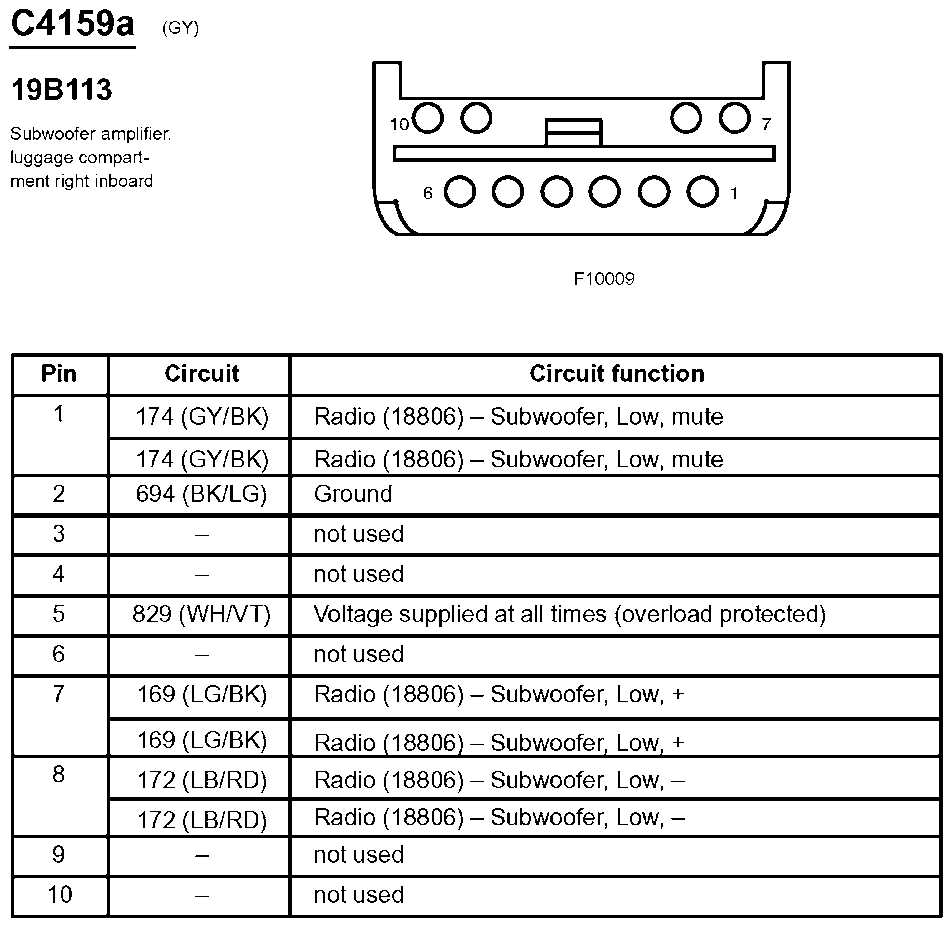

Fig 272: Subwoofer Amplifier, Luggage Compartment Right Inboard Connector End View (C4159a)

G07834680

Courtesy of FORD MOTOR CO.

Fig 273: Subwoofer Amplifier, Luggage Compartment Right Inboard Connector End View (C4159b)

G07834681

Courtesy of FORD MOTOR CO.

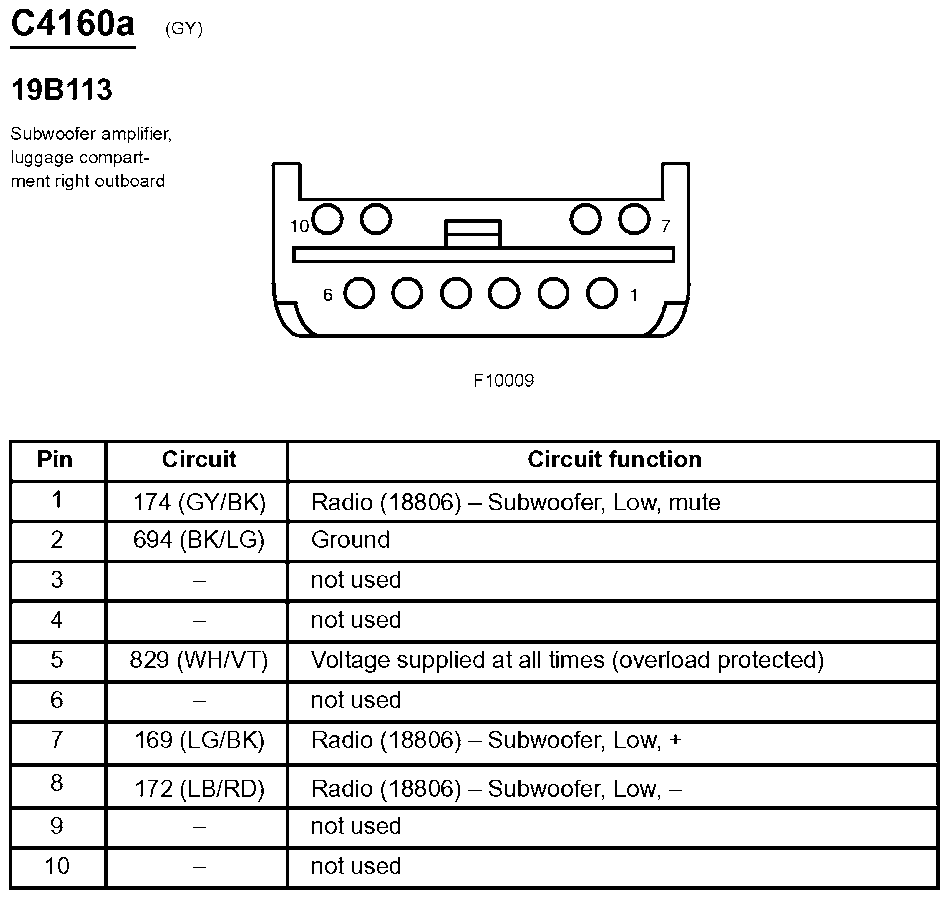

Fig 274: Subwoofer Amplifier, Luggage Compartment Right Outboard Connector End View (C4160a)

G07834682

Courtesy of FORD MOTOR CO.

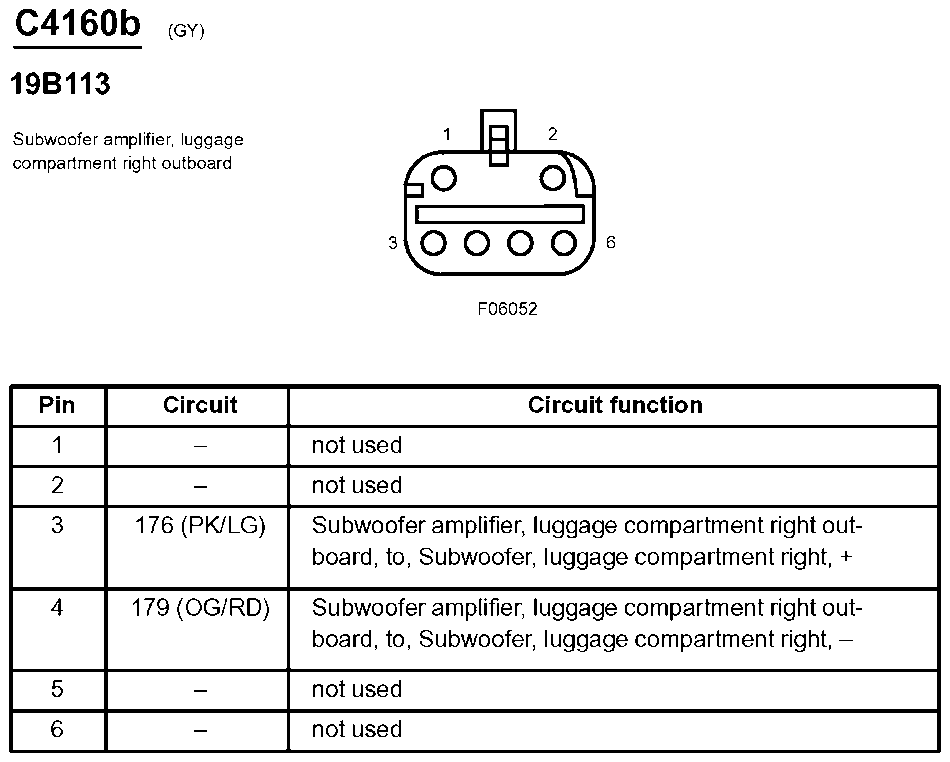

Fig 275: Subwoofer Amplifier, Luggage Compartment Right Outboard Connector End View (C4160b)

G07834683

Courtesy of FORD MOTOR CO.

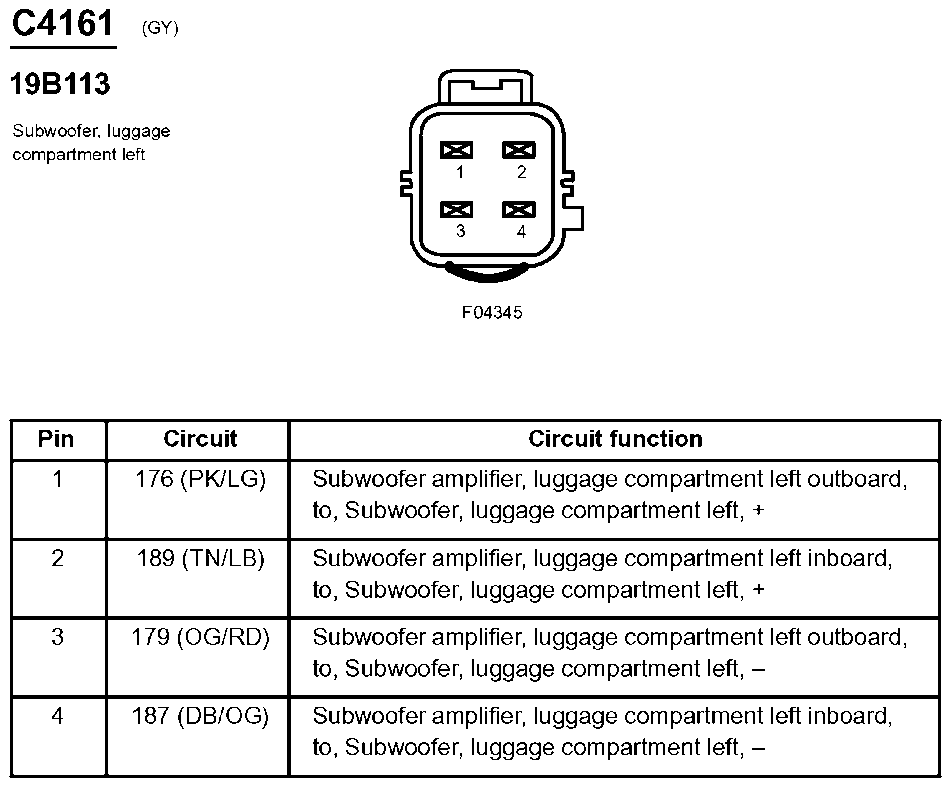

Fig 276: Subwoofer, Luggage Compartment Left Connector End View (C4161)

G07834684

Courtesy of FORD MOTOR CO.

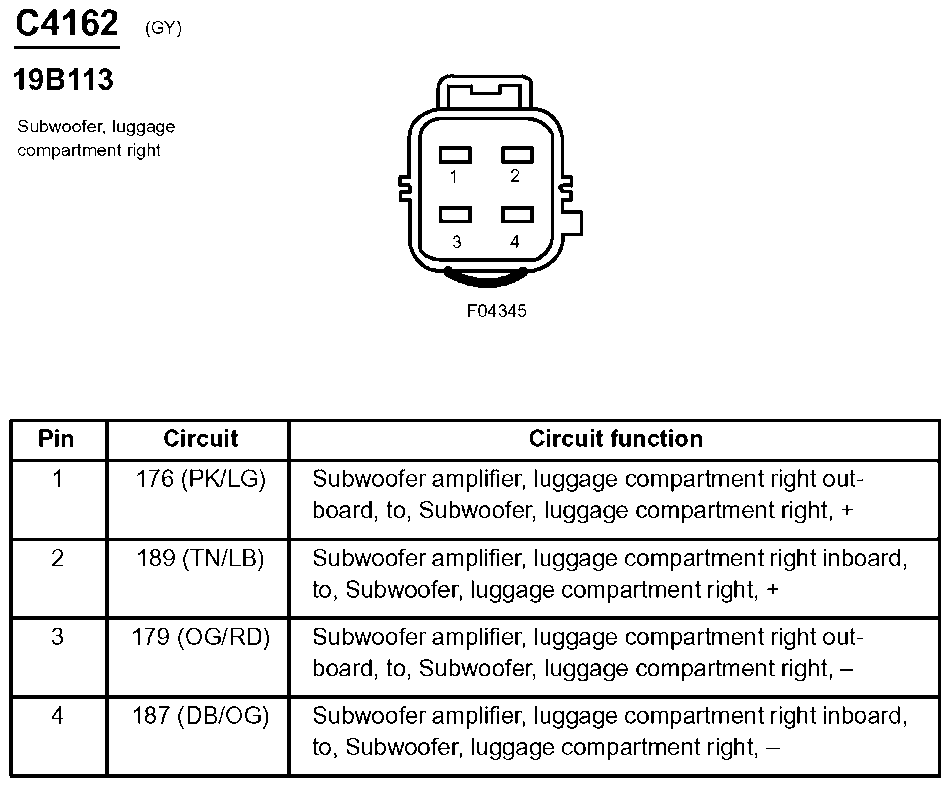

Fig 277: Subwoofer, Luggage Compartment Right Connector End View (C4162)

G07834685

Courtesy of FORD MOTOR CO.

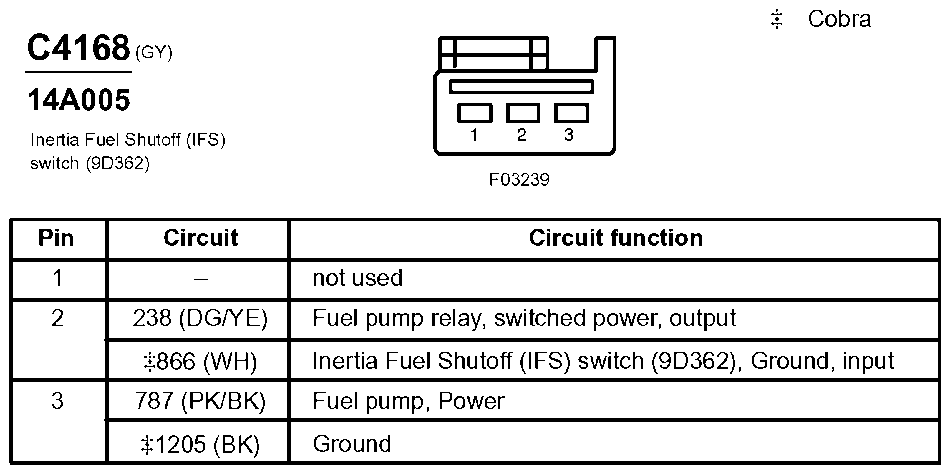

Fig 278: Inertia Fuel Shutoff (IFS) Switch Connector End View (C4168)

G07834686

Courtesy of FORD MOTOR CO.

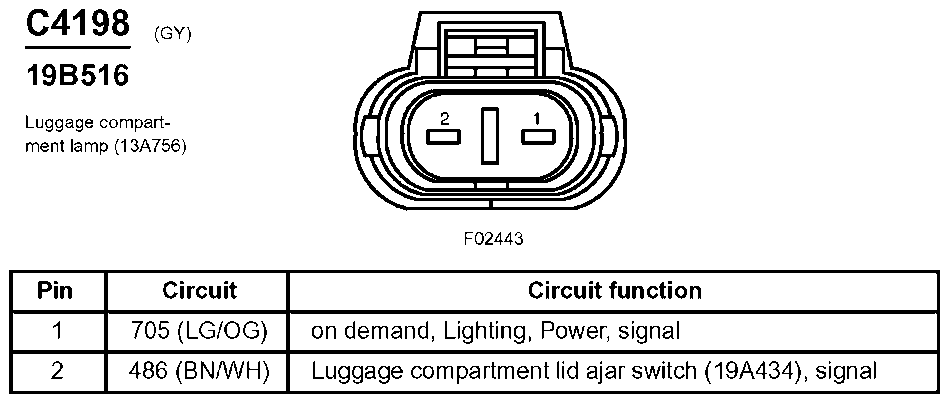

Fig 279: Luggage Compartment Lamp Connector End View (C4198)

G07834687

Courtesy of FORD MOTOR CO.

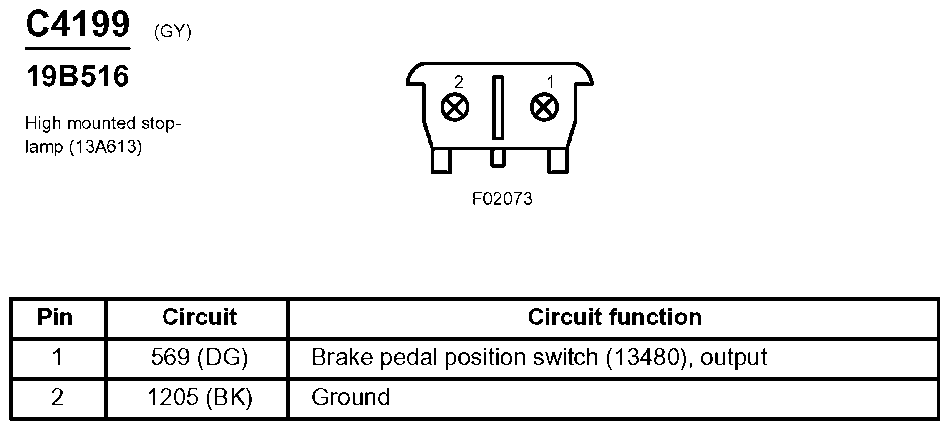

Fig 280: High Mounted Stoplamp Connector End View (C4199)

G07834688

Courtesy of FORD MOTOR CO.
