Piston - Diameter

  1. Measure the piston diameter 90 degrees from the piston pin at the point indicated. Refer to the appropriate ENGINE article for the procedure.
    • If out of specification, install new components as necessary. Refer to the appropriate ENGINE article for the procedure.

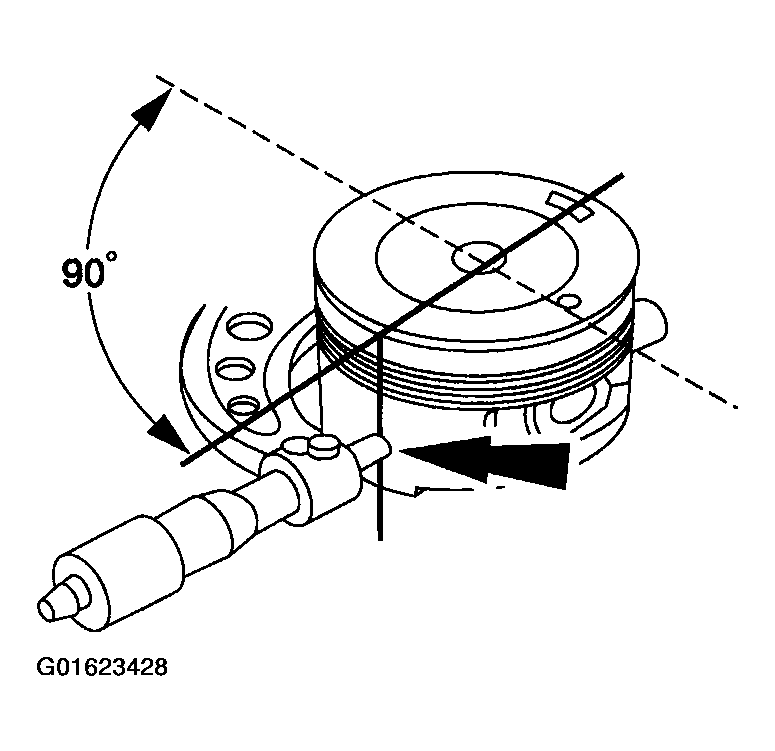

    Fig 1: Measuring Piston Diameter
    G01623428Courtesy of FORD MOTOR CO.
