Fitting - R-Clip: Connect

NOTE: Apply a light coat of clean engine oil.

Clean and inspect the fitting and the tube for damage.
Insert the R-clip into the fitting.

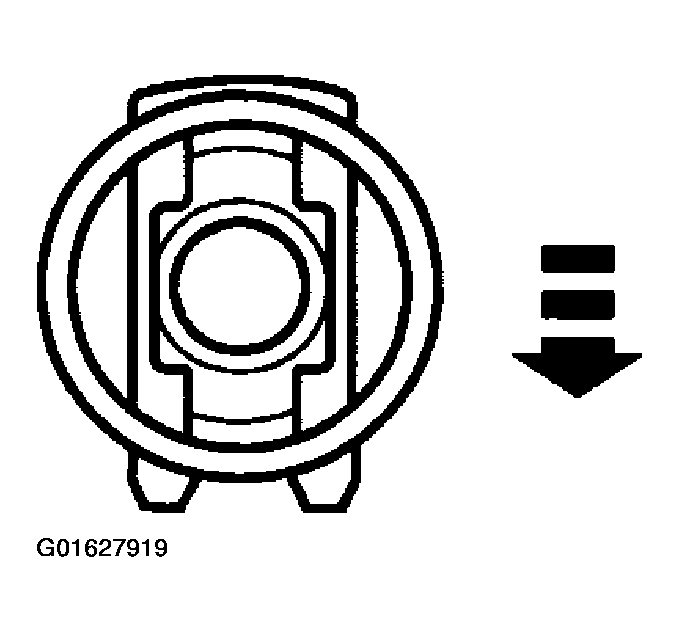

Fig 1: Inserting R-Clip Into Fitting
Courtesy of FORD MOTOR CO.
Insert the tube in the fitting and push together until a click is heard.

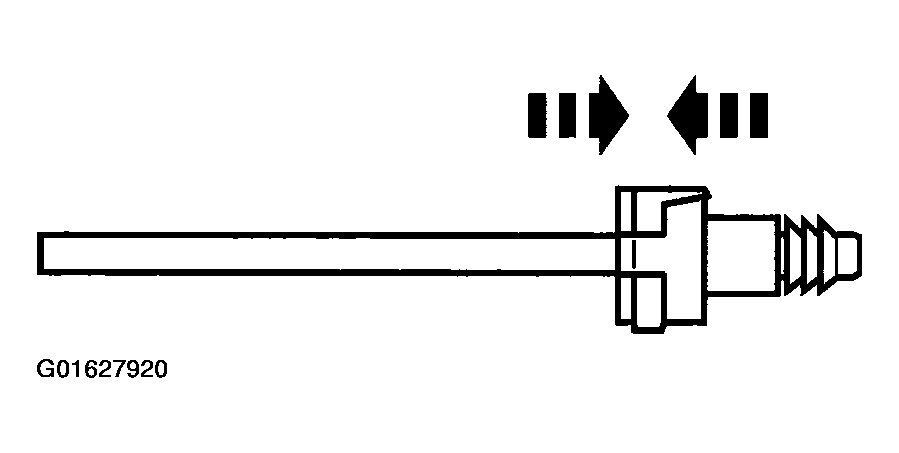

Fig 2: Inserting Tube In Fitting
Courtesy of FORD MOTOR CO.
Pull on the connection to make sure it is fully engaged.

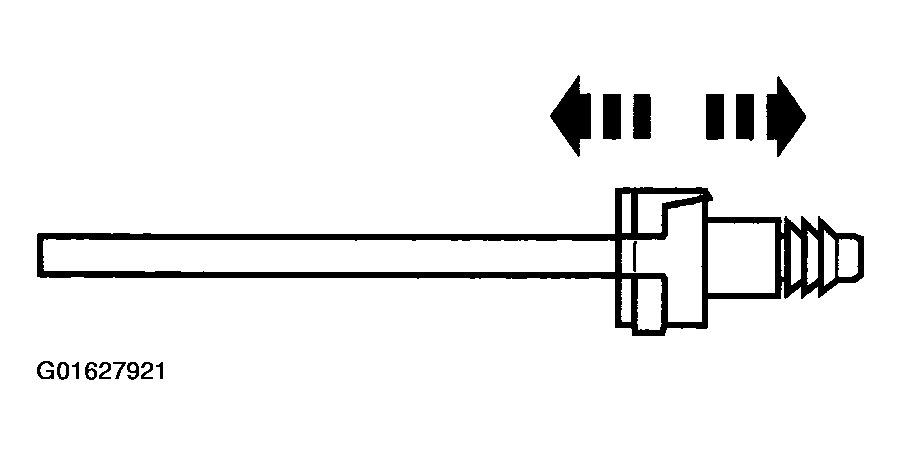

Fig 3: Pulling On Connection For Checking Fully Engaging
Courtesy of FORD MOTOR CO.
