Apply Components: Clutch-Reverse

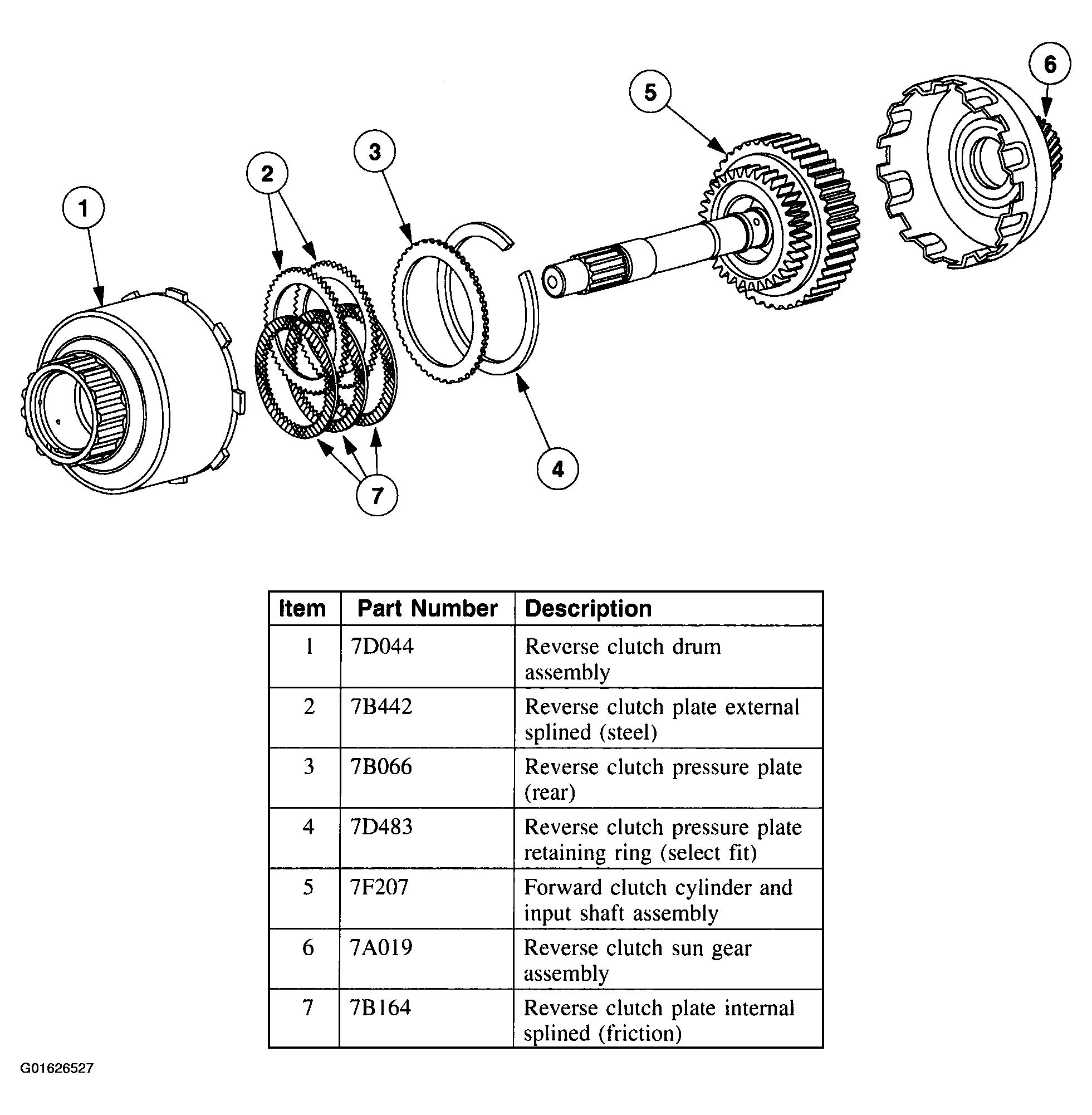

Fig 1: Exploded View Of Clutch-Reverse
G01626527Courtesy of FORD MOTOR CO.

The reverse clutch couples the input shaft to the reverse sun gear, applied in reverse range only.
