Hydraulic System: Notes

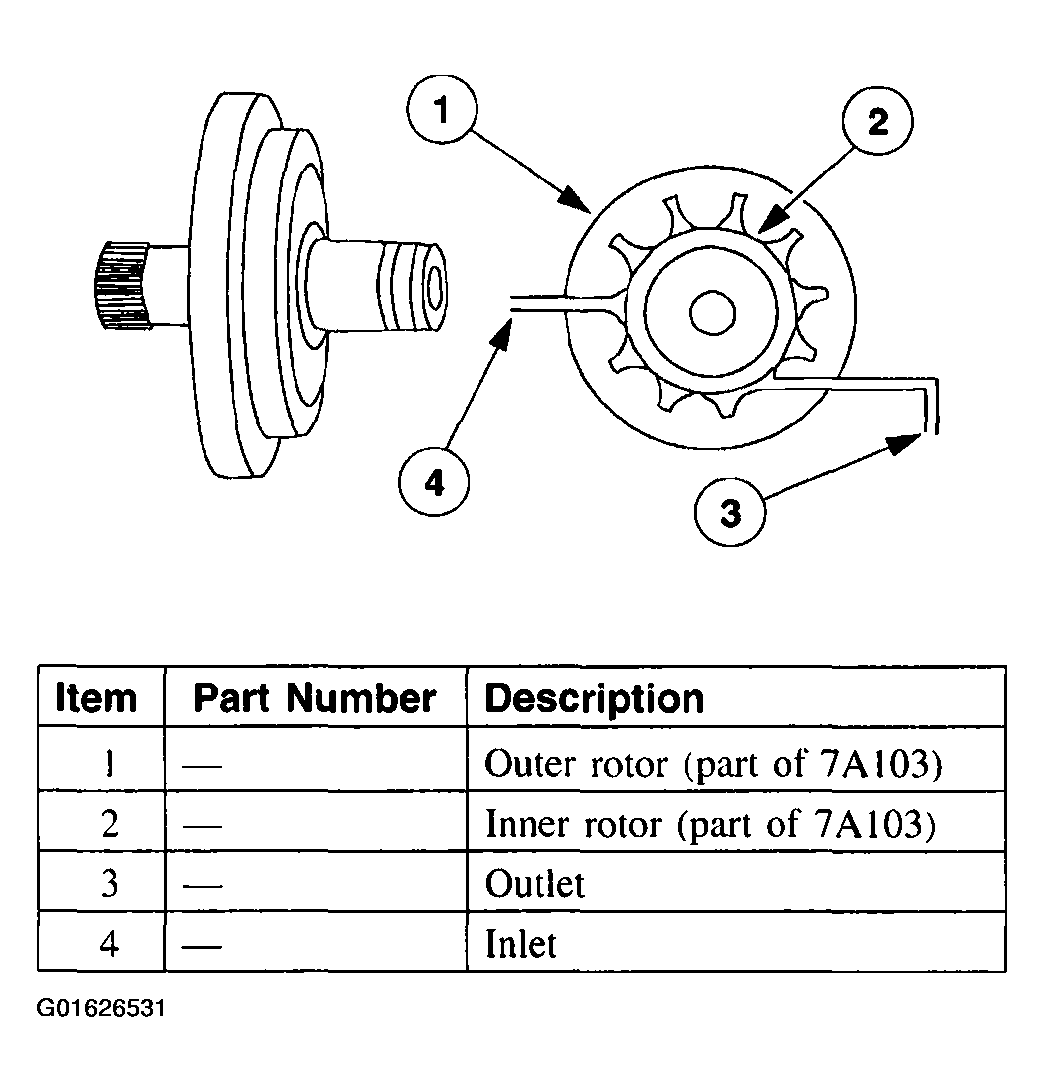

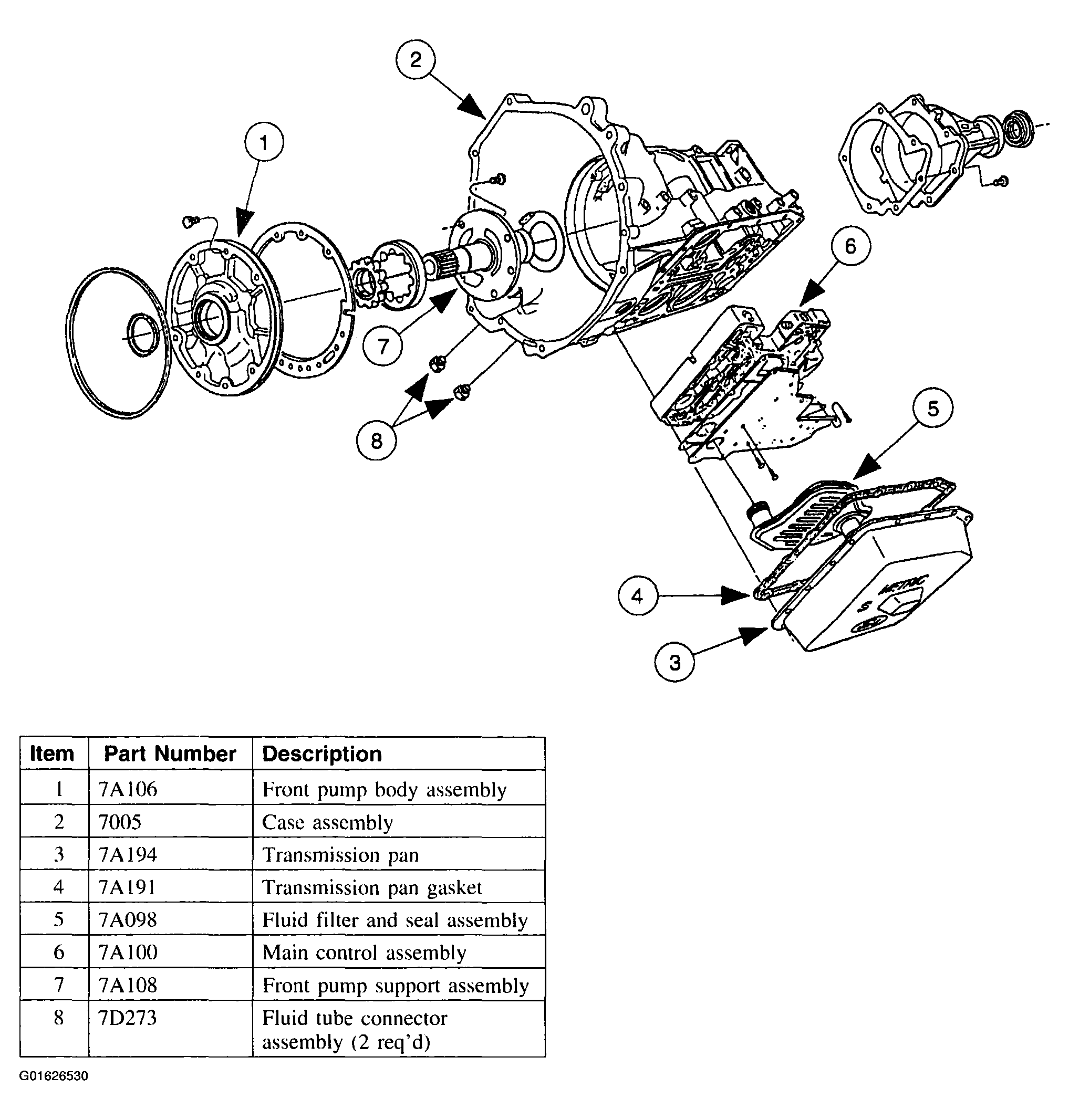

The transmission uses a gerotor-type design front pump support and gear. The pump provides the volume of fluid needed to charge the torque converter, main control assembly, cooling system and lube system. Pump pressure is regulated by the main regulator valve. The pump has an internal boost circuit which is more efficient at lower engine speeds.
