Torque Converter End Play Check

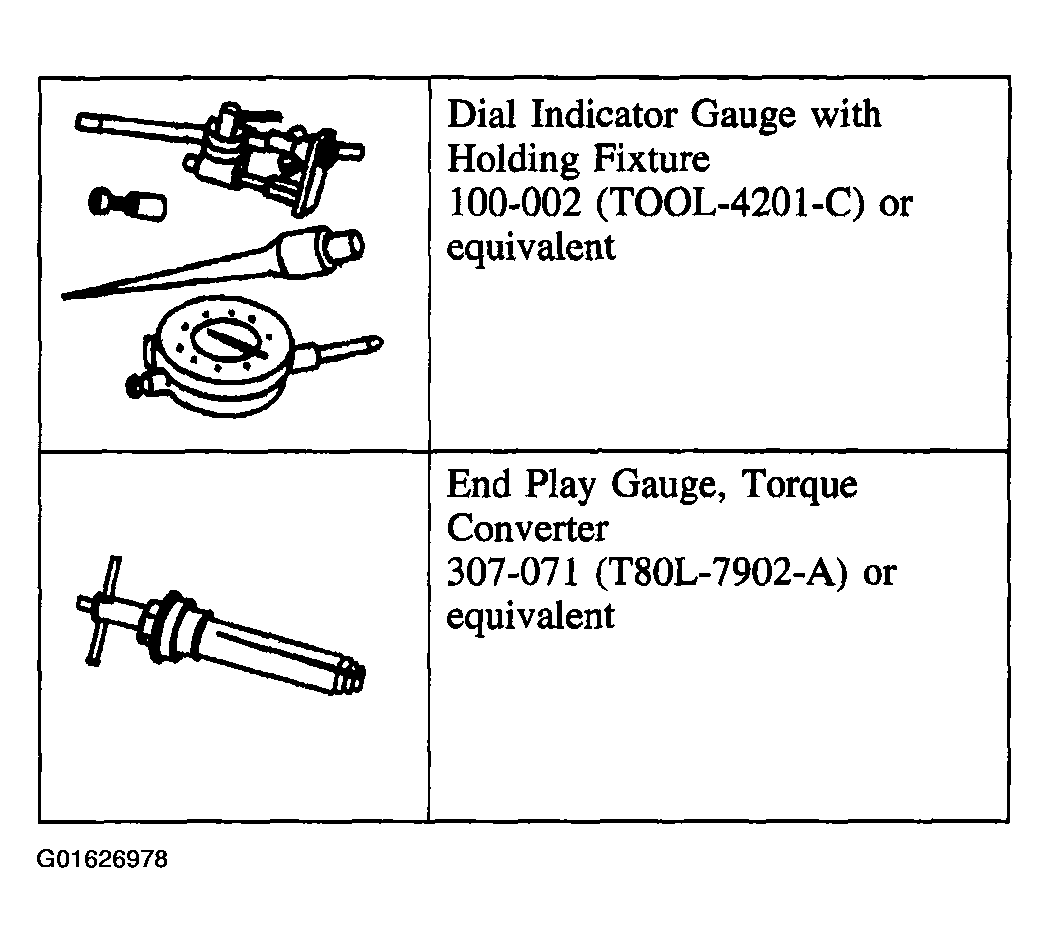

Fig 1: Identifying Special Tools
G01626978Courtesy of FORD MOTOR CO.
  1. Install the special tool into the torque converter pump drive.
    • Tighten the inner post until the tool is securely locked.

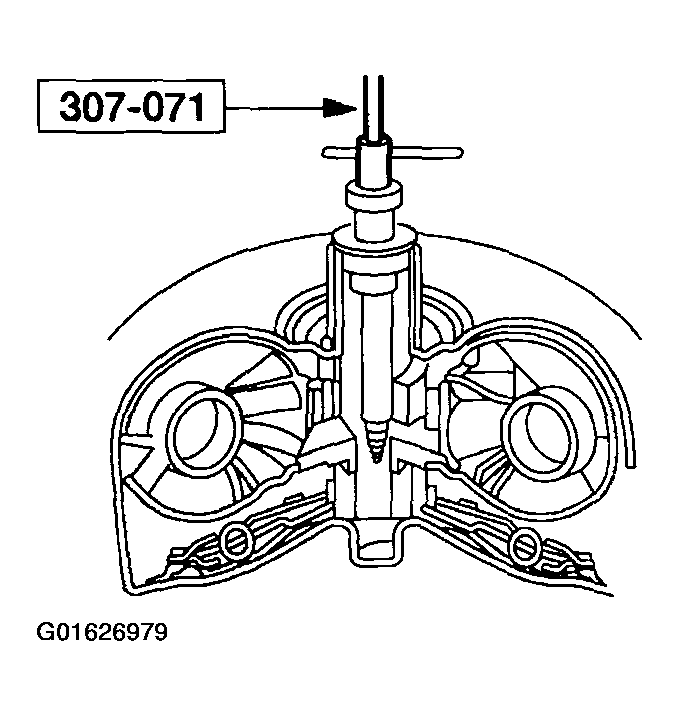

      Fig 2: Installing Torque Converter Pump Drive
      G01626979Courtesy of FORD MOTOR CO.
  2. Install the special tool on the converter pump drive hub and zero the dial indicator.

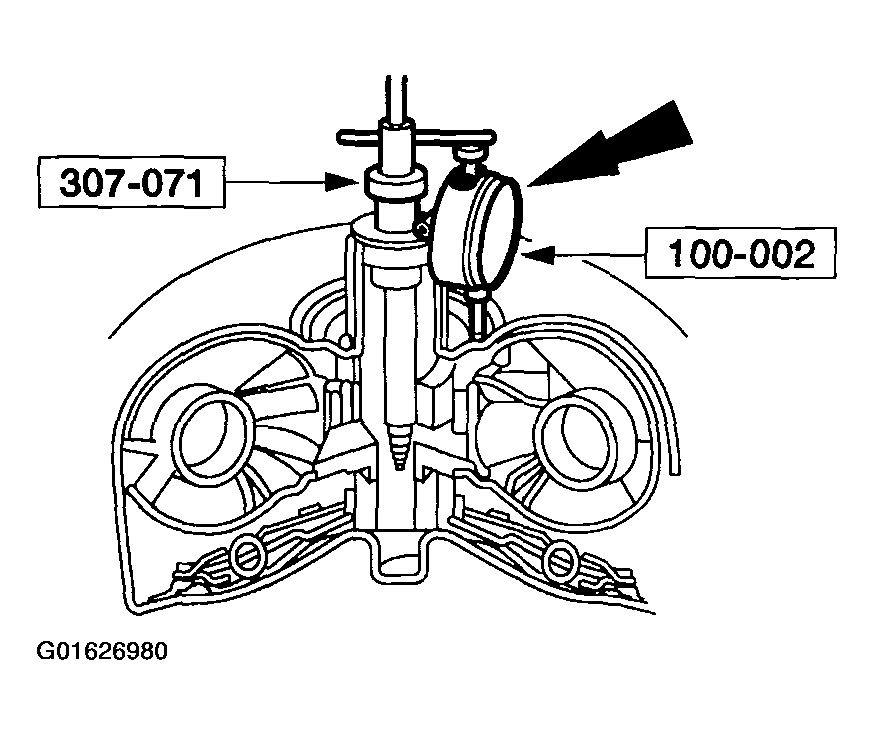

    Fig 3: Installing Converter Pump Drive Hub And Zero Dial Indicator
    G01626980Courtesy of FORD MOTOR CO.
  3. Lift up on the special tool and note the dial indicator reading.
    • If the reading exceeds end play limits, install a new or remanufactured torque converter.

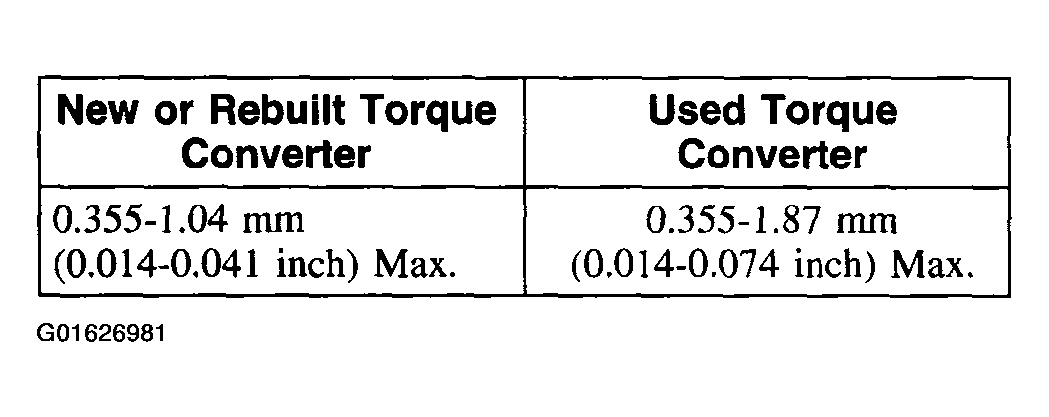

      • Fig 4: Torque Converter End Play Chart
      G01626981Courtesy of FORD MOTOR CO.

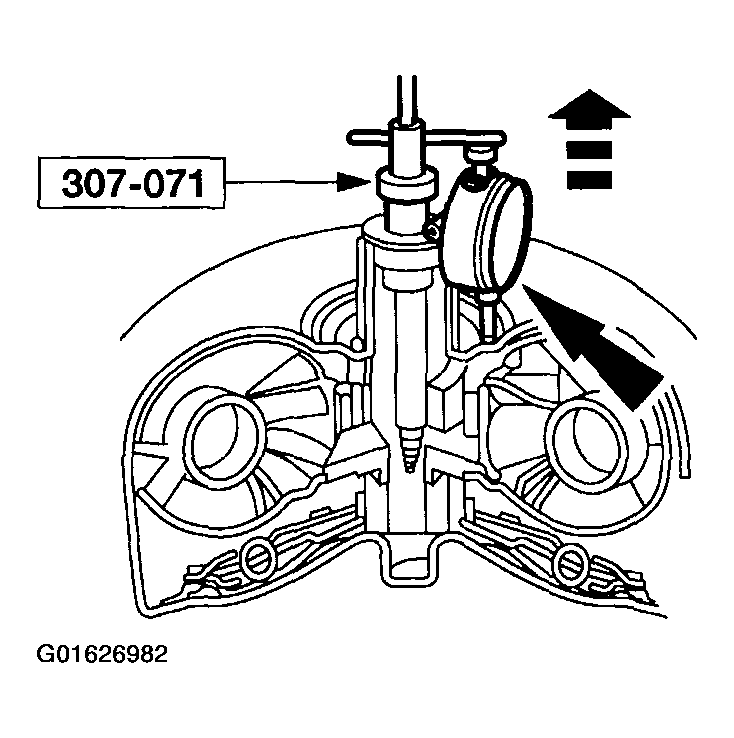

      Fig 5: Identifying Special Tool And Dial Indicator
      G01626982Courtesy of FORD MOTOR CO.
  4. Remove the special tools.
