Torque Converter Flushing

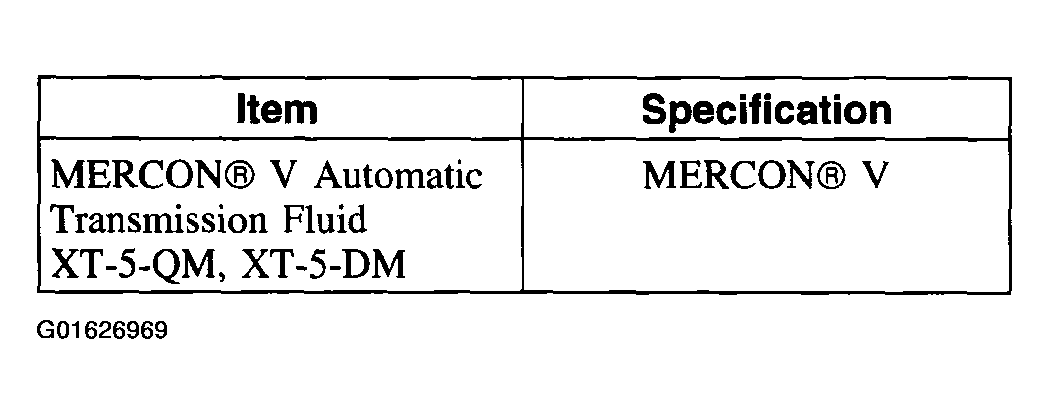

Fig 1: Identifying Material Specification
G01626969Courtesy of FORD MOTOR CO.
NOTE: When the transmission has been repaired for internal damage the torque converter must be cleaned using a mechanically agitated cleaner.
  1. Using a suitable torque converter/fluid cooler cleaner, clean and flush the torque converter.
  2. After flushing, drain the remainder of the solvent.
  3. Add 1.9 liter (2 qt.) of clean transmission fluid to the converter and agitate by hand.
  4. Thoroughly drain the solution.
