Digital Transmission Range (Tr) Sensor: Installation

Install the digital TR sensor and loosely install the bolts.

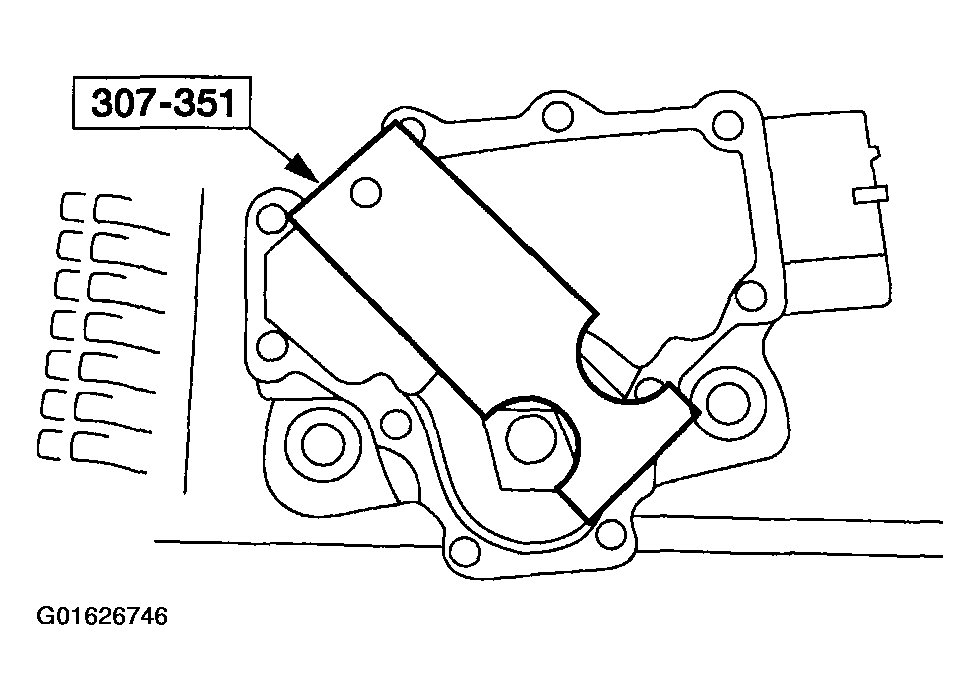

Fig 1: Installing Bolts
Courtesy of FORD MOTOR CO.

NOTE: The tool is designed to fit snugly.

NOTE: Manual shift lever shaft must be in the neutral position.

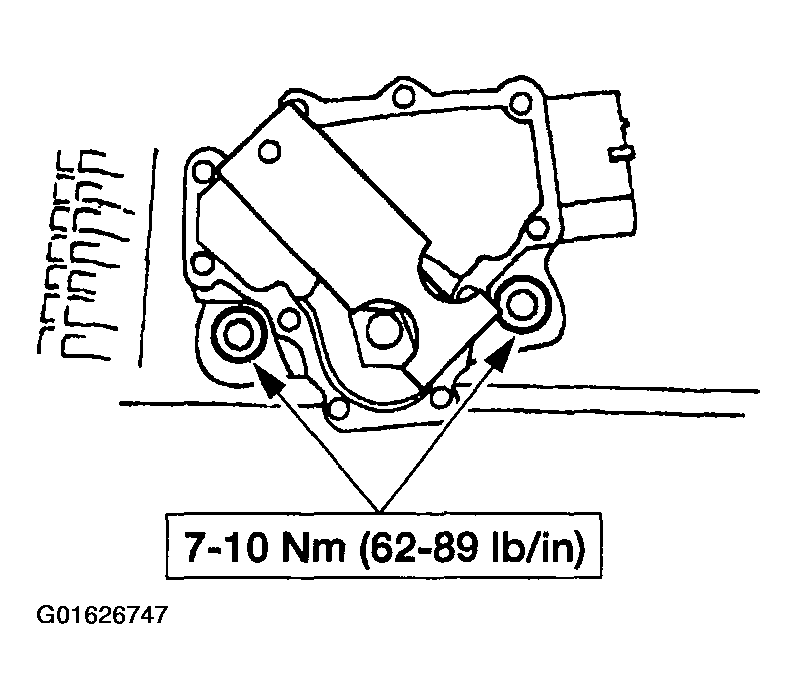

Fig 2: Aligning Digital TR Sensor Slots

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor slots.
Tighten the bolts.

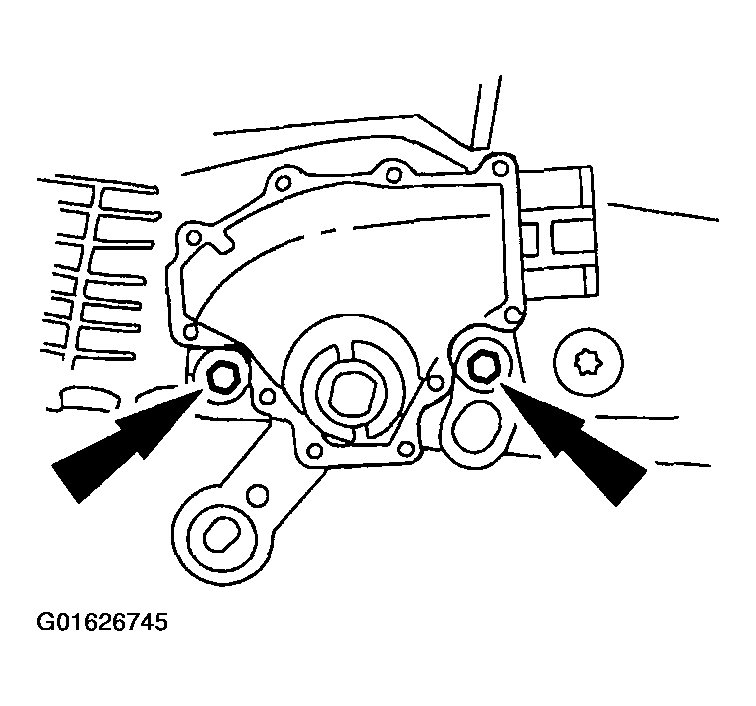

Fig 3: Tightening Bolts
Courtesy of FORD MOTOR CO.
With the manual lever in overdrive connect the shift lever control cable.

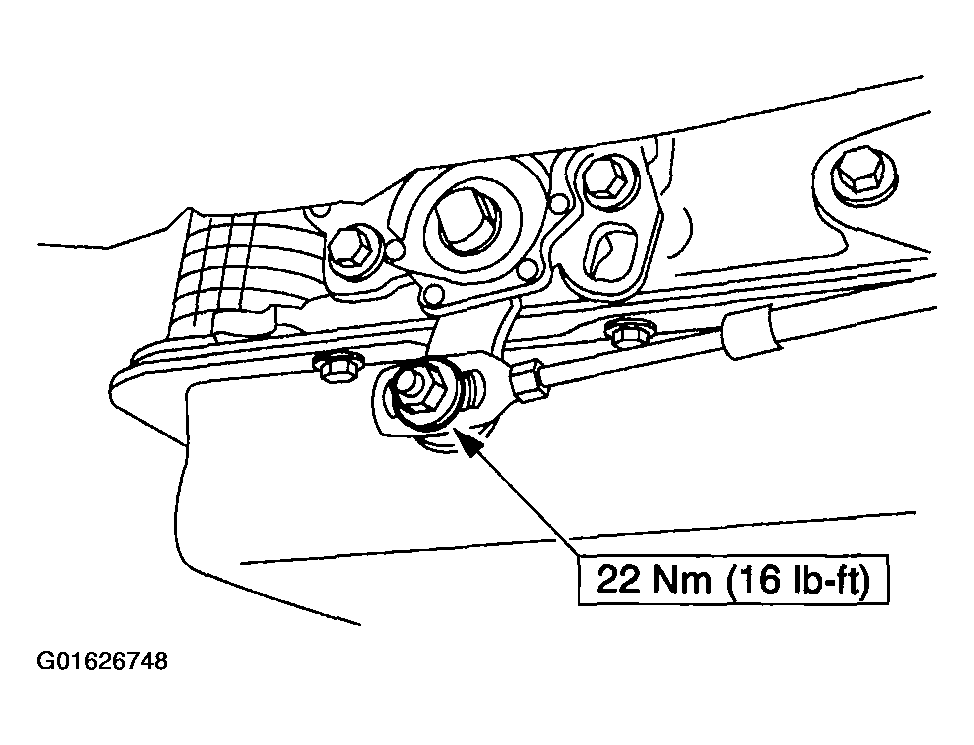

Fig 4: Connecting Shift Lever Control Cable
Courtesy of FORD MOTOR CO.
Install the digital TR sensor electrical connector.

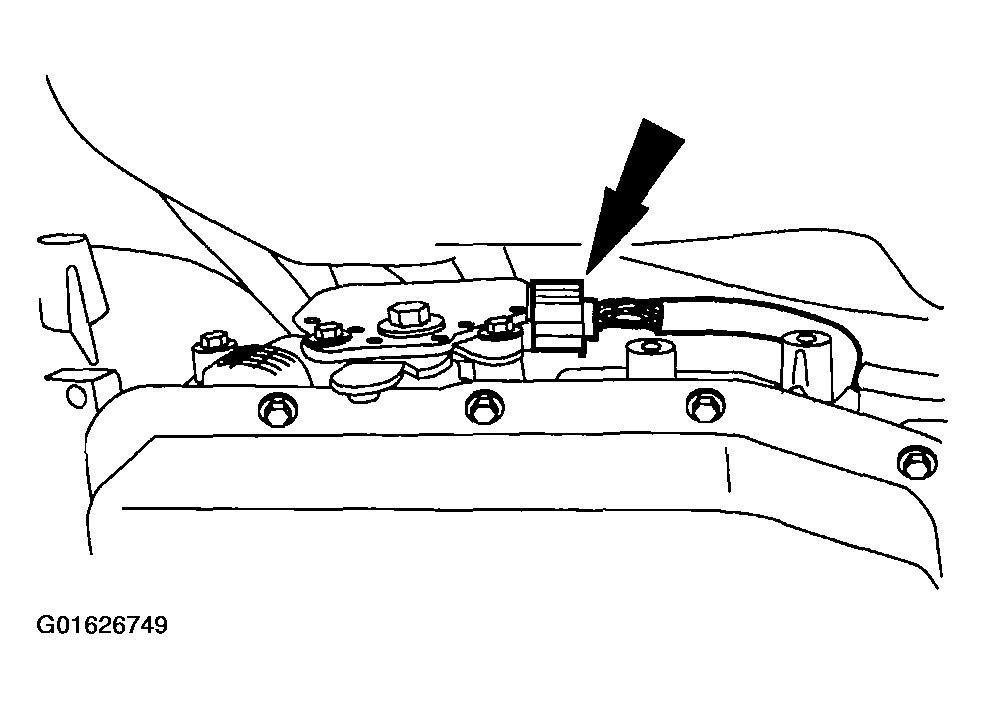

Fig 5: Installing Digital TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Lower the vehicle.

NOTE: When the battery is disconnected and reconnected, some abnormal driving symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.

Connect the battery ground cable.
