Sensor Resistance Readings

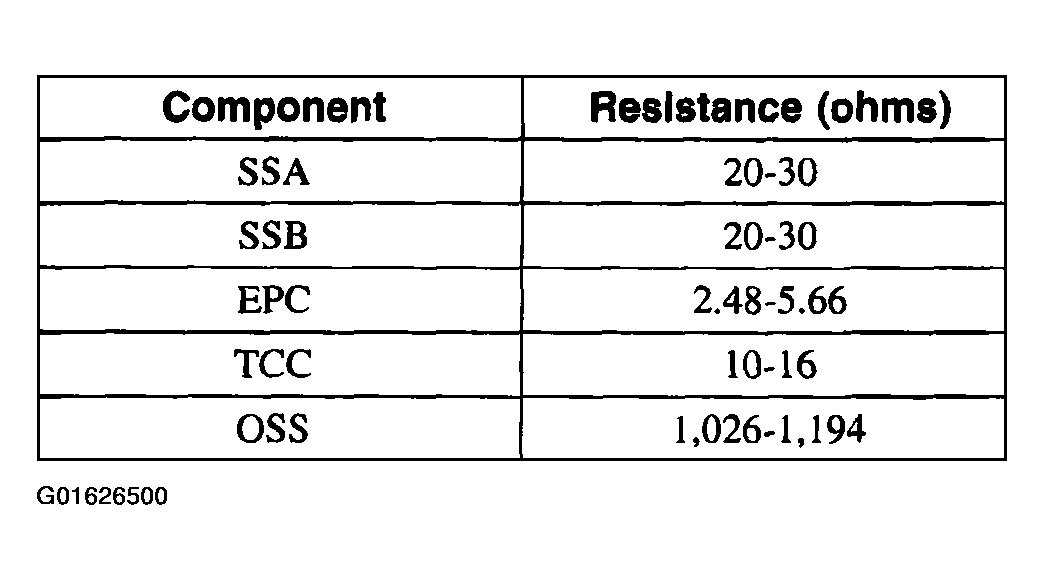

Fig 1: Identifying Sensor Resistance Readings Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
