Torque Specifications

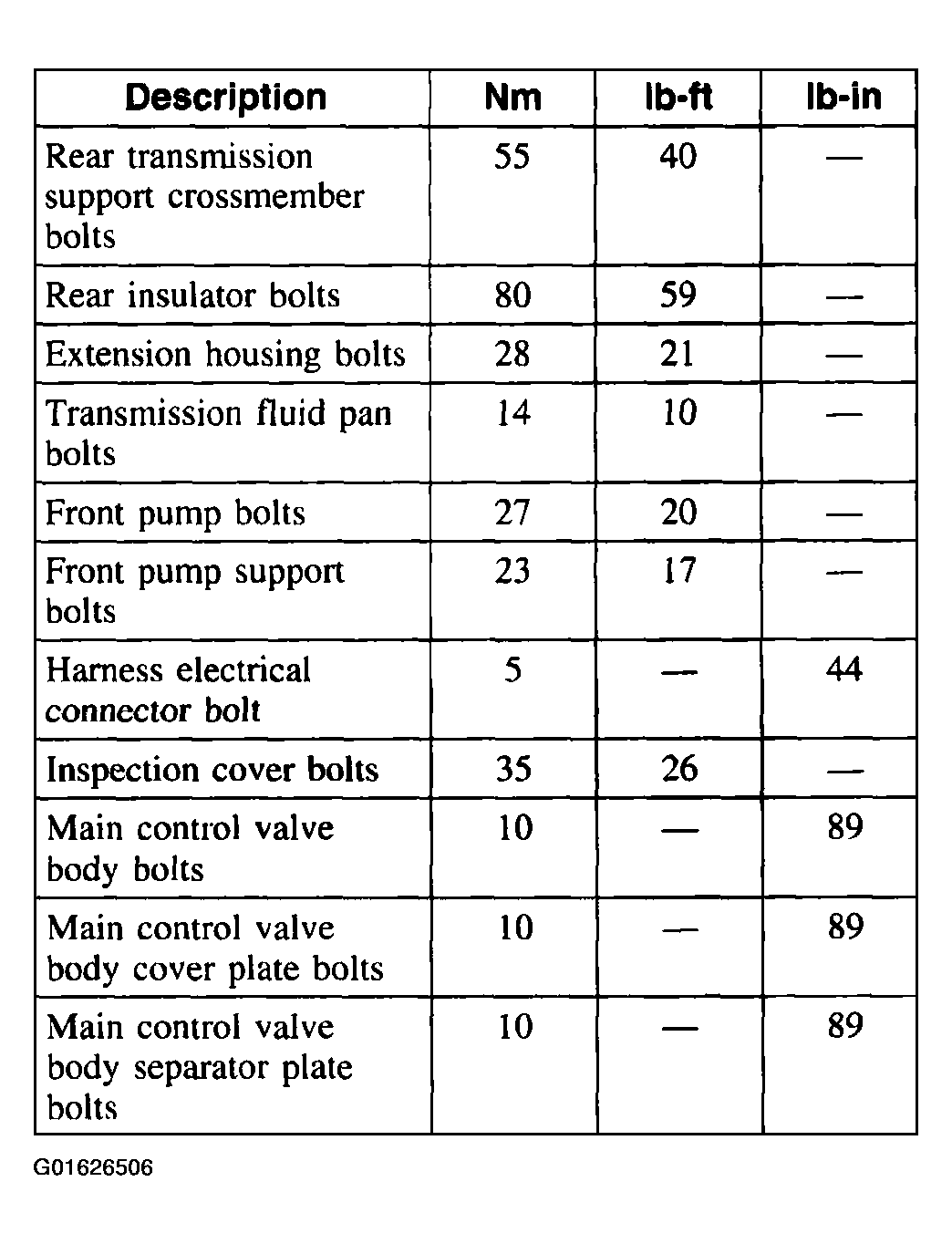

Fig 1: Torque Specifications Table (1 Of 2)
G01626506Courtesy of FORD MOTOR CO.

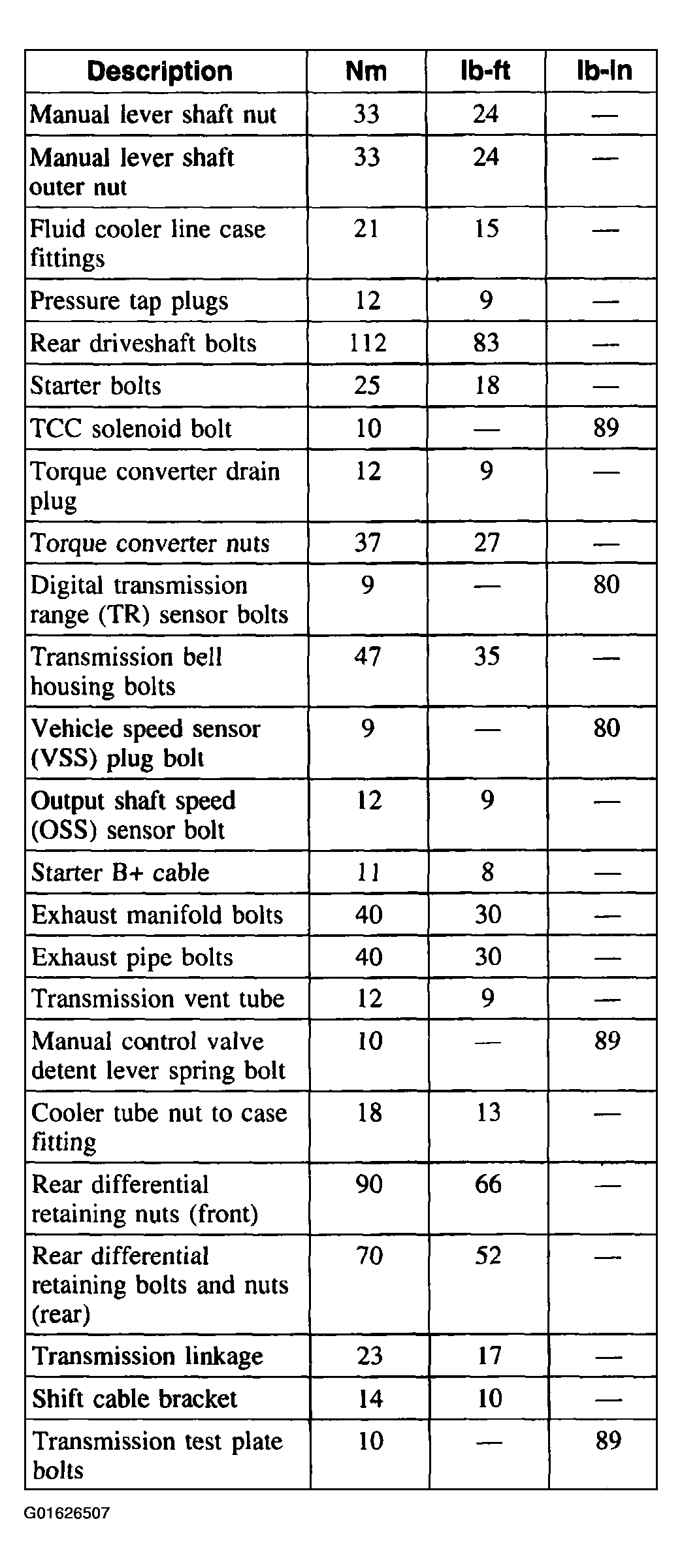

Fig 2: Torque Specifications Table (2 Of 2)
G01626507Courtesy of FORD MOTOR CO.
