Cable Adjustment

    NOTE: Make sure that the range selector lever is tight against the rearward overdrive stop
  1. Place the transmission range selector lever is the overdrive position.
  2. Raise and support the vehicle.
  3. Loosen the manual control lever nut.

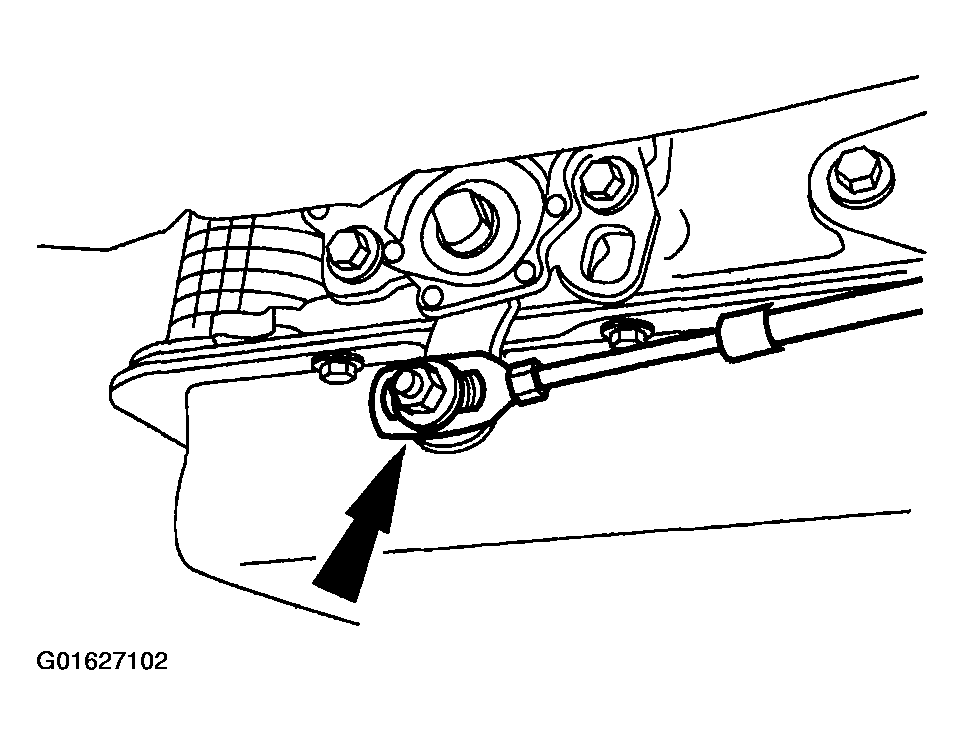

    Fig 1: Loosening Manual Control Lever Nut
    G01627102Courtesy of FORD MOTOR CO.
  4. Place the transmission manual control lever in the overdrive position.
  5. Tighten the nut on the manual control lever.
    Fig 2: Tightening Nut On Manual Control Lever
    G01627103Courtesy of FORD MOTOR CO.
