Torques Specifications

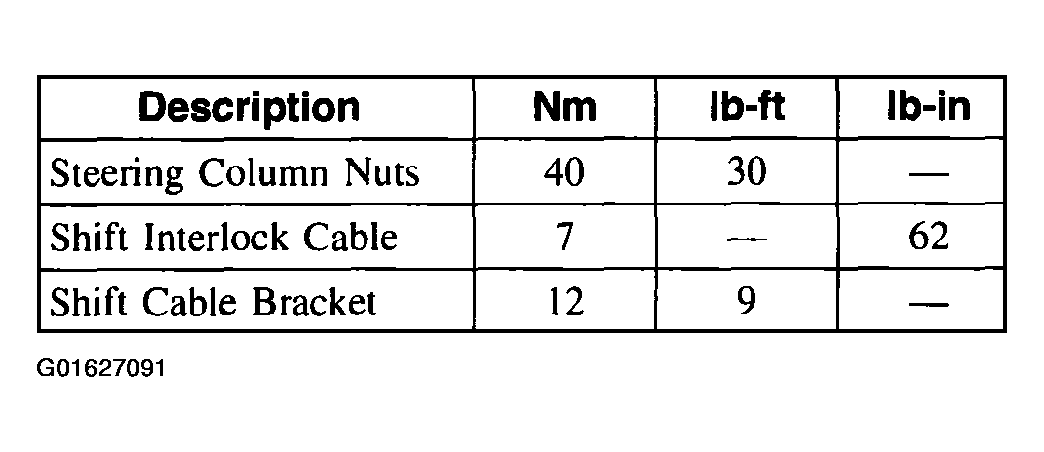

Fig 1: Identifying Torques Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
