Sensor - Rear: Removal

  1. Remove the rear passenger seat.
  2. Disconnect the rear anti-lock brake sensor electrical connector.

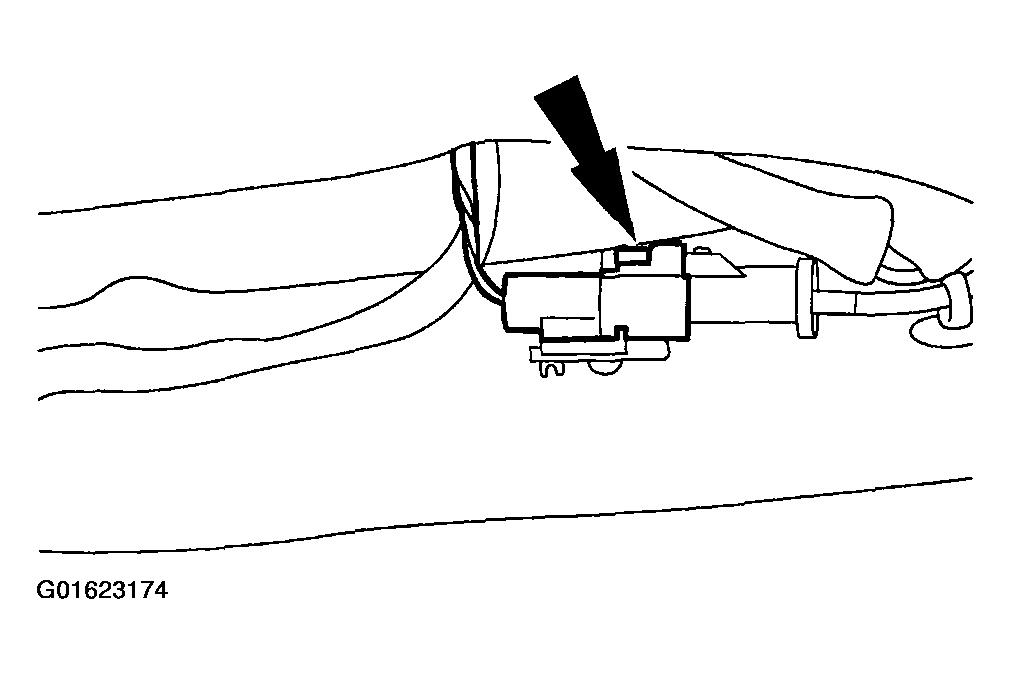

    Fig 1: Disconnecting Rear Anti-Lock Brake Sensor Electrical Connector
    G01623174Courtesy of FORD MOTOR CO.
  3. Raise and support the vehicle.
  4. Remove the rear anti-lock brake sensor harness from the floor pan.

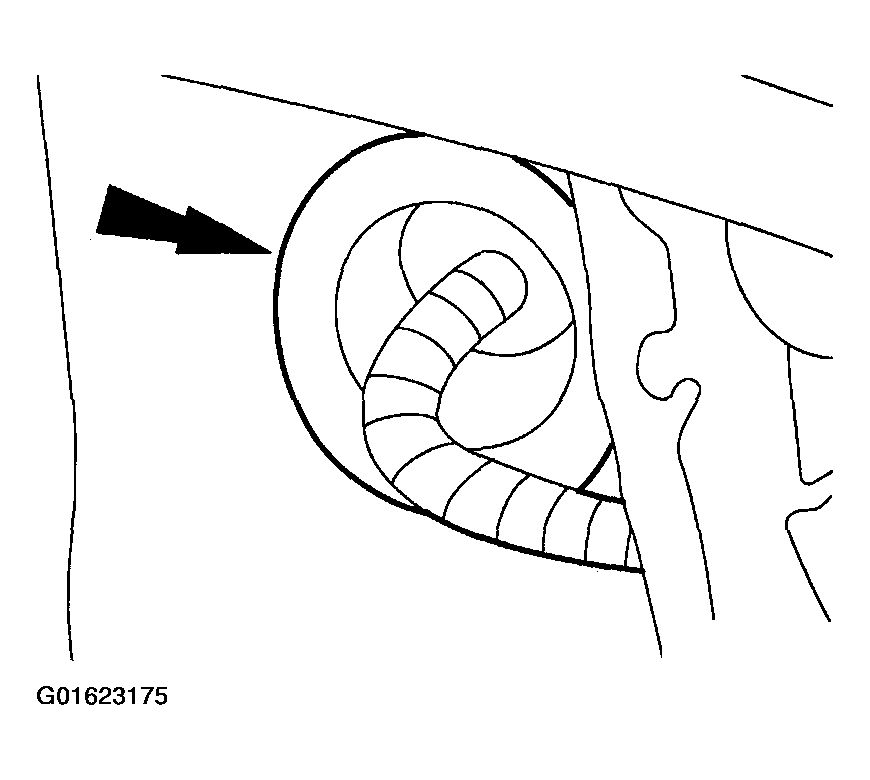

    Fig 2: Removing Rear Anti-Lock Brake Sensor Harness From Floor Pan
    G01623175Courtesy of FORD MOTOR CO.
  5. Remove the anti-lock brake sensor harness bracket bolt.

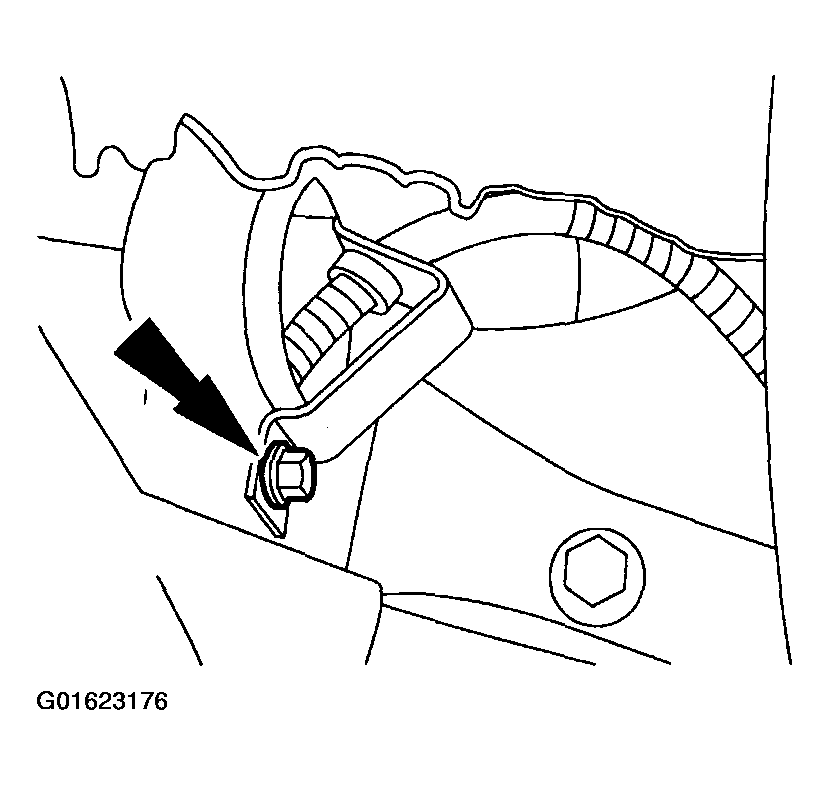

    Fig 3: Removing Anti-Lock Brake Sensor Harness Bracket Bolt
    G01623176Courtesy of FORD MOTOR CO.
    6. NOTE: The sensor may be seized to the axle. Use Rust Penetrant and Inhibitor
  6. F2AZ-19A501-A meeting Ford specification ESR-M99C56-A to loosen the sensor for removal.

    Remove the rear anti-lock brake sensor.

    1. Remove the rear anti-lock brake sensor bolt.
    2. Remove the rear anti-lock brake sensor.

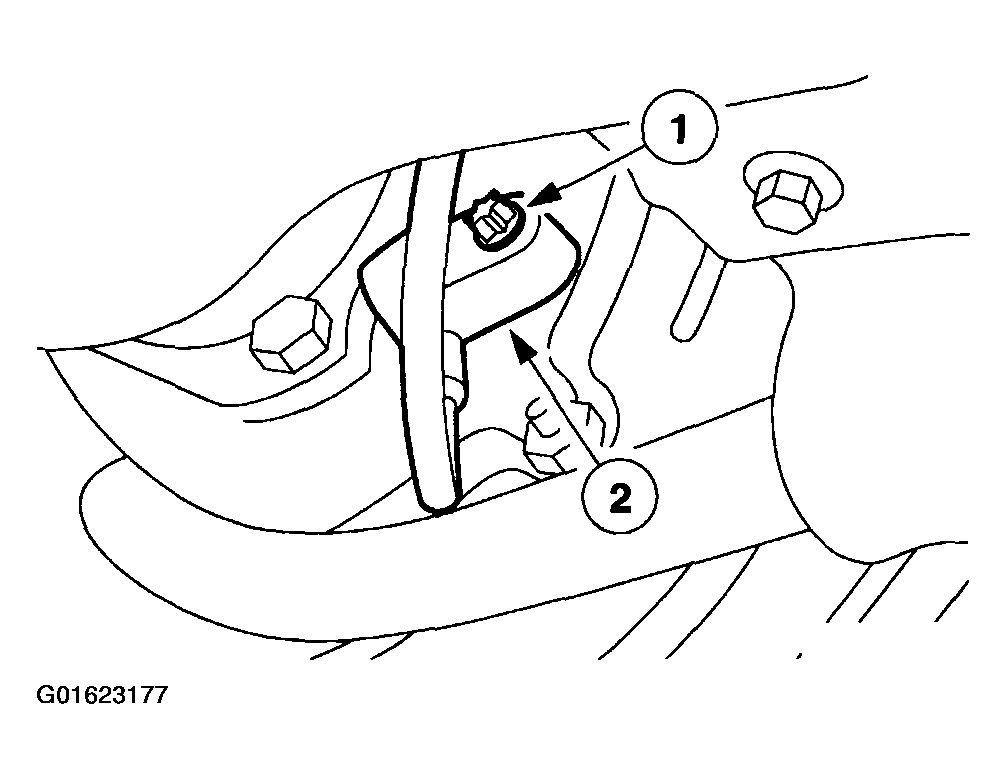

      Fig 4: Removing Rear Anti-Lock Brake Sensor
      G01623177Courtesy of FORD MOTOR CO.
