Removal and Installation

NOTE: If the vehicle is equipped with an automatic transmission, position the shift lever in the 1 position before detaching the floor console finish panel.

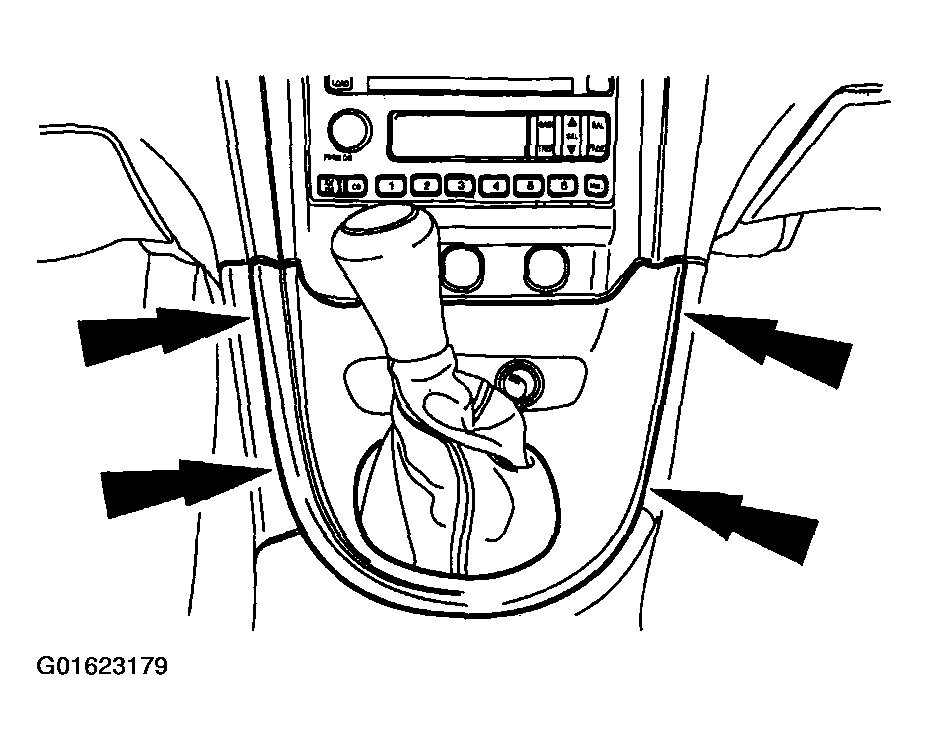

Fig 1: Detaching Floor Console Finish Panel

Courtesy of FORD MOTOR CO.

Lifting from both sides, detach the floor console finish panel.
Disconnect the electrical connector and position the finish panel out of the way.

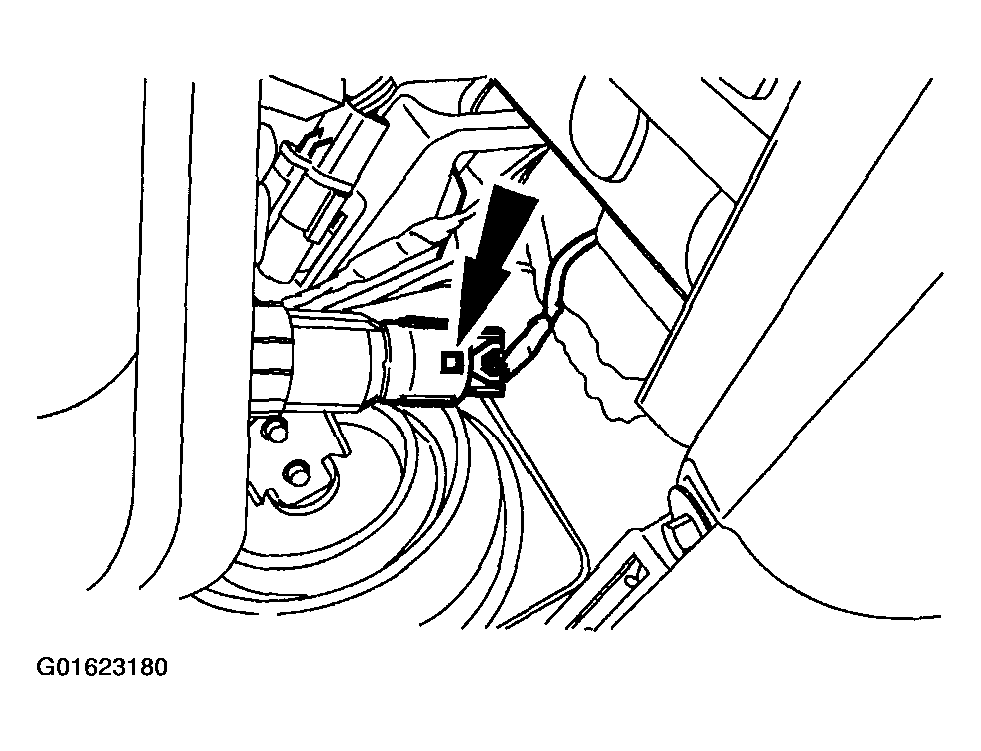

Fig 2: Disconnecting Electrical Connector And Position Finish Panel Out Of Way
Courtesy of FORD MOTOR CO.
Reaching behind the center finish panel, push and detach the switch from the finish panel.

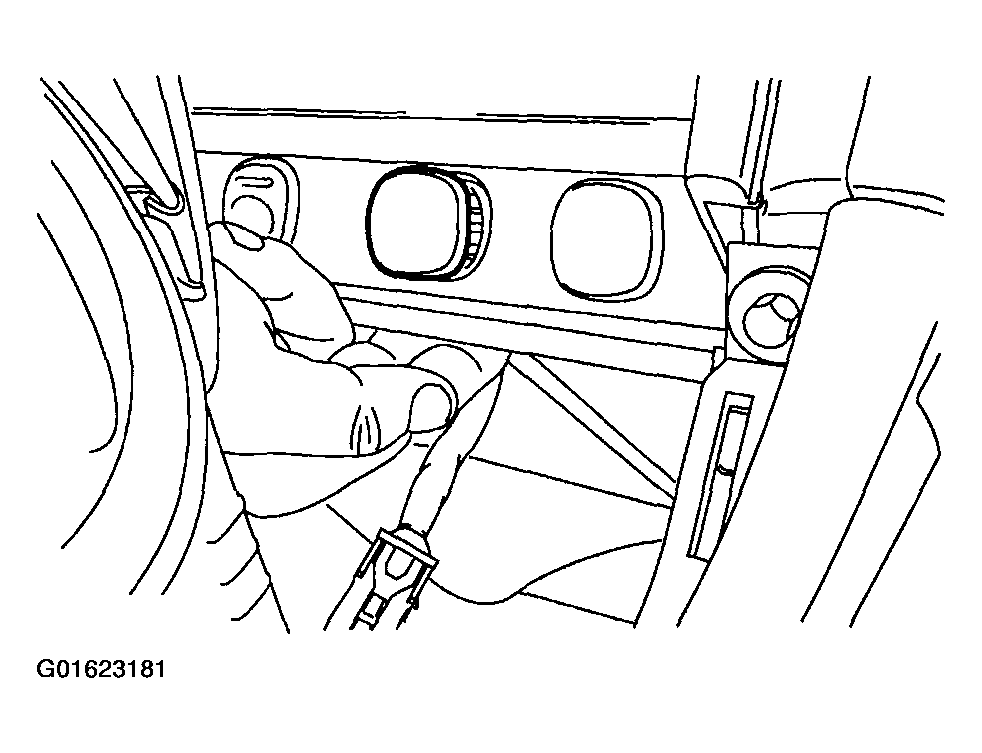

Fig 3: Detaching Switch From Finish Panel
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector and remove the switch.

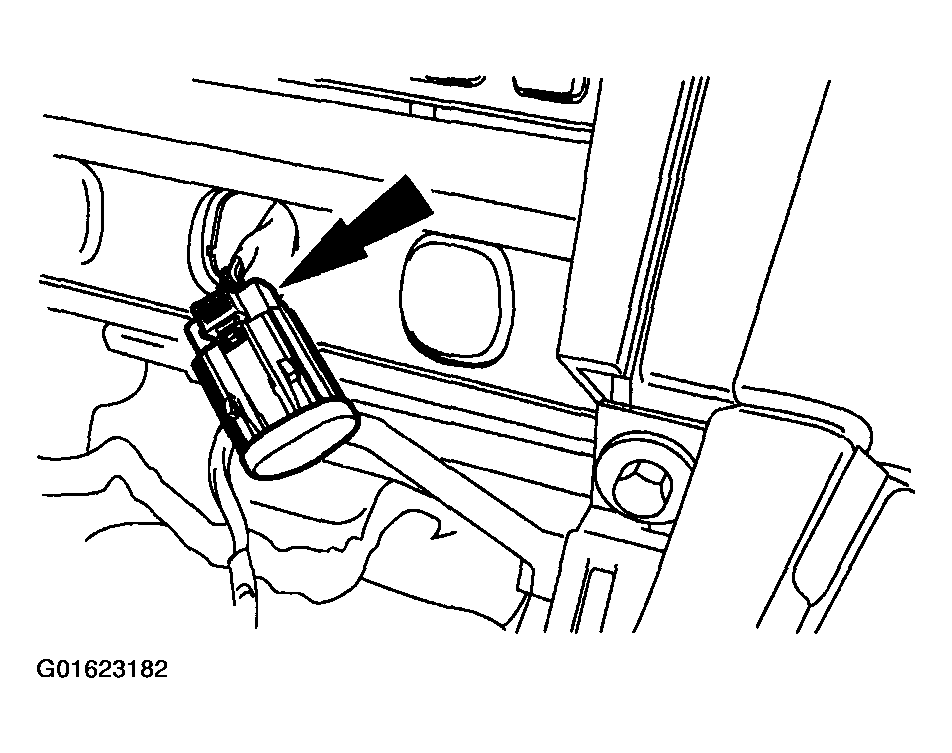

Fig 4: Disconnecting Electrical Connector And Removing Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
