Removal And Installation: Gear: Installation

To install, reverse the removal procedure.

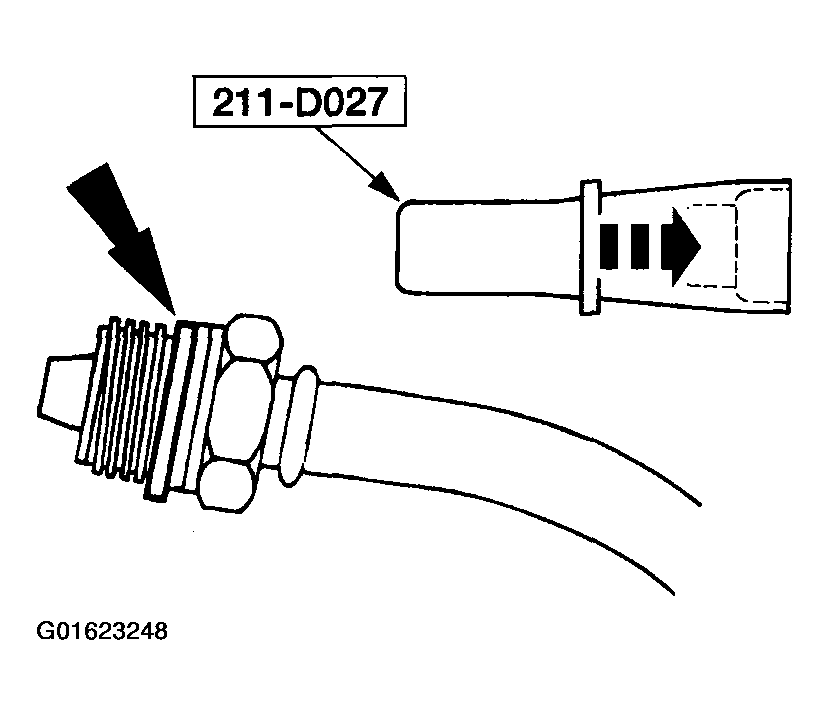

- Using the special tool, install a new seal ring.

  Fig 1: Installing New Seal Ring
  Courtesy of FORD MOTOR CO.
- Install a new pinch bolt.

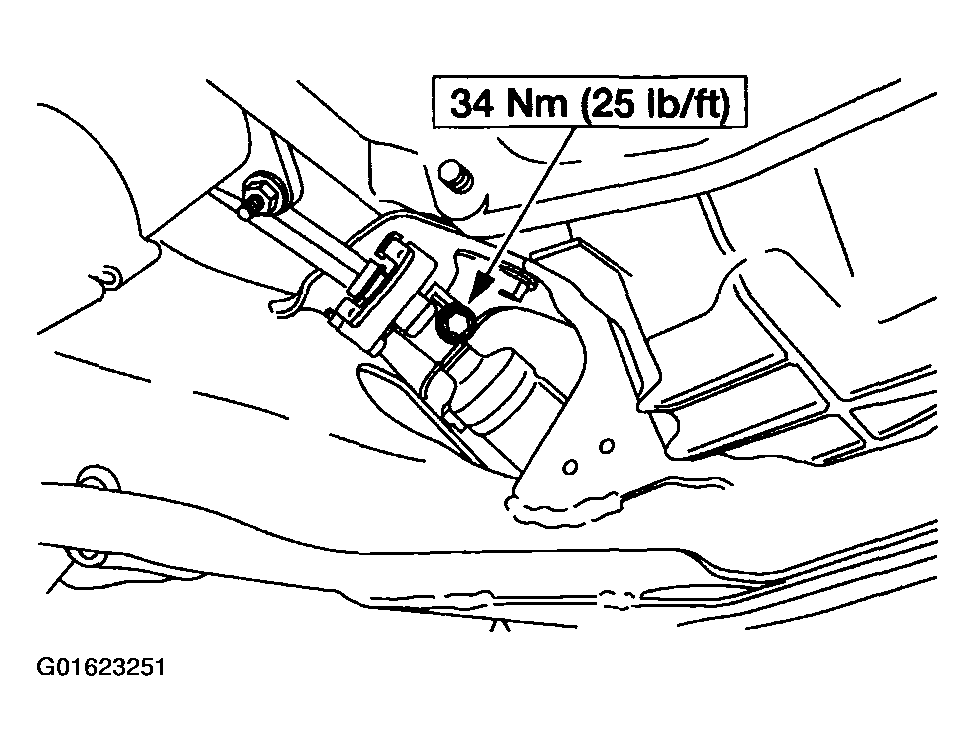

  Fig 2: Installing New Pinch Bolt
  Courtesy of FORD MOTOR CO.

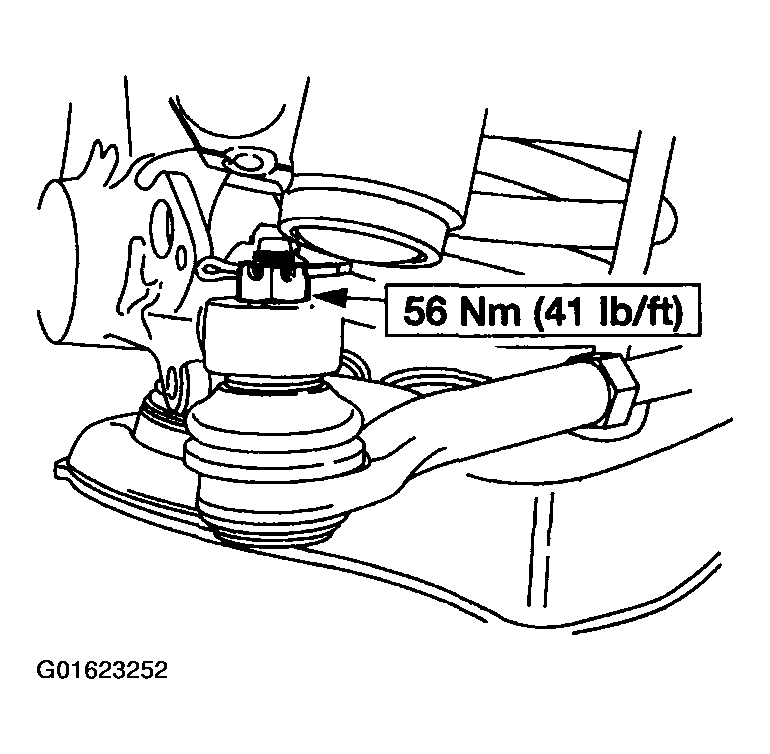

  Fig 3: Torque Specification Of Bolt (1 Of 3)
  Courtesy of FORD MOTOR CO.

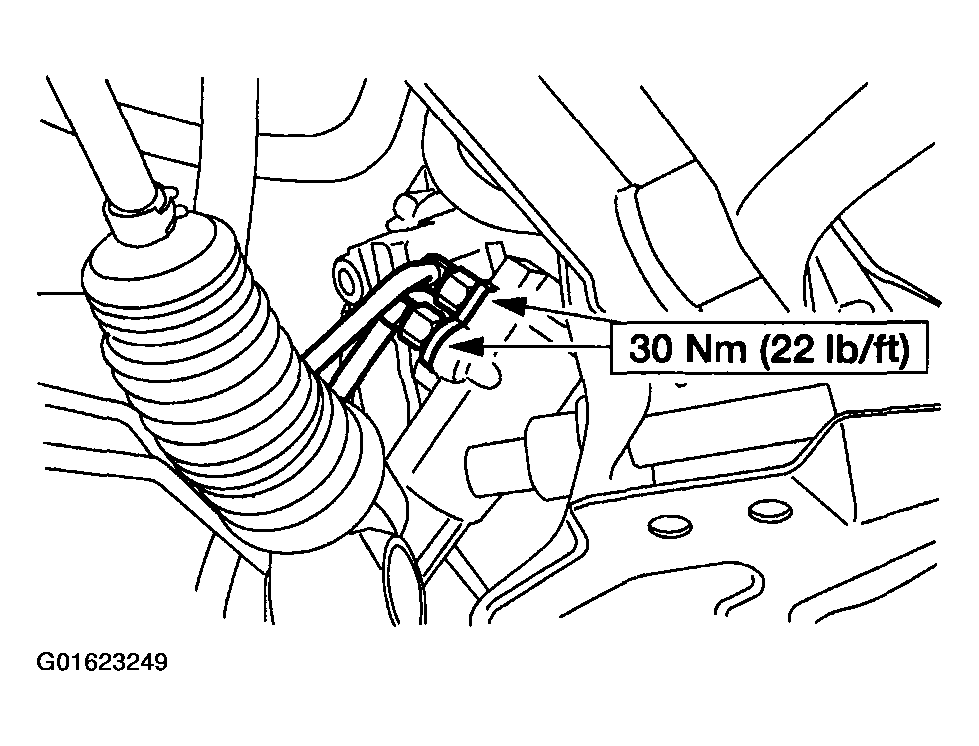

  Fig 4: Torque Specification Of Bolt (2 Of 3)
  Courtesy of FORD MOTOR CO.

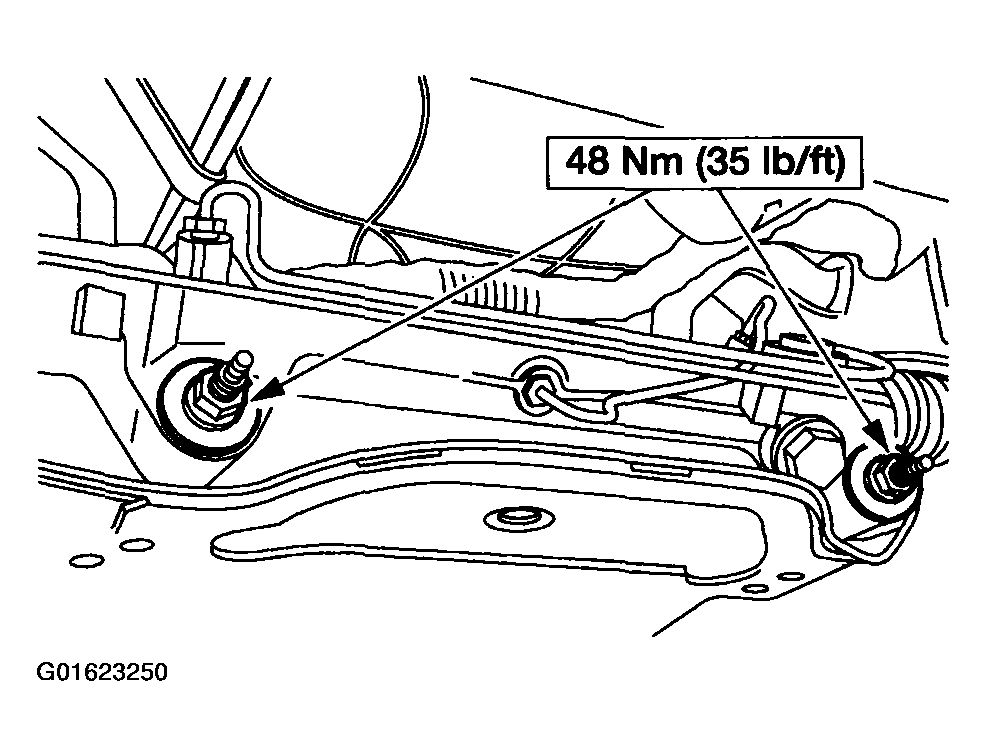

  Fig 5: Torque Specification Of Bolt (3 Of 3)
  Courtesy of FORD MOTOR CO.
Fill and leak check the power steering system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
