Inspection and Verification
- Verify the customer's concern by operating the acceleration control system to duplicate the condition.

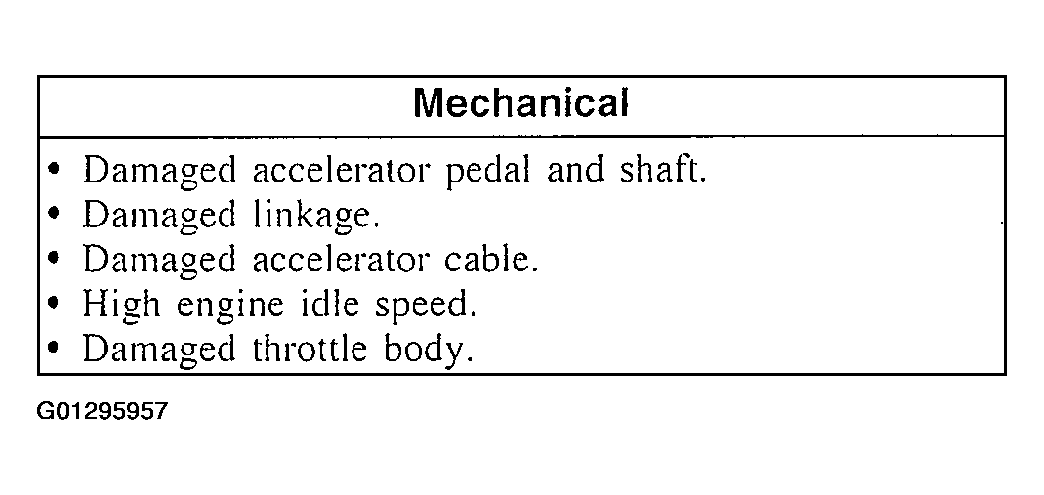

- Inspect to determine if any of the following mechanical concerns apply.
- Components such as wiring, hoses, sound insulation or carpet must not contact the sliding member of the accelerator cable or the accelerator pedal and shaft.
- The throttle assembly is not adjustable.
Courtesy of FORD MOTOR CO.
- If the inspection reveals an obvious concern that can be readily identified, repair it as required.
- If the concern remains after the inspection, determine the symptom(s) and go to Symptom Chart .
