Accelerator Cable Bracket - 3.0L

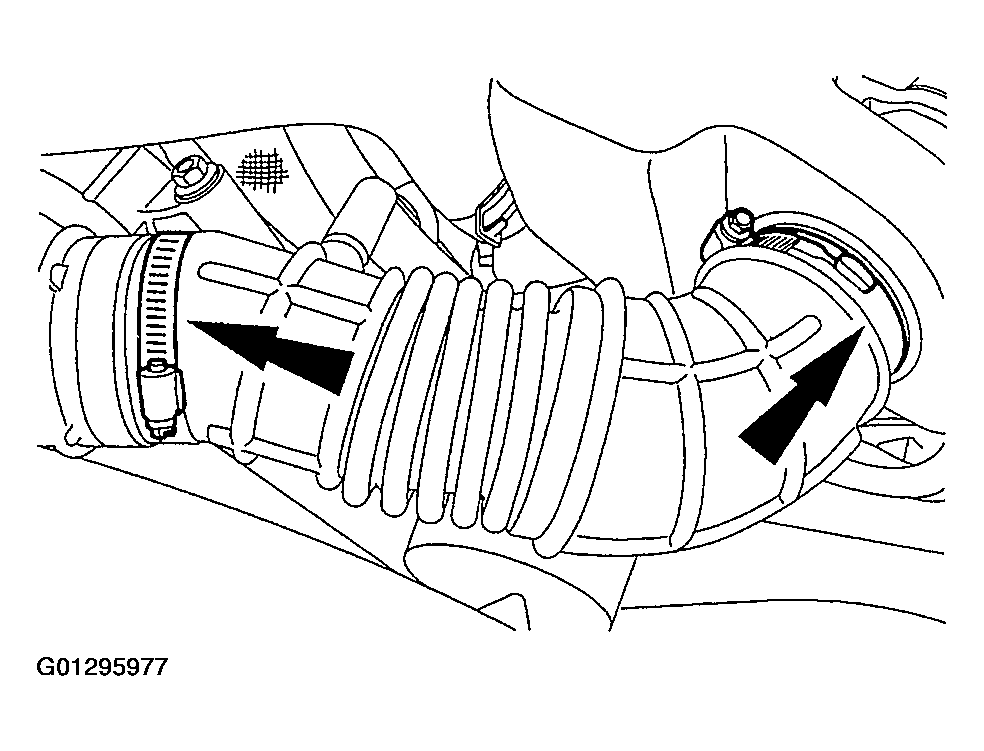

Remove the air cleaner outlet tube.

Fig 1: Removing Air Cleaner Outlet Tube
Courtesy of FORD MOTOR CO.

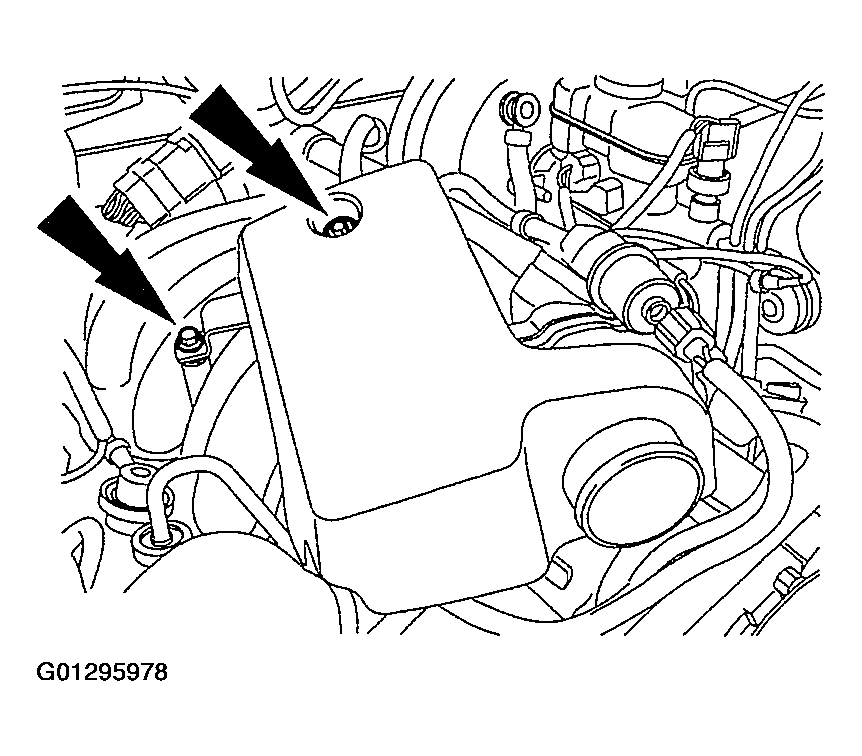

Remove the screws and the accelerator control splash shield (9E766).

Fig 2: Removing Accelerator Control Splash Shield
Courtesy of FORD MOTOR CO.

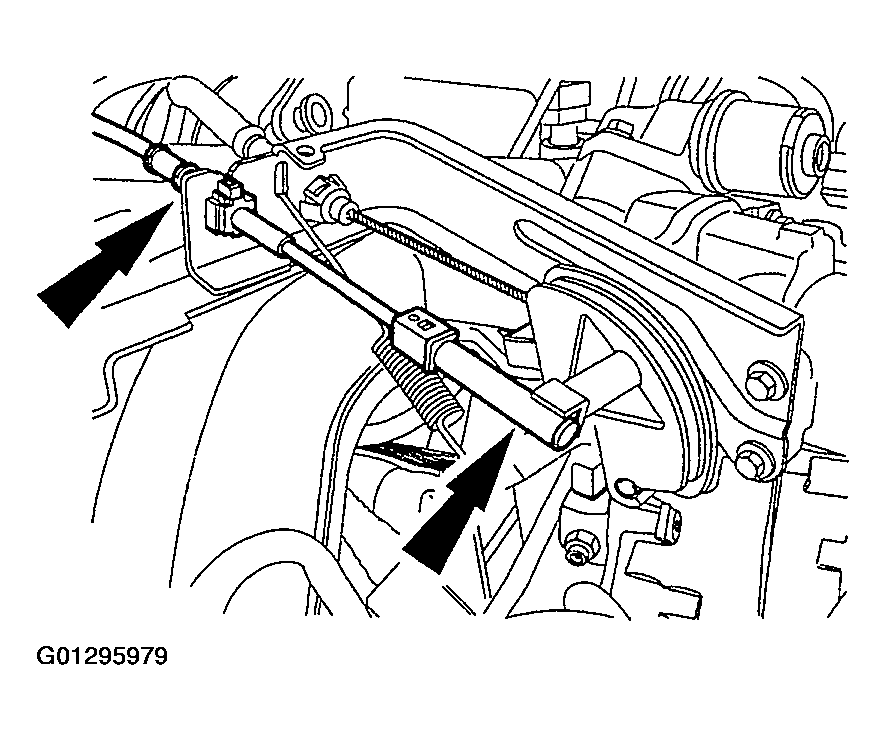

Disconnect the speed control cable, if equipped, from the throttle lever and the bracket.

Fig 3: Disconnecting Speed Control Cable
Courtesy of FORD MOTOR CO.

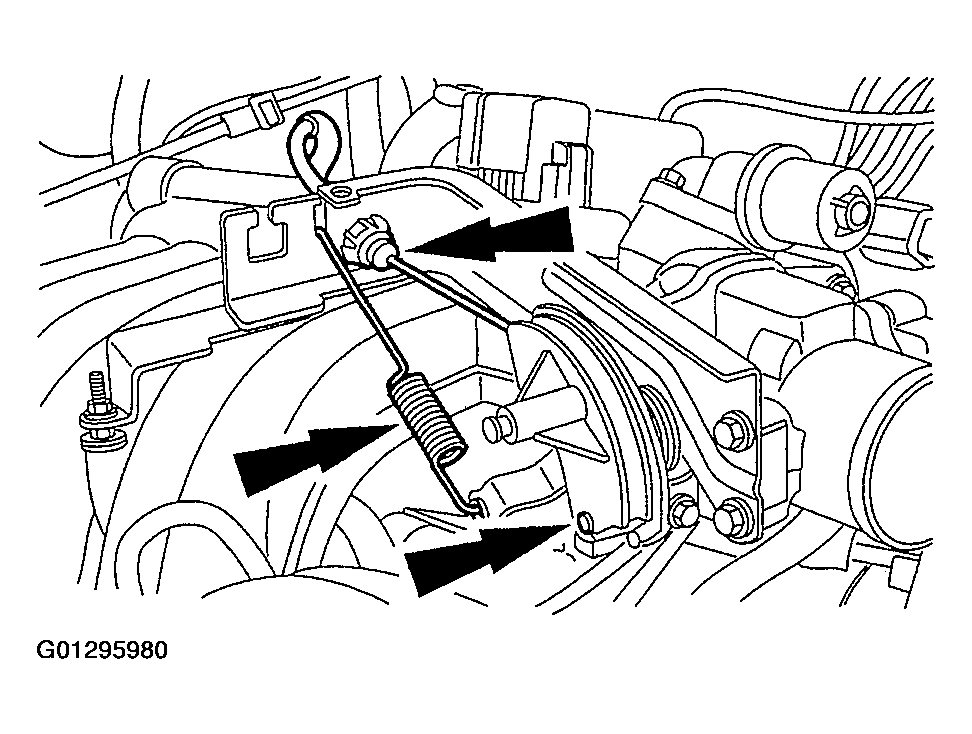

Remove the return spring. Disconnect the accelerator cable from the throttle lever and the bracket.

Fig 4: Disconnecting Accelerator Cable From Throttle Lever & Bracket
Courtesy of FORD MOTOR CO.

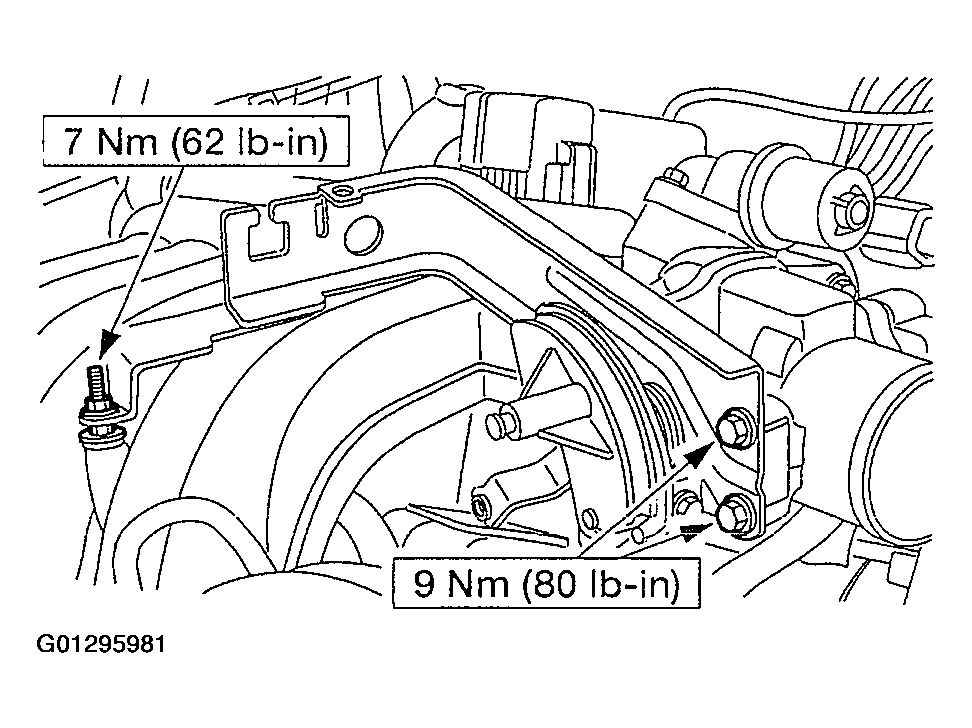

Remove the bolts, the nut and the bracket.

Fig 5: Removing Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
