Symptom Chart

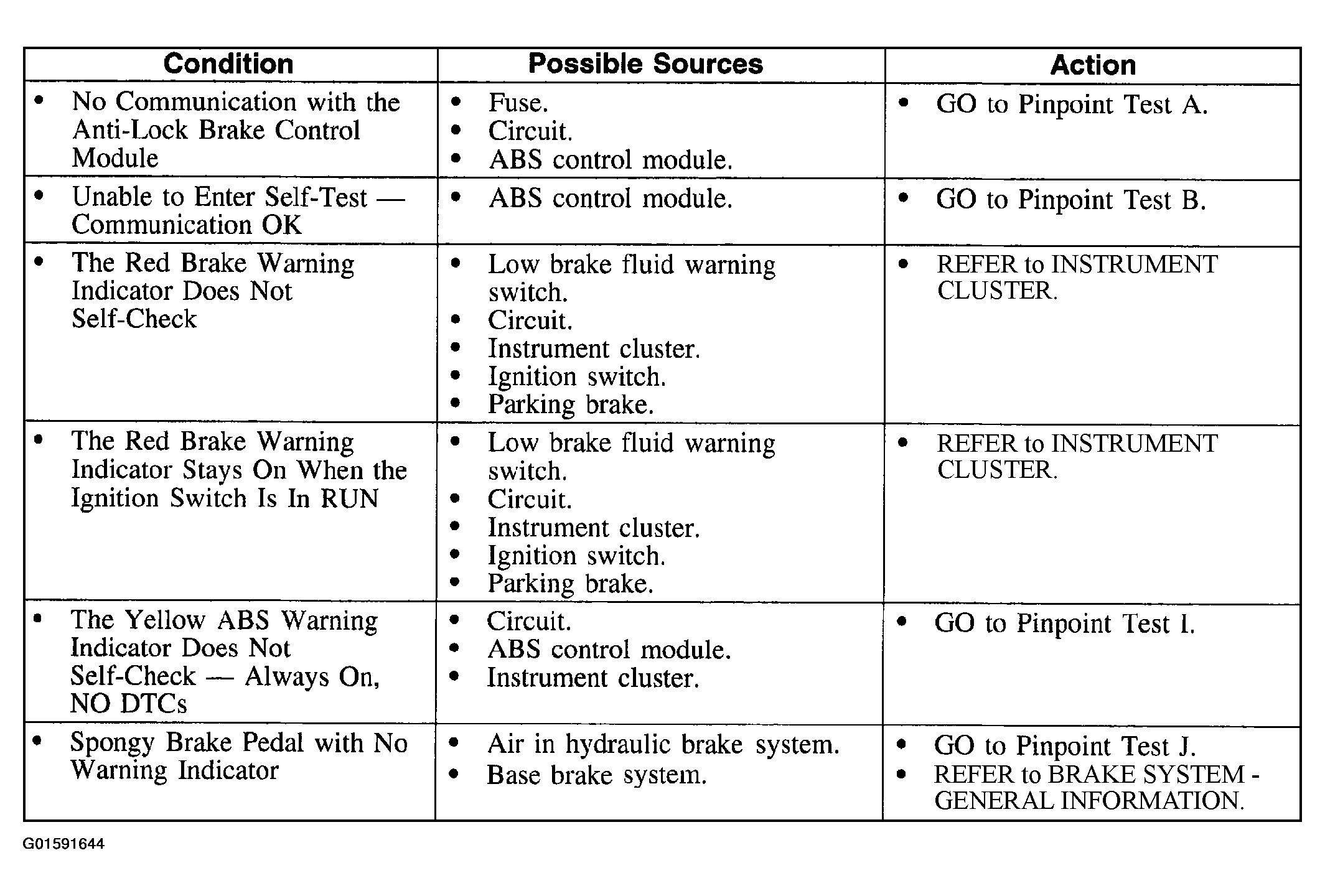

Fig 1: Anti-Lock Control Problem Symptoms Chart (1 Of 2)
G01591644Courtesy of FORD MOTOR CO.

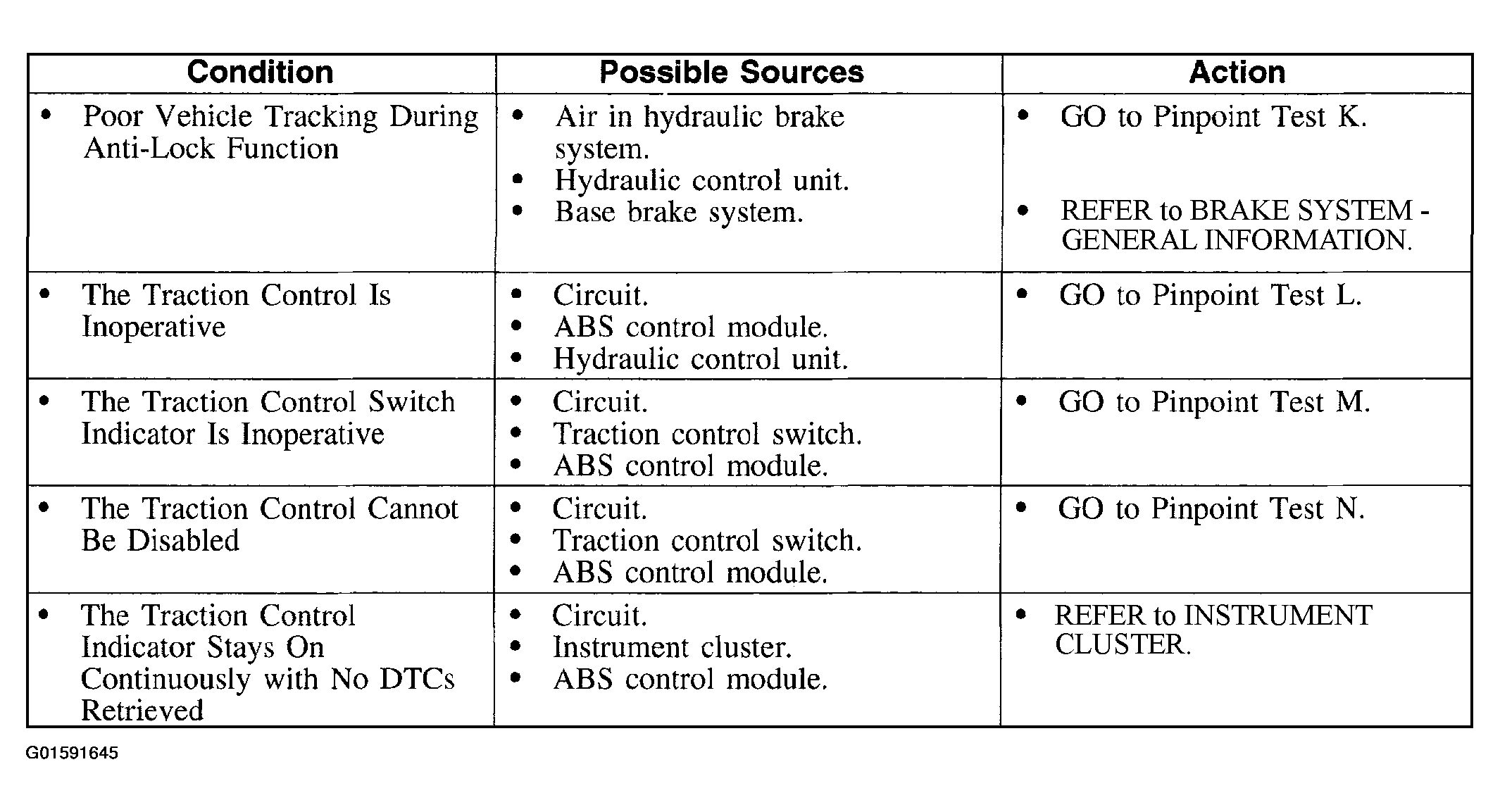

Fig 2: Anti-Lock Control Problem Symptoms Chart (2 Of 2)
G01591645Courtesy of FORD MOTOR CO.
