Fuel Line Fittings - Push Connect: Connect

  1. Connect the fitting.
    • Lubricate the tube end with engine oil to ease assembly.
    • Align the tube to the fitting and push until a click is heard.

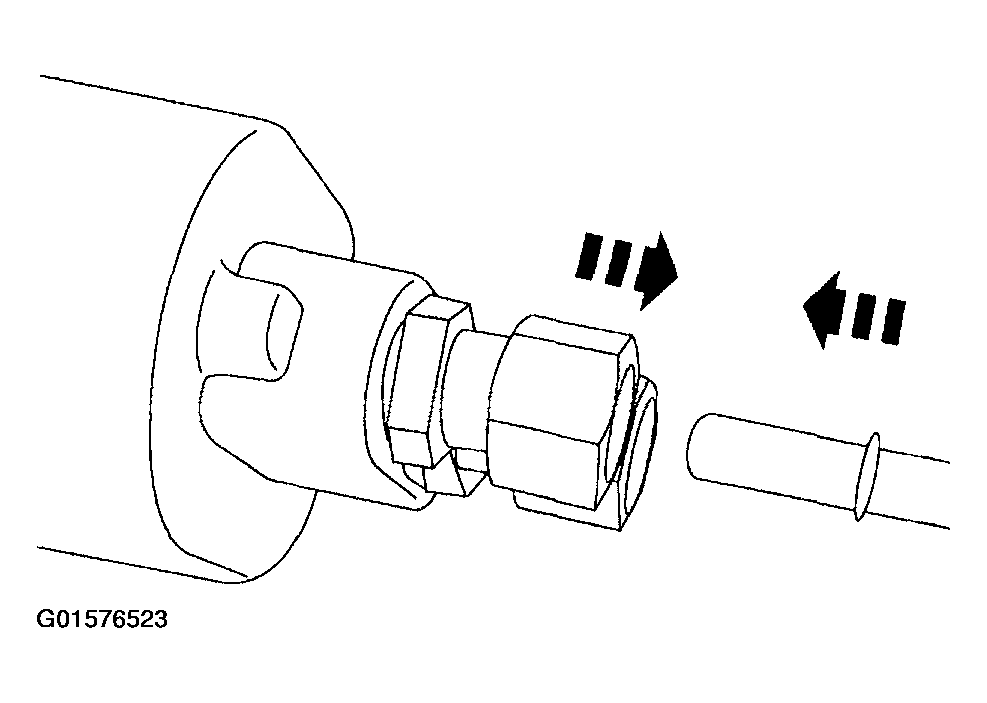

      Fig 1: Aligning Tube To Fitting
      G01576523Courtesy of FORD MOTOR CO.
  2. Install the safety clip.
  1. Pull on the fitting to make sure it is fully engaged.
  2. Install the safety clip.

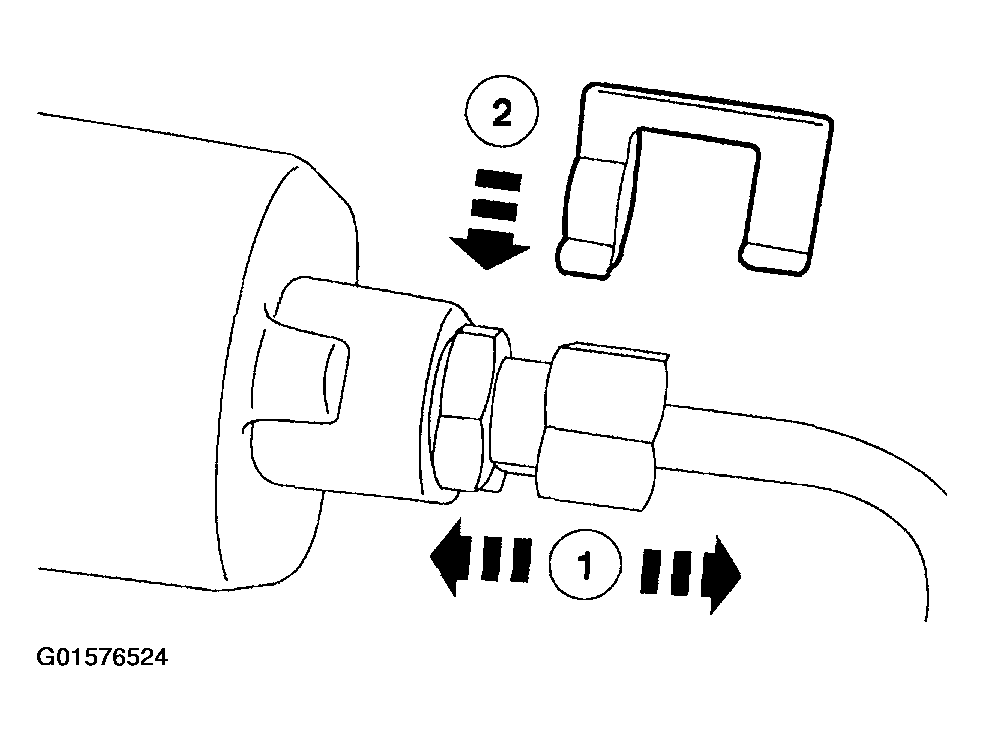

    Fig 2: Installing Safety Clip
    G01576524Courtesy of FORD MOTOR CO.
