Pinpoint Test L: The Traction Control Is Inoperative

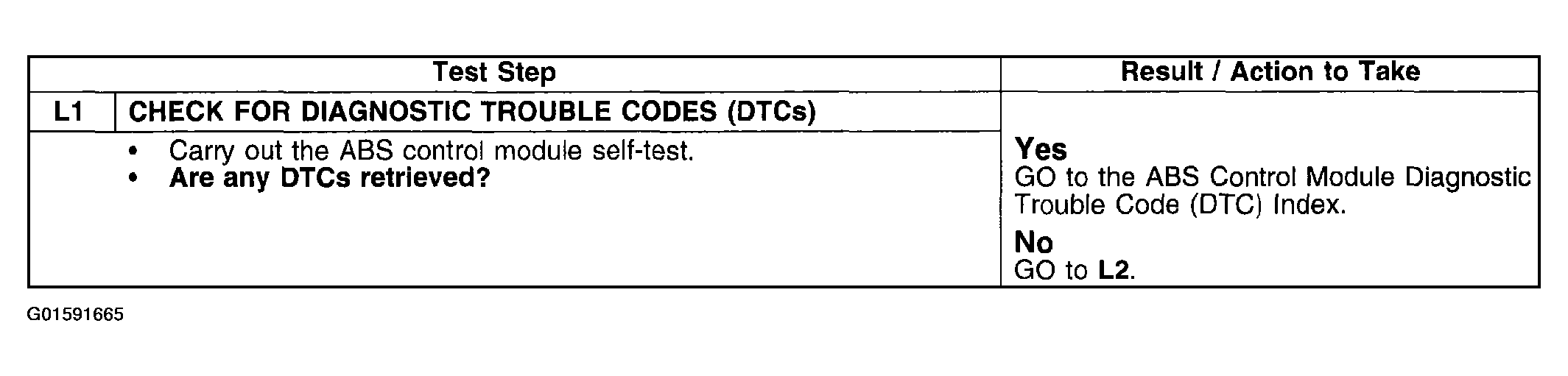

Fig 1: Pinpoint Test L: Traction Control Inoperative (Steps L1)

Courtesy of FORD MOTOR CO.

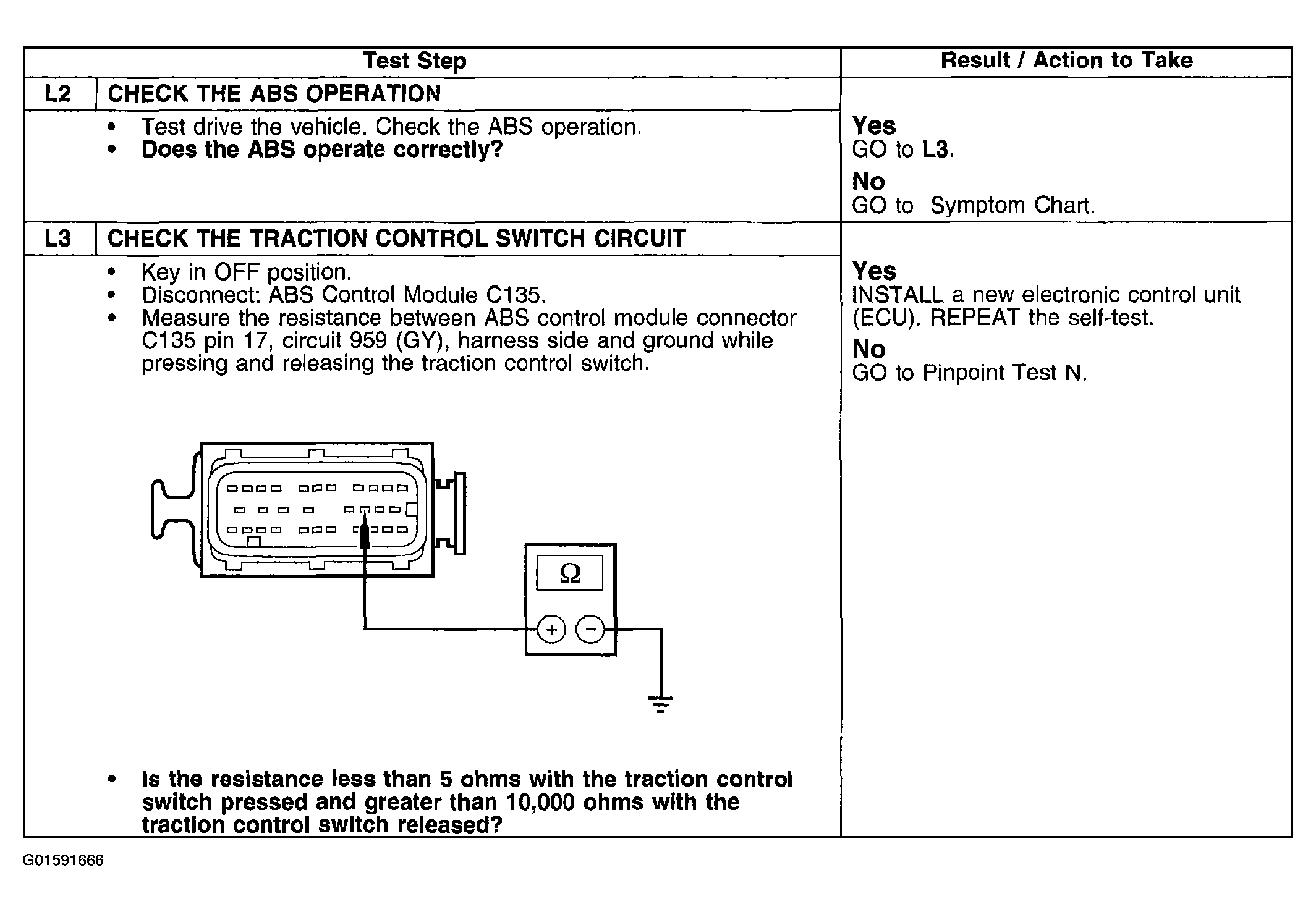

Fig 2: Pinpoint Test L: Traction Control Inoperative (Steps L2-L3)

Courtesy of FORD MOTOR CO.
